House plan Bothwell (3415)
Beautiful country house plan with 9' ceiling, large family room
View the size of the rooms and height of the ceilings

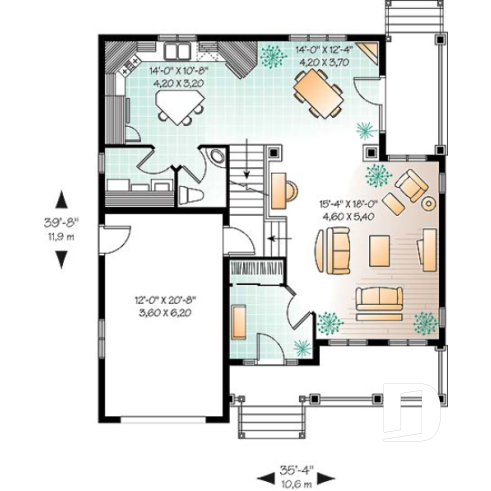

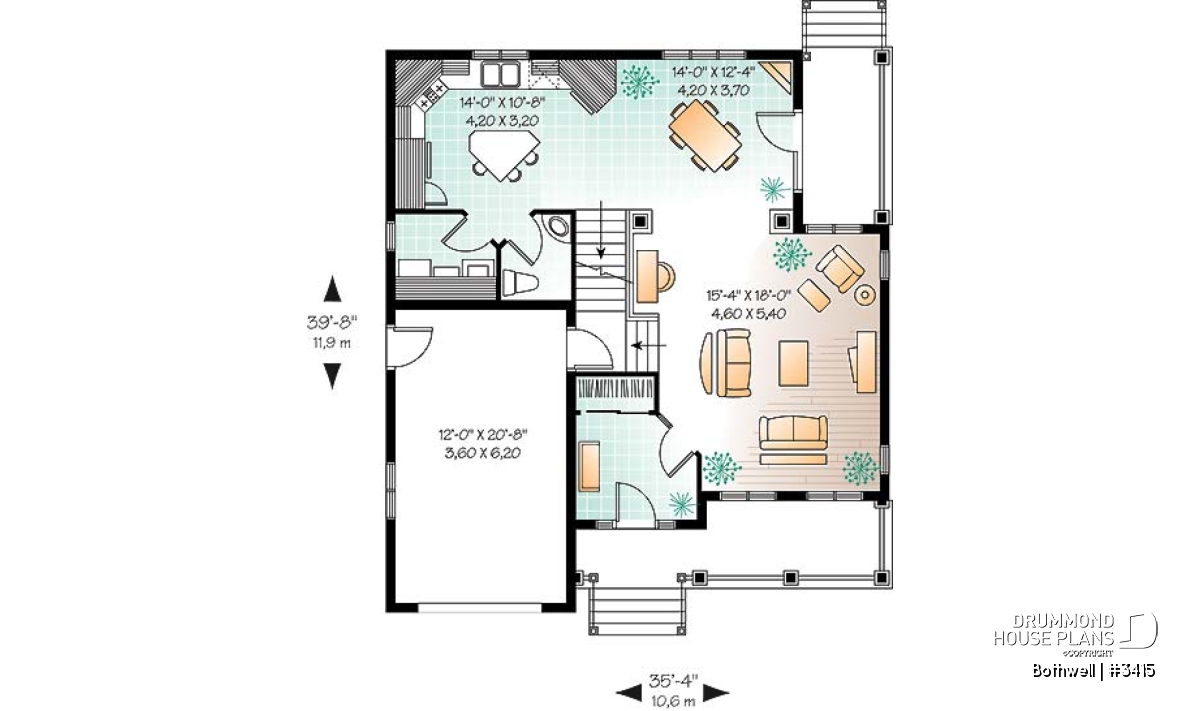

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 6'2" | ~ 9'0" |
| Kitchen | 14'0" x 10'8" | ~ 9'0" |
| Dining room | 14'0" x 12'4" | ~ 9'0" |
| Living room | 15'4" x 18'0" | ~ 9'0" |
| Foyer | 8'8" x 7'4" | ~ 9'0" |
| Utility room | 7'0" x 6'0" | ~ 9'0" |
| Garage | 12'0" x 20'8" | ~ 8'11" |
| Porch | 22'2" x 6'0" | N/A |
| Porch | 6'2" x 12'6" | N/A |
| Porch | 9'8" x 5'0" | N/A |

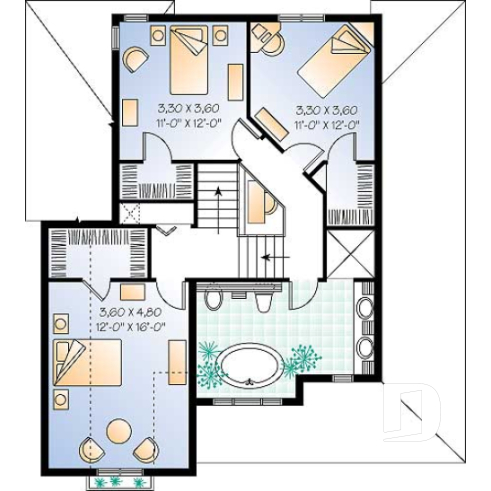

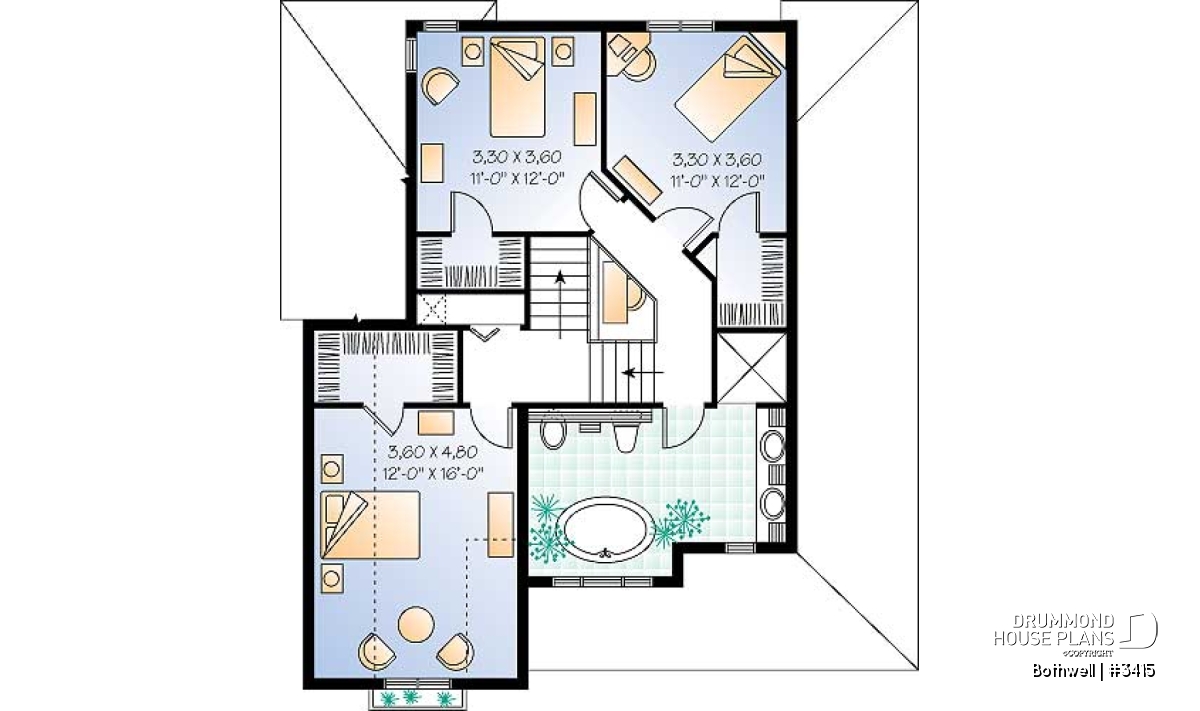

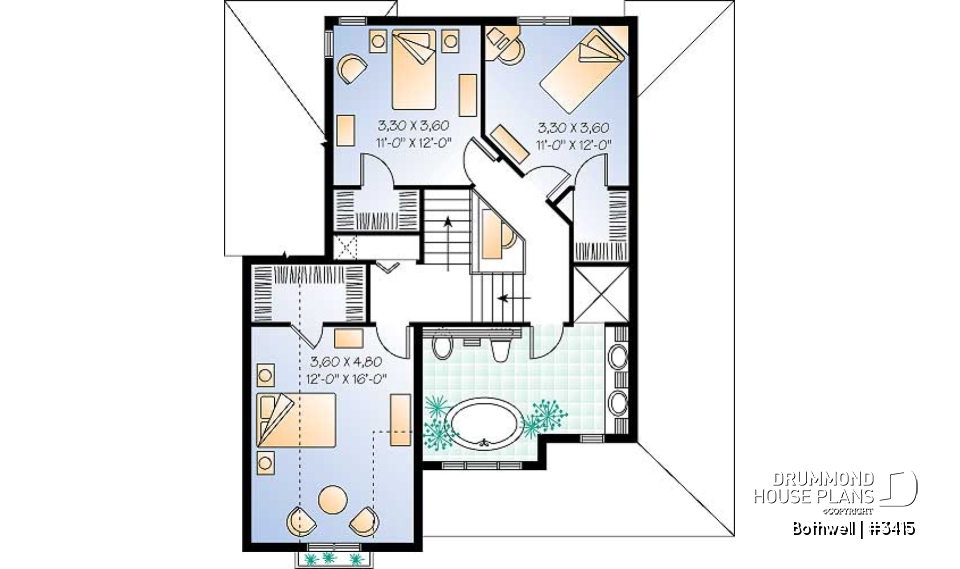

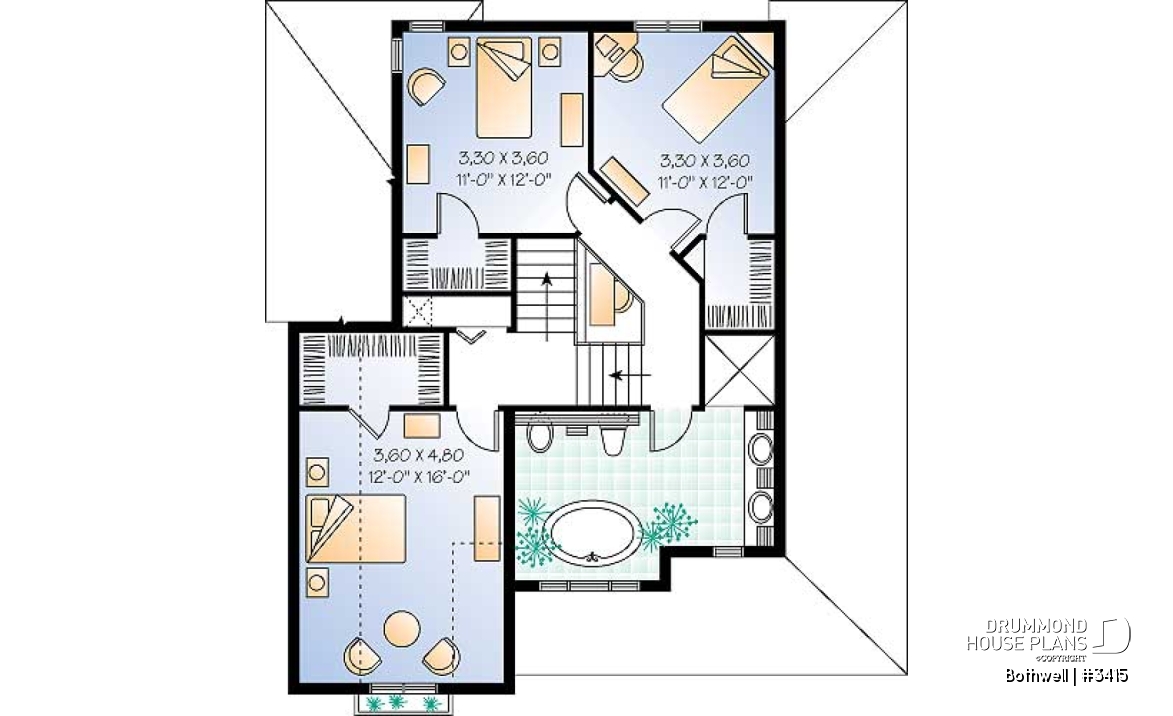

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 15'4" x 8'0" | ~ 8'0" |
| Bedroom | 12'0" x 16'0" | ~ 9'2" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Linen | 6'4" x 1'8" | ~ 8'0" |
General specifications
| Total living area | 1844 sq.ft. |
| 1st level | 896 sq.ft. |
| 2nd level | 948 sq.ft. |
| Width | 35'4" |
| Depth | 39'8" |
| Ridge height from top of foundation | 36'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | E |
Rooms specifications

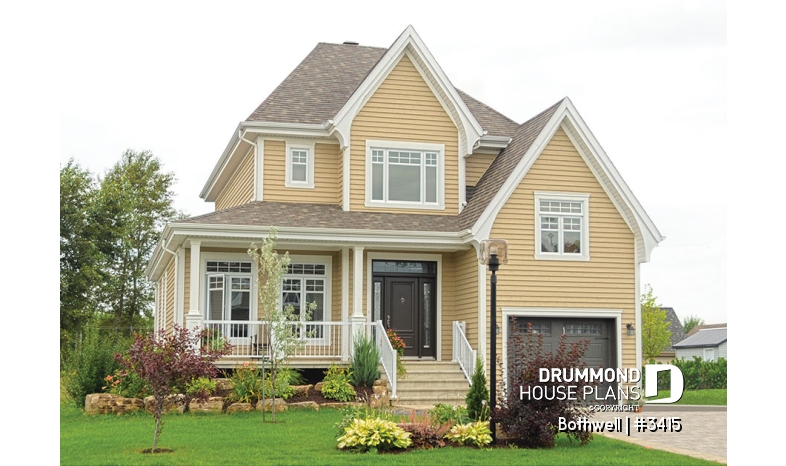

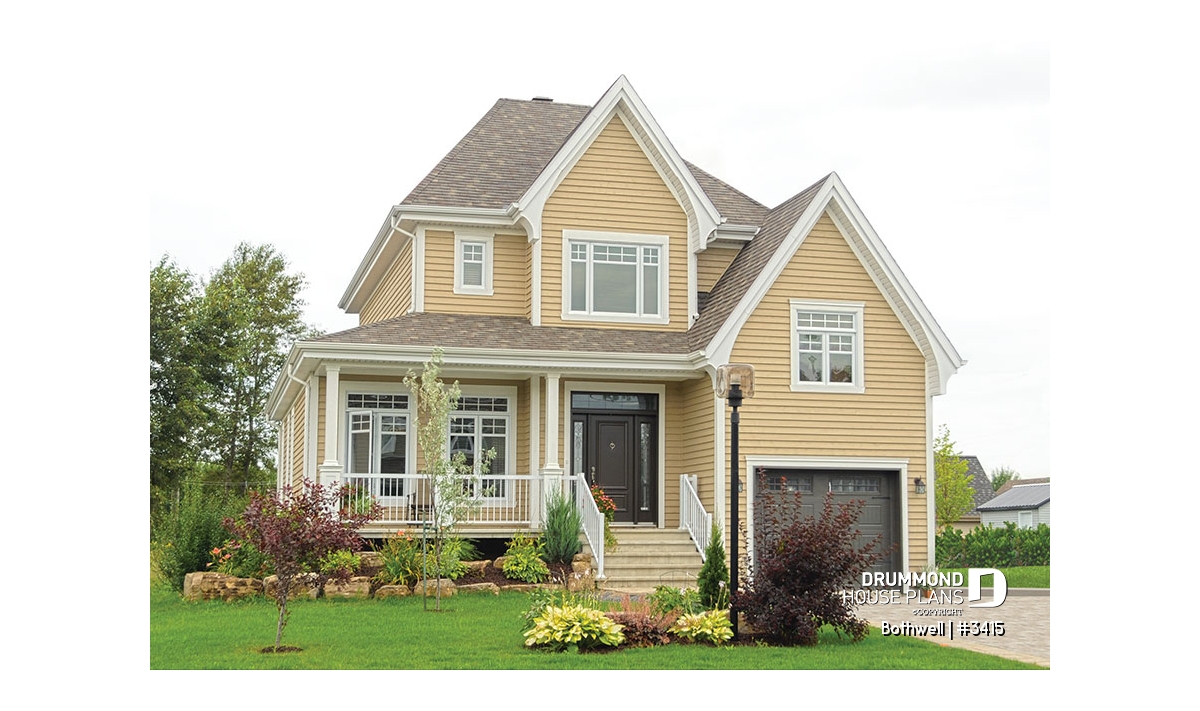

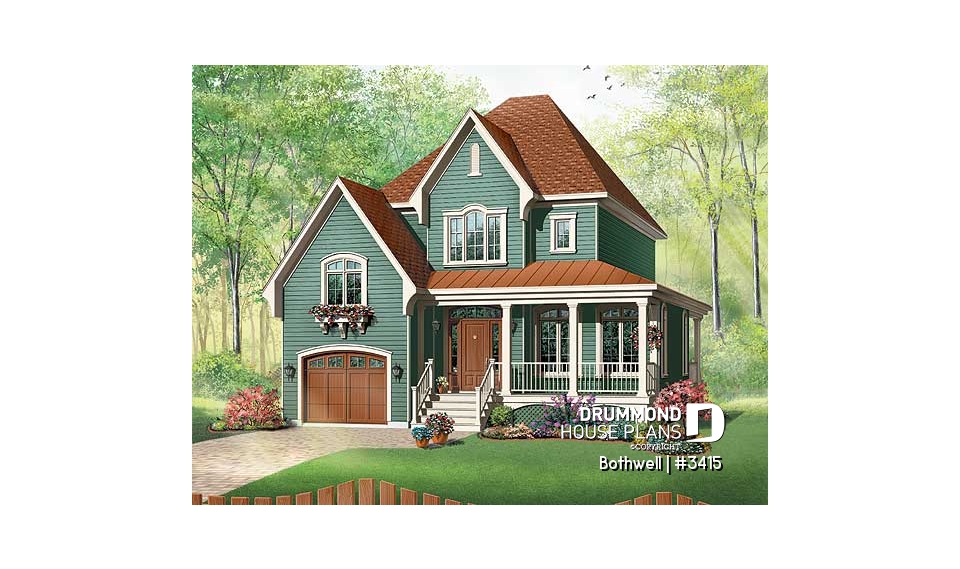

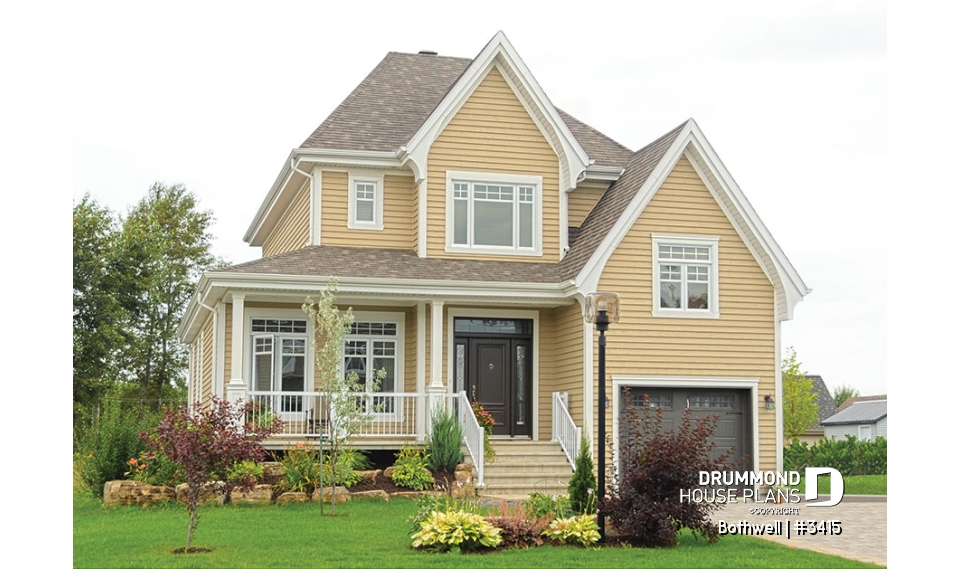

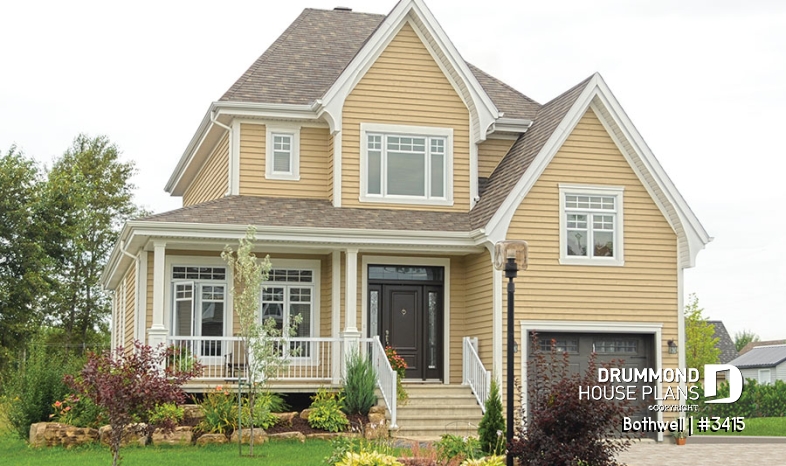

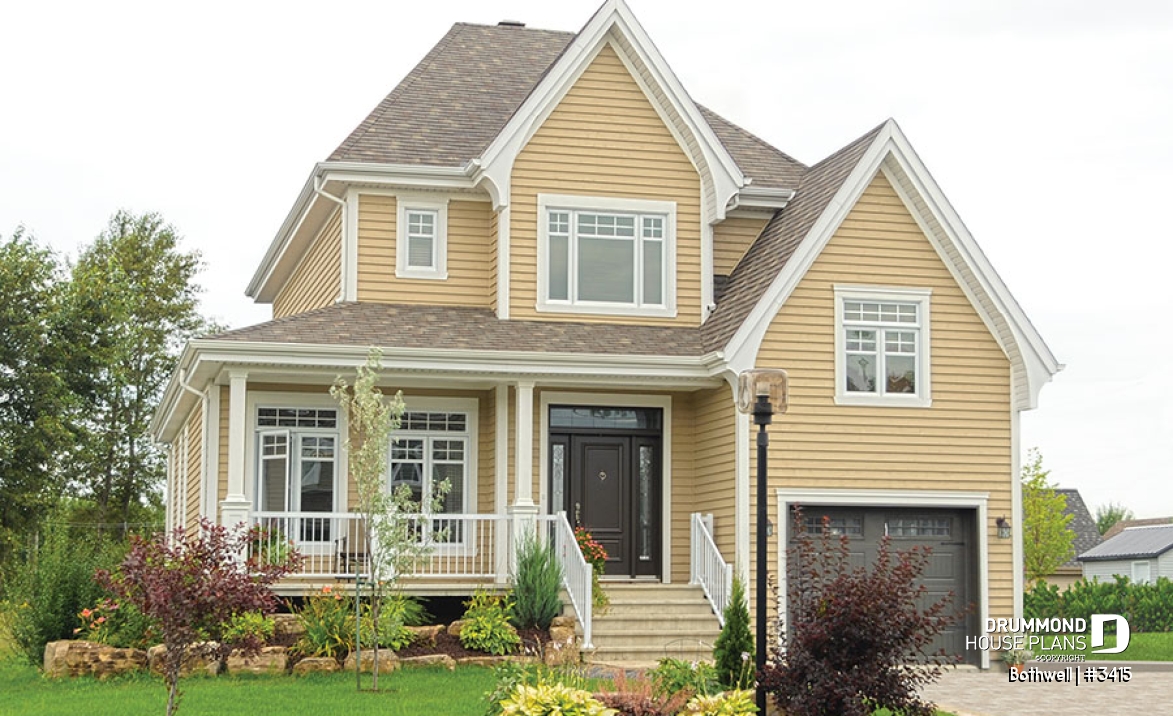

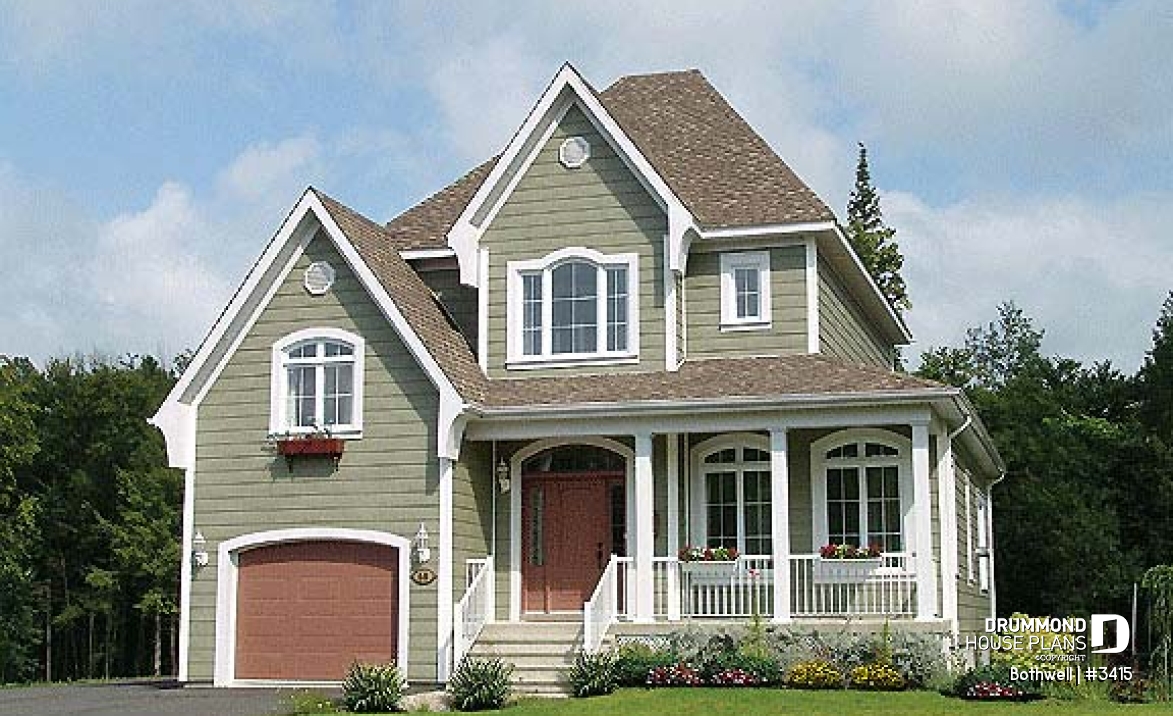

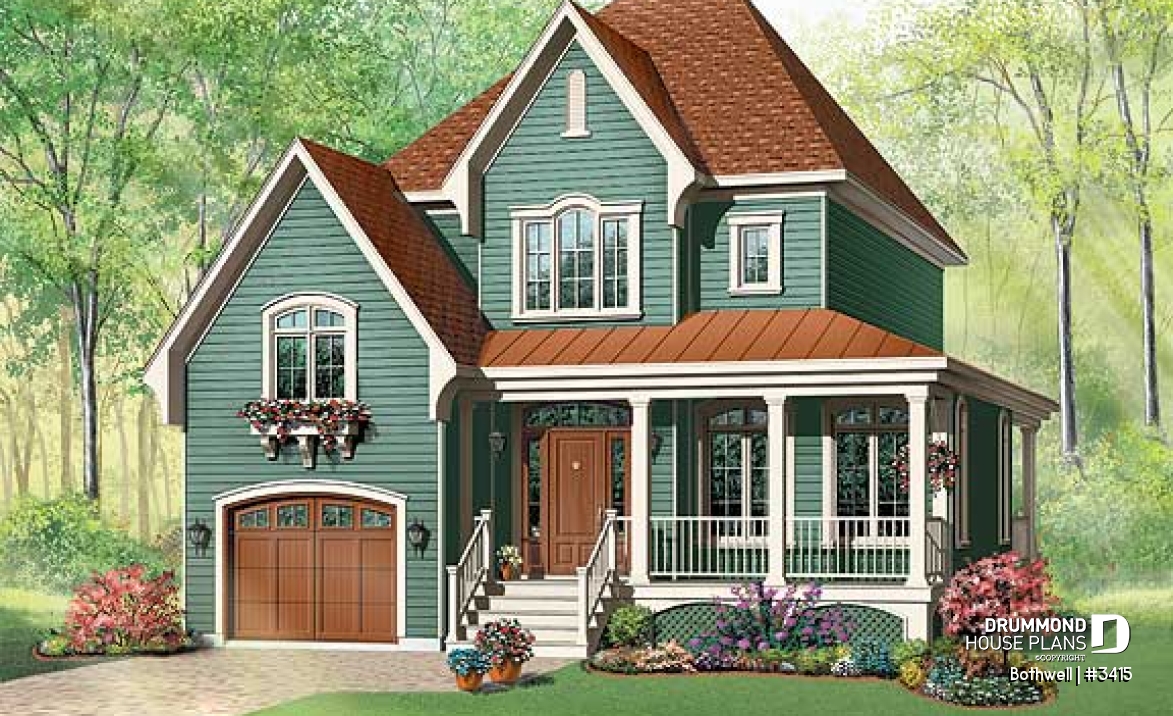

front
This color version might have decorative elements that are not available on base plan.

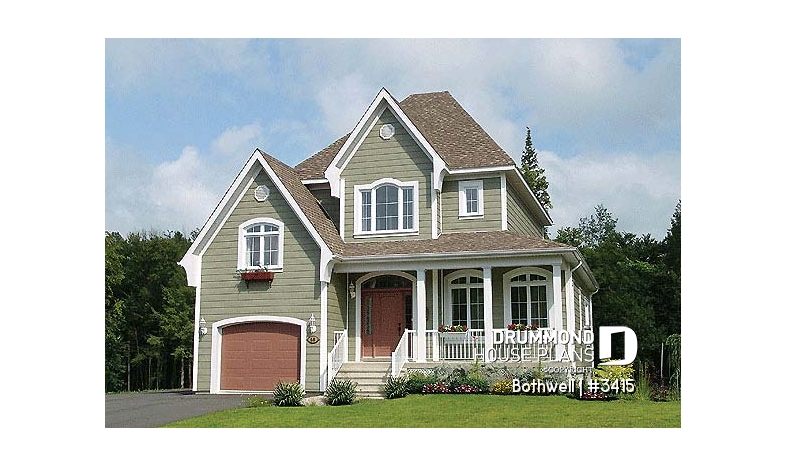

front
This color version might have decorative elements that are not available on base plan.

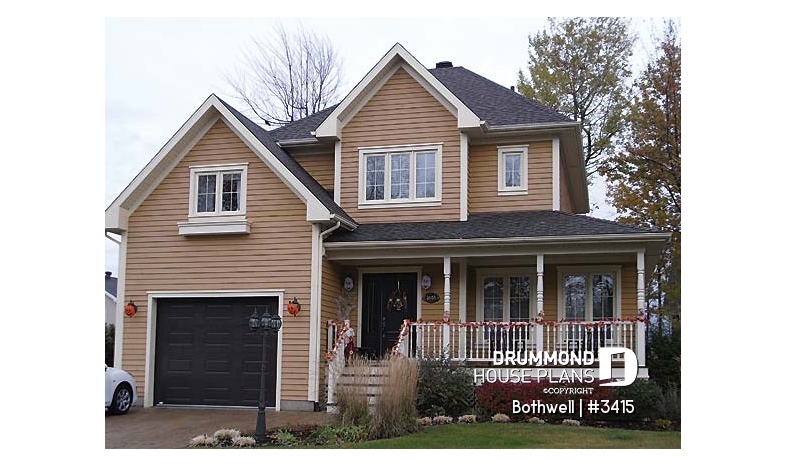

front
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
A Most Remarkable Interior
Designed to answer to the requirements and building methods of contractors in new residential developments, this model has still much more to offer.
So, in addition to the lowered garage which simplifies things for builders, this cottage proposes two covered galleries, one at the front and the other at the rear attached to the dining room.
The main level in itself is all the rage with a 9 foot ceiling throughout, a large entrance foyer, a living room with windows on three façades for maximum natural lighting, a very adequate dining room, a kitchen with corner cabinetry and central island/lunch counter and a laundry room which is independent from a convenient half-bath.
On the second level, on two different landings, we first come to a very spacious master bedroom with a ceiling sloping towards a flat ceiling reaching 9 feet for a very particular cachet and, on the next landing, a vast bathroom with large well dissimulated shower, comfortable bathtub, double vanity sinks, toilet and bidet. Not to be outdone, are two just as impressive secondary bedrooms, each with a large walk-in type closet.
Distinctive elements
9 foot ceiling on main level, spacious family room., flower box., covered front and back porches, decorative mouldings, dual sinks and hot tub in 2nd level bathroom.
Plan feature(s)
Mezzanine, Island, Gound floor laundry room, Planning desk, Entrance hall, Separate bath and shower, Double sinks, Ceiling over 8', Sloped ceiling
