Economical 2 bedroom single storey with foyer and laundry area
View the size of the rooms and height of the ceilings

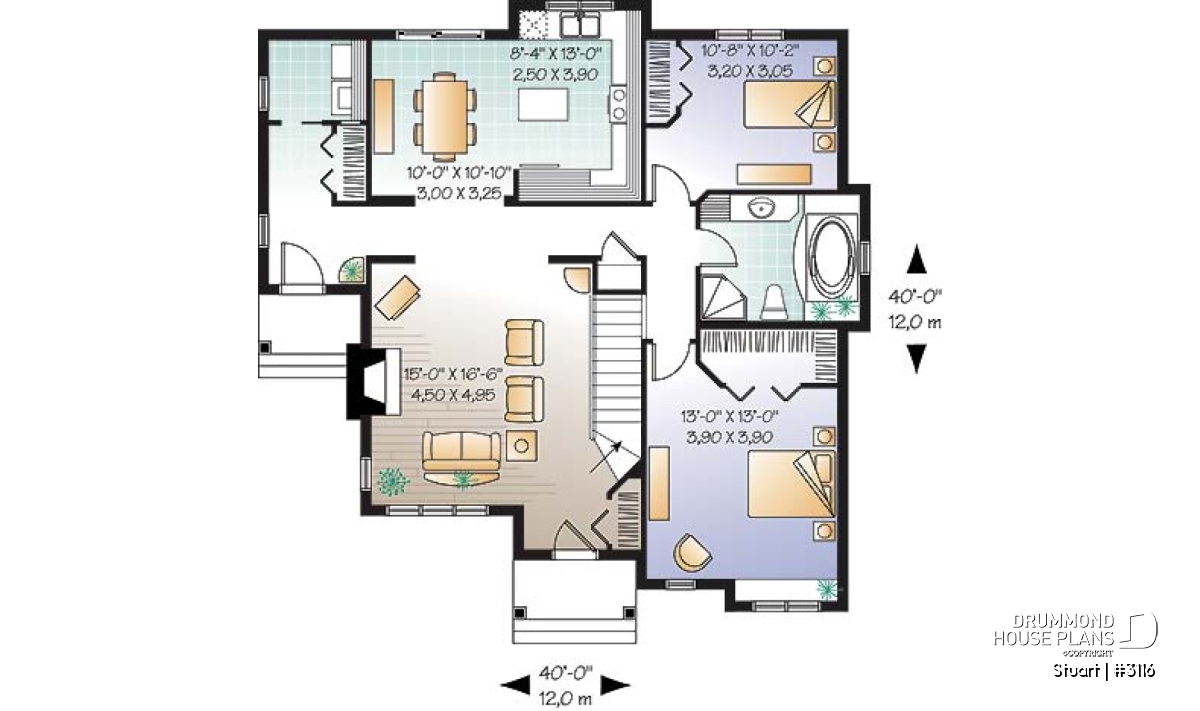

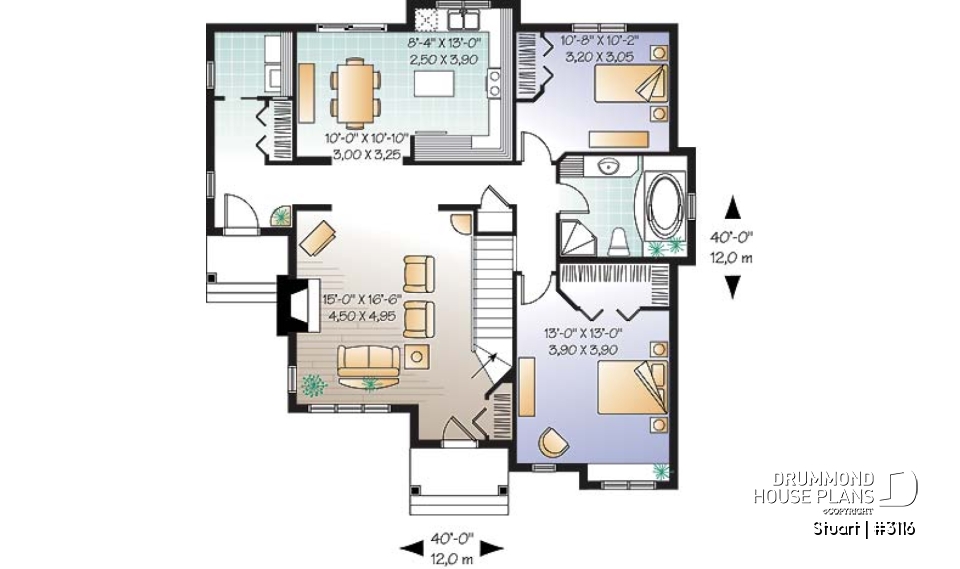

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 8'4" x 13'0" | ~ 9'0" |
| Dining room | 10'0" x 10'10" | ~ 9'0" |
| Living room | 15'0" x 16'6" | ~ 9'0" |
| Foyer | 5'8" x 4'0" | ~ 9'0" |
| Foyer | 6'8" x 5'4" | ~ 9'0" |
| Full bathroom | 10'10" x 8'8" | ~ 9'0" |
| Bedroom | 13'0" x 13'0" | ~ 9'0" |
| Bedroom | 10'8" x 10'0" | ~ 9'0" |
| Laundry room | 6'8" x 5'8" | ~ 9'0" |
| Linen | 3'0" x 2'0" | ~ 9'0" |
| Porch | 7'0" x 4'0" | N/A |
| Porch | 8'4" x 4'0" | N/A |
| Porch | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 1359 sq.ft. |
| 1st level | 1359 sq.ft. |
| Width | 40'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 25'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Distinctive elements
9' ceiling throughout the main floor. Lovely side entry adjoining the laundry room. Large living room with fireplace and cornered fenestration. ``U`` style kitchen with a central island. Nice master bedroom with a bay-window and walk-in closet.
Plan feature(s)
Fireplace, Gound floor laundry room, Island, Separate bath and shower, Ceiling over 8', Walk-in master bed.
Plan architectural style(s)
. Country
