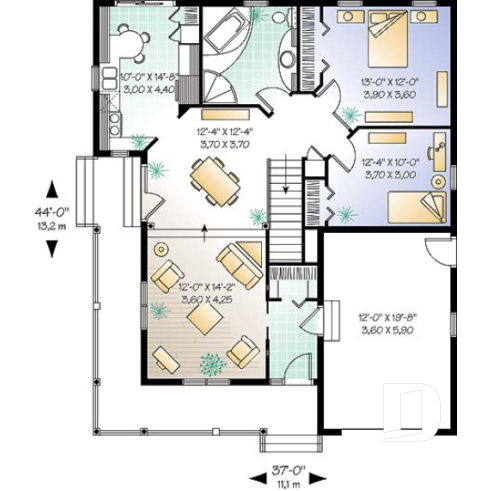

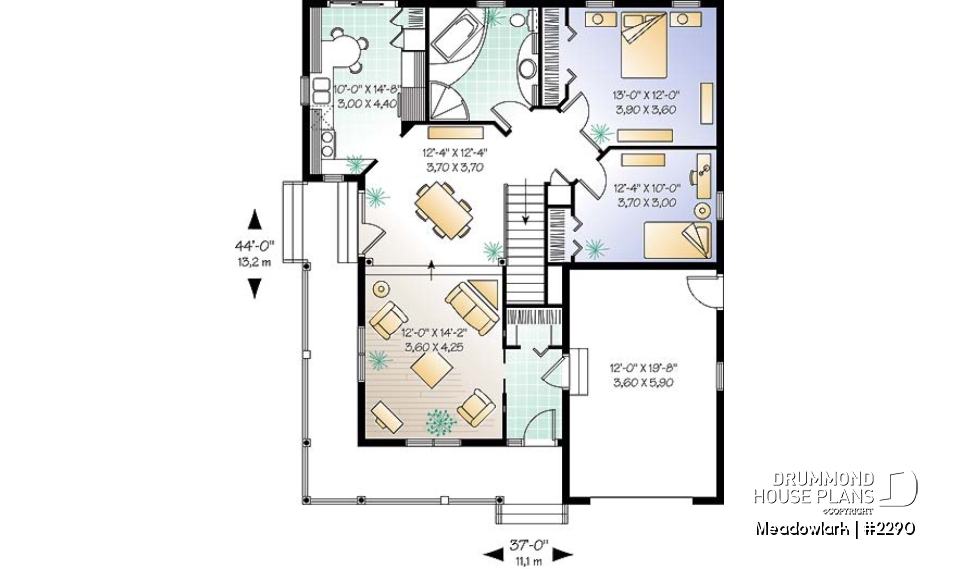

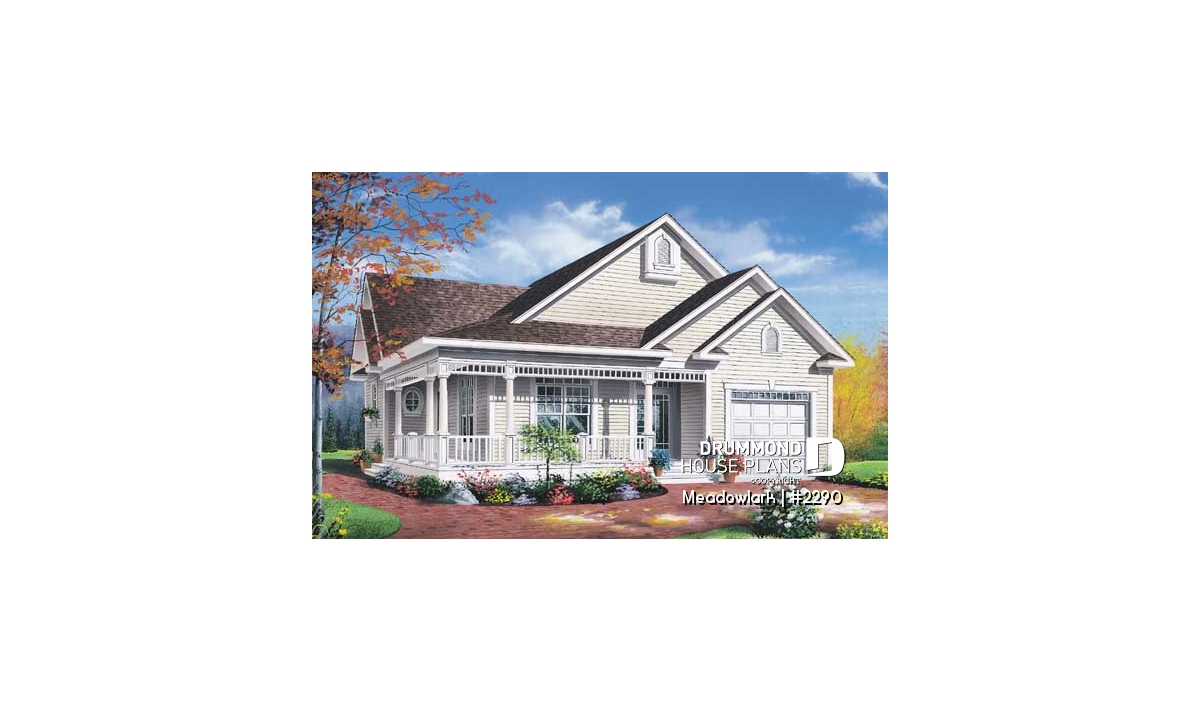

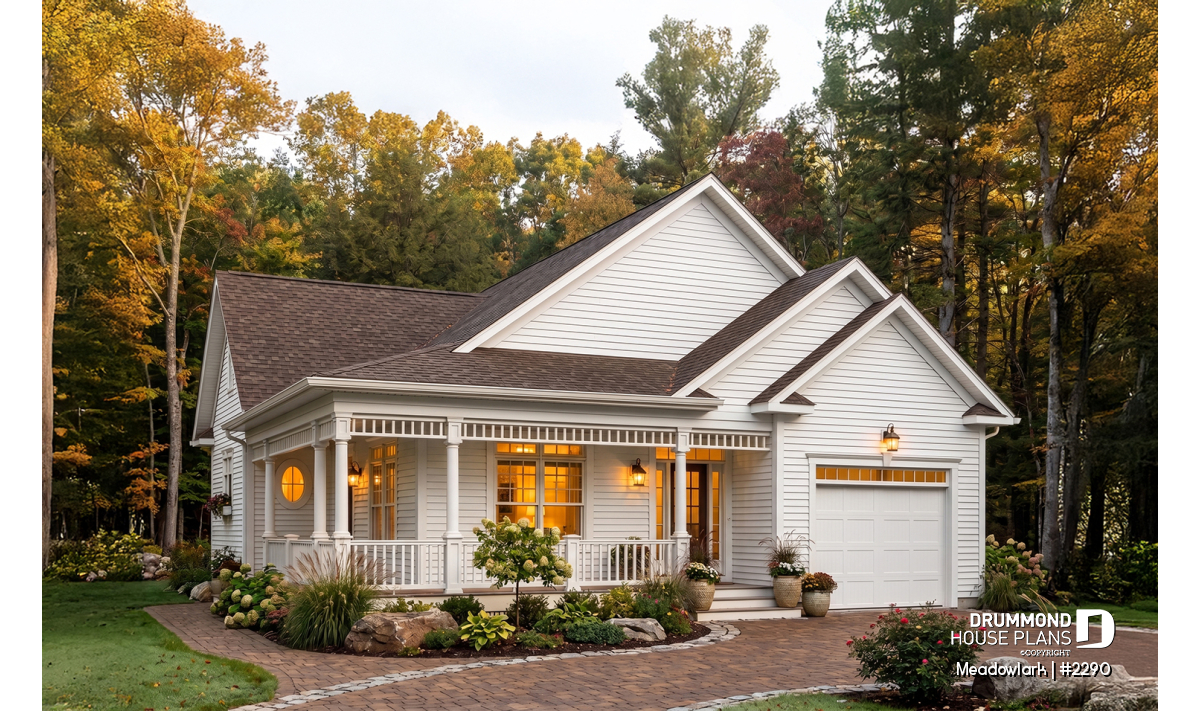

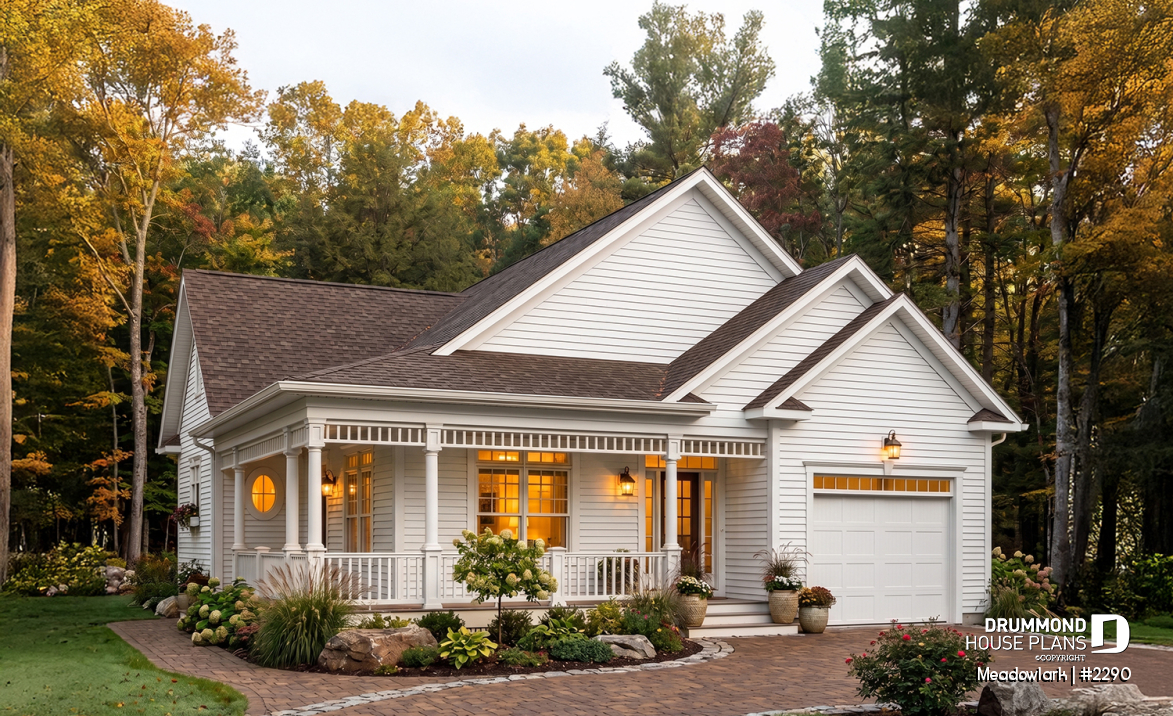

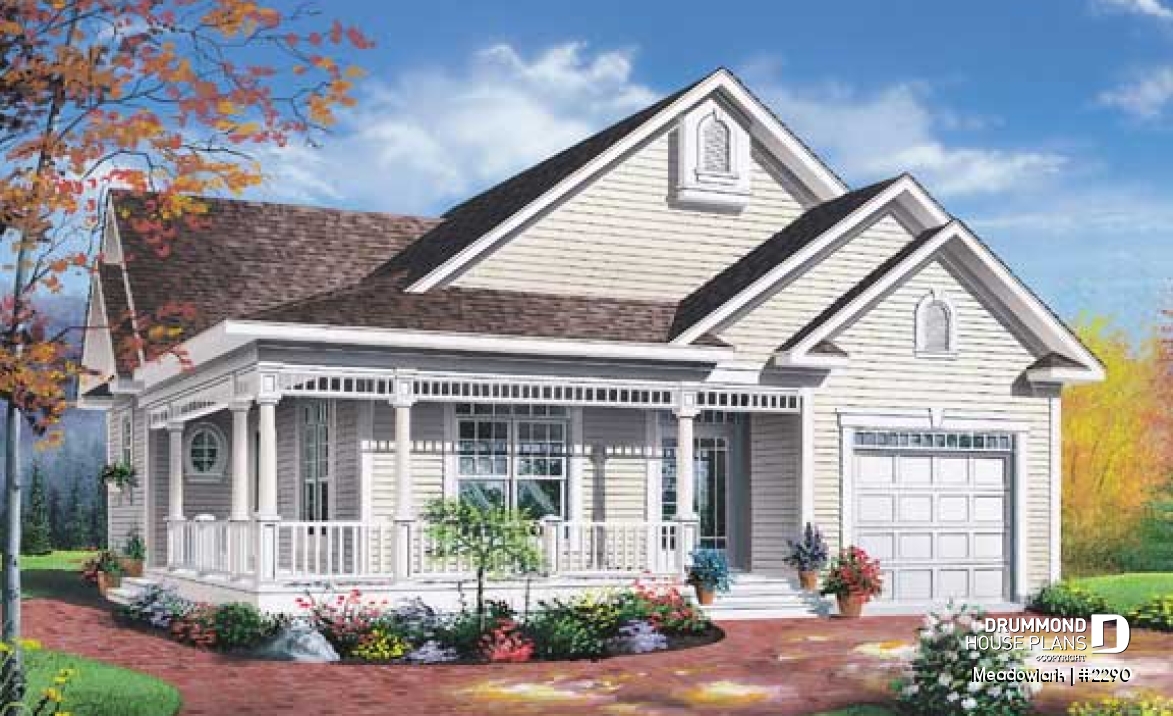

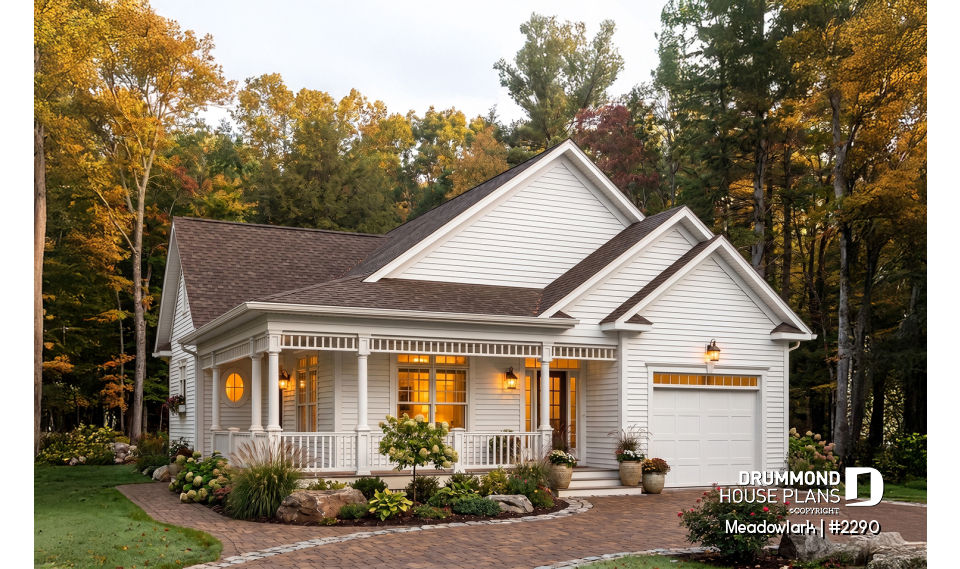

Low budget ranch style home with garage, 2 bedrooms, one-car garage, unfinished daylight basement

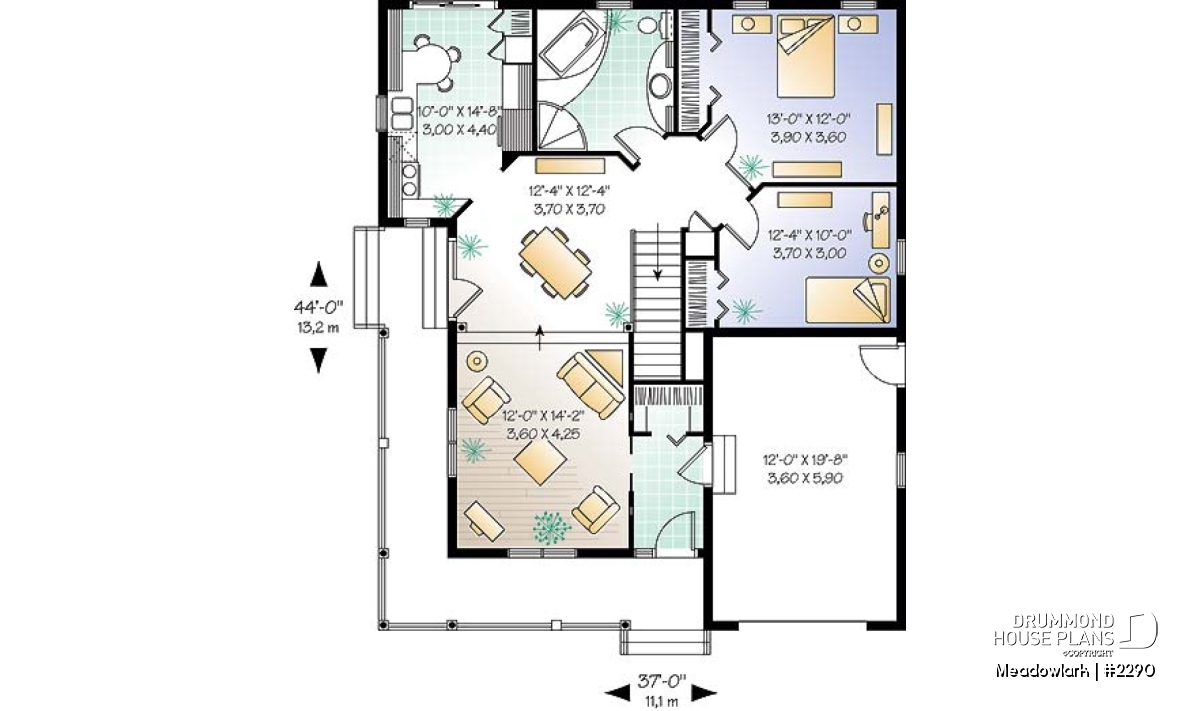

View the size of the rooms and height of the ceilings
|Full bathroom||9'6" x 10'0"||~ 8'0"|
|Kitchen||10'0" x 14'8"||~ 8'0"|
|Dining room||12'4" x 12'4"||~ 8'0"|
|Living room||12'0" x 14'2"||~ 9'0"|
|Bedroom||13'0" x 12'0"||~ 8'0"|
|Closet||2'0" x 8'8"||~ 8'0"|
|Bedroom||12'4" x 10'0"||~ 8'0"|
|Closet||2'0" x 4'6"||~ 8'0"|
|Linen||2'0" x 2'0"||~ 8'0"|
|Foyer||5'0" x 8'0"||~ 9'0"|
|Closet||5'0" x 3'0"||~ 9'0"|
|Garage||12'0" x 19'8"||~ 10'4"|
|Porch||23'0" x 5'0"||N/A|
|Porch||5'0" x 23'0"||N/A|
|Deck||10'0" x 10'0"||N/A|
|Total living area||1124 sq.ft.|
|1st level||1124 sq.ft.|
|Ridge height from top of foundation||23'8"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab|
|Builder price code||B|
|Garage type||One-car garage (274 sq.ft.)|
|Living bonus space||-|
Other useful information on this plan
