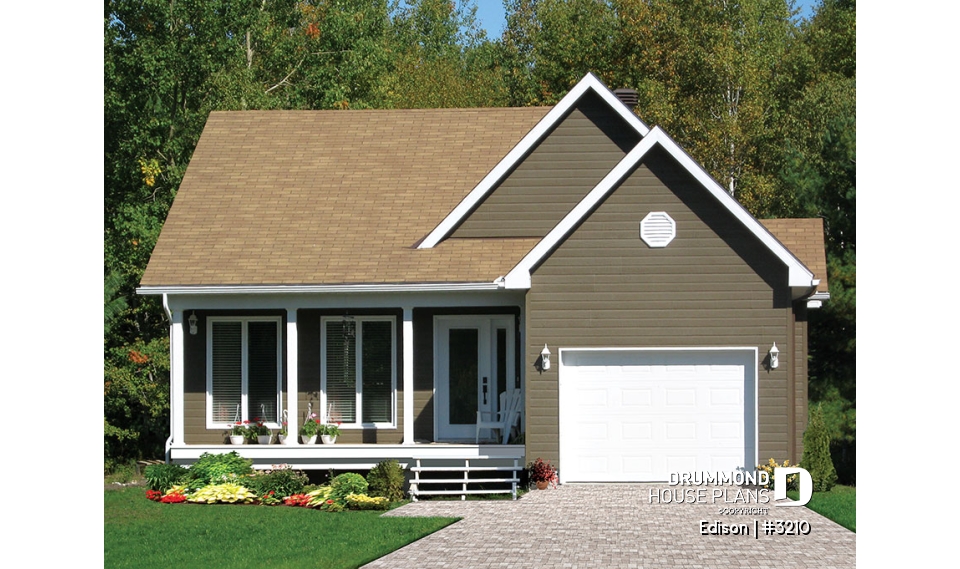

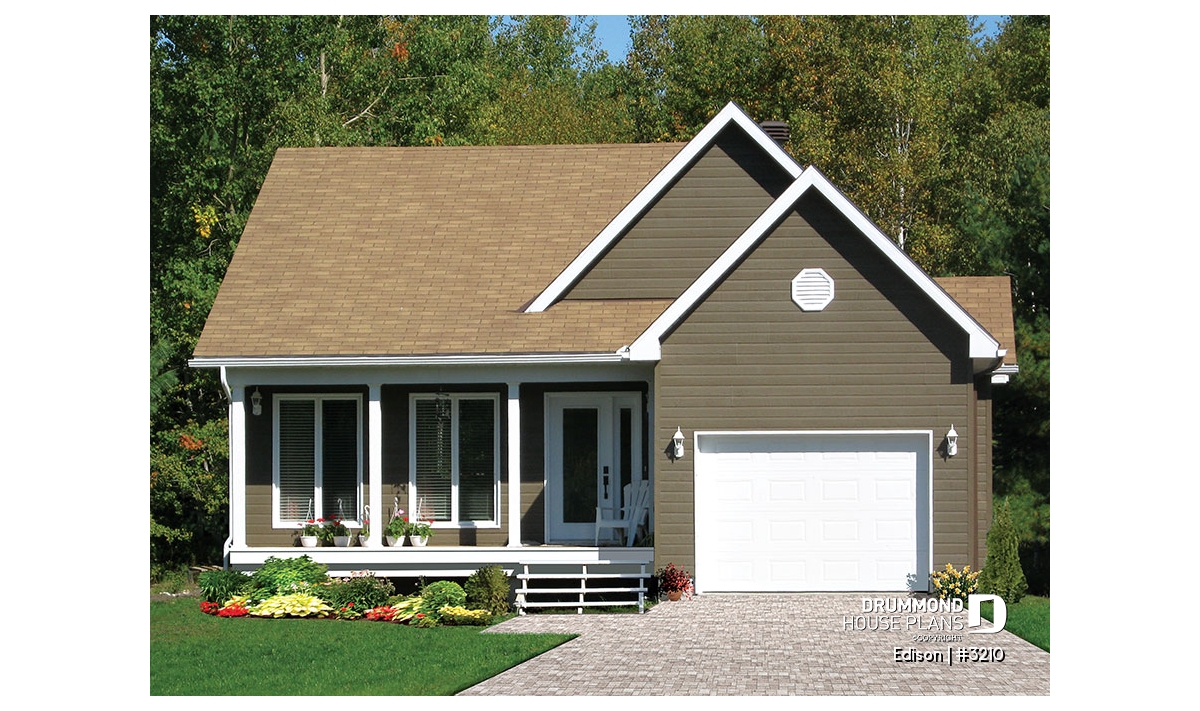

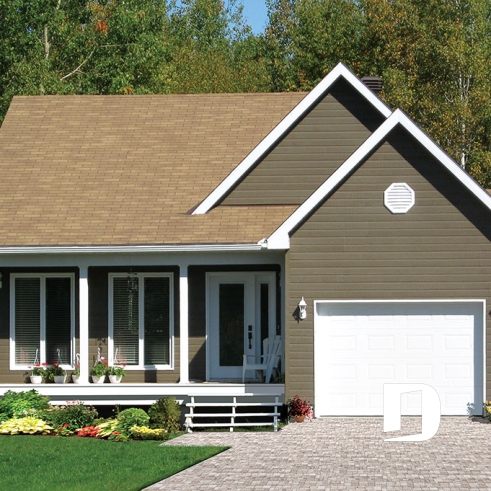

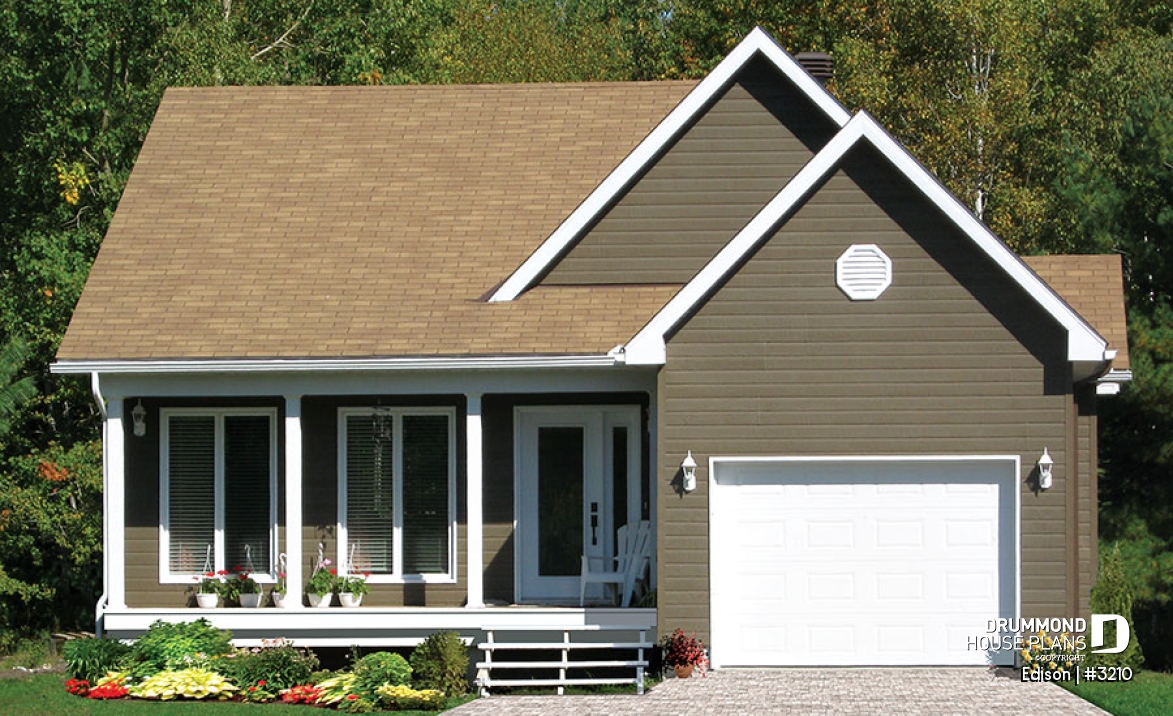

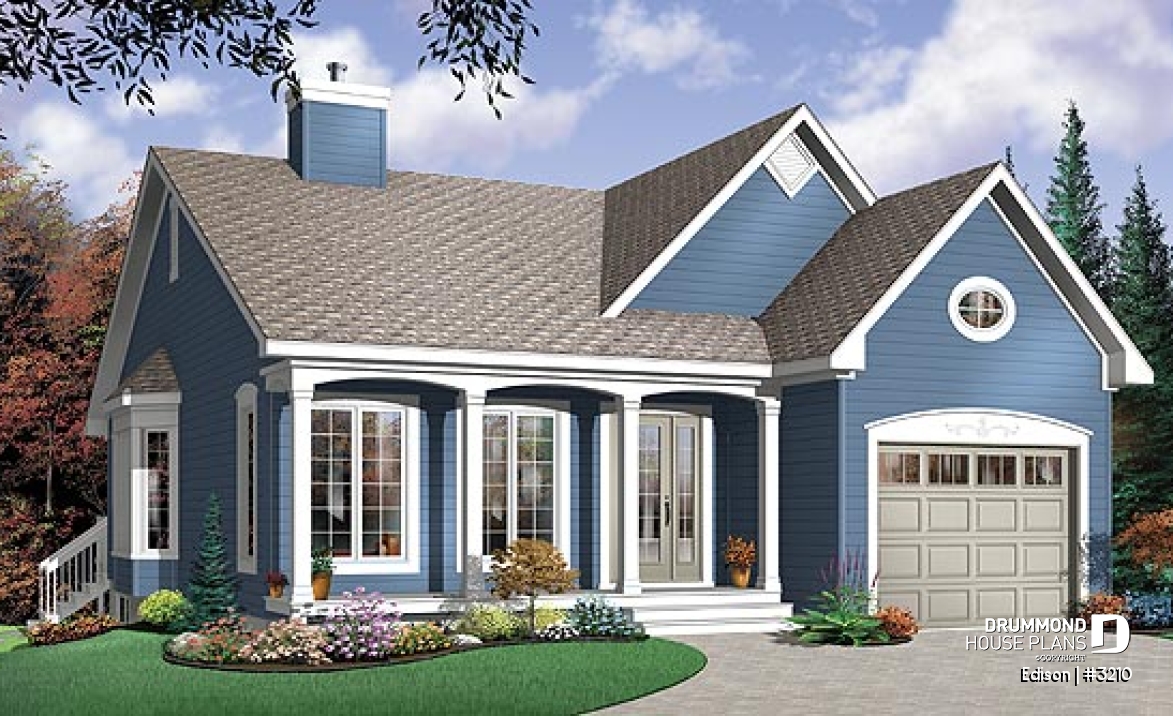

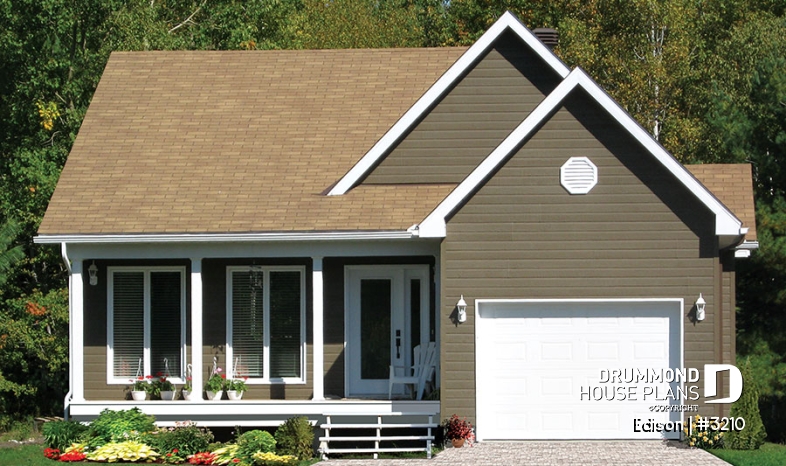

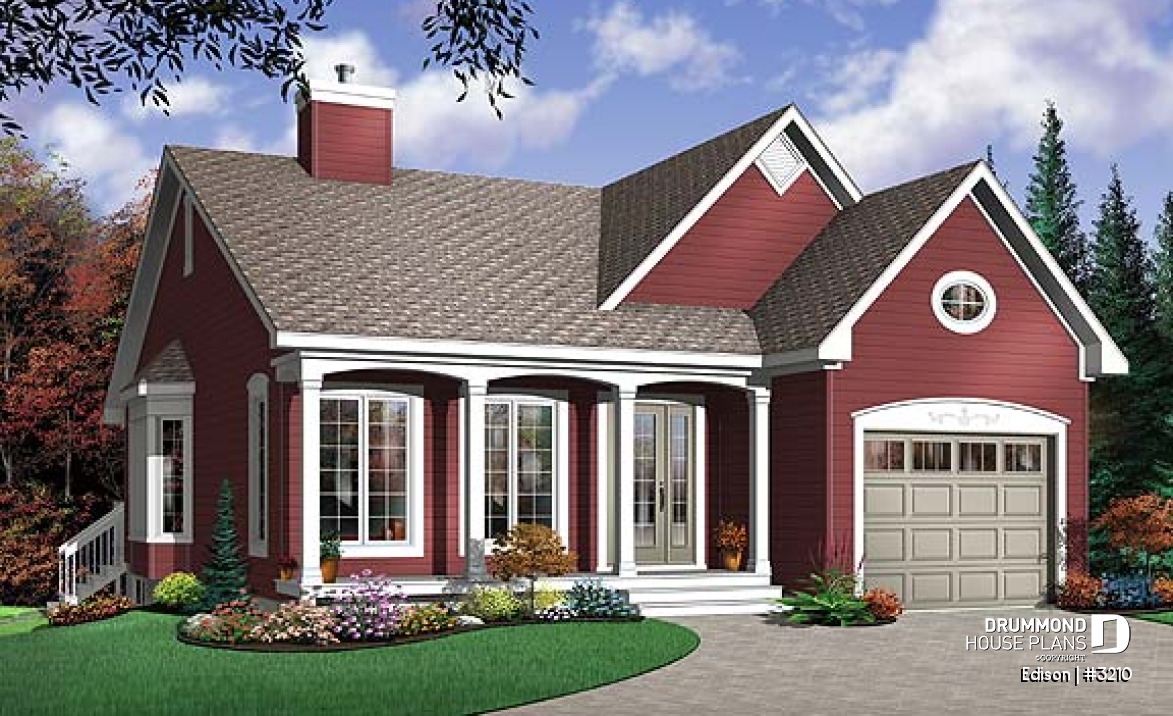

House plan Edison (3210)
Affordable traditional ranch bungalow, 2 bedrooms, lots of natural light, garage, good starter house plan

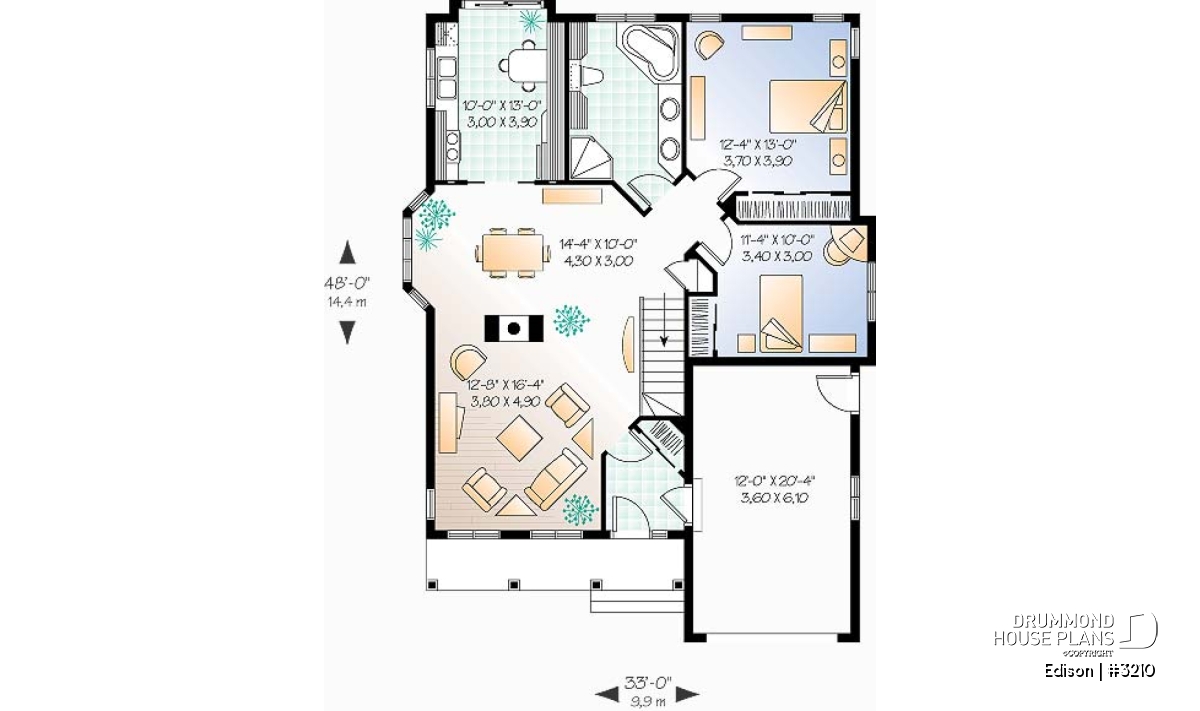

View the size of the rooms and height of the ceilings

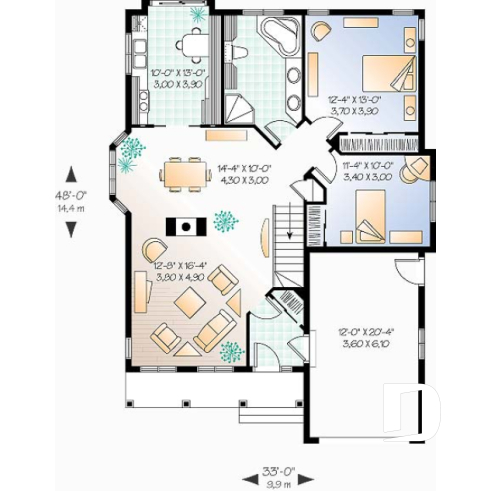

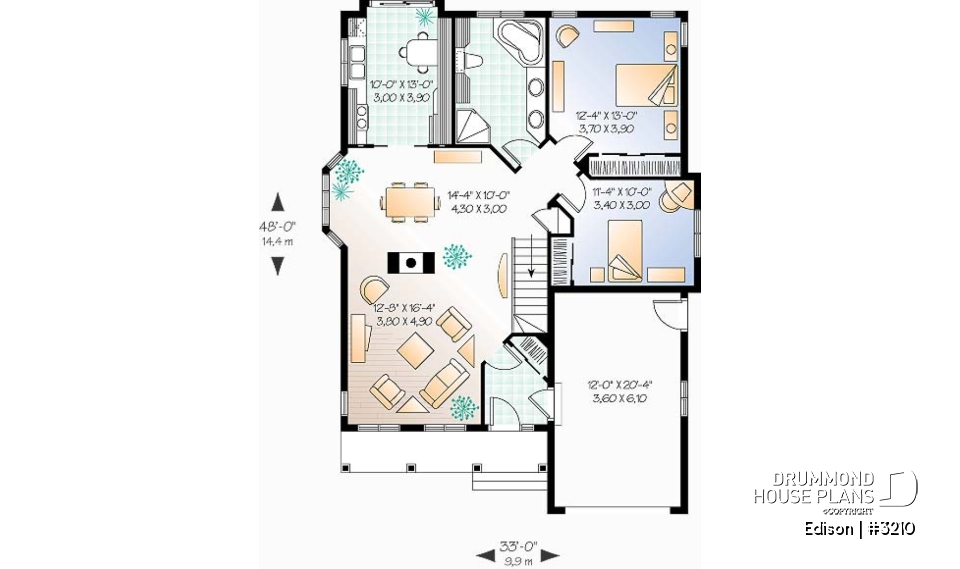

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 12'0" | ~ 8'0" |
| Kitchen | 10'0" x 13'0" | ~ 8'0" |
| Dining room | 14'4" x 10'0" | ~ 8'0" |
| Living room | 12'8" x 16'4" | ~ 8'0" |
| Bedroom | 12'4" x 13'0" | ~ 8'0" |
| Bedroom | 11'4" x 10'0" | ~ 8'0" |
| Linen | 2'0" x 2'6" | ~ 8'0" |
| Foyer | 6'0" x 7'8" | ~ 8'0" |
| Garage | 12'0" x 20'4" | ~ 9'8" |
| Porch | 7'6" x 4'0" | N/A |
General specifications
| Total living area | 1191 sq.ft. |
| 1st level | 1191 sq.ft. |
| Width | 33'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 21'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Distinctive elements
Covered front balcony, abundant fenestration, access door to garage from foyer, corner bath in bathroom.
Plan feature(s)
Fireplace, Lunch counter, Separate bath and shower, Double sinks, Entrance hall
Plan architectural style(s)
. Traditional, . Ranch, . Country, . American
