Mapleton (2284)

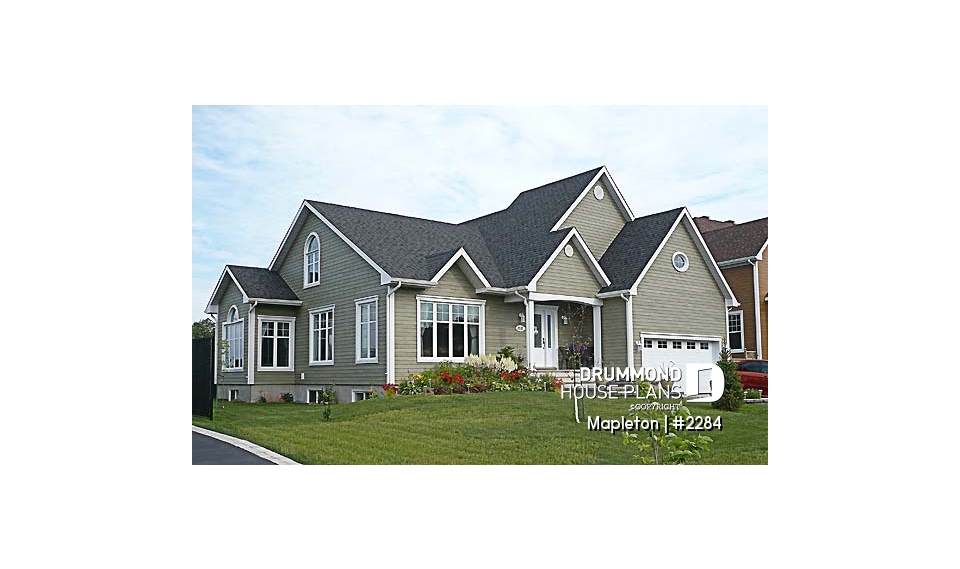

Large ranch style home with 2 bedrooms, garage
View the size of the rooms and height of the ceilings

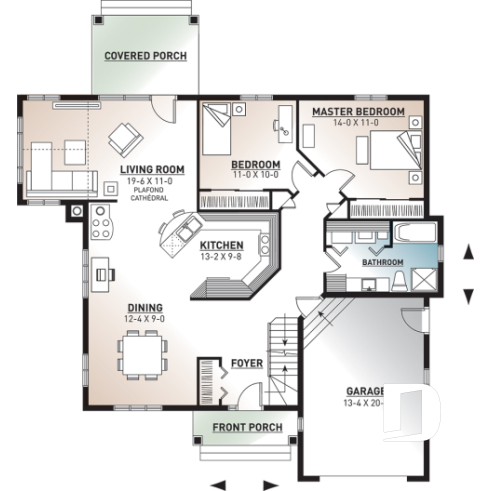

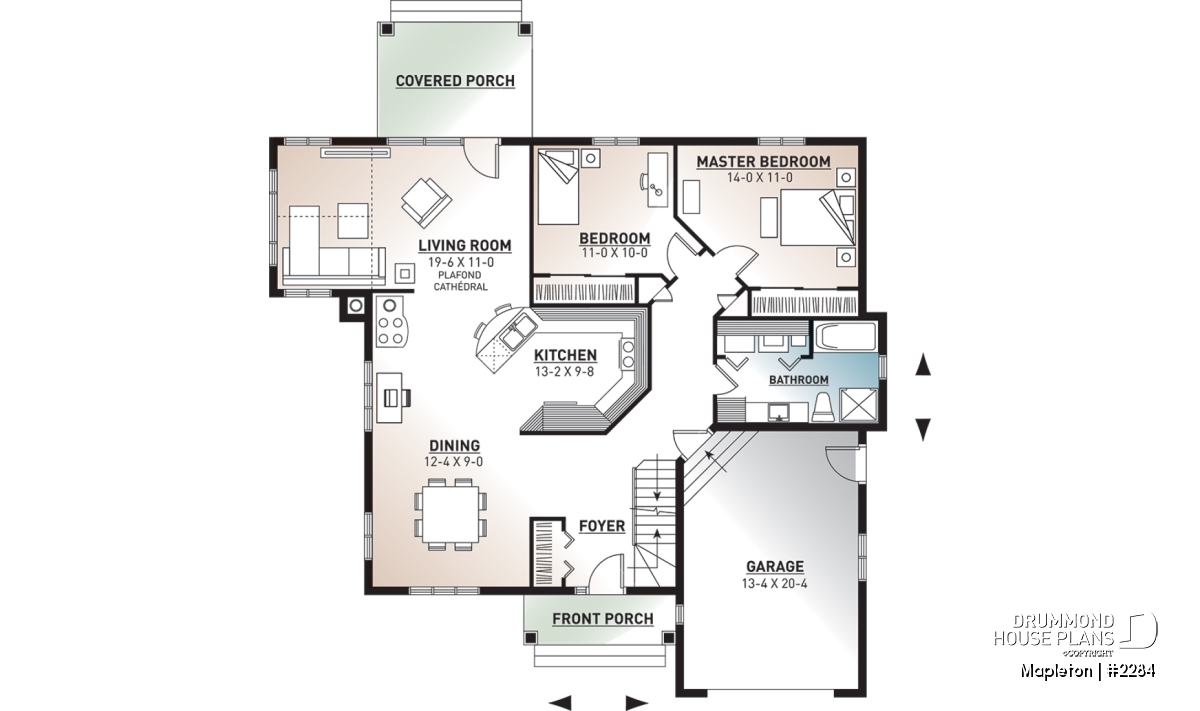

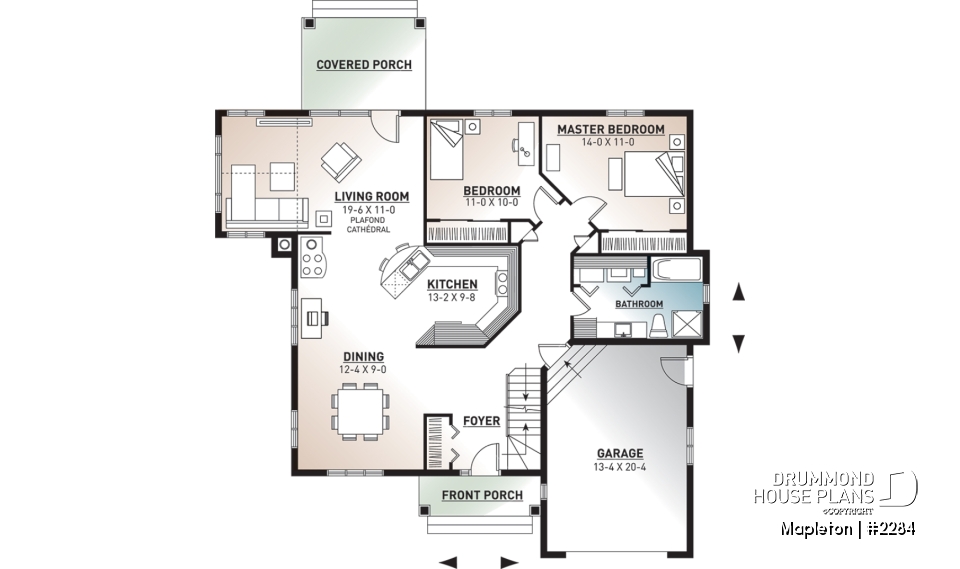

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'3" x 8'0" | ~ 8'0" |
| Kitchen | 13'2" x 9'8" | ~ 8'0" |
| Dining room | 9'0" x 10'0" | ~ 8'0" |
| Living room | 19'6" x 11'0" | ~ 8'0" |
| Bedroom | 14'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Garage | 13'4" x 20'4" | ~ 9'4" |
| Porch | 12'0" x 4'0" | N/A |
| Deck | 12'0" x 8'0" | N/A |
| Foyer | 5'4" x 5'4" | ~ 8'0" |
| Closet | 2'0" x 5'0" | ~ 8'0" |

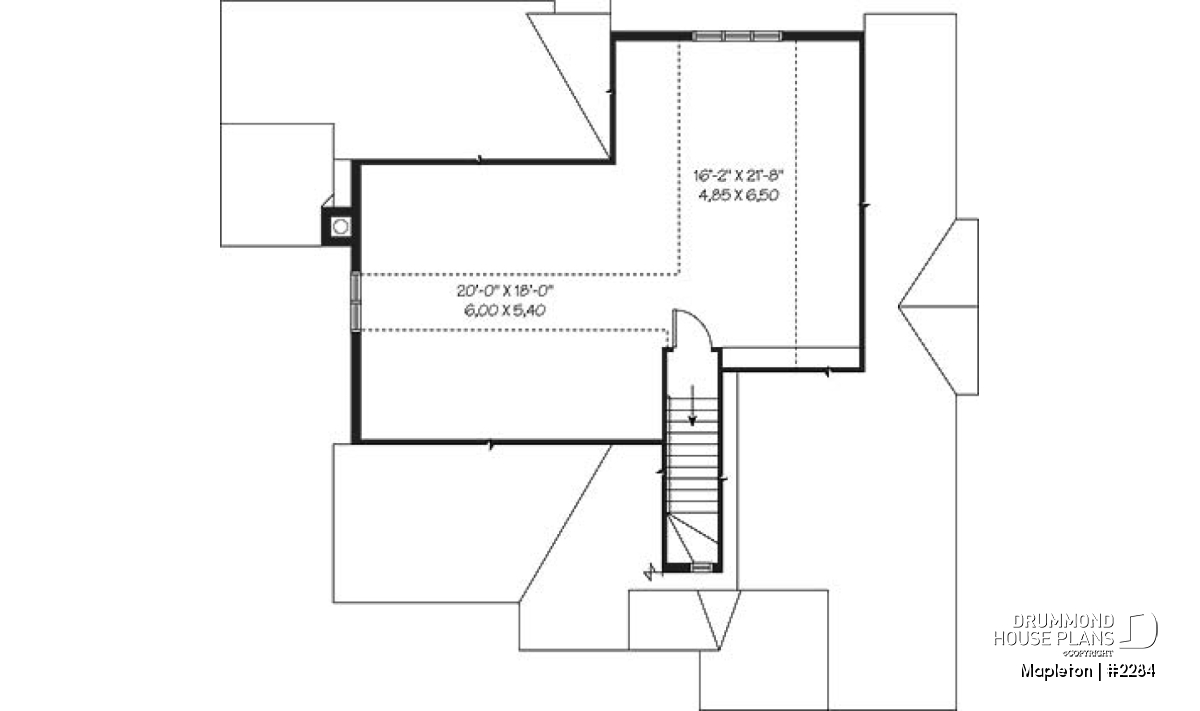

| Bonus space | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 20'0" x 18'0" | ~ 8'0" |
| Living bonus room | 16'2" x 21'8" | ~ 8'0" |
General specifications
| Total living area | 1322 sq.ft. |
| 1st level | 1322 sq.ft. |
| Bonus space | 0 sq.ft. |
| Width | 48'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 24'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Surprising bonus space!
Designed first and foremost to meet the expectations of baby boomers wanting to have all essential amenities on one floor, including laundry area. This bungalow proposes an attractive exterior and an interior with comfortable spaces and a pleasant floor plan.
Near the entrance, there is a dining area with reading / relaxation area, adjoining corner wood stove, and a kitchen with unique angled position. At the back, one appreciates a large room with multi-purpose possibilities - living room / office area or solarium / living room. We also find two large bedrooms with good closet space and a bathroom with separate shower, bath, and laundry area located behind folding doors.
Upstairs, we discover a space that is both discrete and remarkably versatile and dramatic due to the presence of sloped ceilings and knee walls. A pleasant surprise!
Distinctive elements
Corner bath, abundant and special windows, front covered stoop, cathedral ceiling in family room, bonus space on 2nd level with 2 windows of which one is on left side and one is L-shaped at rear offering the possibility of a large family room or master bedroom suite.
Plan feature(s)
Living bonus space, Planning desk, Gound floor laundry room, Separate bath and shower, Deck, Cathedral ceiling, Lunch counter
Plan architectural style(s)
. Ranch, . Craftsman / Northwest, . Country, . Cape Cod, . American
