3235-V2 (Maitland 3)

Ranch Bungalow house plan, with galley kitchen, open floor plan concept, garage, many foundation options

Bedrooms

2

Bath(s)

1

Half B.

-

Living area

1459 sq.ft.

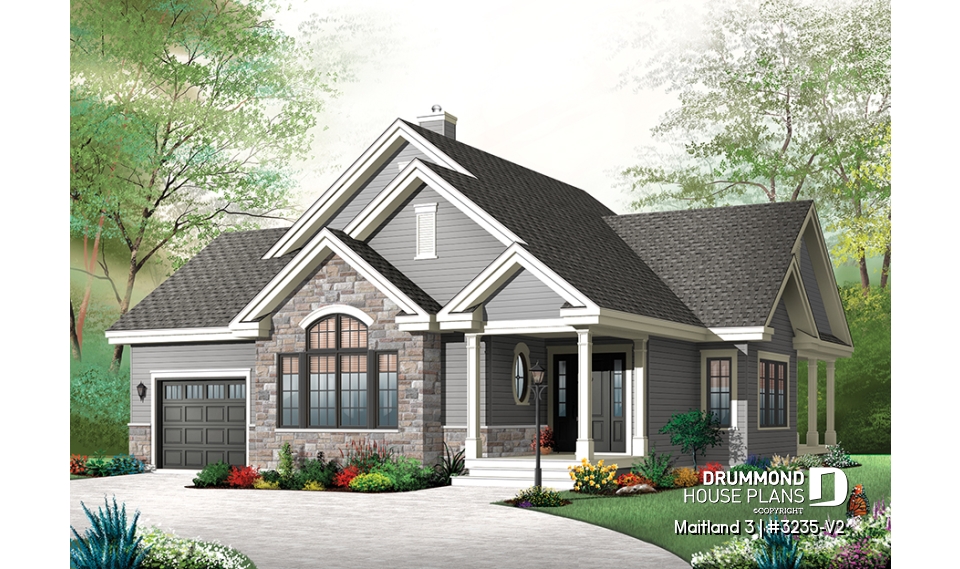

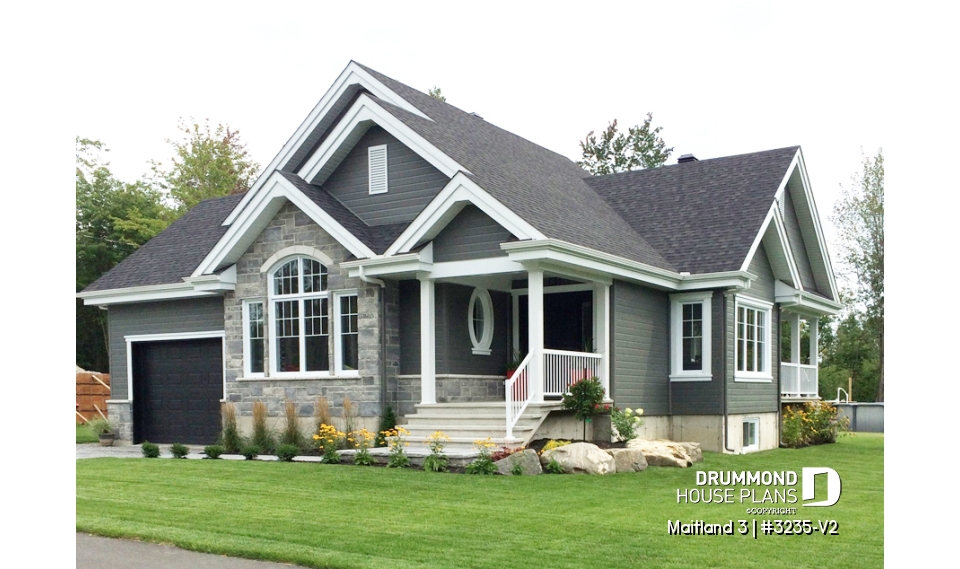

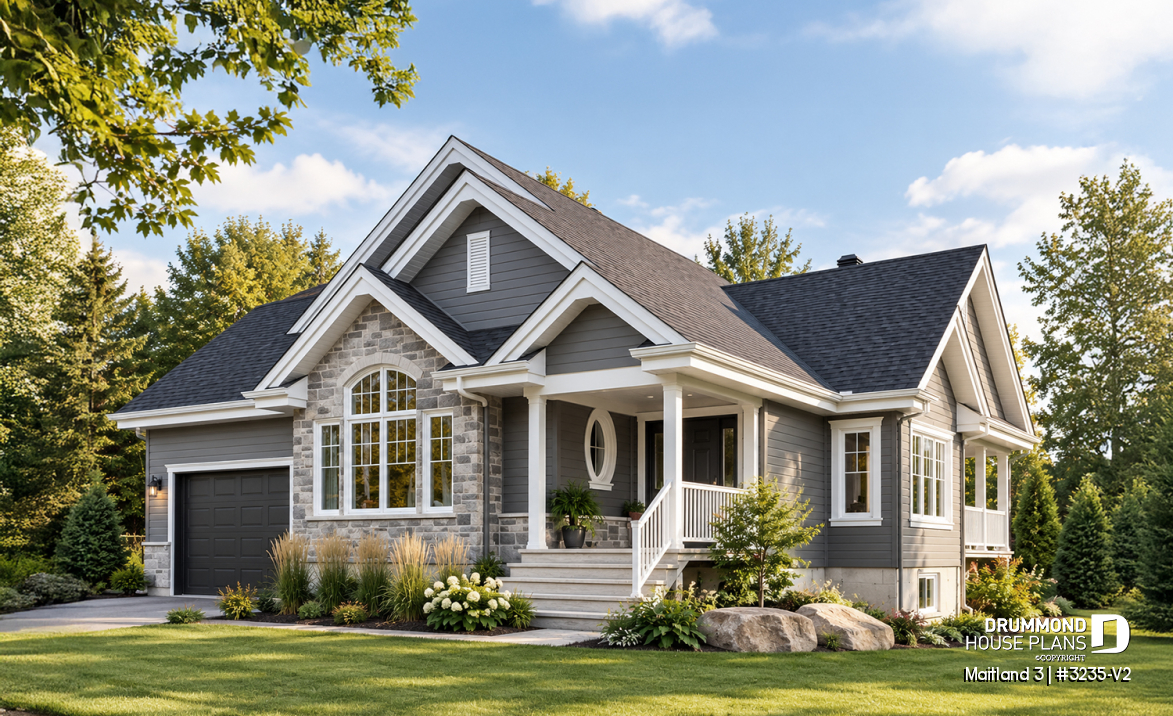

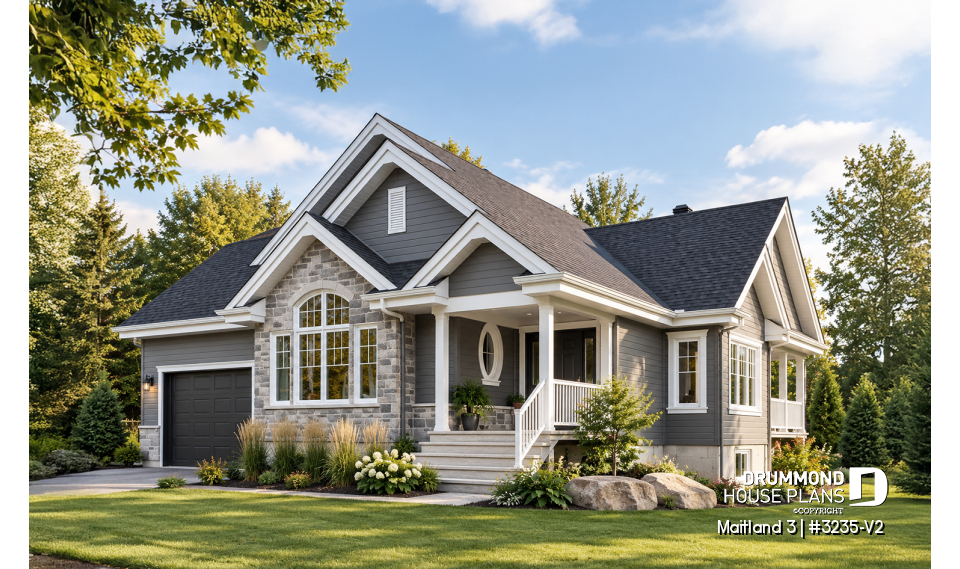

  • front - BASE MODEL - Ranch Bungalow house plan, with galley kitchen, open floor plan concept, garage, many foundation options - Maitland 3
  • front - BASE MODEL - Maitland 3

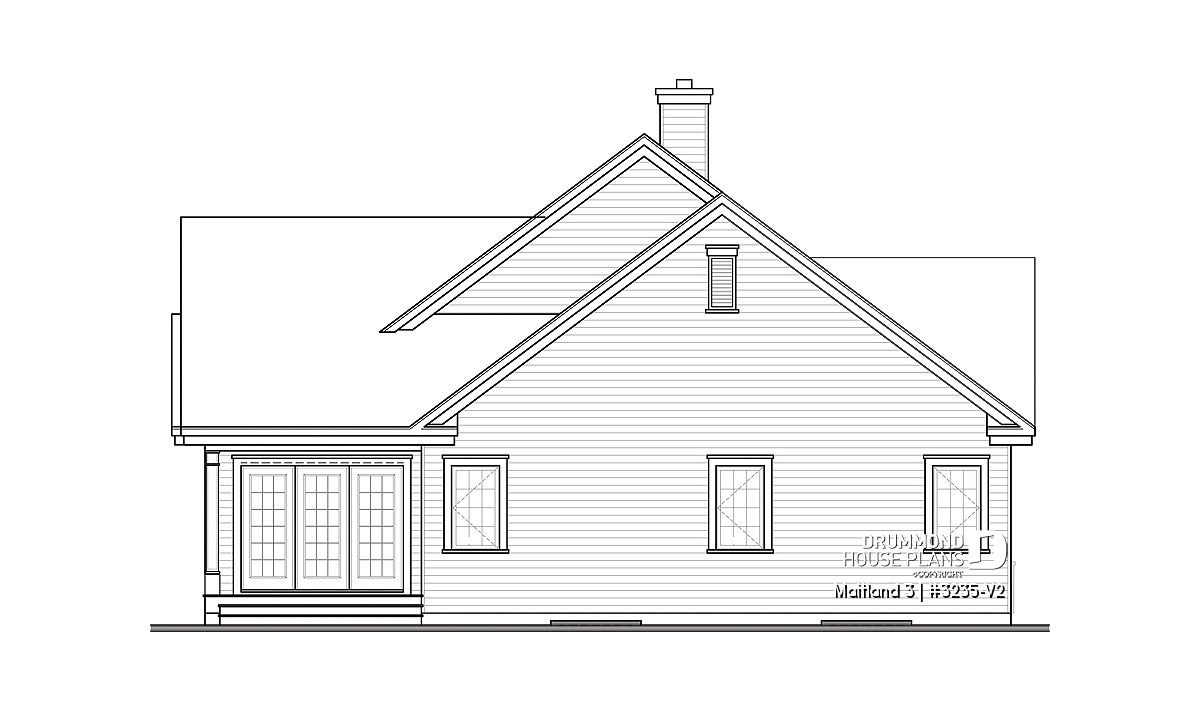

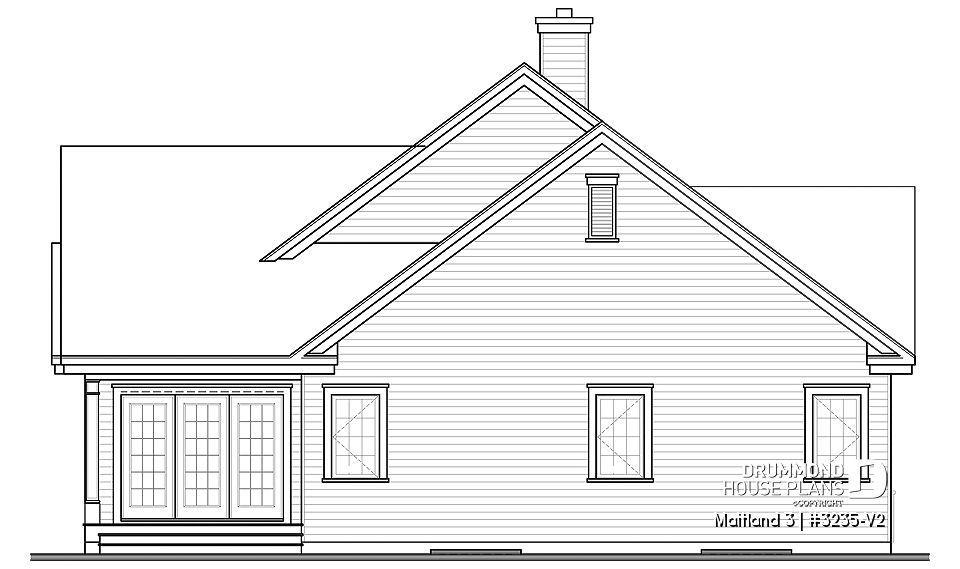

  • rear elevation - Maitland 3

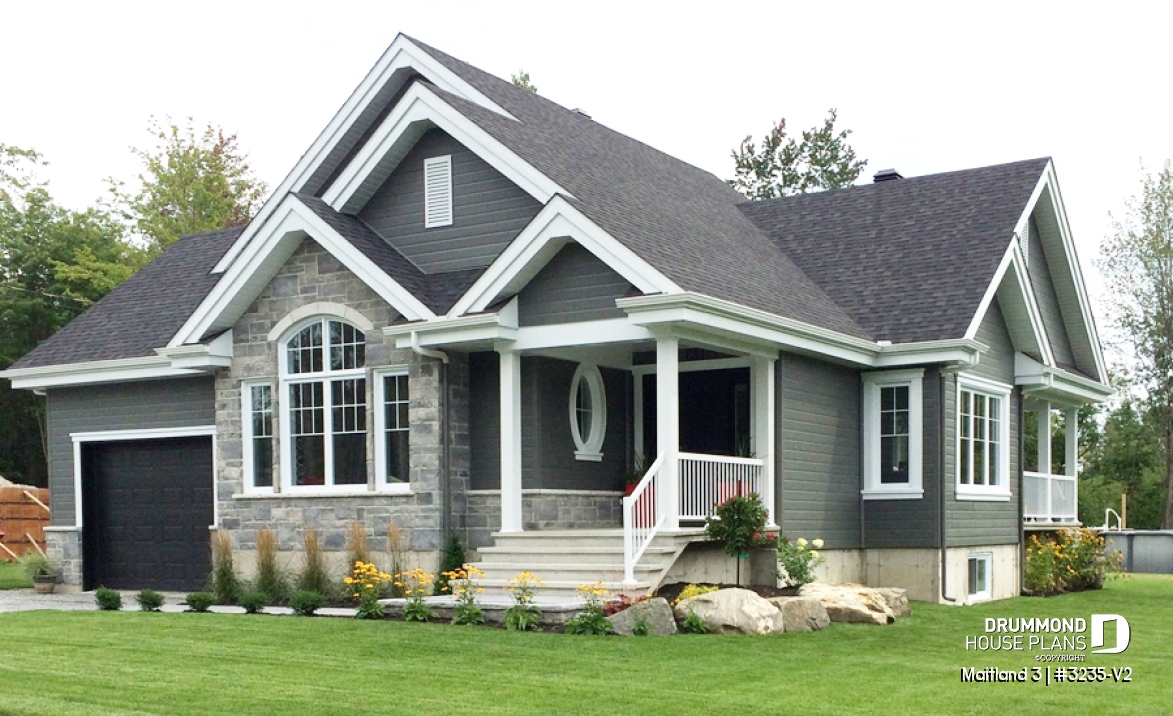

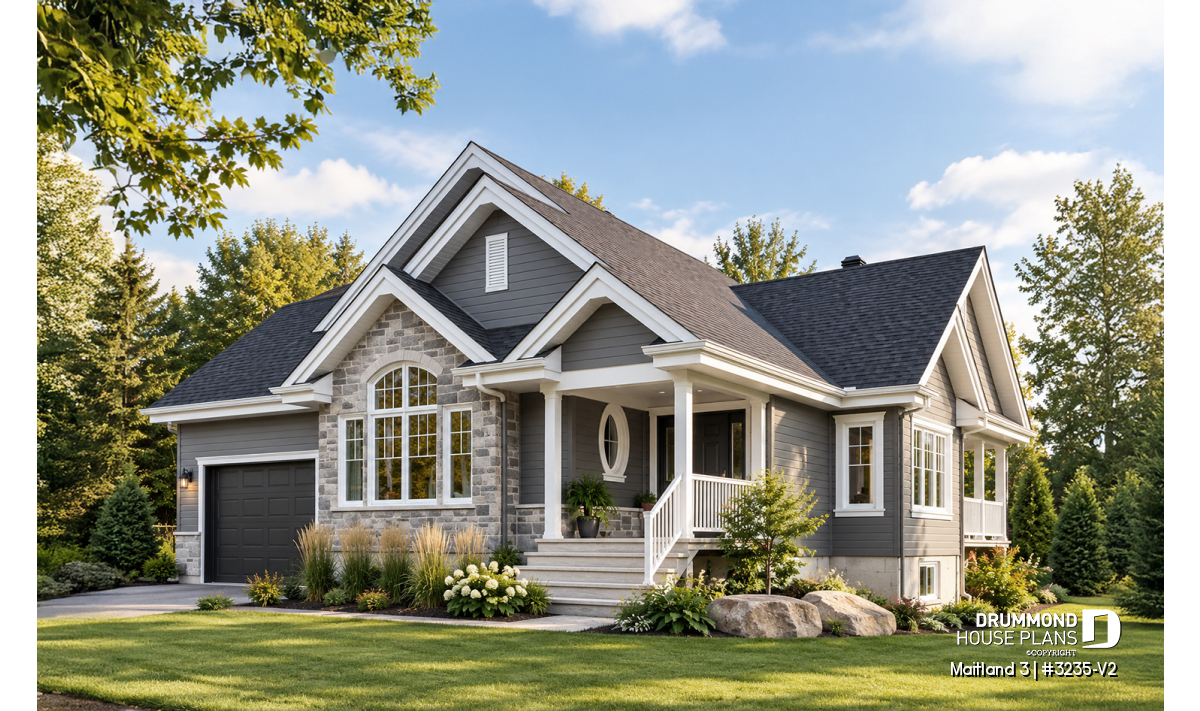

front - BASE MODEL

front - BASE MODEL

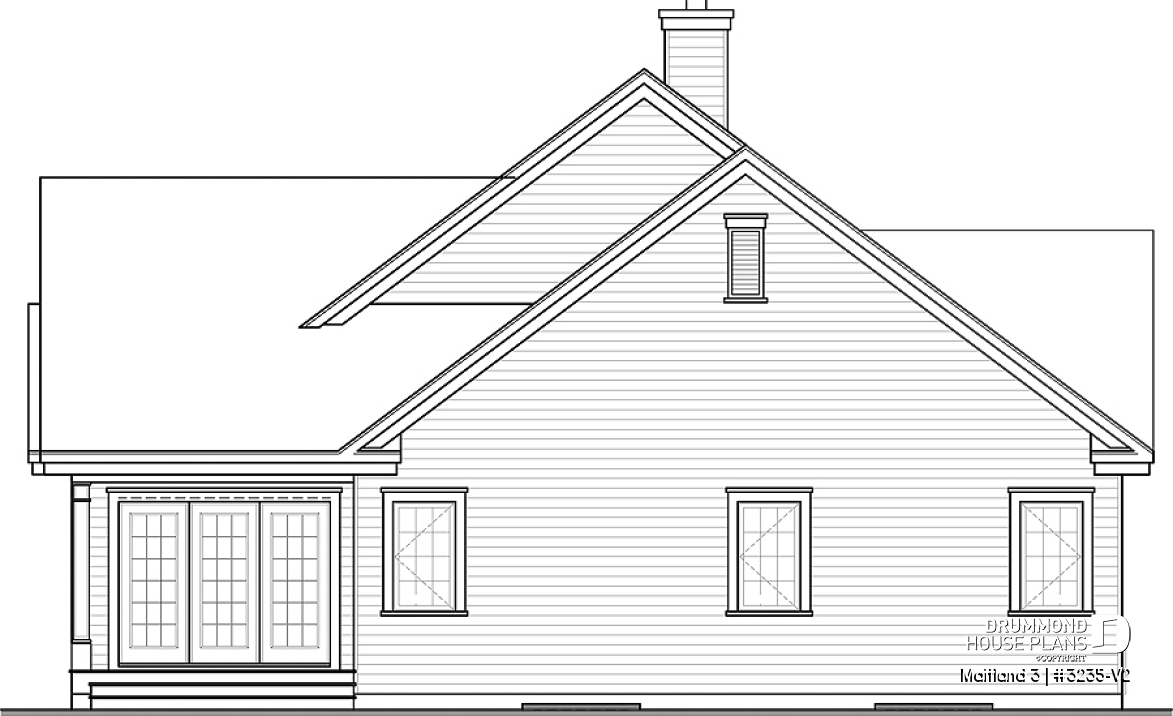

rear elevation

Vignette front - BASE MODEL - 3235-V2
Vignette front - BASE MODEL - 3235-V2
Vignette rear elevation - 3235-V2

View by floor

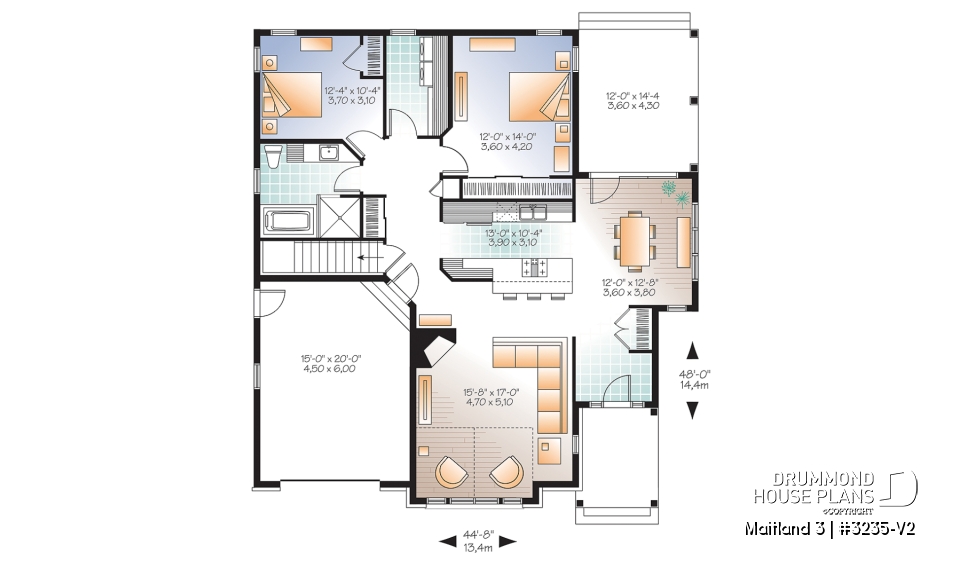

  • 1st level

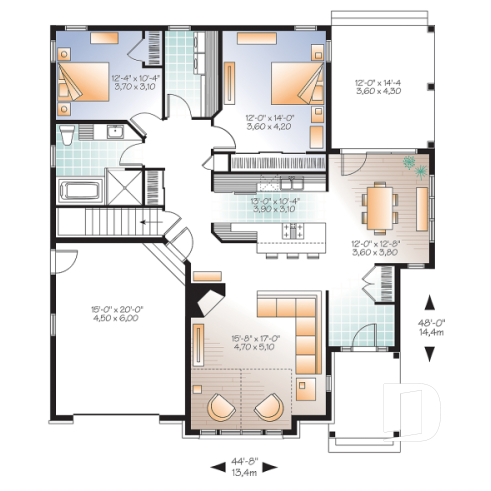

    1st level - Ranch Bungalow house plan, with galley kitchen, open floor plan concept, garage, many foundation options - Maitland 3
Vignette 1st level - 3235-V2

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

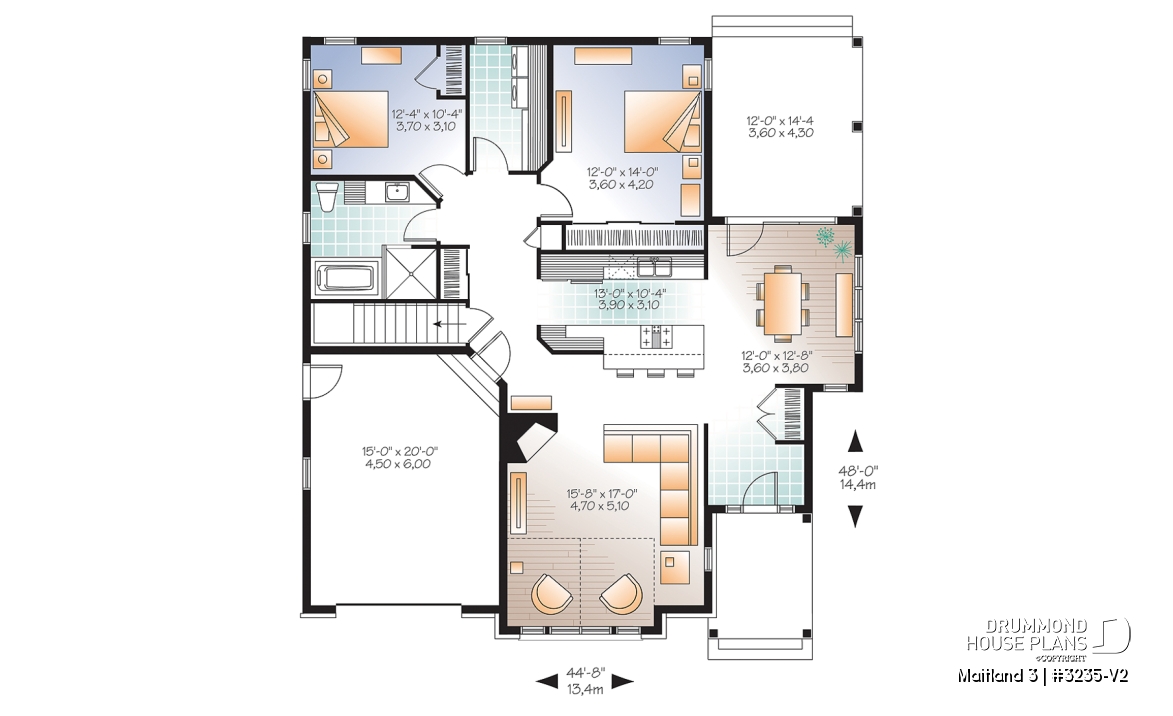

1st level
Rooms Sizes Ceiling
Foyer 7'8" x 9'4" ~ 8'0"
Closet 2'0" x 4'2" ~ 8'0"
Living room 15'8" x 17'0" ~ 8'0"
Dining room 12'0" x 12'8" ~ 8'0"
Kitchen/dinette 13'0" x 10'4" ~ 8'0"
Pantry 2'0" x 2'0" ~ 0'0"
Bedroom 12'0" x 14'0" ~ 8'0"
Closet 11'0" x 2'0" ~ 8'0"
Bedroom 12'4" x 10'4" ~ 8'0"
Closet 2'0" x 4'0" ~ 8'0"
Full bathroom 10'0" x 9'5" ~ 8'0"
Shower 4'0" x 4'0" ~ 0'0"
Linen 1'8" x 1'10" ~ 0'0"
Laundry room 6'2" x 10'0" ~ 8'0"
Linen 1'8" x 2'0" ~ 8'0"

General specifications

Total living area 1459 sq.ft.
1st level 1459 sq.ft.
Width 44'8"
Depth 48'0"
Ridge height from top of foundation 26'7"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code C

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths -
Garage type One-car garage (322 sq.ft.)
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1459 sq.ft.
1st level 1459 sq.ft.
Width 44'8"
Depth 48'0"
Ridge height from top of foundation 26'7"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code C

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths -
Garage type One-car garage (322 sq.ft.)
Living bonus space - i
Bonus storage - i
  • Photo front - Maitland 3
  • Photo front - Maitland 3
  • Photo Bathroom - Maitland 3

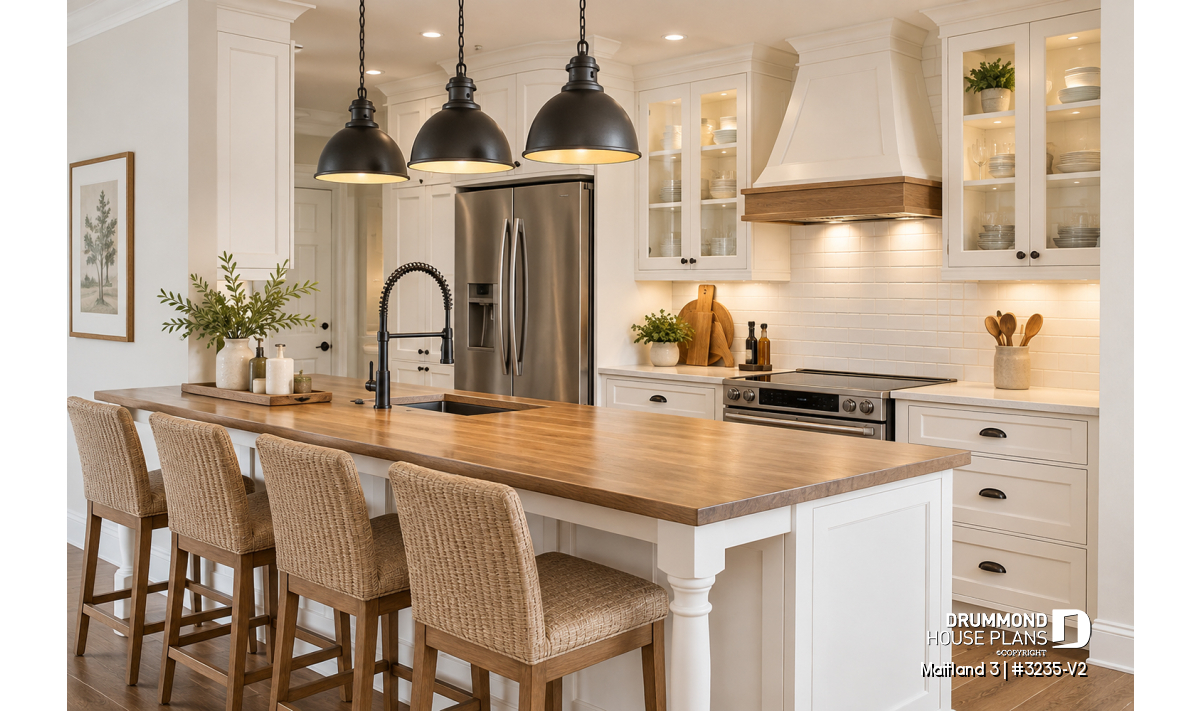

  • Photo Kitchen - Maitland 3
  • Photo Living room - Maitland 3
  • Photo Dining room - Maitland 3
  • Photo Foyer - Maitland 3

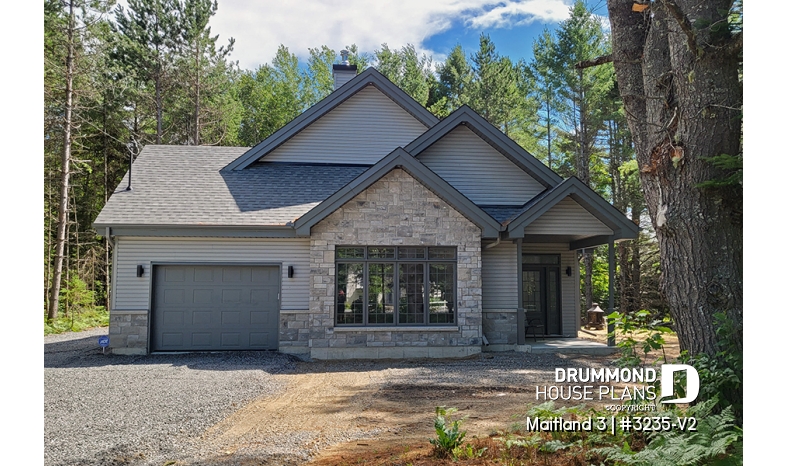

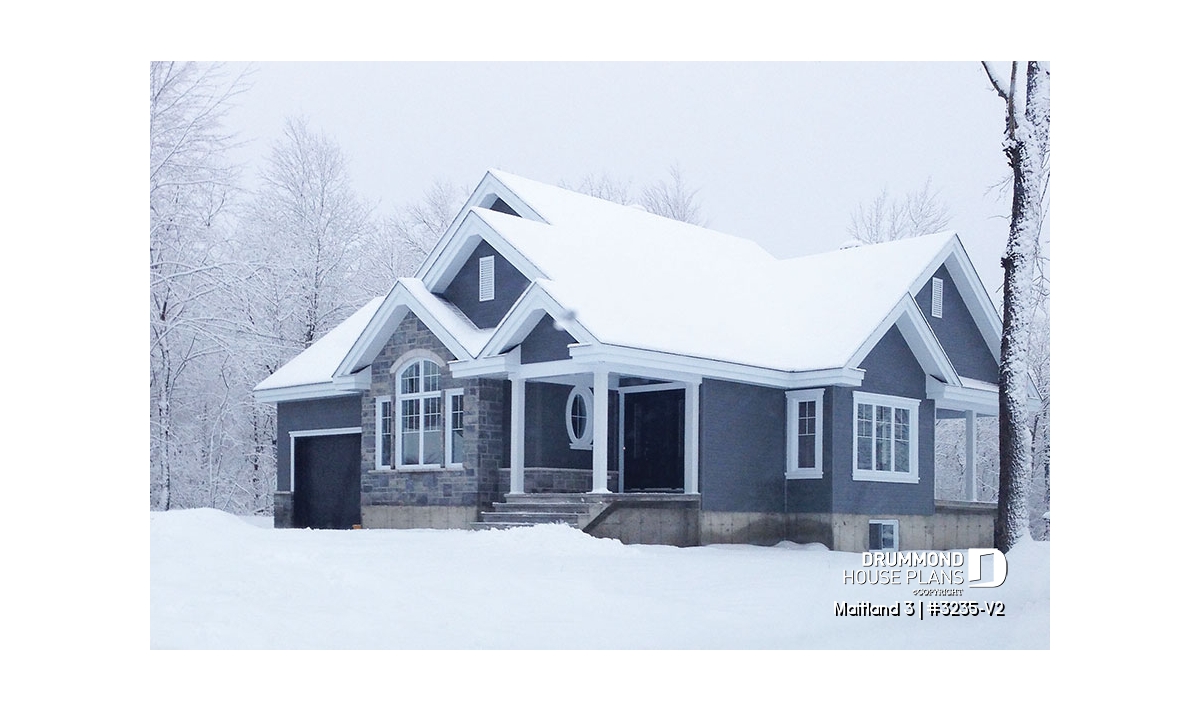

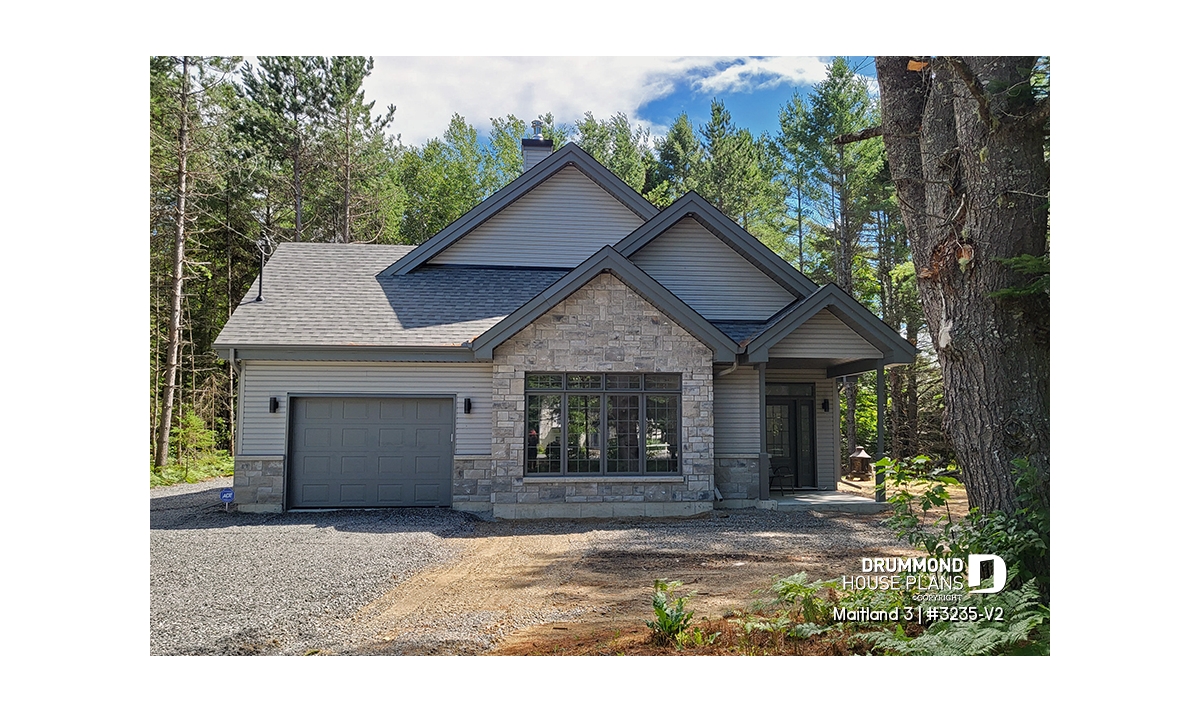

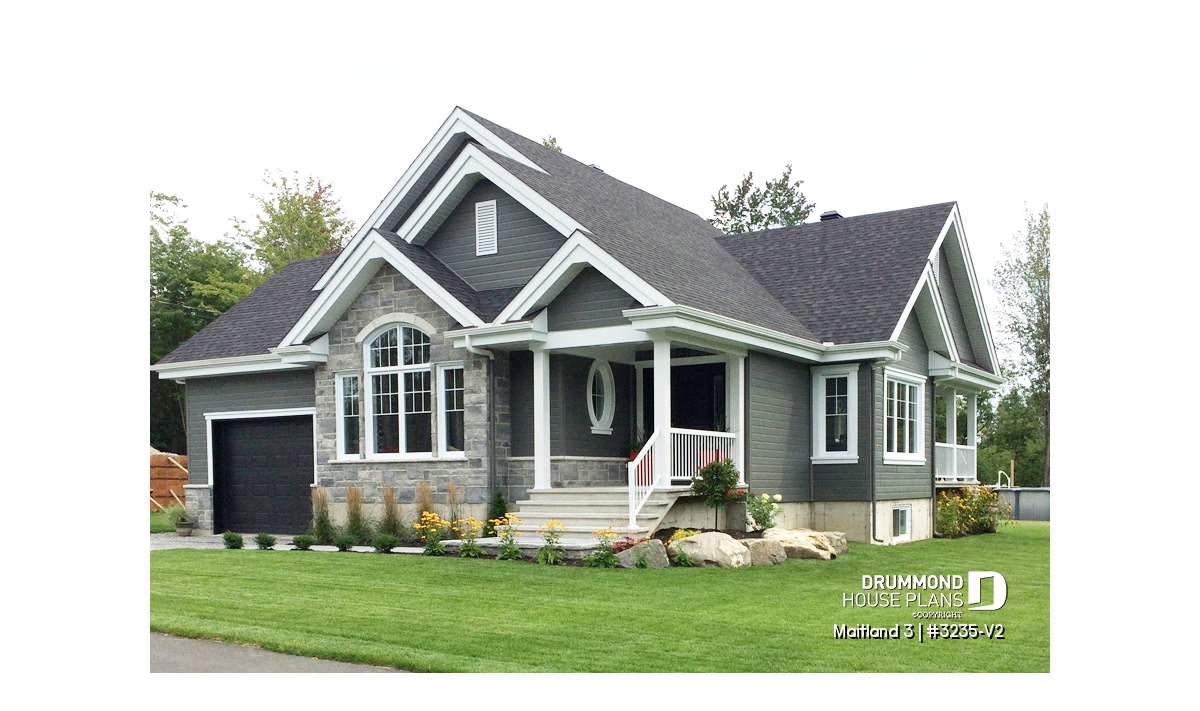

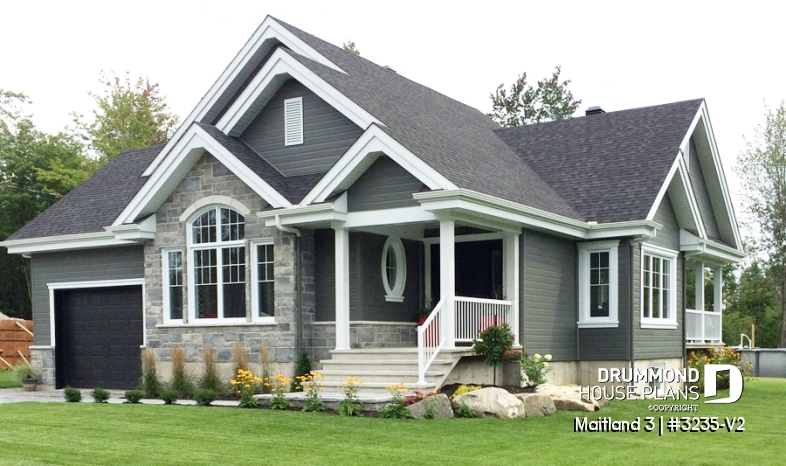

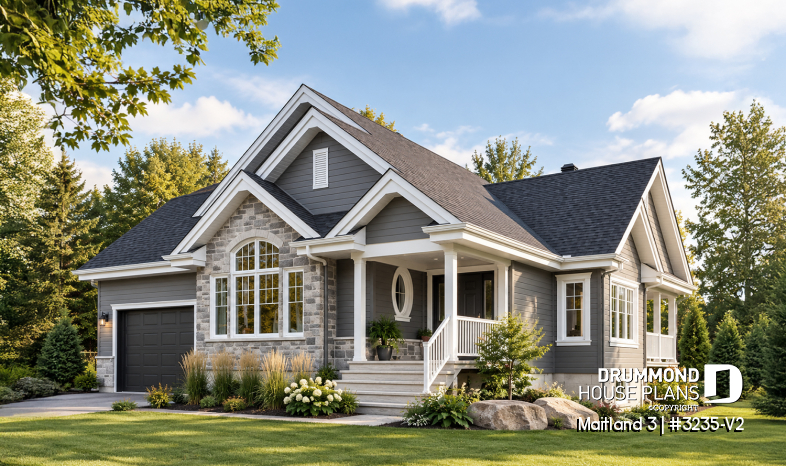

front
This color version might have decorative elements that are not available on base plan.

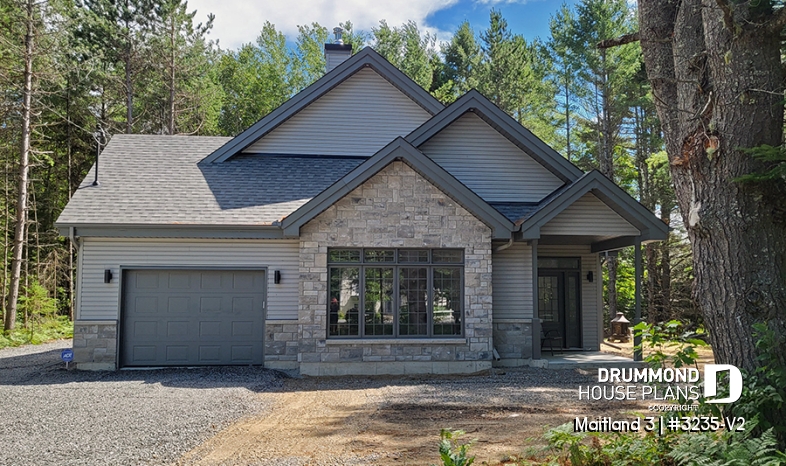

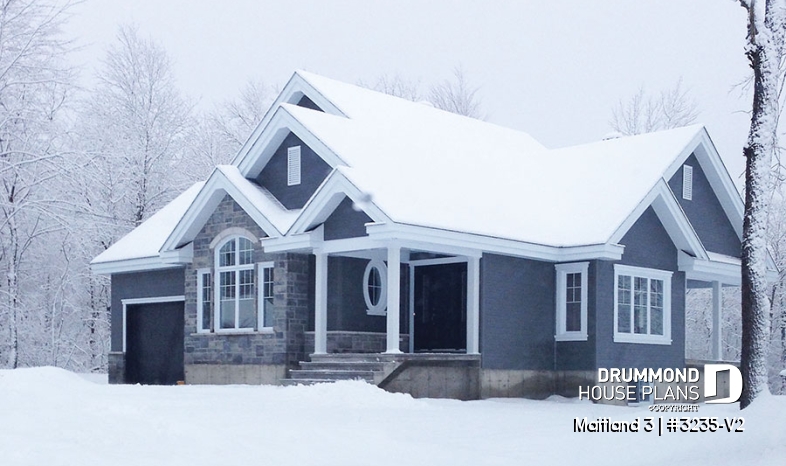

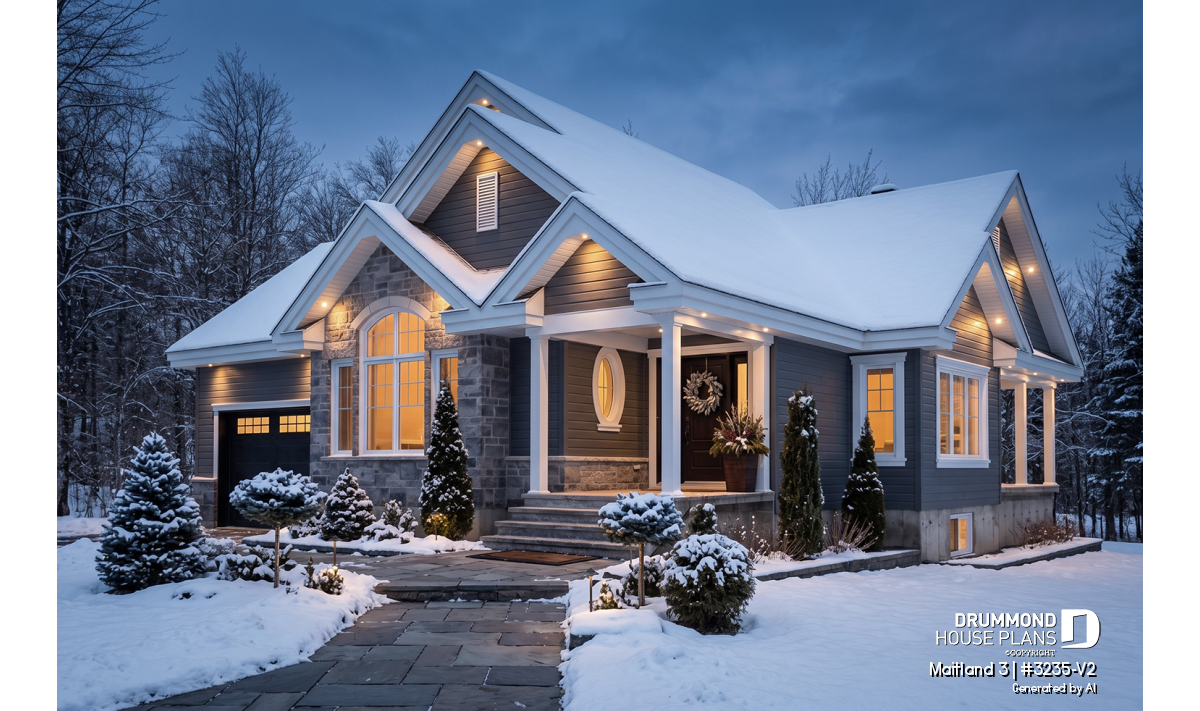

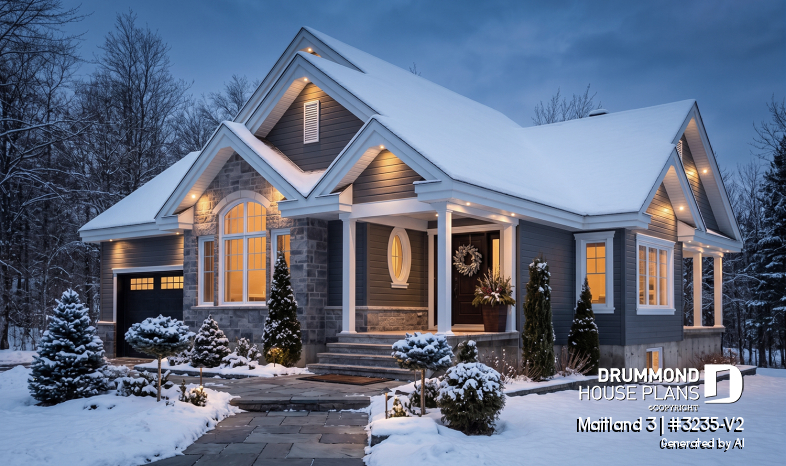

front
This color version might have decorative elements that are not available on base plan.

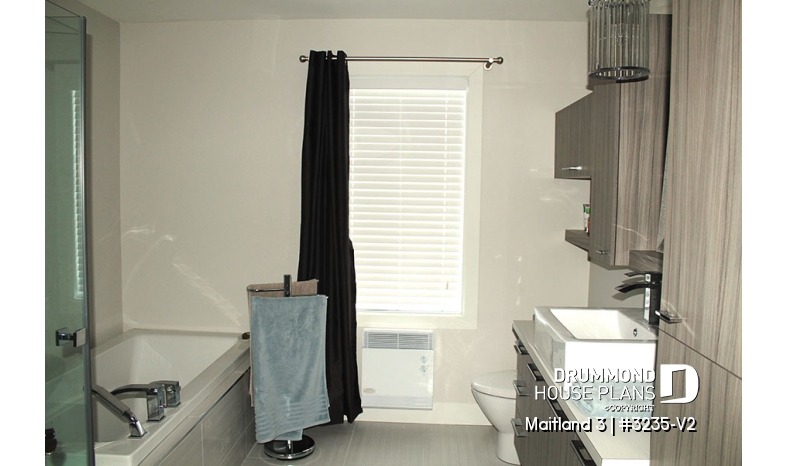

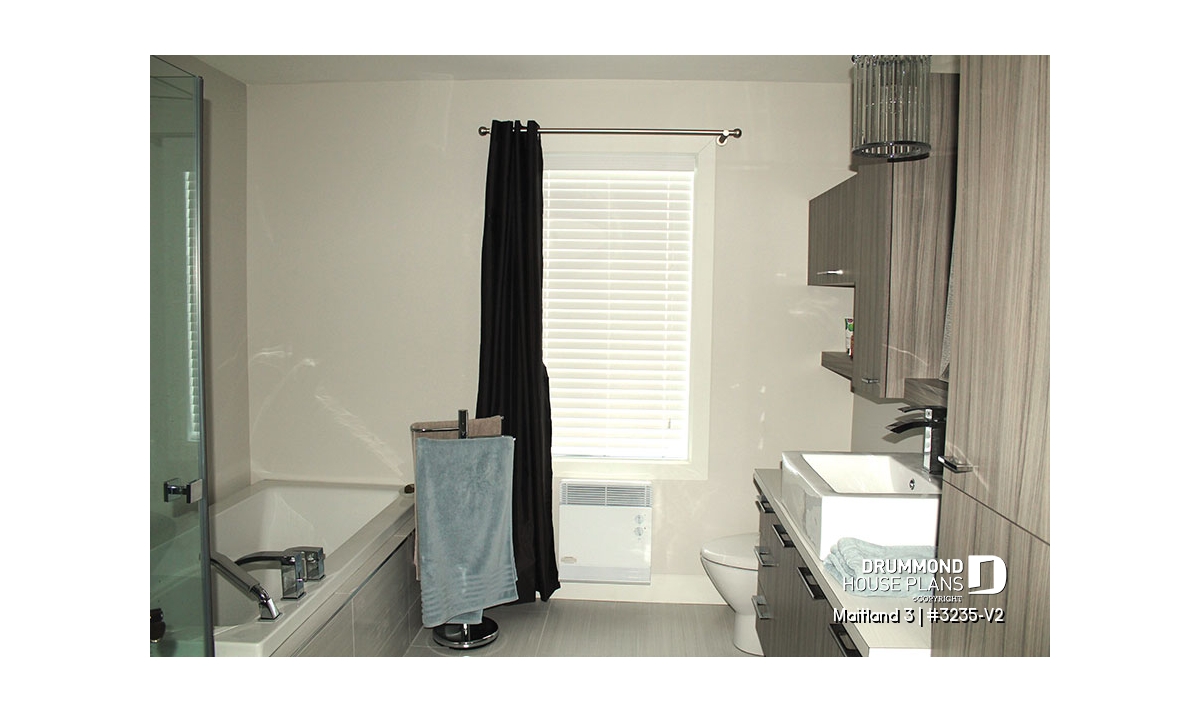

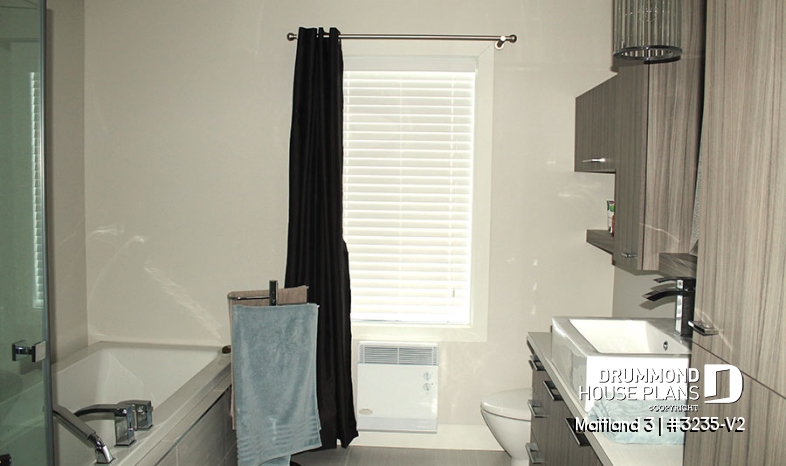

Bathroom
This color version might have decorative elements that are not available on base plan.

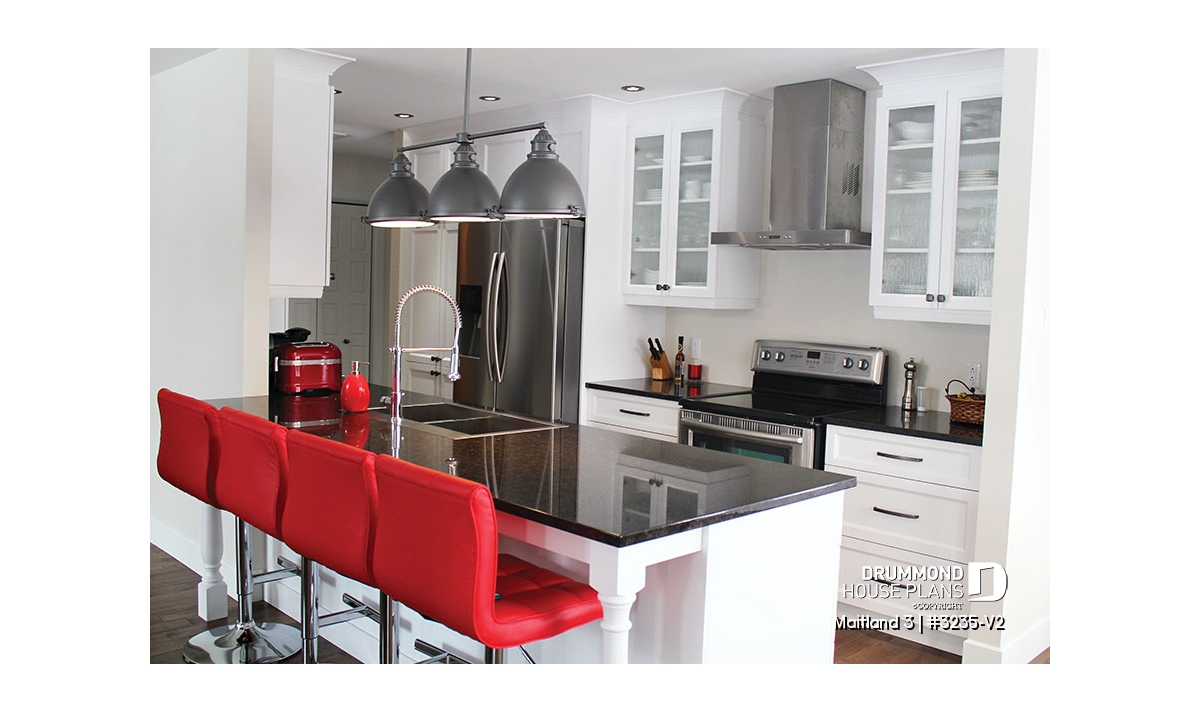

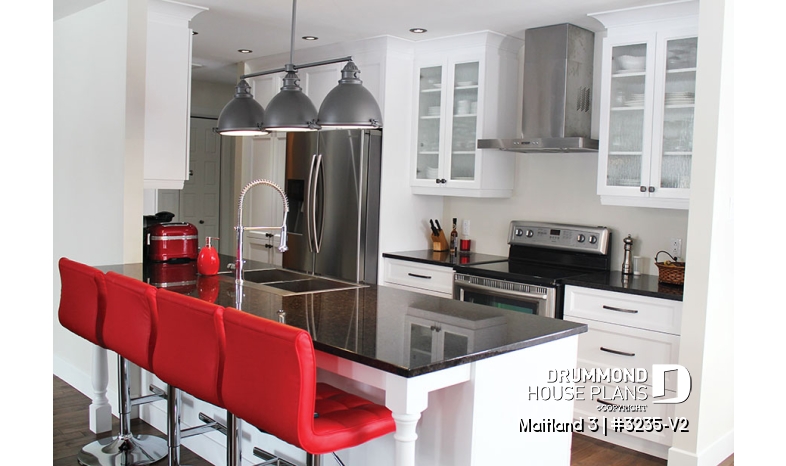

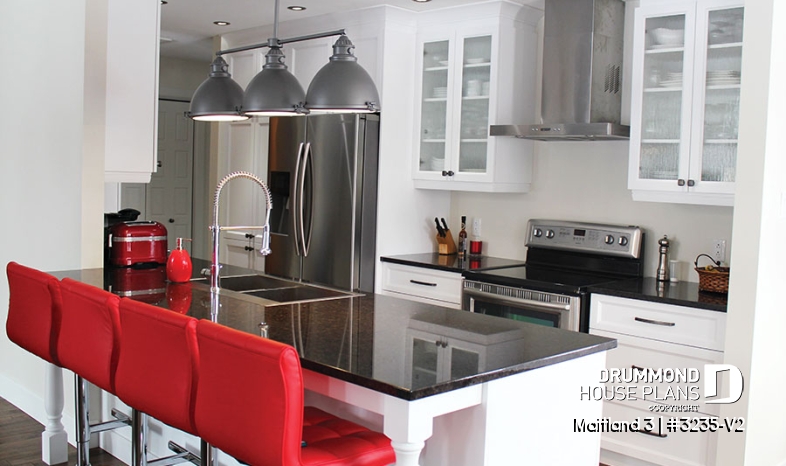

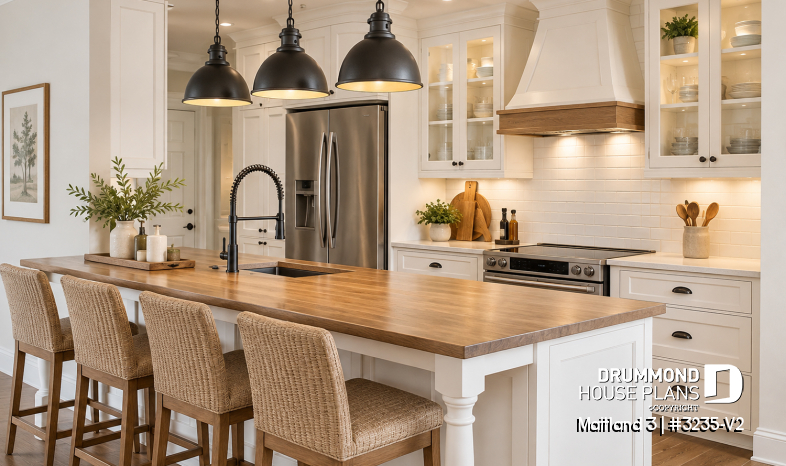

Kitchen
This color version might have decorative elements that are not available on base plan.

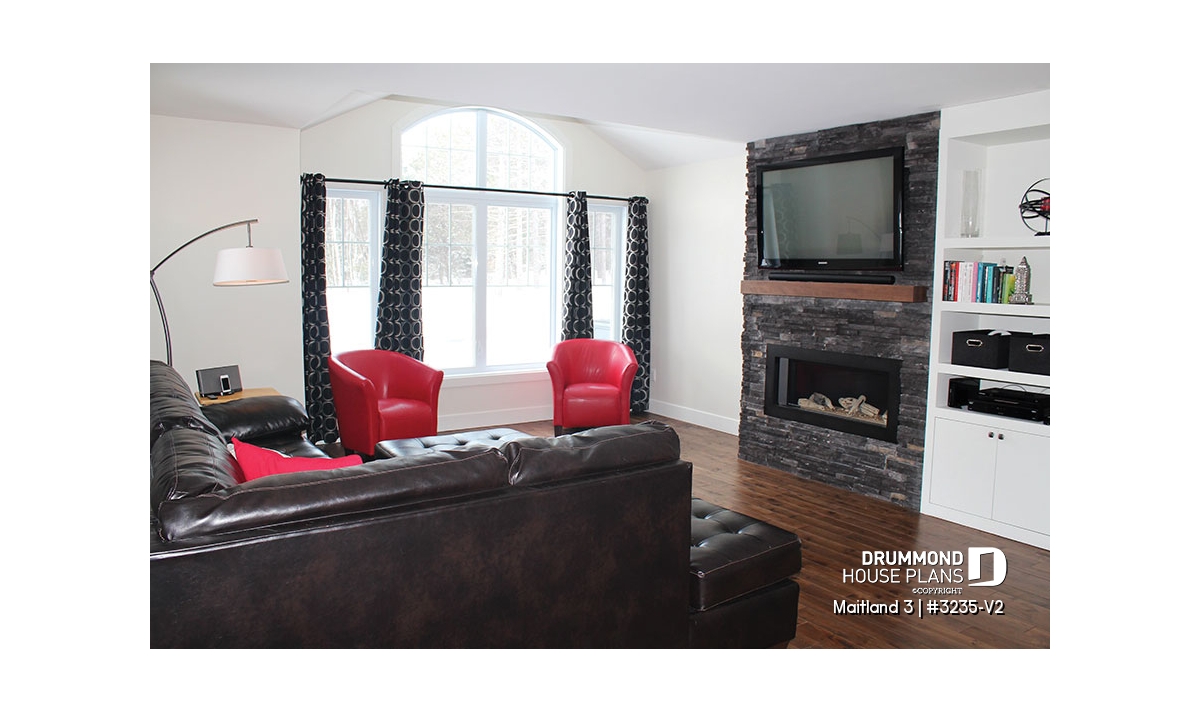

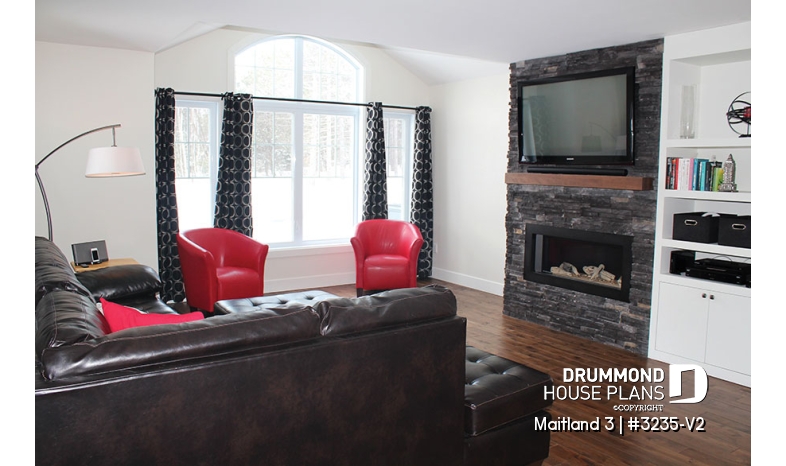

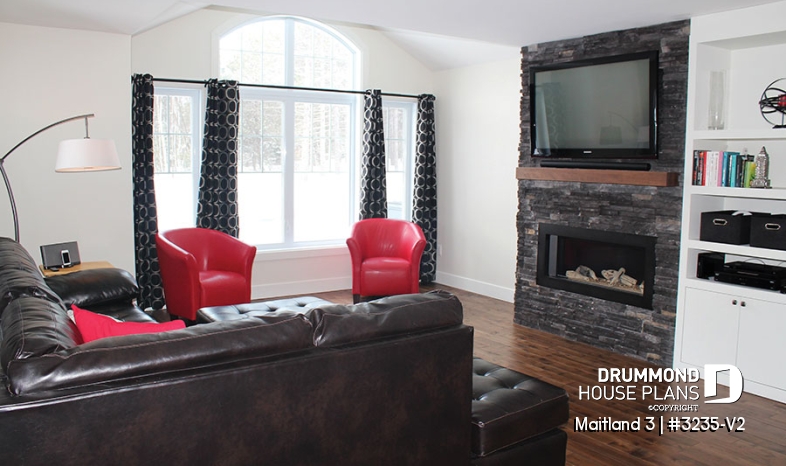

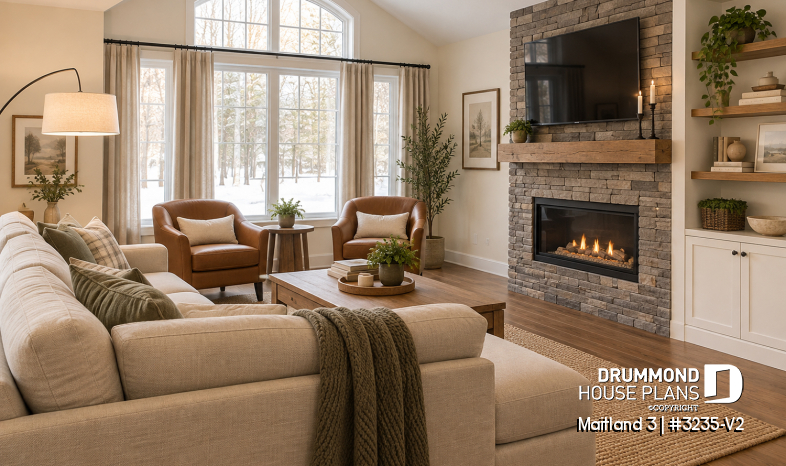

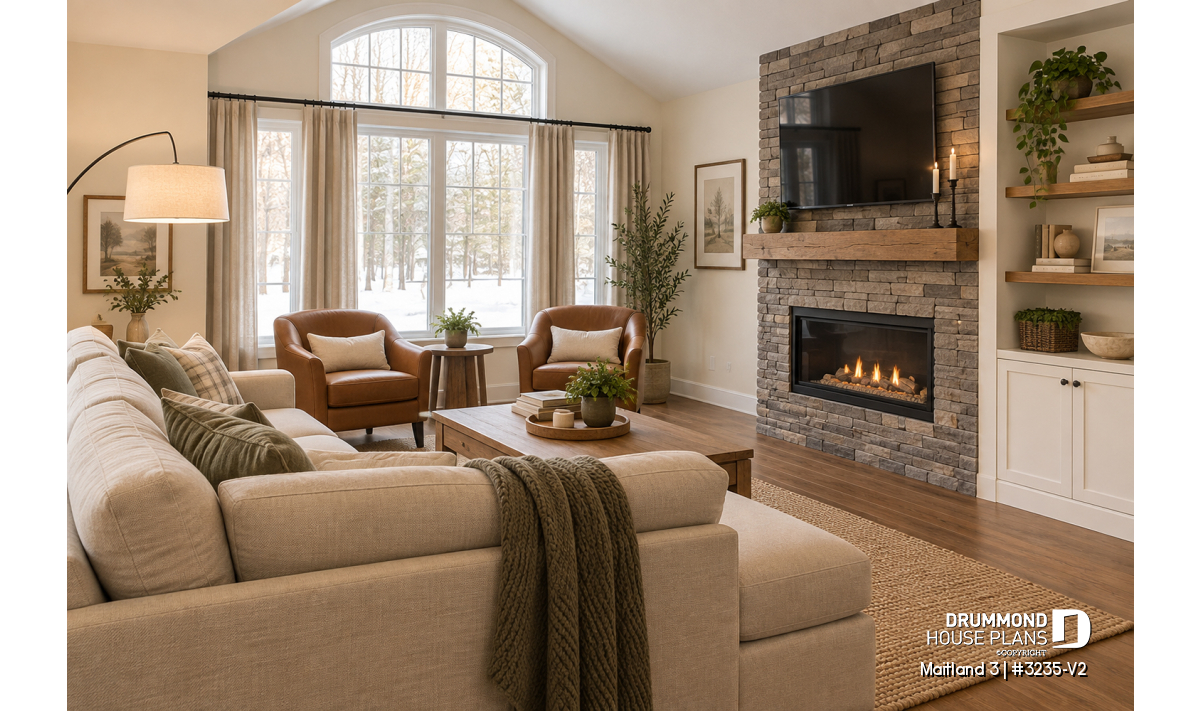

Living room
This color version might have decorative elements that are not available on base plan.

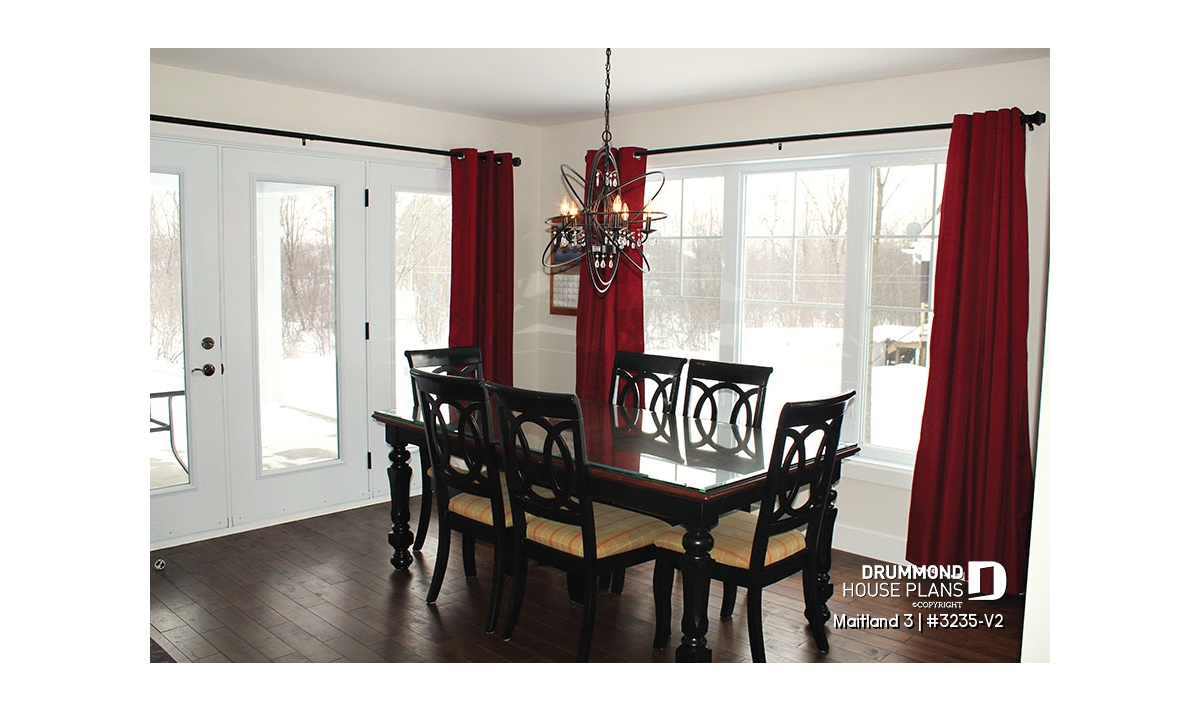

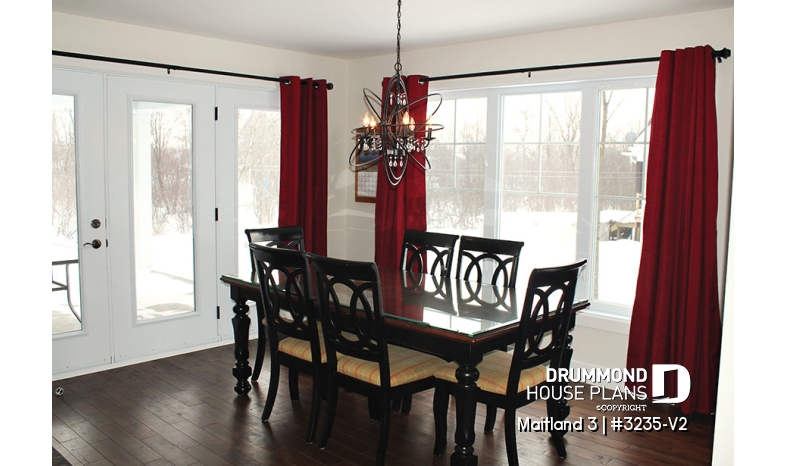

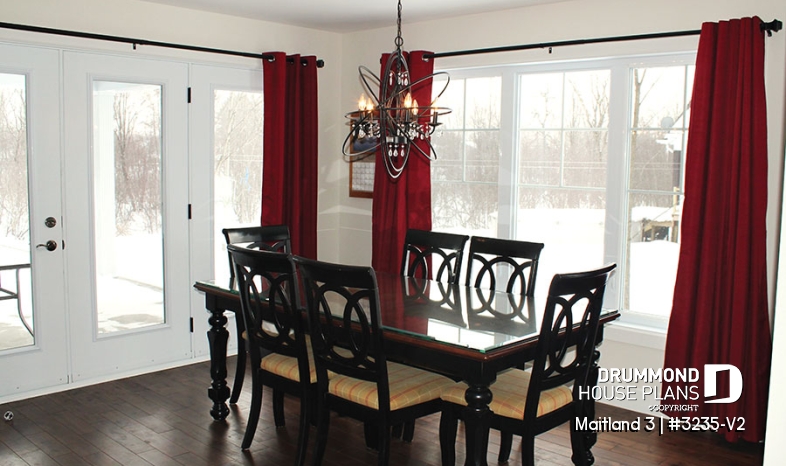

Dining room
This color version might have decorative elements that are not available on base plan.

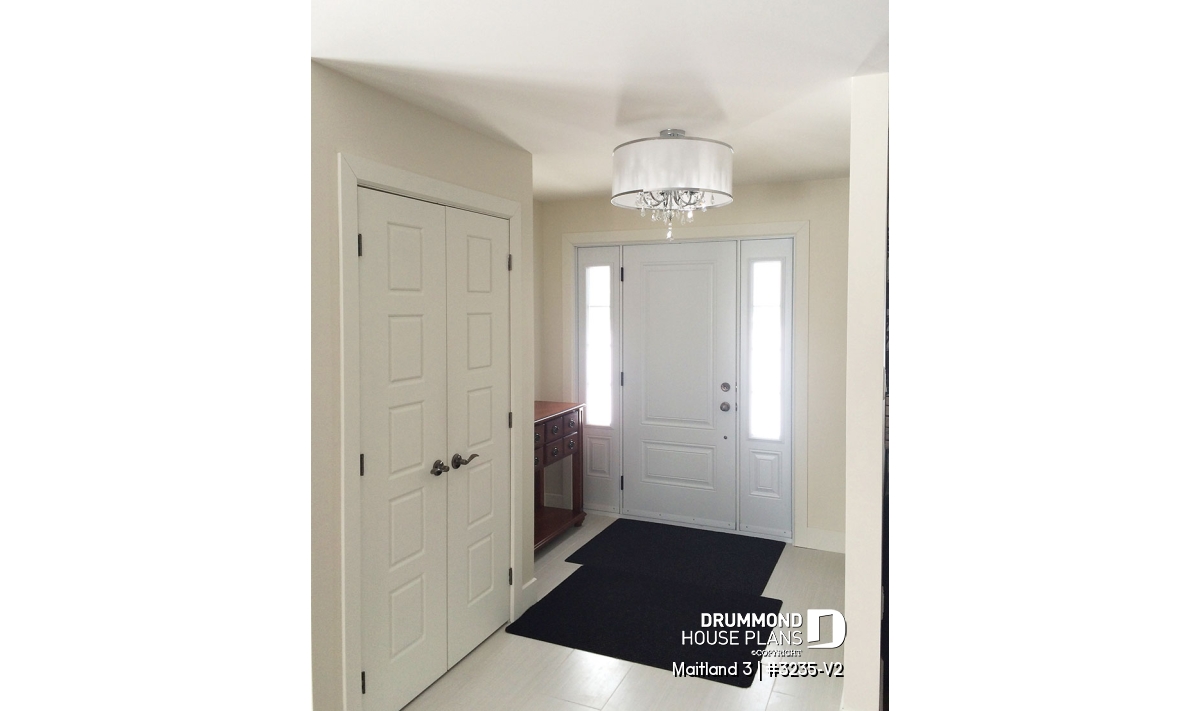

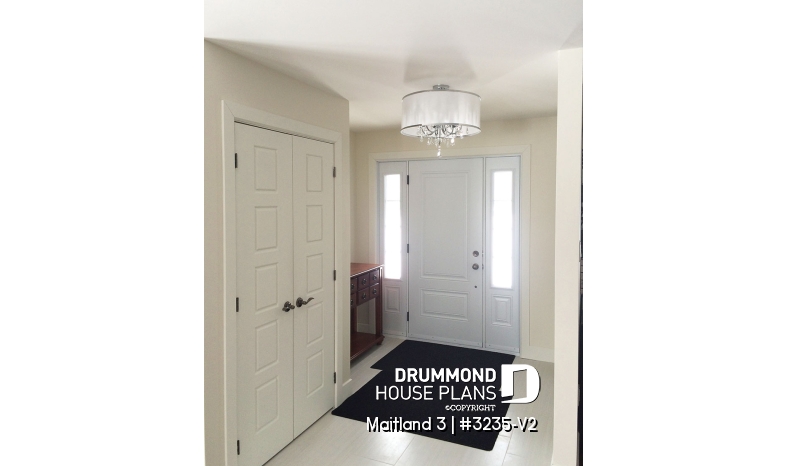

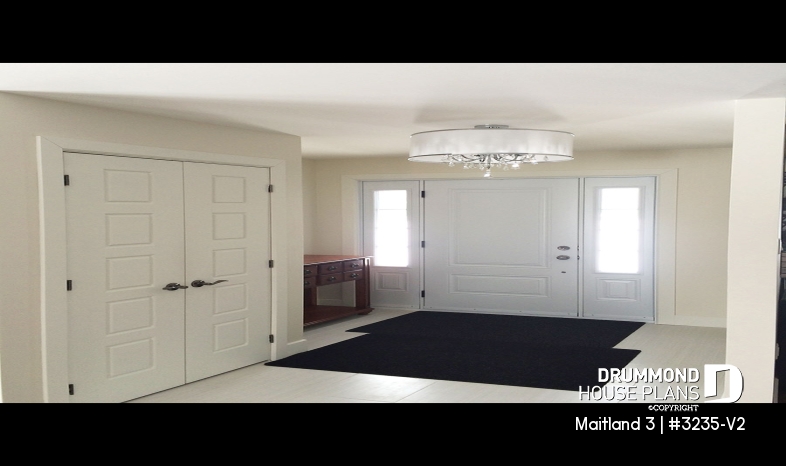

Foyer
This color version might have decorative elements that are not available on base plan.

Photo thumbnail front - Plan 3235-V2
Photo thumbnail front - Plan 3235-V2
Photo thumbnail Bathroom - Plan 3235-V2
Photo thumbnail Kitchen - Plan 3235-V2
Photo thumbnail Living room - Plan 3235-V2
Photo thumbnail Dining room - Plan 3235-V2
Photo thumbnail Foyer - Plan 3235-V2

Buy this plan

From : 860$

Modify this plan

Get a quote

Description

Craftsman Bungalow house plan, with galley kitchen, open floor plan concept, garage, many foundation options. 1st level: Entry, living room, dining room, kitchet/dinette, two bedrooms, bathroom and laundry room. One-car garage. Many foundation options available.

Other useful information on this plan

Affordable one storey transitional style ranch house plan with unfinished basement

Following close evaluation of the most popular modifications to plan 3235 requested by Drummond House Plans’ clients, our designer developed the interior of this model to meet the needs of many of its future buyers.

The main feature is the relocation of the staircase which adds almost two feet to the width of the garage and nearly three feet to the living room’s width thus permitting the addition of a corner fireplace.

The change from three bedrooms to two offers space for a laundry area on the main floor that’s complete with storage and a counter. The kitchen’s unique styling offers ample counter space and a full width island. The bathroom boasts a larger shower and the attractive covered terrace, accessible from the dining room, maintains its dimensions.

The eye catching curb appeal of this home is enhanced by the addition of stone work on the front face and the darker shades for doors and windows add a refreshing, dramatic touch.

Distinctive elements

Living room features dramatic windows, partial cathedral ceiling and corner fireplace with abundant windows in the dining room. Covered rear deck terrace is both comfortable and sheltered. Open galley kitchen with lunch counter towards the living room. Two bedrooms and bathroom with a separate 4’ x 4’ shower. Laundry room on ground floor.

Other useful information on this plan

Full description

Affordable one storey transitional style ranch house plan with unfinished basement

Following close evaluation of the most popular modifications to plan 3235 requested by Drummond House Plans’ clients, our designer developed the interior of this model to meet the needs of many of its future buyers.

The main feature is the relocation of the staircase which adds almost two feet to the width of the garage and nearly three feet to the living room’s width thus permitting the addition of a corner fireplace.

The change from three bedrooms to two offers space for a laundry area on the main floor that’s complete with storage and a counter. The kitchen’s unique styling offers ample counter space and a full width island. The bathroom boasts a larger shower and the attractive covered terrace, accessible from the dining room, maintains its dimensions.

The eye catching curb appeal of this home is enhanced by the addition of stone work on the front face and the darker shades for doors and windows add a refreshing, dramatic touch.

Distinctive elements

Living room features dramatic windows, partial cathedral ceiling and corner fireplace with abundant windows in the dining room. Covered rear deck terrace is both comfortable and sheltered. Open galley kitchen with lunch counter towards the living room. Two bedrooms and bathroom with a separate 4’ x 4’ shower. Laundry room on ground floor.

Questions and comments on this plan

June 02 2015

Tim Hynes

I really like this design but I am looking for a three bedroom ( or two plus a flex room/ office). Do you have something similar to this design, particularly the exterior look, in a 3bdr.

June 02 2015

Customer service

Good morning!
Yes house plan #3235 and #3235-V1 both offer a 3-bedroom floor plan.

Also don't forget that most house plans can be customized by our team to meet your requirements.

Thanks and let me know if you have more questions!

Marie-France

August 12 2014

amanda russell

can we get this plan and change the size to 50 x56 ?If so will it change the look of the roof?

August 12 2014

Customer service

Good day Ms. Russell and thank you for your interest in this plan.

The change in size is possible and we would be happy to return a free estimate for the plan customization within two business days after receipt of this on line form.

The change would make the roof and its dormer higher by approximately 3' if you keep the same pitch and would dramatically change the look if you choose to change the roof pitch in order to maintain the actual height.

Please let me know if you have any other questions or comments.
Regards
Deb

June 12 2014

michael tomlinson

Will you build a house in Val-David?
Turnkey?

April 07 2014

Gerard

What is the width of the facia

April 07 2014

Customer service

Good day and thank you for taking the time to write.

Since this model has a double facia, it is 12" wide (6" each)

Please let me know if I can further assist you
Regards
Deb

March 26 2014

shirley shea

I was wondering what the roof pitch was on this house

March 26 2014

Customer service

Good day Ms. Shea and thank you for your interest in this plan.

Both the primary (left/right) and the secondary (front/back) roof pitch is 9/12.

Please let me know if you have any other questions or comments.
Regards
Deb

Questions and comments

June 02 2015

Tim Hynes

I really like this design but I am looking for a three bedroom ( or two plus a flex room/ office). Do you have something similar to this design, particularly the exterior look, in a 3bdr.

June 02 2015

Customer service

Good morning!
Yes house plan #3235 and #3235-V1 both offer a 3-bedroom floor plan.

Also don't forget that most house plans can be customized by our team to meet your requirements.

Thanks and let me know if you have more questions!

Marie-France

August 12 2014

amanda russell

can we get this plan and change the size to 50 x56 ?If so will it change the look of the roof?

August 12 2014

Customer service

Good day Ms. Russell and thank you for your interest in this plan.

The change in size is possible and we would be happy to return a free estimate for the plan customization within two business days after receipt of this on line form.

The change would make the roof and its dormer higher by approximately 3' if you keep the same pitch and would dramatically change the look if you choose to change the roof pitch in order to maintain the actual height.

Please let me know if you have any other questions or comments.
Regards
Deb

June 12 2014

michael tomlinson

Will you build a house in Val-David?
Turnkey?

April 07 2014

Gerard

What is the width of the facia

April 07 2014

Customer service

Good day and thank you for taking the time to write.

Since this model has a double facia, it is 12" wide (6" each)

Please let me know if I can further assist you
Regards
Deb

March 26 2014

shirley shea

I was wondering what the roof pitch was on this house

March 26 2014

Customer service

Good day Ms. Shea and thank you for your interest in this plan.

Both the primary (left/right) and the secondary (front/back) roof pitch is 9/12.

Please let me know if you have any other questions or comments.
Regards
Deb
