Bridgeport (3278)

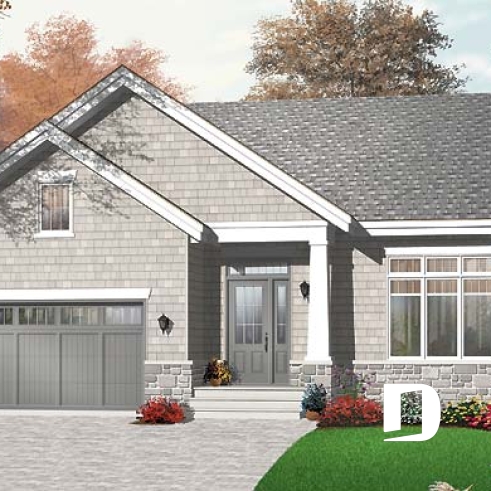

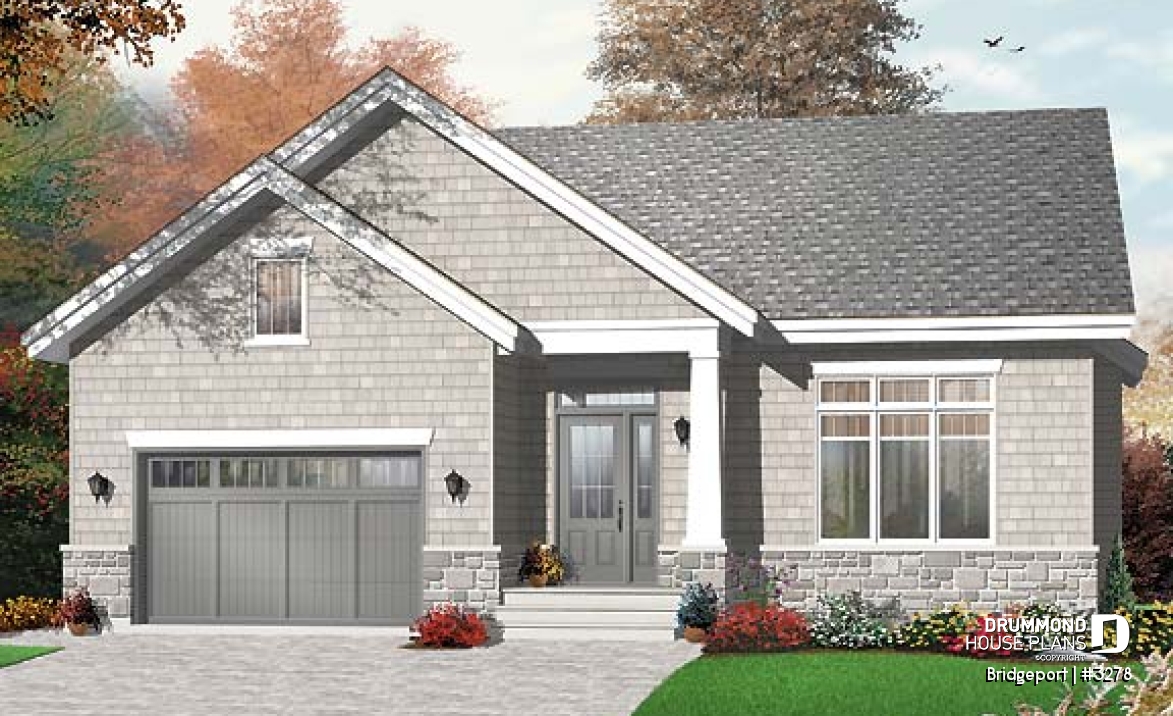

3 bedrooms, budget friendly bungalow with home office and garage
View the size of the rooms and height of the ceilings

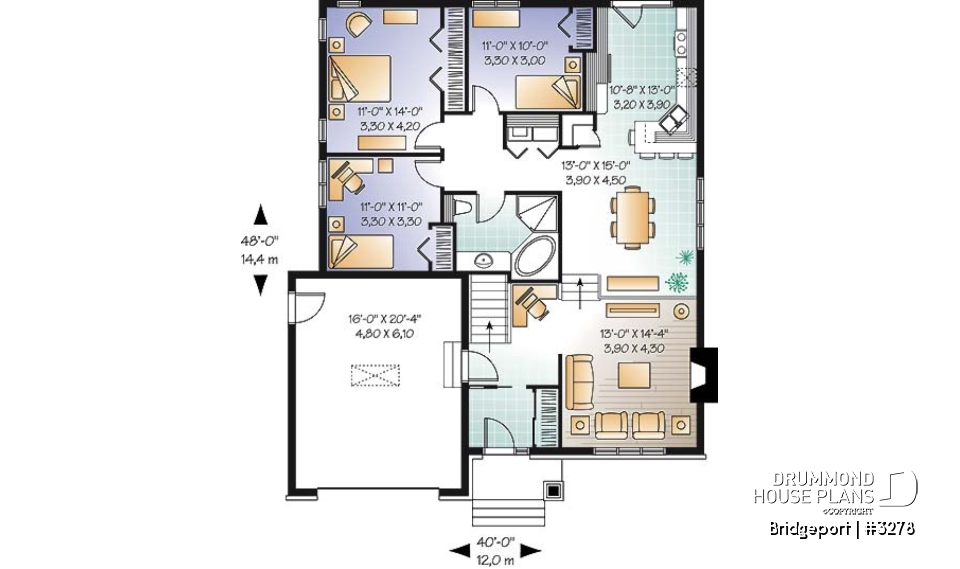

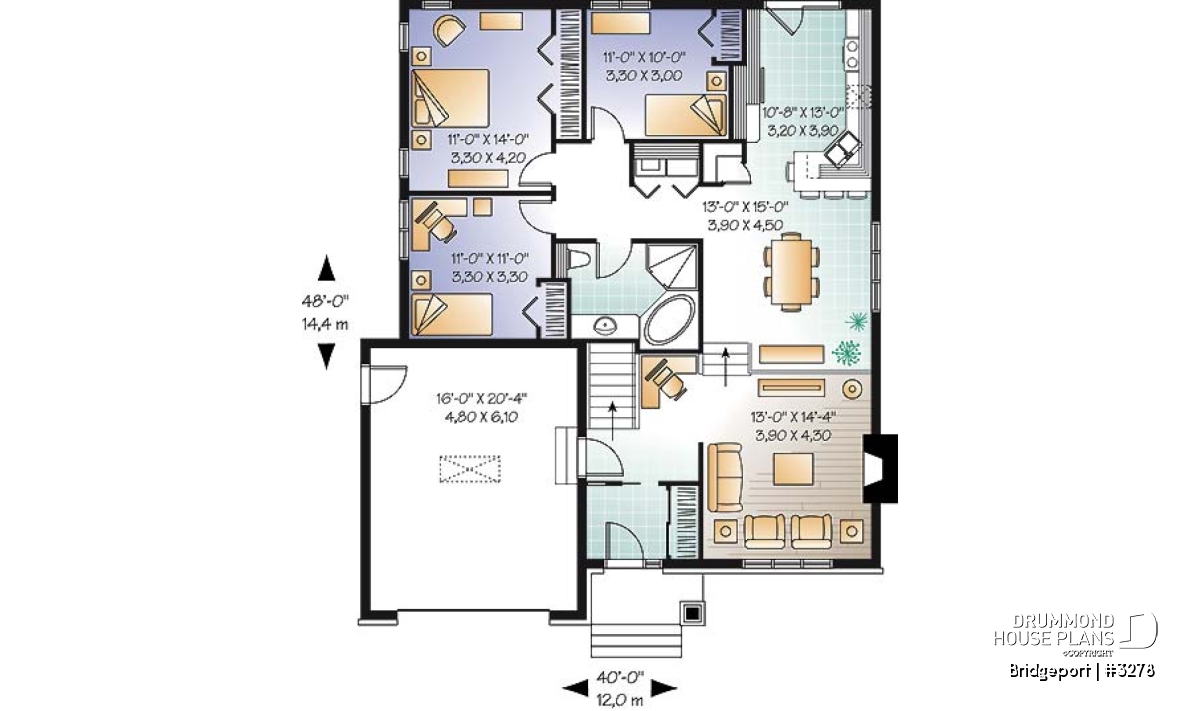

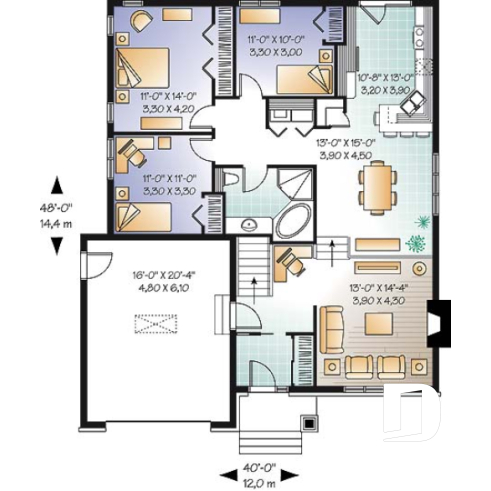

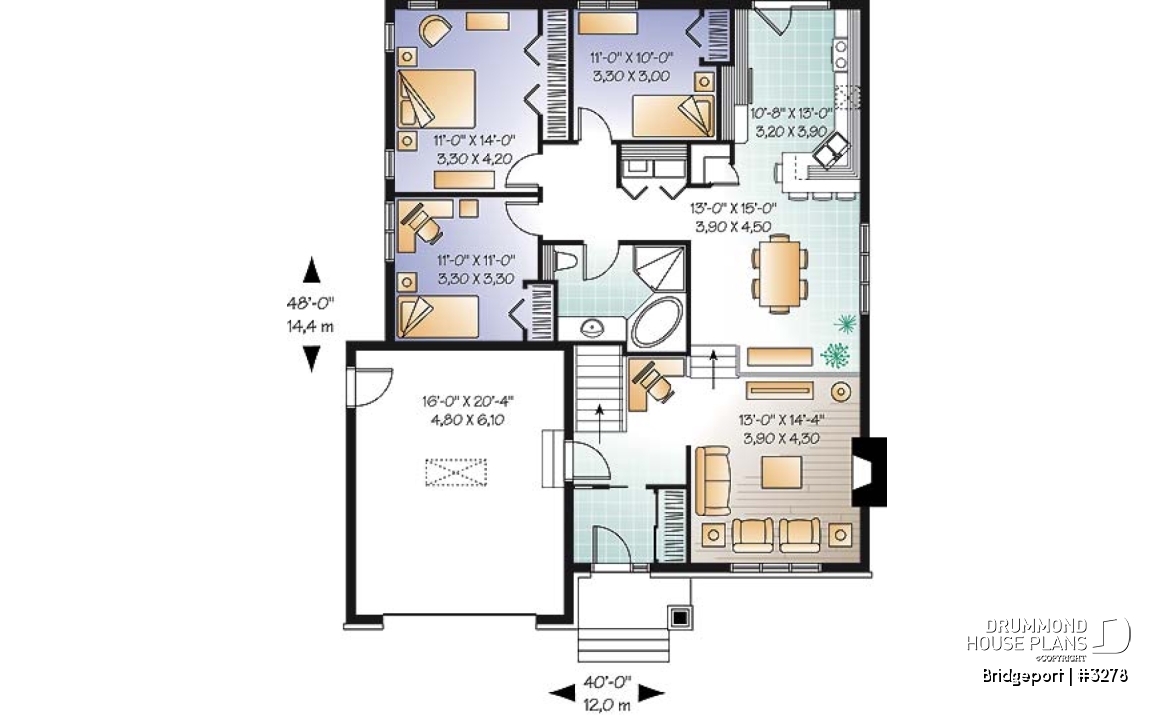

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'8" x 13'0" | ~ 8'0" |
| Dining room | 13'0" x 15'0" | ~ 8'0" |
| Living room | 13'0" x 14'4" | ~ 10'7" |
| Foyer | 6'2" x 5'8" | ~ 10'7" |
| Full bathroom | 9'10" x 7'4" | ~ 8'0" |
| Bedroom | 11'0" x 14'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Laundry room | 5'0" x 3'4" | ~ 8'0" |
| Garage | 16'0" x 20'4" | ~ 10'0" |
| Linen | 2'8" x 3'0" | ~ 8'0" |
| Reading/computer area | 4'7" x 5'9" | ~ 10'7" |
| Porch | 8'8" x 4'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |

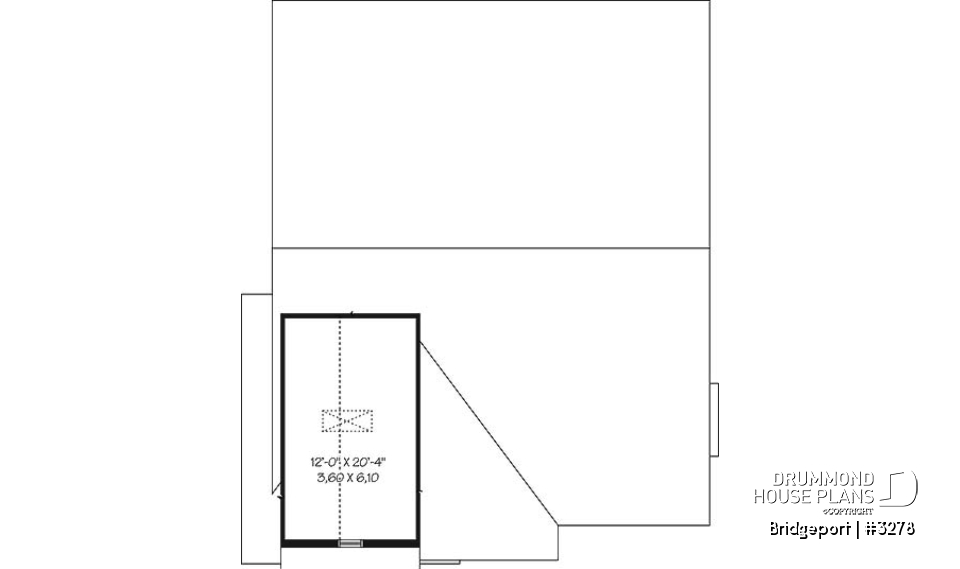

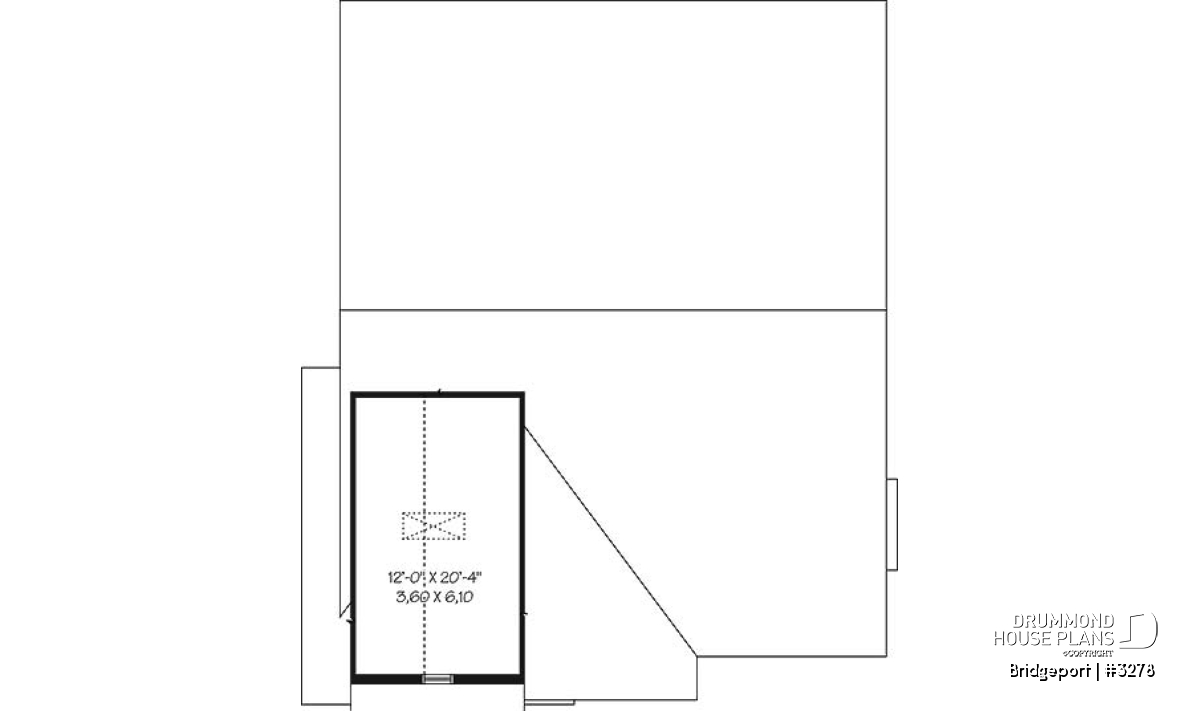

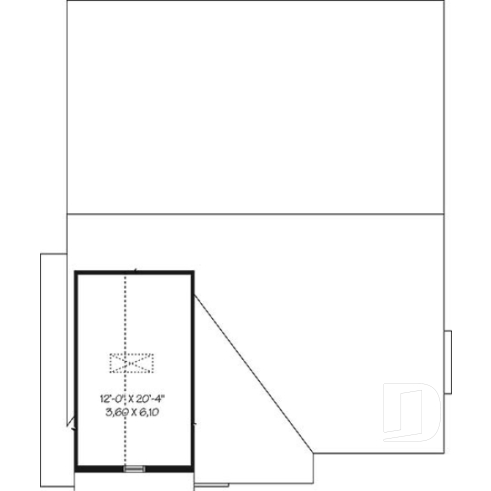

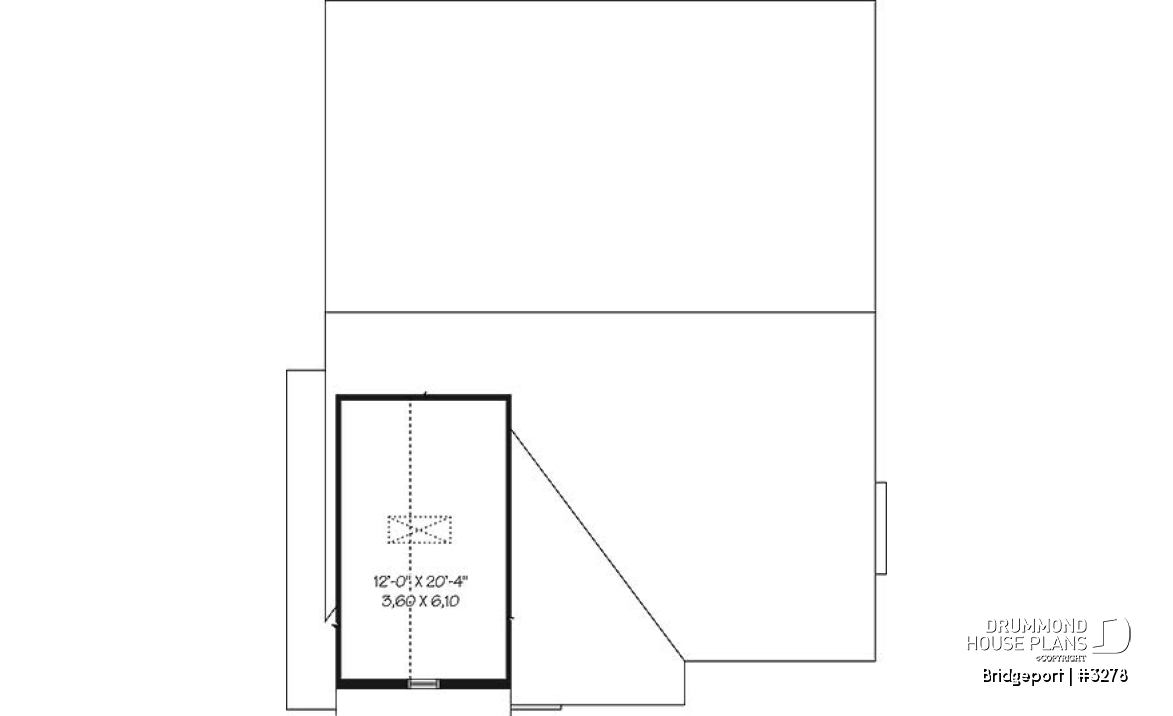

| Bonus storage | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bonus storage | 12'0" x 20'4" | ~ 6'10" |
General specifications
| Total living area | 1390 sq.ft. |
| 1st level | 1390 sq.ft. |
| Bonus storage | 0 sq.ft. |
| Width | 40'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 24'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
3-bedroom Country style house plan with garage and a sunken living room!
.
Distinctive elements
Living room with fireplace and 10' ceiling. Activity area entirely open with dining room on mezzanine overlooking the living room. Computer corner near the living room. Three nice bedrooms. 51" x 34" shower in the bathroom. Laundry area near the bedrooms
Plan feature(s)
Fireplace, Entrance hall, Separate bath and shower, Sunken living room, Lunch counter, Gound floor laundry room, Pantry, Planning desk, Sloped ceiling
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
