House plan Zena (3277)

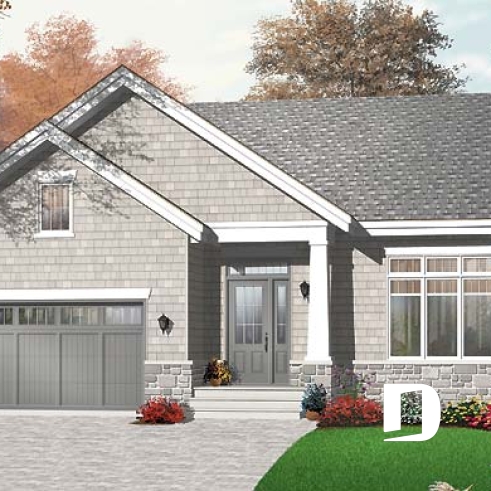

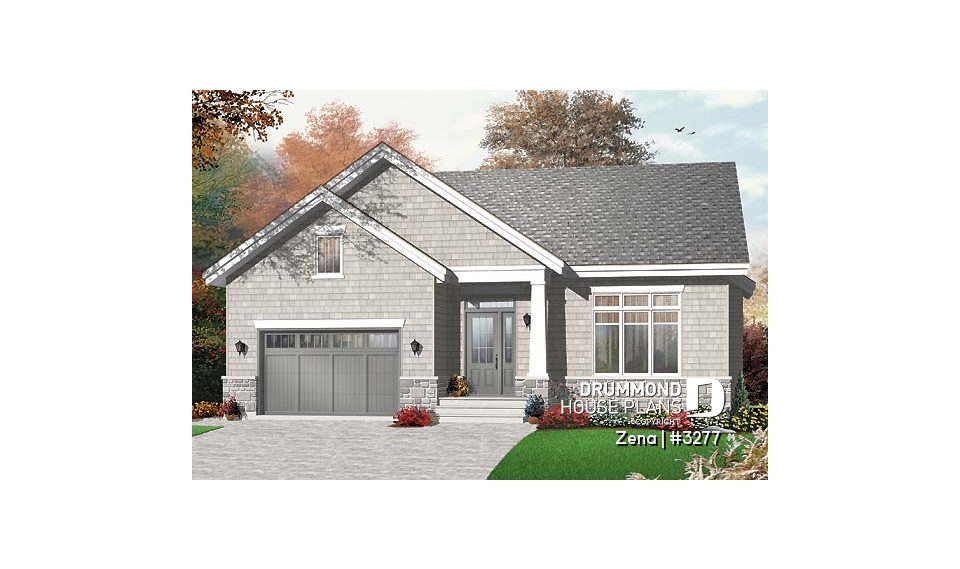

Craftsman house plan, sunken living room with fireplace, master bed with walk-in, large bathroom & laundry
View the size of the rooms and height of the ceilings

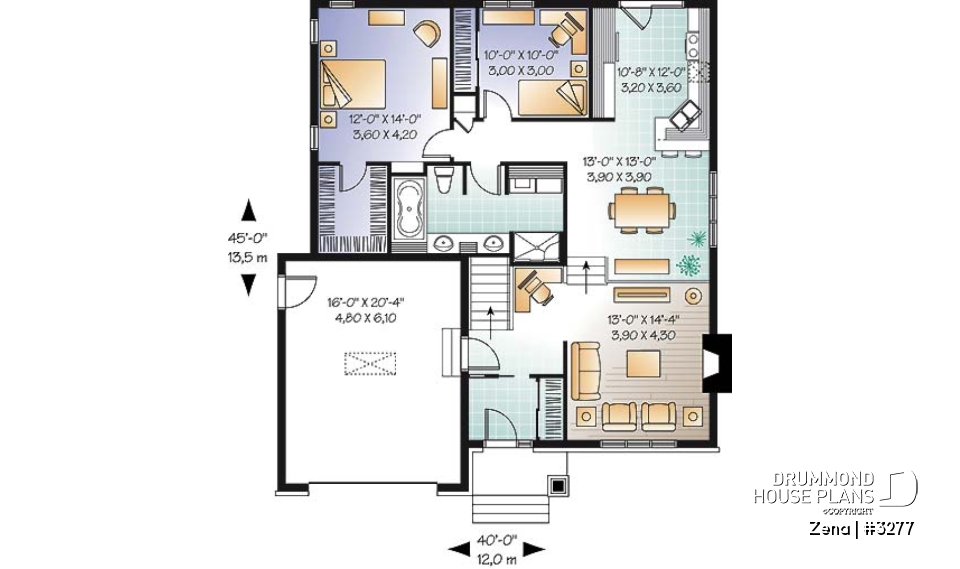

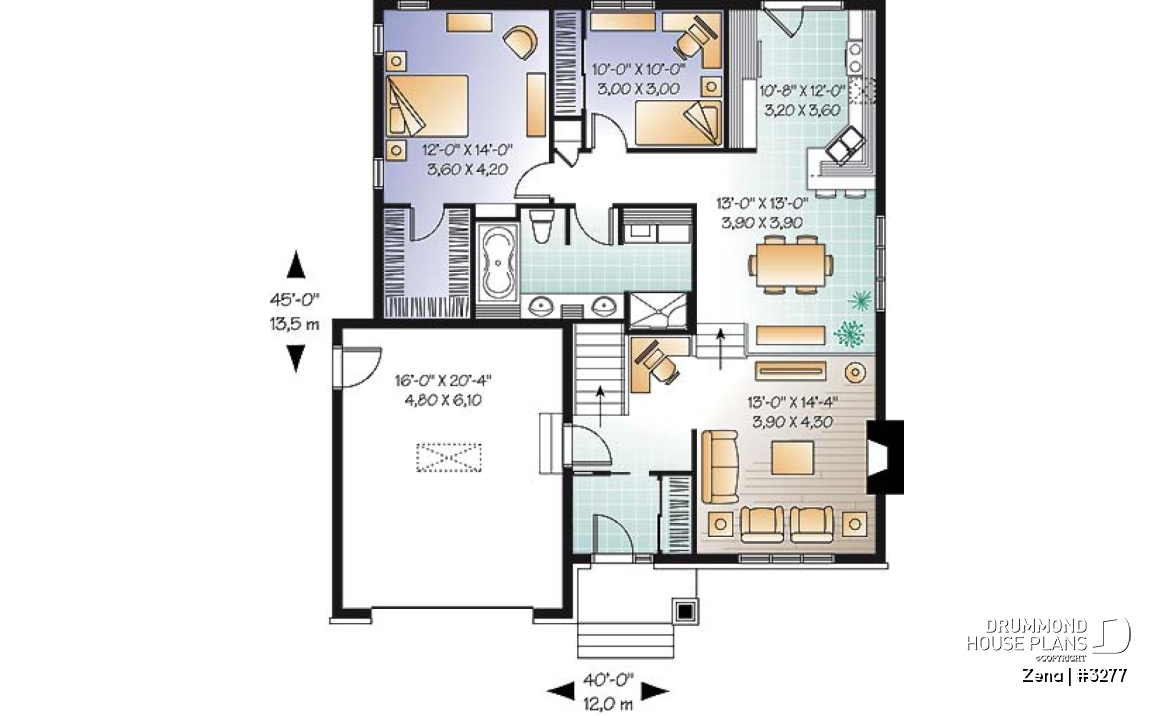

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'8" x 12'0" | ~ 8'0" |
| Dining room | 13'0" x 13'0" | ~ 8'0" |
| Living room | 13'0" x 14'4" | ~ 10'7" |
| Foyer | 6'2" x 5'8" | ~ 10'7" |
| Full bathroom | 15'8" x 8'0" | ~ 8'0" |
| Bedroom | 12'0" x 14'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Garage | 16'0" x 20'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Porch | 8'8" x 4'0" | N/A |
| Porch | 10'0" x 5'0" | N/A |

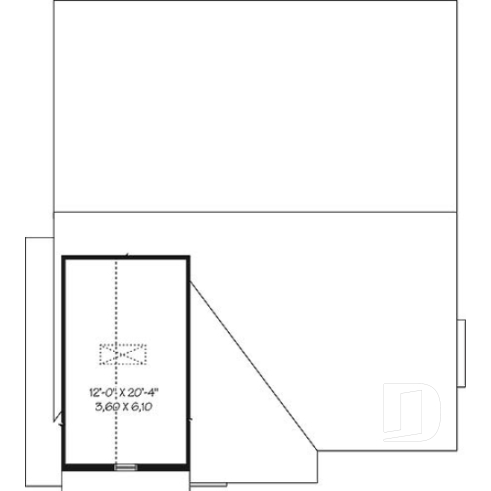

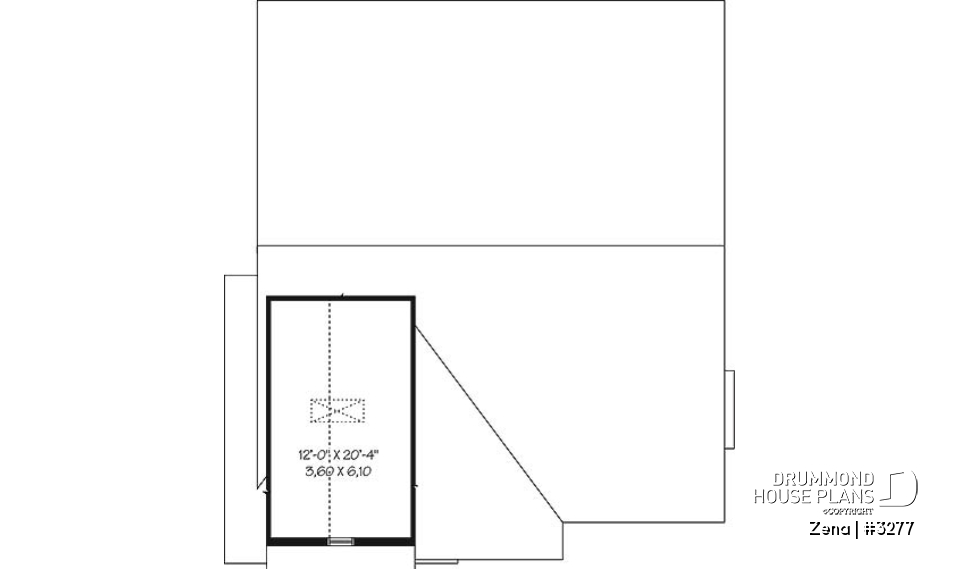

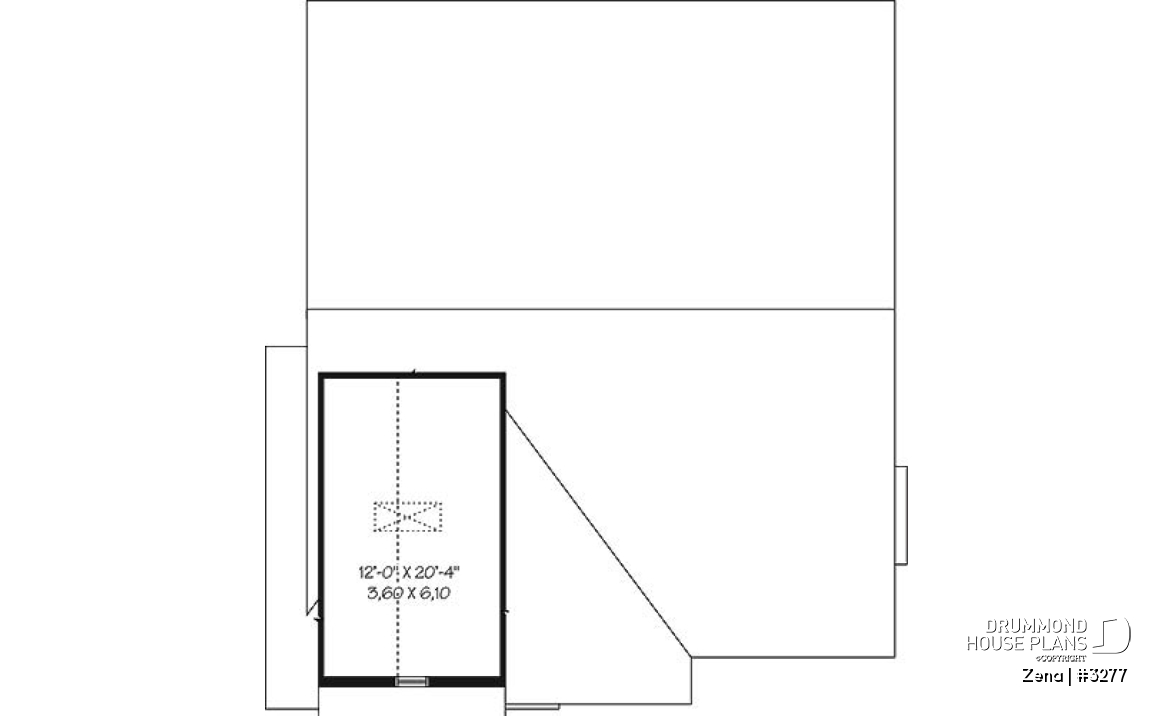

| Bonus storage | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bonus storage | 12'0" x 20'4" | ~ 6'10" |
General specifications
| Total living area | 1279 sq.ft. |
| 1st level | 1279 sq.ft. |
| Bonus storage | 0 sq.ft. |
| Width | 40'0" |
| Depth | 45'0" |
| Ridge height from top of foundation | 23'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Budget-friendly 2-bedroom Craftsman style house plan with sunken living room!
.
Distinctive elements
Living room with fireplace and 10' ceiling.
Activity area entirely open with dining room on mezzanine overlooking the living room.
Computer corner near the living room.
Two nice bedrooms with excellent storage, for example, the nice walk-in closet in the master bedroom. Bathroom with large counter, 51" x 34" shower and laundry area.
Plan feature(s)
Fireplace, Sunken living room, Walk-in master bed., Lunch counter, Gound floor laundry room, Entrance hall, Sloped ceiling, Separate bath and shower, Double sinks
