House plan Hale (3110)

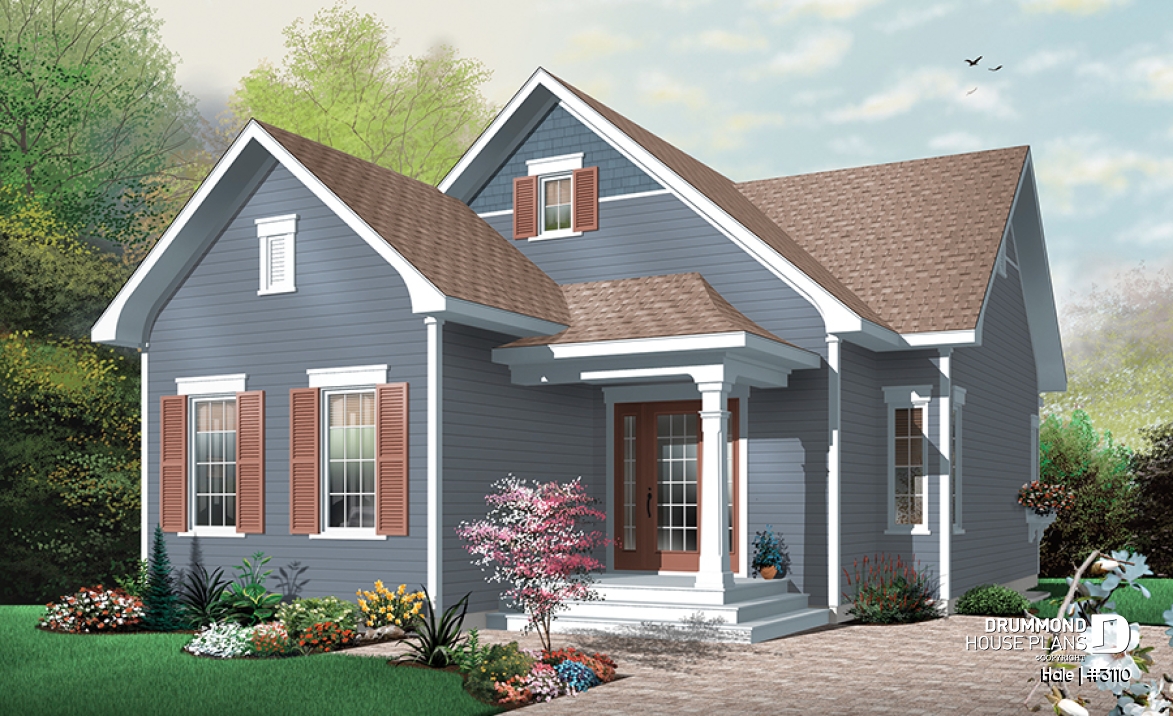

Spacious 2 bedroom Cape Cod with fireplace, ideal for narrow lots, great open kitchen / living concept
View the size of the rooms and height of the ceilings

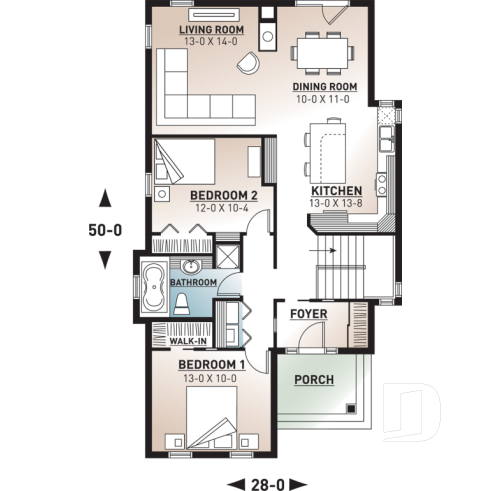

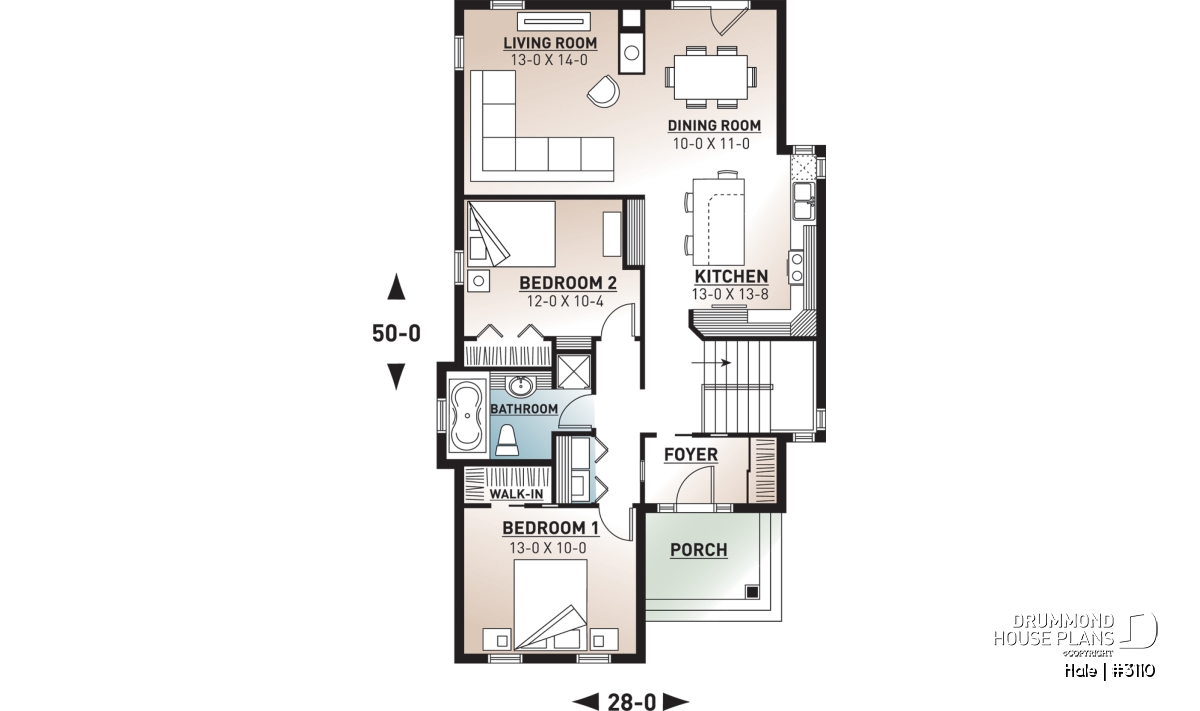

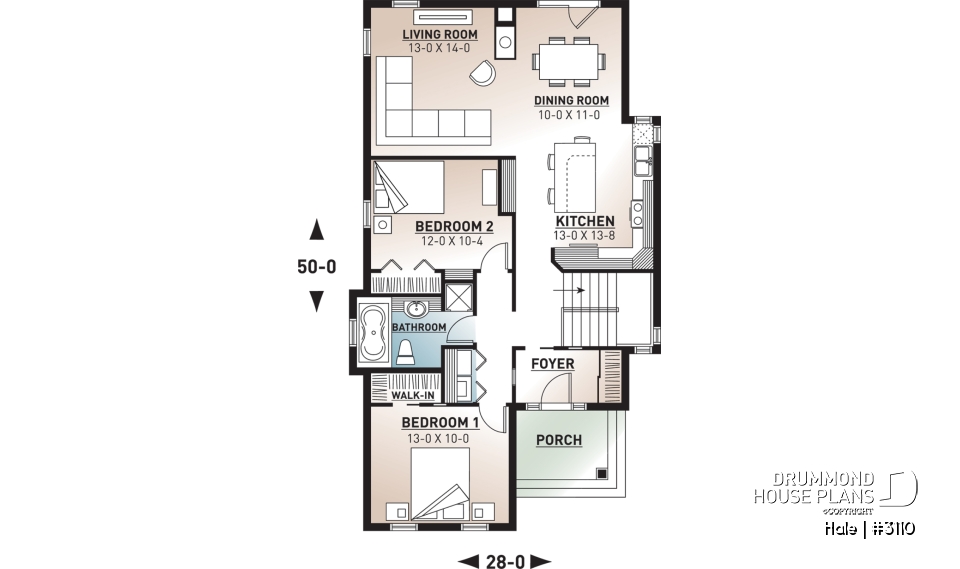

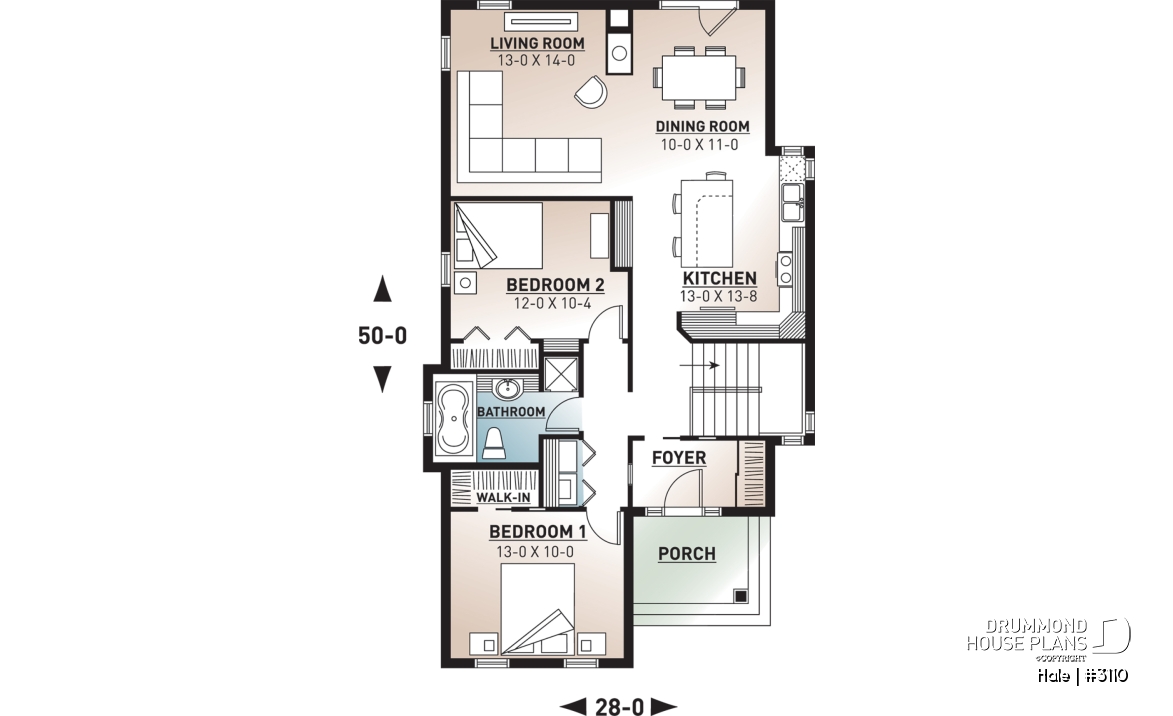

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'0" x 13'8" | ~ 9'0" |
| Dining room | 10'0" x 11'0" | ~ 9'0" |
| Living room | 13'8" x 14'0" | ~ 9'0" |
| Foyer | 7'8" x 5'0" | ~ 9'0" |
| Full bathroom | 8'0" x 6'8" | ~ 9'0" |
| Bedroom | 13'0" x 11'0" | ~ 9'0" |
| Bedroom | 12'0" x 10'4" | ~ 9'0" |
| Laundry room | 2'8" x 5'2" | ~ 9'0" |
| Linen | 2'8" x 1'0" | ~ 9'0" |
| Porch | 8'8" x 6'6" | N/A |
| Deck | 8'0" x 6'0" | N/A |
General specifications
| Total living area | 1207 sq.ft. |
| 1st level | 1207 sq.ft. |
| Width | 28'0" |
| Depth | 50'0" |
| Ridge height from top of foundation | 22'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

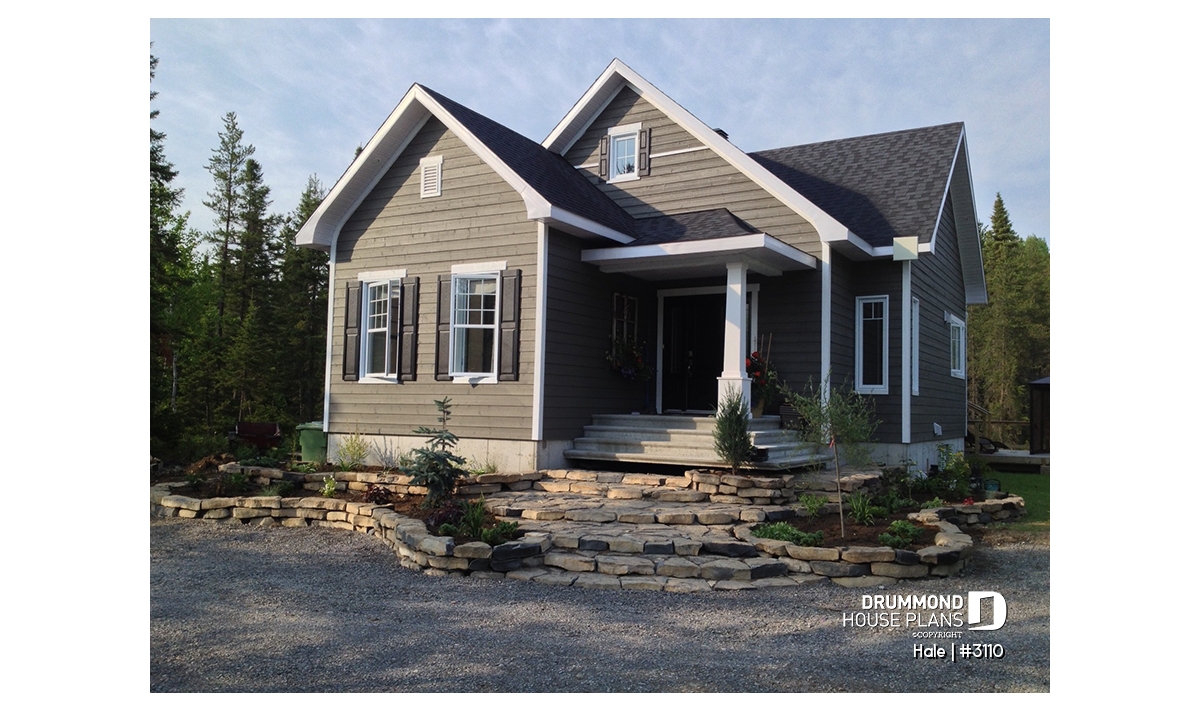

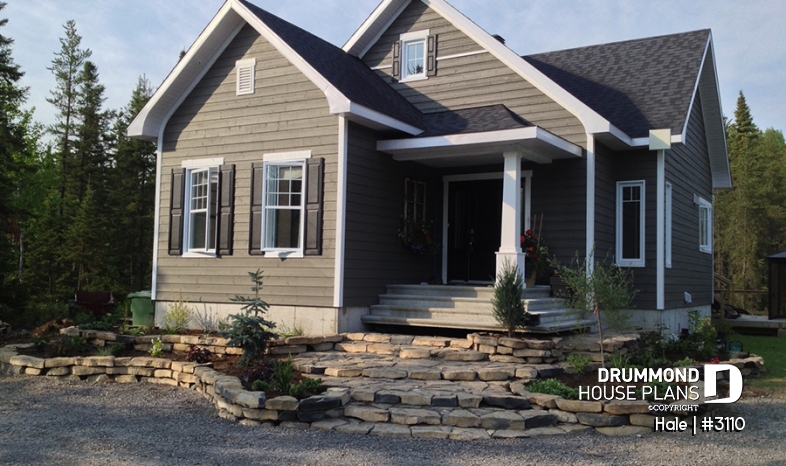

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

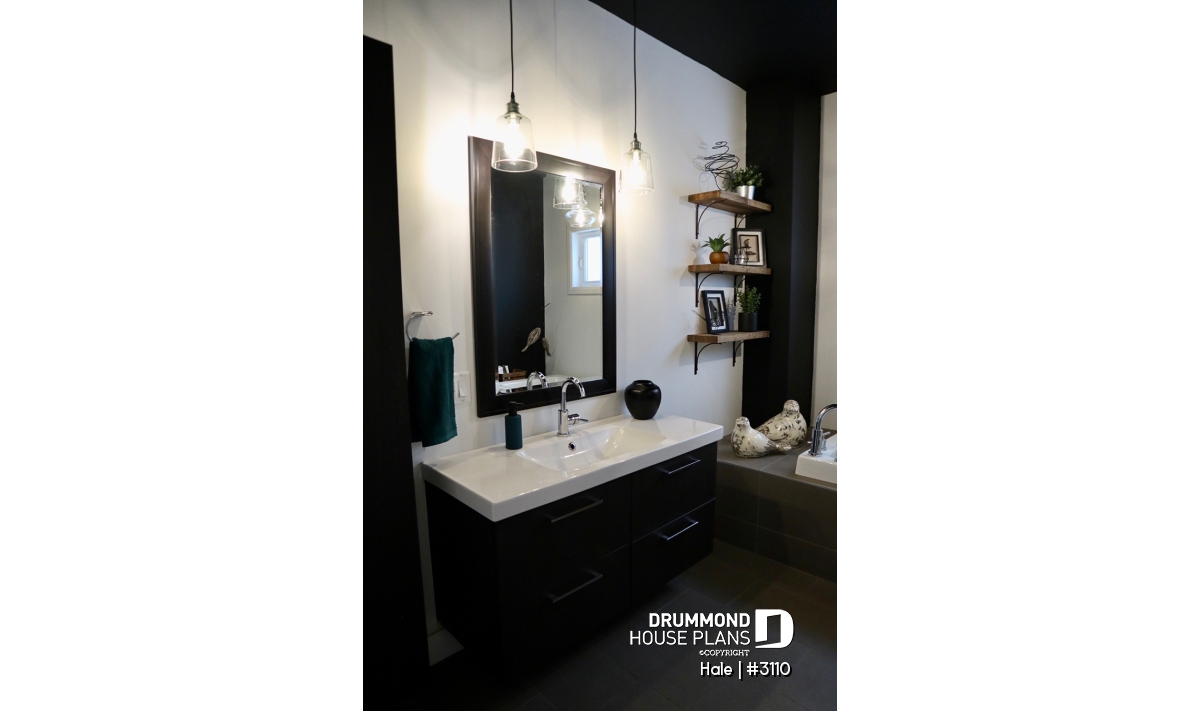

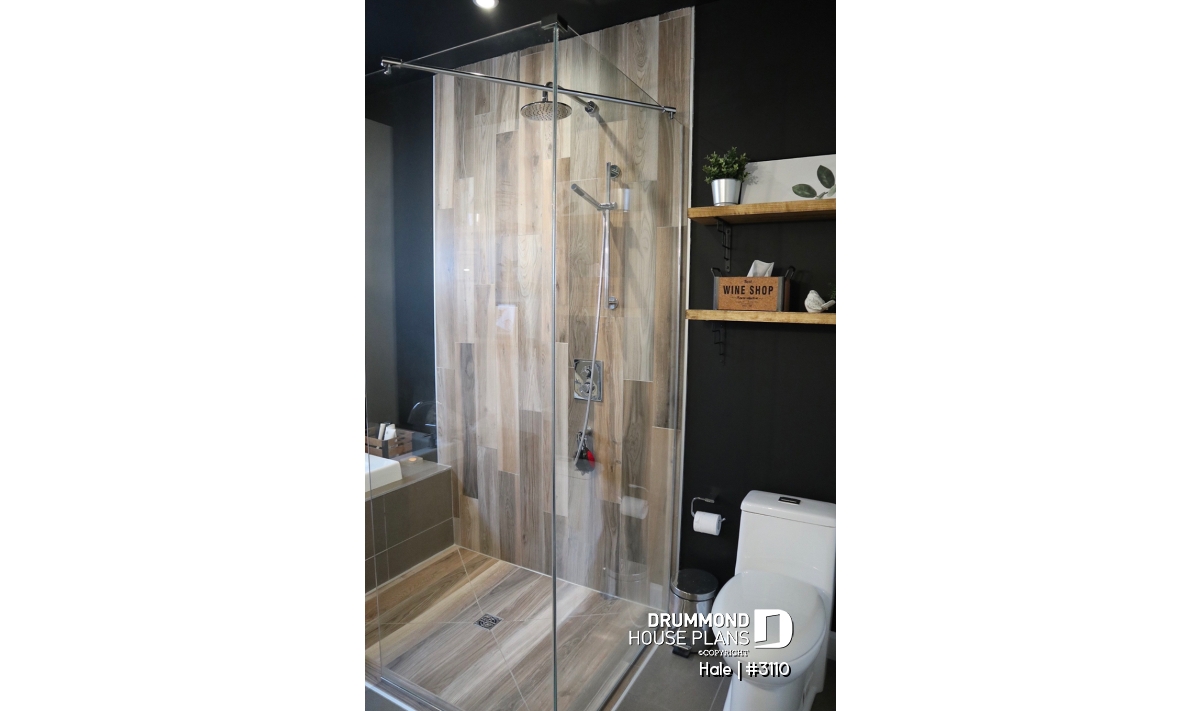

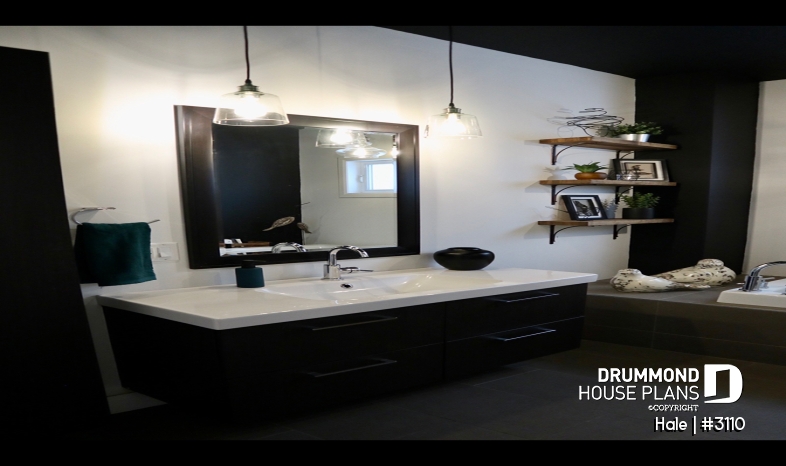

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

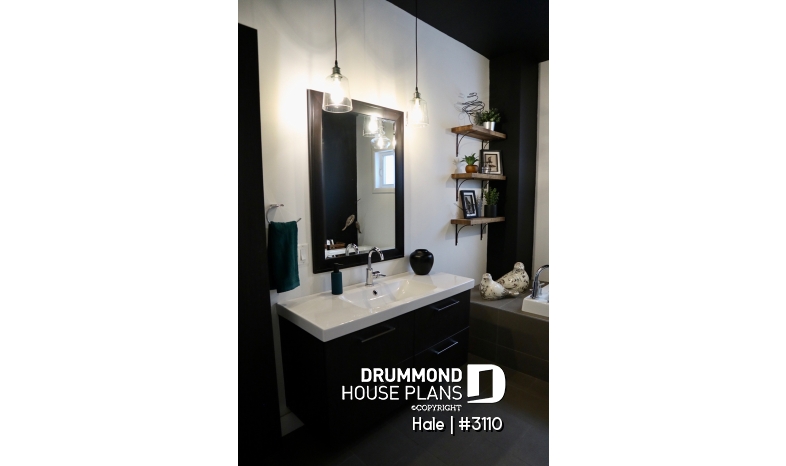

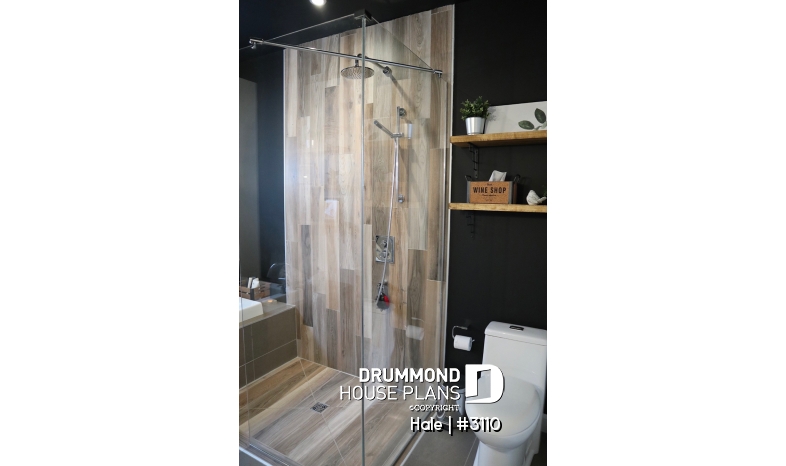

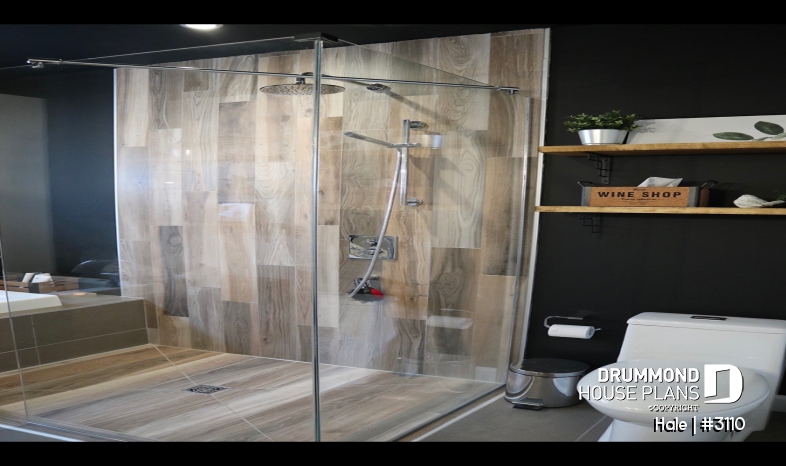

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

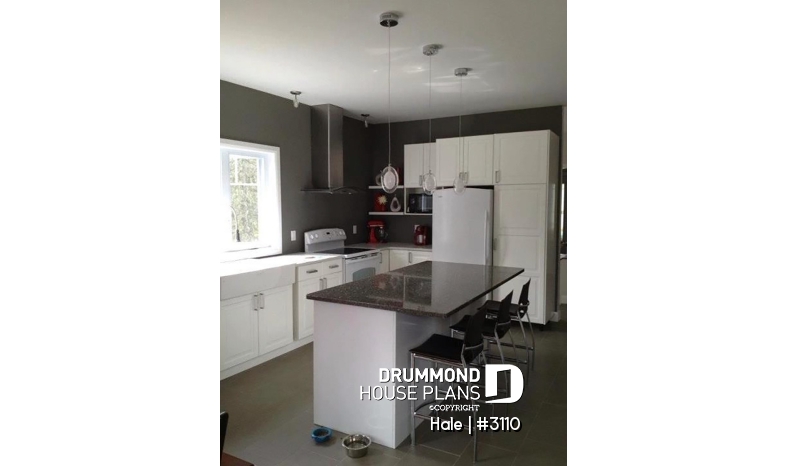

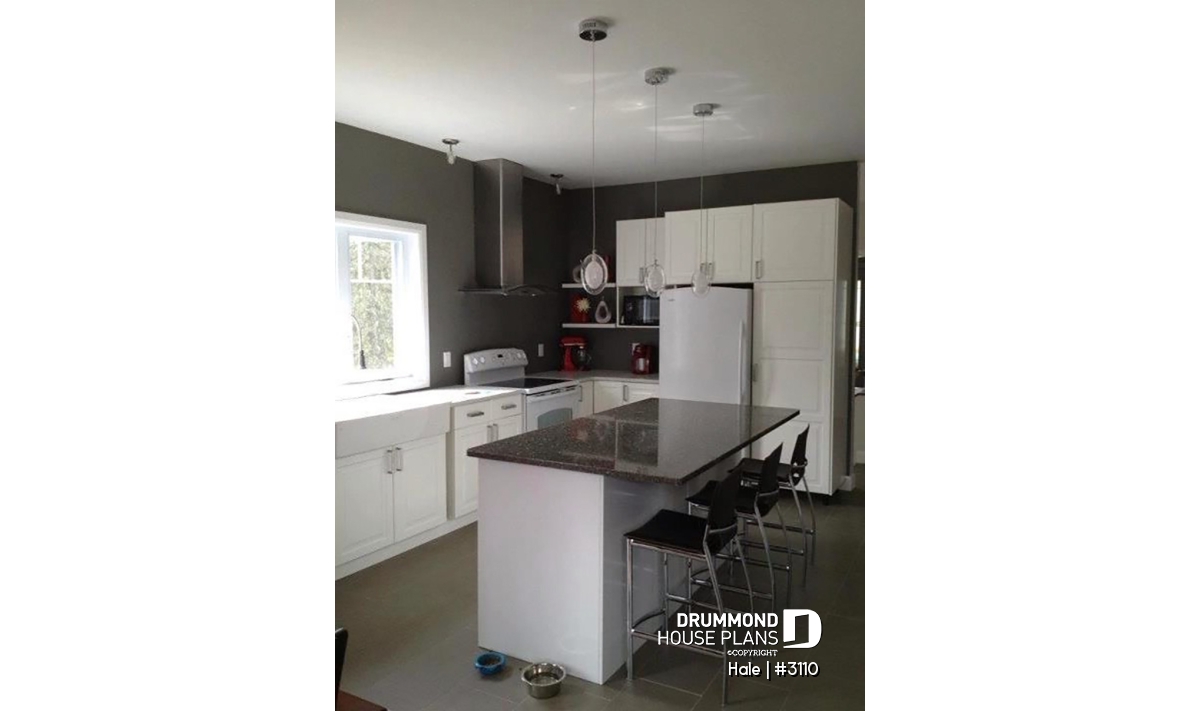

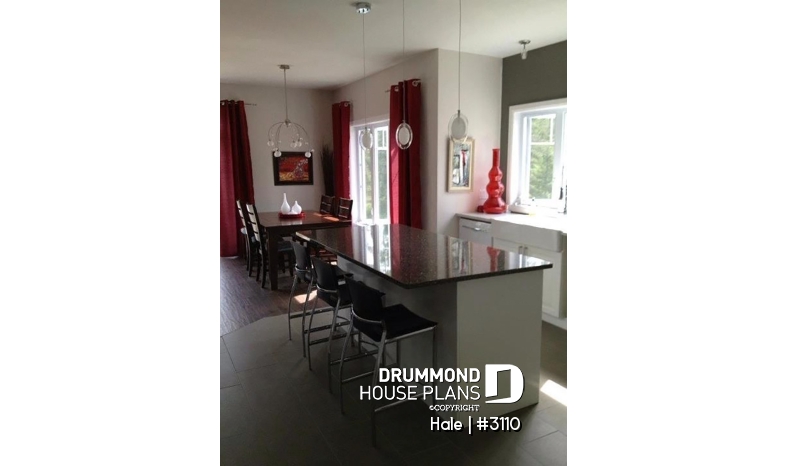

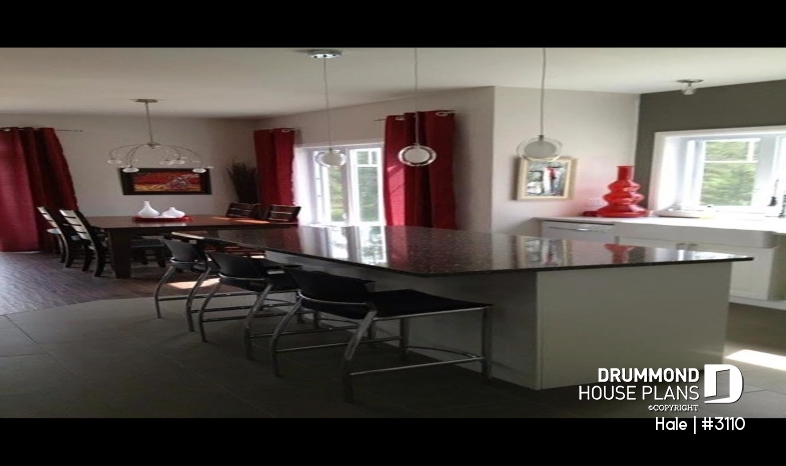

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

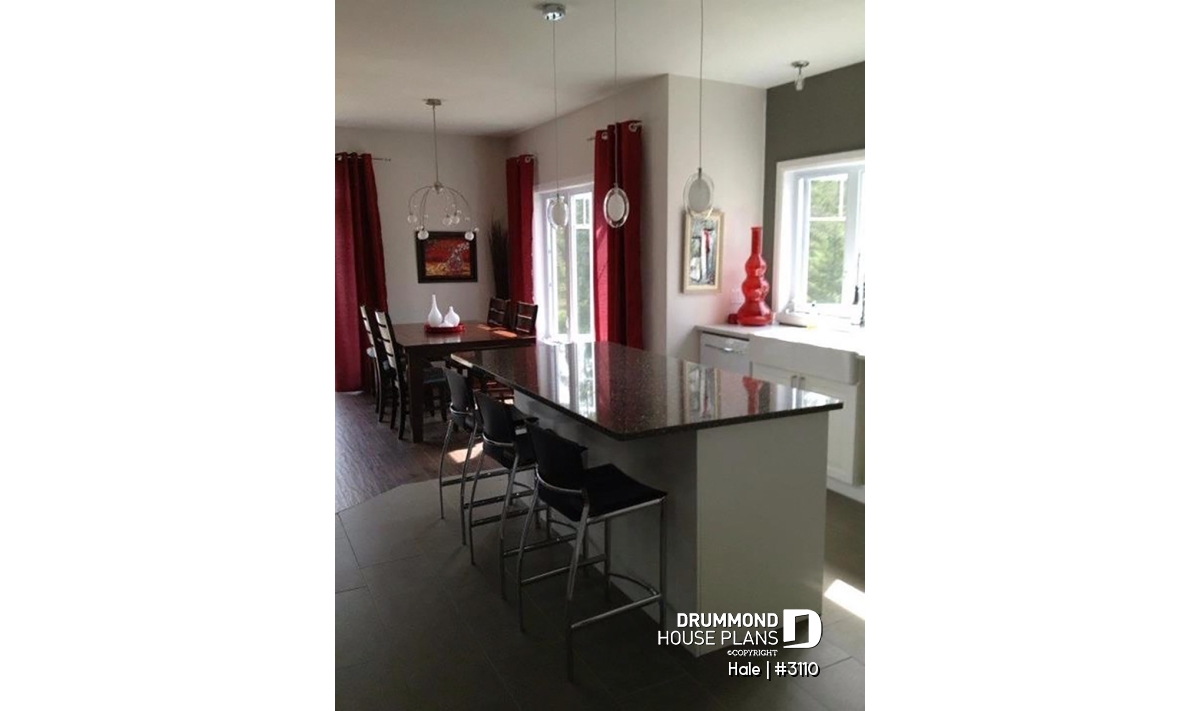

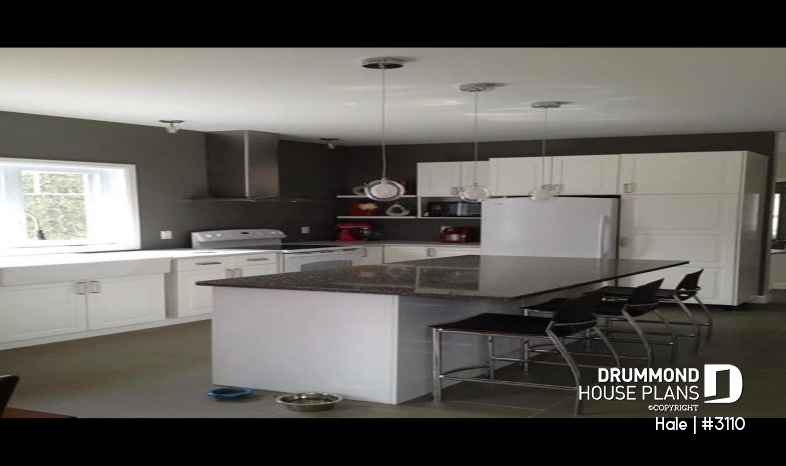

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

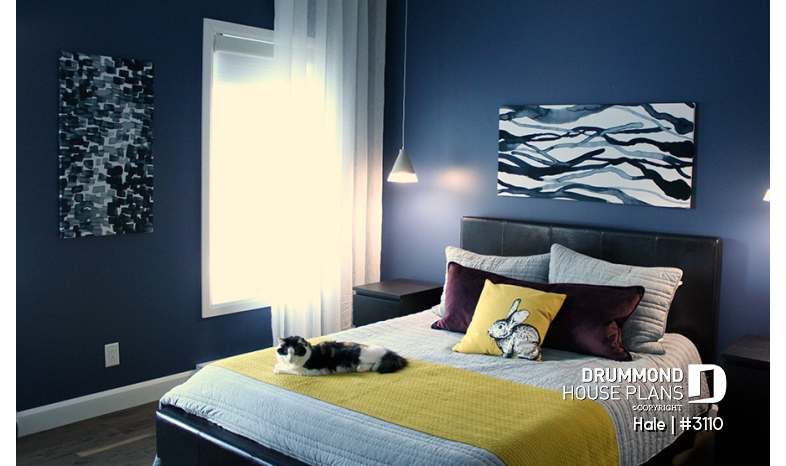

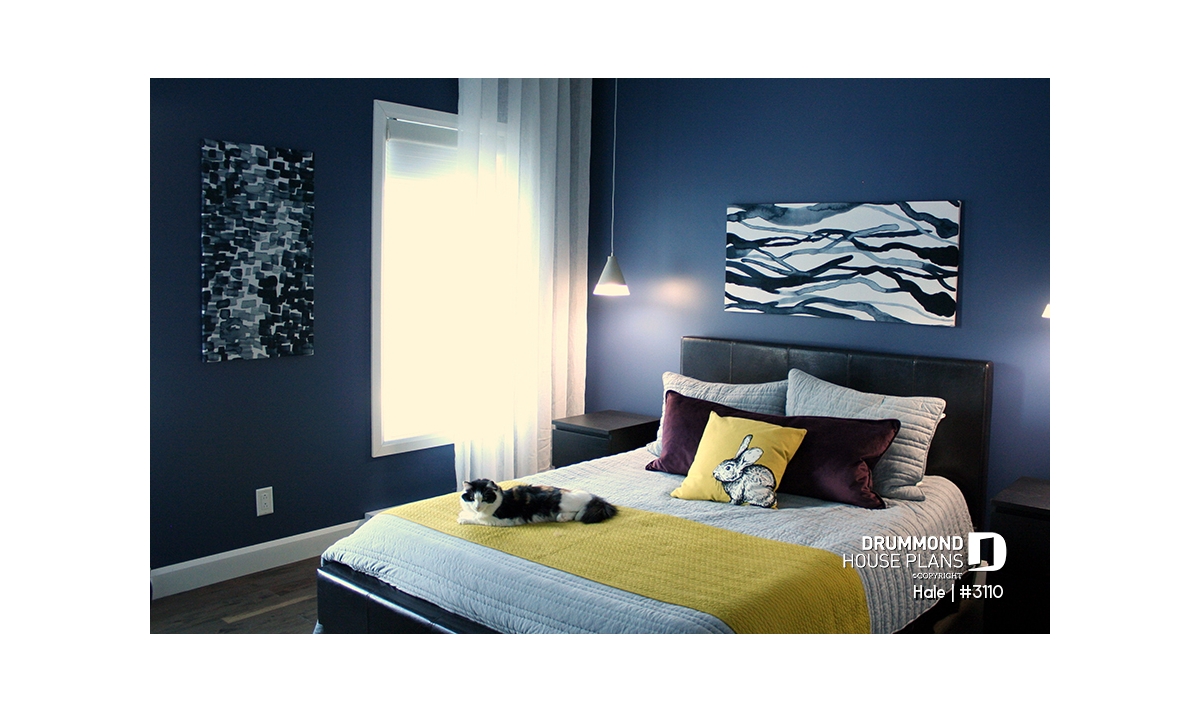

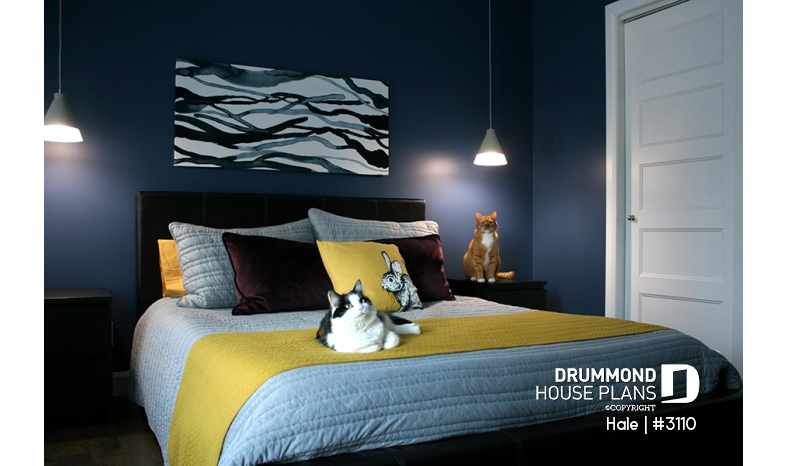

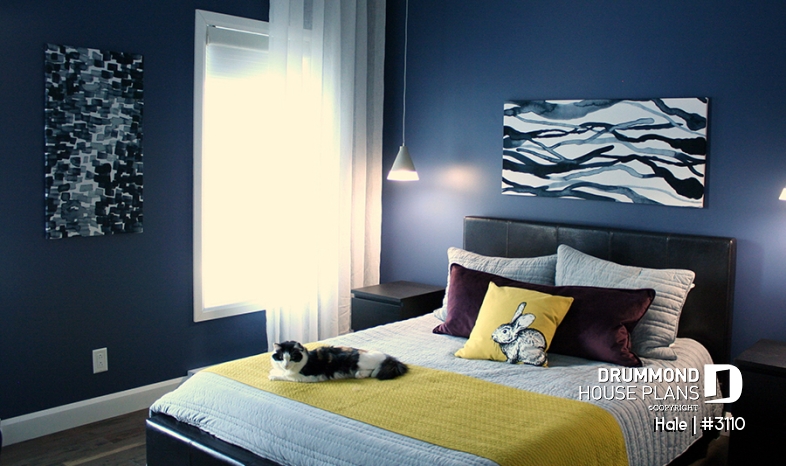

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

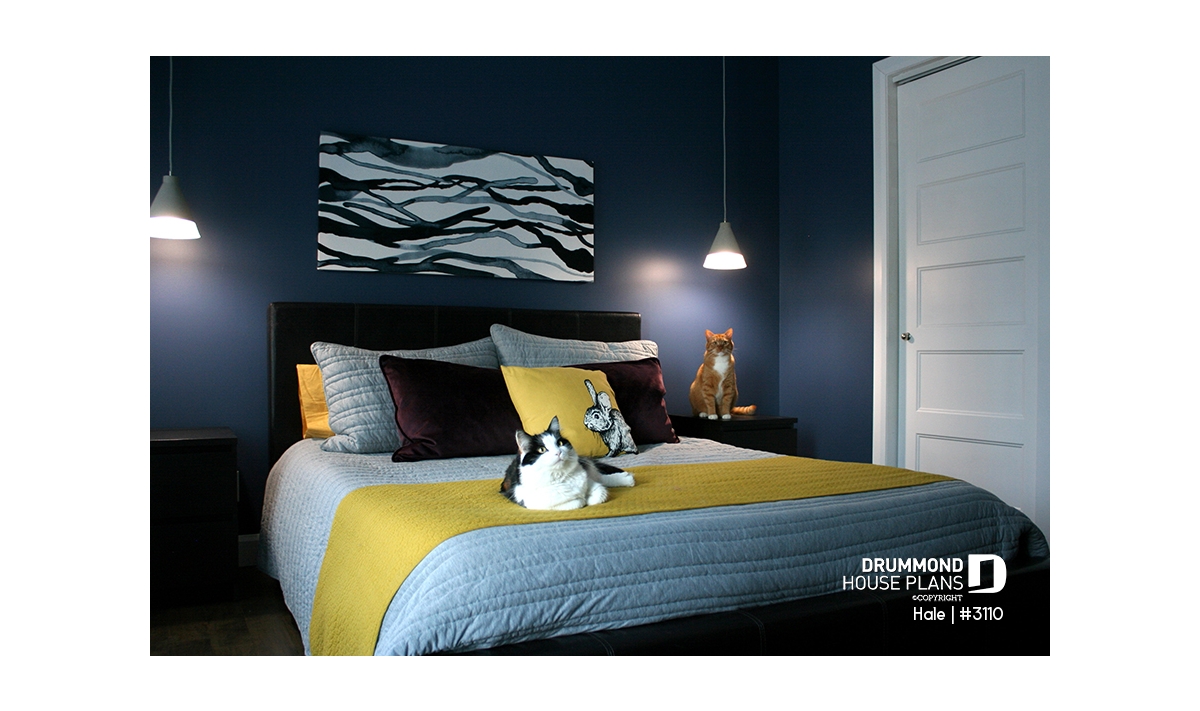

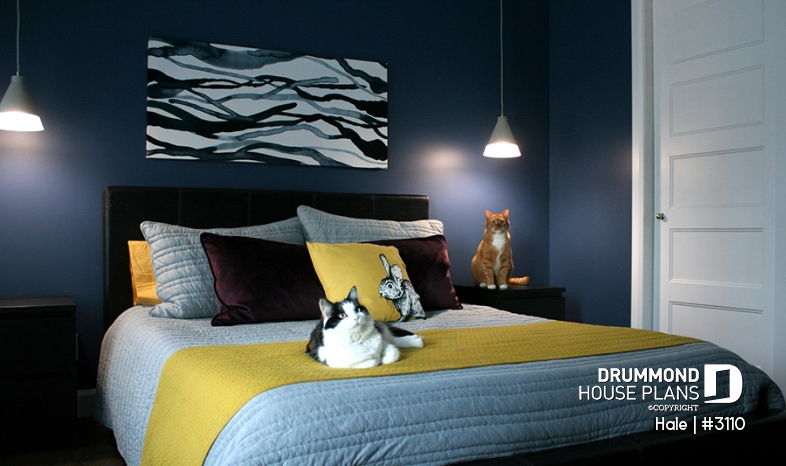

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Narrow lot one-storey house plan with great open living concept
.
Distinctive elements
9' Ceiling. Closed foyer with coat closet. Covered front porch. Three-sided fireplace shared by family and dining rooms. Kitchen island with lunch counter.
Plan feature(s)
Fireplace, Gound floor laundry room, Island, Walk-in master bed., Open floor layout, Entrance hall, Separate bath and shower
Plan architectural style(s)
. Country, . American, . Cape Cod, . Traditional
