House plan Kenora (3130)
Ranch Bungalow house plan with 3 bedrooms, cathedral ceiling and large eat-in kitchen

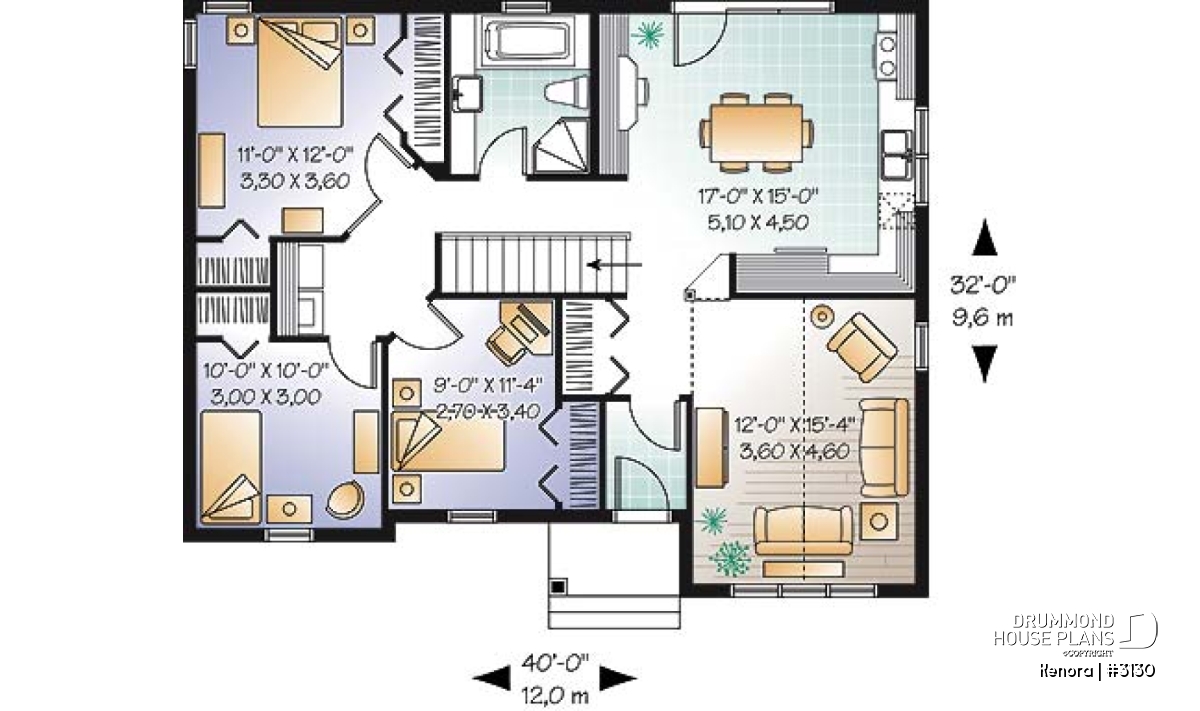

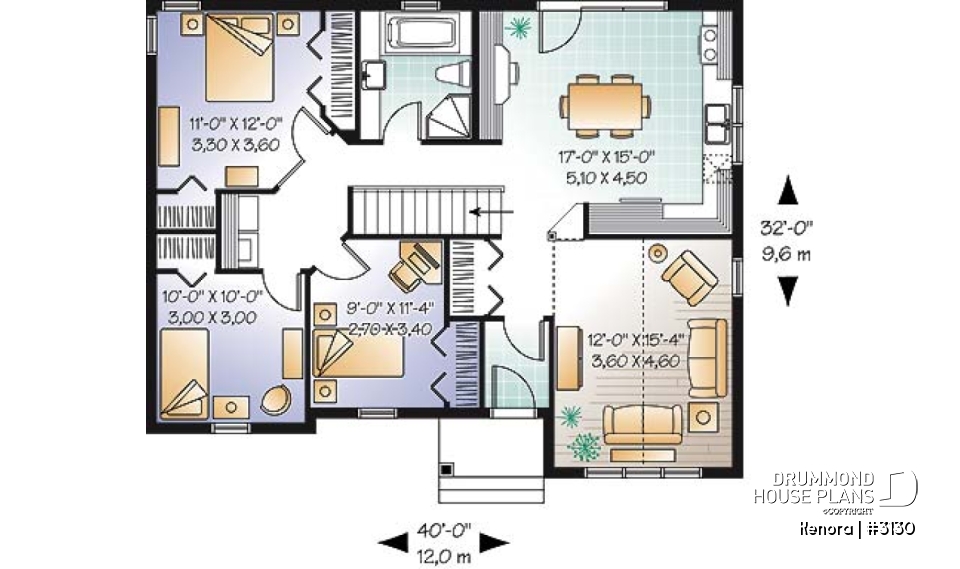

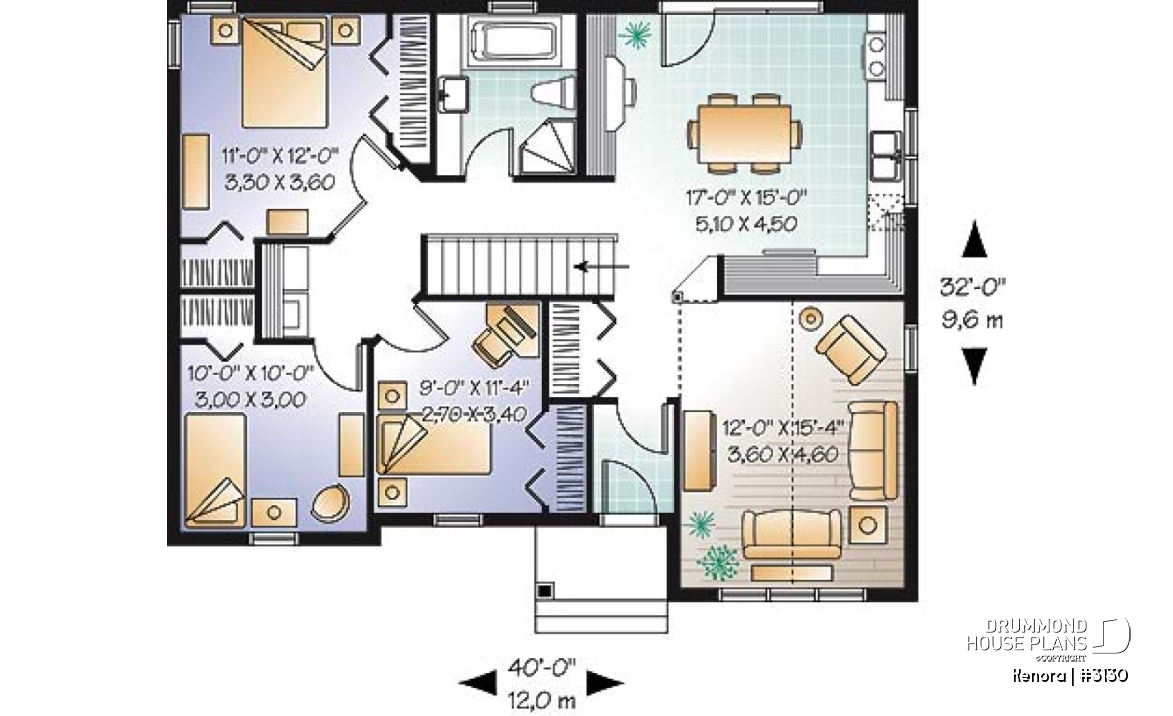

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 17'0" x 15'0" | ~ 8'0" |
| Living room | 12'0" x 15'4" | ~ 11'8" |
| Foyer | 4'4" x 5'10" | ~ 8'0" |
| Full bathroom | 7'6" x 8'8" | ~ 8'0" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Bedroom | 9'0" x 11'4" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Laundry room | 2'8" x 5'0" | ~ 8'0" |
| Porch | 7'0" x 4'0" | N/A |
| Porch | 12'0" x 8'0" | N/A |
General specifications
| Total living area | 1185 sq.ft. |
| 1st level | 1185 sq.ft. |
| Width | 40'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 18'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan

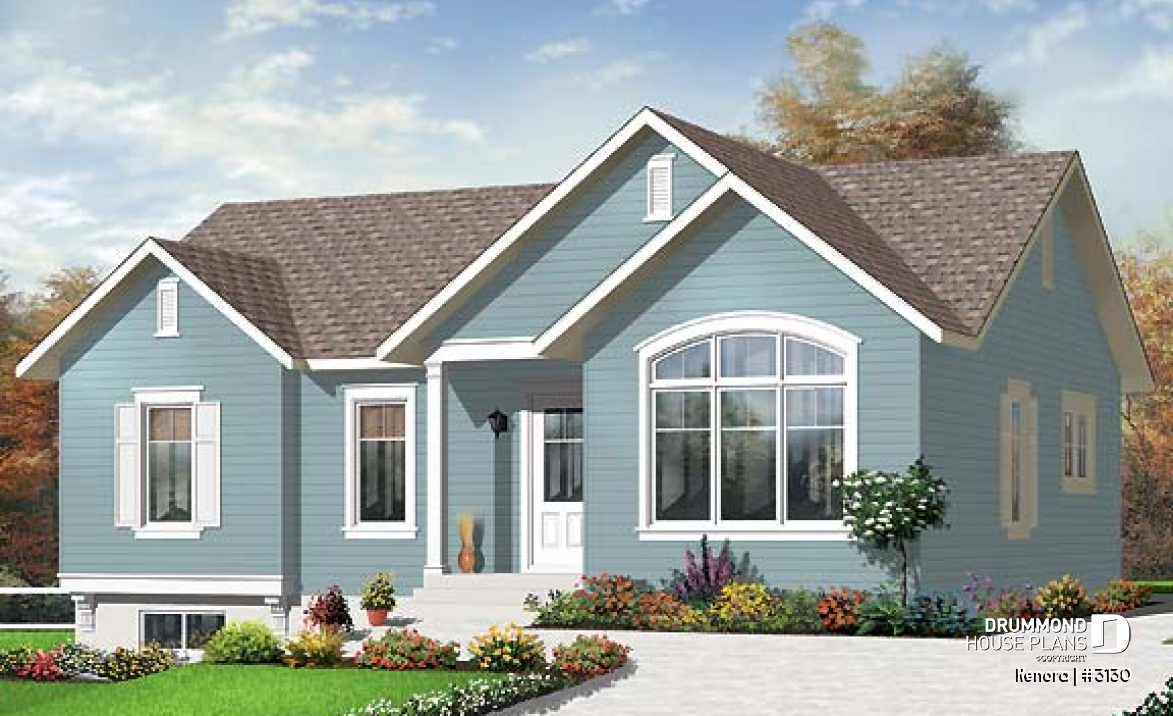

Classic three-bedroom Ranch bungalow

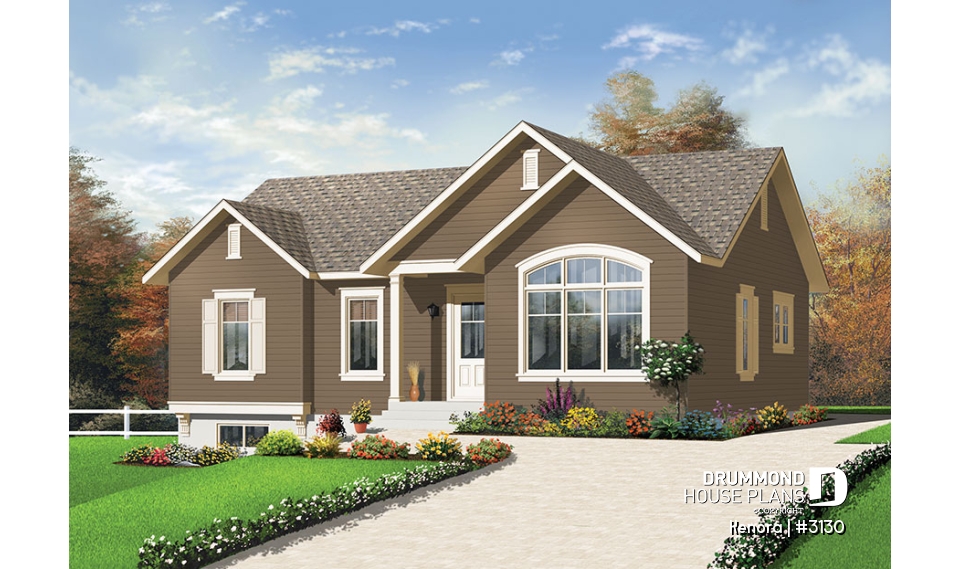

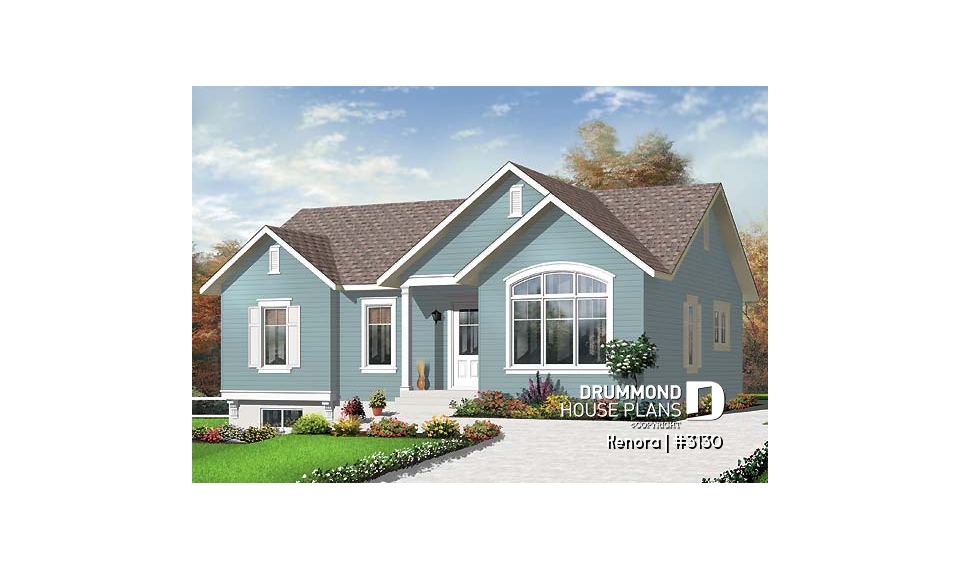

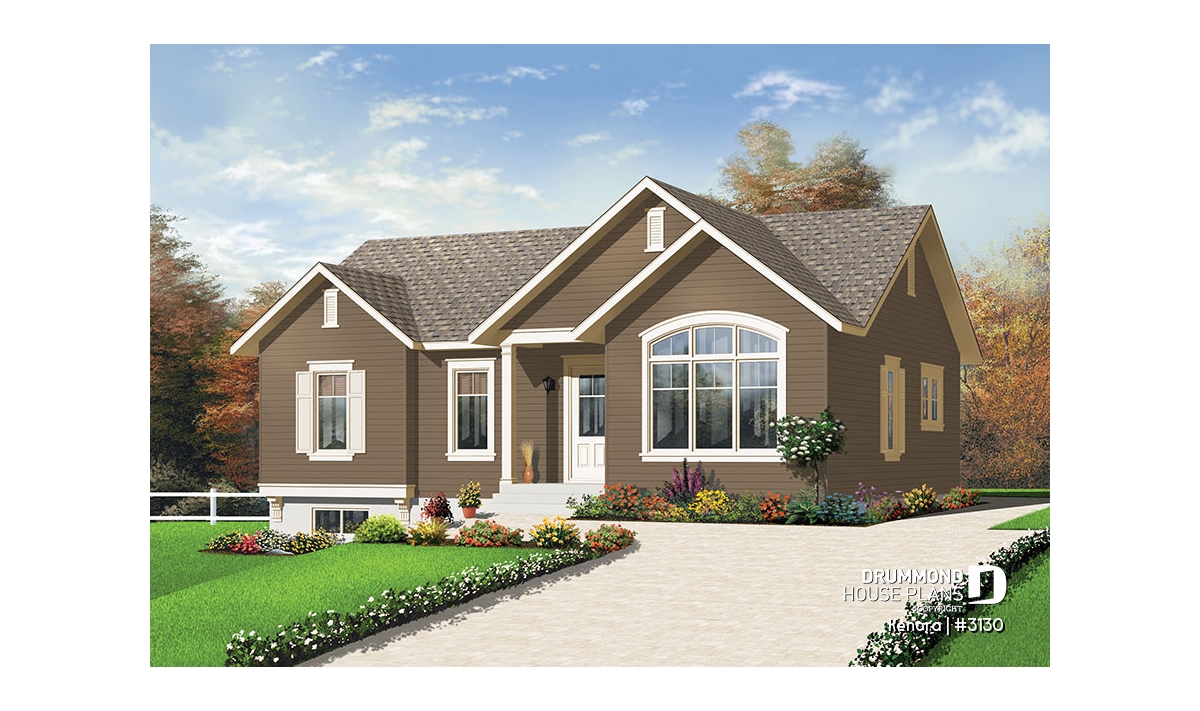

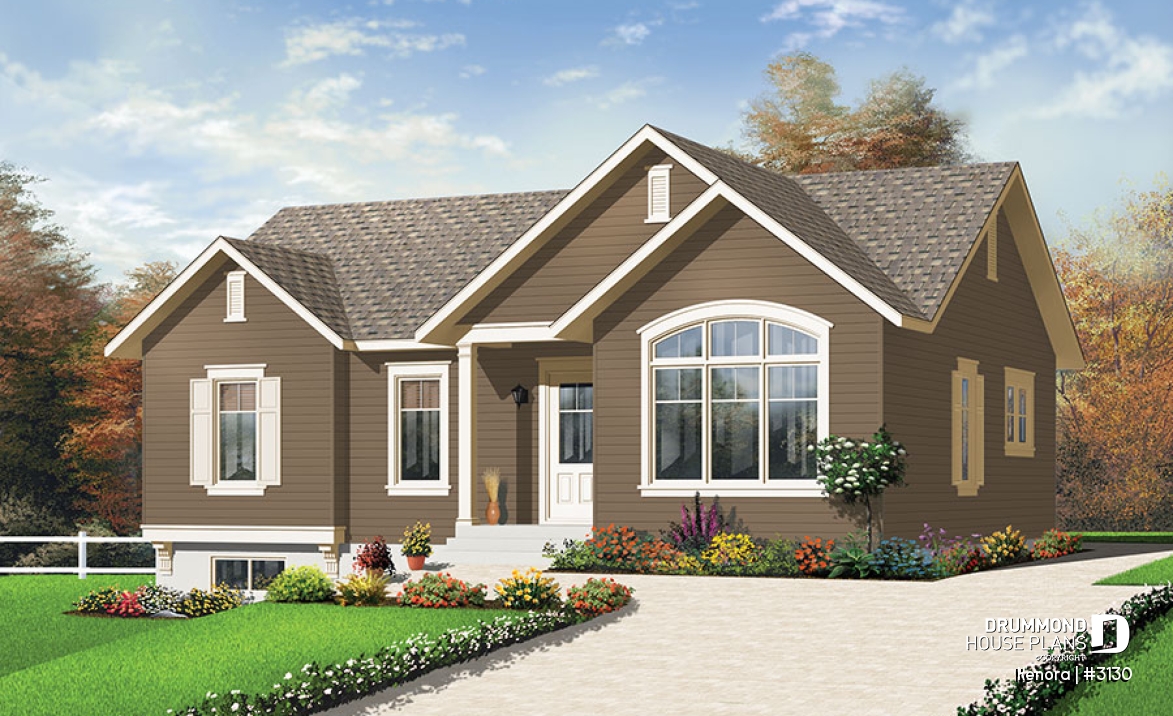

Balanced exterior lines and attractive arched window add to the charm of this classic bungalow. Enter through the covered entry and you’ll be impressed by the cathedral ceiling in the living room.

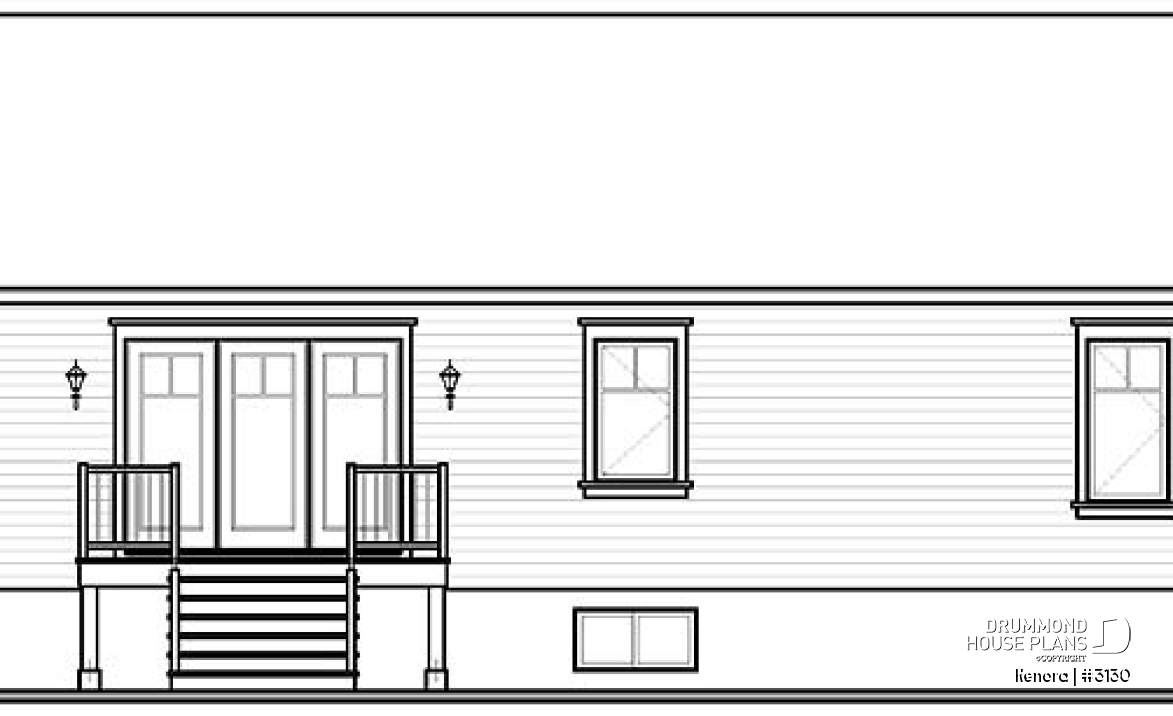

An eat-in kitchen enjoys an abundance of light thanks to a large windows above the sink and a triple garden door leading to the back yard. A discreet built-in desk is ideal for keeping records and recipes organized.
Away from the main activities area, we find a master bedroom with his and hers closets, two secondary bedrooms and a built-in laundry.
The basement provides ample additional storage or could be developed to suit.
Distinctive elements
Cathedral ceiling in the living room, abundant windows. Eat-in kitchen with triple garden doors, large windows above the sink and lots of storage. Three bedrooms and built-in laundry closet on same floor.
Plan feature(s)
Cathedral ceiling, Separate bath and shower, Entrance hall, Gound floor laundry room, Planning desk
Plan architectural style(s)
. Country, . American, . Ranch, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
February 24
marius lavallee
to buy the plans for this house is it possible to have the house all turn around, put living room, ect on the other side and put a fire place it ,,I also wants to put 2 skylight in the living room ,,size is 4'by 4' skylight,,can I get the house 2 or 4 feet longer also to have a walk in closet in the master bed room ?? thanks
February 24
Customer service
Good day Mr. Lavallee and thank you for your interest in this plan.
We can make the changes that you require and would be happy to return a free estimate within two business days after receipt of this on line form for any modifications that are needed to make this plan conform to your requirements.
Please let me know if I can further assist you
Regards
Deb
April 07
Darlene Stanley
I'M LOOKING FOR THE PLAN #3130 IN REVERSE DRAWING. I HAVE ALREADY PURCHASED THIS PLAN BUT IT'S BACKWARDS FACING THE ROAD. CAN YOU HELP ME?
April 08
Customer service
Dear Mrs Stanley,
Please contact our Customer Service Department. We will gladly help you. You can reach us at 1-800-567-5267.
Regards,
Customer Service Department
