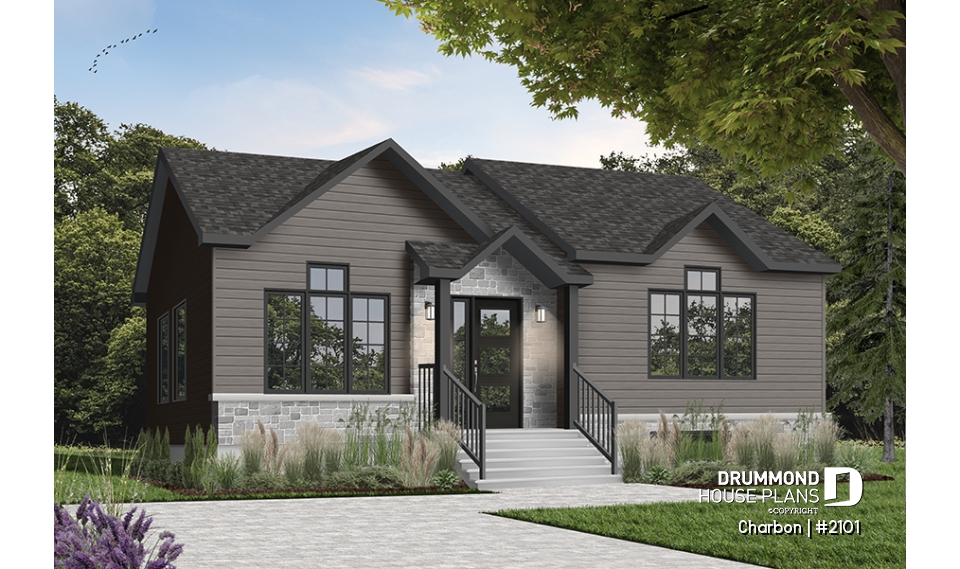

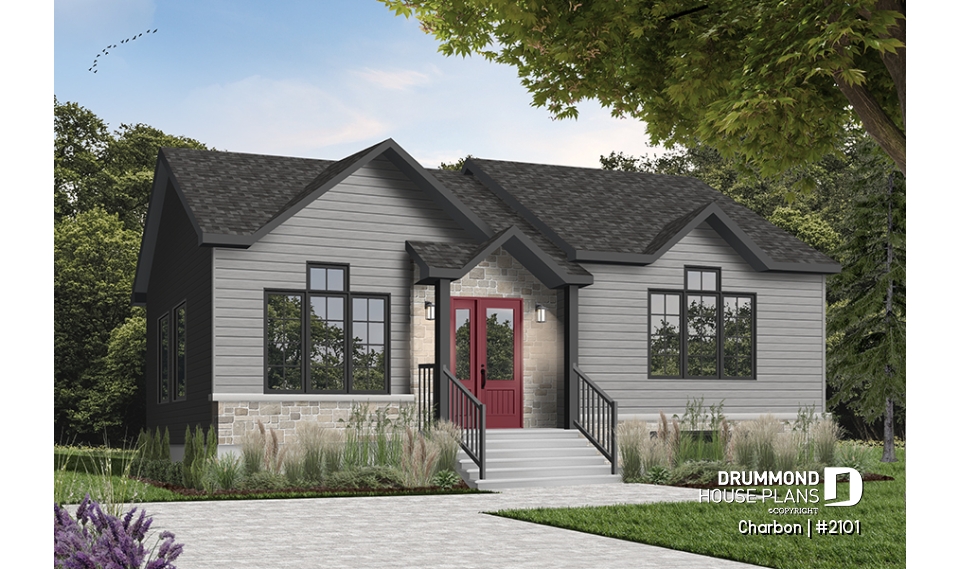

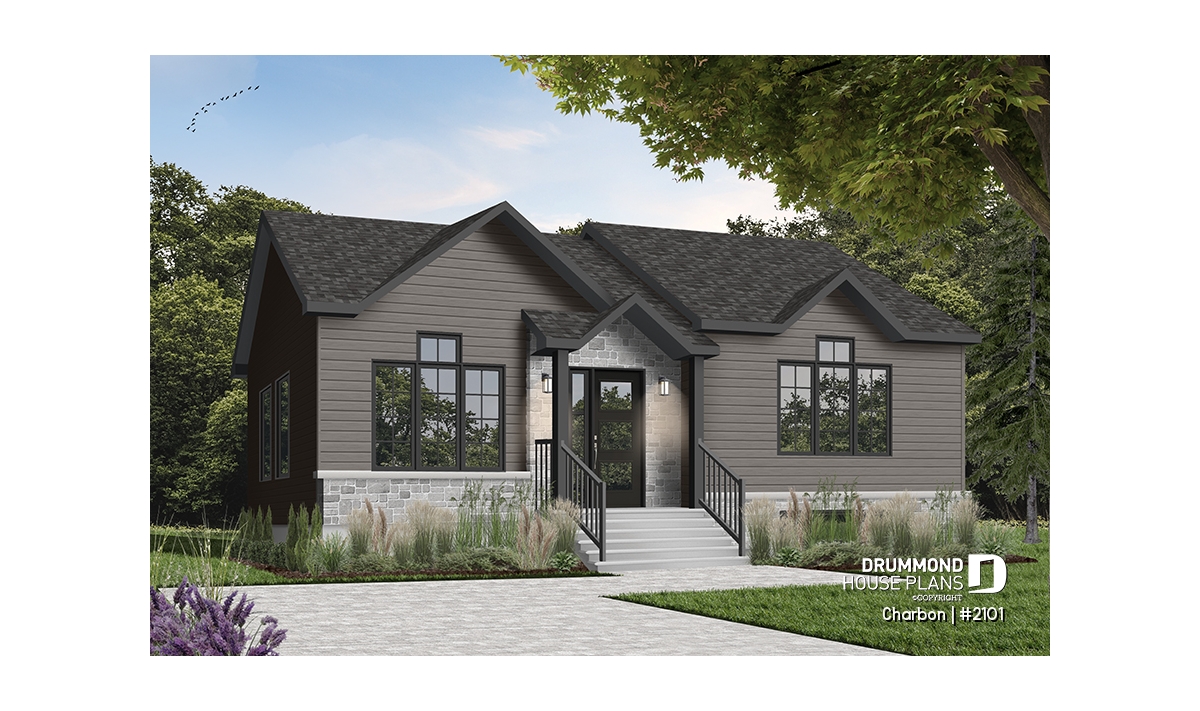

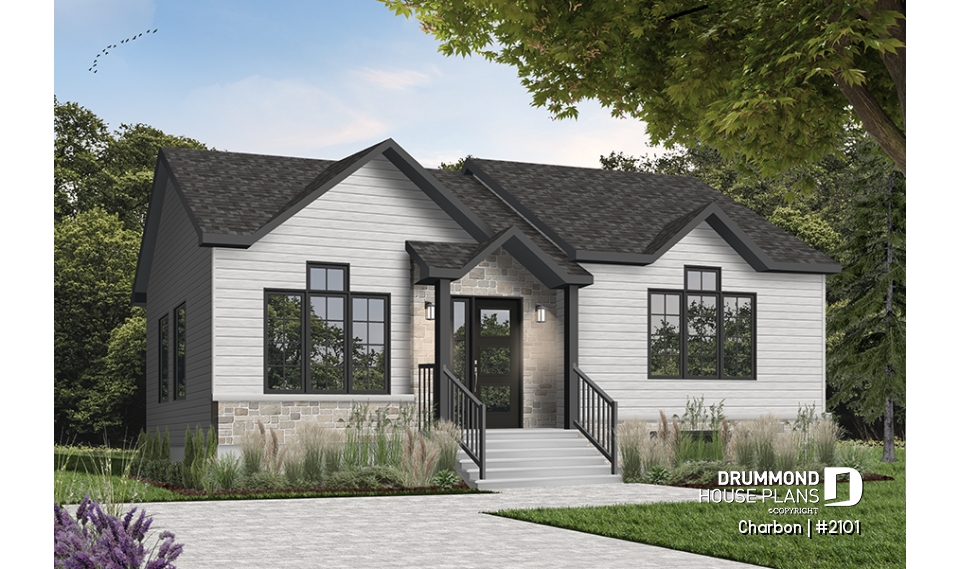

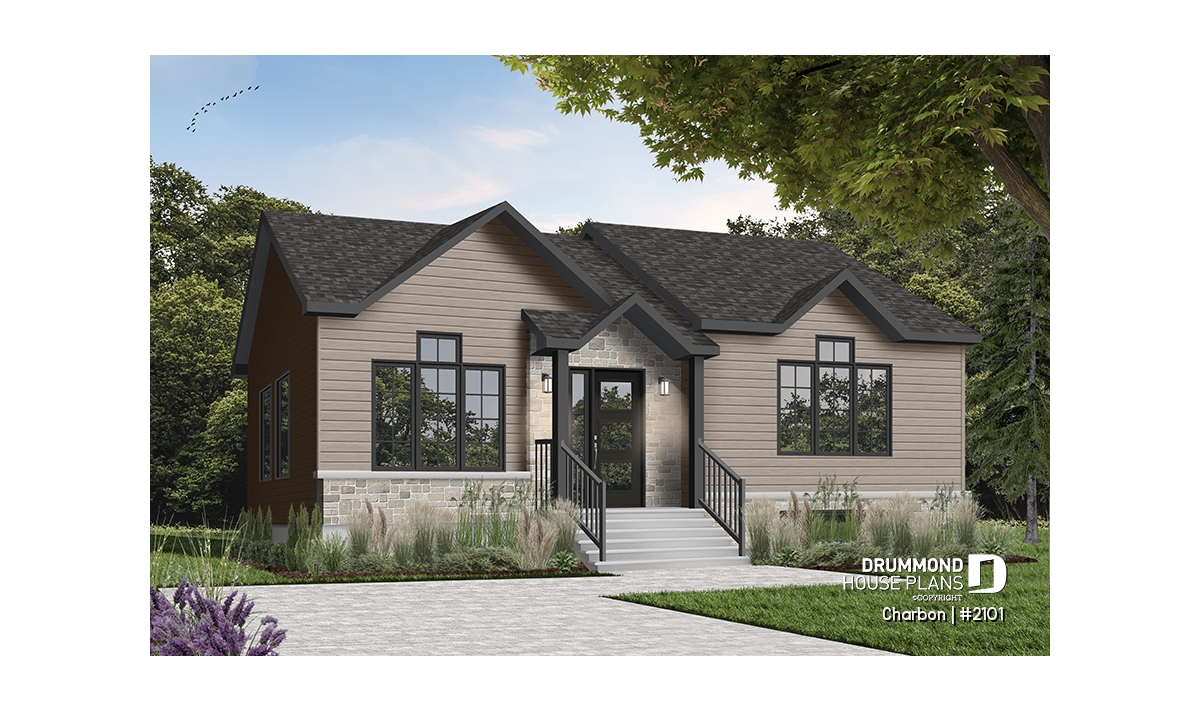

House plan Charbon (2101)
Cathedral ceiling 3 bedroom Modern house plan, small affordable home, laundry closet on main floor

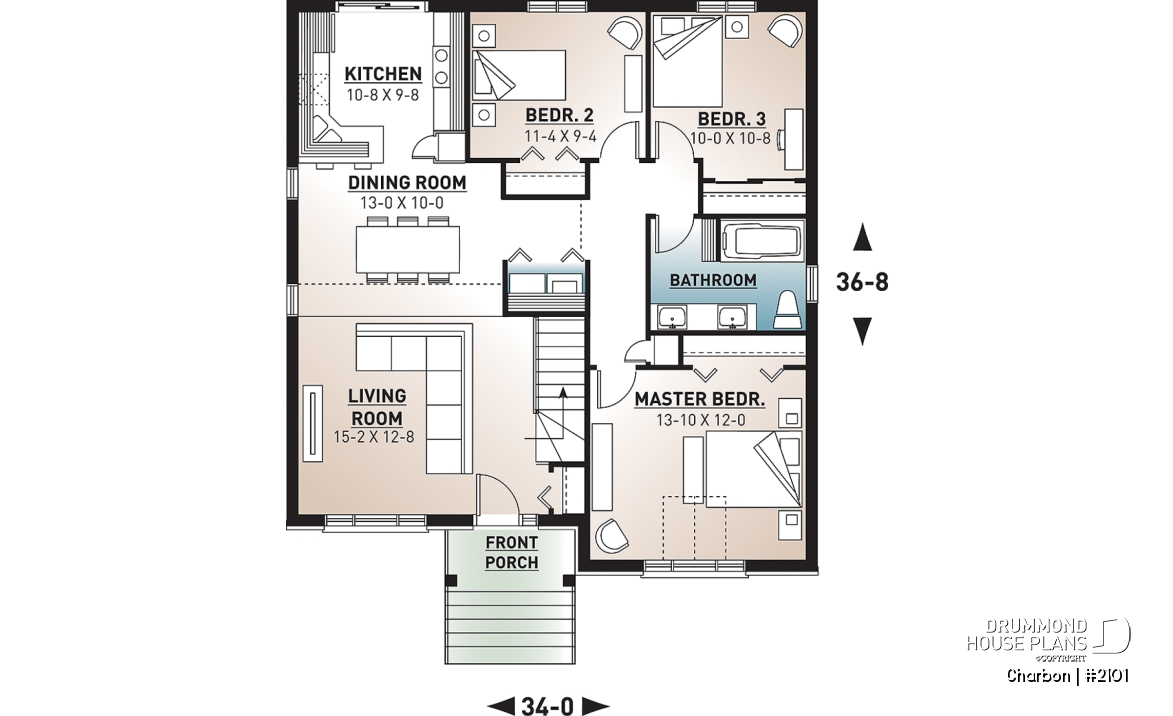

View the size of the rooms and height of the ceilings

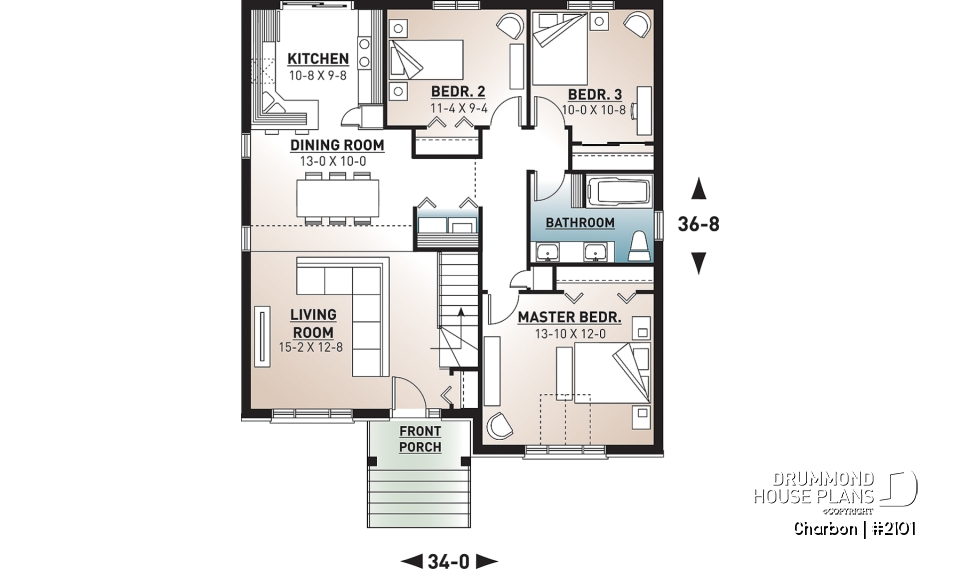

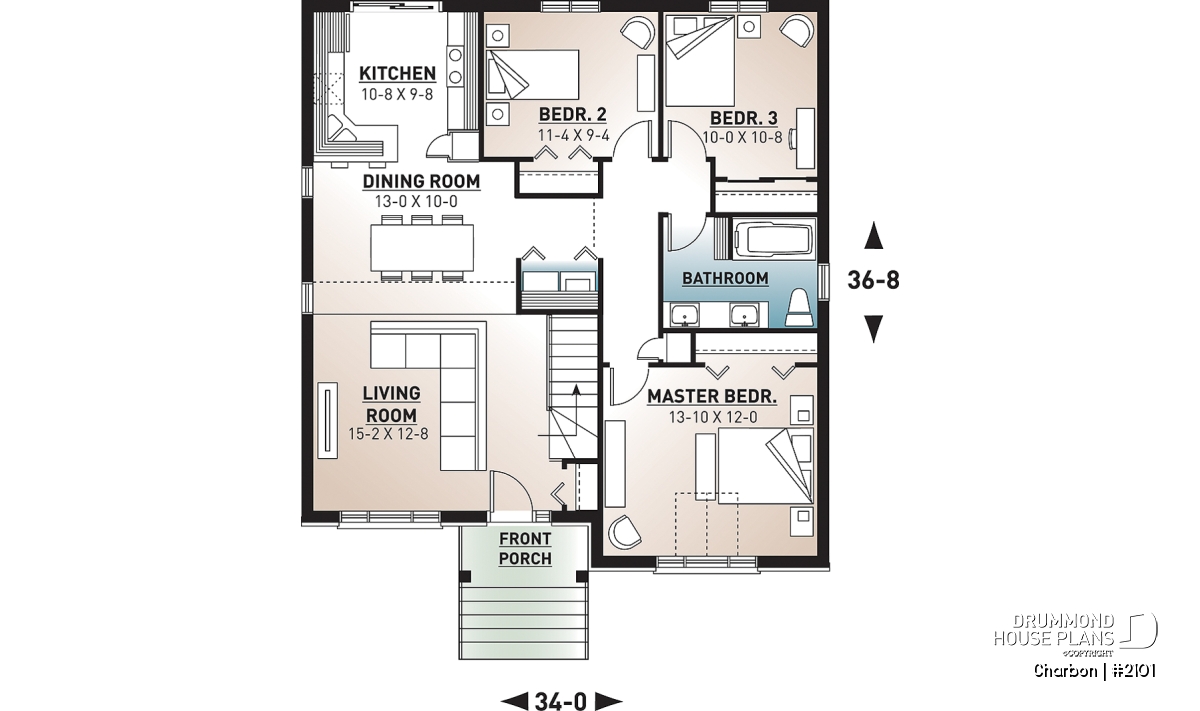

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'0" x 7'2" | ~ 8'0" |
| Kitchen | 10'8" x 9'8" | ~ 10'10" |
| Dining room | 15'2" x 10'0" | ~ 10'10" |
| Living room | 15'2" x 12'8" | ~ 10'10" |
| Bedroom | 13'10" x 12'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'8" | ~ 8'0" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Closet | 2'0" x 3'2" | ~ 8'10" |
| Porch | 8'8" x 4'0" | N/A |
| Deck | 8'0" x 6'0" | N/A |
| Bedroom | 11'4" x 9'4" | ~ 8'0" |
General specifications
| Total living area | 1197 sq.ft. |
| 1st level | 1197 sq.ft. |
| Width | 34'0" |
| Depth | 36'8" |
| Ridge height from top of foundation | 18'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Cathedral ceiling 3 bedroom Modern house plan, affordable home.
.
Distinctive elements
Small modern 3 bedroom house plan.
Front cover porch.
Cathedral ceiling in dining room, living room and master bedroom.
Lots of natural light.
Washer, dryier closet on main floor.

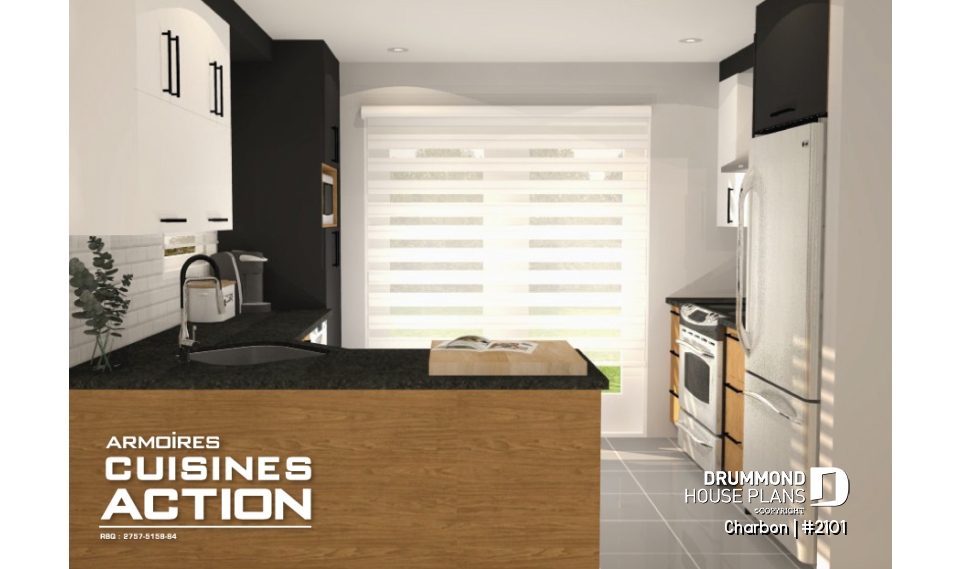

Kitchen with patio doors.
Large dining room opened to kitchen.
Spacious and sunken living room.
Unfinished full basement. Other foundation available.
Plan feature(s)
Cathedral ceiling, Open floor layout, Gound floor laundry room, Lunch counter, Double sinks
Plan architectural style(s)
. Modern rustic, . Craftsman / Northwest, . Ranch, . Traditional, . Transitional, . Country, . Modern / Design
