House plan Chai 2 (6104-V1)
2 bedroom affordable ranch style house plan with great kitchen et open floor plan concept

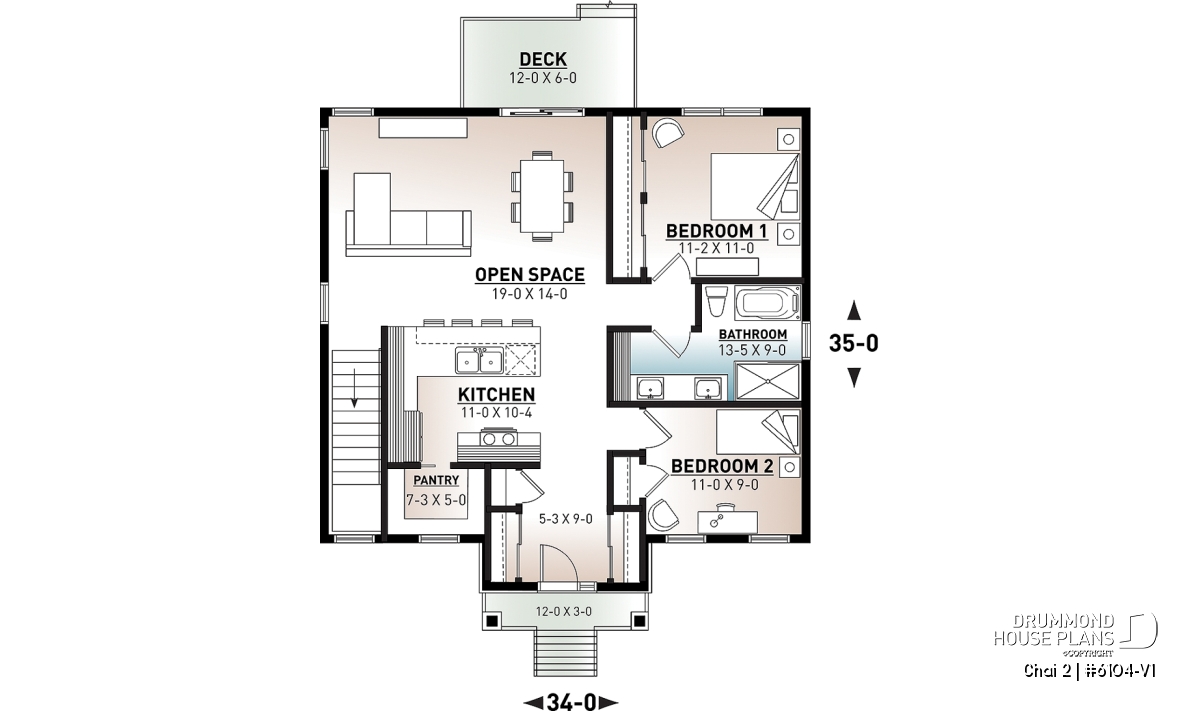

View the size of the rooms and height of the ceilings

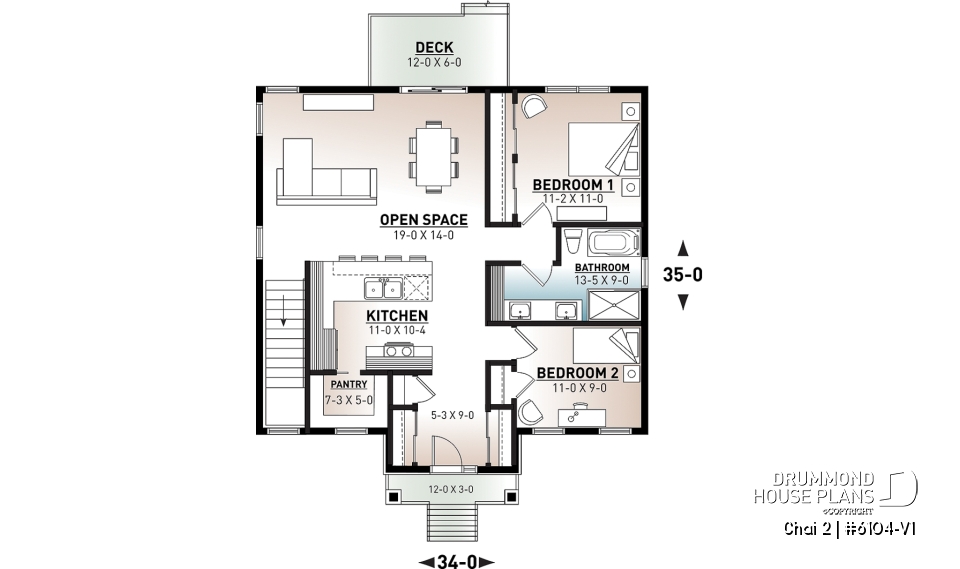

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 10'4" | ~ 9'0" |
| Pantry | 7'3" x 5'0" | ~ 9'0" |
| Foyer | 5'3" x 9'0" | ~ 9'0" |
| Closet | 6'6" x 2'4" | ~ 9'0" |
| Closet | 6'6" x 2'4" | ~ 9'0" |
| Linen | 3'4" x 2'4" | ~ 9'0" |
| Bedroom | 11'0" x 9'0" | ~ 9'0" |
| Closet | 3'4" x 2'4" | ~ 9'0" |
| Bedroom | 11'2" x 11'0" | ~ 9'0" |
| Closet | 11'2" x 2'4" | ~ 9'0" |
| Bathroom | 13'5" x 9'0" | ~ 9'0" |
| Shower | 0'60" x 0'36" | N/A |
| Living room/dining room | 19'0" x 14'0" | ~ 9'0" |
| Porch | 12'0" x 3'0" | ~ 9'4" |
| Terrace | 12'0" x 6'0" | N/A |
| Basement |
|---|
General specifications
| Total living area | 1102 sq.ft. |
| 1st level | 1102 sq.ft. |
| Basement | 1102 sq.ft. |
| Width | 35'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 19'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Compact 2 bedroom ranch style house plan with great kitchen!
This bungalow, CHAI 2 (6104-V1), is a modern and rustic 1,102-square-foot house offering 2 bedrooms and 1 bathroom. The interior architecture has been designed to give an effect of space to this small plan. With 9’ ceilings throughout the main floor and the open layout, the challenge is successfully done.

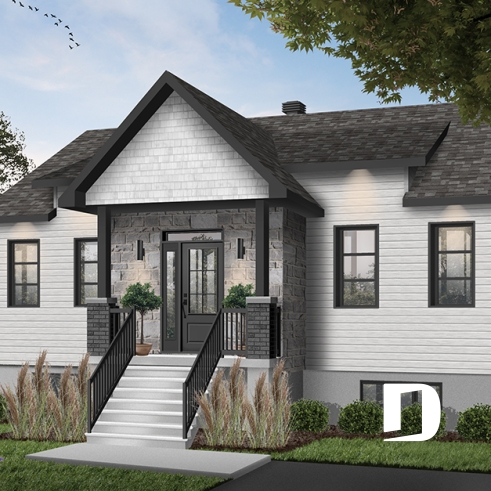

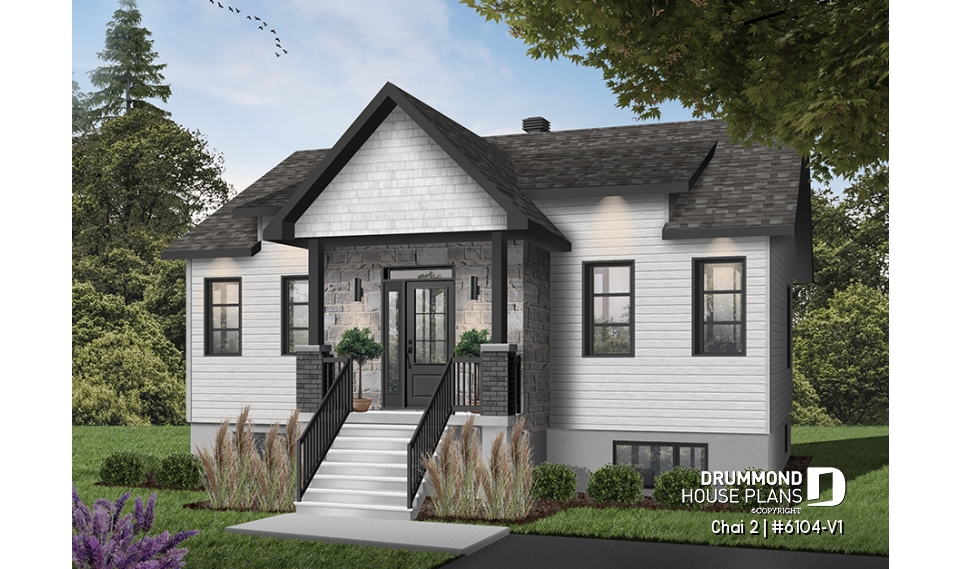

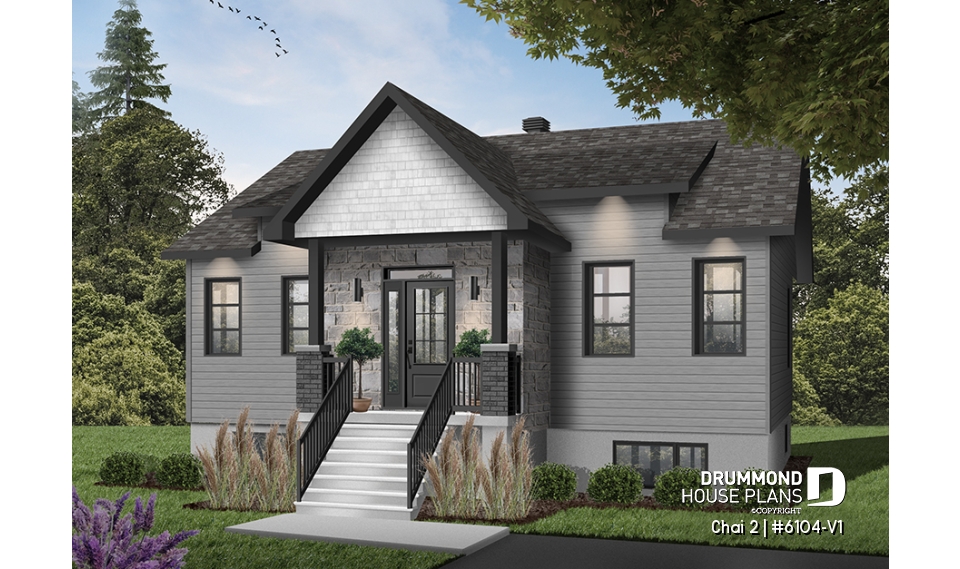

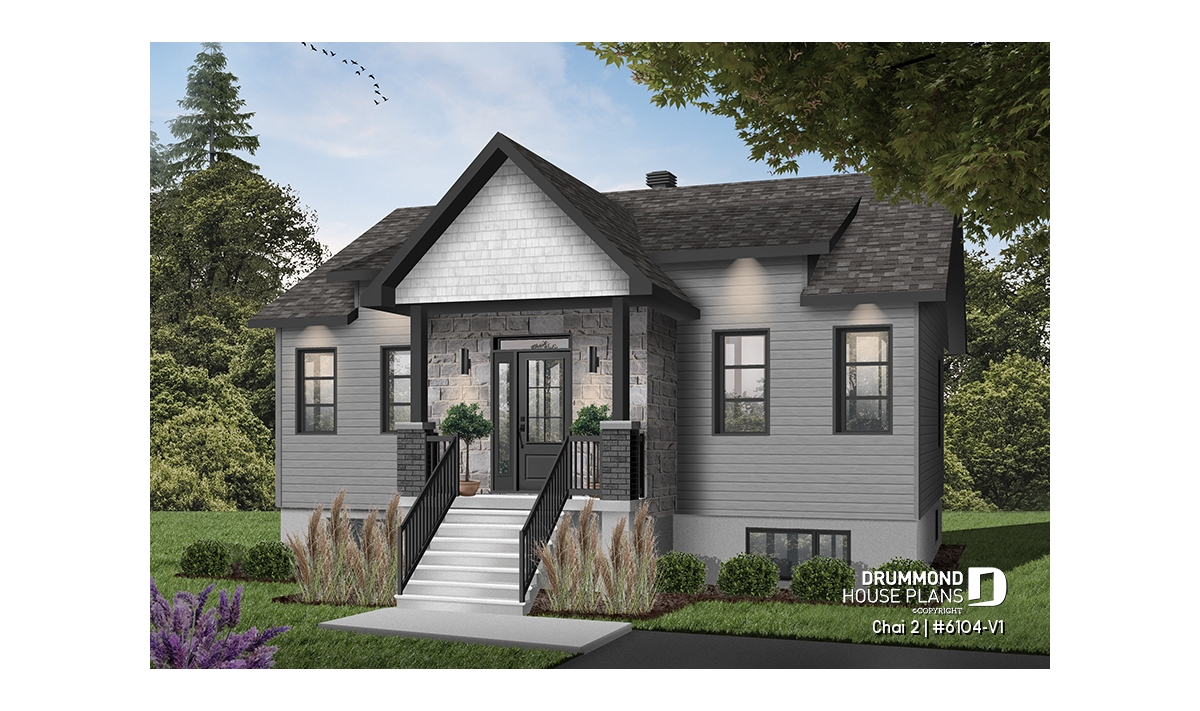

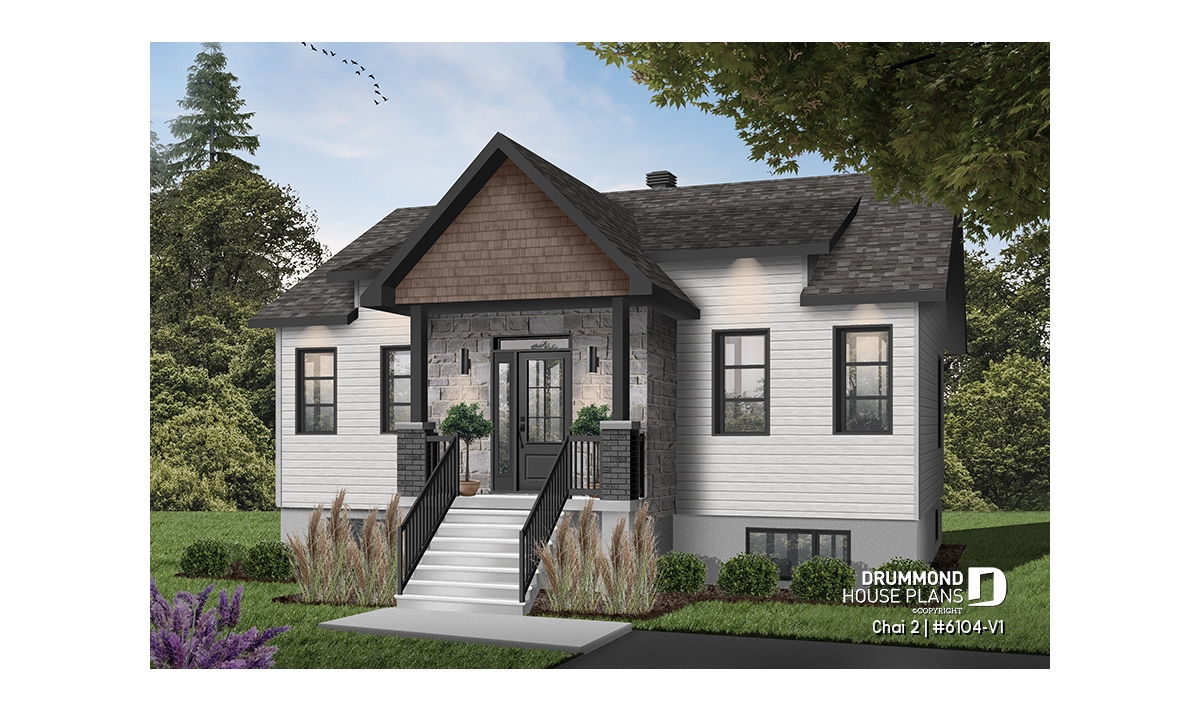

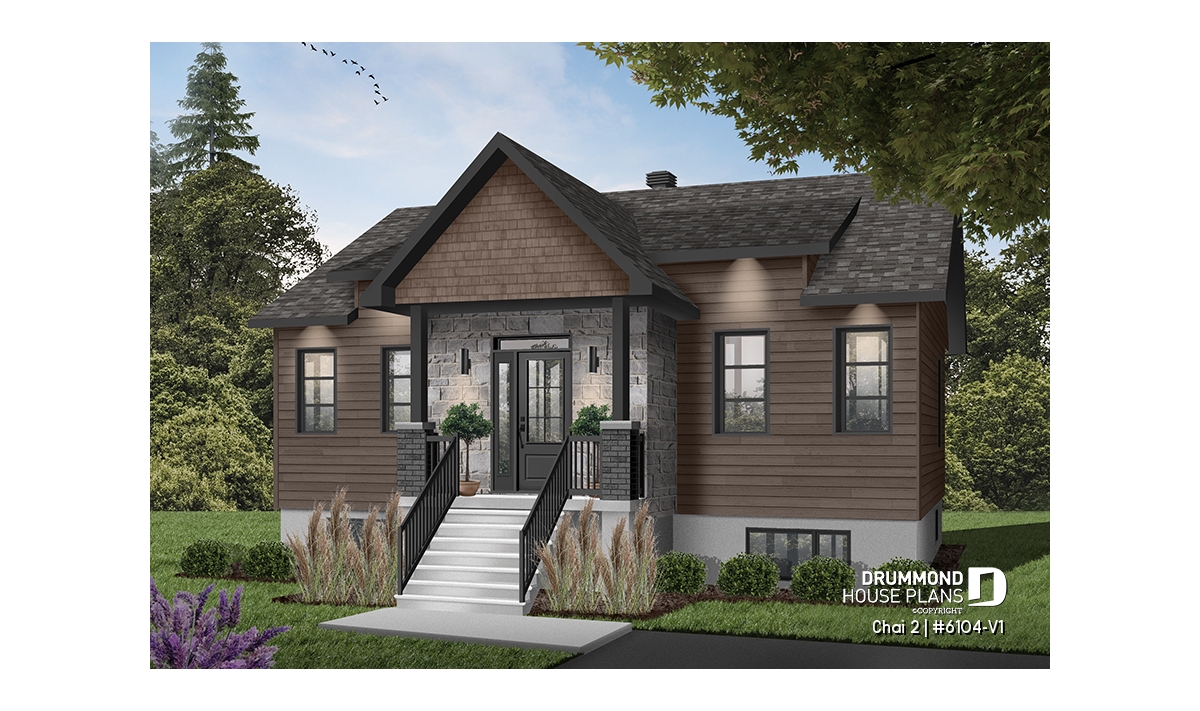

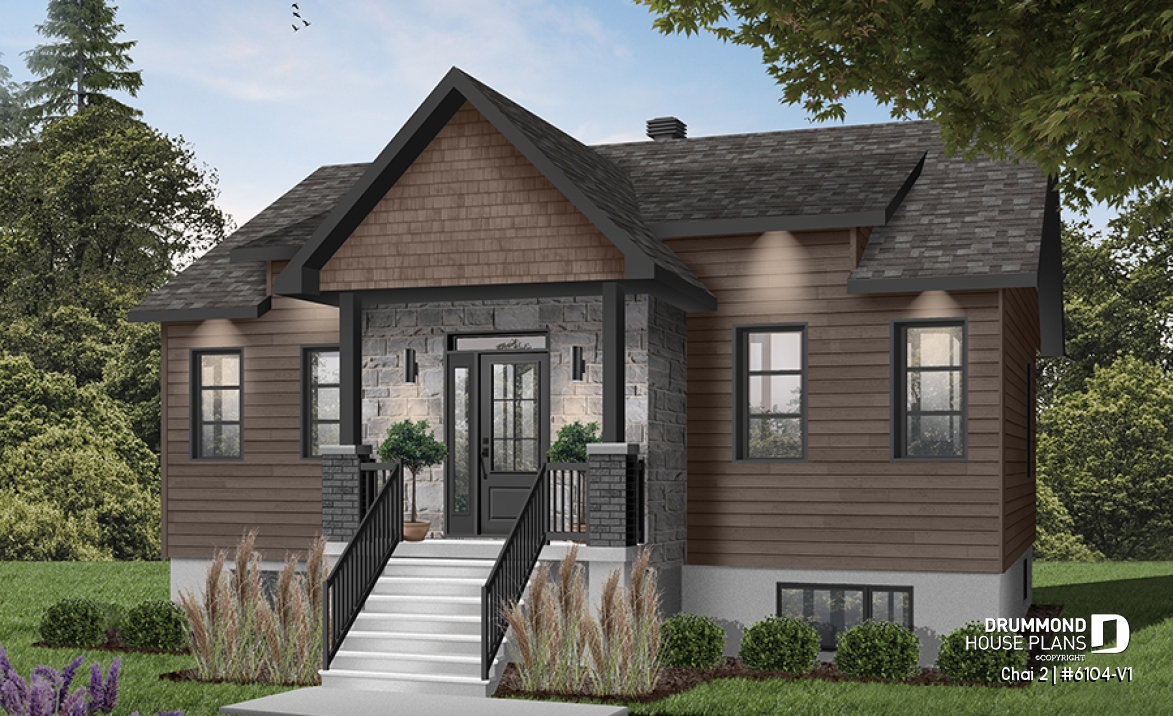

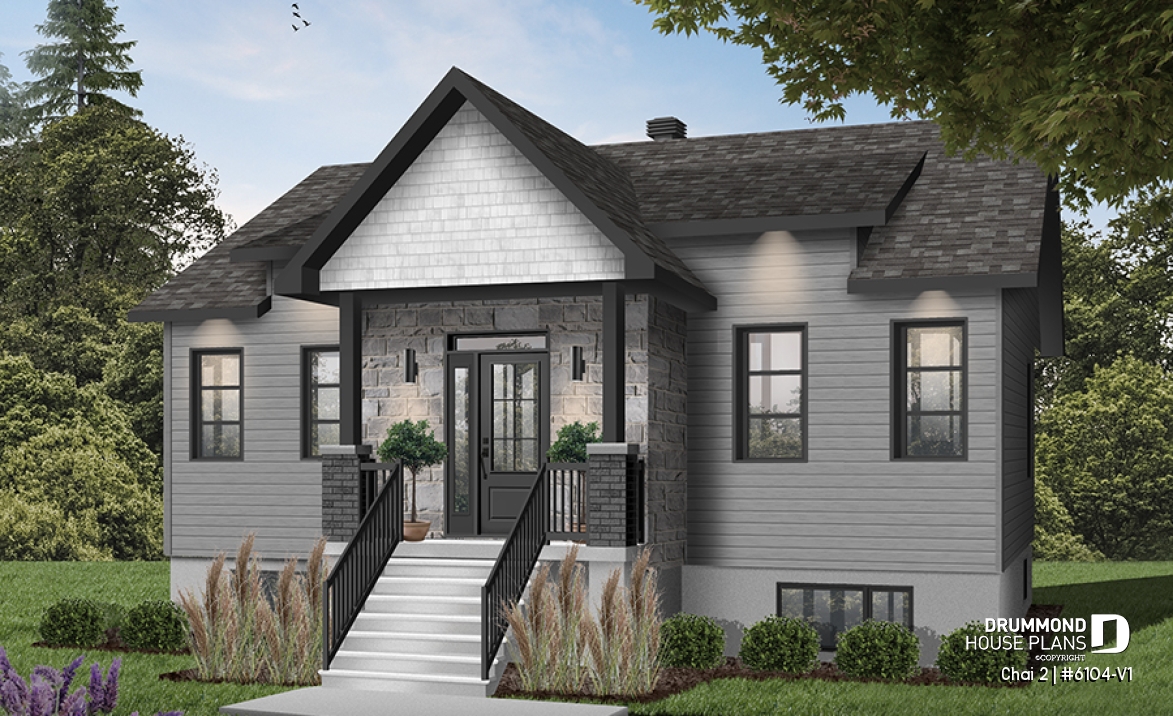

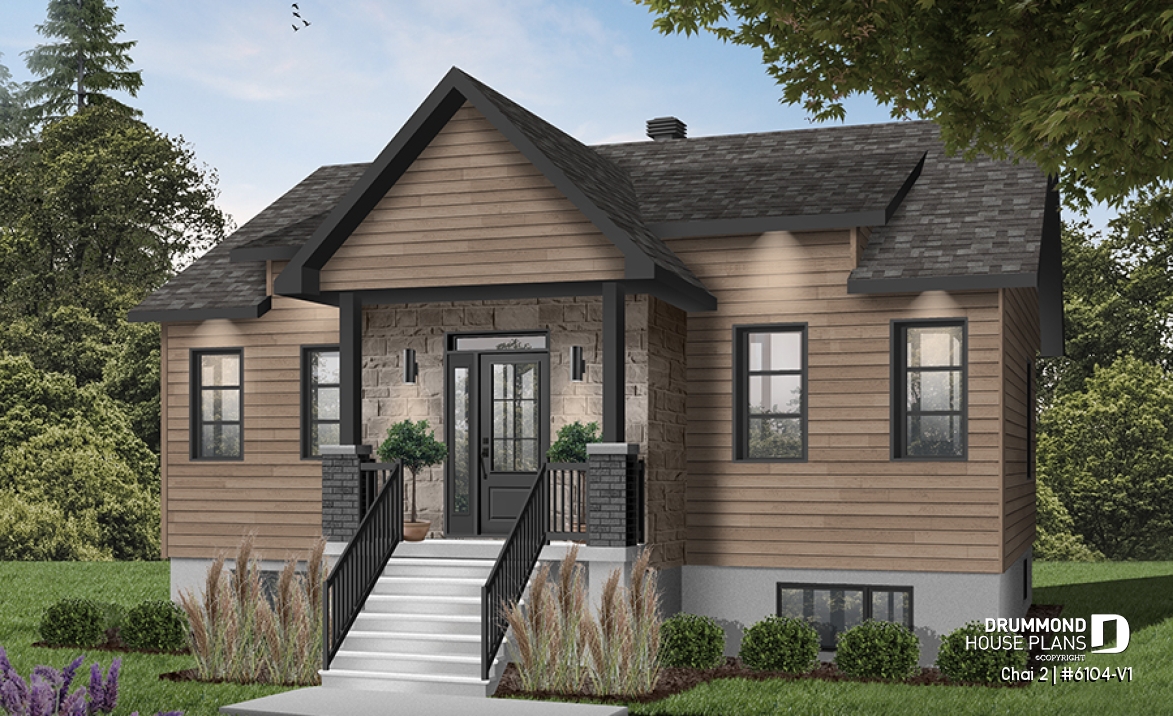

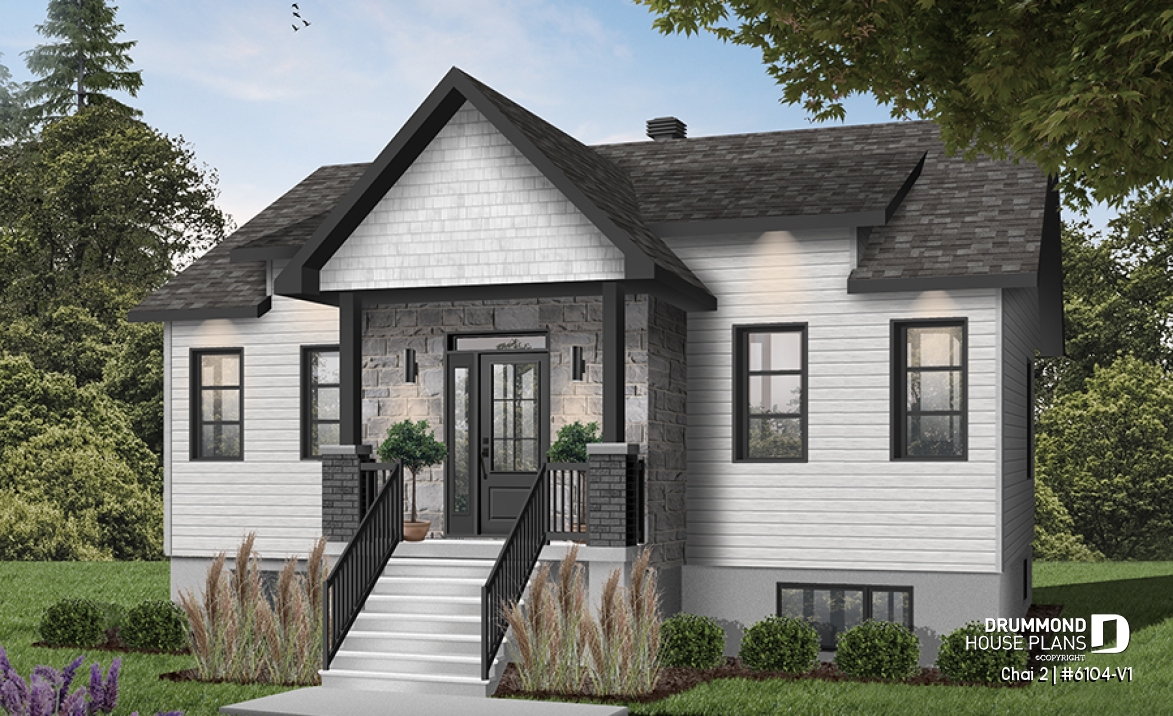

The exterior siding is available in several color choices. In addition, the masonry at the entrance considerably favors the front of the house by giving a more chic effect. Several windows are also installed, offering light and thus complete the chic-modern style.
Entrance to the house is through the covered porch. A well-thought vestibule with two double wardrobes on each side and another single wardrobe offers all the necessary storage for everyday accessories and even more.
Just a little further on is the first bedroom. Perfect for a work home office or a children's room, it offers 2 windows and a simple wardrobe with a door.

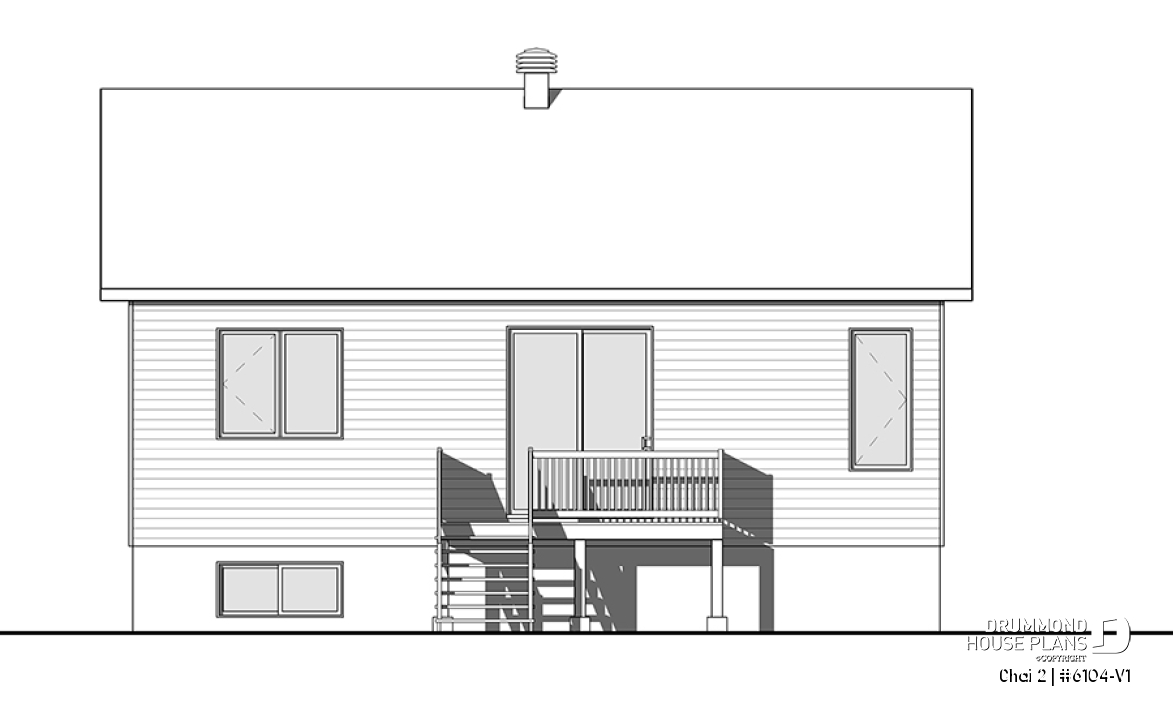

Continuing on, there is the kitchen with a lunch counter that can easily accommodate 4 people, a double sink and dishwasher. A huge walk-in style pantry with windows, frees up the kitchen to, once again, offer another kind of enlargement effect. The kitchen overlooks the dining room, with a patio door to access the balcony, and the living room with two corner windows in addition to two additional others, a little further, in the space of the stairs to go down in the convertible basement. Interestingly, the stairs are at the back of the kitchen. They are almost completely concealed. Another great way not to feel like you're wasting space.
Opposite the stairs, you have the full bathroom with to a double sink with storage. Finally, the second bedroom, larger than the first, has two communicating double wardrobes. It sits at the back for added peace of mind.
This house, although small, cleverly satisfies several needs.
Distinctive elements
Small and affordable 2 bedroom modern rustic style house plan.
9' ceiling on main floor.
Entrance with 2 large coat closets.
2 bedrooms.
Large family bathroom with separate bath and shower stall.
Kitchen with counter and large pantry.
Unfinished daylight basement.
Plan feature(s)
Pantry, Lunch counter, Ceiling over 8', Open floor layout, Separate bath and shower, Double sinks, Builder, Self-Build
Plan architectural style(s)
. Craftsman / Northwest, . Contemporary, . American, . Ranch, . Transitional, . Country, . Modern rustic, . Mountain, . Farmhouse, Modern farmhouse
