House plan Nordika 5 (6102-V4)
Craftsman 2 bedroom house plan, one-car garage, open concept, pantry, laundry chute
View the size of the rooms and height of the ceilings

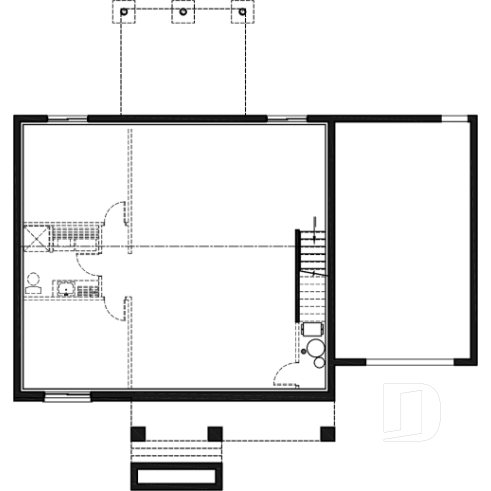

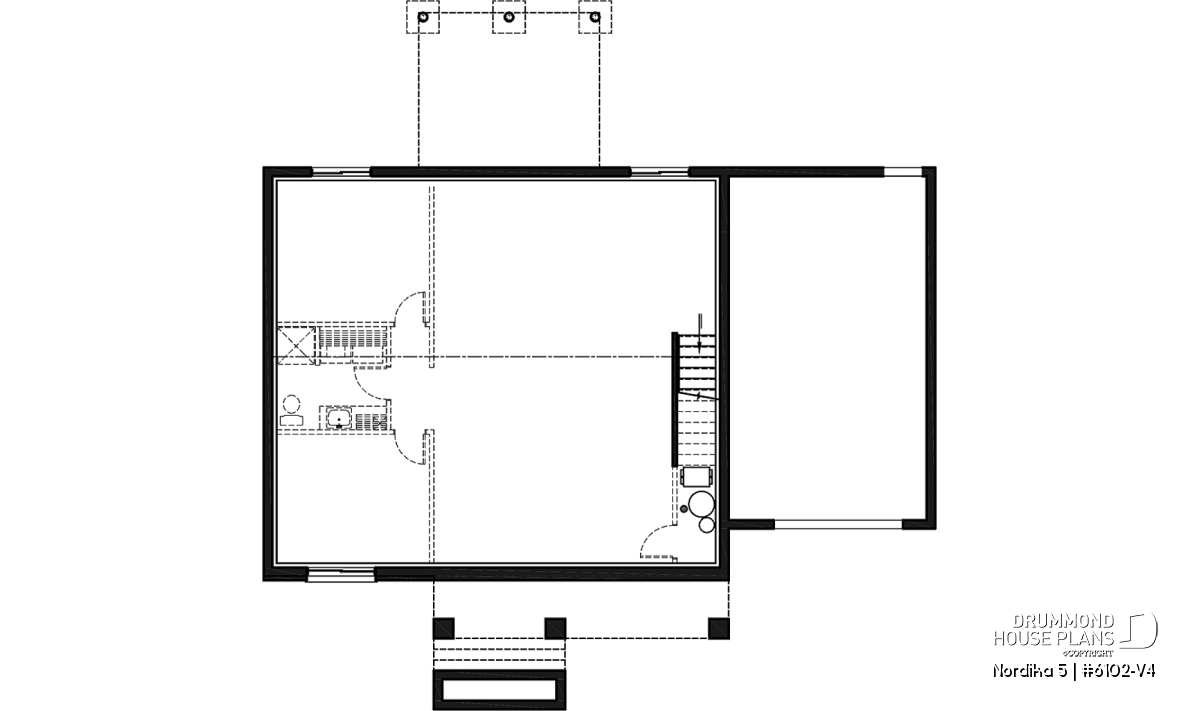

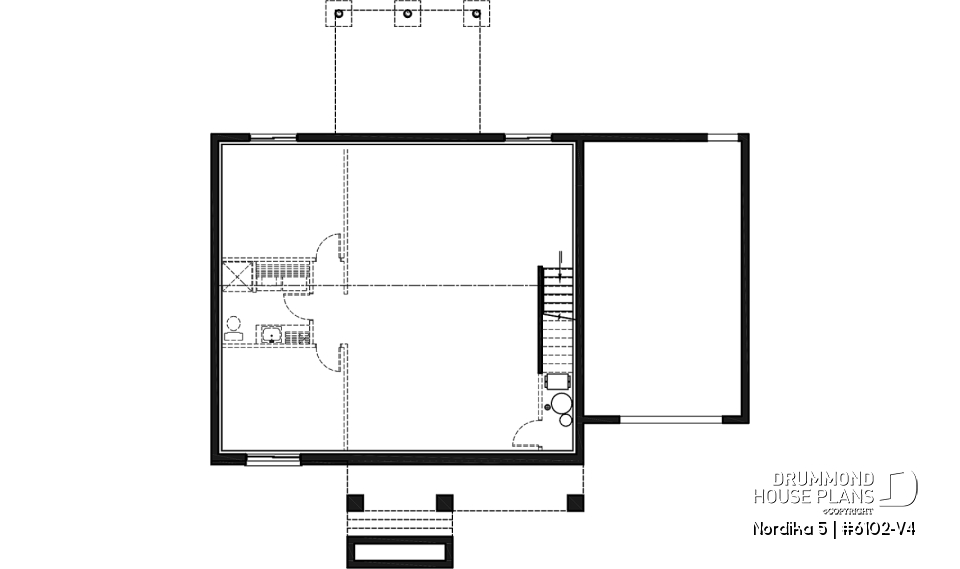

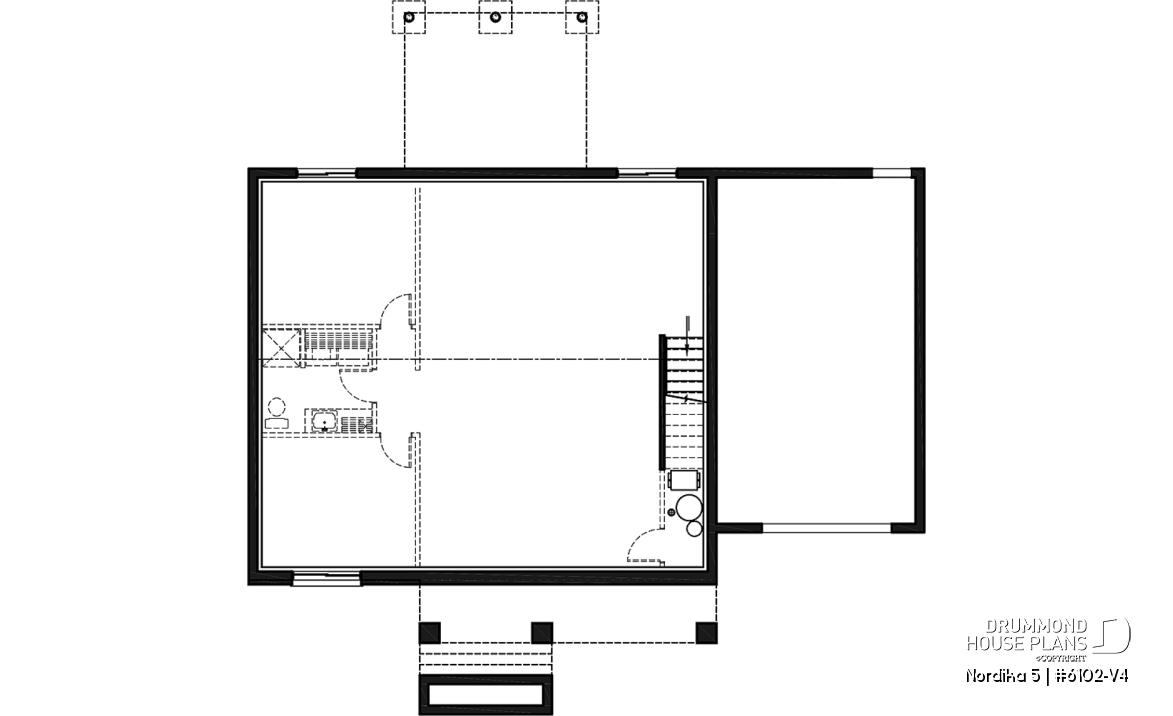

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Mechanical room | 8'0" x 3'0" | ~ 8'0" |
| Bathroom/laundry room | 8'6" x 8'0" | ~ 8'0" |
| Shower | 3'0" x 3'0" | ~ 8'0" |
| Linen | 2'4" x 1'2" | N/A |

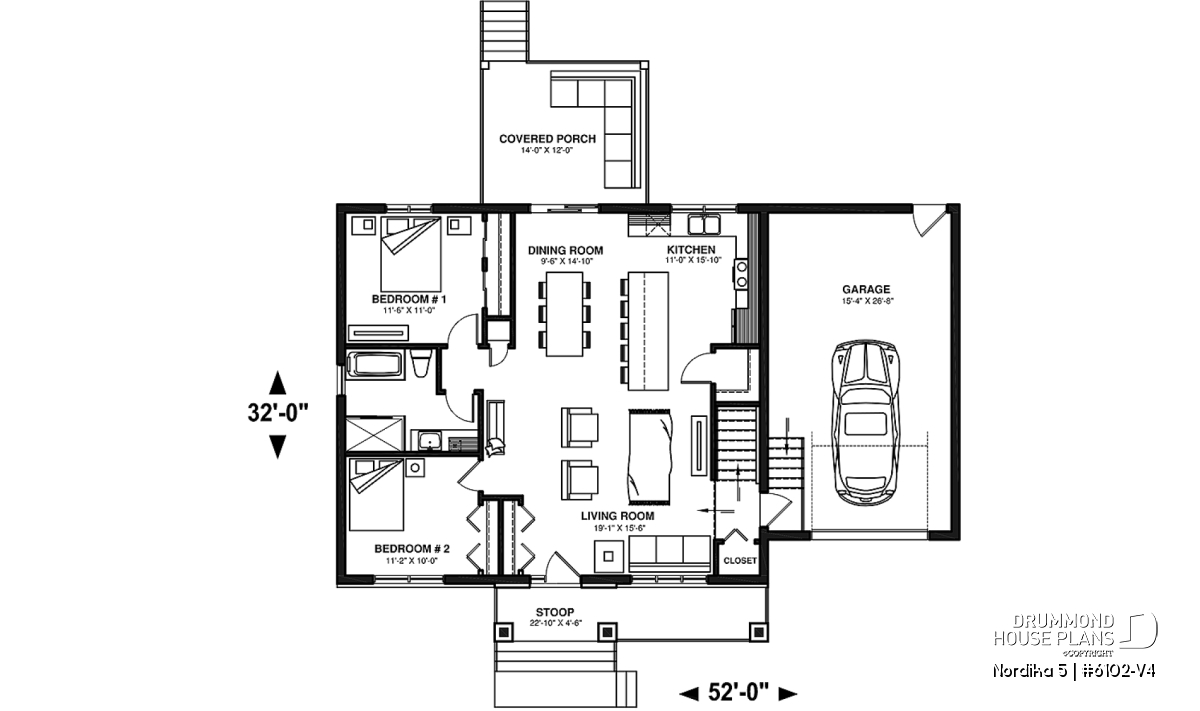

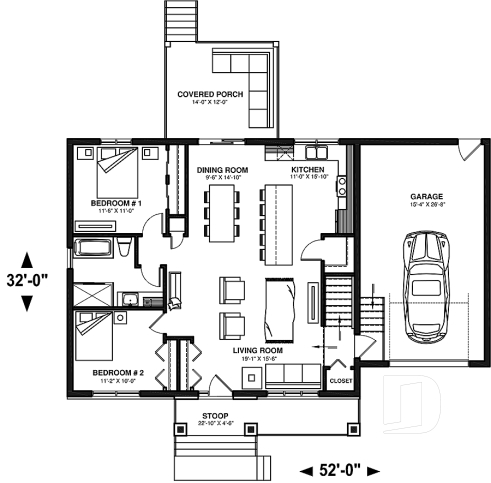

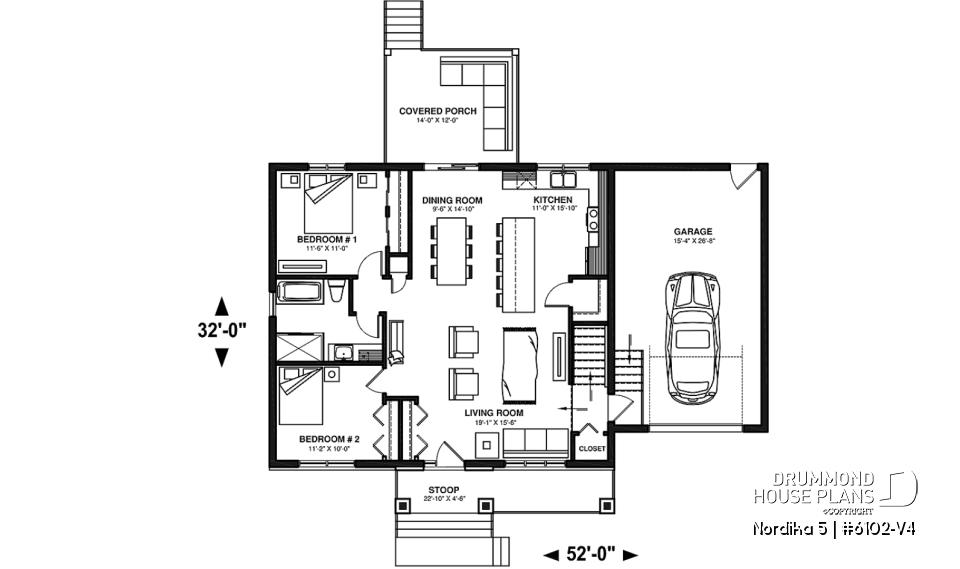

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Porch | 22'10" x 4'6" | N/A |
| Living room | 19'1" x 15'6" | ~ 9'0" |
| Closet | 6'4" x 2'0" | ~ 9'0" |
| Walk-in closet | 3'6" x 2'8" | ~ 9'0" |
| Bedroom | 11'2" x 10'0" | ~ 9'0" |
| Closet | 6'4" x 2'0" | ~ 9'0" |
| Full bathroom | 11'2" x 8'8" | ~ 9'0" |
| Shower | 5'0" x 3'0" | ~ 9'0" |
| Linen | 2'6" x 1'2" | N/A |
| Bedroom | 11'6" x 11'0" | ~ 9'0" |
| Closet | 8'8" x 2'0" | ~ 9'0" |
| Dining room | 9'6" x 14'10" | ~ 9'0" |
| Storage room | 2'0" x 2'0" | ~ 9'0" |
| Kitchen | 11'0" x 15'10" | ~ 9'0" |
| Pantry | 4'6" x 3'9" | ~ 9'0" |
| Kitchen island | 9'10" x 3'4" | N/A |
| Garage | 15'4" x 26'8" | ~ 13'0" |
| Covered porch | 14'0" x 12'0" | ~ 9'7" |
General specifications
| Total living area | 1140 sq.ft. |
| Basement | 0 sq.ft. |
| 1st level | 1140 sq.ft. |
| Width | 52'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 25'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan

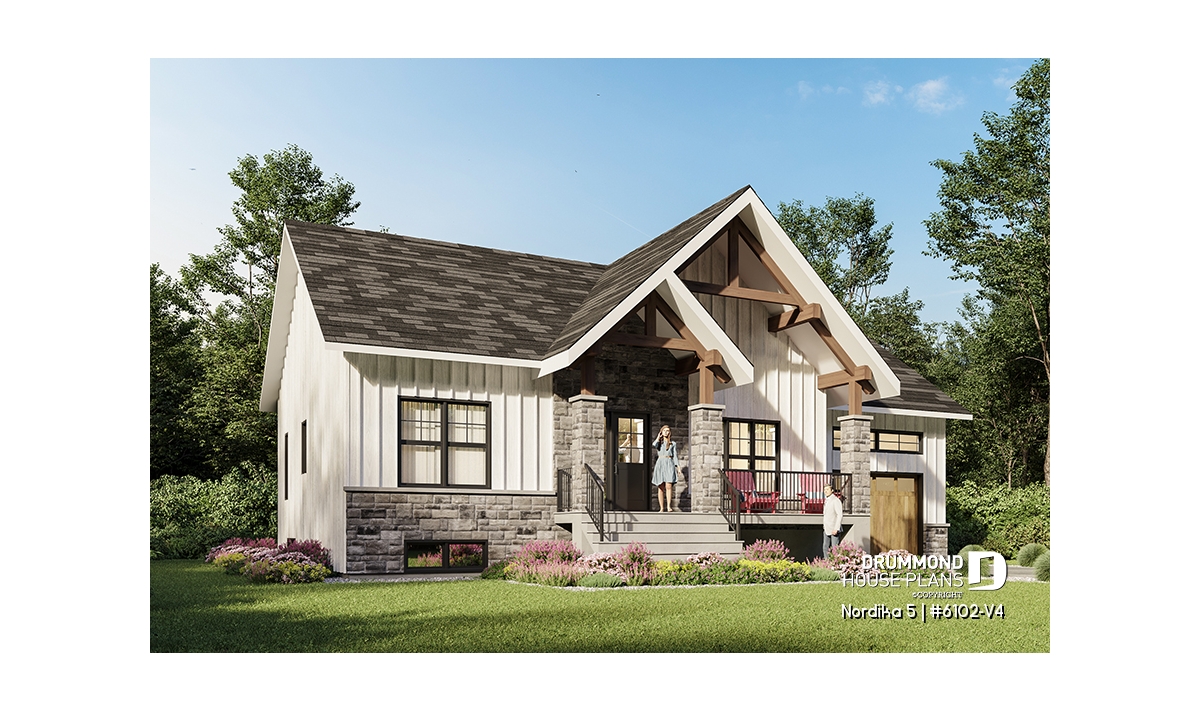

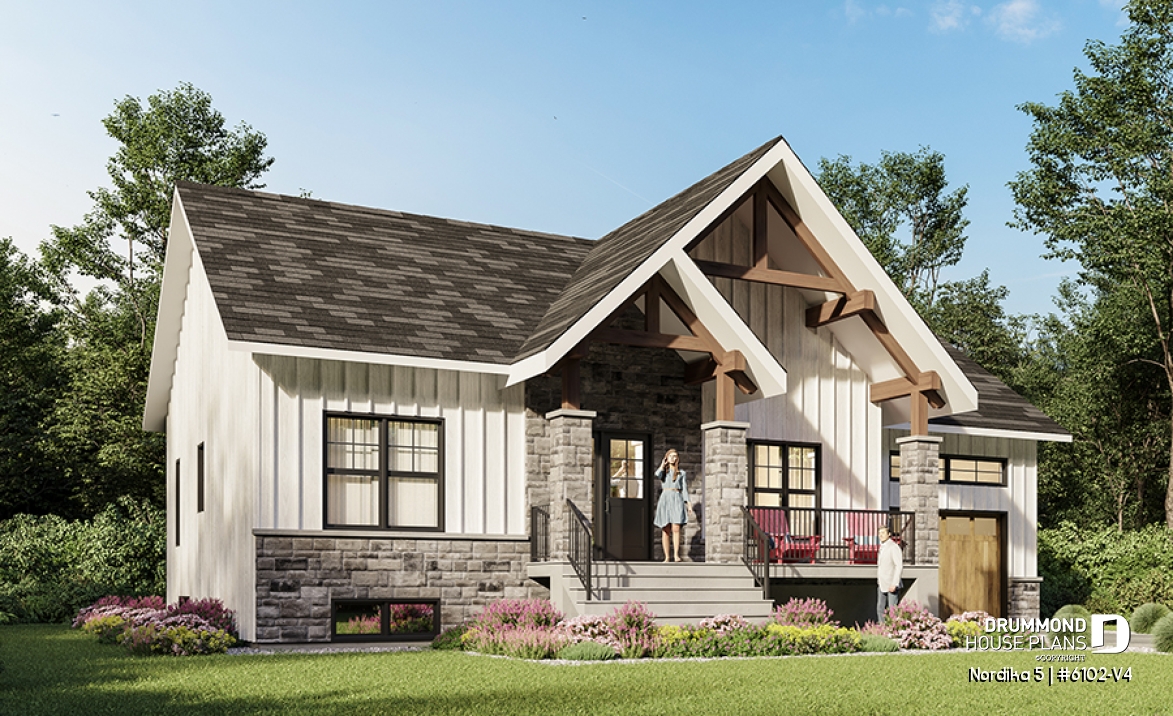

Modern Carftsman style, small house plan with 2 bedroom, garage and a covered terrace!
.
Distinctive elements
Modern Craftsman style house plan, very trendy.
This is the 5th plan from the Nordika collection.
Open floor plan concept with 9' ceiling.
Pantry and large island in kitchen.
Full bathroom with separate bath & shower, and a laundry chute.

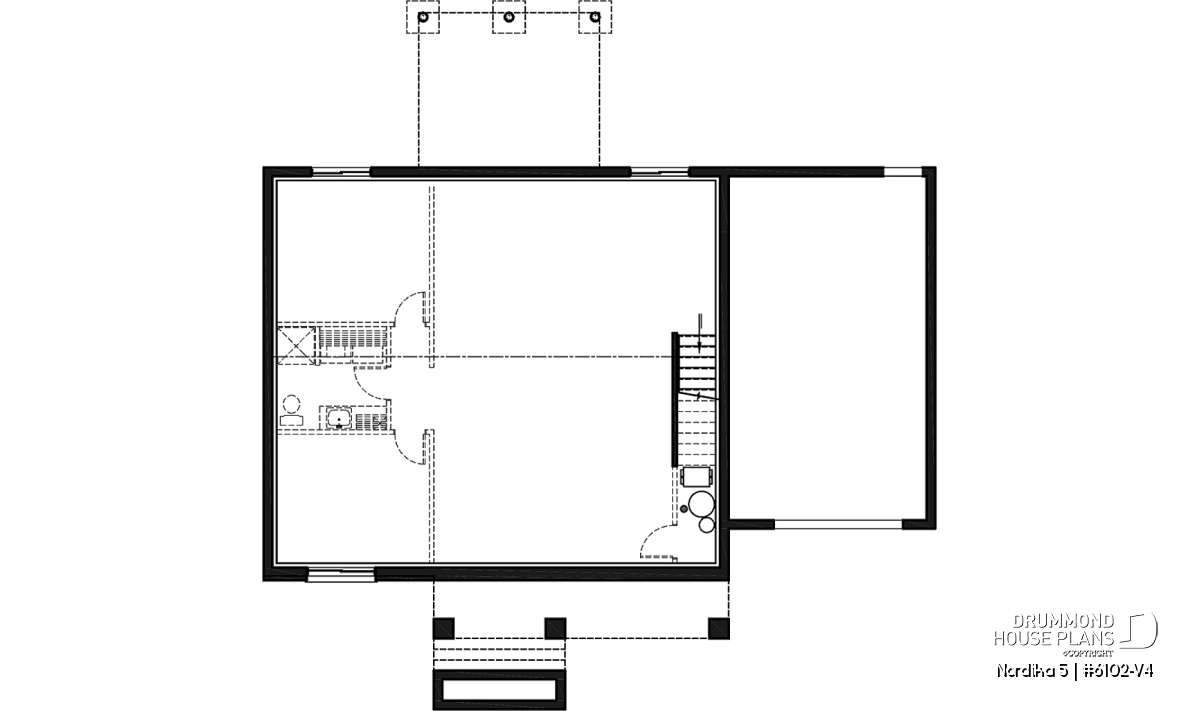

Full daylight basement, unfinished.
Plan feature(s)
Open floor layout, Laundry chute, Lunch counter, Pantry, Island, Ceiling over 8', Deck
Plan architectural style(s)
. Craftsman / Northwest, Modern Craftsman, . American, . Mountain, . Ranch, . Farmhouse, . Rustic, Modern farmhouse, . Country, . Modern rustic
