Walker (3102)
Traditional 2 bedroom bungalow with 9' ceilings and covered porch

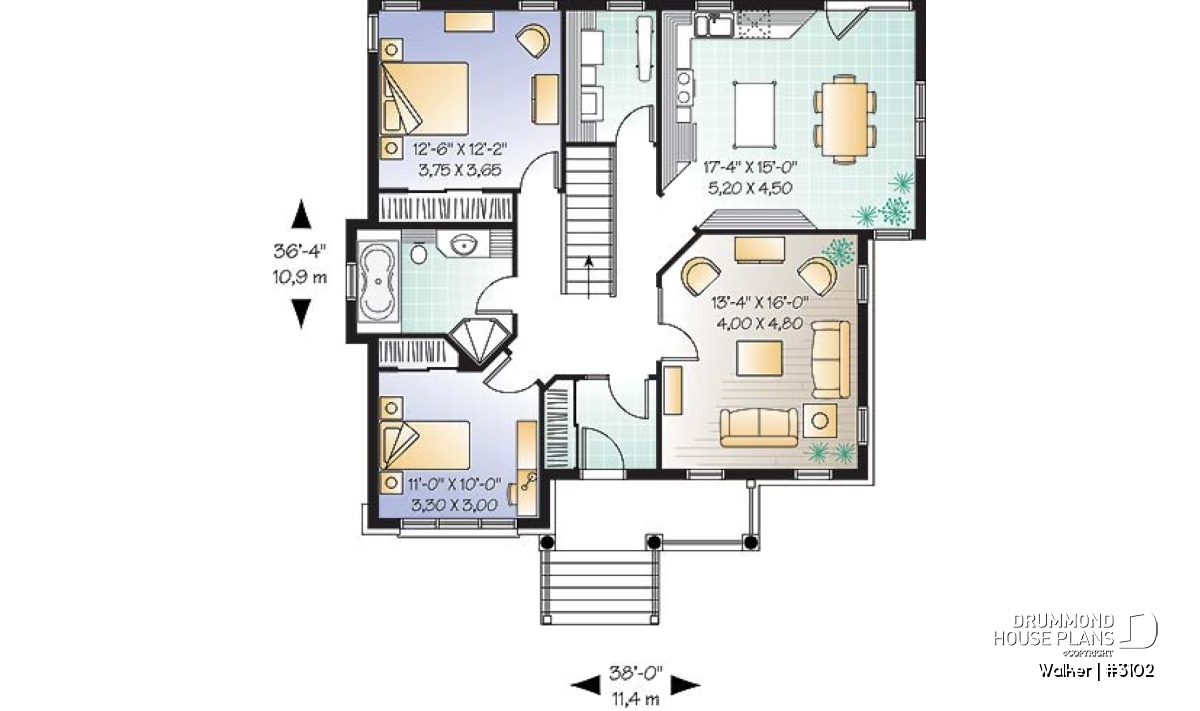

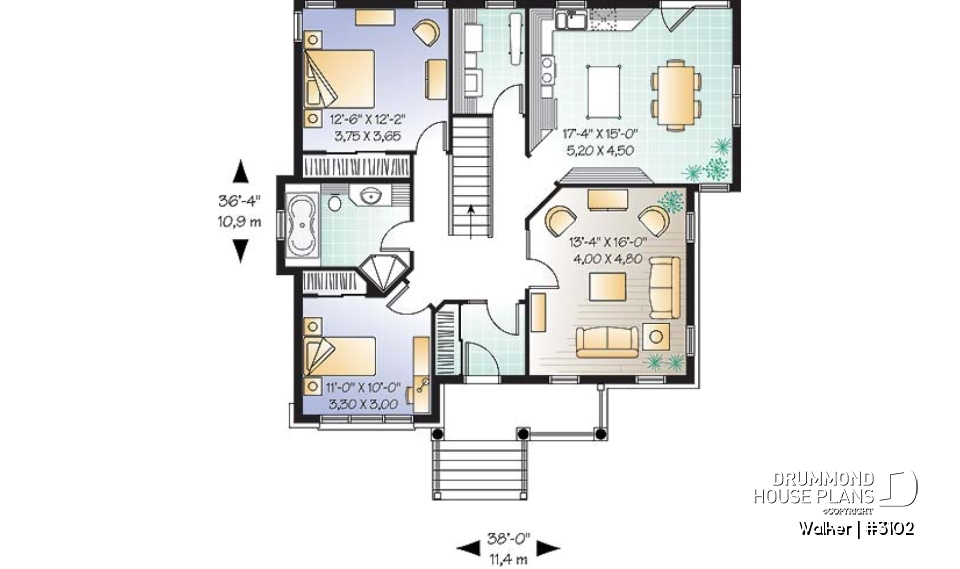

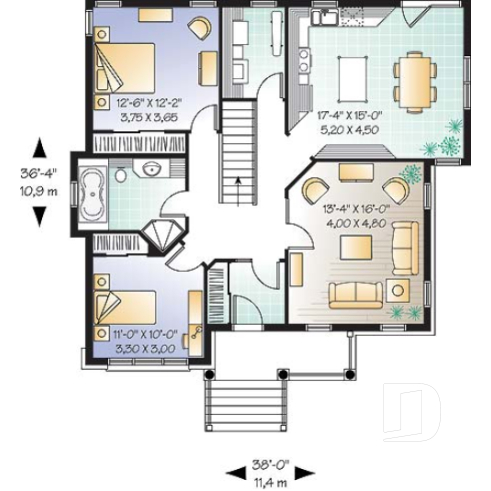

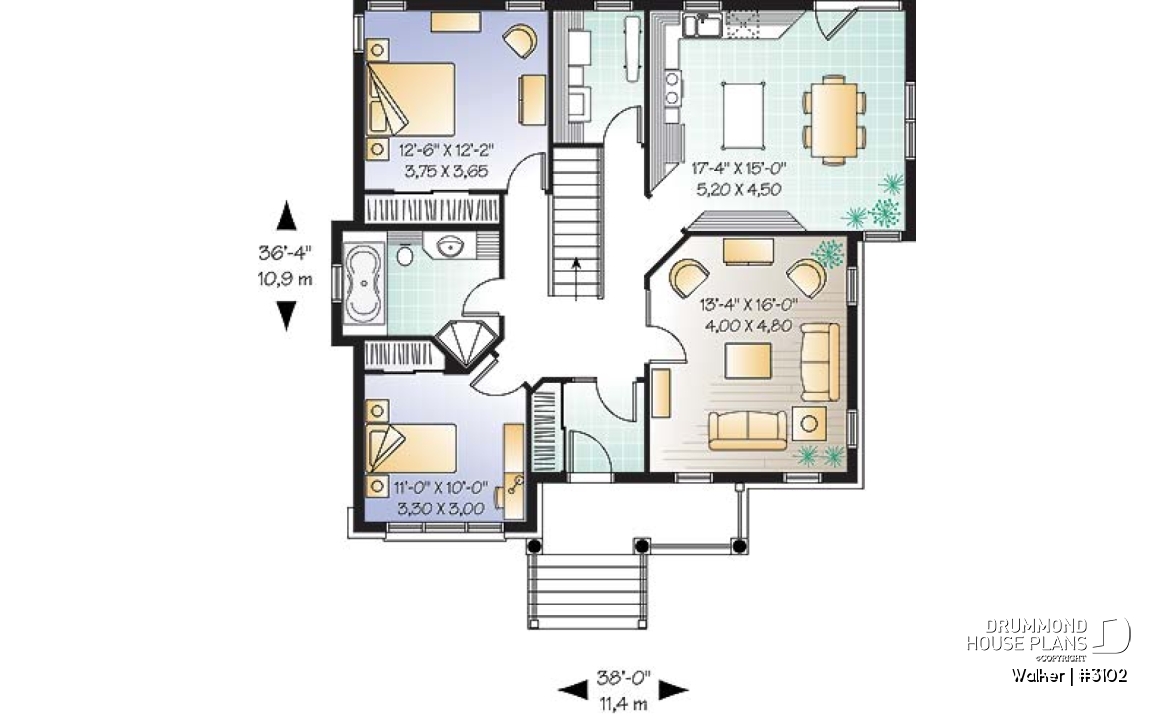

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 17'4" x 15'0" | ~ 9'0" |
| Living room | 13'4" x 16'0" | ~ 9'0" |
| Foyer | 5'4" x 6'2" | ~ 9'0" |
| Full bathroom | 10'8" x 7'0" | ~ 9'0" |
| Bedroom | 12'6" x 12'2" | ~ 9'0" |
| Bedroom | 11'0" x 10'0" | ~ 9'0" |
| Utility room | 6'2" x 9'0" | ~ 9'0" |
| Porch | 8'0" x 5'0" | N/A |
| Porch | 14'5" x 4'10" | N/A |
General specifications
| Total living area | 1234 sq.ft. |
| 1st level | 1234 sq.ft. |
| Width | 38'0" |
| Depth | 36'4" |
| Ridge height from top of foundation | 27'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
House plan available with 2 or 3 bedrooms on main floor
.
Distinctive elements
9' ceiling. Front covered balcony having a depth of nearly 5 feet. Independant laundry facilities on main level. Two windowed doors to the family room. Separate shower in bathroom.
Plan feature(s)
Gound floor laundry room, Island, Separate bath and shower, Entrance hall, Ceiling over 8'
Plan architectural style(s)
. Country, . European, . American, . Craftsman / Northwest, . Ranch, . Traditional
