The Murphy (2933)

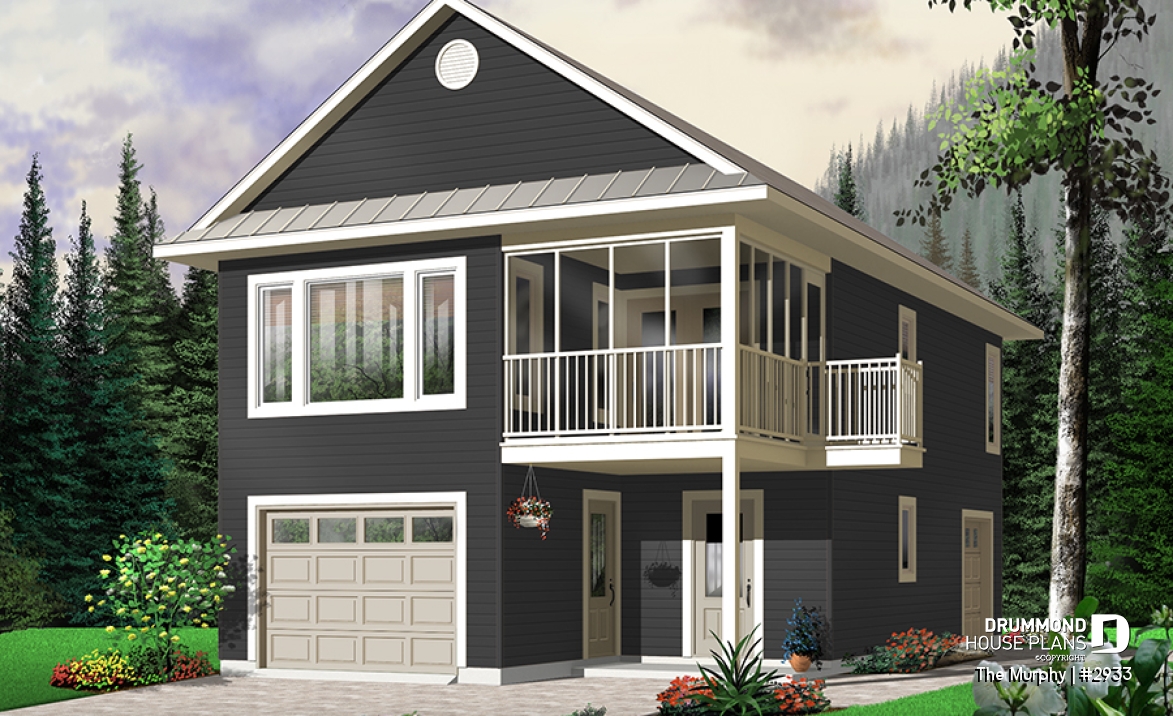

Tandem 2-car garage plan with 2 bedroom apartment, open floor plan, screened-in balcony on second floor
View the size of the rooms and height of the ceilings

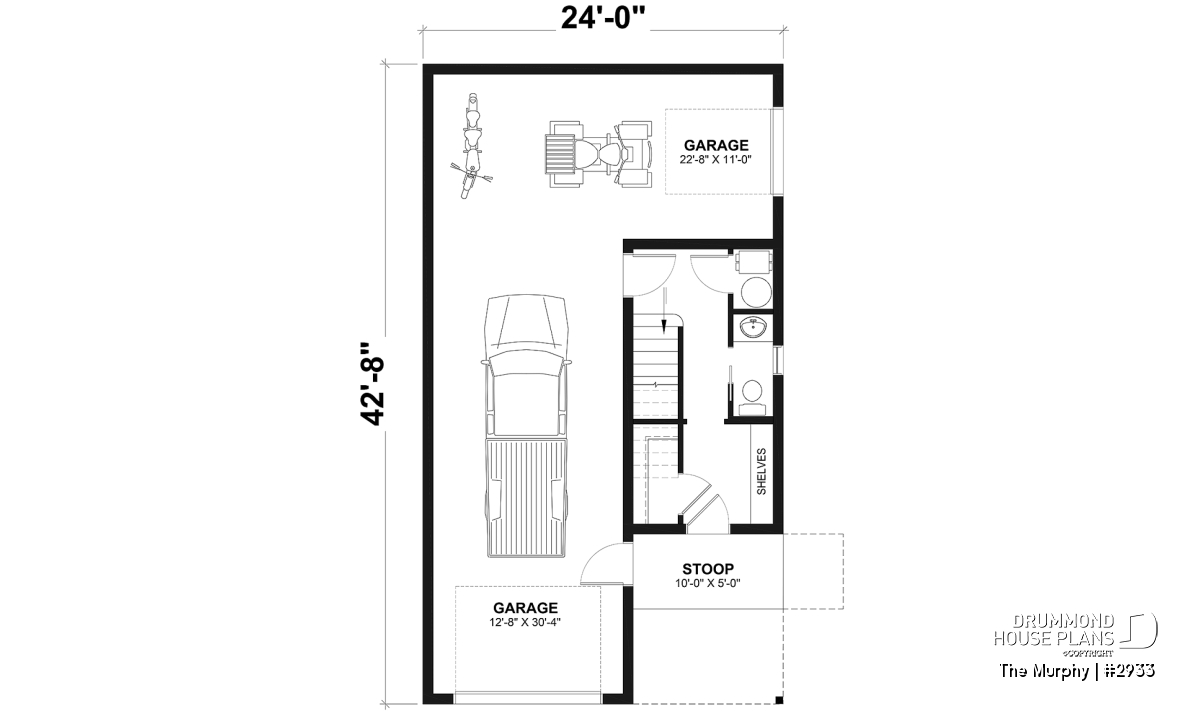

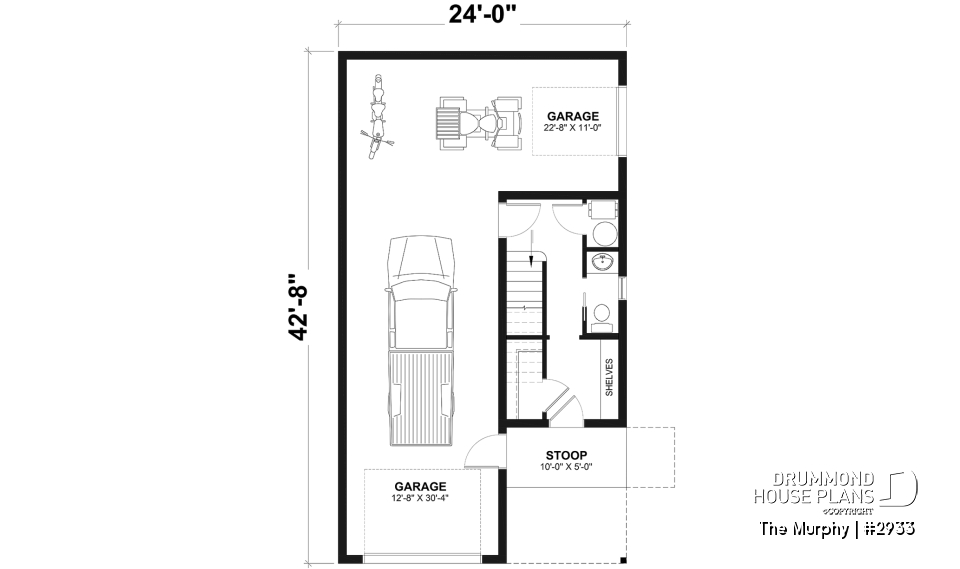

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 2'8" x 7'0" | ~ 8'0" |
| Foyer | 6'0" x 6'8" | ~ 8'0" |
| Garage | 12'8" x 30'4" | ~ 8'6" |
| Garage | 22'8" x 11'0" | ~ 8'6" |
| Storage | 4'0" x 2'8" | ~ 8'0" |

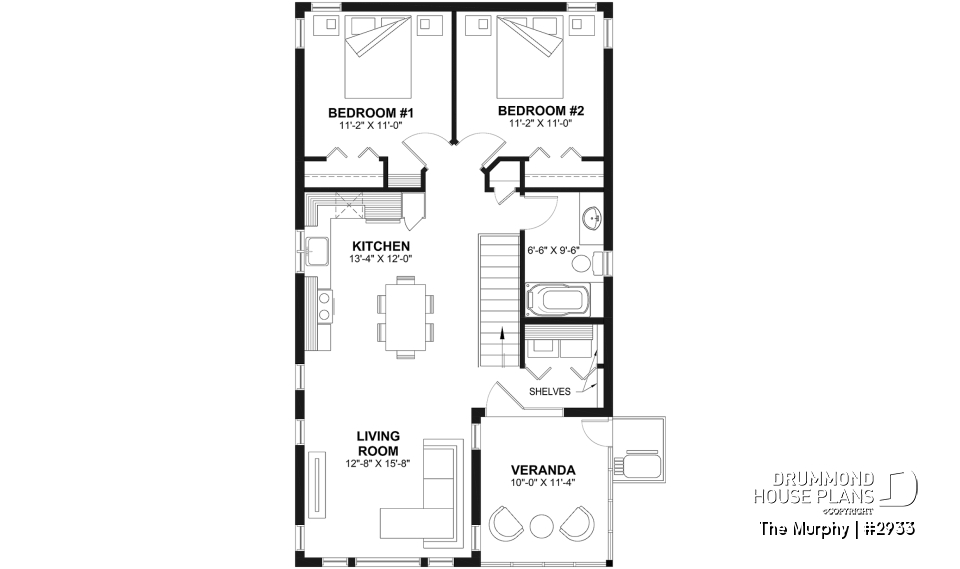

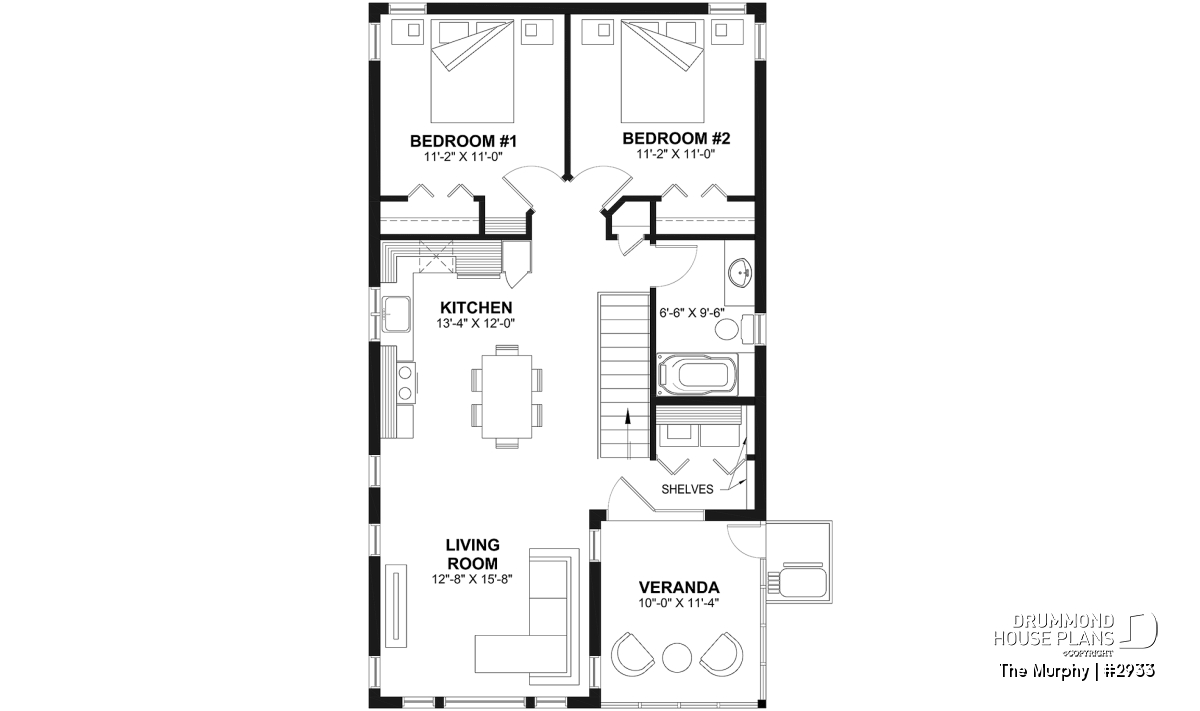

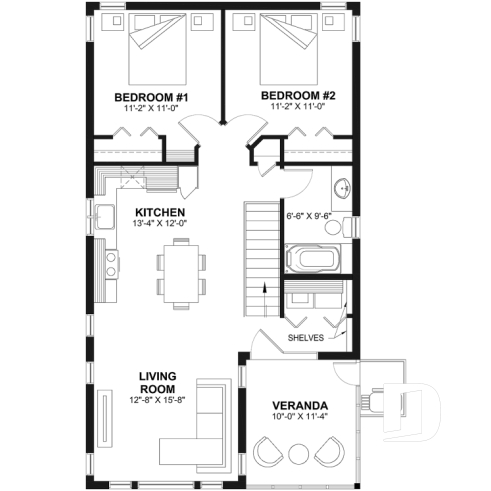

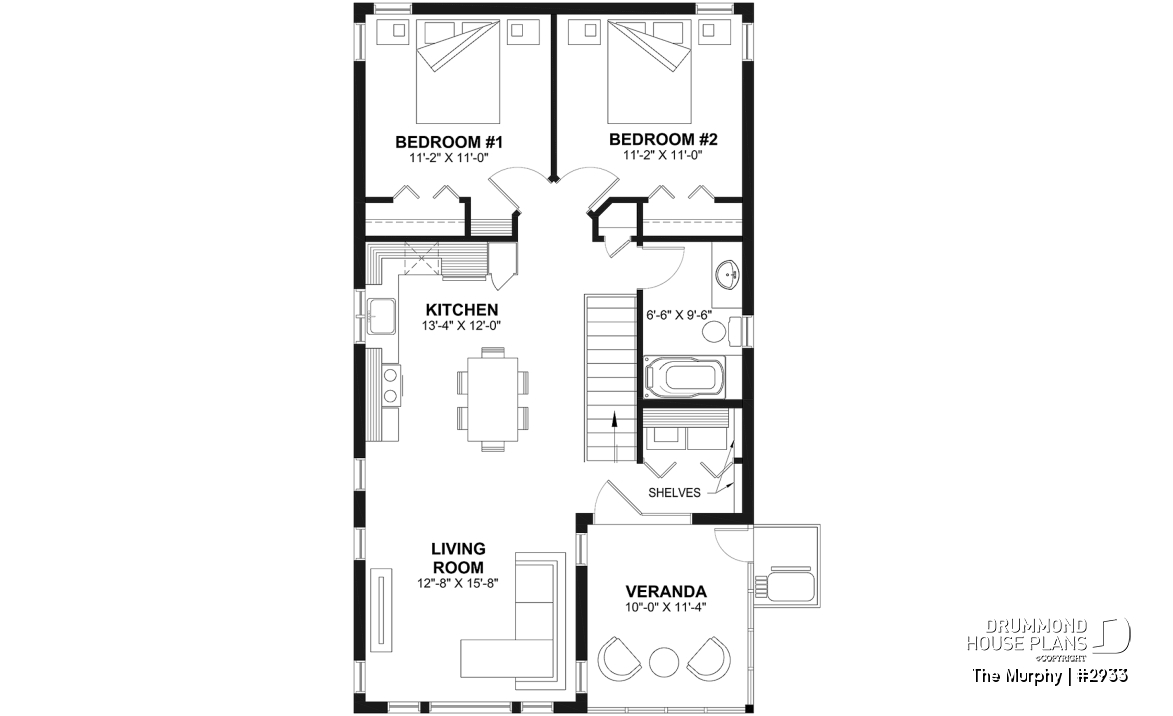

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 9'6" | ~ 8'0" |
| Kitchen | 13'4" x 12'4" | ~ 8'0" |
| Living room | 12'8" x 15'8" | ~ 8'0" |
| Bedroom | 11'2" x 11'0" | ~ 8'0" |
| Bedroom | 11'2" x 11'0" | ~ 8'0" |
| Linen | 2'4" x 2'0" | ~ 8'0" |
| Utility room | 6'0" x 3'0" | ~ 8'0" |
General specifications
| Total living area | 1080 sq.ft. |
| 1st level | 192 sq.ft. |
| 2nd level | 888 sq.ft. |
| Width | 24'0" |
| Depth | 42'8" |
| Ridge height from top of foundation | 26'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Eco-slender, ultra versatile

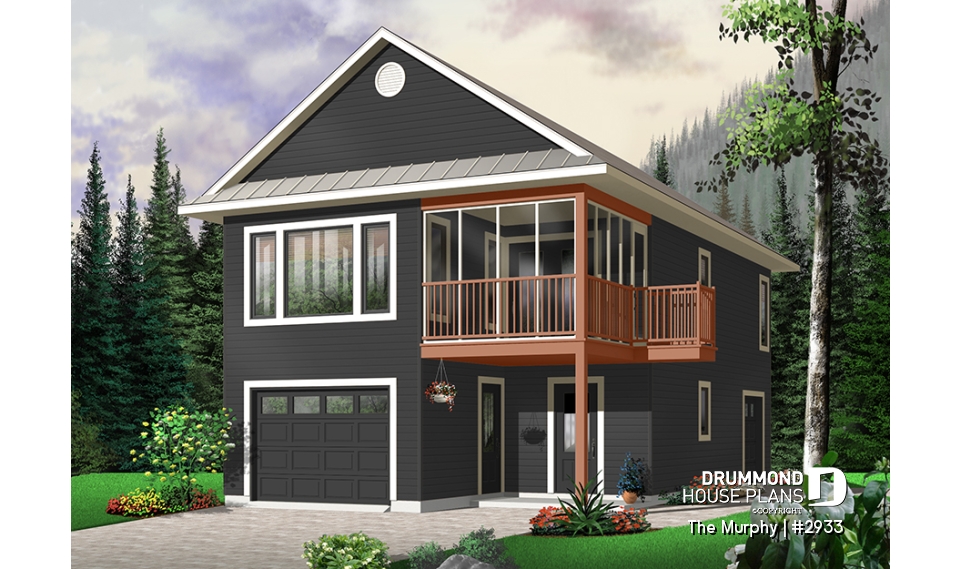

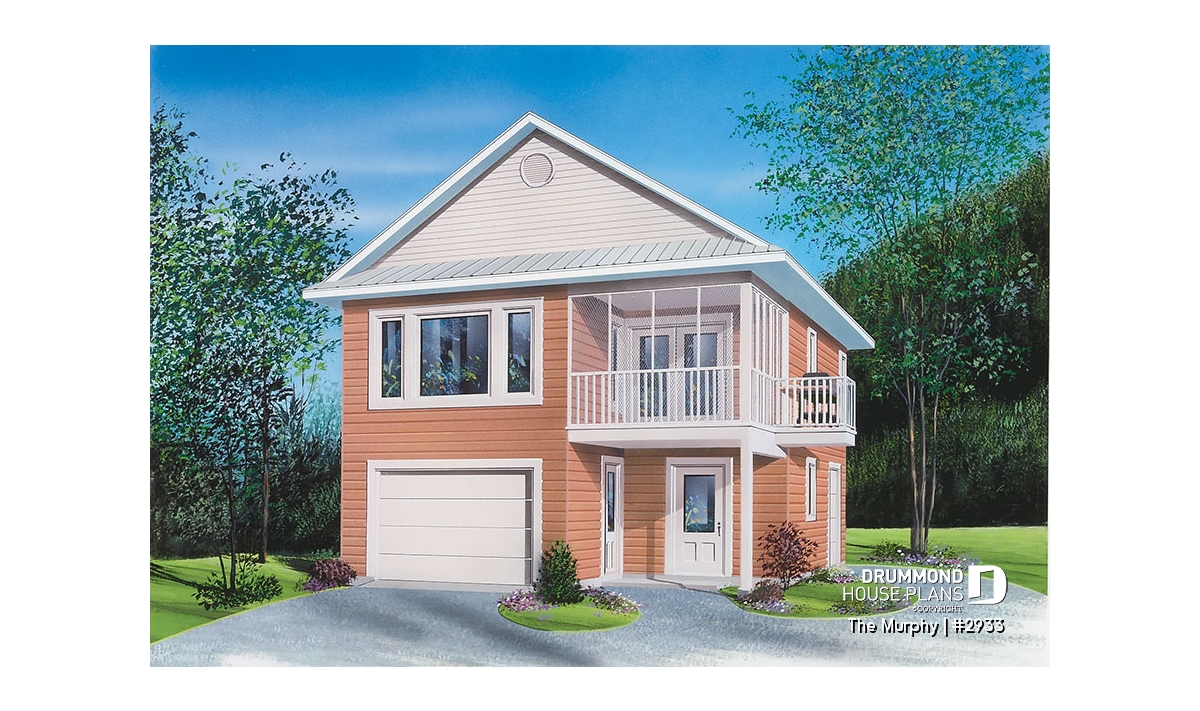

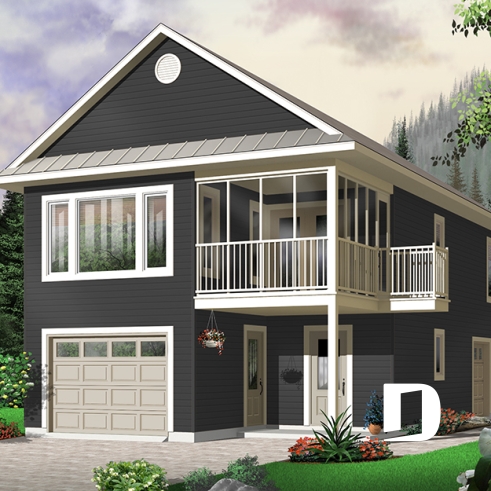

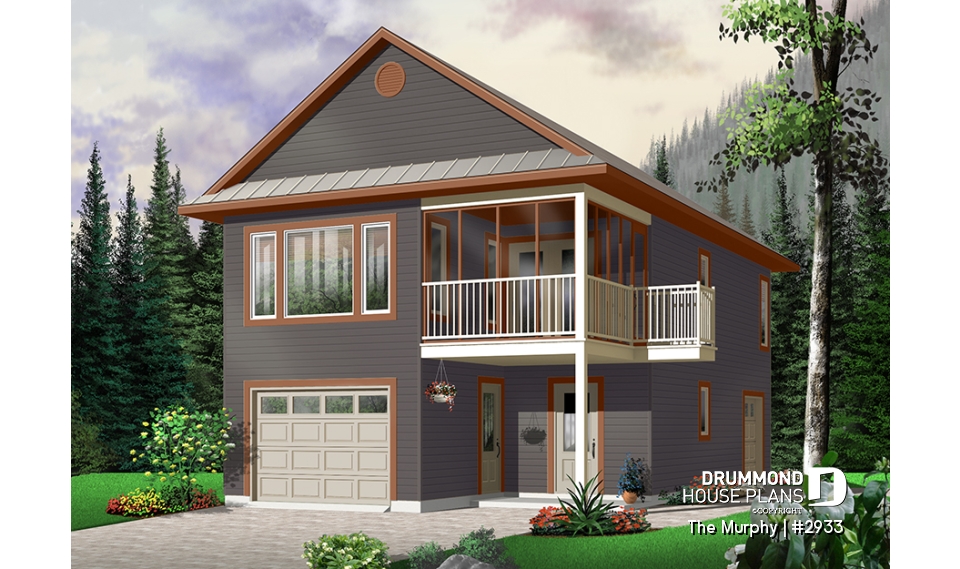

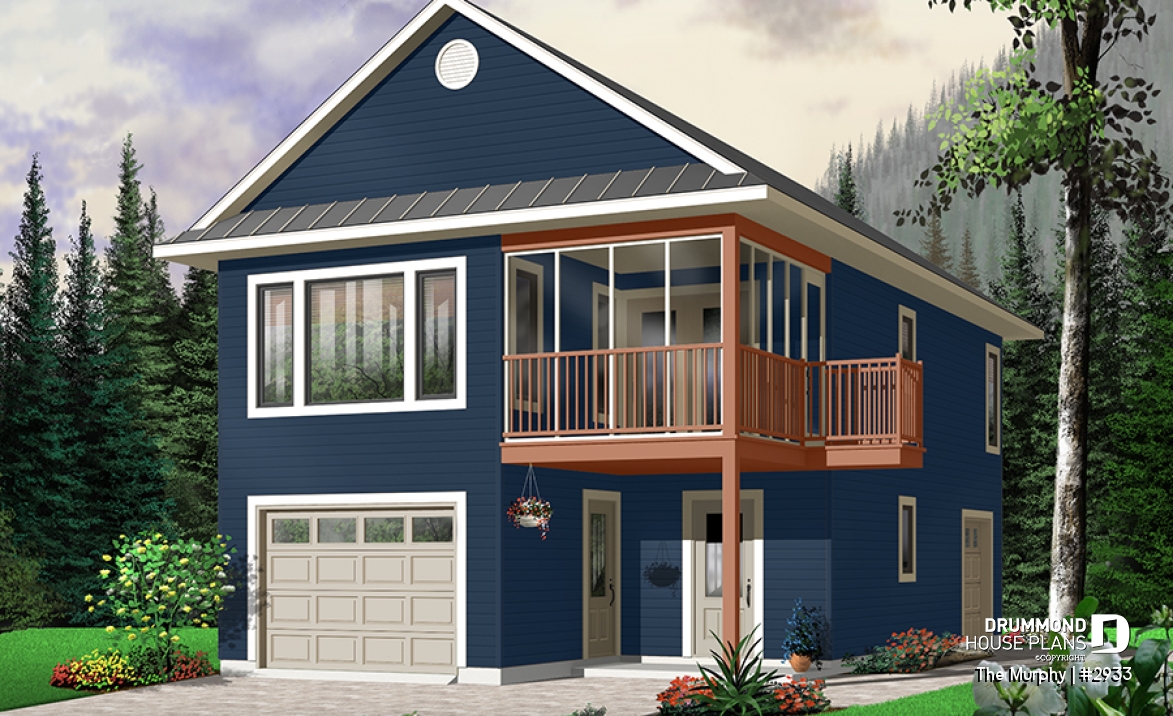

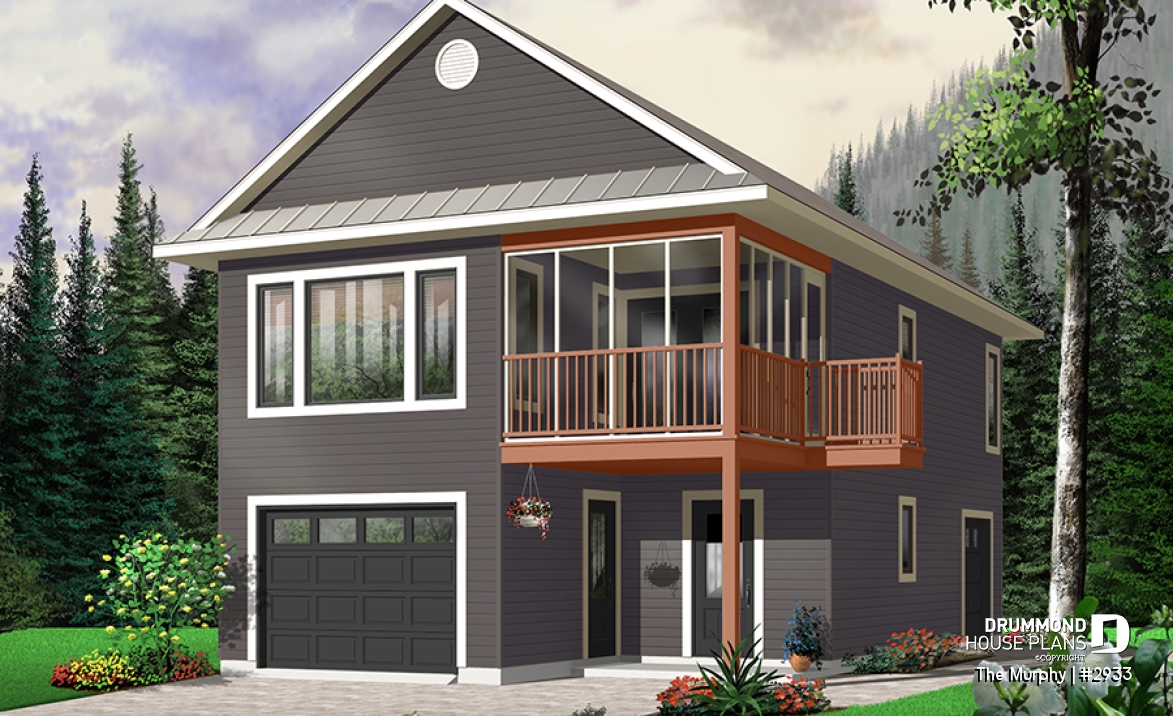

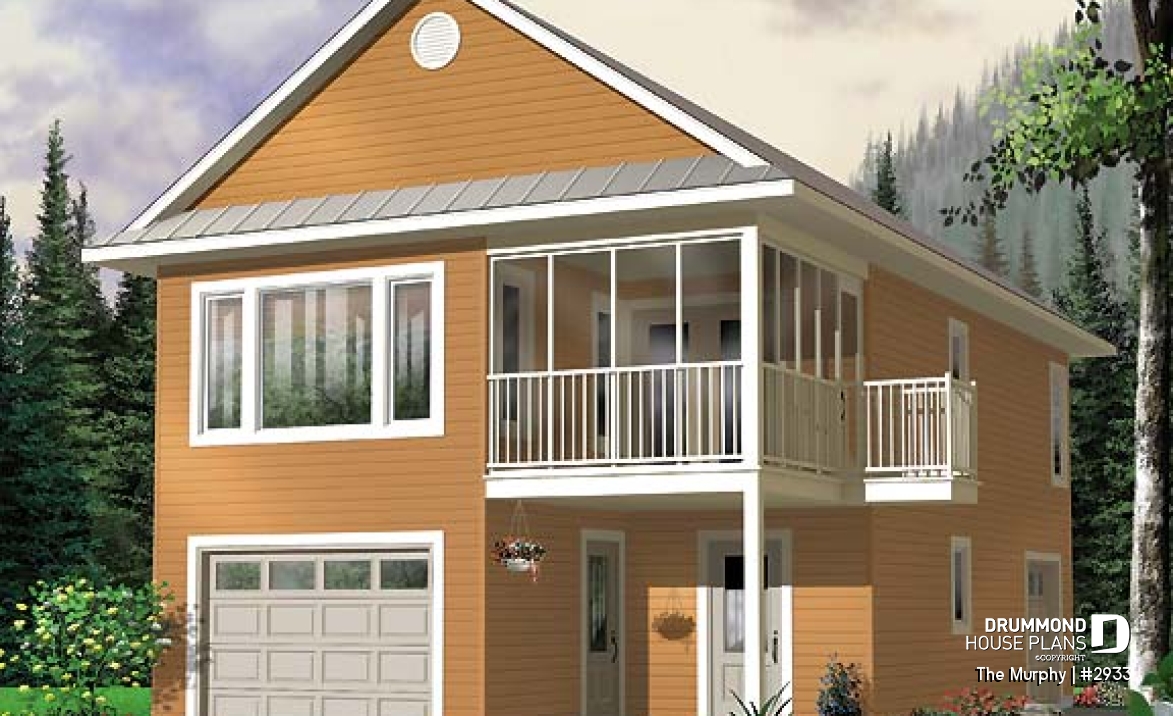

Much like a Murphy Bed, our Murphy is a wondrous bit of efficiency and flexibility. A slender 24-foot width allows this model to be slipped onto infill lots, into eco-communities or larger lot as a guesthouse or mother-in-law suite with the added benefit of a two-car tandem style garage!
A generous covered entry provides protection from the weather. Inside, find a generous coat closet and bench seating. Just beyond is a powder room, easily accessed from the garage or main entry. An interior door is conveniently located at the base of the stairs, so it is a breeze to whisk groceries straight up and into the kitchen. Due to virtually no halls, the upstairs is able to include two bedrooms, a full bathroom, country kitchen, living room, laundry and an enjoyable screened balcony, with grilling platform.

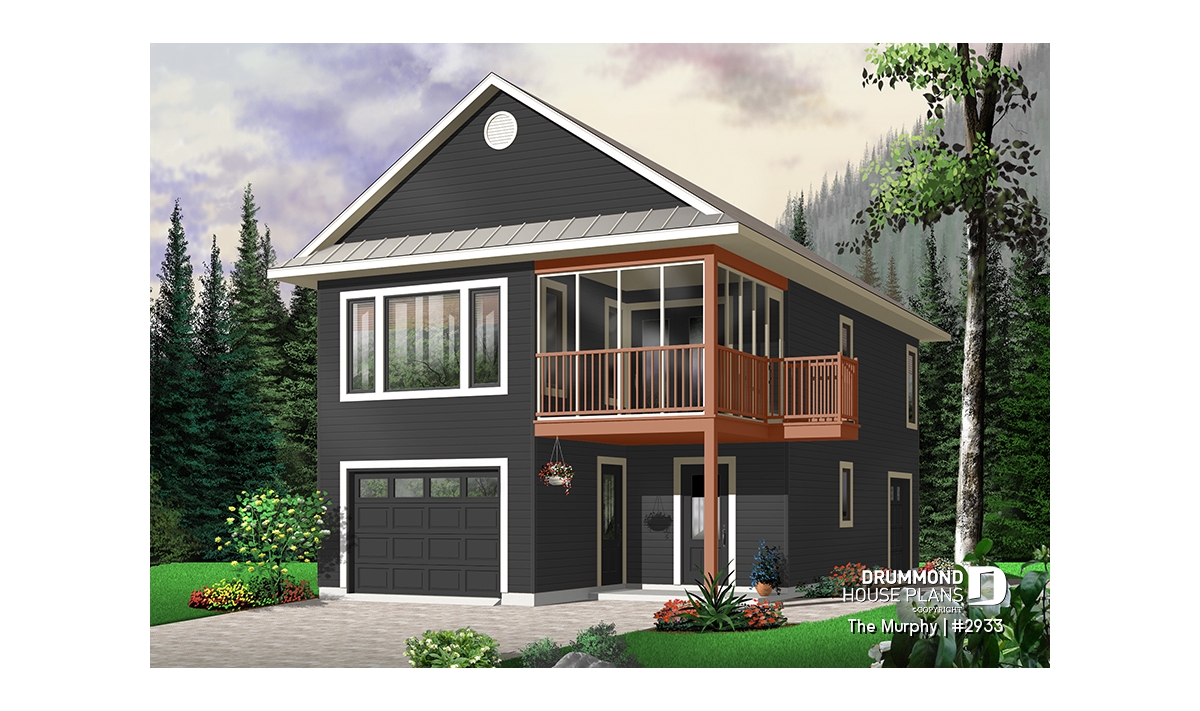

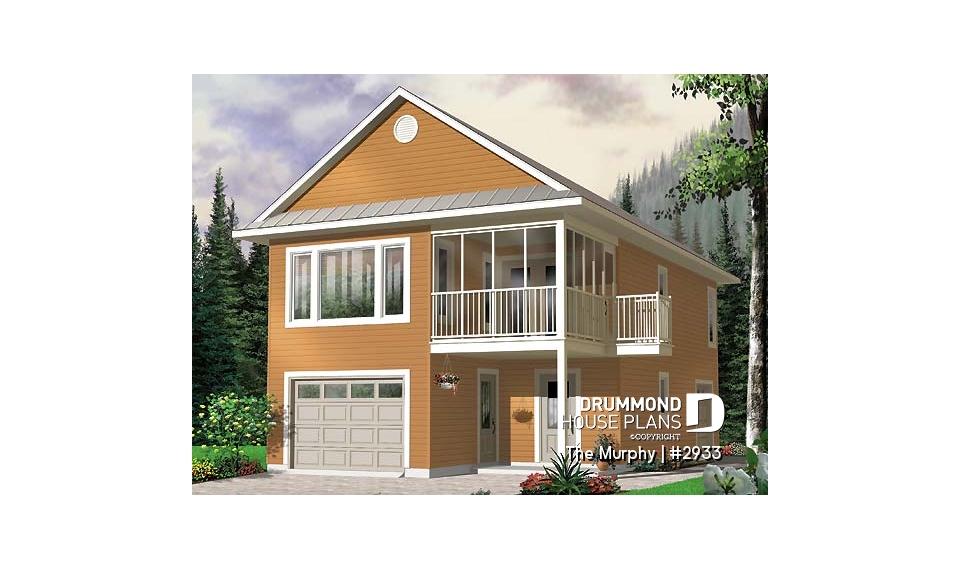

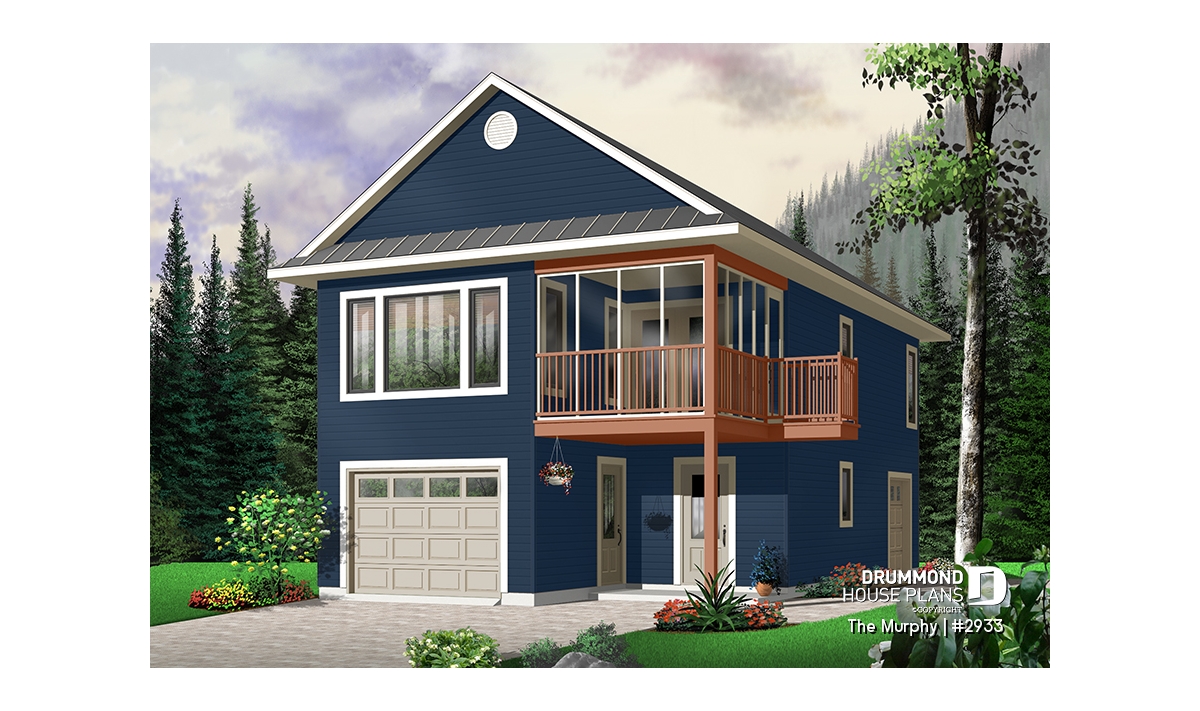

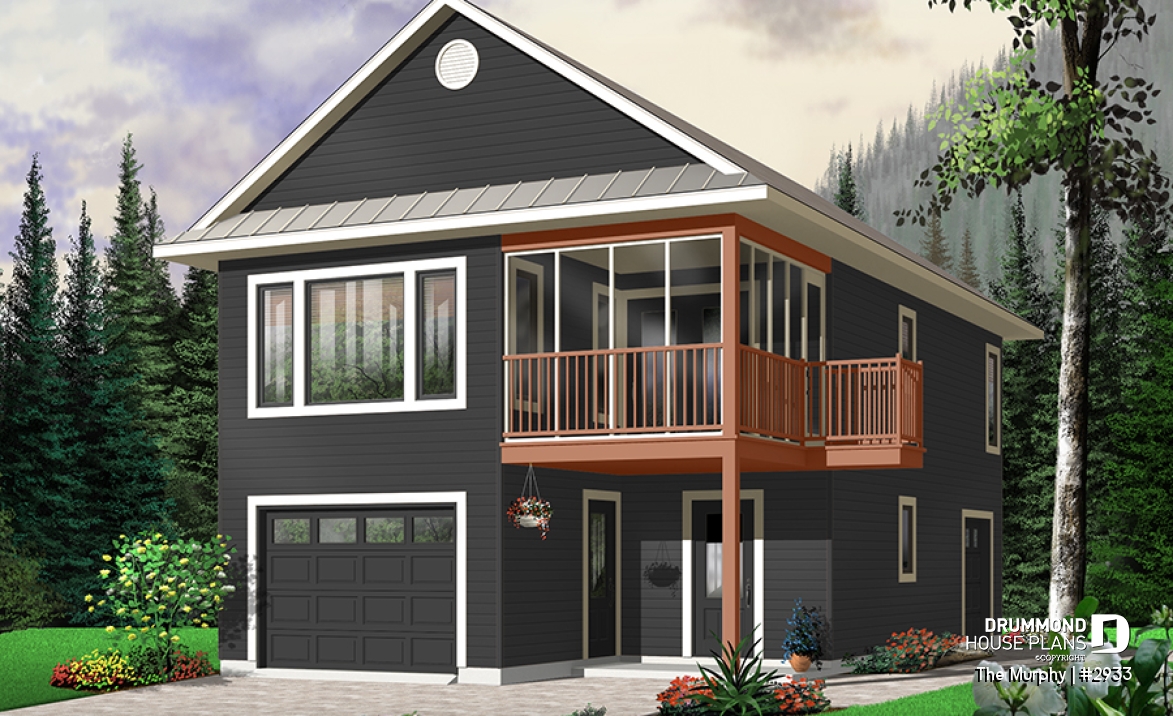

Rendered with a simple finish this model can easily be dressed up to suit any neighbourhood. The many possibilities presented by this plan make it one of our perennial favourites!
Distinctive elements
Double garage plan with upstairs accommodation.
Complete accommodation including 2 bedrooms, bathrooms, kitchen, living room and laundry room.
Screened in balcony on second floor.
On the ground floor, a bathroom and storage as well as a cloakroom.
Plan feature(s)
Screened porch, Balcony 2nd floor, Mud room, Open floor layout, Second floor laundry room
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . Traditional, . Craftsman / Northwest, . Cabin plans
Previously Viewed Plans
Questions and comments
August 06 2018
Josh Hoban
Just curious on what all comes with this plan. Truss layout/style? Roof plan? Roof pitch? Over hang? Slab plan? I would guess that I have to still have the trusses, and slab engineered. House plan W2933 The Murphy
January 06 2015
David Parkin
How much will it cost to build this model in Rigaud, QC, J0P1P0. ?
January 06 2015
Customer service
Good day Mr. Parkin and thank you for taking the time to write
Although we do no actual construction, the ballpark estimate to build this home in Quebec (Canada) starts at around $190,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms. The kitchen cabinetry is wood grain melamine. This construction estimate to build in Quebec is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb
September 17 2012
Kristine L.
I was looking at The Murphry W2933 and I was wondering could the first floor wall be extended from 8 feet to 10 feet tall? Then take the depth of the house from 42 feet to 54 so a master bedroom and bath could be added to the back of the home?
September 17 2012
Customer service
Good day Ms. L and thank you for your interest in our plans.
The changes that you require are possible, all you need to do is fill in our on line modification request for which I have attached the link below
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1001558.html
We will be happy to return a free estimate within two business days of receipt of your request.
Please let me know if I can further assist you.
Regards
Deborah
June 11 2010
N
I had a friend who bought plans from a company like this and had a nightmare getting approvals from their municipality. Without an engineer or architect from their state. What do you guarantee with purchase?
June 15 2010
Customer service
Dear madam,
Thank you for your interest in Drummond House Plans. We guarantee that our plans are up to Canadian and US building codes. However, you will need to verify if the chosen plan will comply to local regulations with the city where you plan to build. We do not provide engineering services, therefore you will need to find a local engineer to stamp the plans if the city request it.
Please contact us again if you need further information.
Best Regards,
Customer Service Department
May 30 2010
Carl Welliver
I was looking at plan W2933 and had a question.
Could a third floor be added to this with a Master BR Suite and Office/Den
June 01 2010
Customer service
Dear Sir,
Thank you for your interest in Drummond House Plans.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-866-444-4916.
Do not hesitate to contact us again if you need further information.
Best Regards,
Customer Service Department
