The Hillock 2 (2931A)

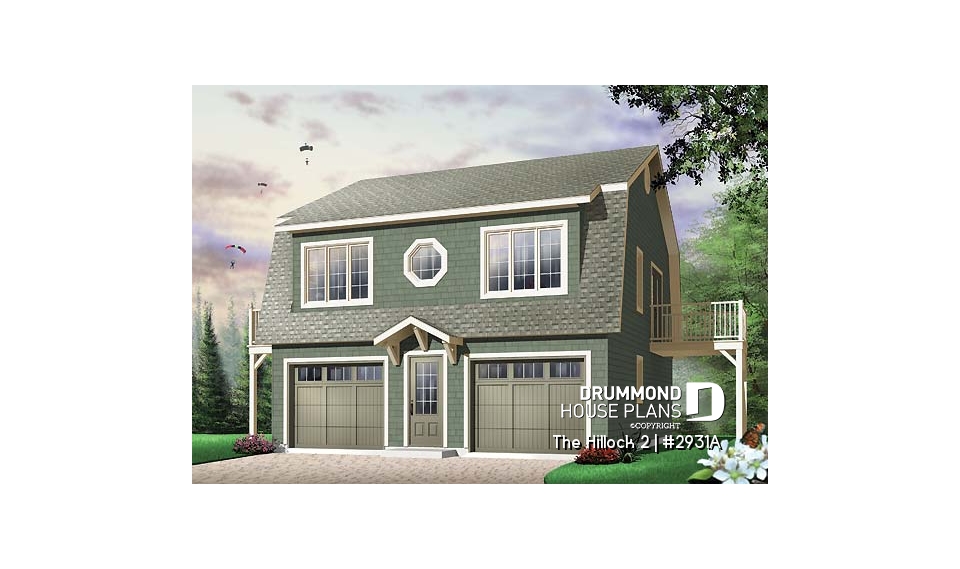

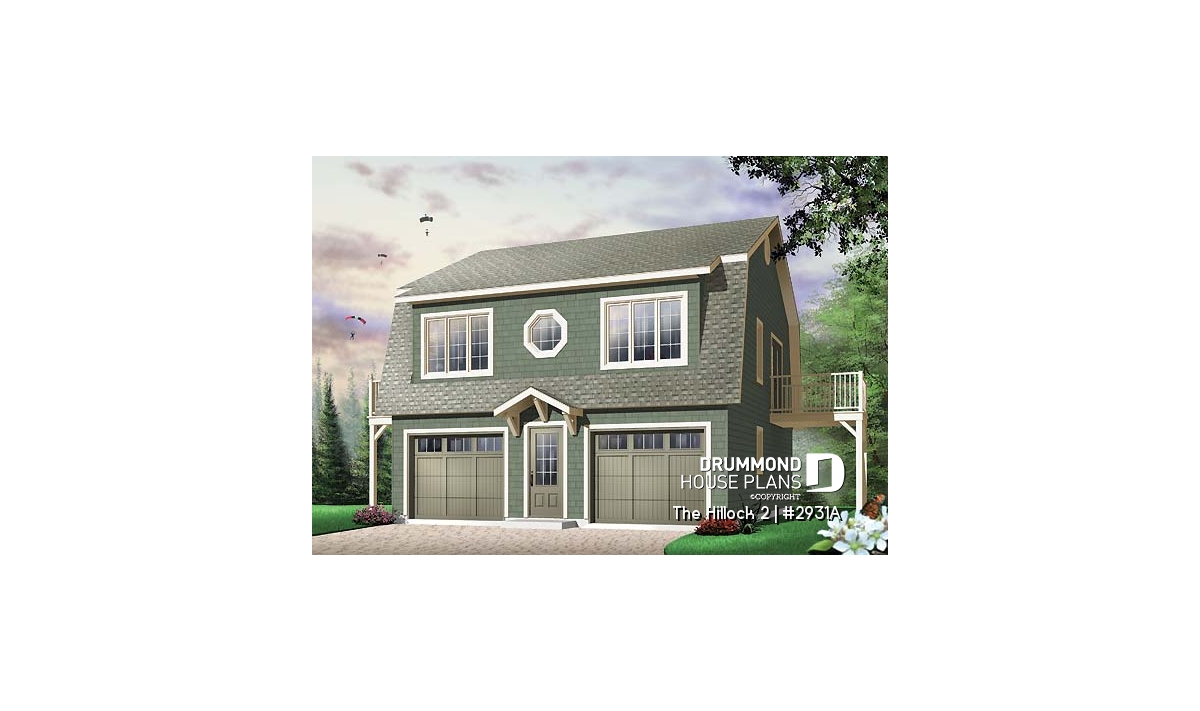

Large 2-car garage plan with a 2 bedroom apartment on second floor and 2 private balconies
View the size of the rooms and height of the ceilings

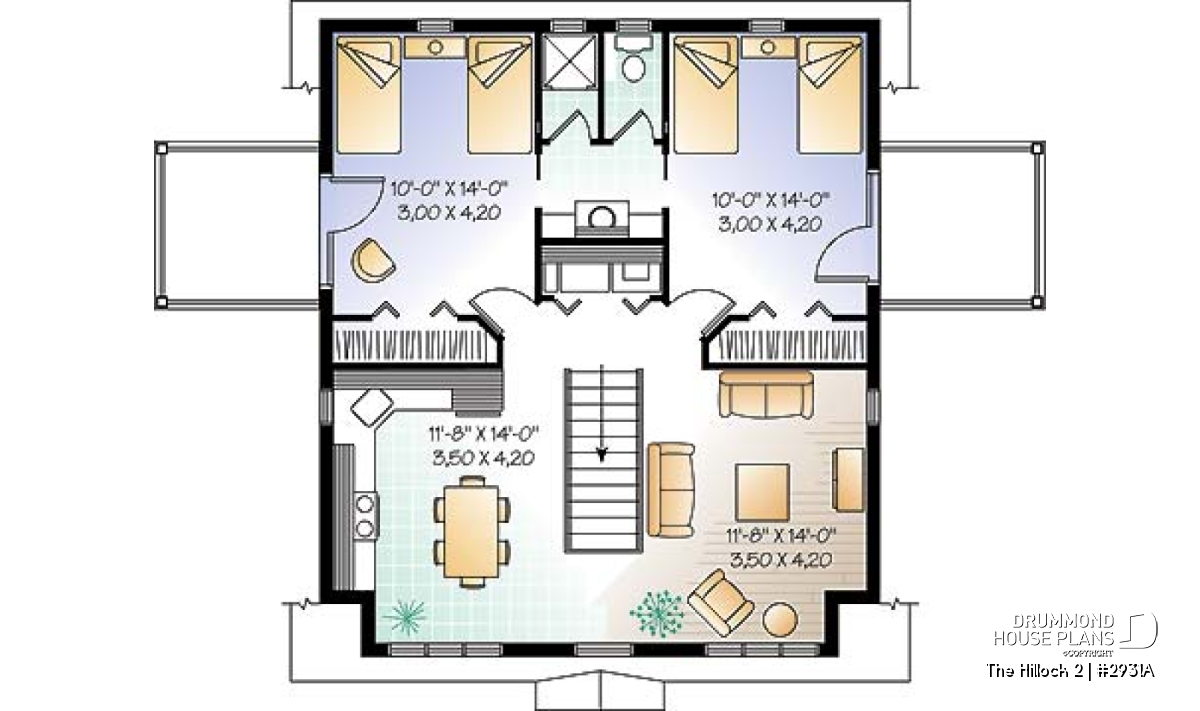

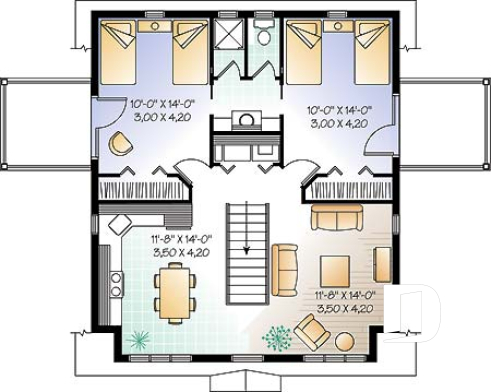

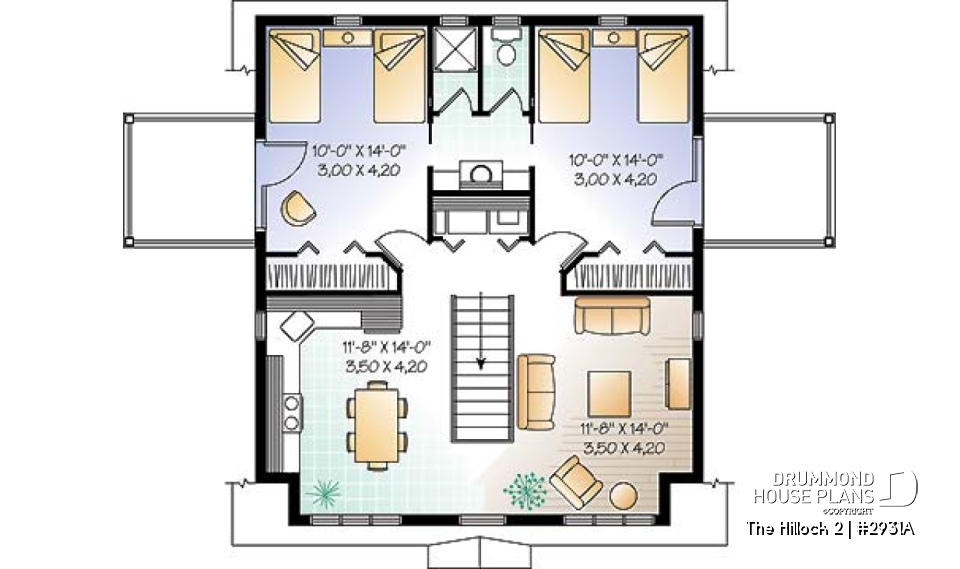

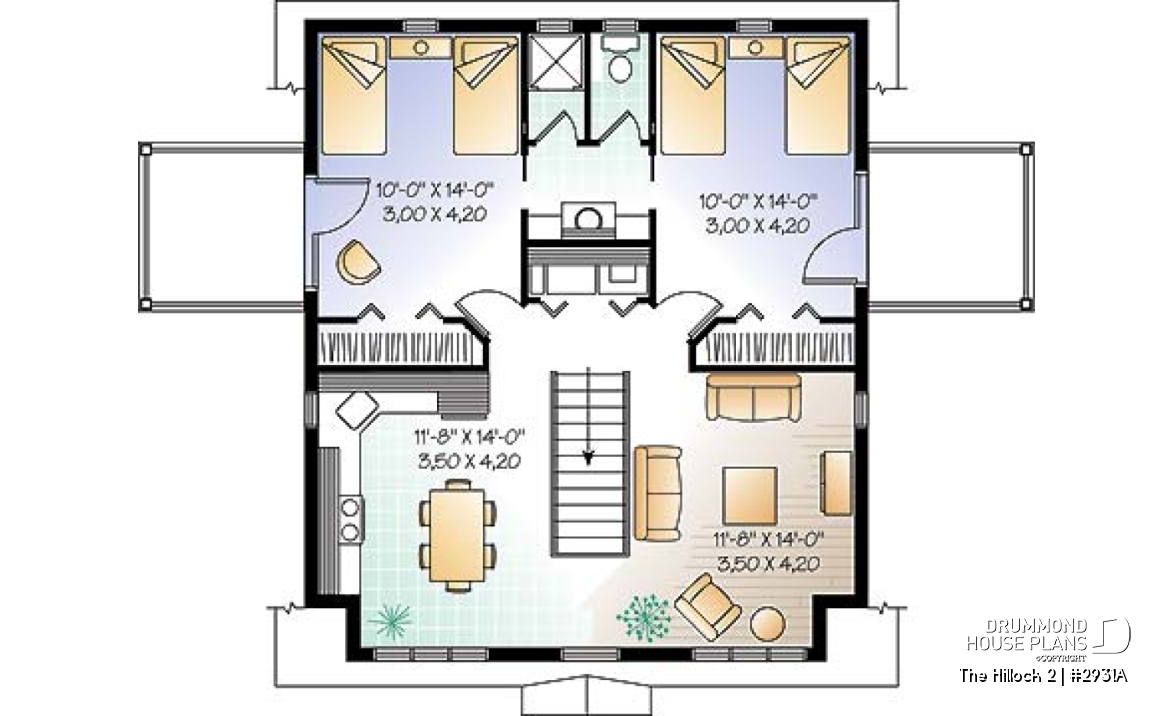

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Balcony | 8'0" x 8'0" | N/A |
| Full bathroom | 6'0" x 9'10" | ~ 8'0" |
| Bedroom | 10'0" x 14'0" | ~ 8'0" |
| Bedroom | 10'0" x 14'0" | ~ 8'0" |
| Kitchen | 11'8" x 14'0" | ~ 8'0" |
| Living room | 11'8" x 14'0" | ~ 8'0" |
| Utility room | 6'0" x 2'8" | ~ 8'0" |

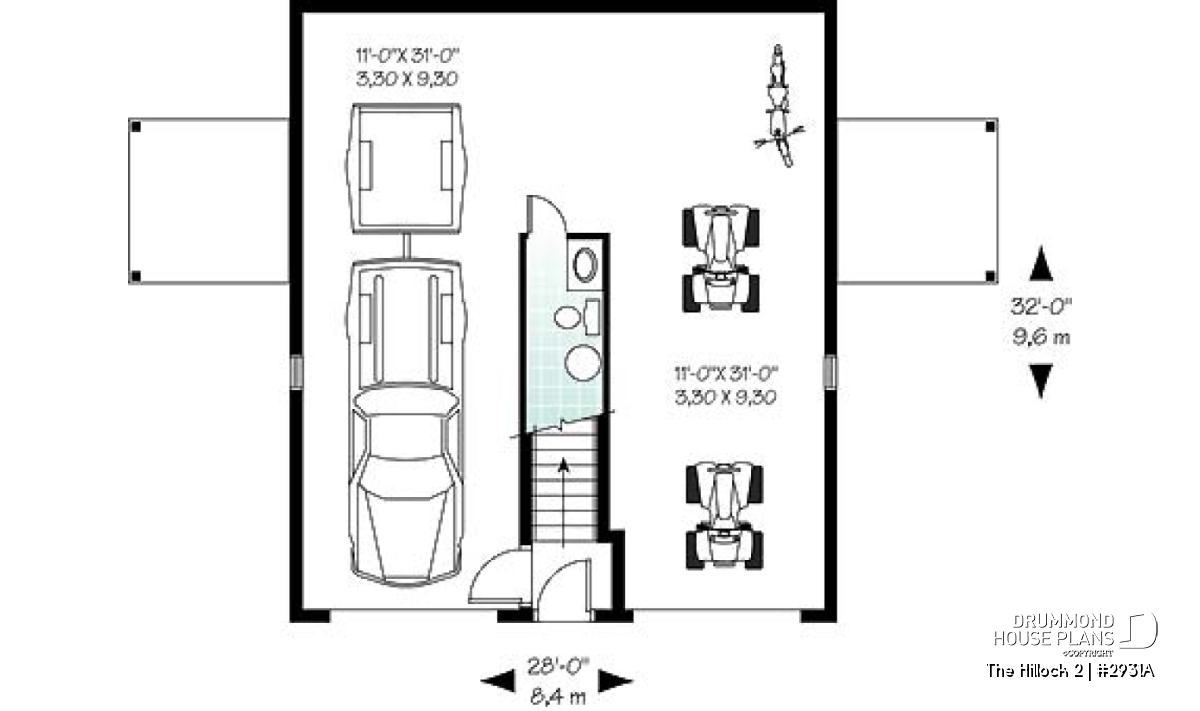

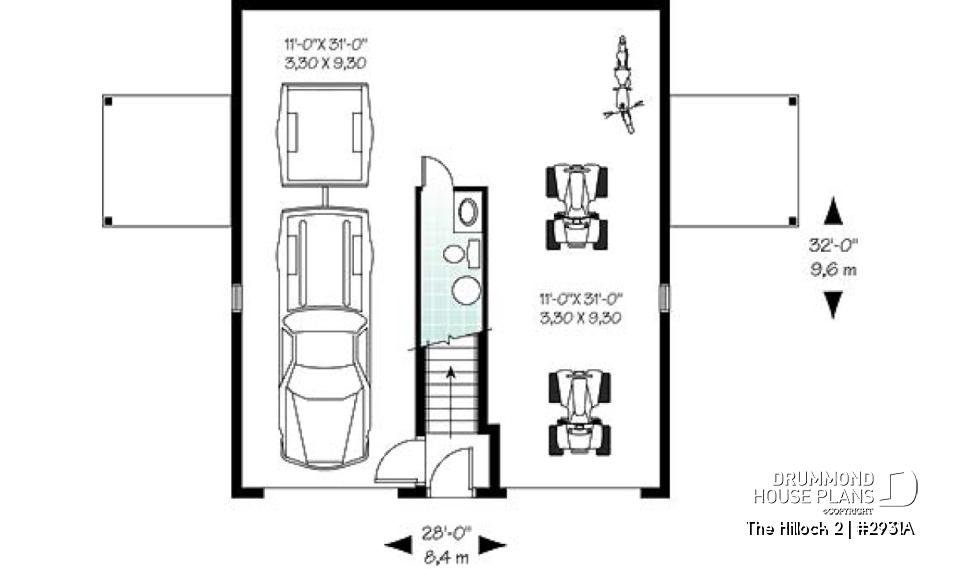

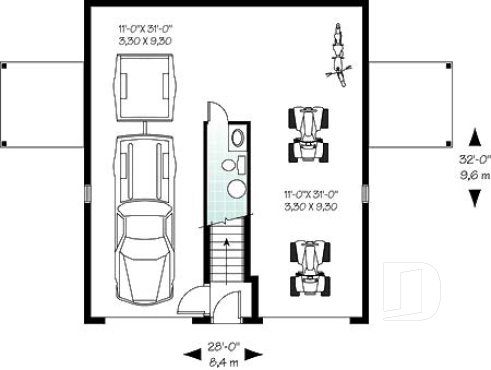

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 4'6" x 4'0" | ~ 8'0" |
| Foyer | 4'0" x 3'4" | ~ 8'0" |
| Garage | 11'0" x 30'8" | ~ 8'0" |
| Garage | 11'0" x 30'8" | ~ 8'0" |
General specifications
| Total living area | 963 sq.ft. |
| 2nd level | 889 sq.ft. |
| 1st level | 74 sq.ft. |
| Width | 28'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 26'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | A |
Rooms specifications
Other useful information on this plan
Double car garage plan with 2 bedroom apartment for guests or as an income property
Guest house or secondary residence, here is an original house which will surely fulfill the needs of many. Combining at the same time a double garage and comfortable living accommodations, this house never ceases to gain in popularity.
On the main level, we can first appreciate a most practical garage by its important depth and the fact that it will allow its owners a more than adequate apartment and the possibility of integrating a workbench over the entire rear wall.
On the upper level, an ‘L’ shaped kitchen allows space enough for a table for 6 in a well lit space and, on the opposite side of the central staircase, we find a quite comfortable living room, also as well lit. As for the resting areas, we can appreciate two bedrooms, each having a large closet as well as a shower room with independent toilet and shower, without forgetting access to a beautiful outside terrace for each of the bedrooms.
Distinctive elements
Each bedroom has access to private balcony.
Plan feature(s)
Open floor layout, Balcony 2nd floor
Plan architectural style(s)
. Cottage, chalet, cabin, . Traditional, . Country, . American, . Cabin plans
