House plan Mercer (3954-V2)
Contemporary style garage apartment house plan with open floor plan, large terrace and full apartment
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'0" x 8'5" | ~ 8'6" |
| Closet | 3'1" x 2'2" | ~ 8'6" |
| Storage | 7'0" x 7'2" | ~ 8'6" |
| Garage | 15'0" x 22'9" | ~ 8'10" |
| Workshop | 22'8" x 11'7" | ~ 8'10" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room/dining room | 22'8" x 12'0" | ~ 8'6" |
| Kitchen/dinette | 11'4" x 8'8" | ~ 8'6" |
| Pantry | 1'0" x 2'4" | N/A |
| Powder/laundry room | 7'1" x 6'3" | ~ 8'6" |
| Bathroom | 7'4" x 8'10" | ~ 8'6" |
| Shower | 2'8" x 2'8" | N/A |
| Bedroom | 15'0" x 11'0" | ~ 8'6" |
| Closet | 11'0" x 2'0" | ~ 8'6" |
General specifications
| Total living area | 1028 sq.ft. |
| 1st level | 164 sq.ft. |
| 2nd level | 864 sq.ft. |
| Width | 24'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Garage plan with apartement: urban look with contemporary appeal + workshop
To update plan 3954 giving it a contemporary feel, the designer has developed a version that would be quite at home on a narrow lot or even in urban surroundings.

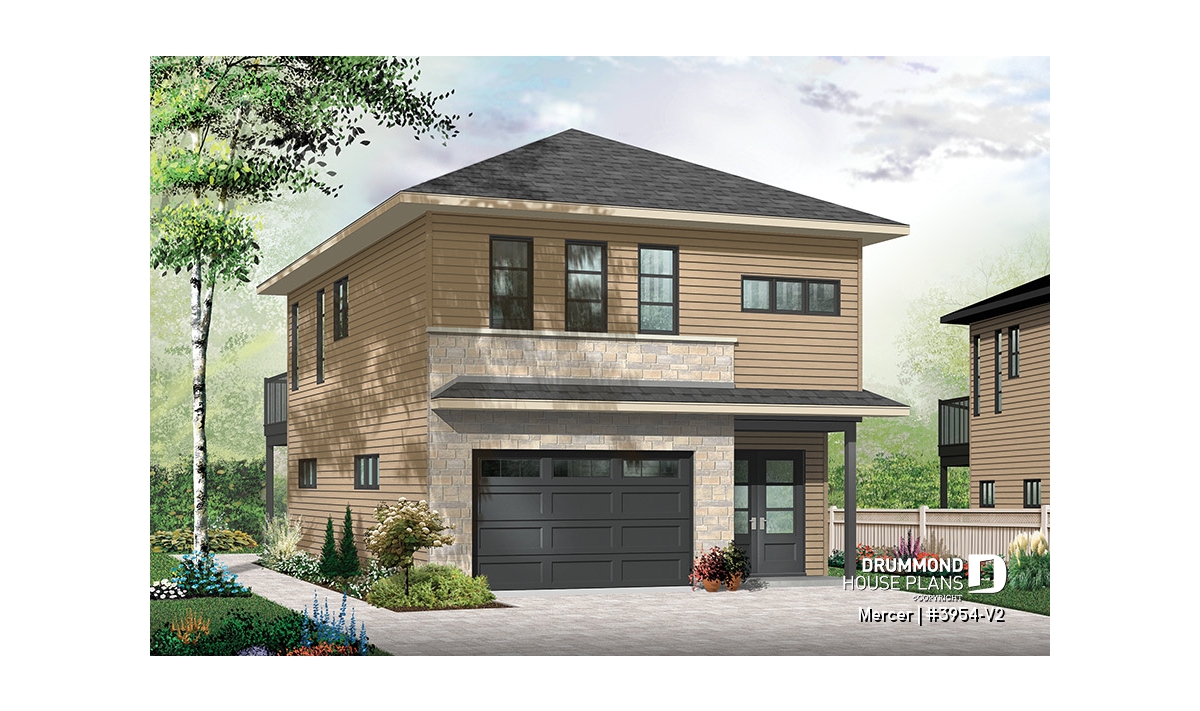

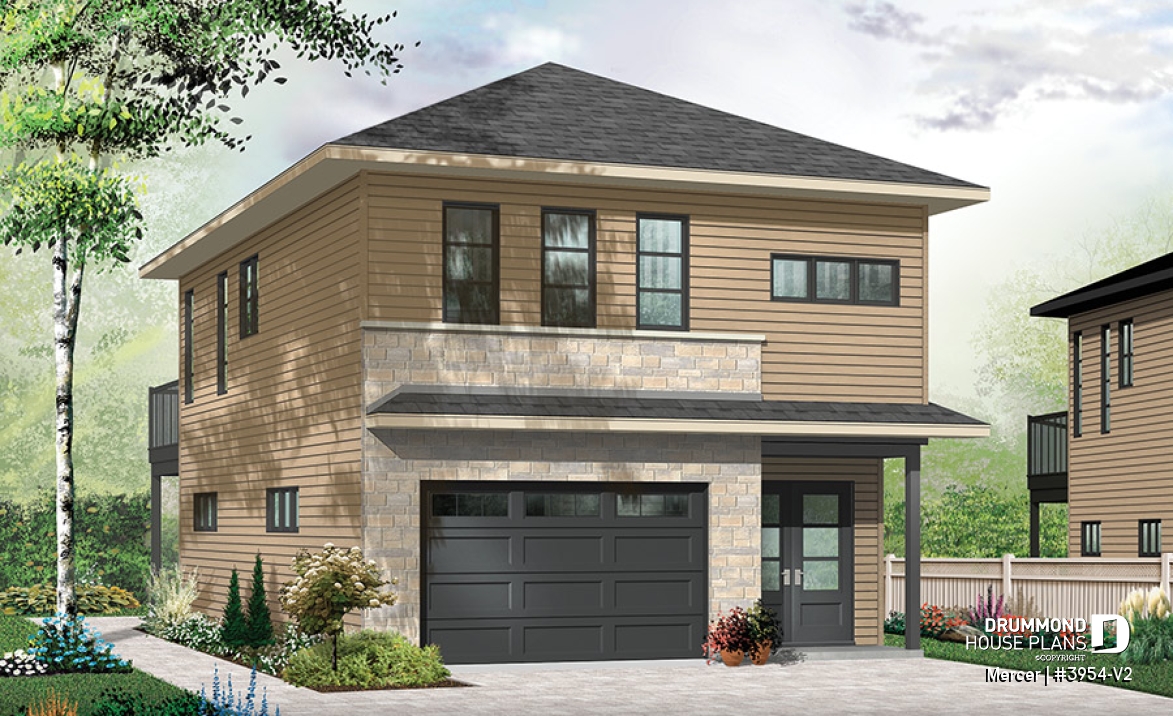

The extensive use of stone combined with siding in natural wood tones enhance the understated elegance of this home which will blend beautifully in rural or mountainous surroundings.

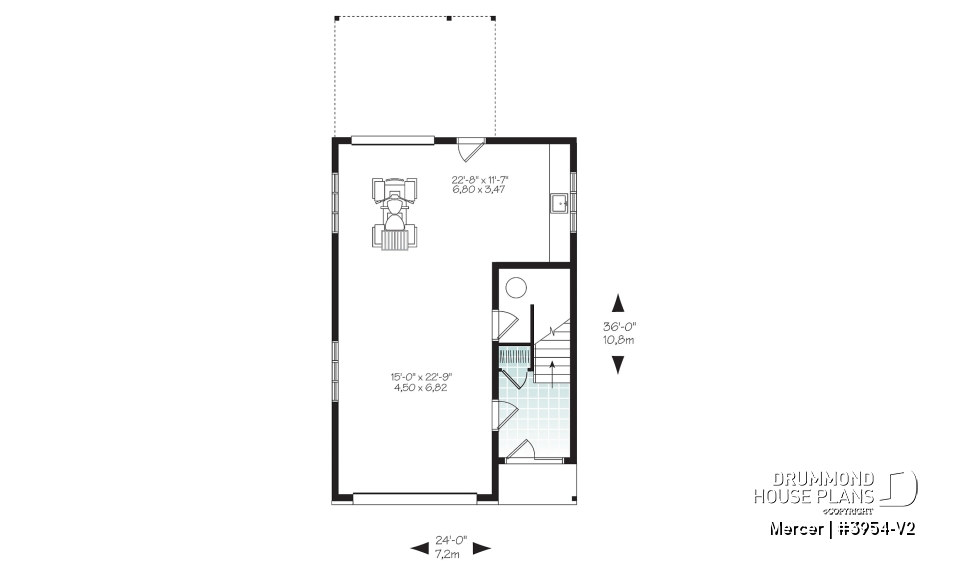

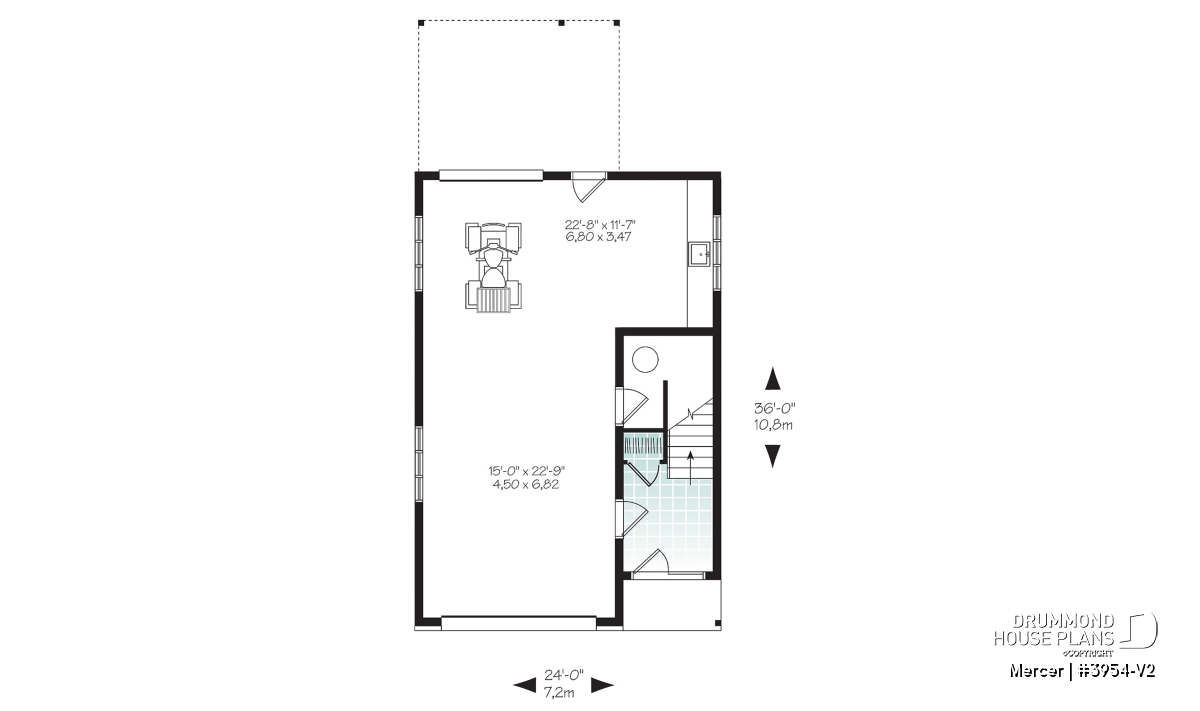

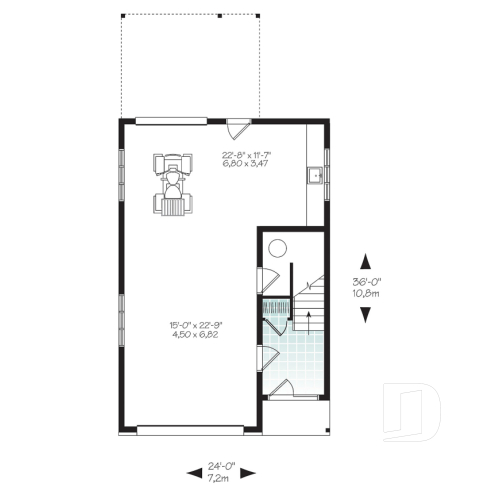

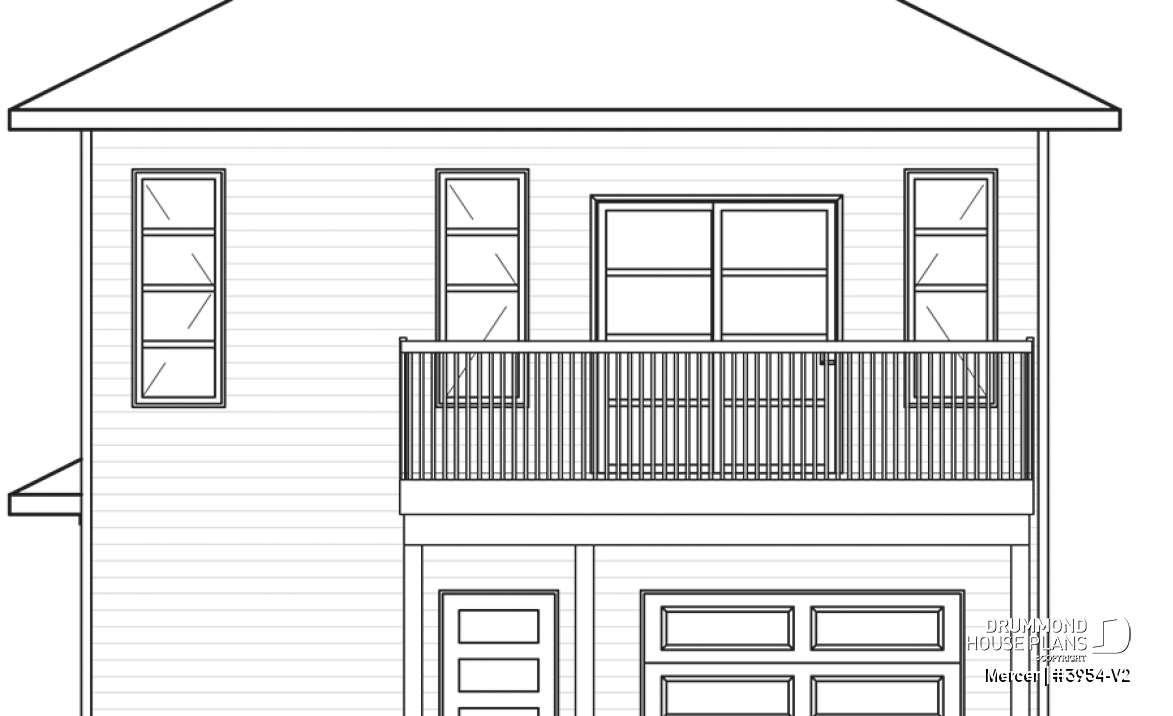

Inside, the first floor offers a large garage complete with workshop and storage, an 8 ½’ high ceiling and a second garage door on the rear wall with access to the back yard.

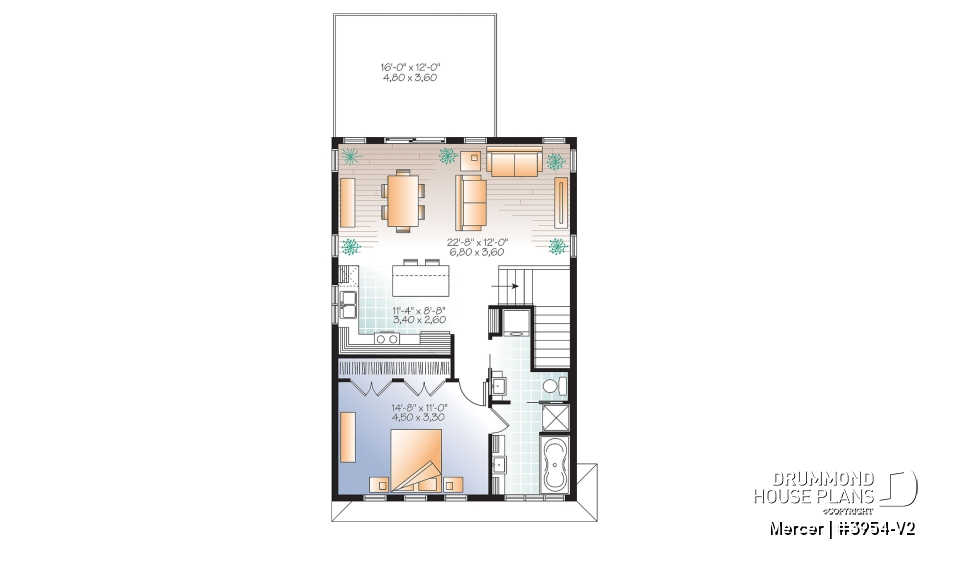

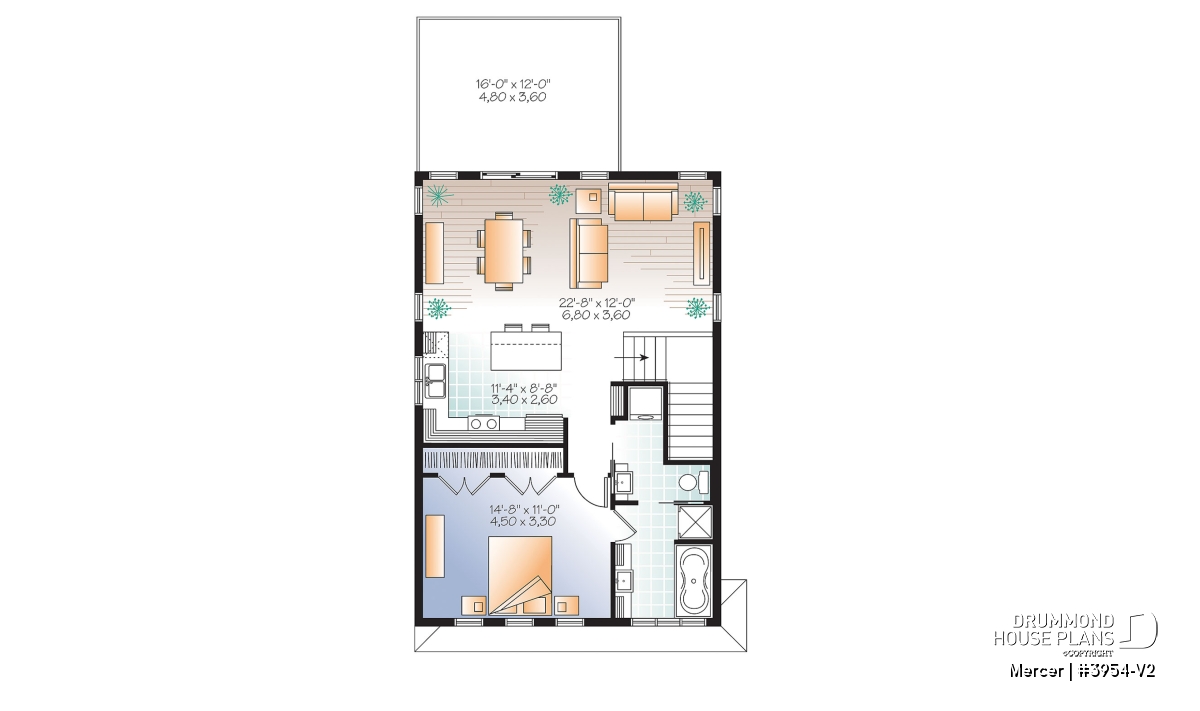

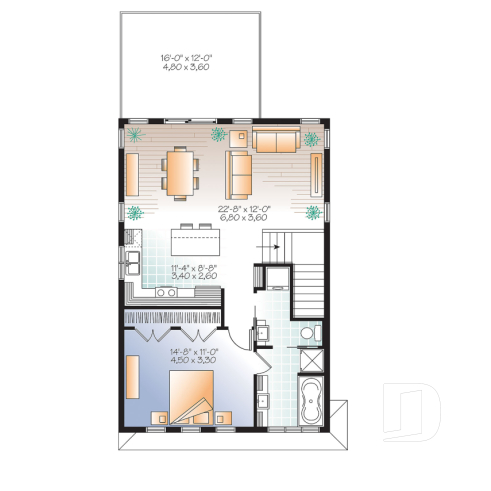

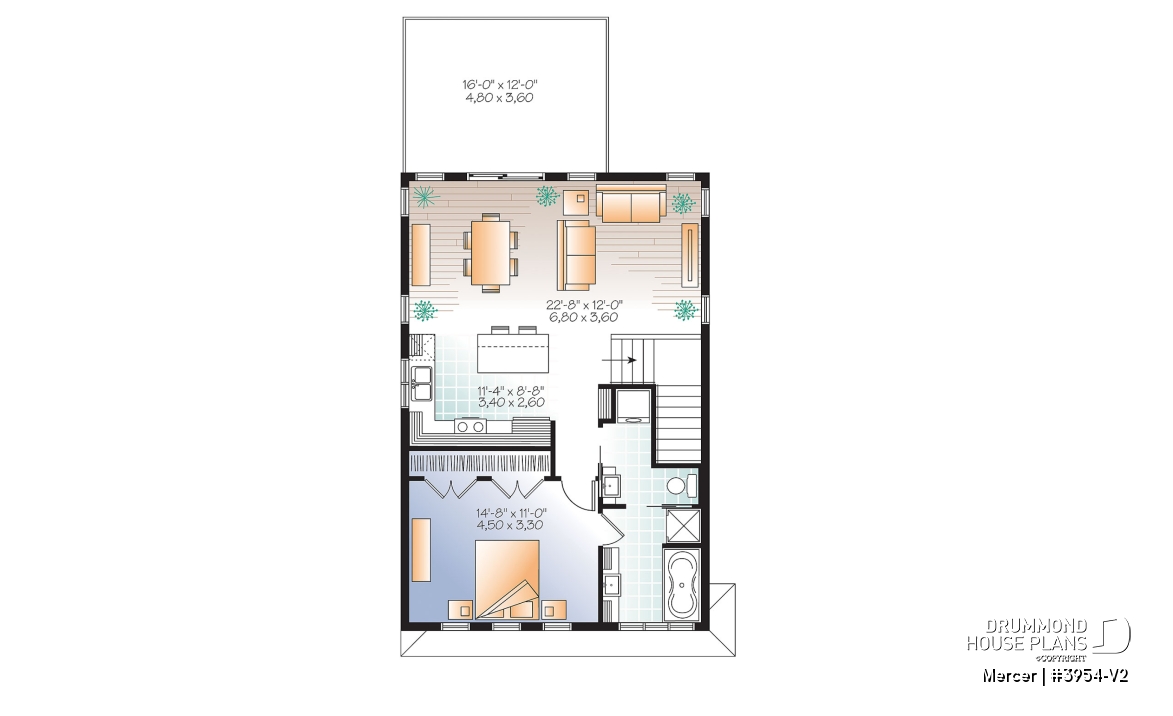

The upper floor offers an open floor plan and a surprisingly large kitchen, with island/dining/living area bathed in natural light and 8½’ high ceilings. The patio door opens onto a 16’ x 12’ terrace to which an outside staircase and a roof could easily be added.
The large, 15’ x 11’ master bedroom has ample closet space and a private bathroom with a separate shower and toilette/laundry area, functional features that enhance the urban feeling of this home.
Distinctive elements
Garage with lodging house plan.
Main floor and second floor ceiling at 8'-6''.
Large garage with storage and workshop.
Second floor apartement with open floor plan concept.
Master bedroom with large closet.
Full bathroom and separate shower and laundry closet.
Access to a large terrace through dining area.
Plan feature(s)
Mud room, Balcony 2nd floor, Ceiling over 8', Island, Open floor layout
