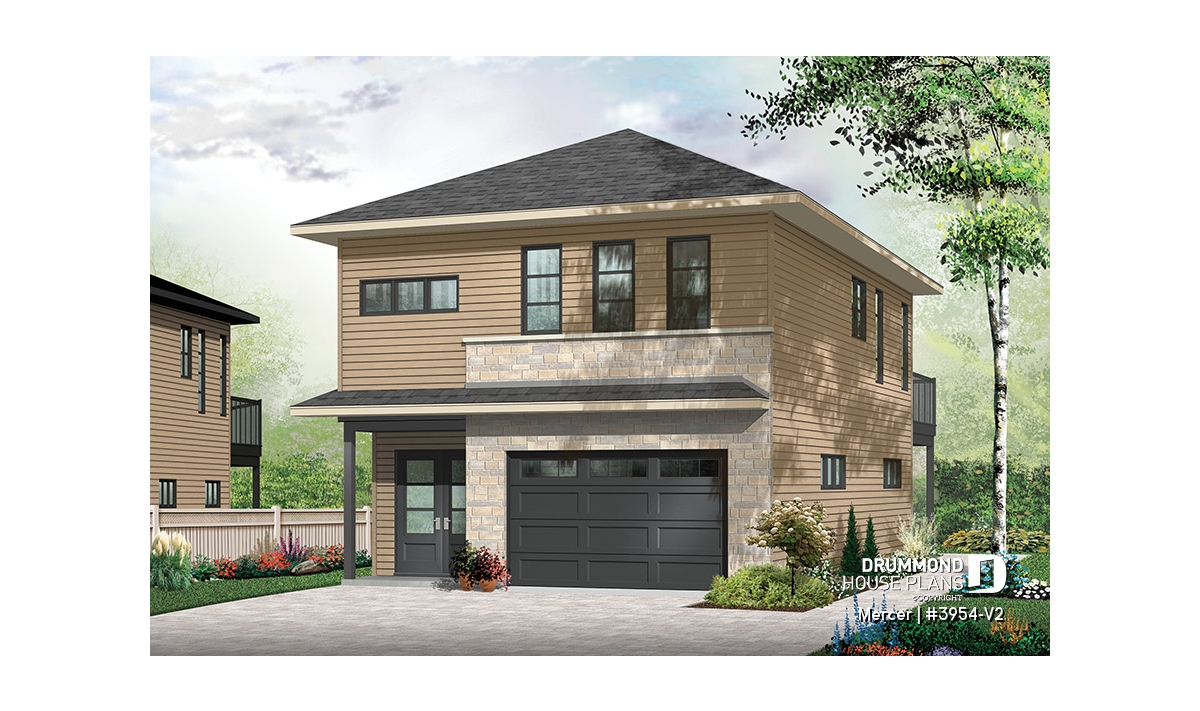

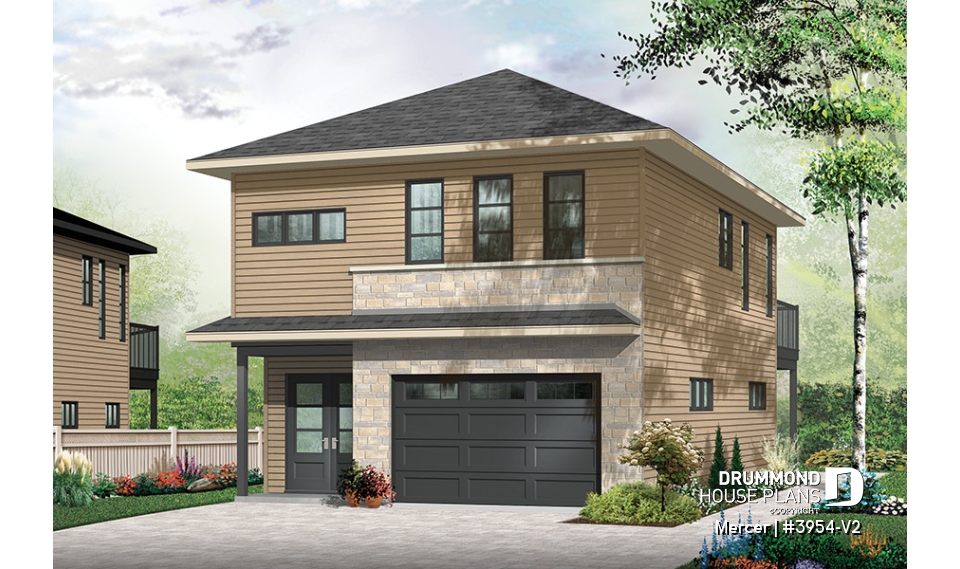

front - BASE MODEL
1st level
2nd level

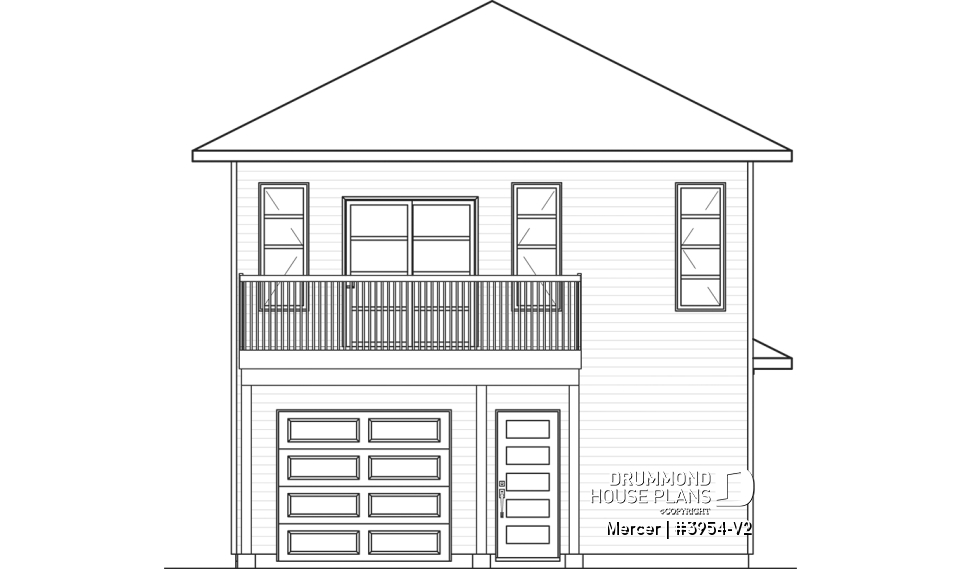

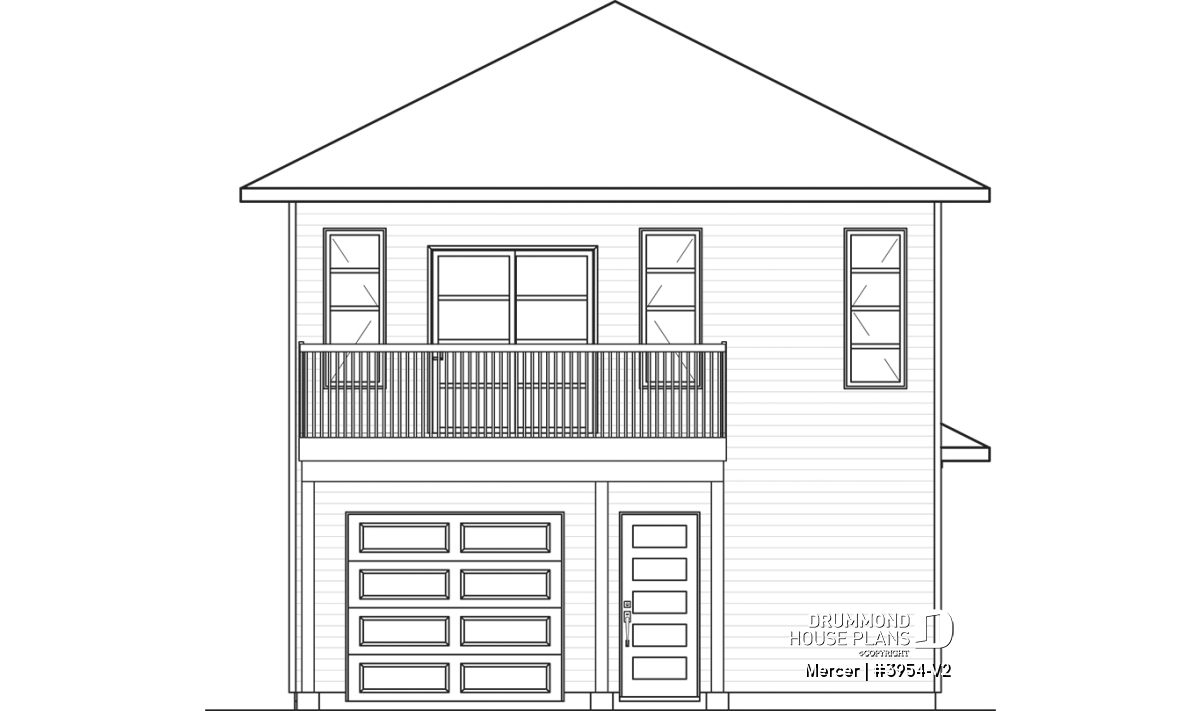

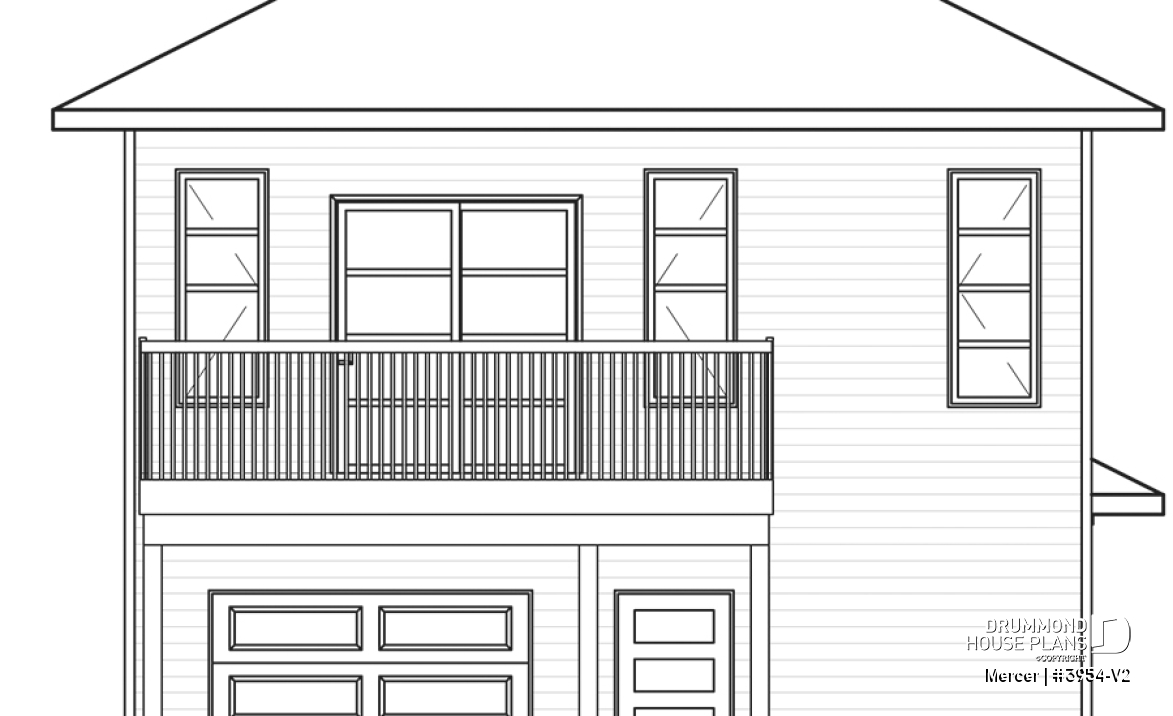

rear elevation
Mercer House plan 3954-V2
Contemporary style garage apartment house plan with open floor plan, large terrace and full apartment
Starting from
1450$
| Technical details summary | Plan #3954-V2 | ||
|---|---|---|---|
| Total living area | 1028 sq.ft. | Bedroom | 1 |
| Full baths | 1 | Half baths | 1 |
| Foundation included | Floating Slab | Garage | One-car garage |
| Width | 24'0" | Depth | 36'0" |
Additional details
General specifications
Total living area
1028 sq.ft.
1st level
164 sq.ft.
2nd level
864 sq.ft.
Width
24'0"
Depth
36'0"
Ridge height from top of foundation
25'11"
Exterior wall
2 X 6
Floating Slab
Other available foundations (a fee may apply)
Monolithic Slab
Builder price code
B
Rooms specifications
Bedroom(s)
1
Full baths
1
Half baths
1
Garage type
One-car garage (669 sq.ft.)
Covered porch area
-
1st level
Rooms
Sizes
Ceiling
Foyer
7'0" x 8'5"
~ 8'6"
Closet
3'1" x 2'2"
~ 8'6"
Storage
7'0" x 7'2"
~ 8'6"
Garage
15'0" x 22'9"
~ 8'10"
Workshop
22'8" x 11'7"
~ 8'10"
2nd level
Rooms
Sizes
Ceiling
Living room/dining room
22'8" x 12'0"
~ 8'6"
Kitchen/dinette
11'4" x 8'8"
~ 8'6"
Pantry
1'0" x 2'4"
N/A
Powder/laundry room
7'1" x 6'3"
~ 8'6"
Bathroom
7'4" x 8'10"
~ 8'6"
Shower
2'8" x 2'8"
N/A
Bedroom
15'0" x 11'0"
~ 8'6"
Closet
11'0" x 2'0"
~ 8'6"
Garage plan with apartement: urban look with contemporary appeal + workshop
To update plan 3954 giving it a contemporary feel, the designer has developed a version that would be quite at home on a narrow lot or even in urban surroundings.
The extensive use of stone combined with siding in natural wood tones enhance the understated elegance of this home which will blend beautifully in rural or mountainous surroundings.
Inside, the first floor offers a large garage complete with workshop and storage, an 8 ½’ high ceiling and a second garage door on the rear wall with access to the back yard.
The upper floor offers an open floor plan and a surprisingly large kitchen, with island/dining/living area bathed in natural light and 8½’ high ceilings. The patio door opens onto a 16’ x 12’ terrace to which an outside staircase and a roof could easily be added.
The large, 15’ x 11’ master bedroom has ample closet space and a private bathroom with a separate shower and toilette/laundry area, functional features that enhance the urban feeling of this home.
Distinctive elements
Garage with lodging house plan.
Main floor and second floor ceiling at 8'-6''.
Large garage with storage and workshop.
Second floor apartement with open floor plan concept.
Master bedroom with large closet.
Full bathroom and separate shower and laundry closet.
Access to a large terrace through dining area.
Plan feature(s)
Mud room, Balcony 2nd floor, Ceiling over 8', Island, Open floor layout
Plan architectural style(s)
Contemporary, American, Vacation and waterfront, Cottage, chalet, cabin, Modern / Design, Modern rustic, Rustic, Cabin plans, Craftsman / Northwest, Mountain, Transitional
The plan Mercer is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
