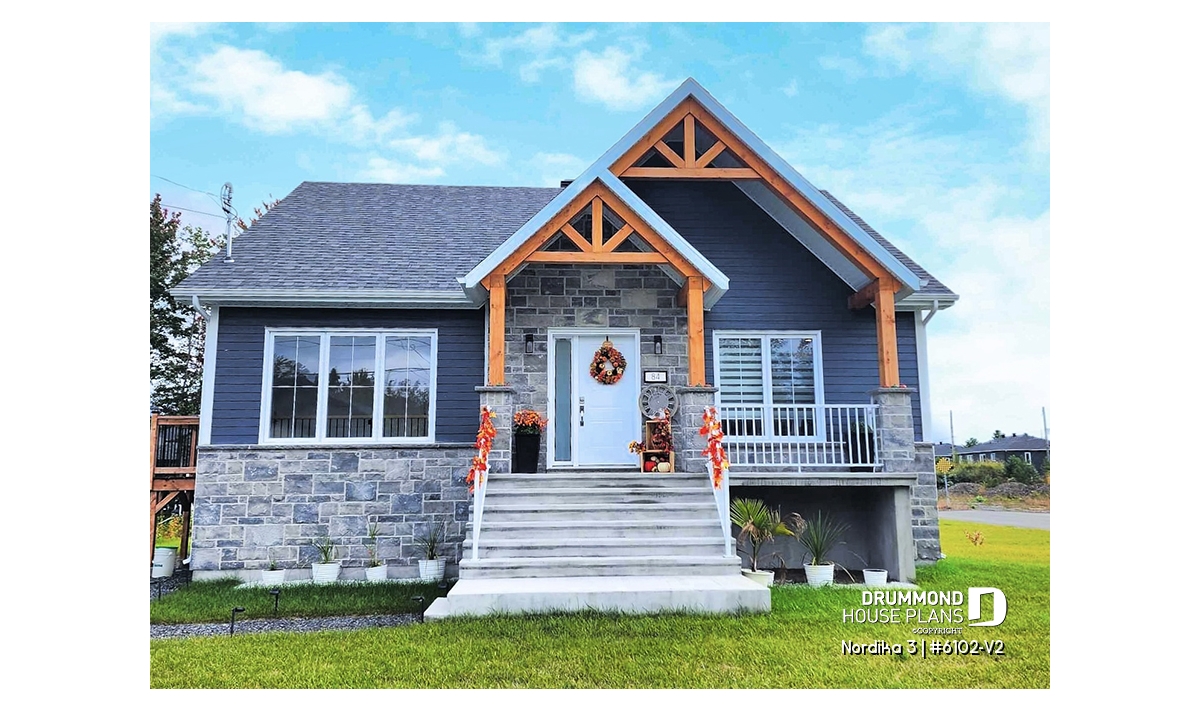

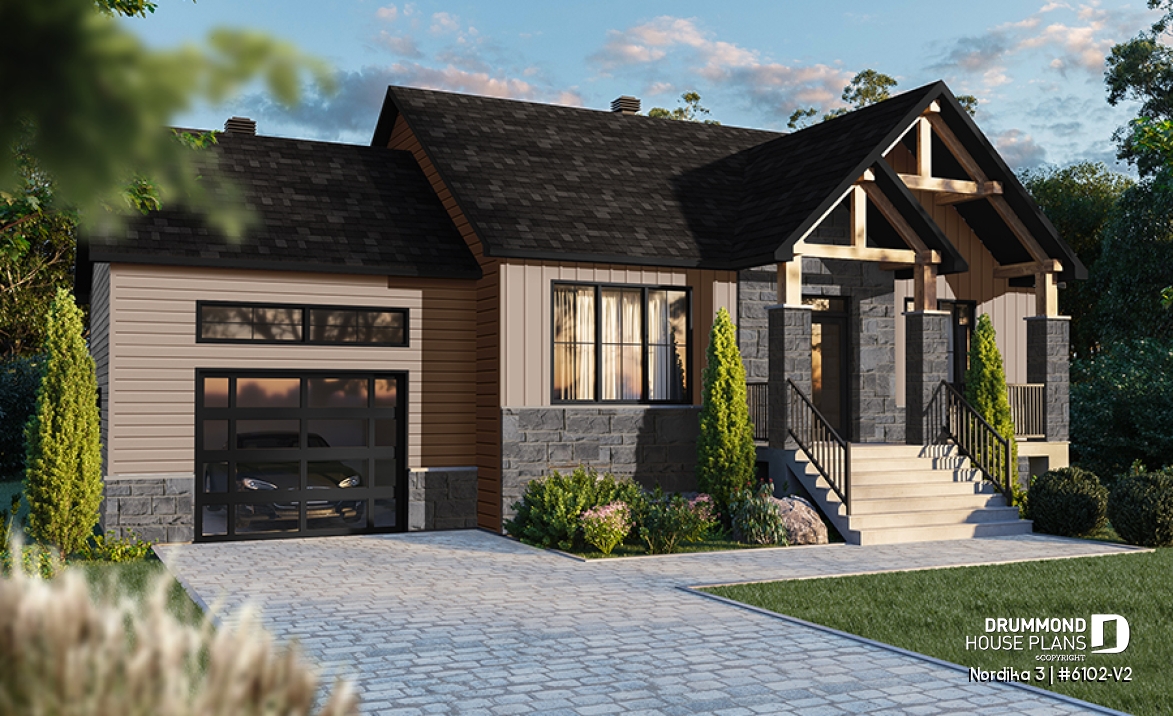

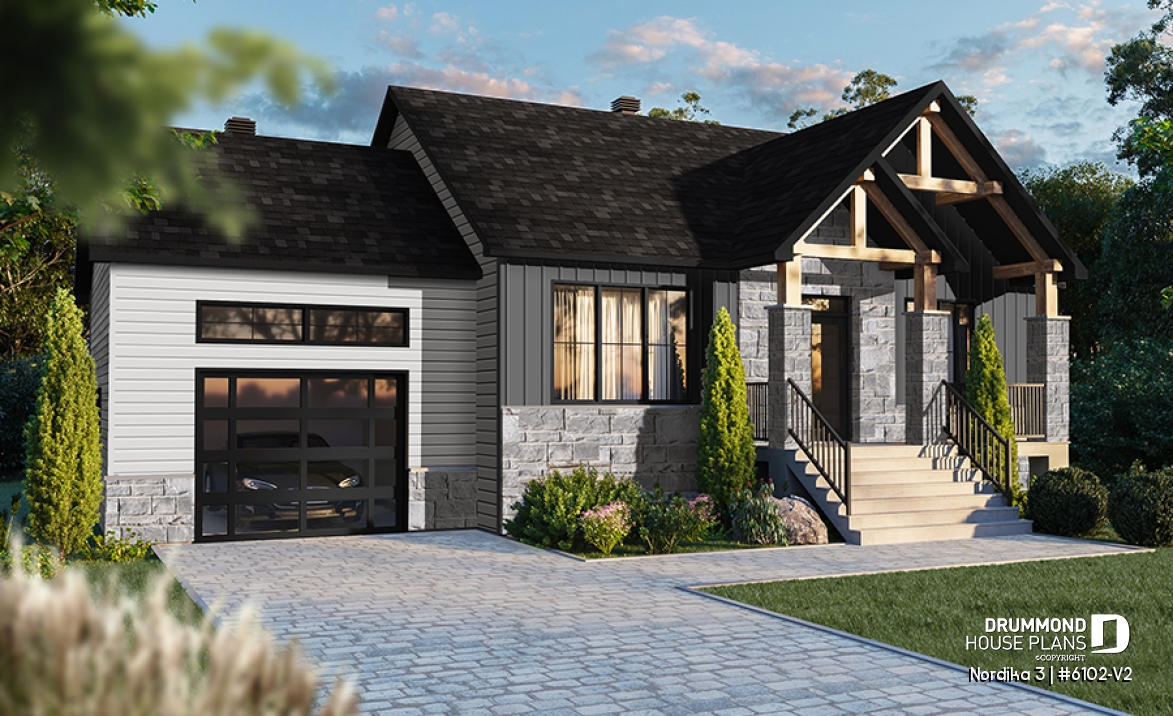

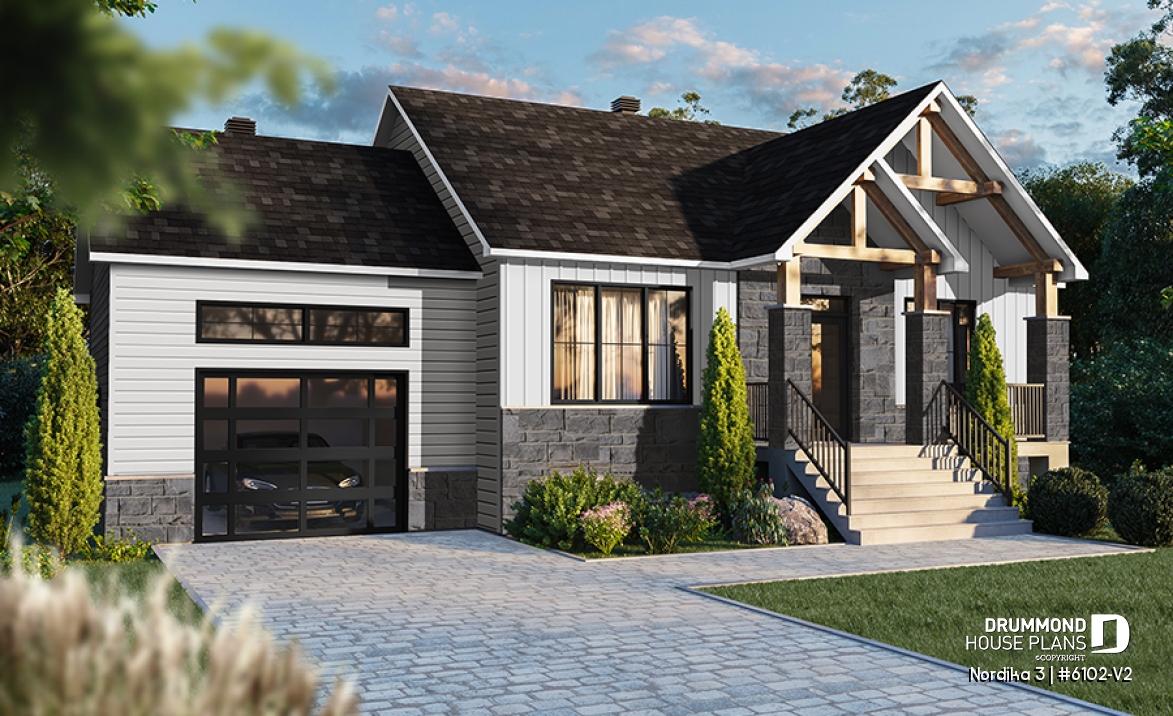

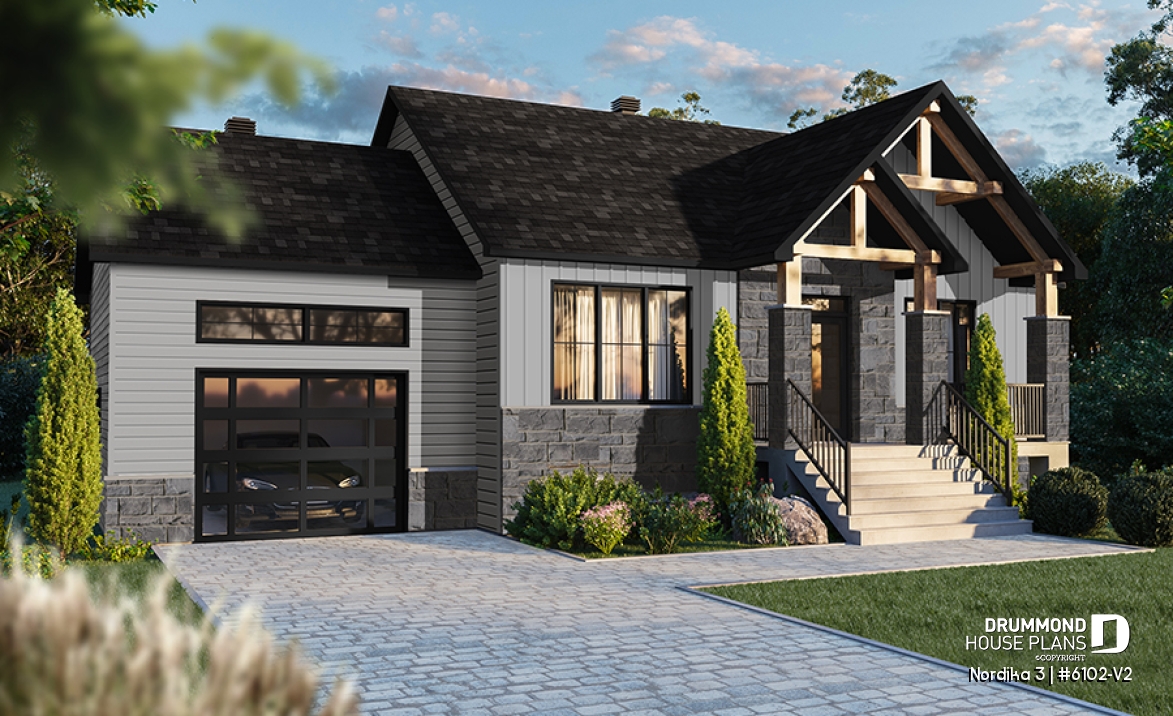

Nordika 3 (6102-V2)
2 bedroom ranch style house plan with garage, pantry, kitchen island and open floor plan concept
View the size of the rooms and height of the ceilings

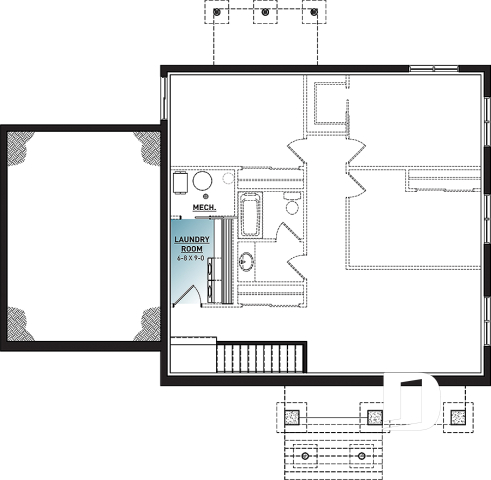

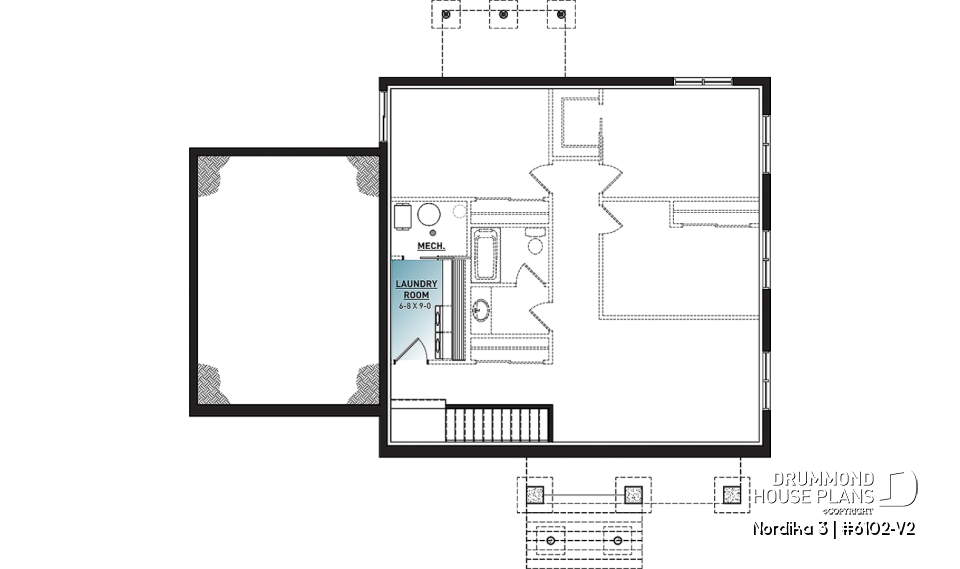

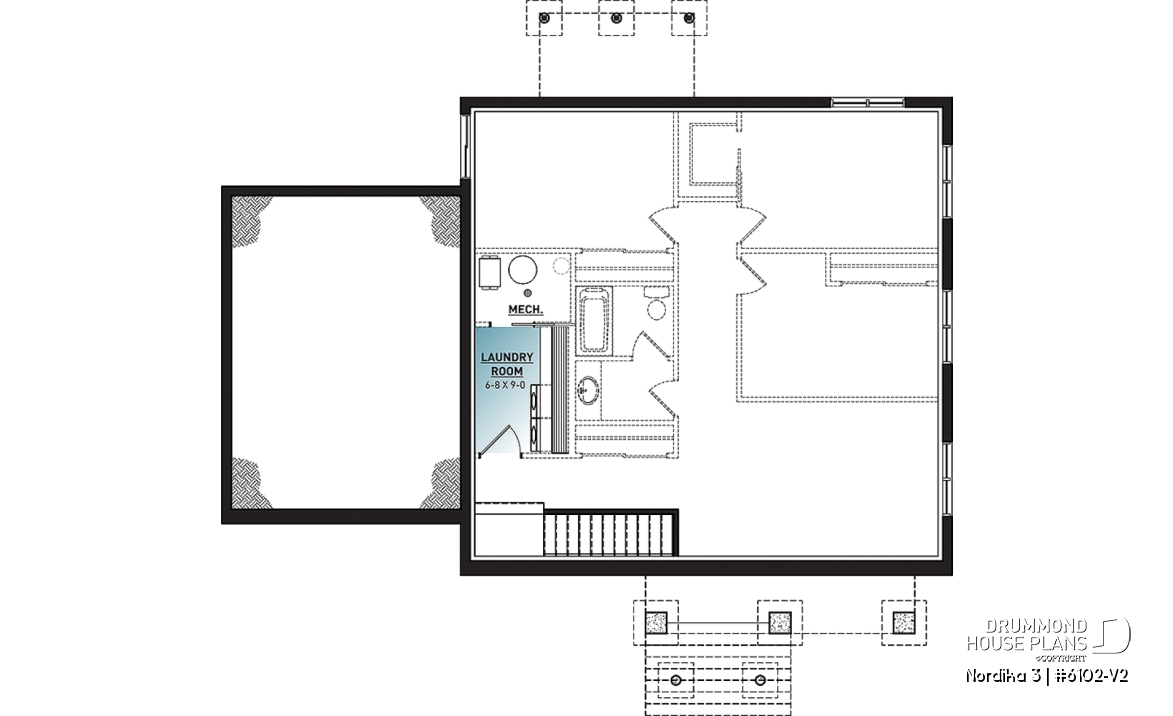

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 6'8" x 9'0" | ~ 8'0" |
| Mechanical room | 6'8" x 4'8" | ~ 8'0" |

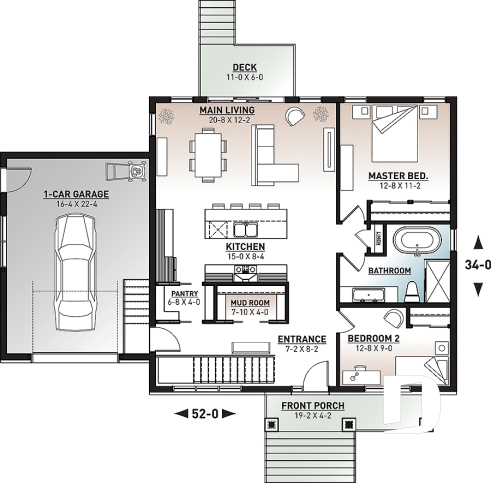

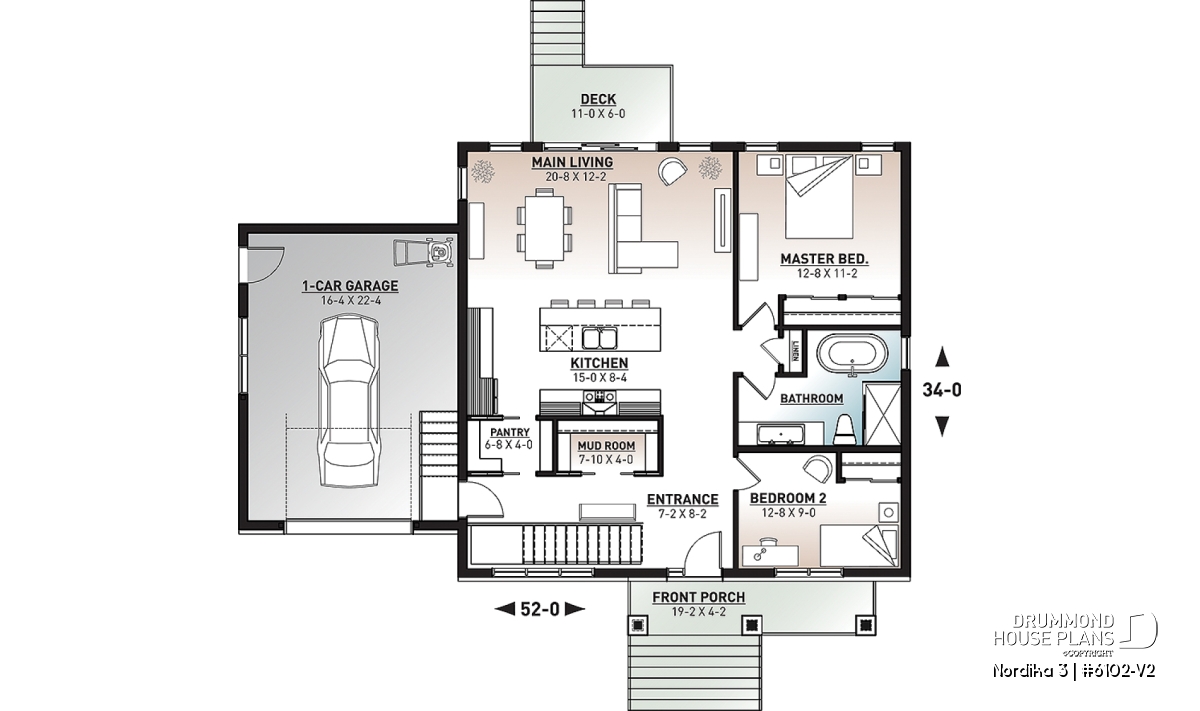

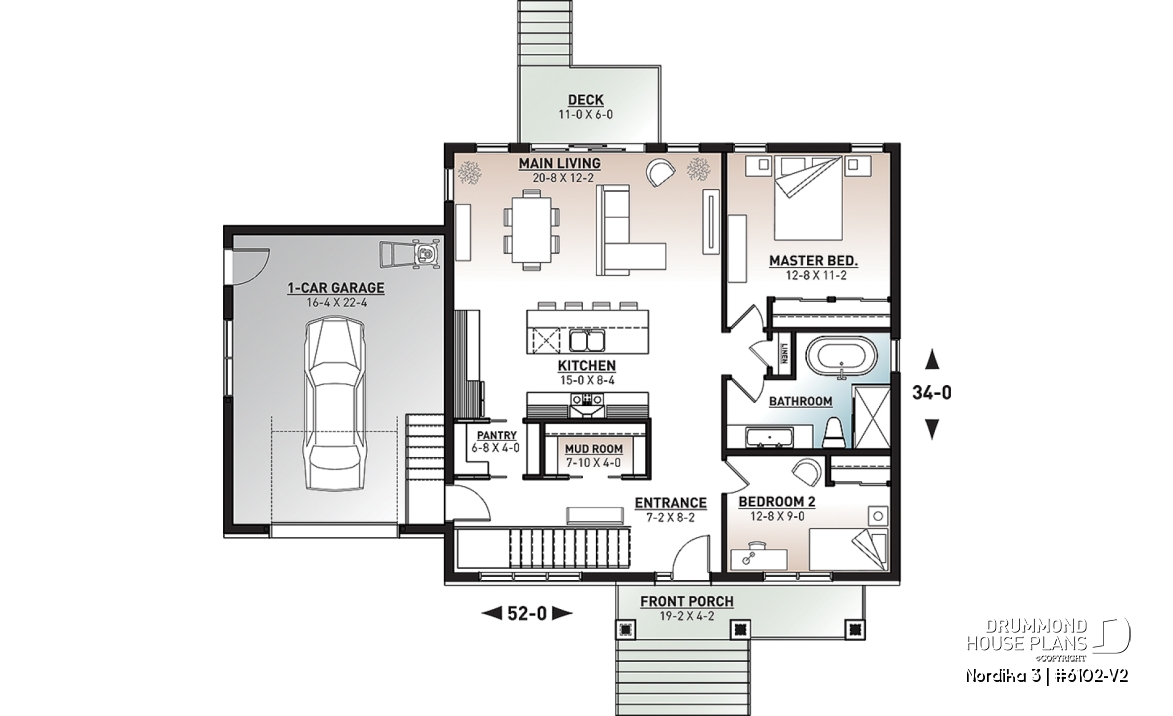

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'8" x 11'2" | ~ 9'0" |
| Closet | 9'2" x 2'0" | ~ 9'0" |
| Bedroom | 12'8" x 9'0" | ~ 9'0" |
| Shower | 4'8" x 2'0" | ~ 9'0" |
| Balcony | 6'0" x 11'0" | N/A |
| Kitchen | 16'0" x 8'4" | ~ 9'0" |
| Foyer | 7'2" x 4'2" | ~ 9'0" |
| Porch | 19'2" x 4'2" | N/A |
| Linen | 0'18" x 0'40" | ~ 9'0" |
| Pantry | 6'8" x 4'0" | ~ 9'0" |
| Garage | 16'4" x 22'4" | ~ 12'2" |
| Activity room | 20'8" x 12'2" | ~ 9'0" |
| Full bathroom | 12'8" x 9'0" | ~ 9'0" |
| Shower | 5'0" x 3'0" | N/A |
| Mud room | 7'10" x 4'0" | ~ 9'0" |
General specifications
| Total living area | 1178 sq.ft. |
| Basement | 1178 sq.ft. |
| 1st level | 1178 sq.ft. |
| Width | 52'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 25'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Crawl space |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Country ranch style house plan with garage and 2 bedrooms on main floor
.
Distinctive elements

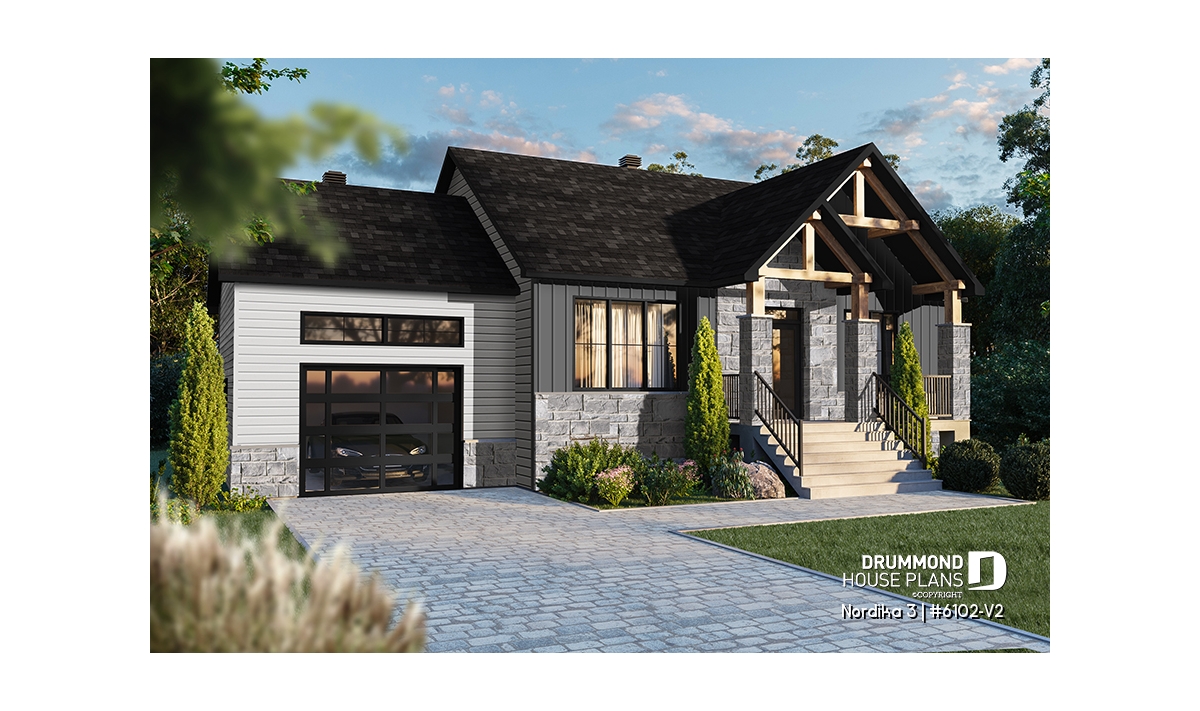

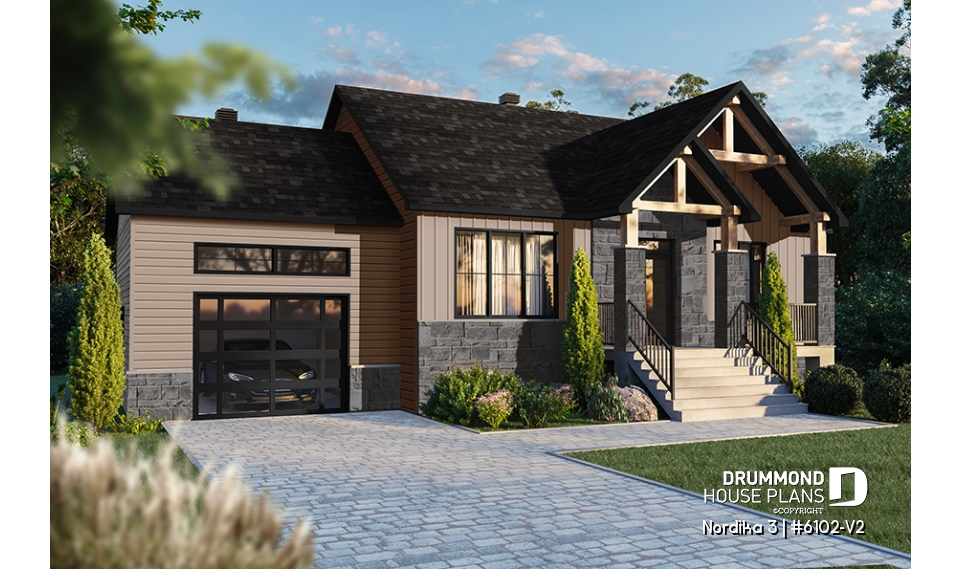

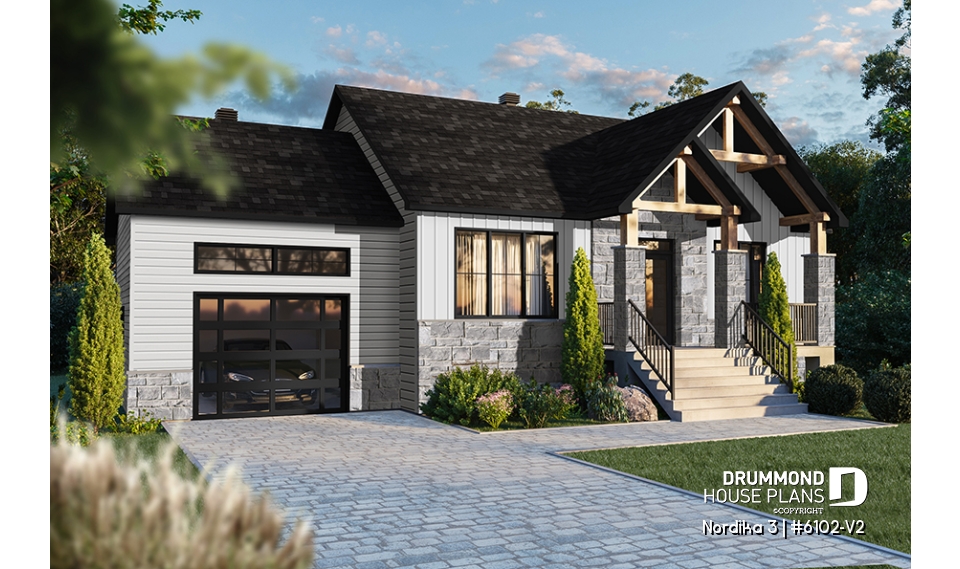

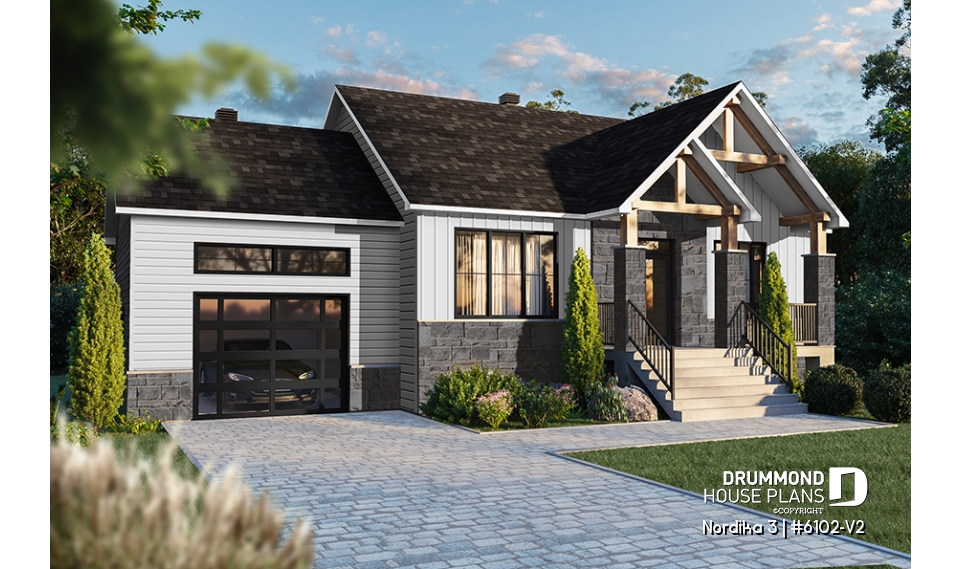

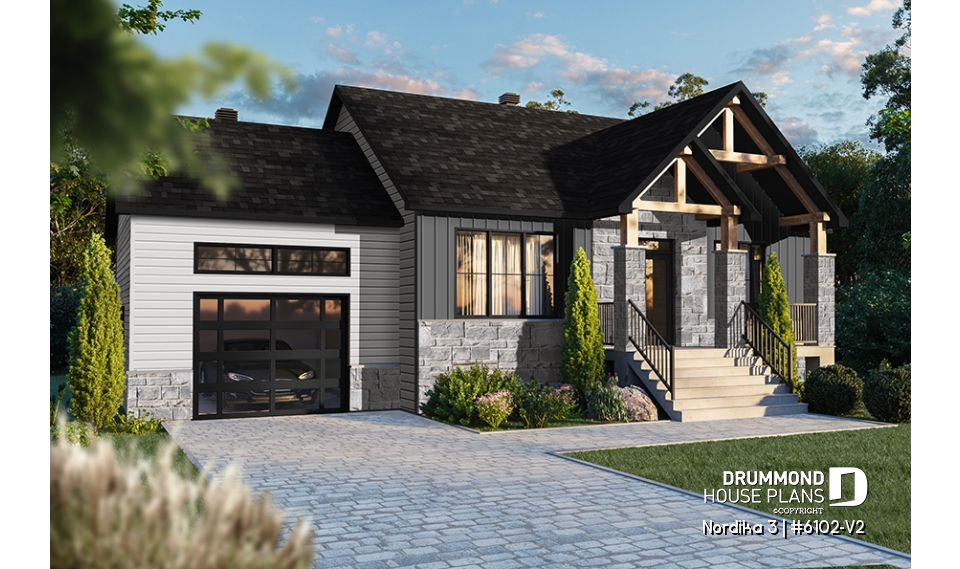

Country ranch style house plan.
2 bedrooms on main floor.
9' ceiling throughout main floor.
Mud room.
Pantry in kitchen, with 2 accesses.

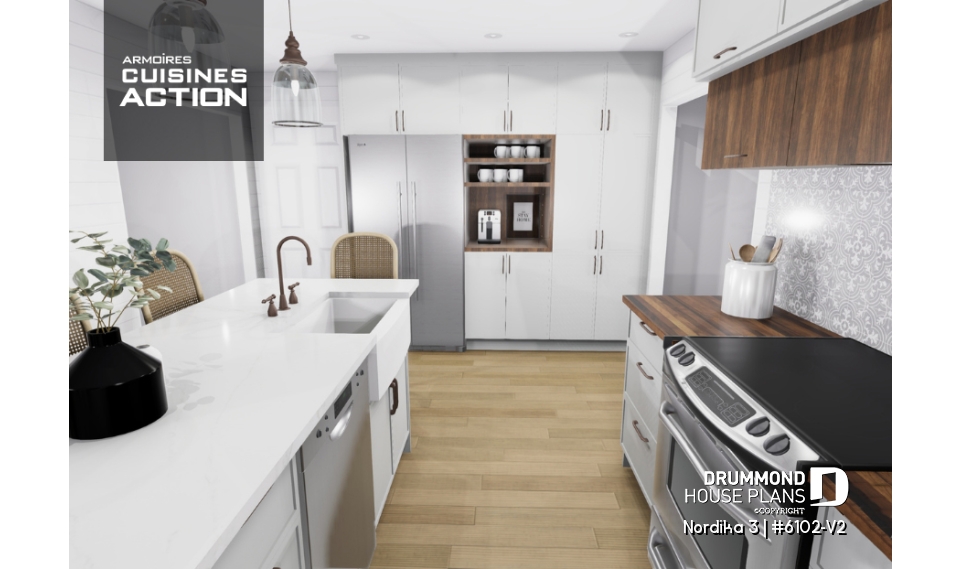

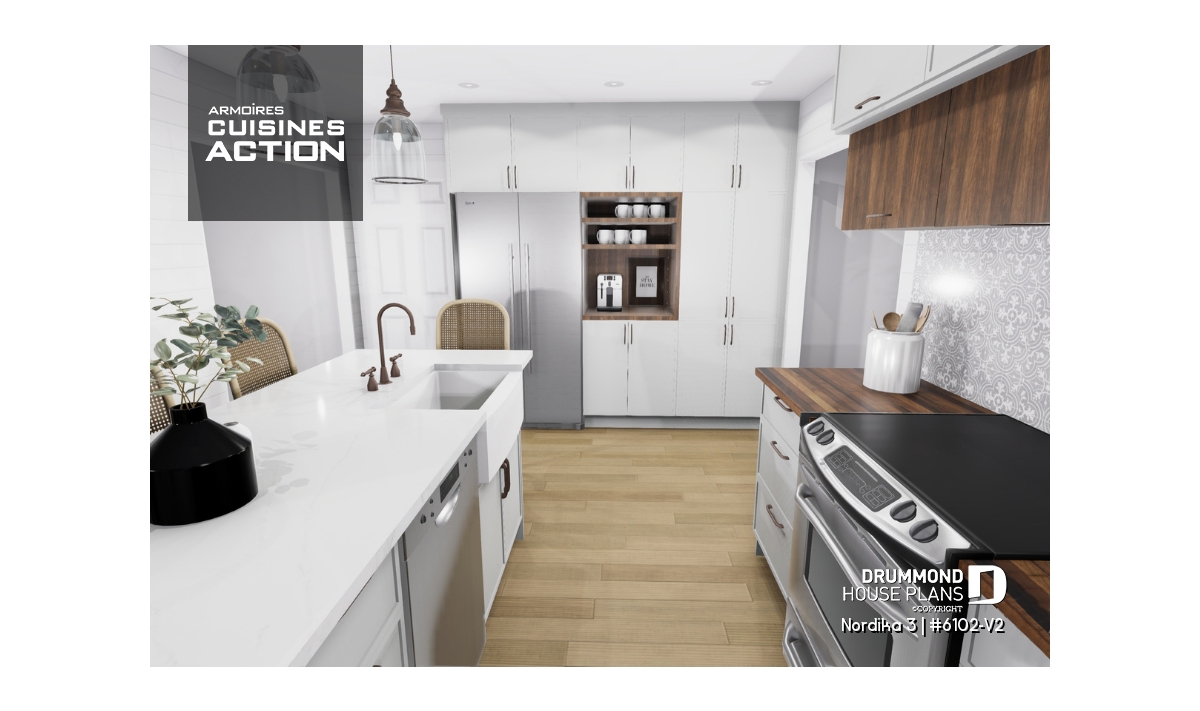

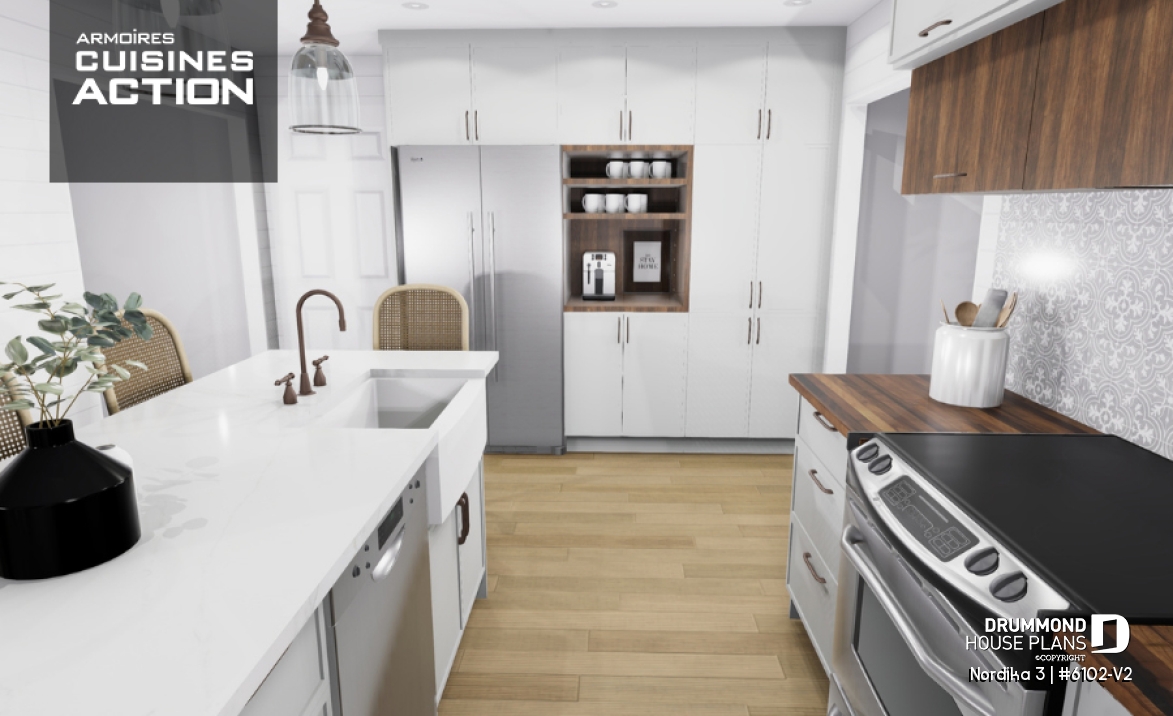

Open kitchen, dining and living room concept.
Unfinished daylight basement.
Plan feature(s)
Open floor layout, Split bedrooms, Panoramic view, Island, Pantry, Mud room, Ceiling over 8'
Plan architectural style(s)
. Craftsman / Northwest, . Mountain, . Farmhouse, . Rustic, . Country, . Modern rustic, . Transitional, . Ranch
