Chai 3 (6104-V2)
Budget friendly small craftsman home design, 4 bedroom, covered porch, daylight basement
View the size of the rooms and height of the ceilings
| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bathroom/laundry room | 10'10" x 7'10" | ~ 8'0" |
| Shower | 3'0" x 3'0" | N/A |
| Bedroom | 10'10" x 10'6" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Bedroom | 10'10" x 9'7" | ~ 8'0" |
| Closet | 4'6" x 2'0" | ~ 8'0" |
| Great room or Family room | 20'10" x 25'6" | ~ 8'0" |
| Mechanical room | 9'8" x 7'0" | ~ 8'0" |

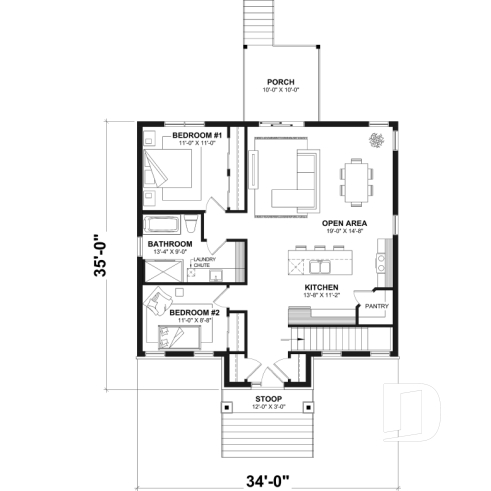

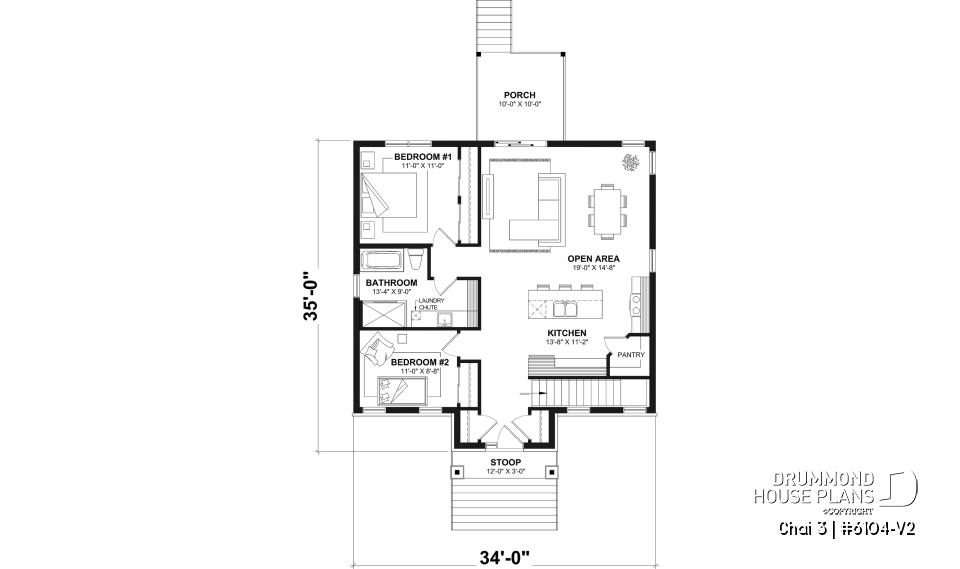

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'2" x 11'0" | ~ 9'0" |
| Closet | 11'0" x 2'0" | ~ 9'0" |
| Kitchen | 13'9" x 11'2" | ~ 9'0" |
| Pantry | 4'6" x 4'6" | ~ 9'0" |
| Bedroom | 11'0" x 9'0" | ~ 9'0" |
| Shower | 5'0" x 2'0" | ~ 9'0" |
| Closet | 5'0" x 2'0" | ~ 9'0" |
| Foyer | 5'3" x 7'7" | ~ 9'0" |
| Closet | 4'0" x 2'0" | ~ 9'0" |
| Closet | 4'0" x 2'0" | ~ 9'0" |
| Bathroom | 13'5" x 9'0" | ~ 9'0" |
| Shower | 5'0" x 3'0" | ~ 9'0" |
| Linen | 5'4" x 1'2" | ~ 9'0" |
| Living room/dining room | 19'0" x 14'0" | ~ 9'0" |
| Covered deck | 10'0" x 10'0" | ~ 9'0" |
| Porch | 12'0" x 3'0" | ~ 9'0" |
General specifications
| Total living area | 2204 sq.ft. |
| Basement | 1102 sq.ft. |
| 1st level | 1102 sq.ft. |
| Width | 35'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 19'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Activity sector
This color version might have decorative elements that are not available on base plan.
Construction Granthamhttps://www.constructionsgrantham.ca/
front
This color version might have decorative elements that are not available on base plan.
front
This color version might have decorative elements that are not available on base plan.
Construction Granthamhttps://www.constructionsgrantham.ca/

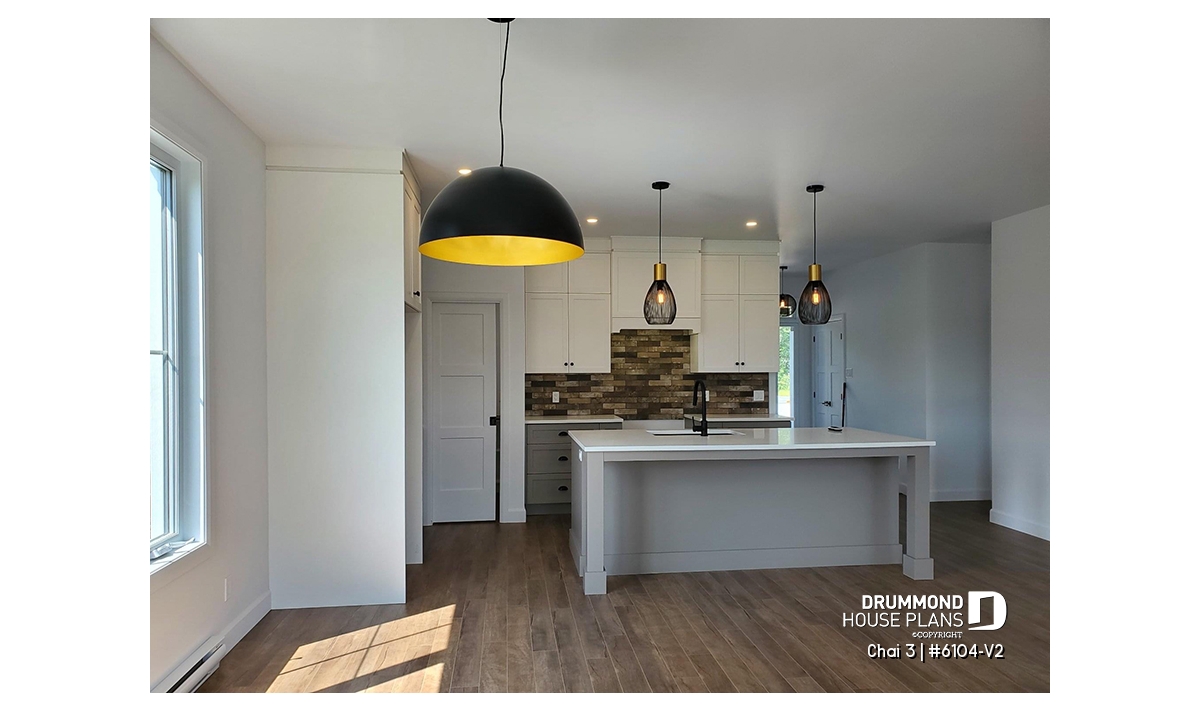

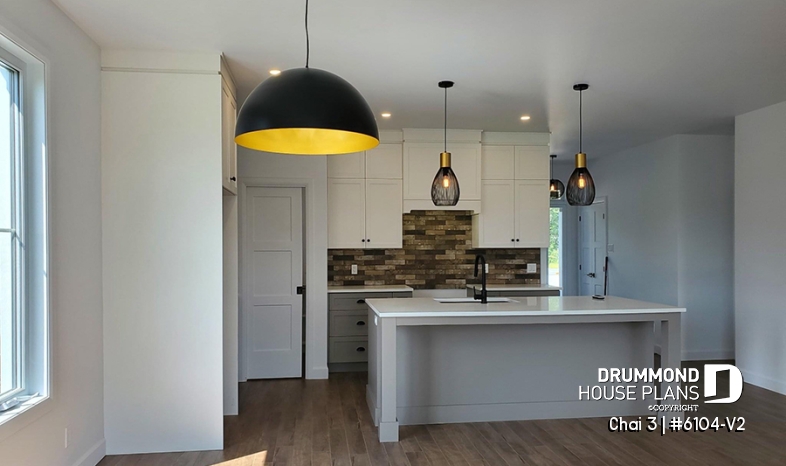

Kitchen
This color version might have decorative elements that are not available on base plan.
Construction Granthamhttps://www.constructionsgrantham.ca/

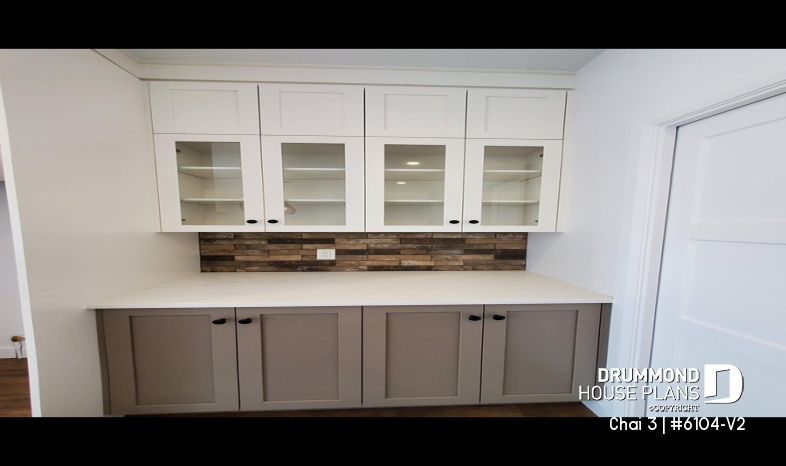

Kitchen
This color version might have decorative elements that are not available on base plan.
Construction Granthamhttps://www.constructionsgrantham.ca/

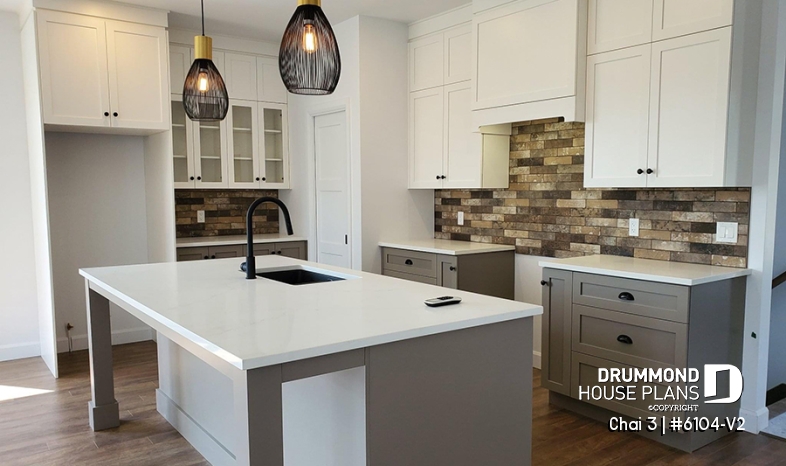

Kitchen
