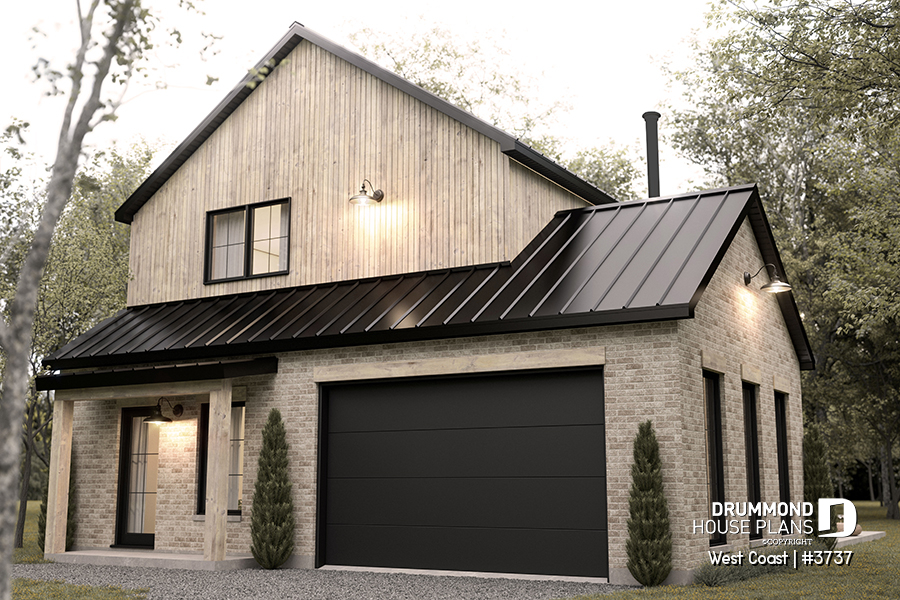

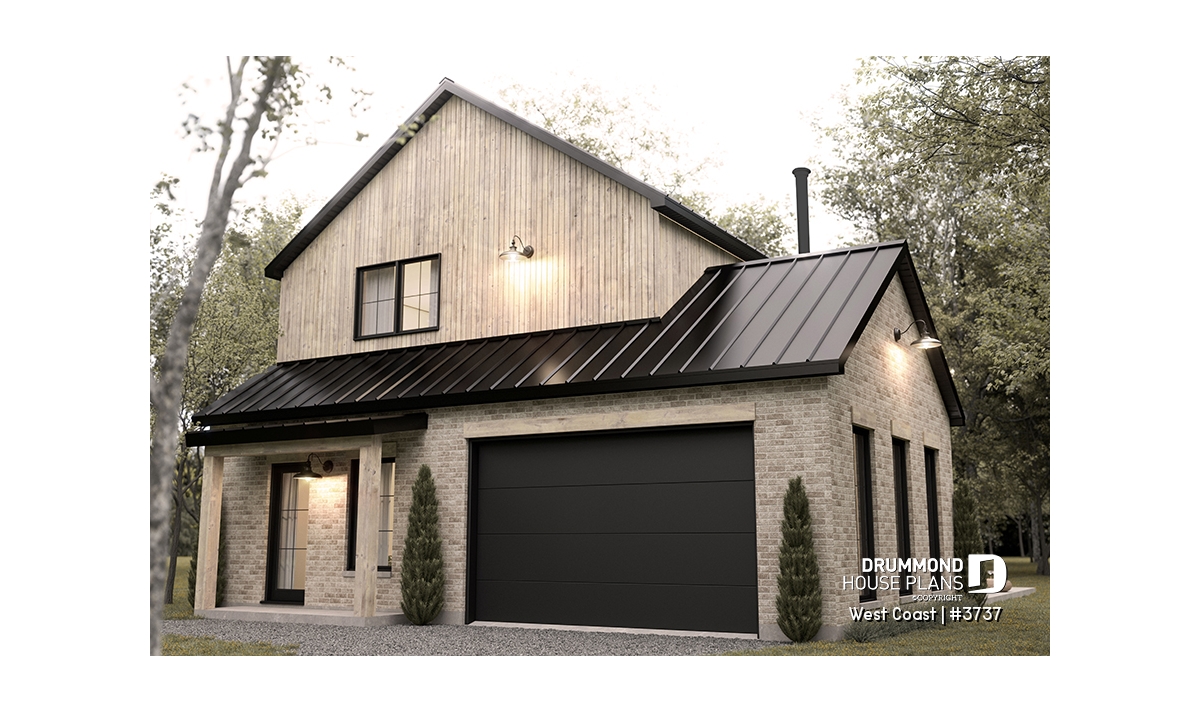

House plan West Coast (3737)

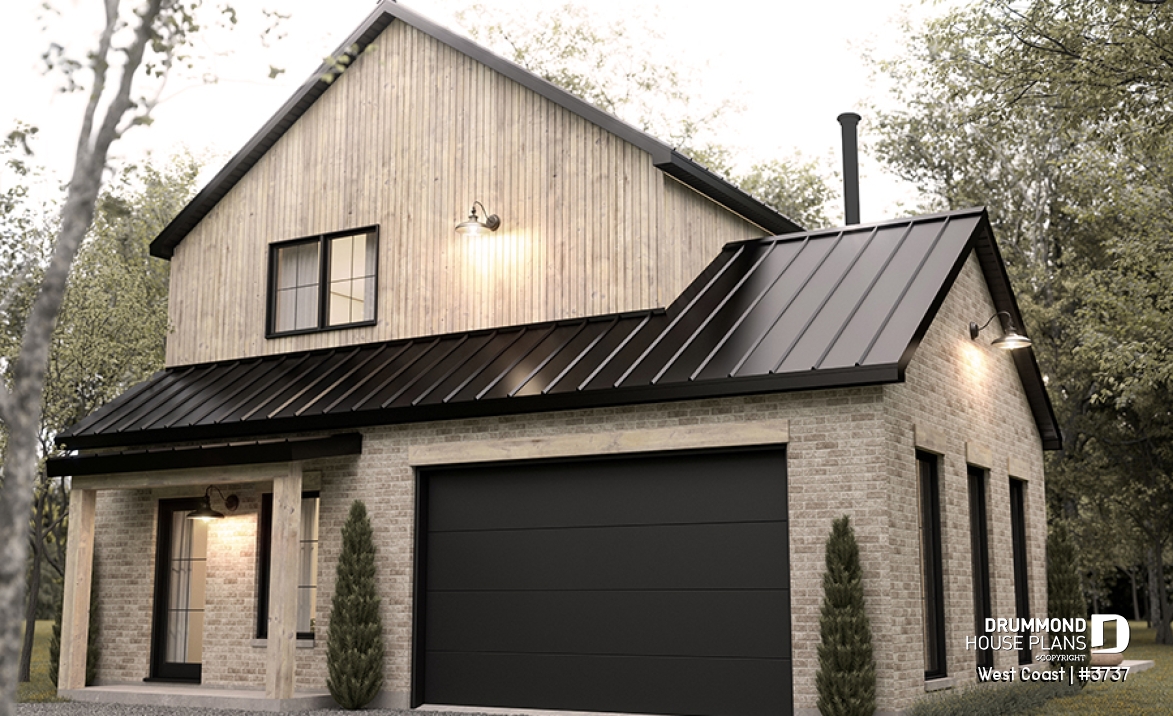

Perfect home for side view land offering 3 bedrooms, open floor plan and garage!
View the size of the rooms and height of the ceilings

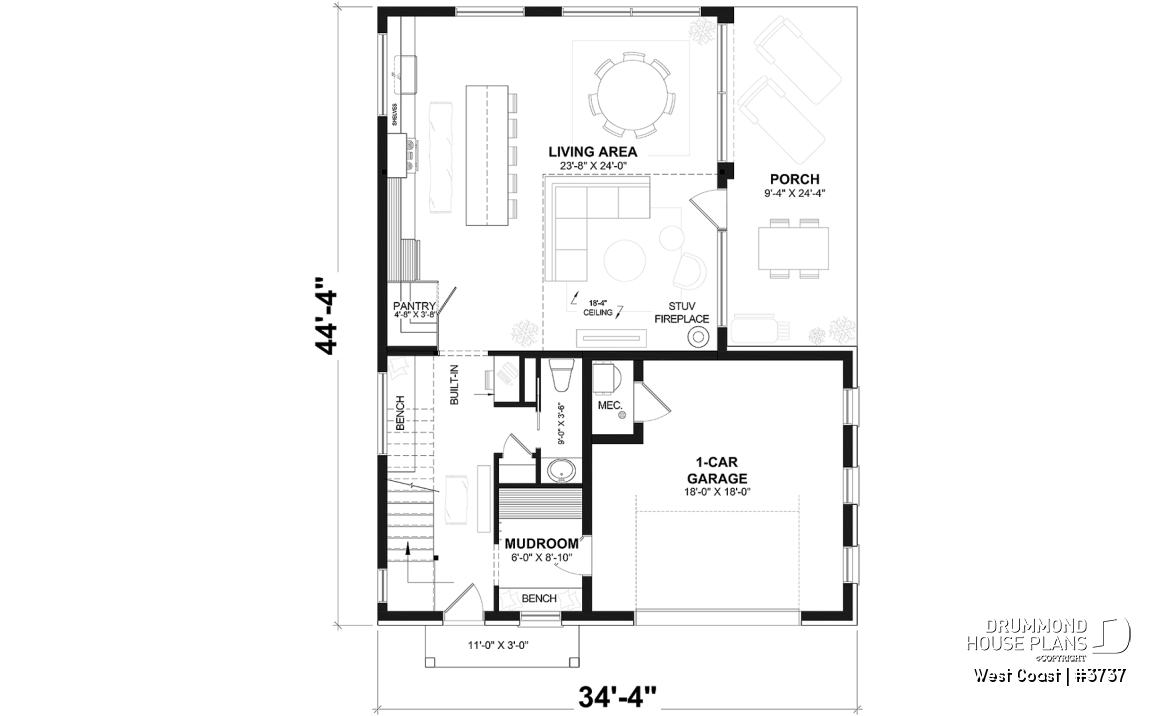

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 24'0" x 8'8" | ~ 9'0" |
| Kitchen island | 10'0" x 3'0" | N/A |
| Garage | 18'0" x 18'0" | ~ 9'6" |
| Foyer | 4'3" x 11'4" | ~ 9'0" |
| Mud room | 8'10" x 6'0" | ~ 9'0" |
| Bathroom | 9'0" x 3'0" | ~ 9'0" |
| Pantry | 4'8" x 3'8" | ~ 9'0" |
| Living room | 12'8" x 15'0" | ~ 18'4" |
| Dining room | 11'4" x 15'0" | ~ 9'0" |
| Covered porch | 3'0" x 11'0" | ~ 8'0" |
| Terrace | 24'4" x 9'4" | N/A |
| Carport | 5'4" x 3'0" | ~ 9'6" |

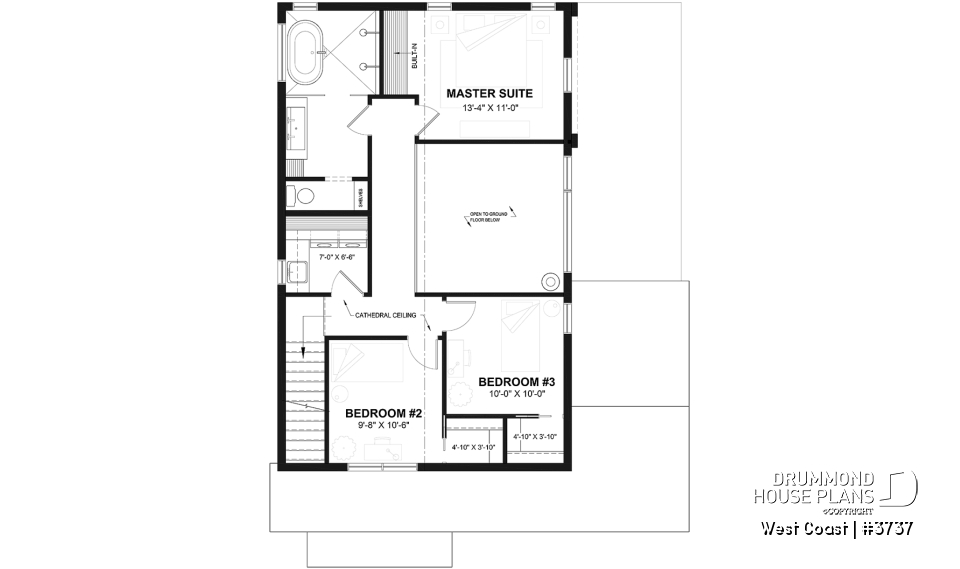

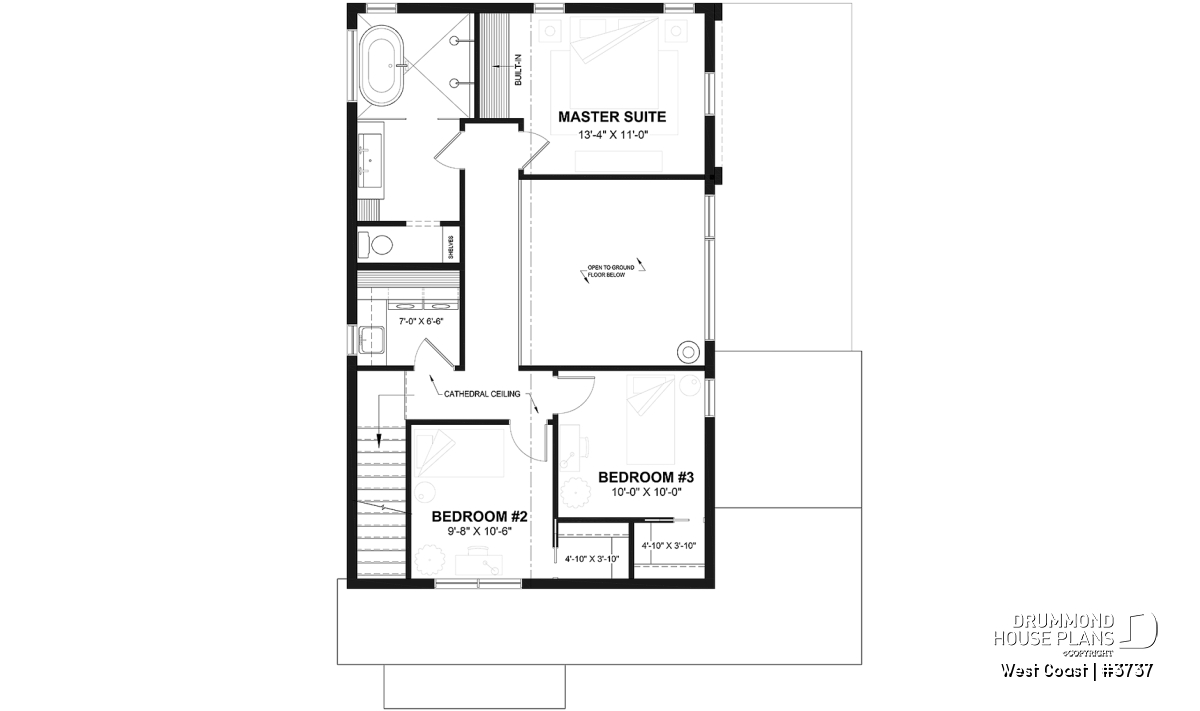

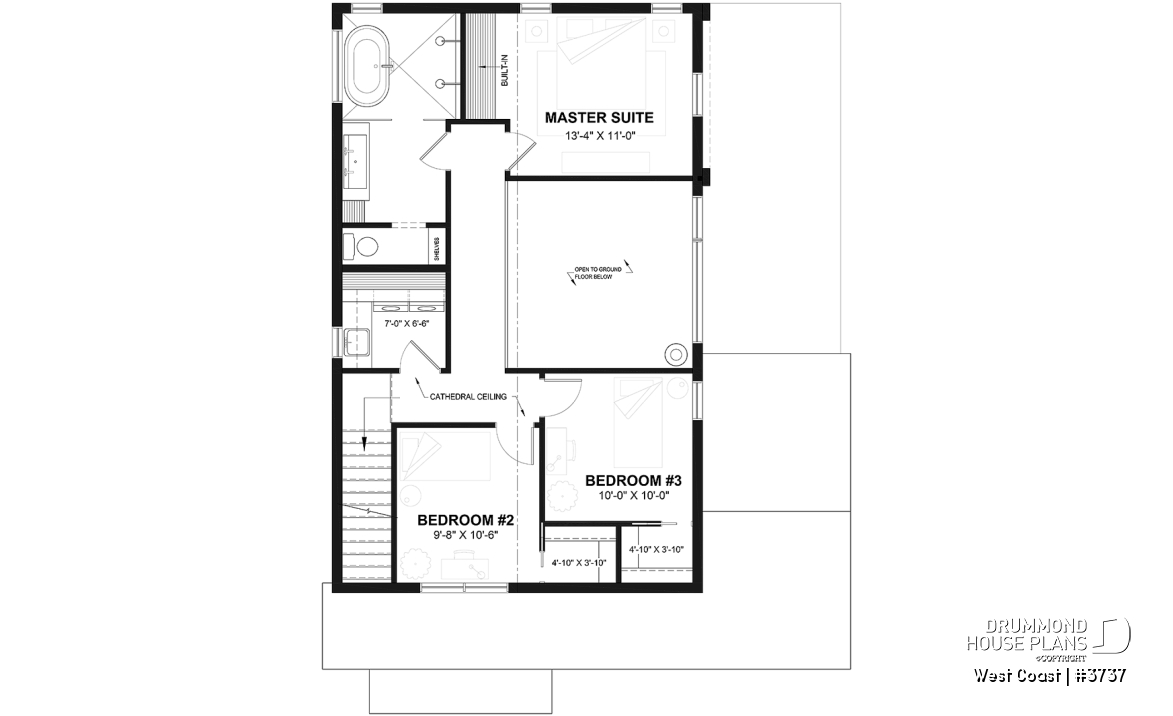

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'4" x 11'0" | ~ 9'0" |
| Storage room | 6'7" x 2'3" | ~ 12'0" |
| Bedroom | 10'6" x 9'8" | ~ 12'0" |
| Walk-in closet | 3'10" x 4'10" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Walk-in closet | 3'10" x 4'10" | ~ 9'0" |
| Full bathroom | 17'0" x 7'0" | ~ 12'0" |
| Enclosed toilet space | 2'6" x 7'0" | ~ 9'0" |
| Shower | 6'8" x 8'6" | ~ 10'0" |
| Laundry room | 7'0" x 6'8" | ~ 9'0" |
General specifications
| Total living area | 1764 sq.ft. |
| 1st level | 930 sq.ft. |
| 2nd level | 834 sq.ft. |
| Width | 34'4" |
| Depth | 44'4" |
| Ridge height from top of foundation | 27'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Unfinished Basement, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications

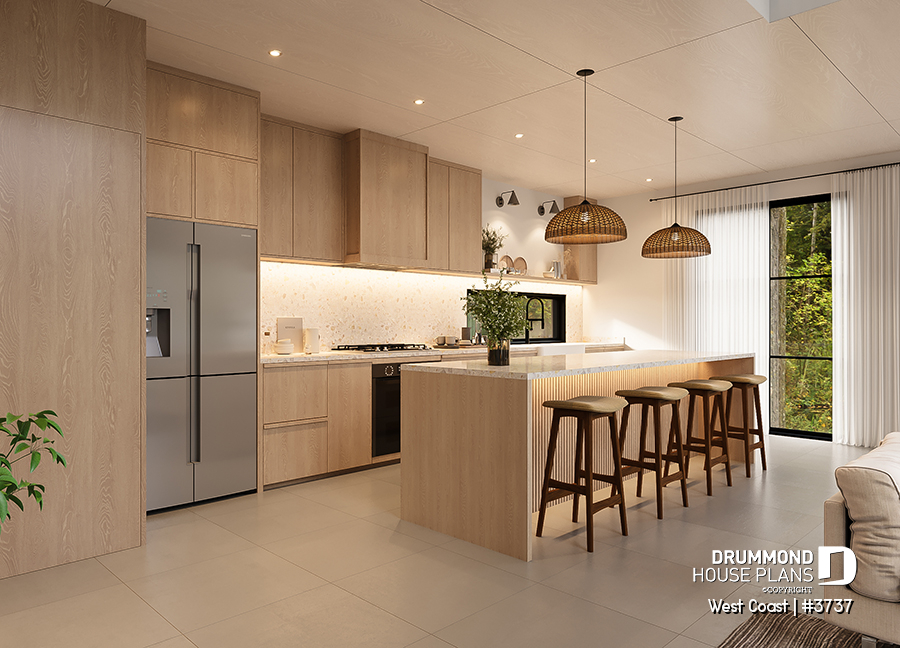

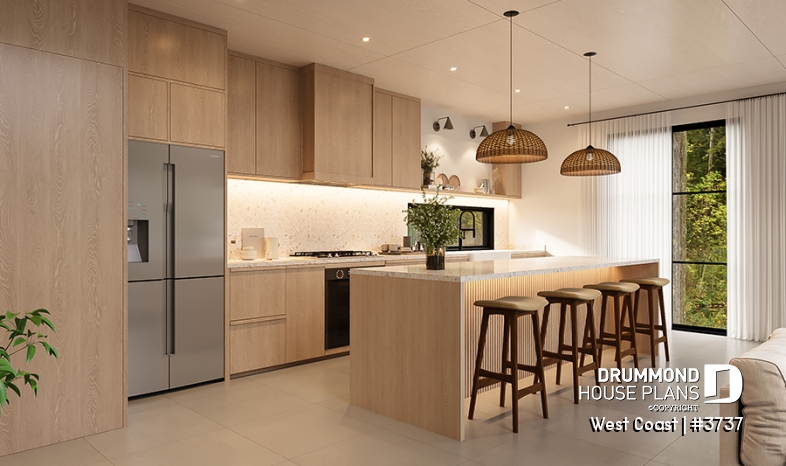

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

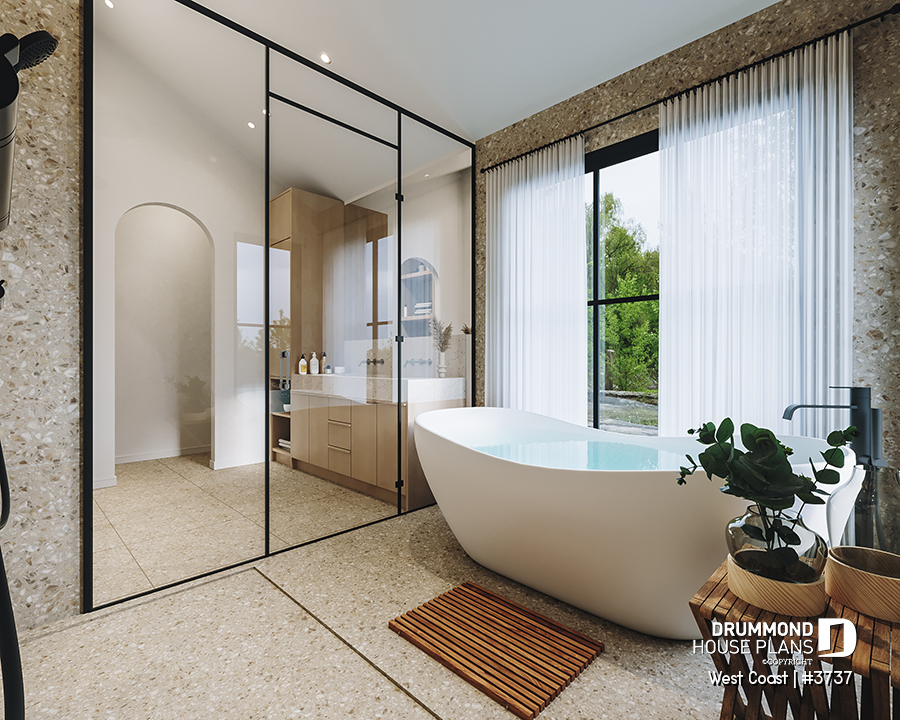

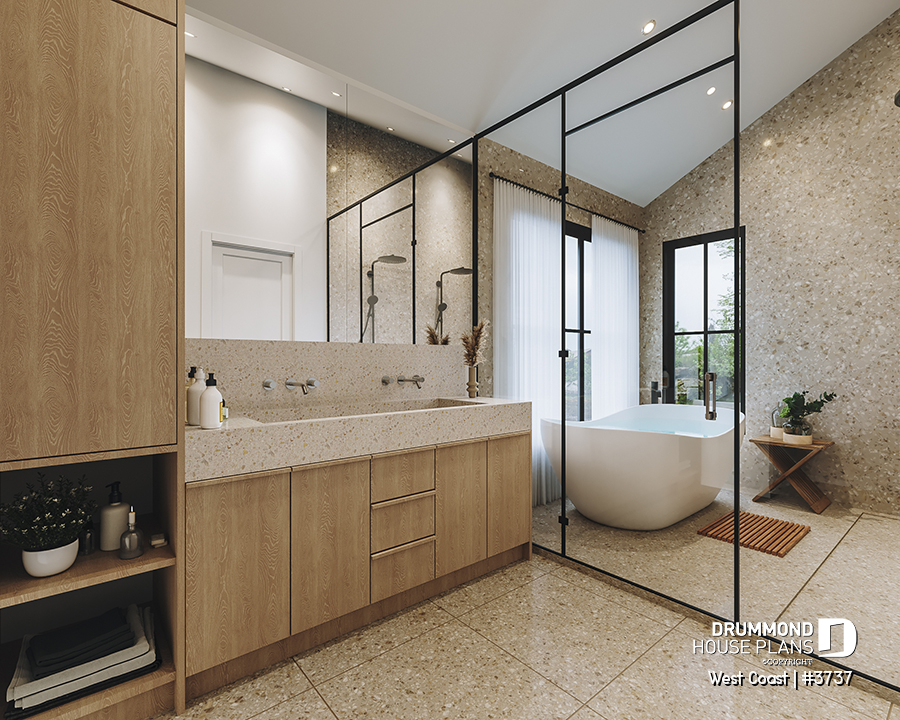

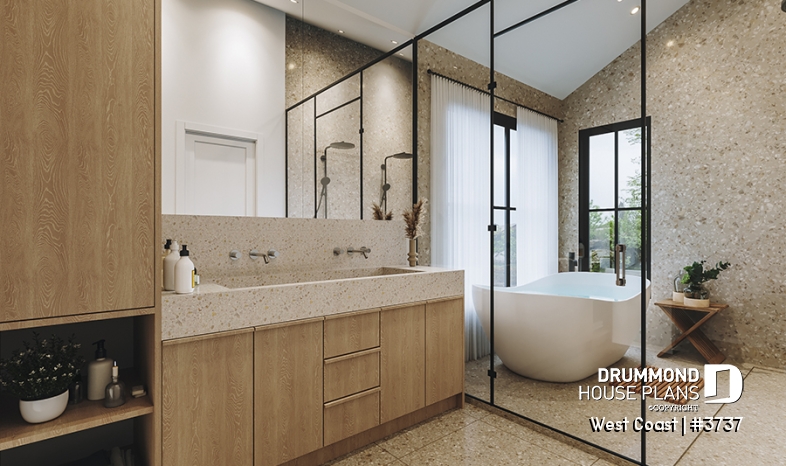

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

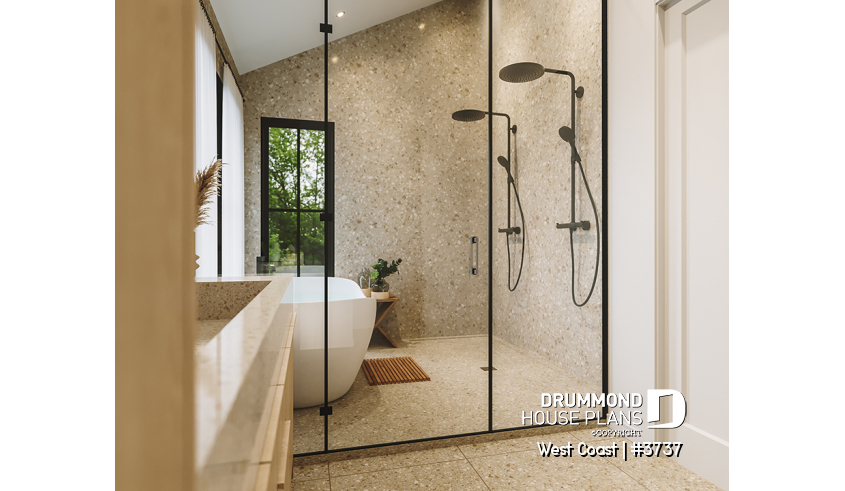

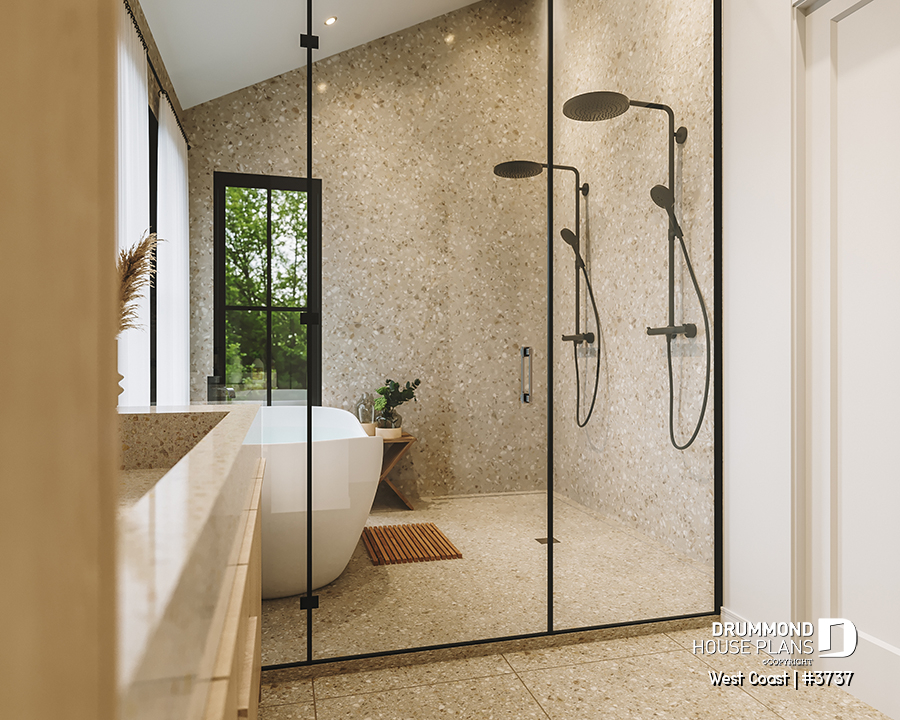

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

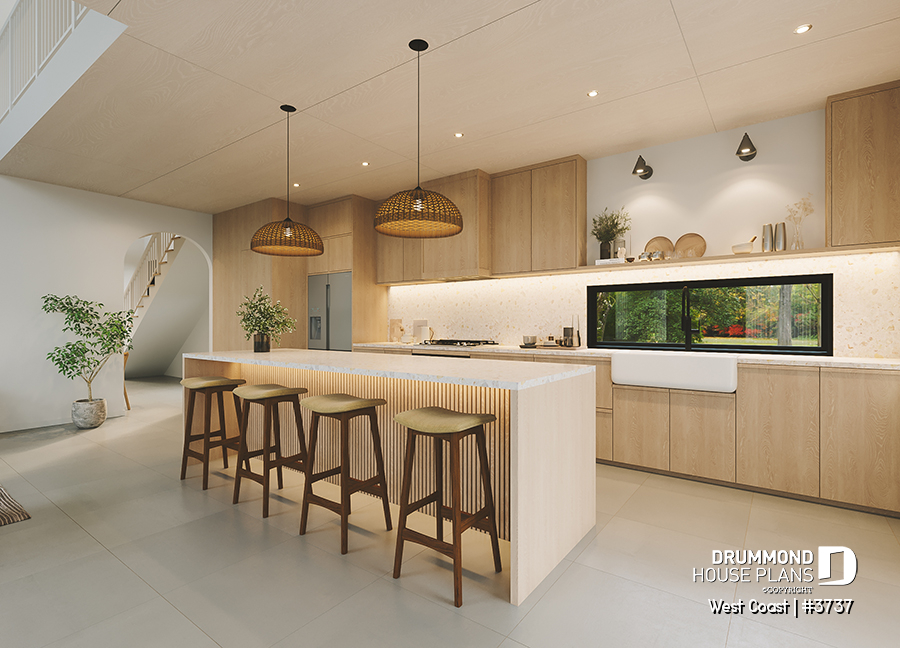

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

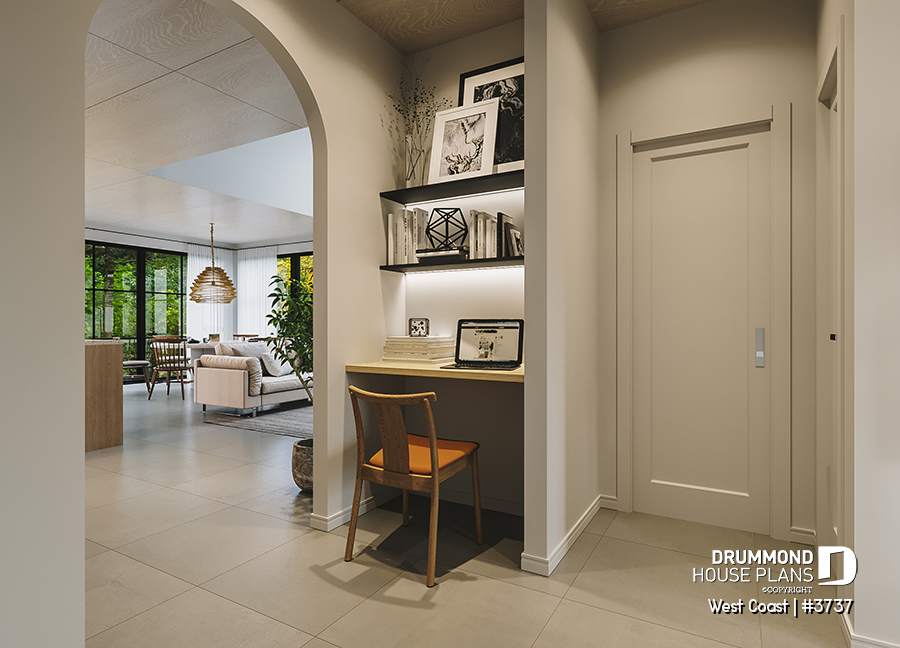

Home office
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

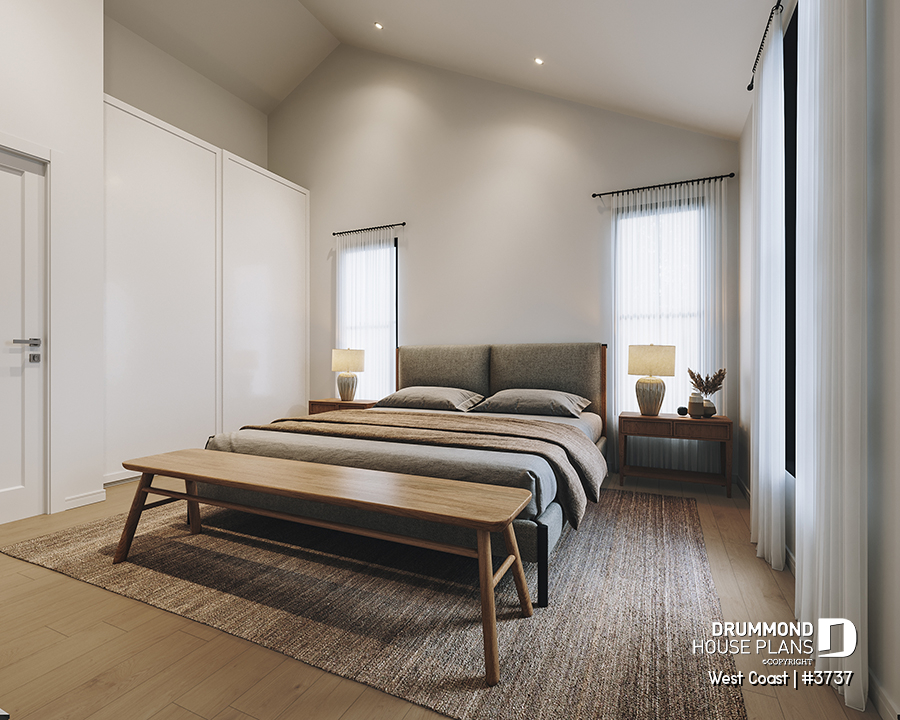

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

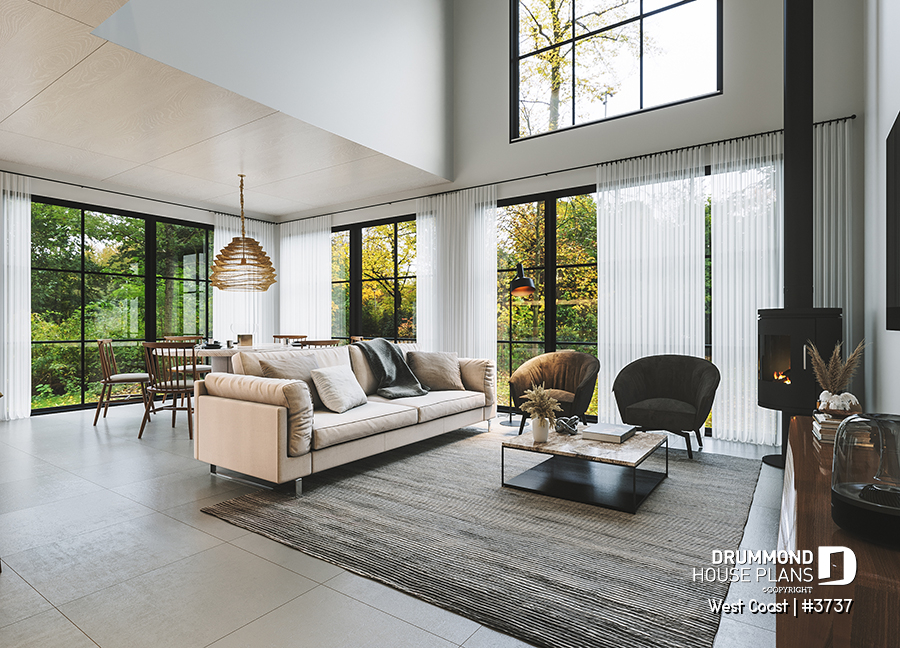

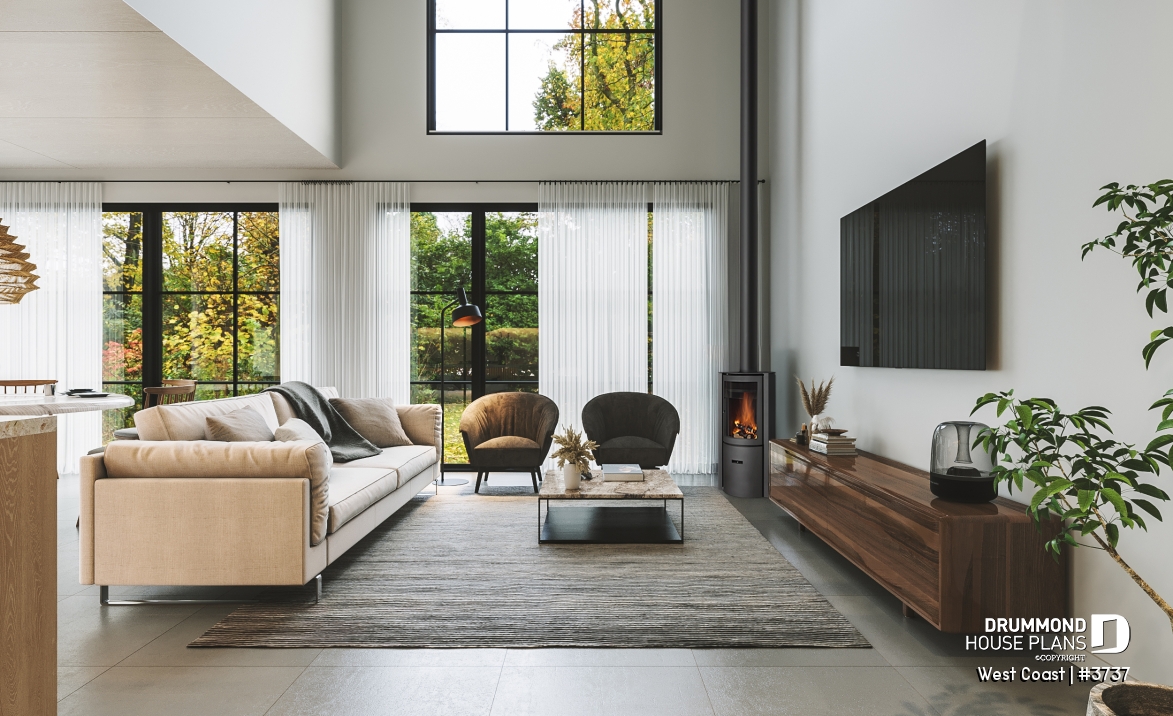

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

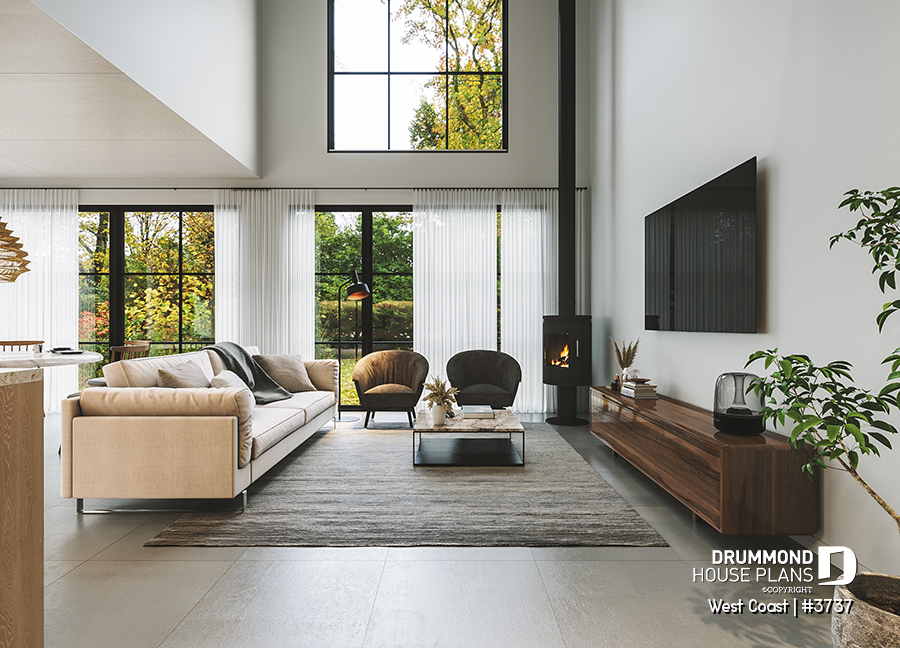

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

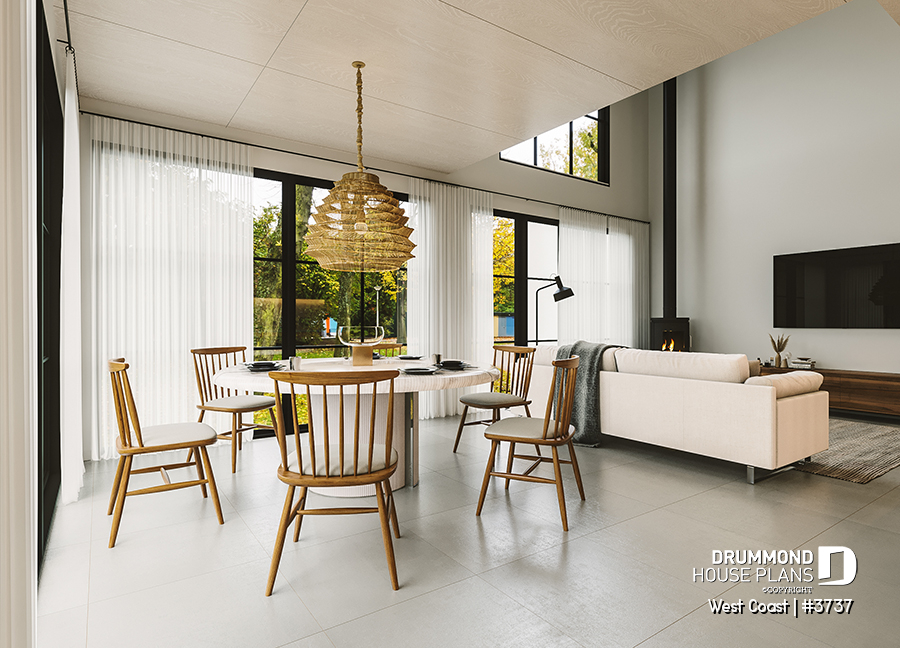

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

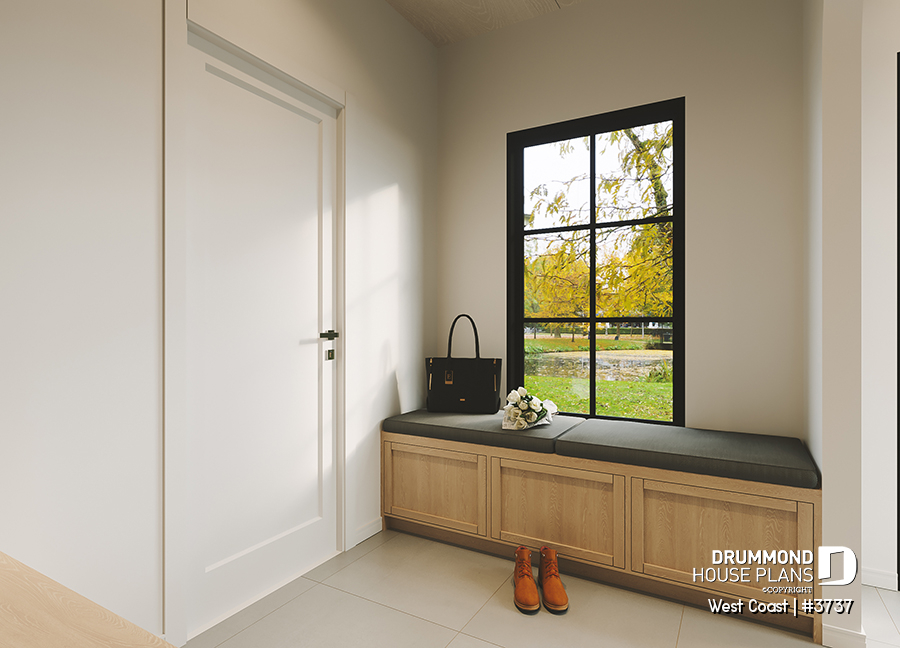

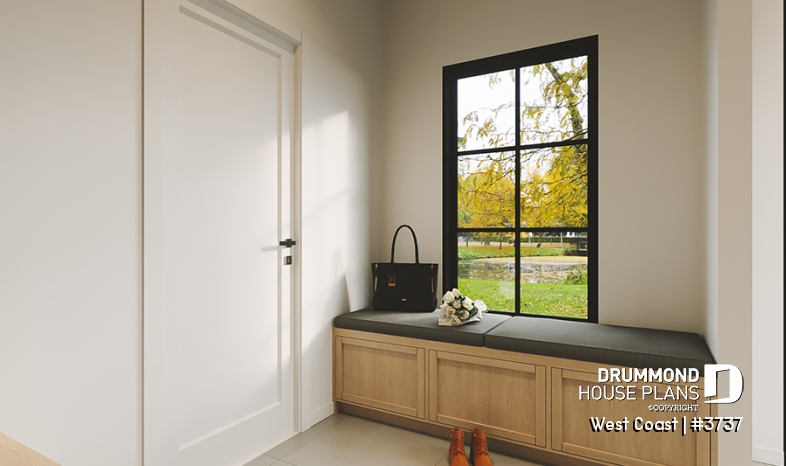

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Simple and clean lines for this house designed to maximize storage space and offer a super spacious living area!
.
Distinctive elements
Beautiful Scandinavian style home with 3 bedrooms.
Entrance with mudroom and access to the garage.

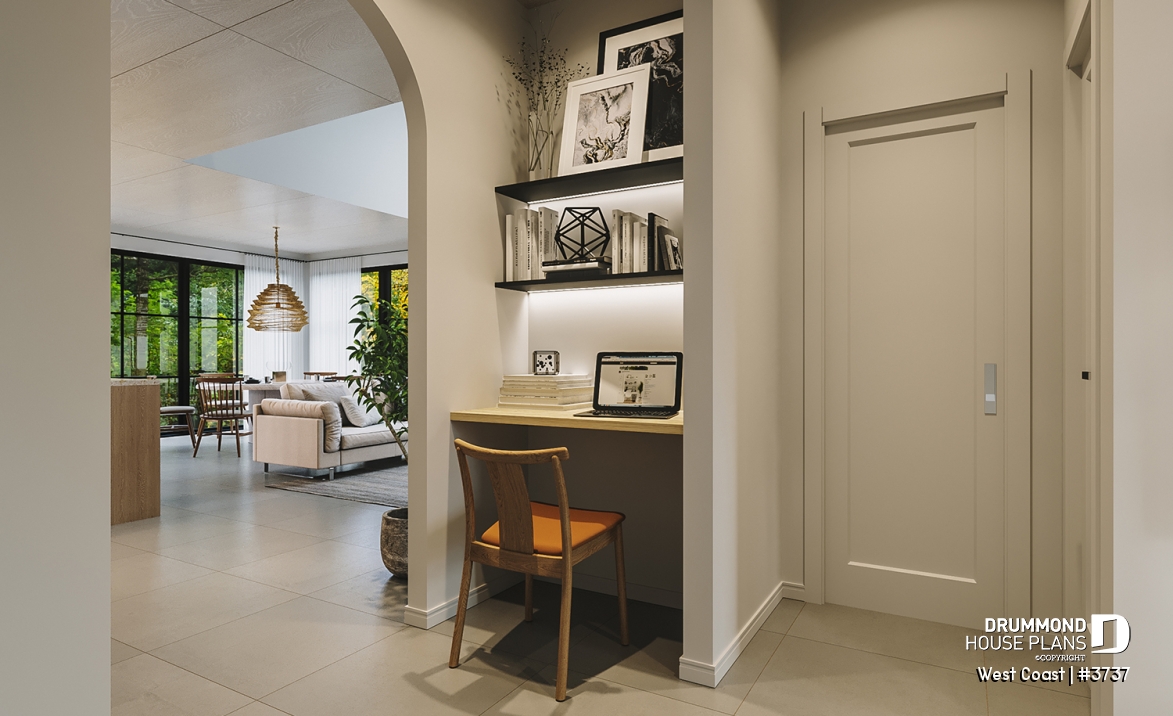

Powder room and office area set back from the common areas.
Kitchen with pantry and island.
Dining room open and bright providing a nice view of the side yard.
Living room with ceiling over 18'4'' and visible from the mezzanine upstairs.
Scandinavian style fireplace near the TV in the living room.
Master bedroom with built-in closets.
2 secondary bedrooms with small walk-in closet.
Upstairs laundry room.
Family bathroom with bath and shower on one side and recessed toilet on the other.
One-car garage with mechanical room area.
Plan feature(s)
Cathedral ceiling, Mezzanine, Wood stove, Open floor layout, Planning desk, Mud room, Bench seat(s), Built-ins, Split bedrooms, Pantry, Fireplace, Double sinks, Island, Narrow lot, Second floor laundry room, Bath in the shower, Self-Build
Plan architectural style(s)
. Scandinavian, . Contemporary, . European, Modern farmhouse, . Modern / Design, . Vacation and waterfront, . Transitional, Modern Craftsman, Trending
