House plan Soho (3736)
Transitional style home with master suite on main floor, home office and open floor plan
View the size of the rooms and height of the ceilings

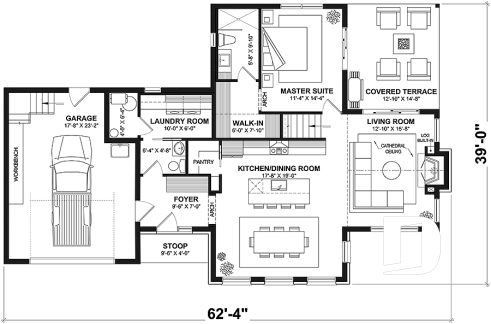

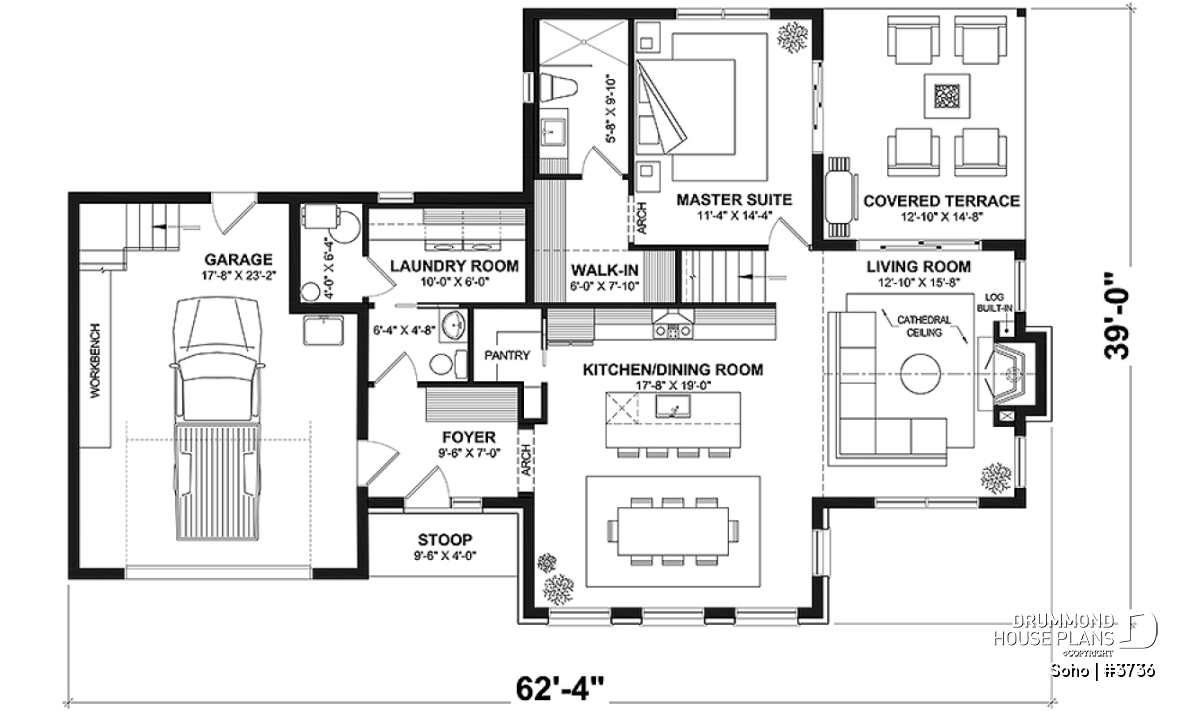

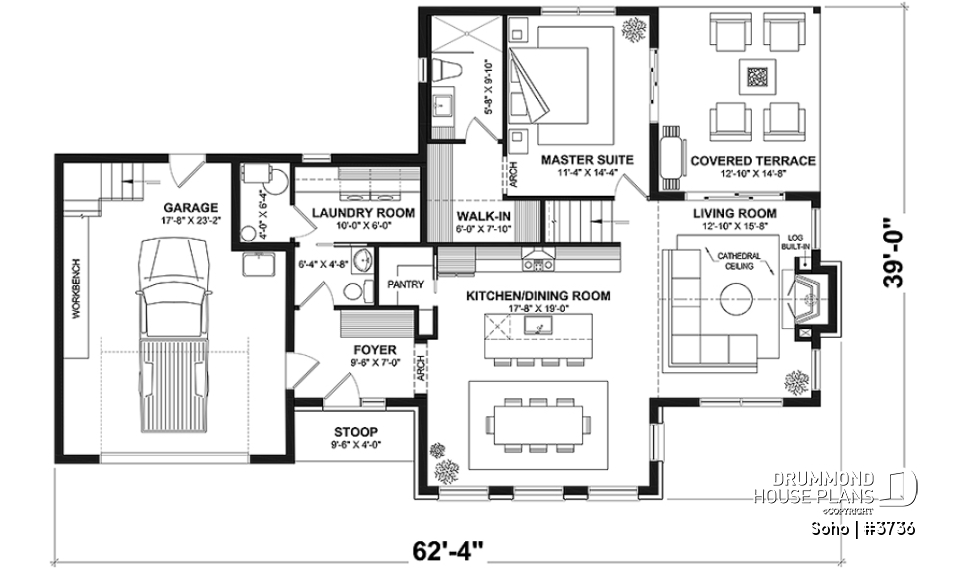

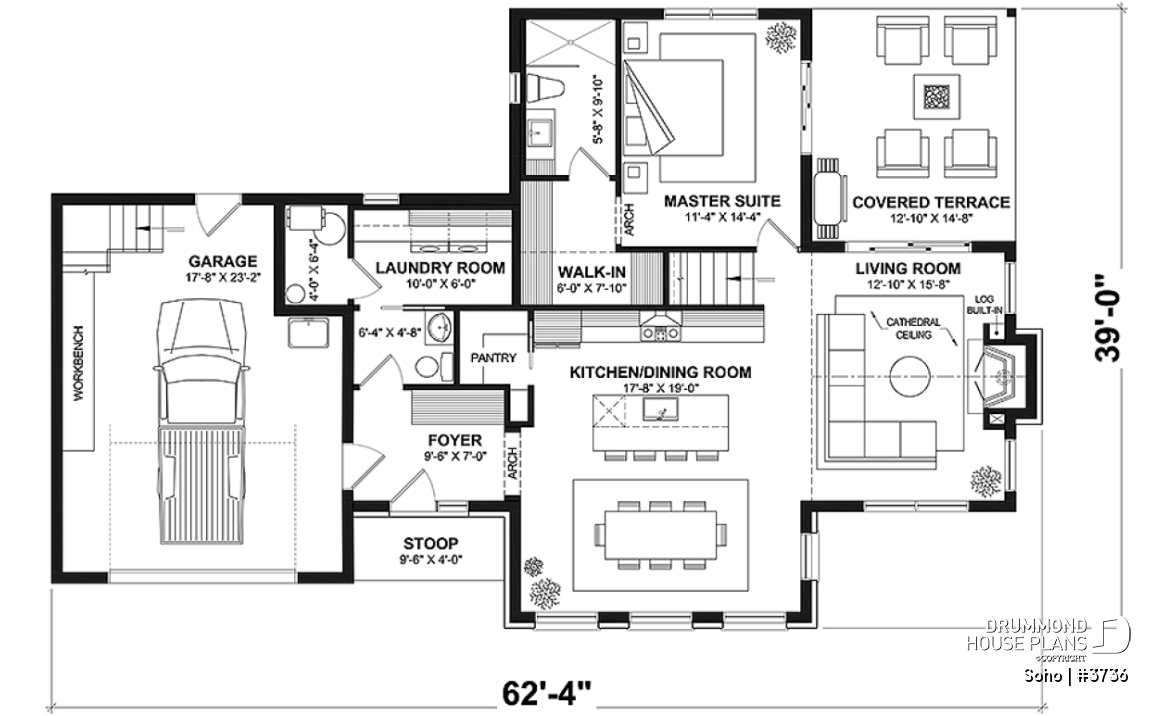

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 17'8" x 23'2" | ~ 9'6" |
| Porch | 9'6" x 4'0" | N/A |
| Foyer | 9'6" x 7'0" | ~ 9'0" |
| Powder room | 6'4" x 4'8" | ~ 9'0" |
| Laundry room | 10'0" x 6'0" | ~ 9'0" |
| Mechanical room | 4'0" x 6'4" | ~ 9'0" |
| Kitchen/dining room | 17'8" x 19'0" | ~ 9'0" |
| Kitchen island | 8'6" x 3'6" | N/A |
| Pantry | 4'4" x 4'8" | ~ 9'0" |
| Master suite | 11'4" x 14'4" | ~ 9'0" |
| Walk-in closet | 6'0" x 7'10" | ~ 9'0" |
| Shower room or three quarter bath | 5'8" x 9'10" | ~ 9'0" |
| Shower | 5'8" x 3'0" | N/A |
| Linen | 1'0" x 1'10" | N/A |
| Covered deck | 12'10" x 14'8" | ~ 9'4" |
| Living room | 12'10" x 15'8" | ~ 11'10" |

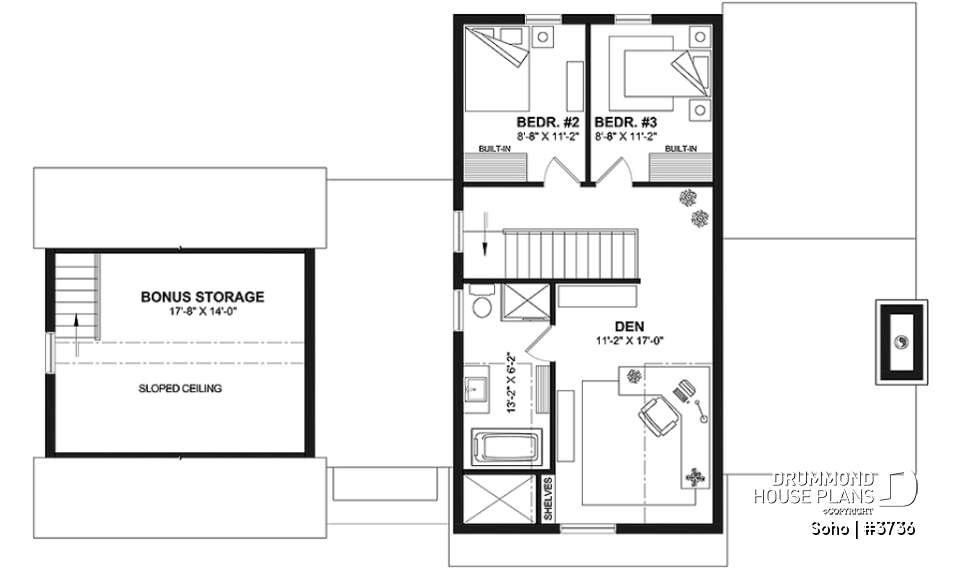

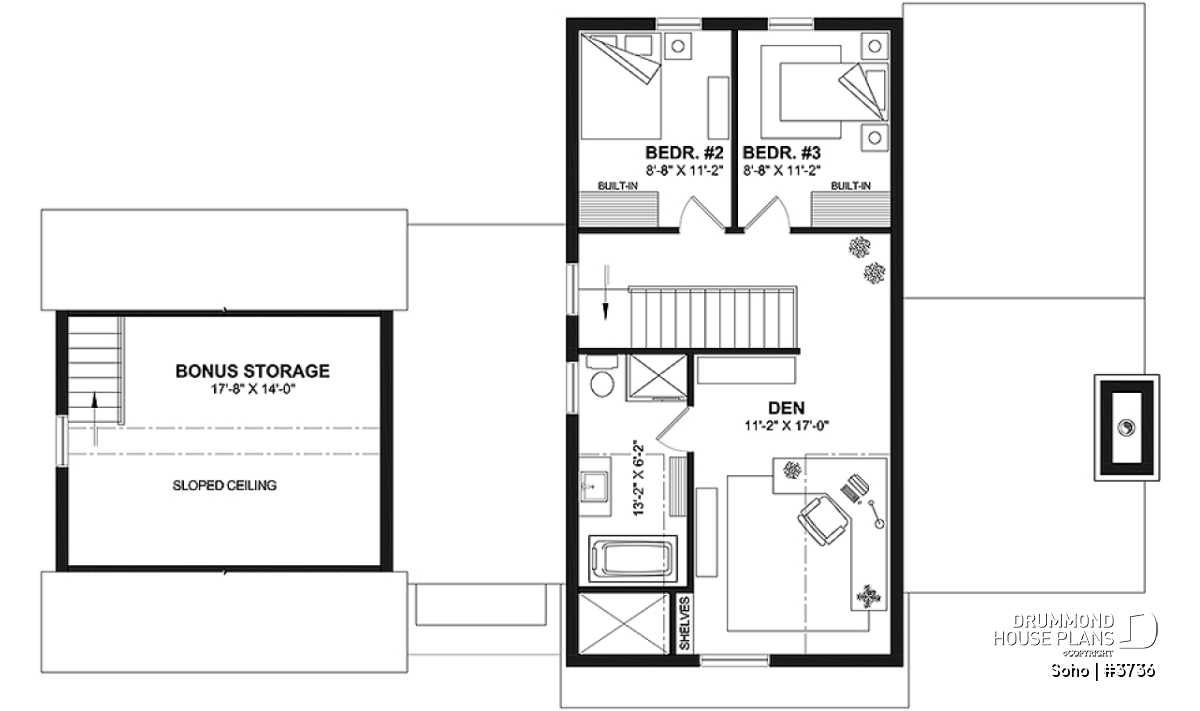

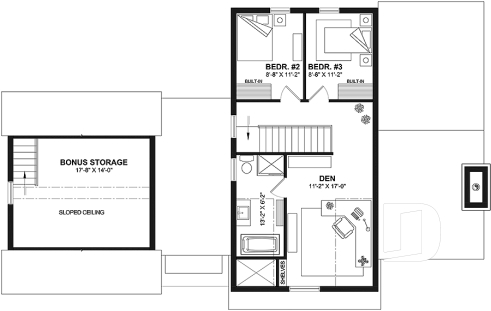

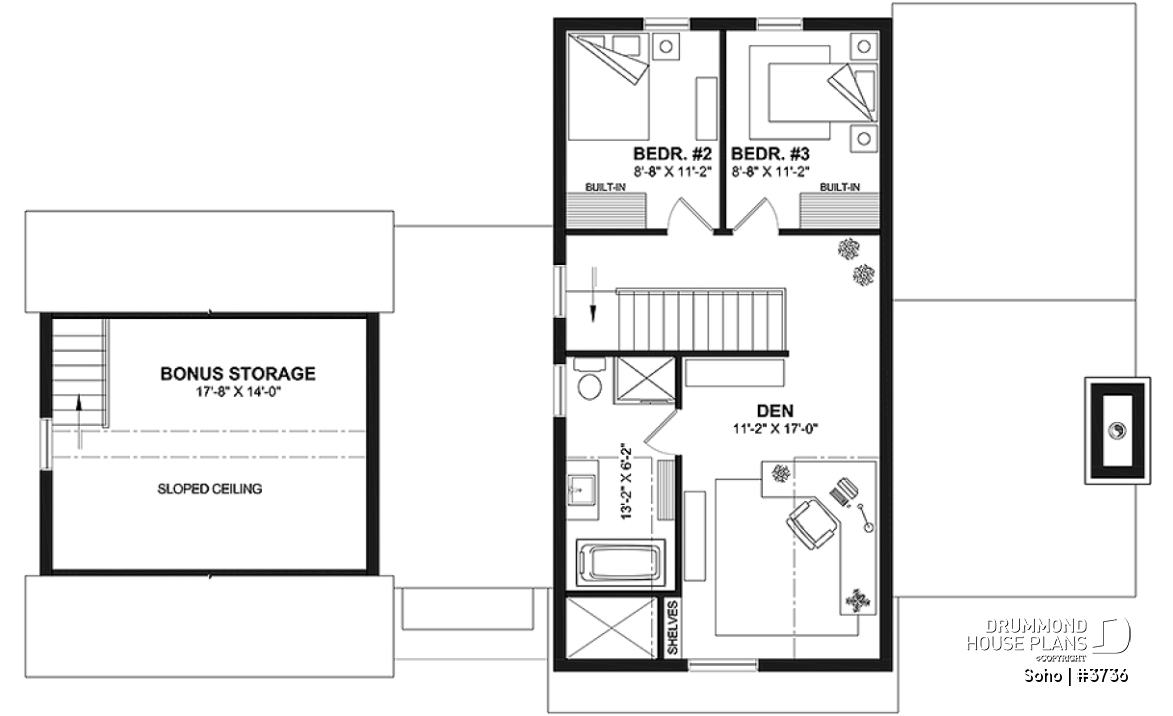

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bonus storage | 17'8" x 14'0" | ~ 6'0" |
| Home office | 11'2" x 17'0" | ~ 8'0" |
| Full bathroom | 13'2" x 6'2" | ~ 8'0" |
| Shower | 4'0" x 3'0" | N/A |
| Linen | 1'10" x 3'0" | N/A |
| Bedroom | 8'8" x 11'2" | ~ 8'0" |
| Bedroom | 8'8" x 11'2" | ~ 8'0" |
General specifications
| Total living area | 1917 sq.ft. |
| 1st level | 1221 sq.ft. |
| 2nd level | 696 sq.ft. |
| Width | 62'4" |
| Depth | 39'0" |
| Ridge height from top of foundation | 28'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

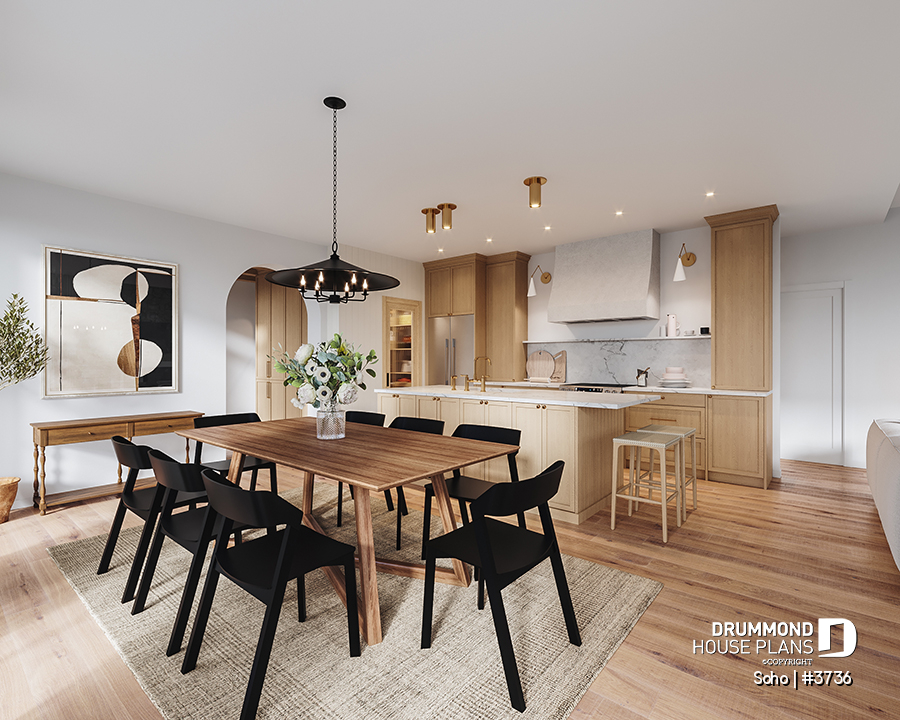

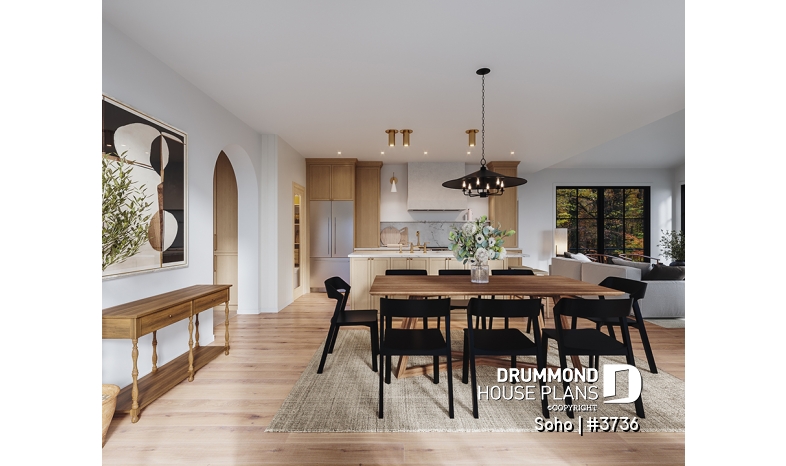

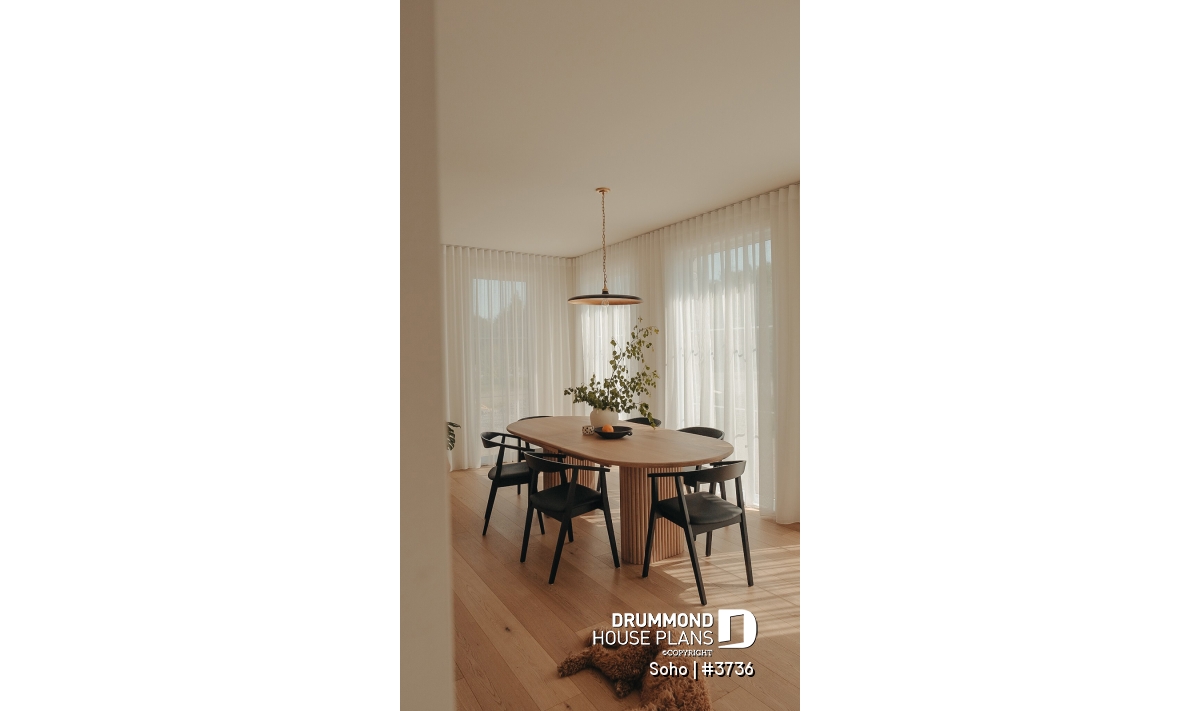

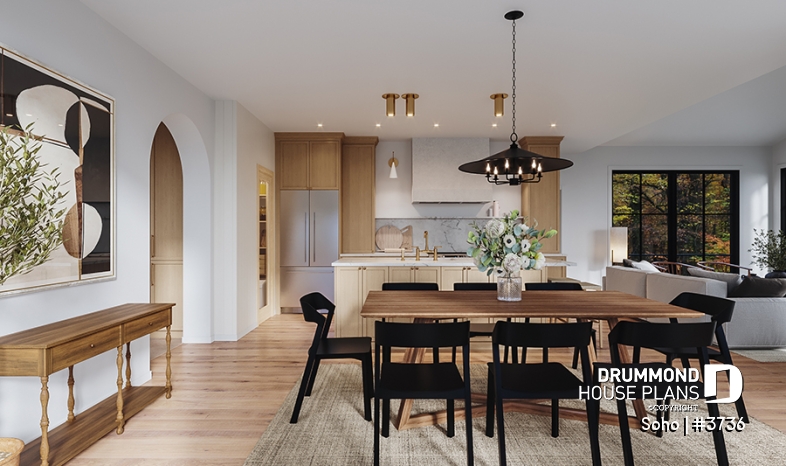

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

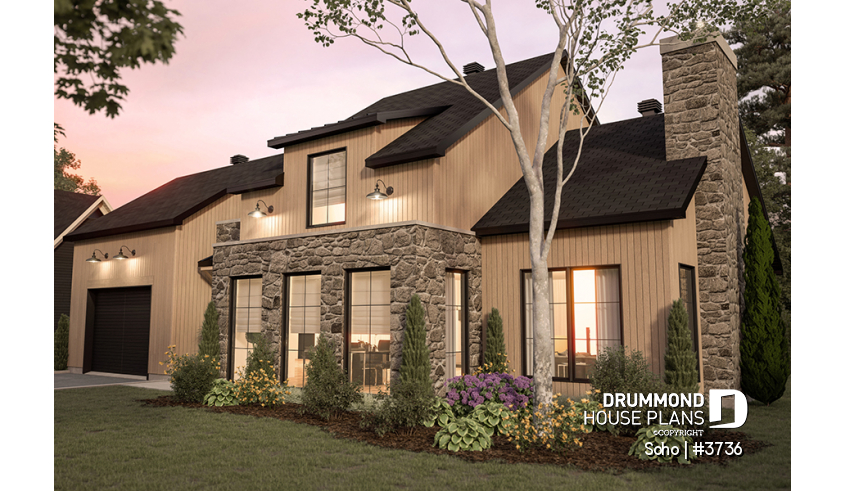

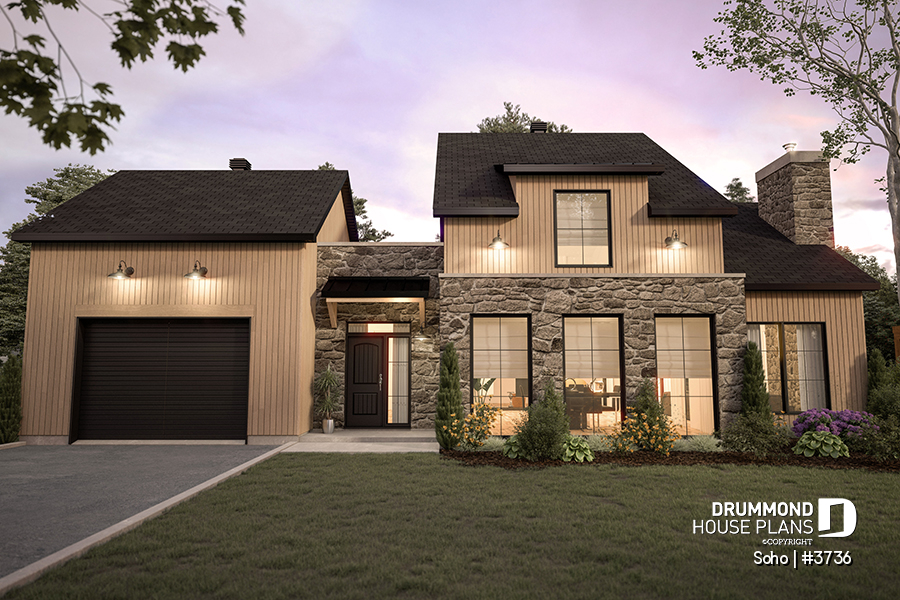

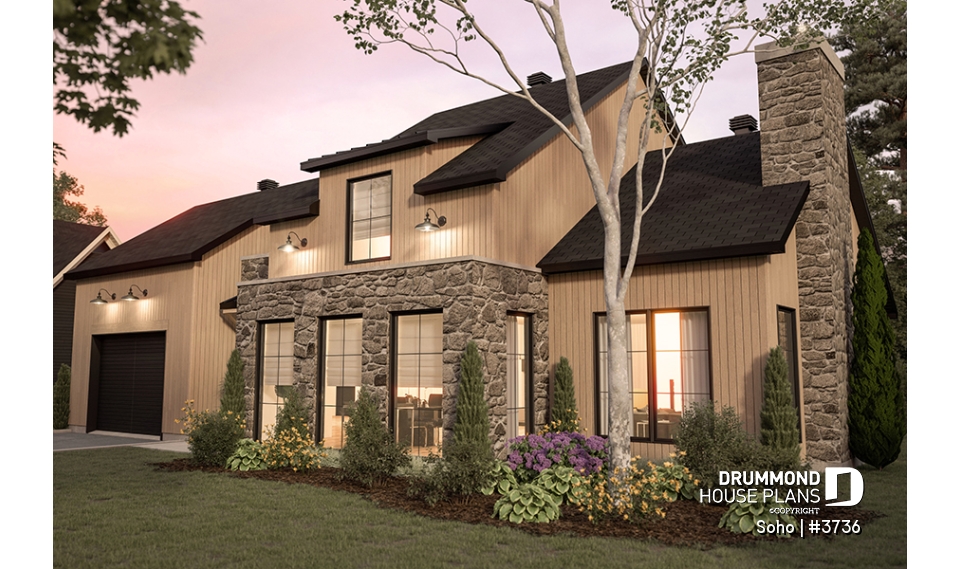

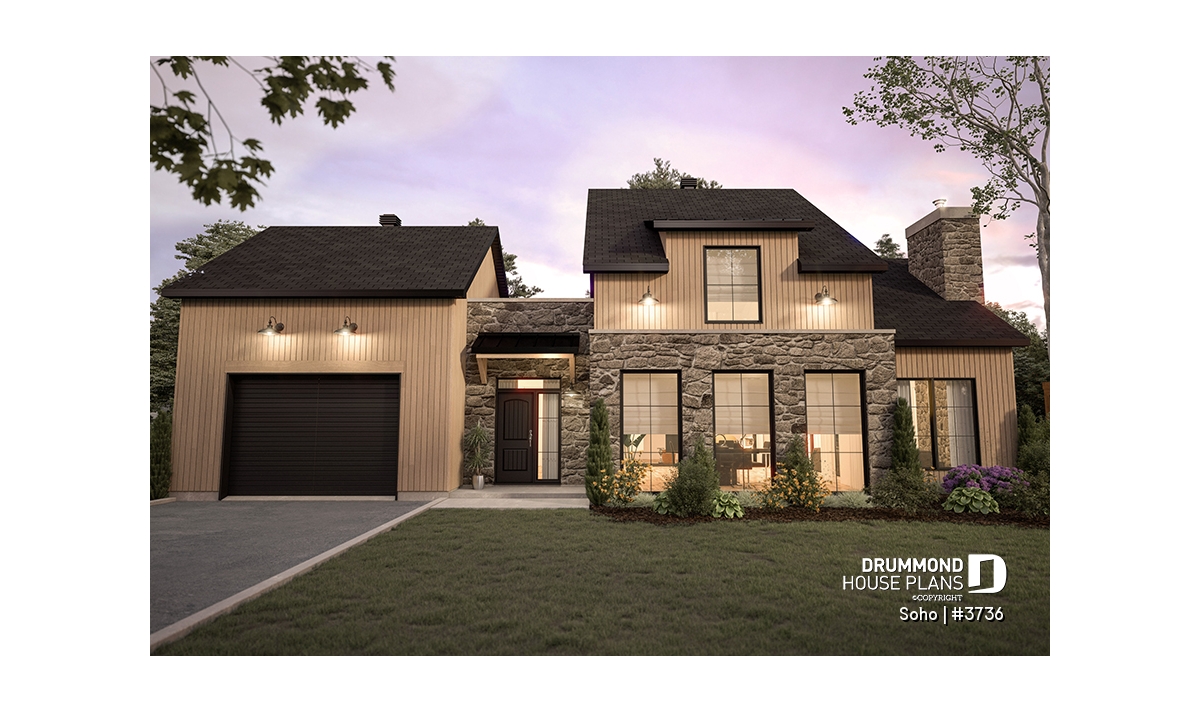

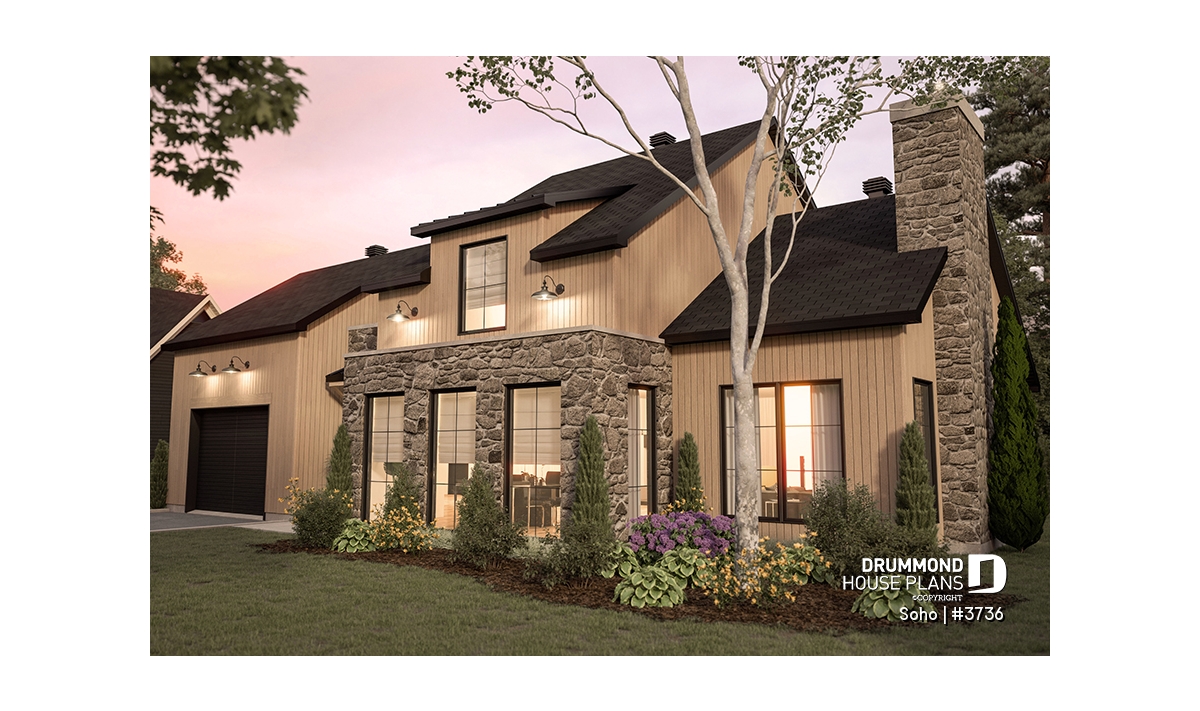

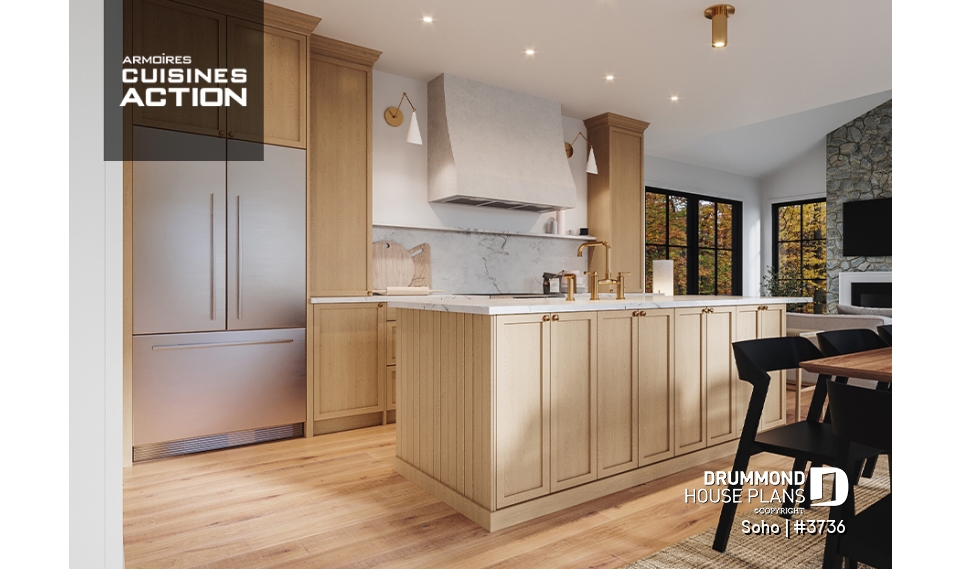

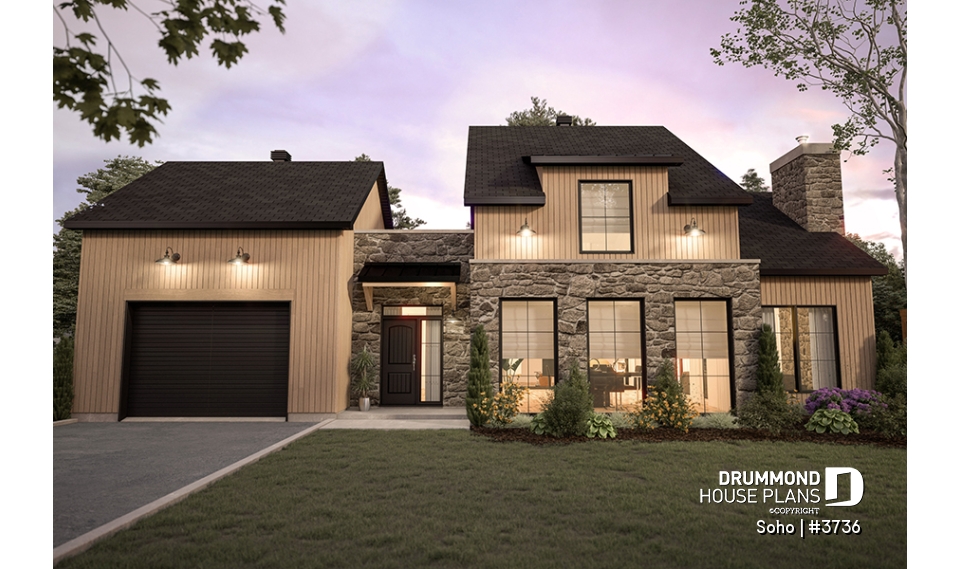

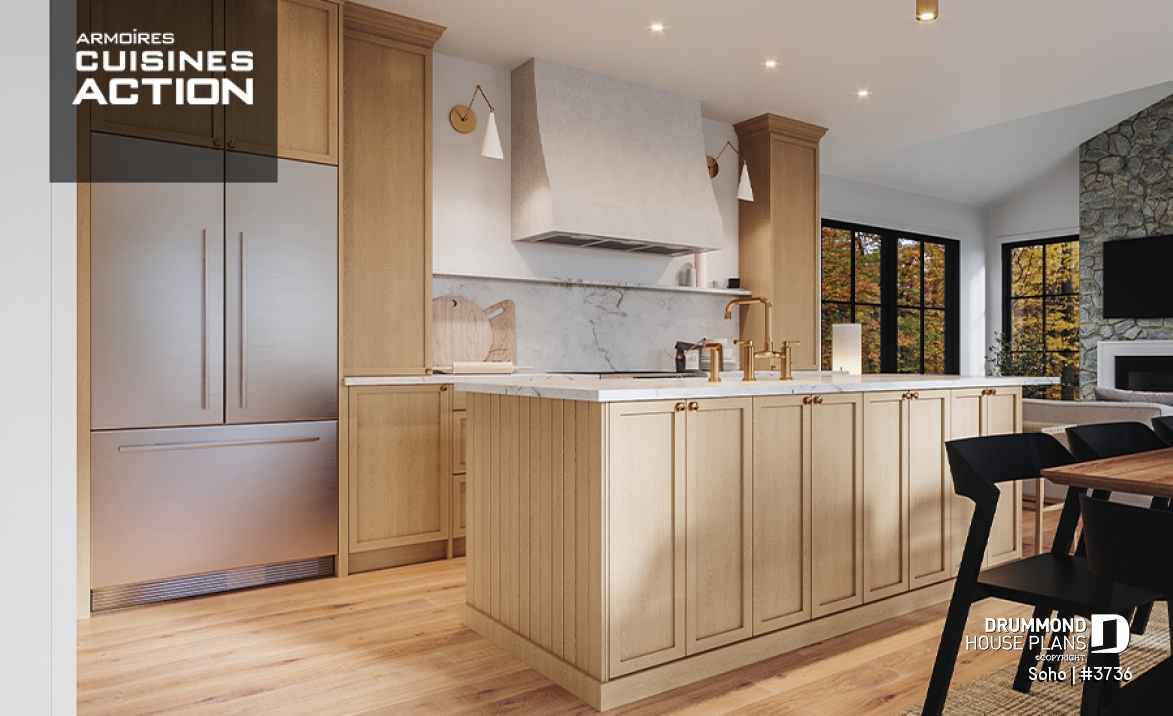

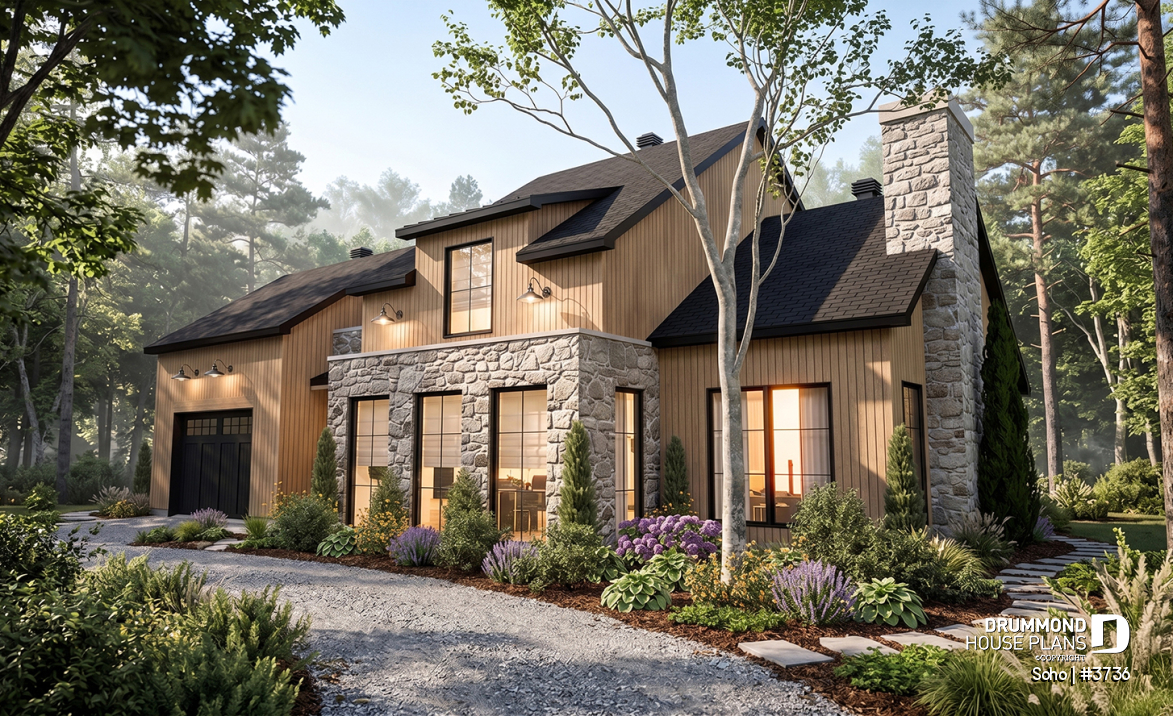

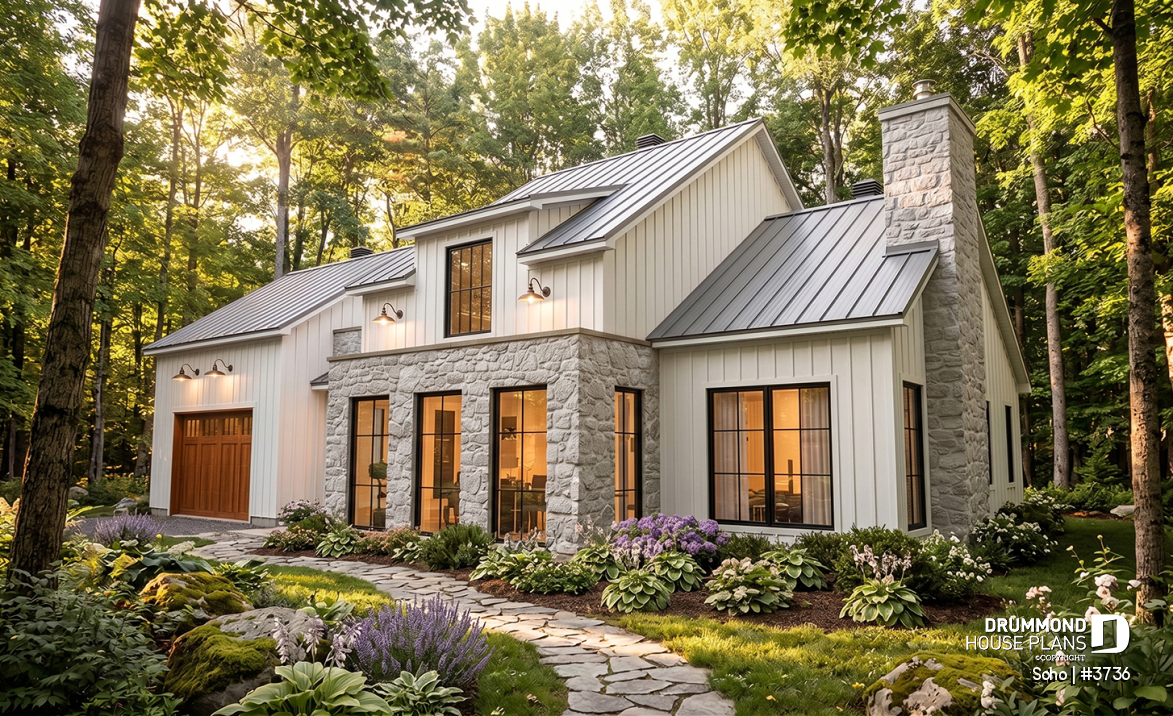

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

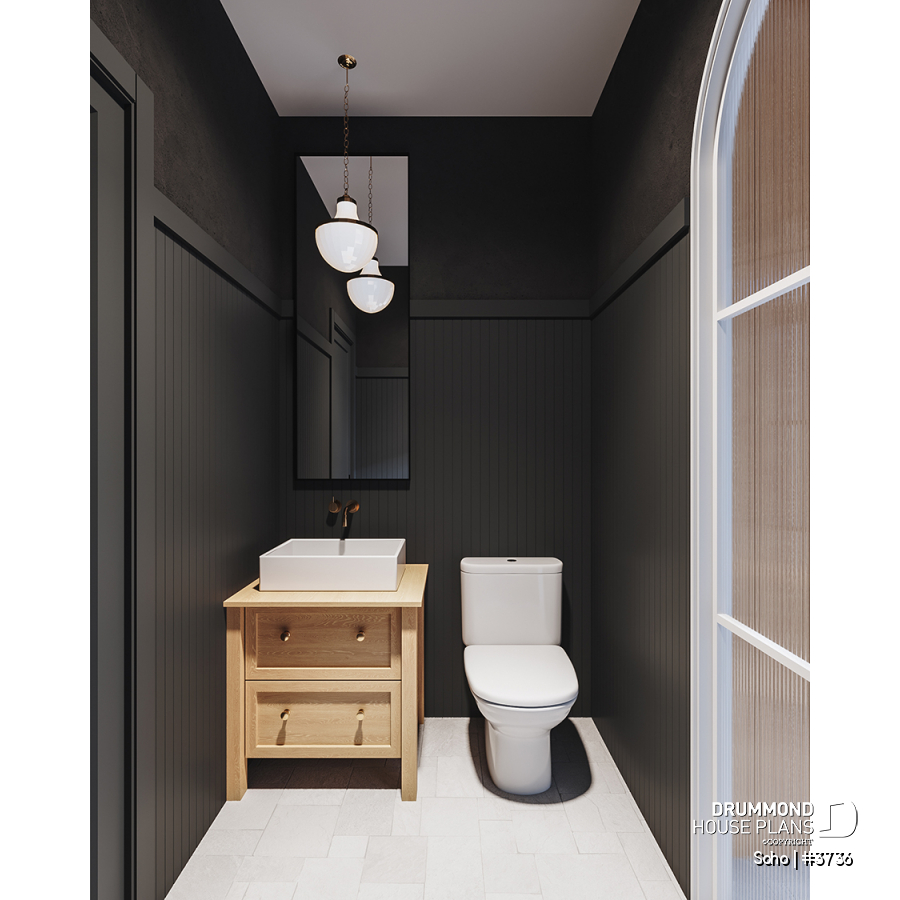

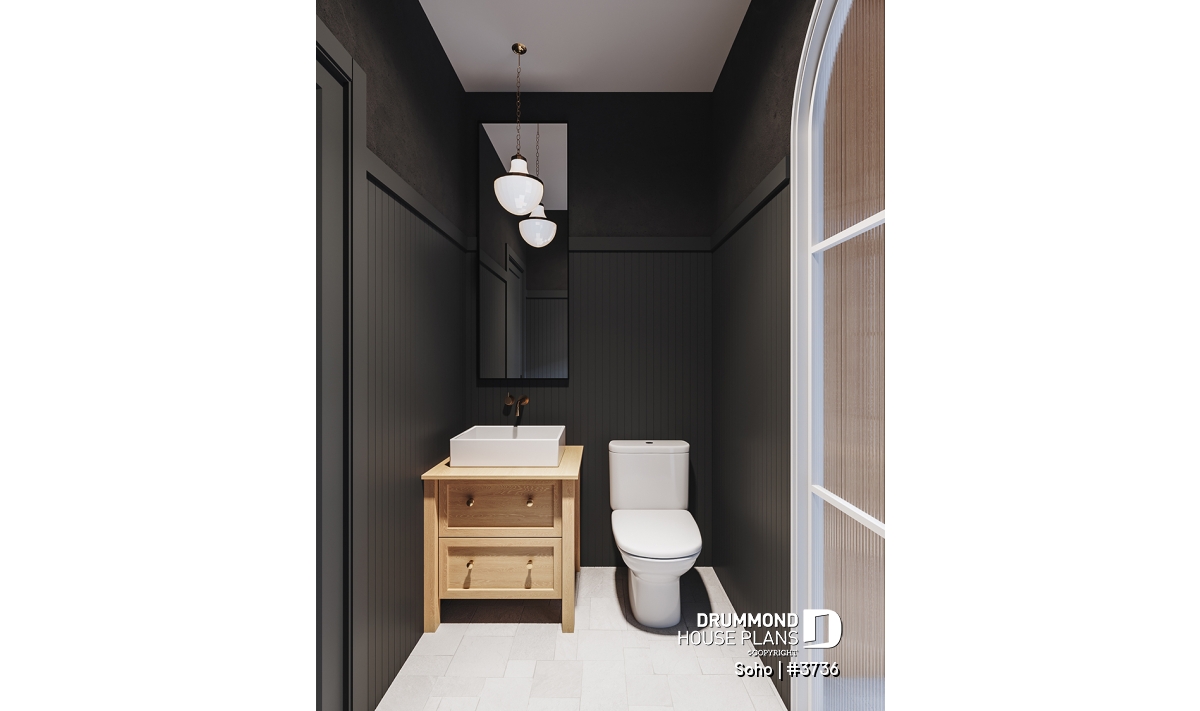

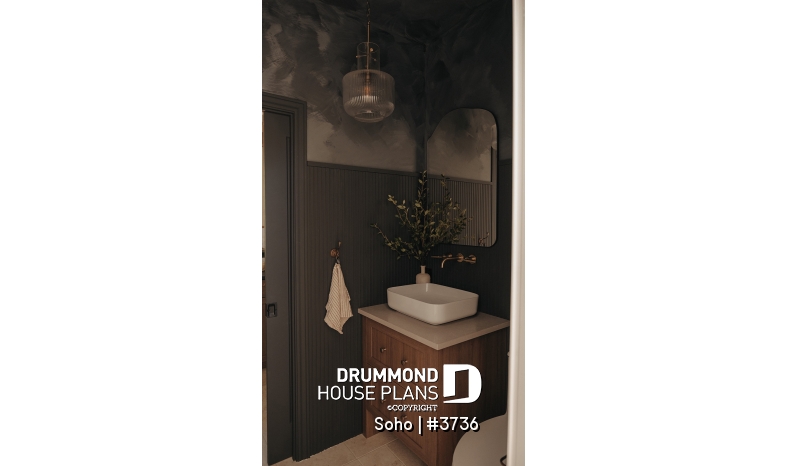

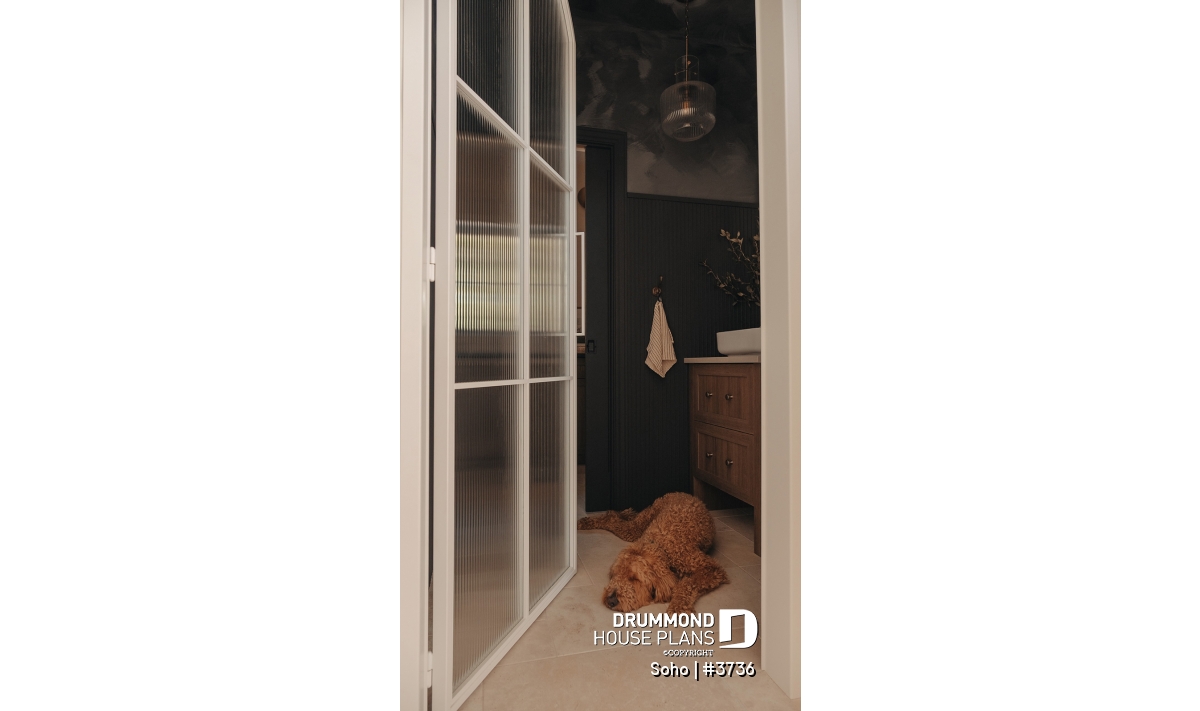

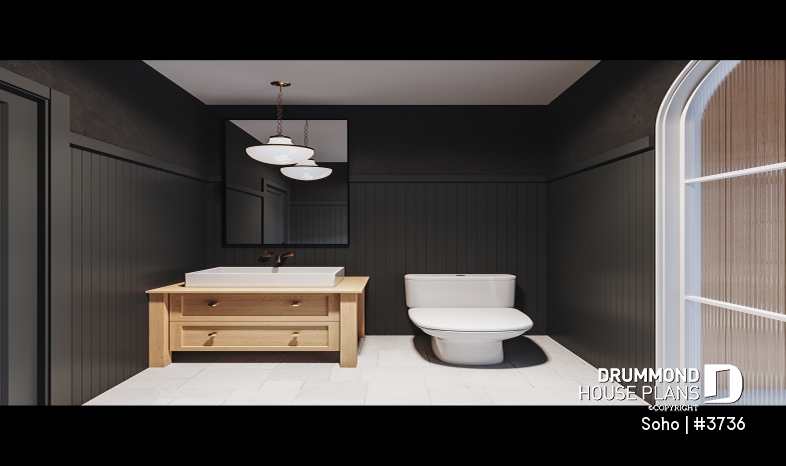

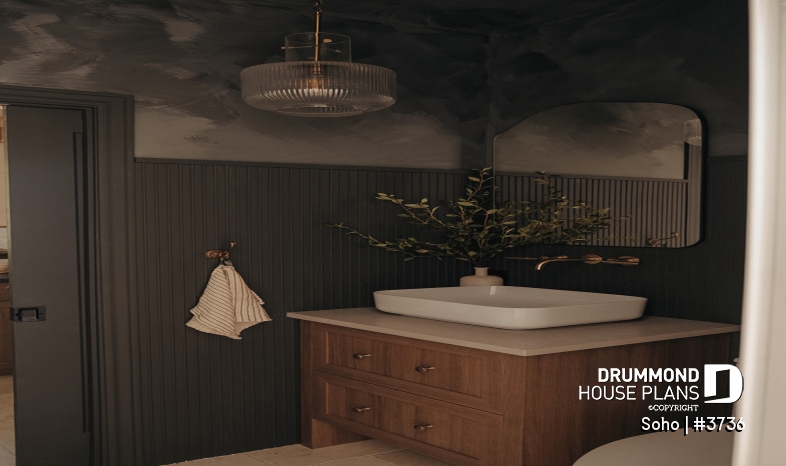

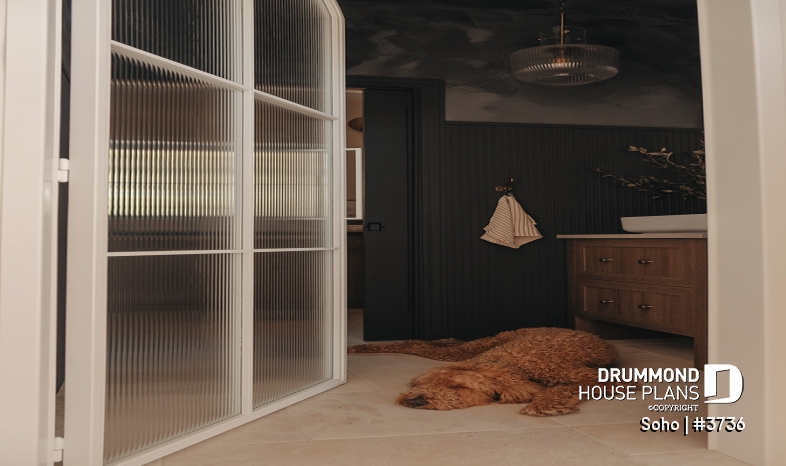

Half bath
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

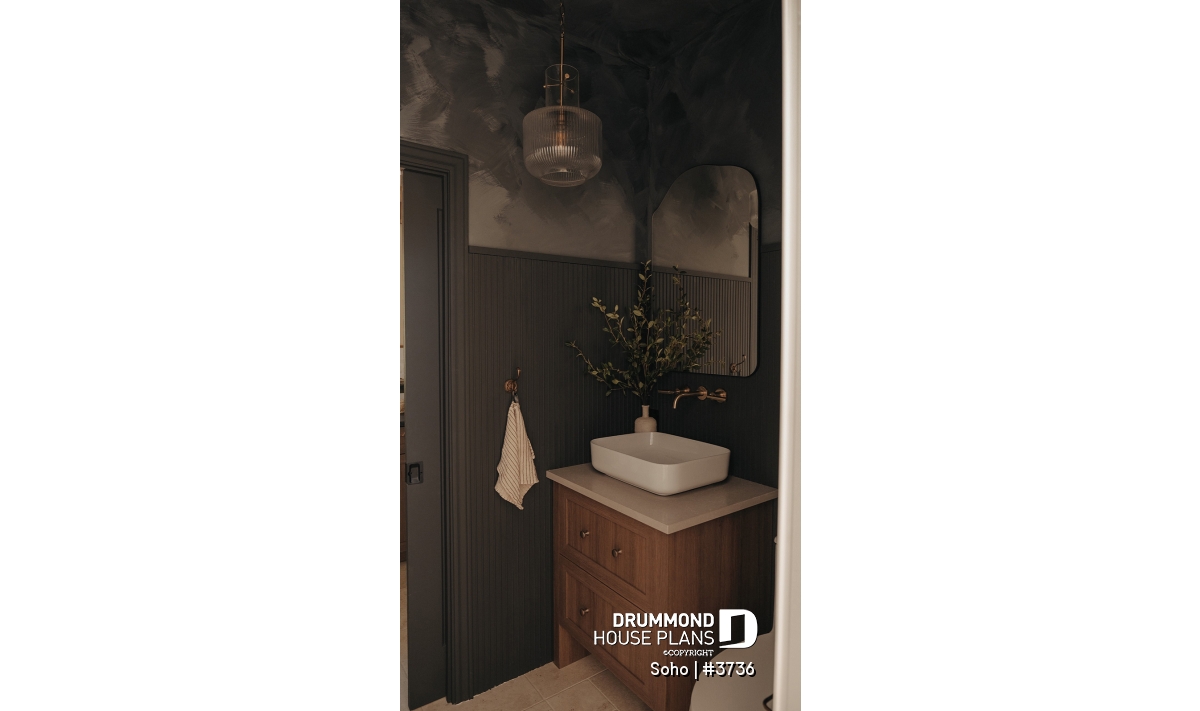

Half bath
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Half bath
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

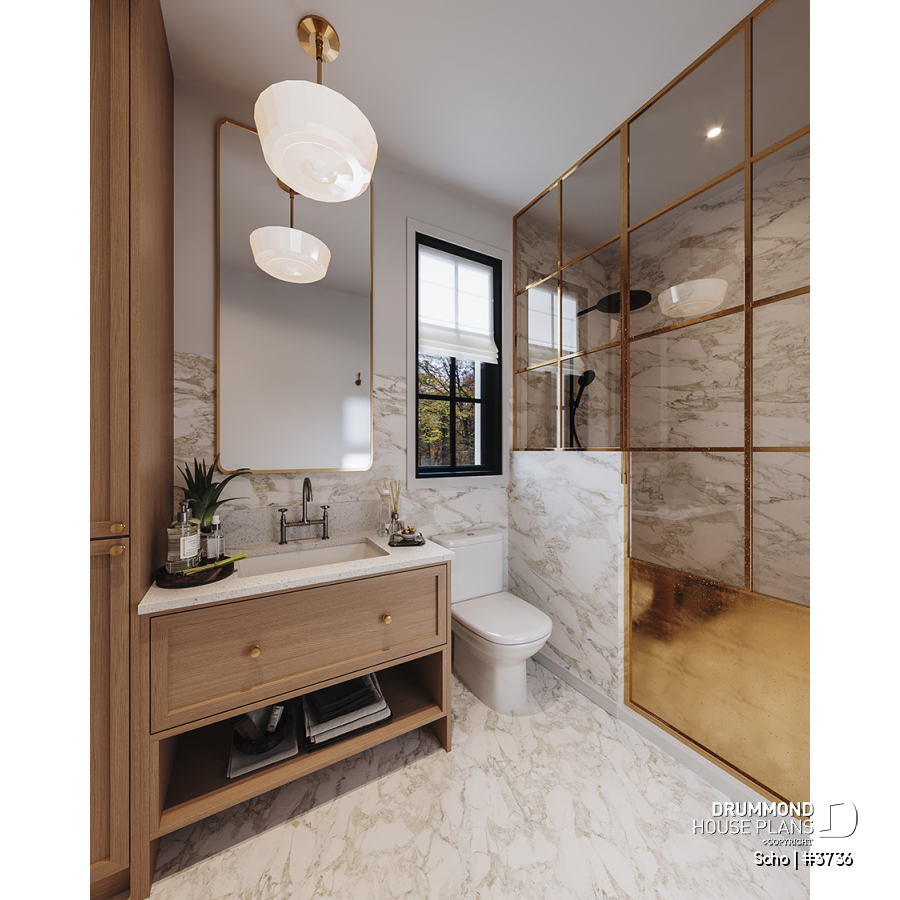

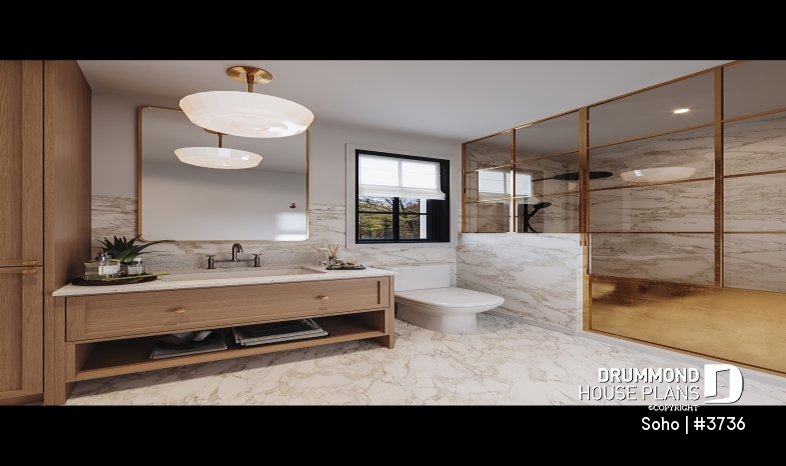

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

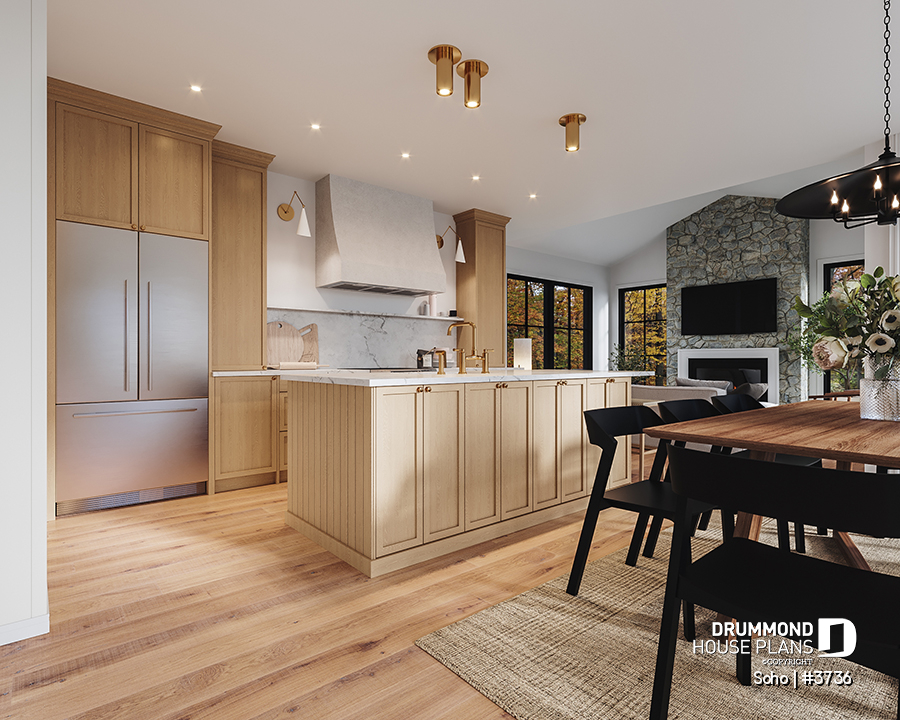

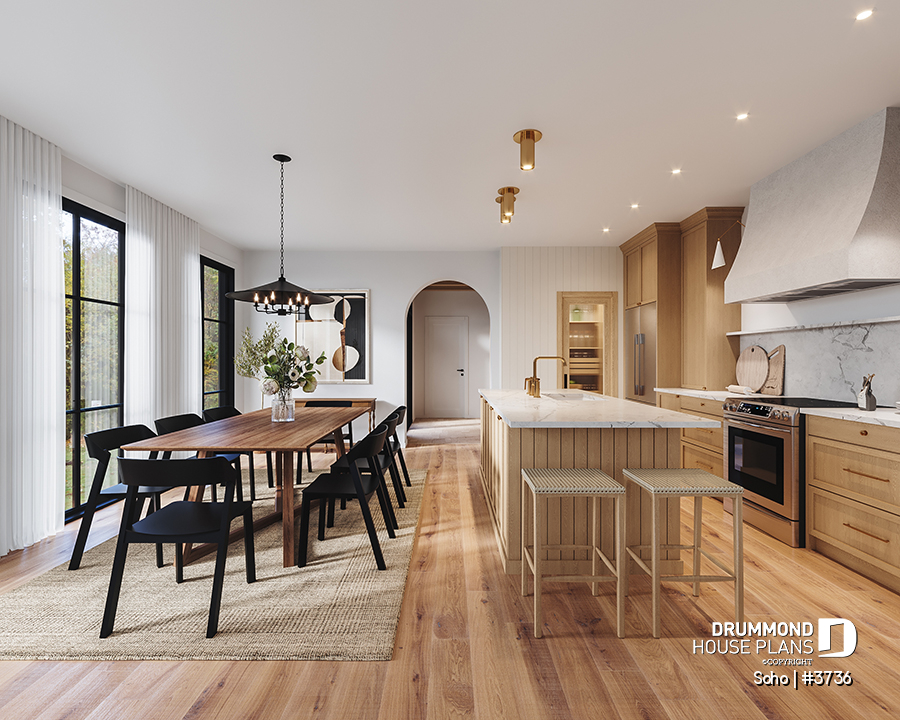

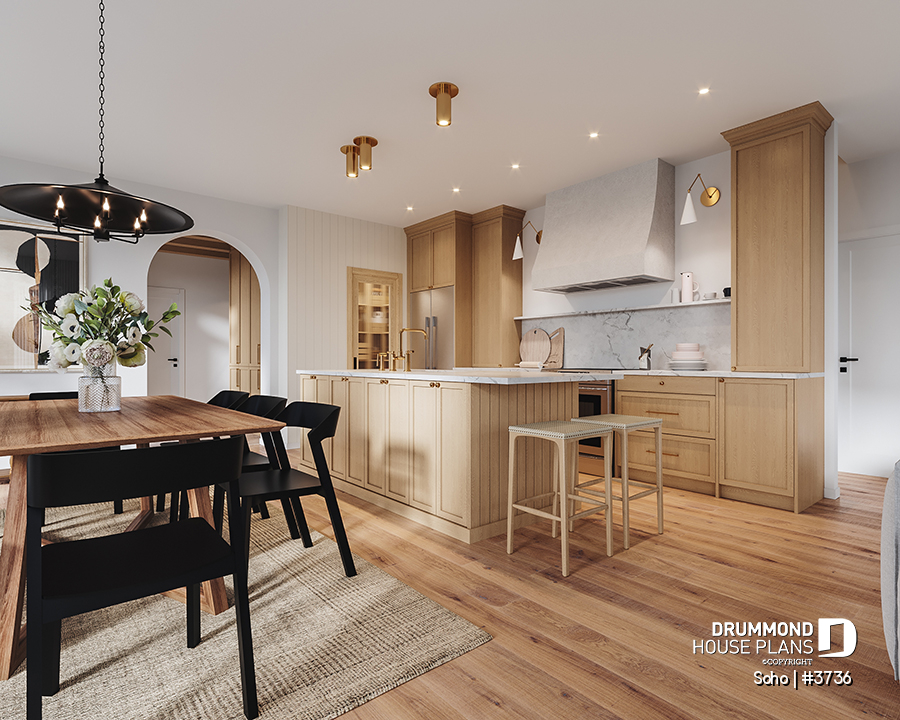

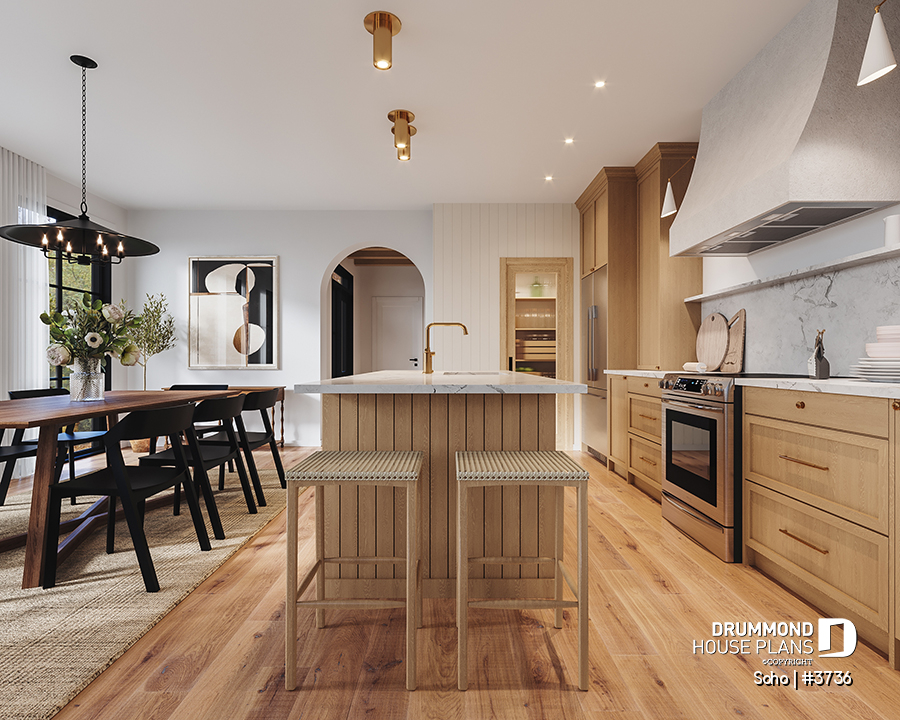

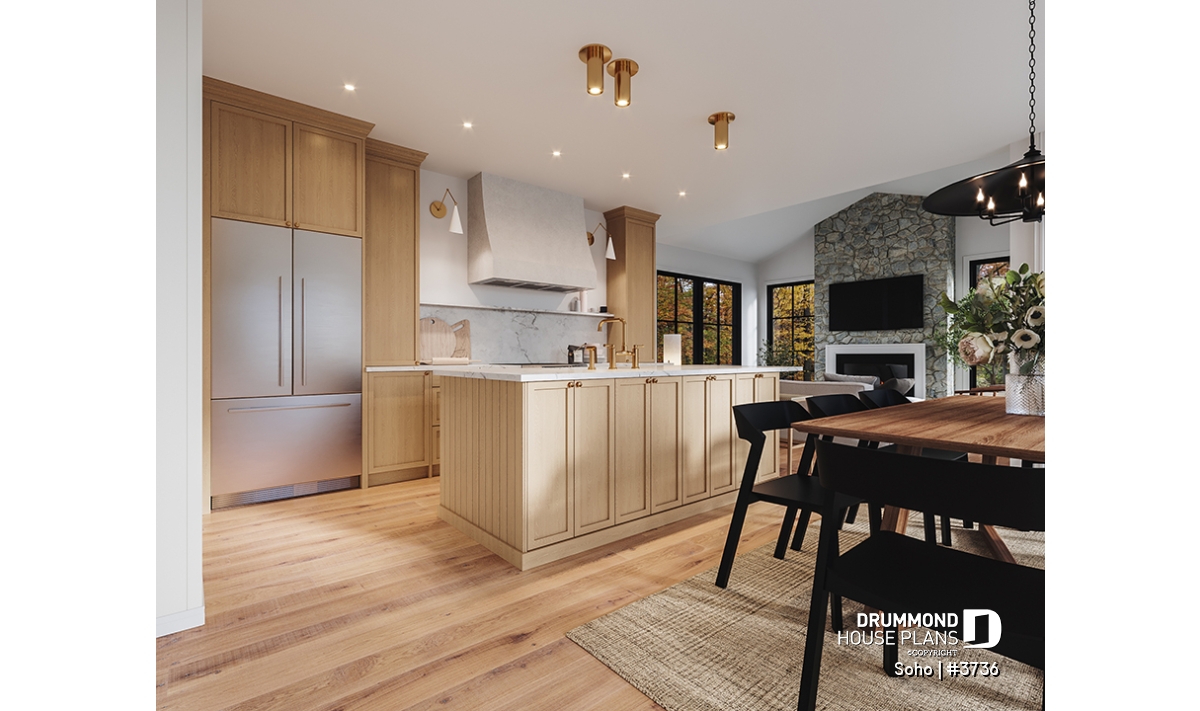

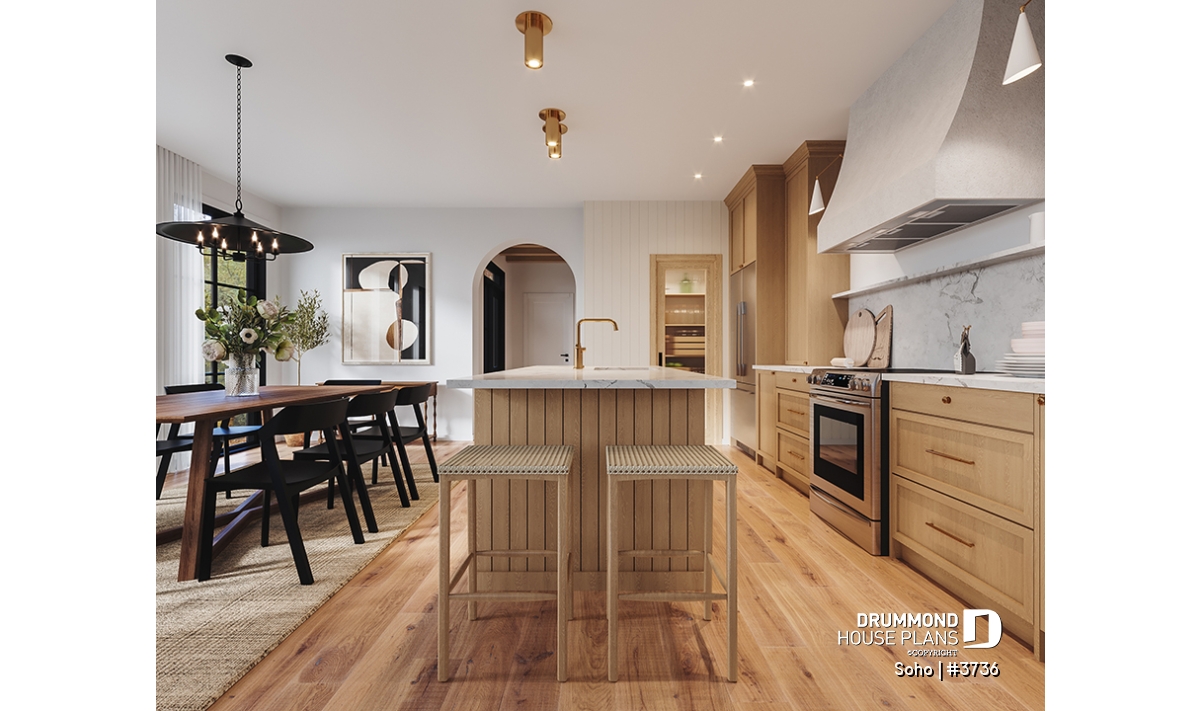

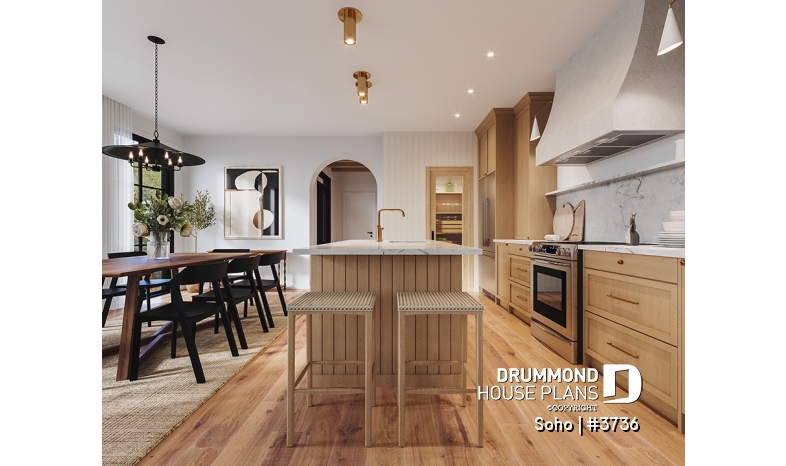

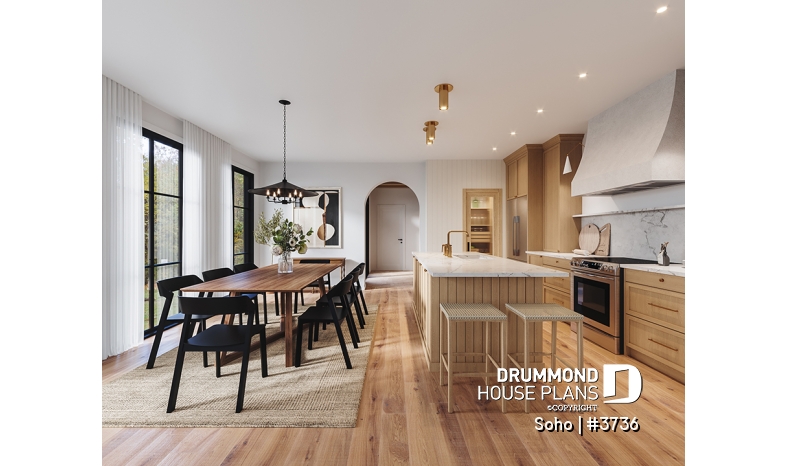

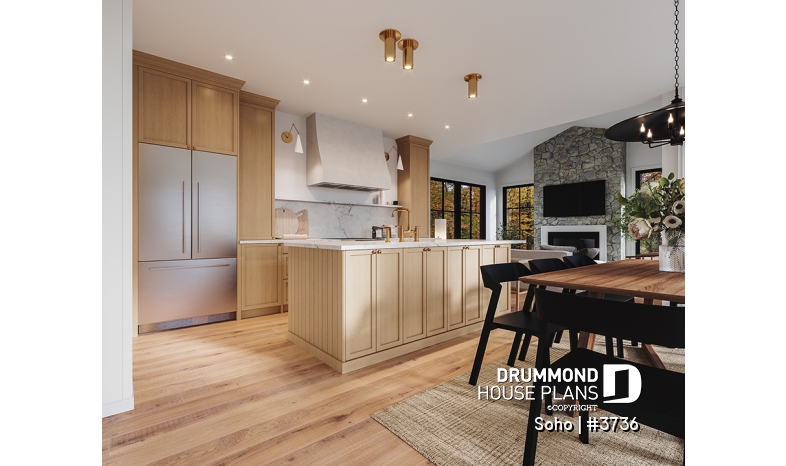

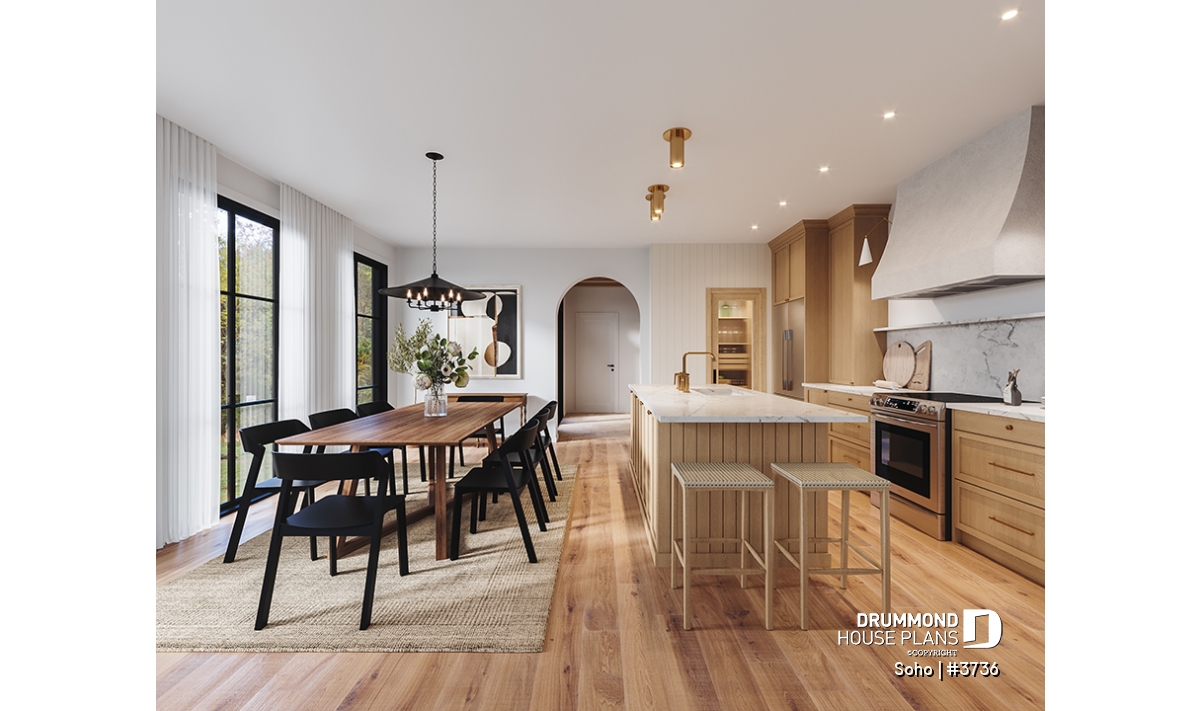

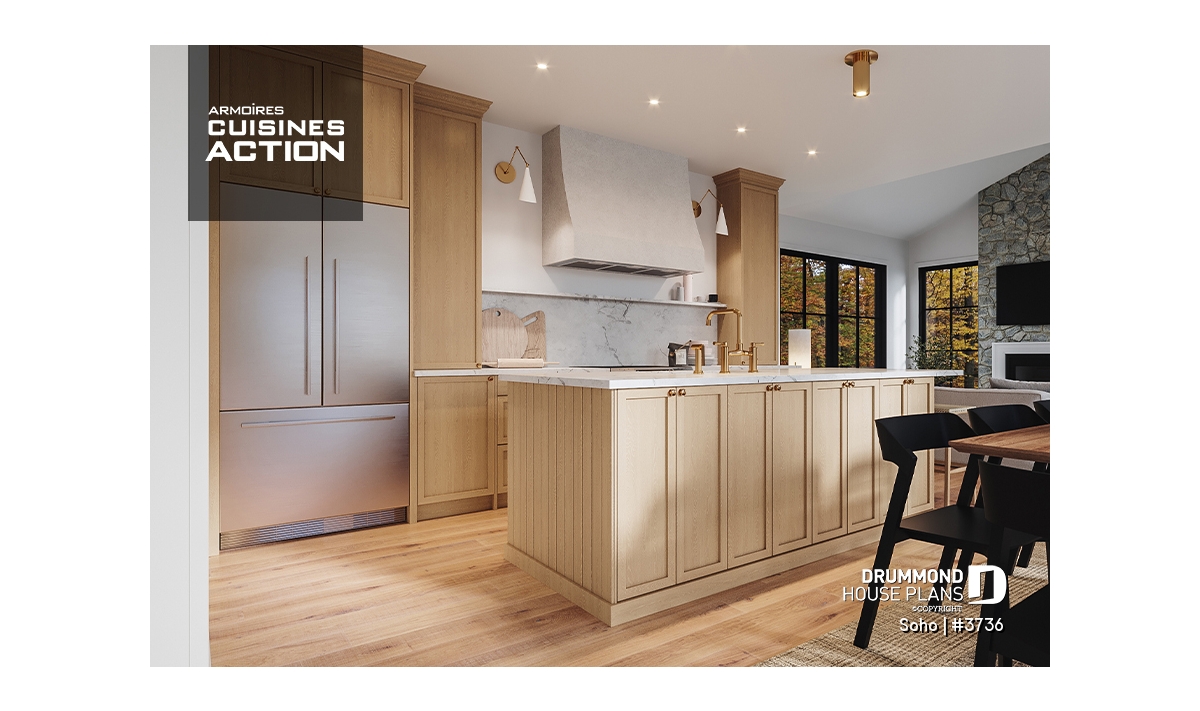

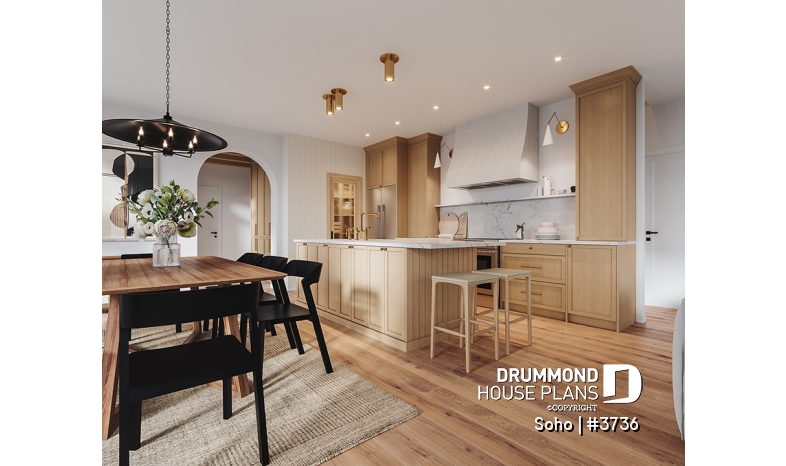

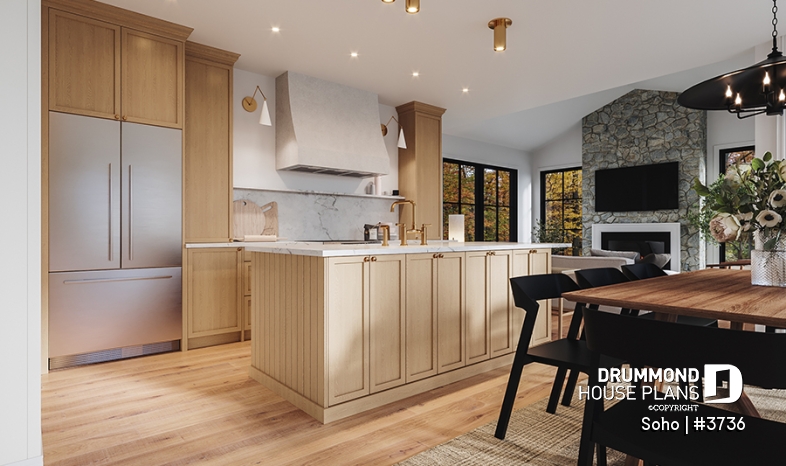

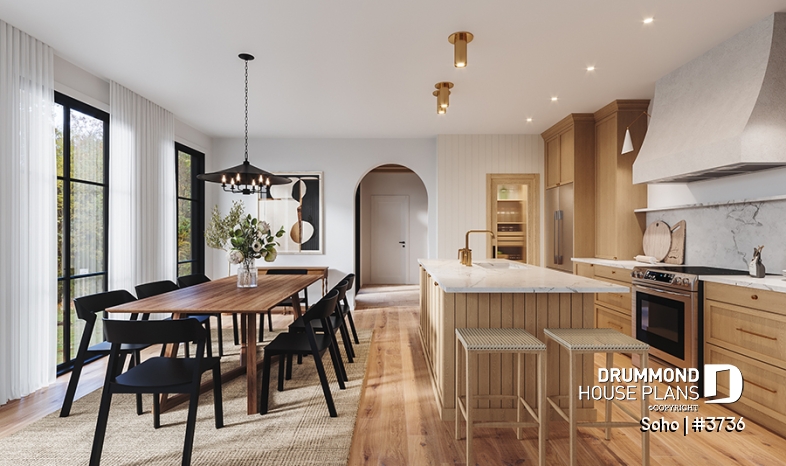

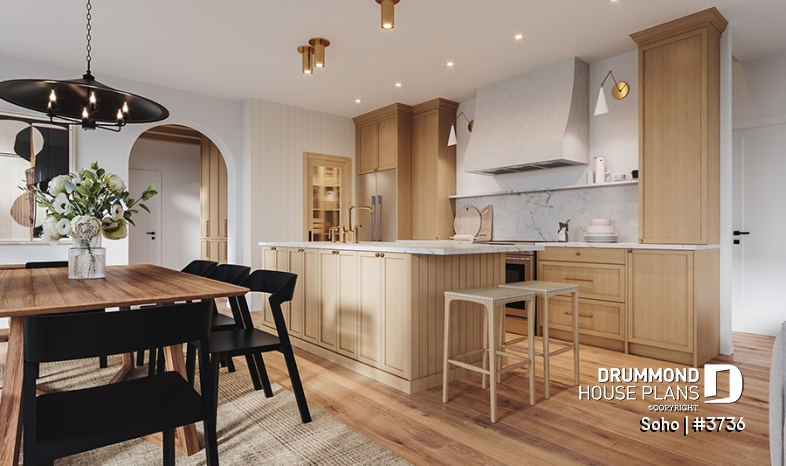

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

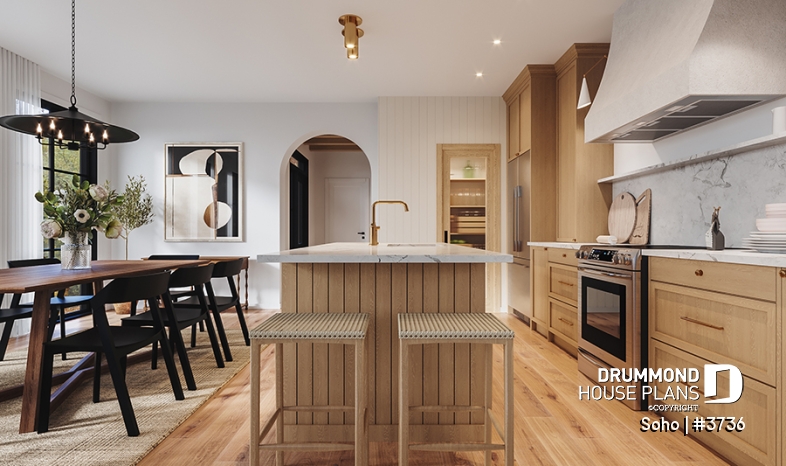

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

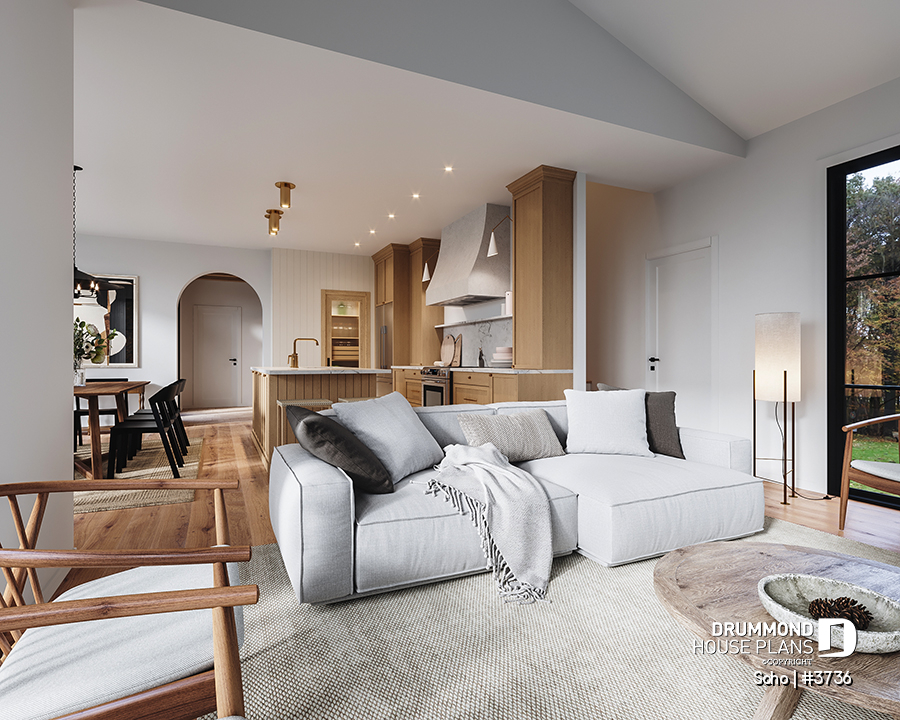

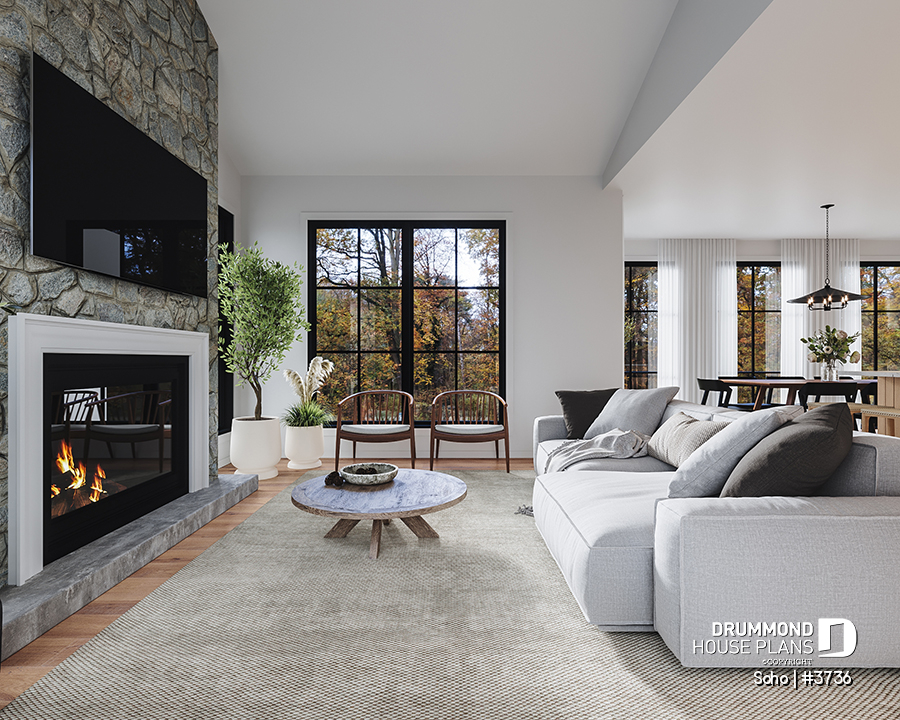

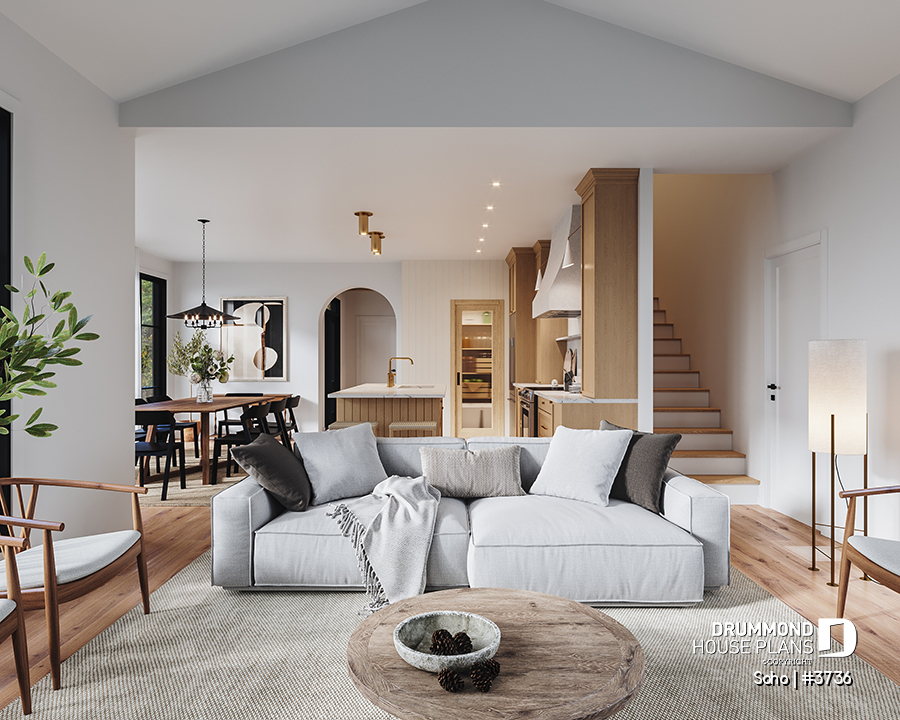

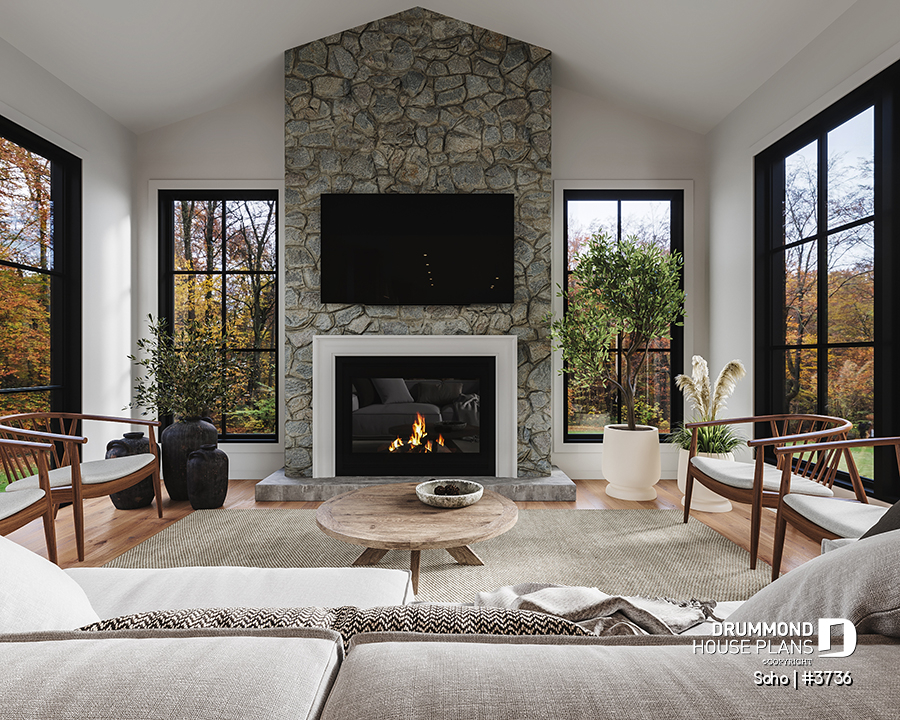

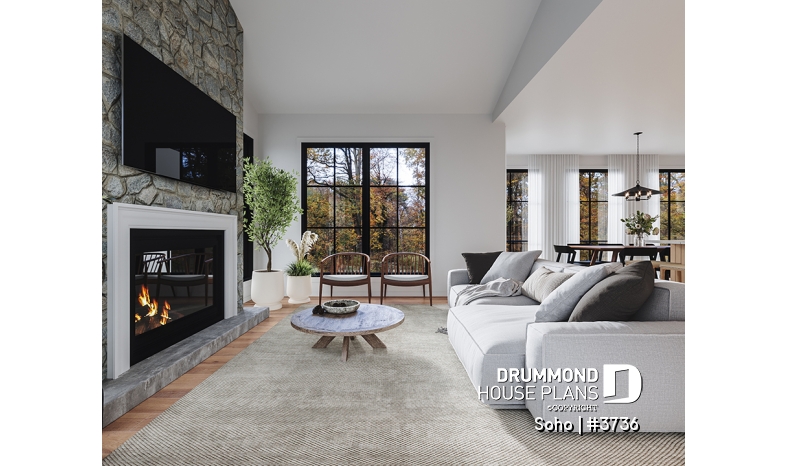

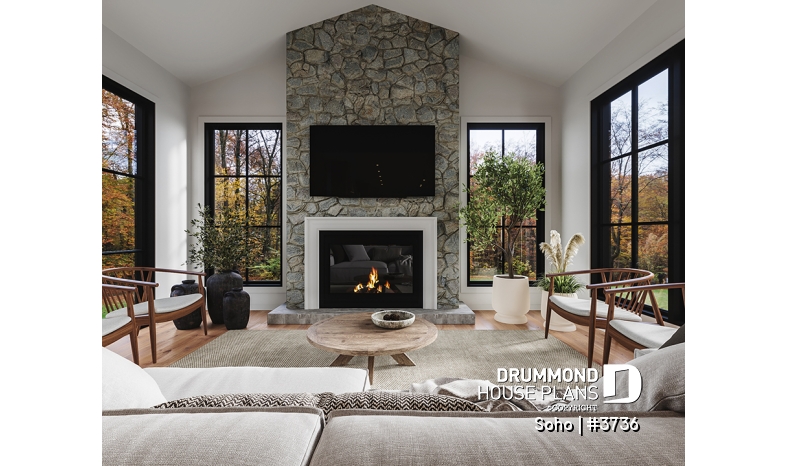

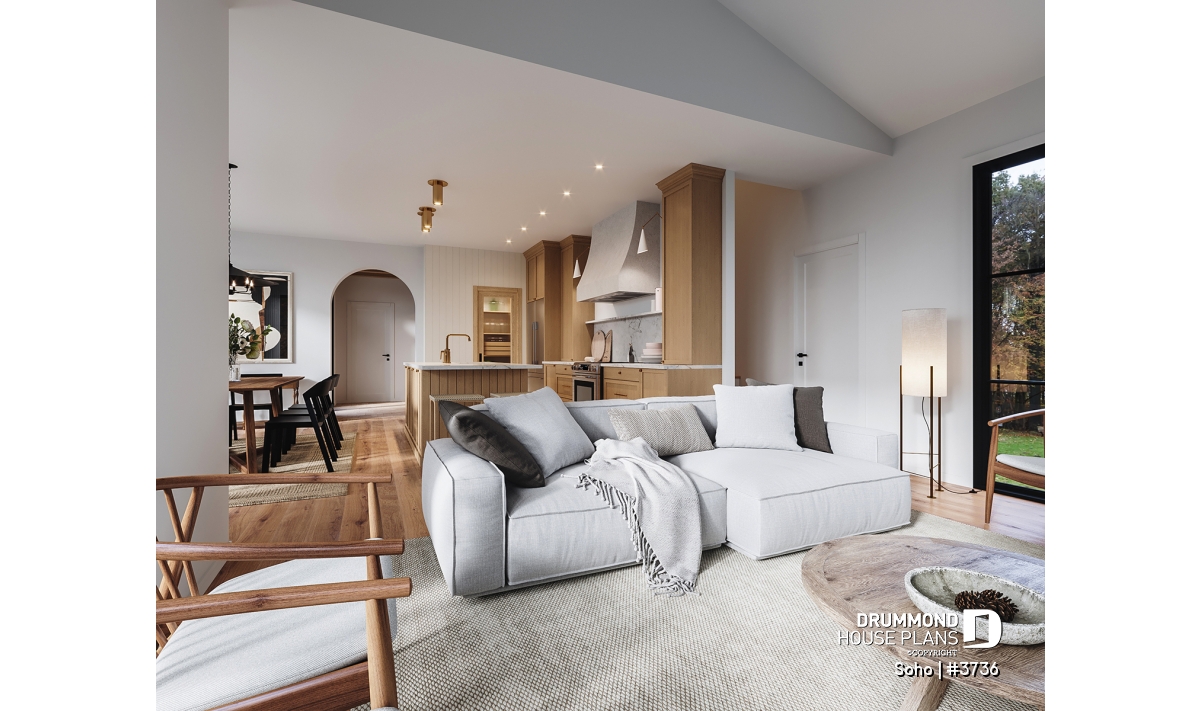

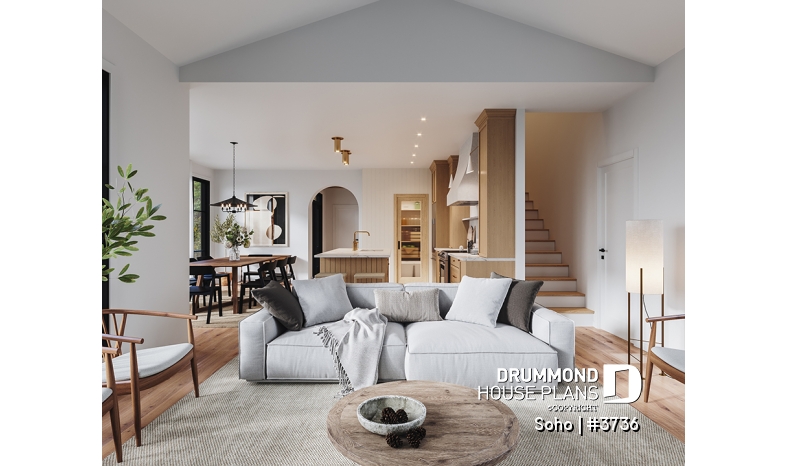

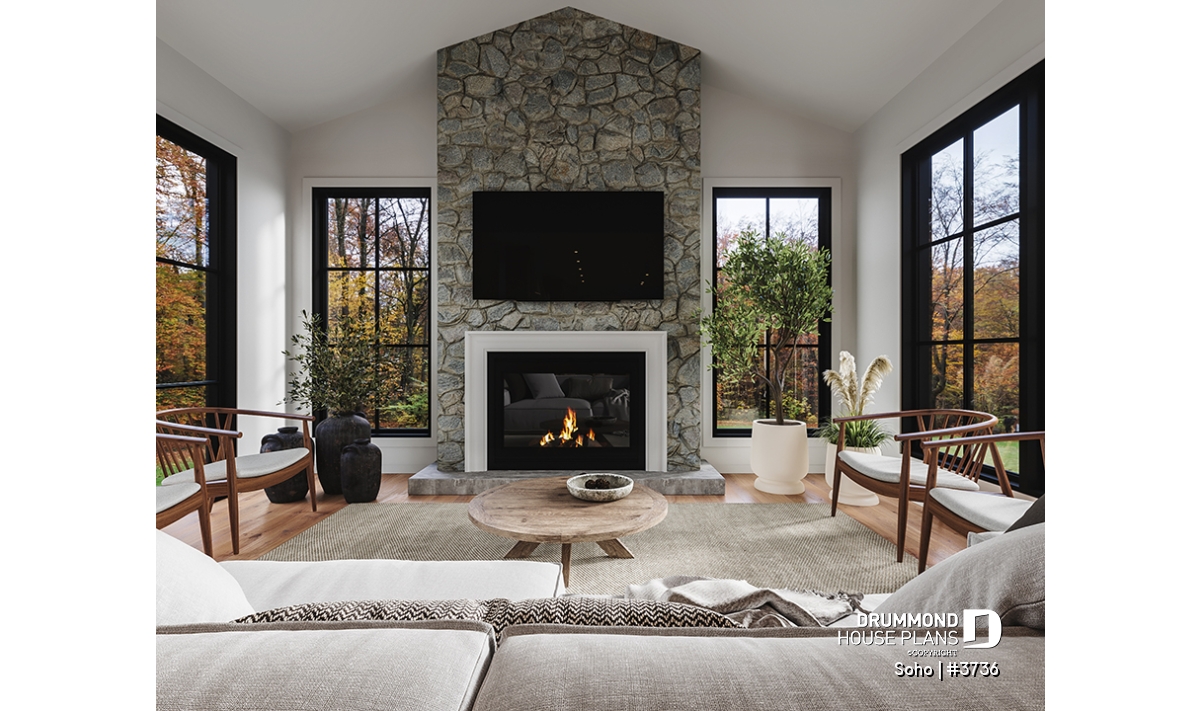

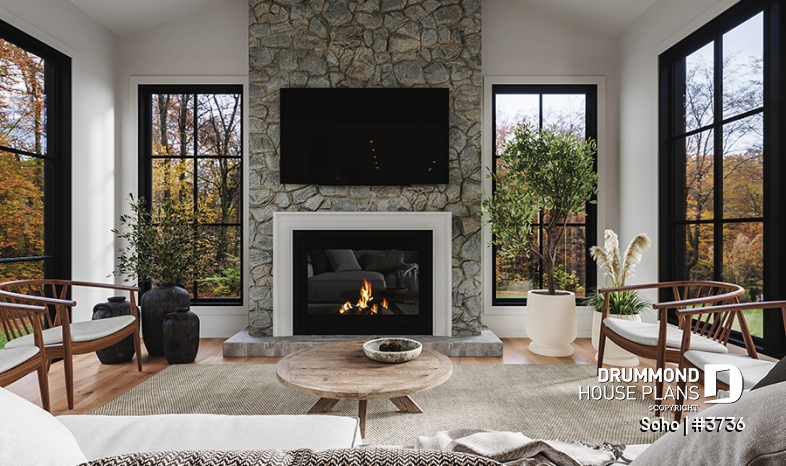

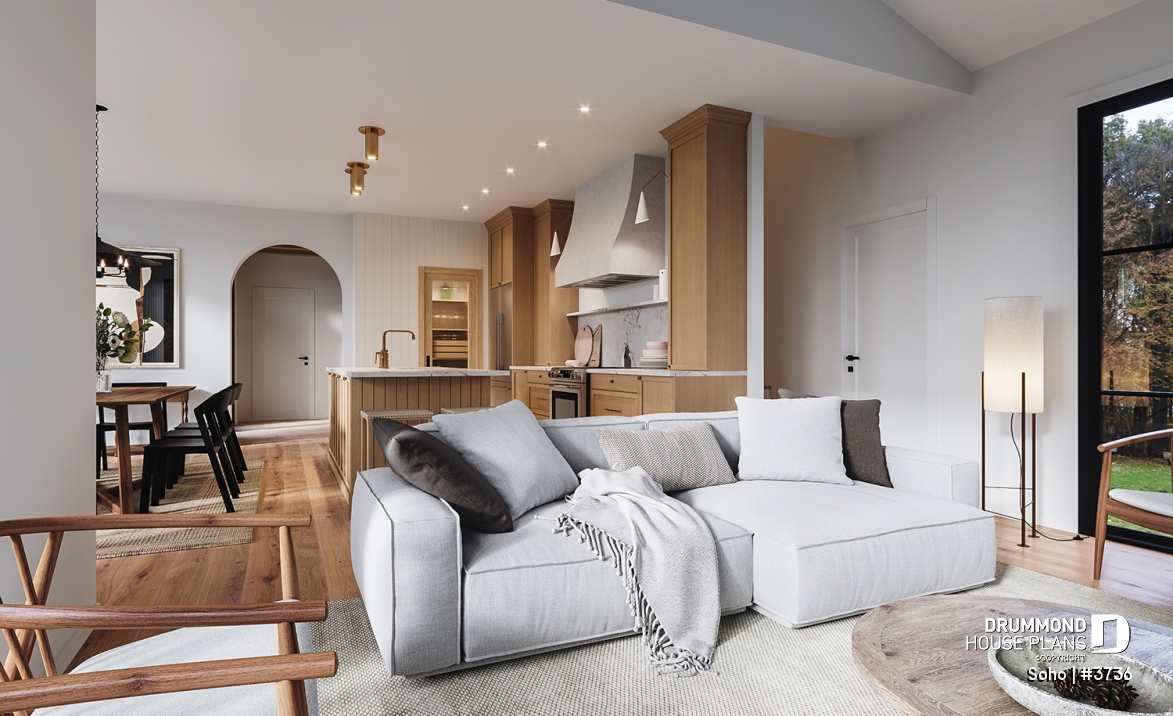

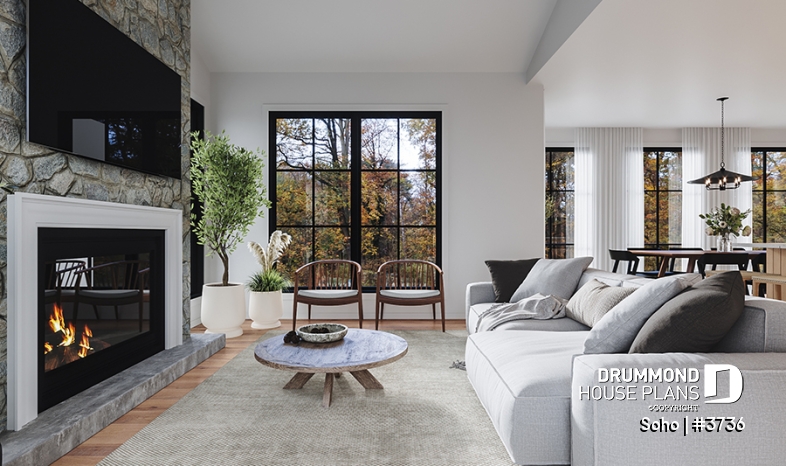

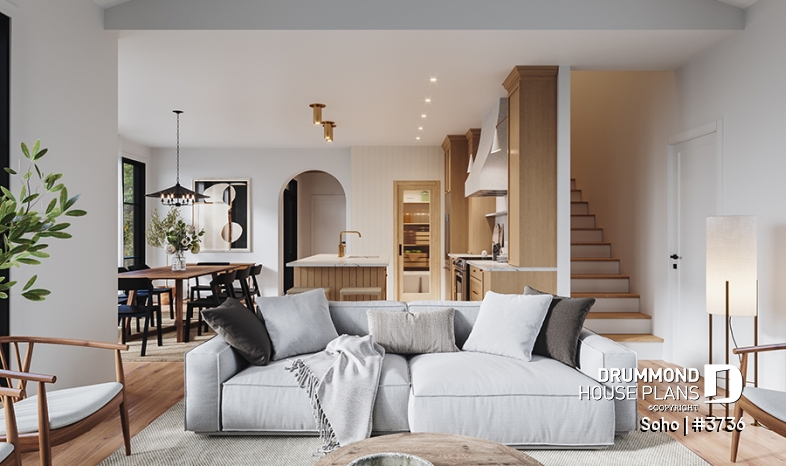

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

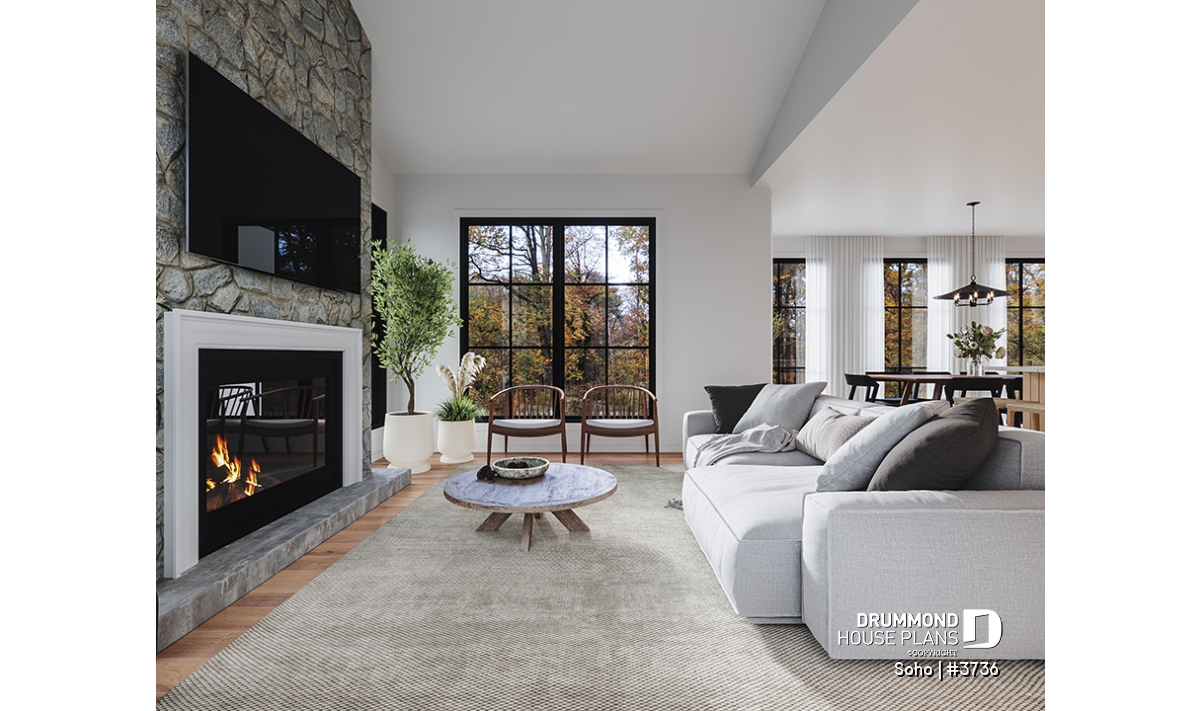

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

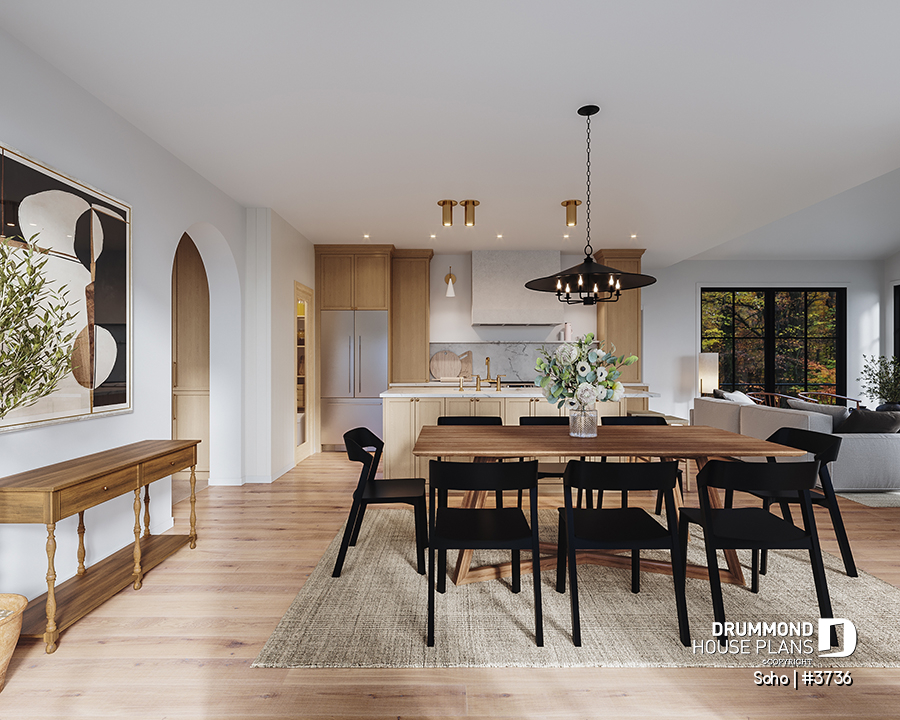

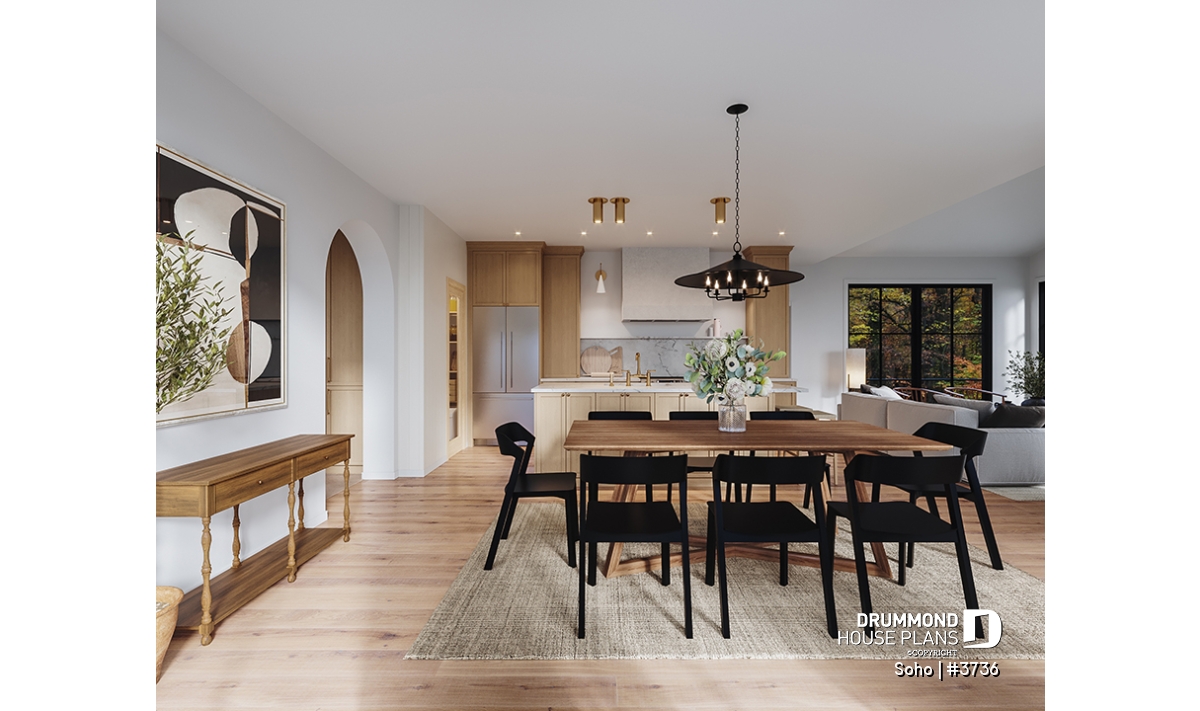

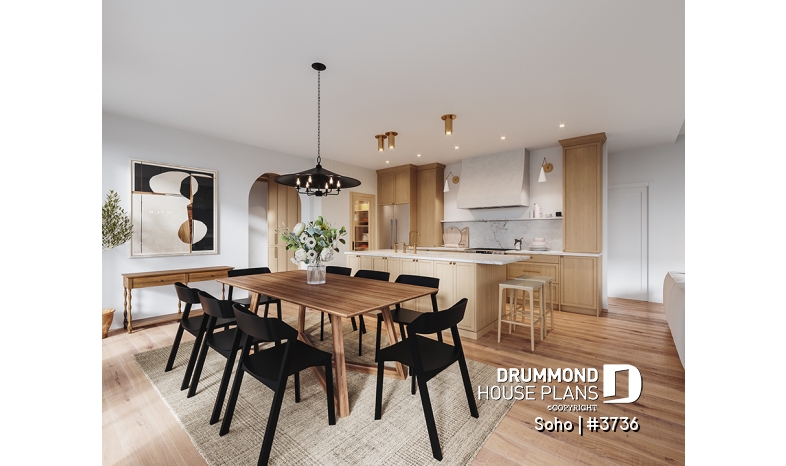

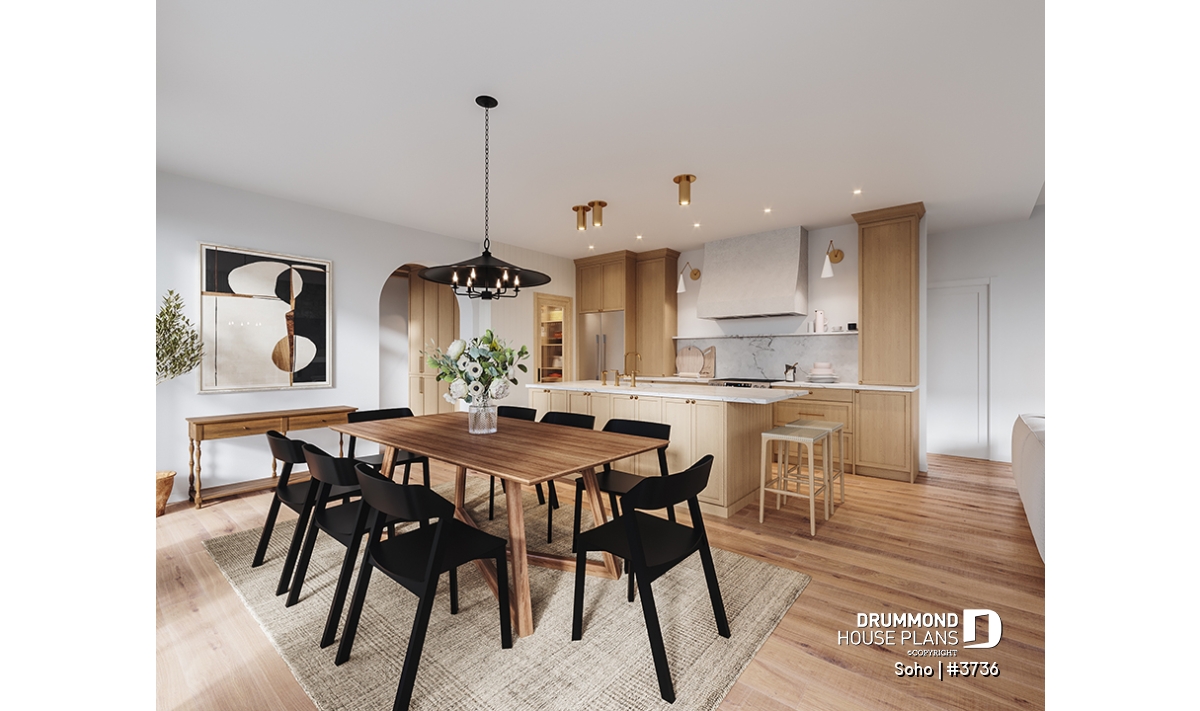

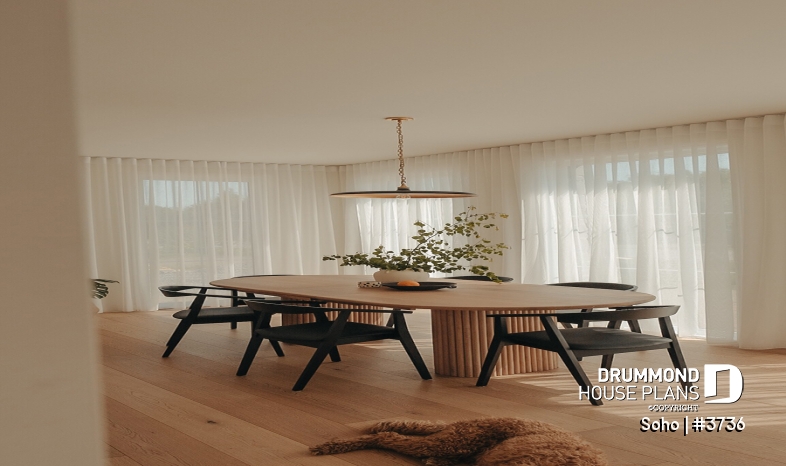

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

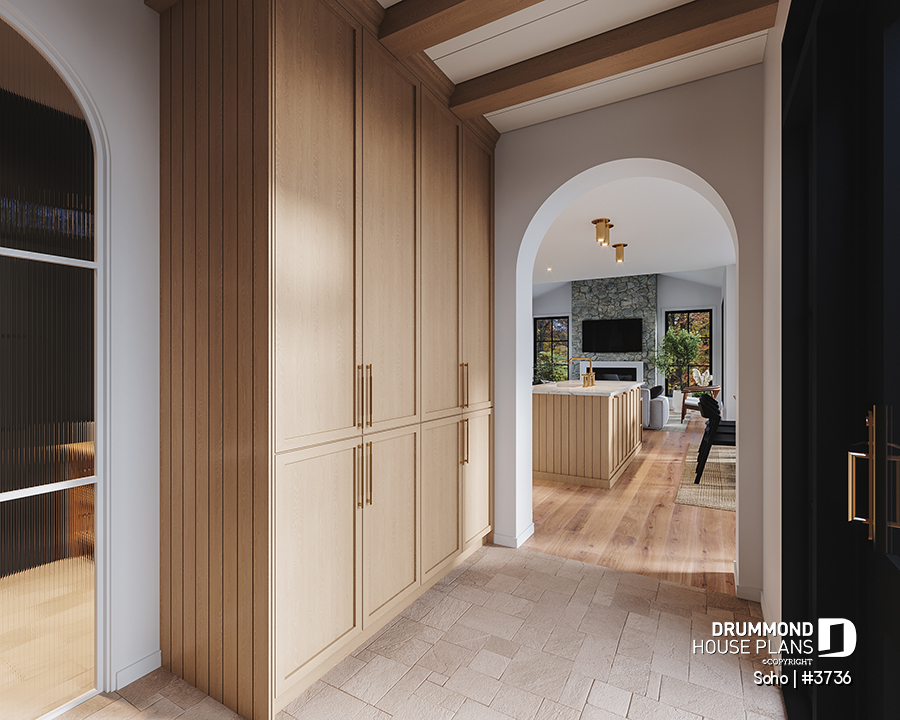

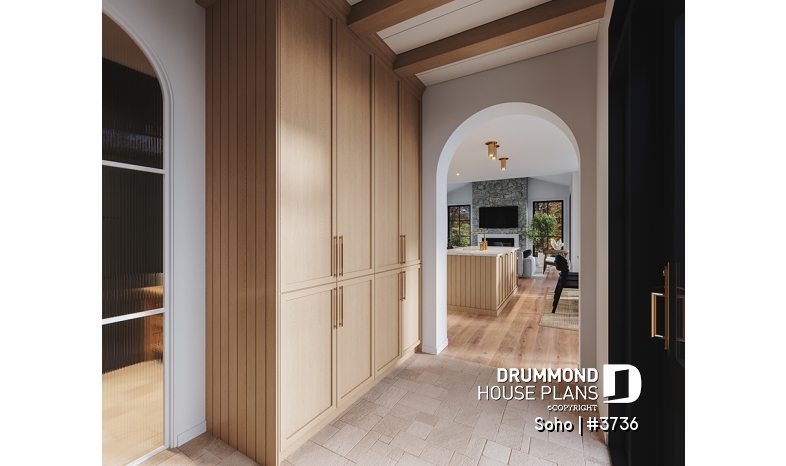

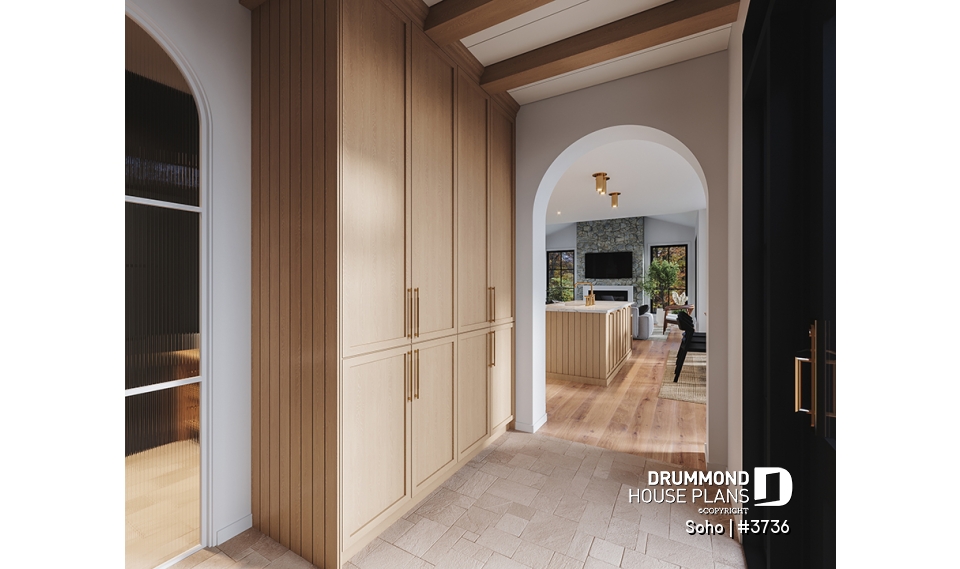

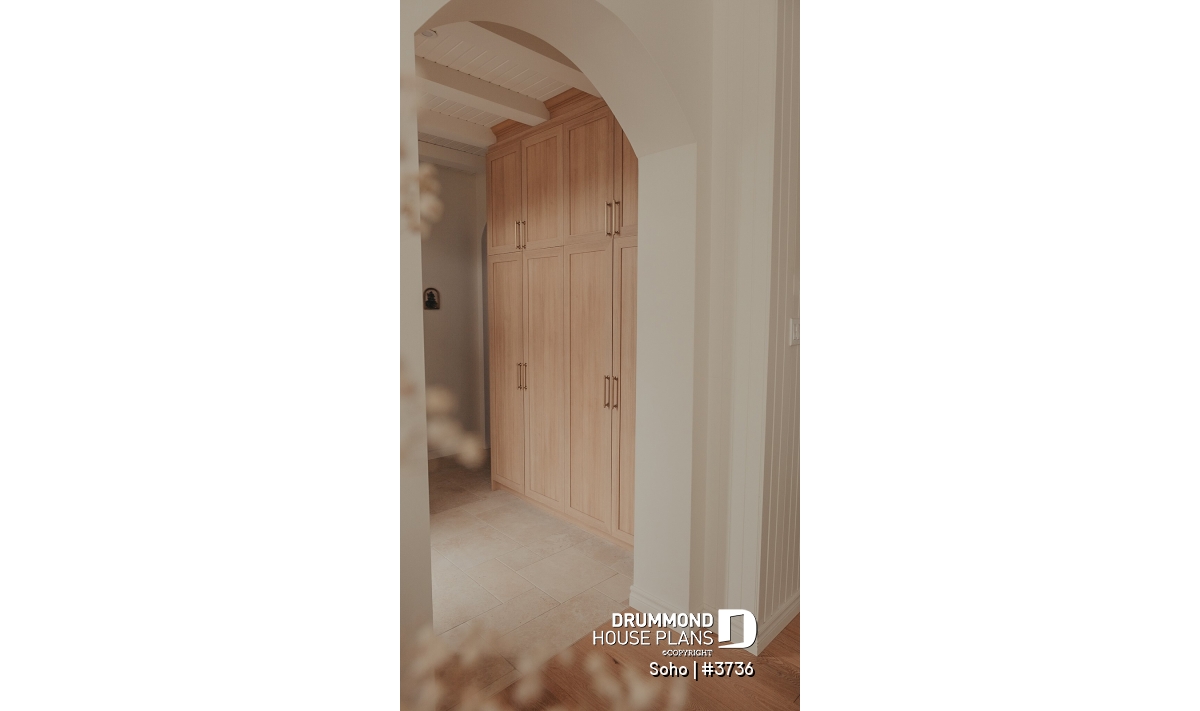

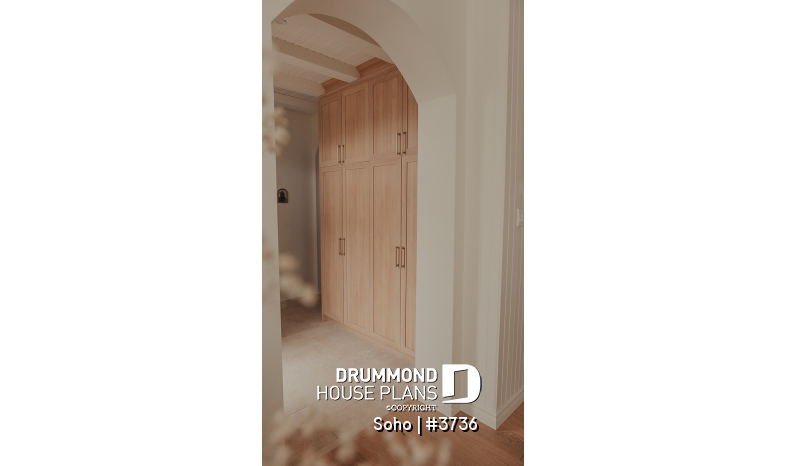

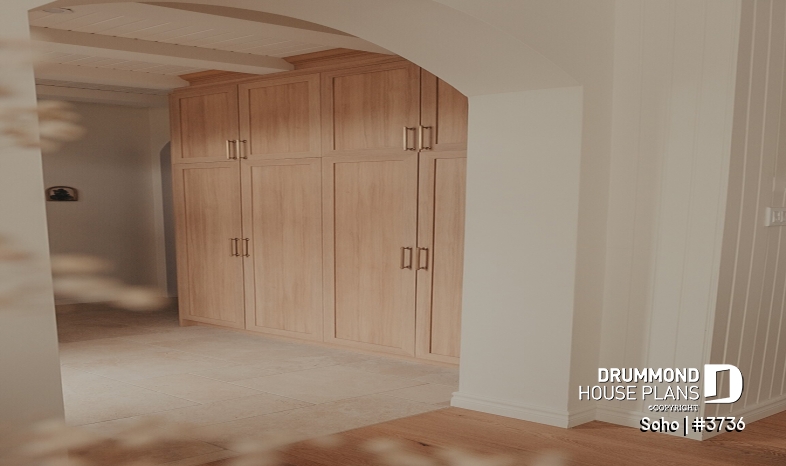

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

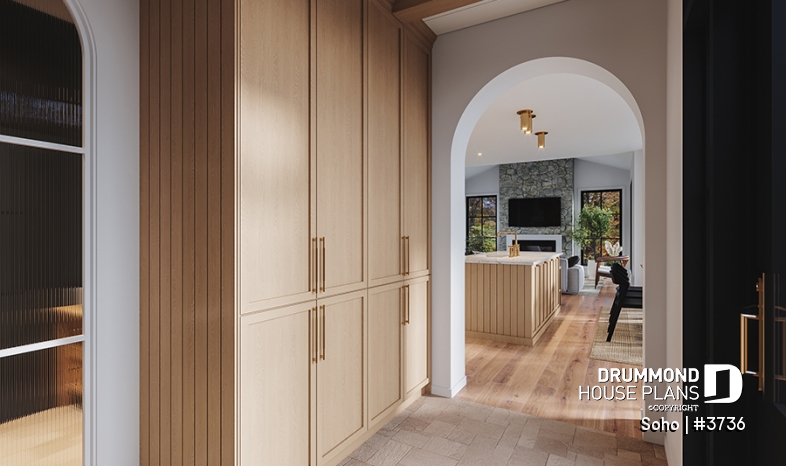

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

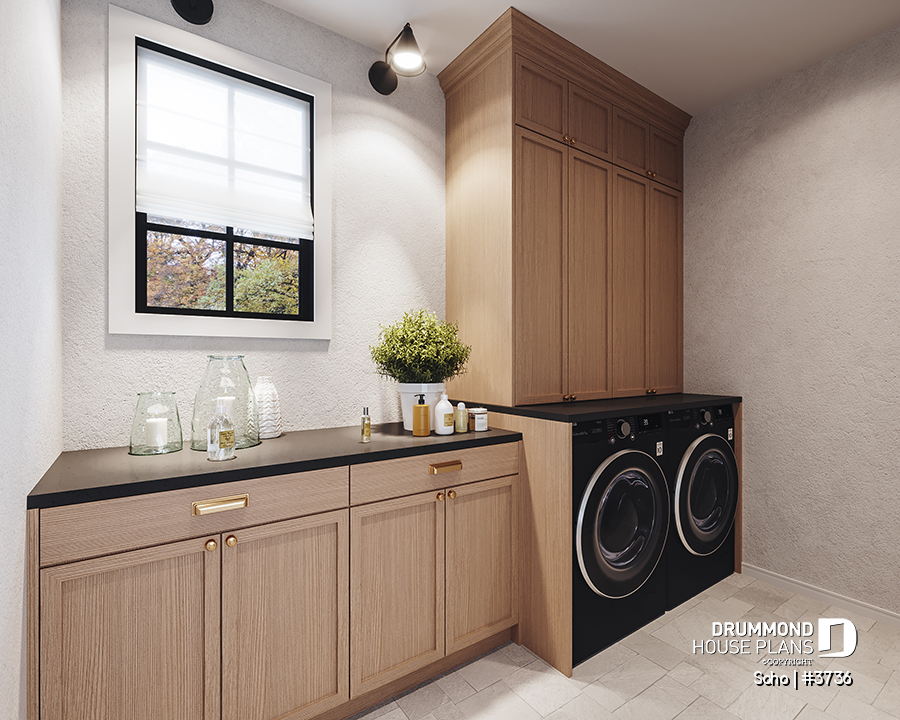

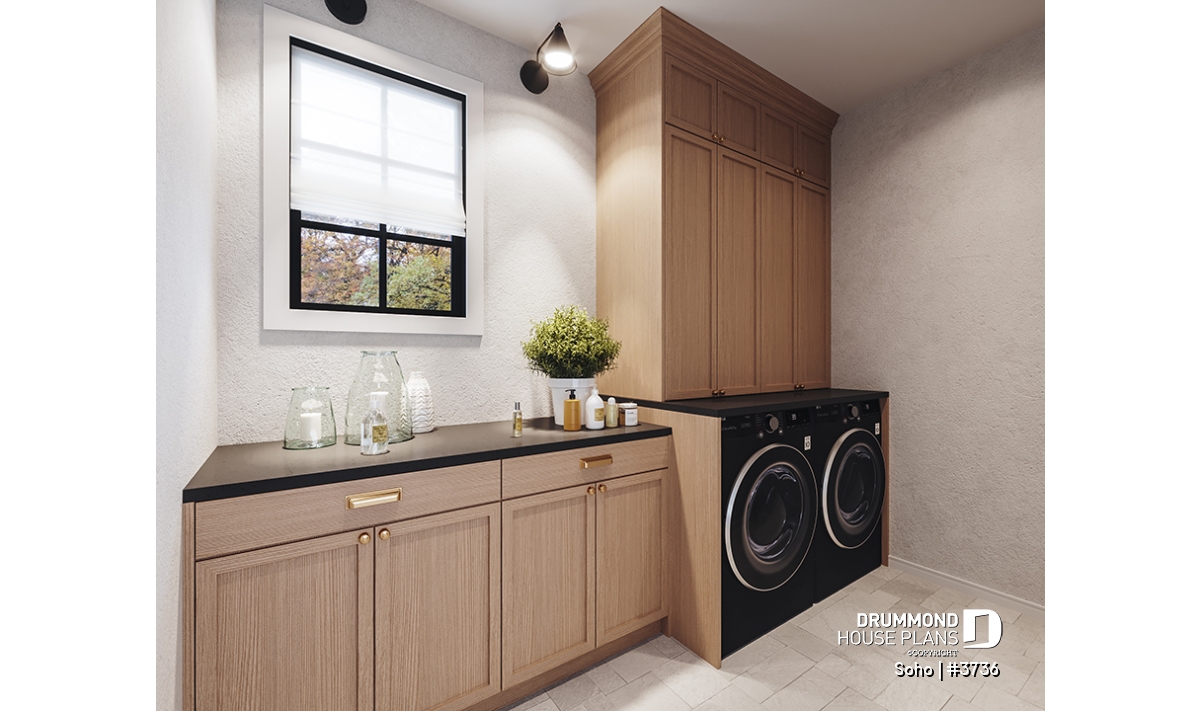

Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

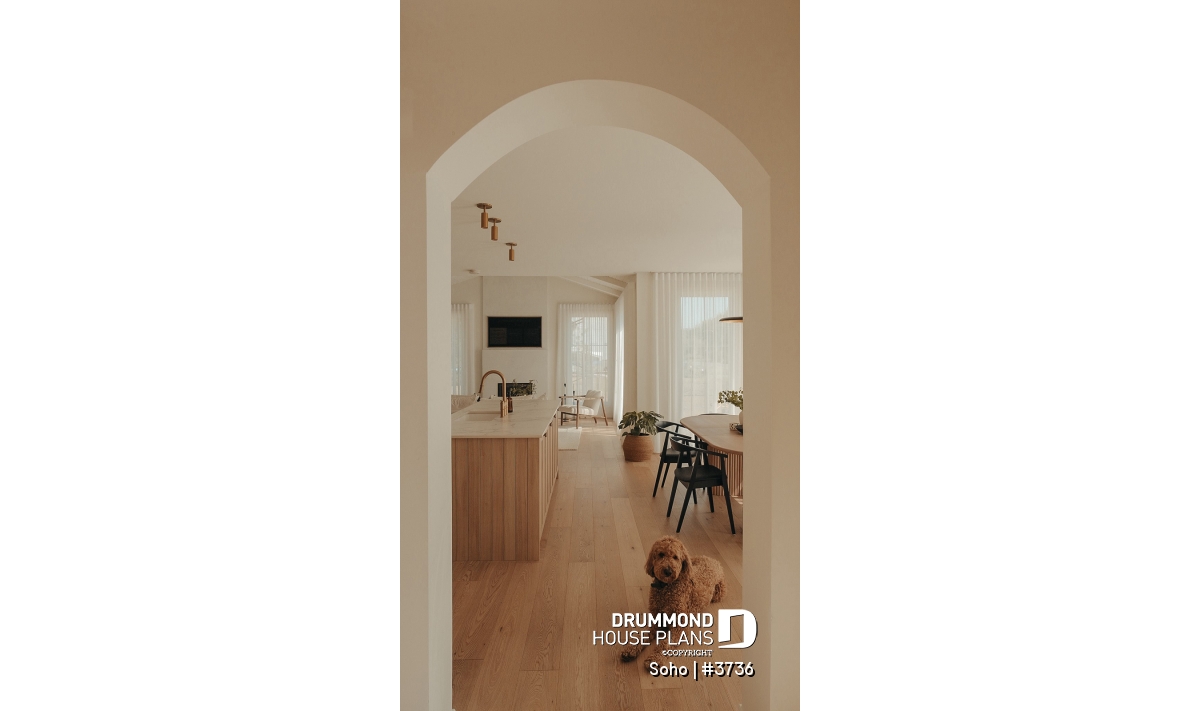

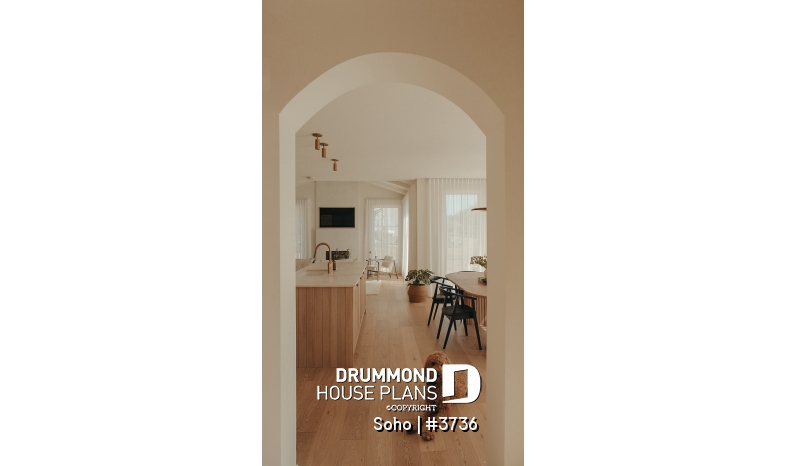

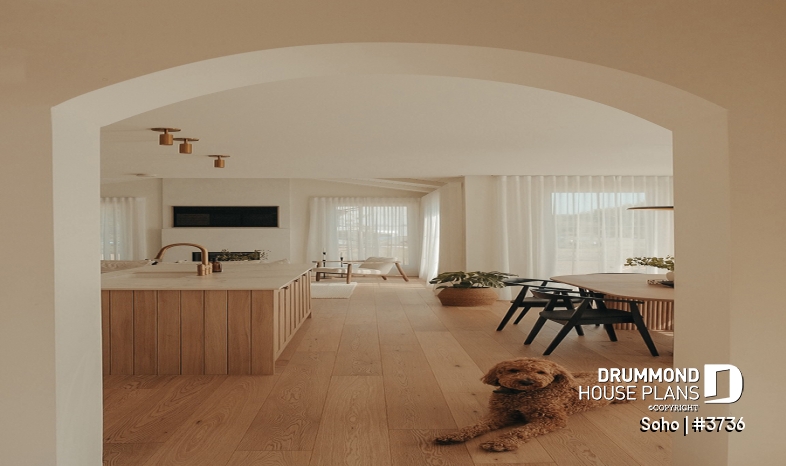

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Well-appointed compact house for a family of 4 people with 3 bedrooms + office!
.
Distinctive elements
Transitional-inspired house, offering noble materials such as stone on the facade and on the fireplace.
The floors are 9' on the ground floor, except in the living room.

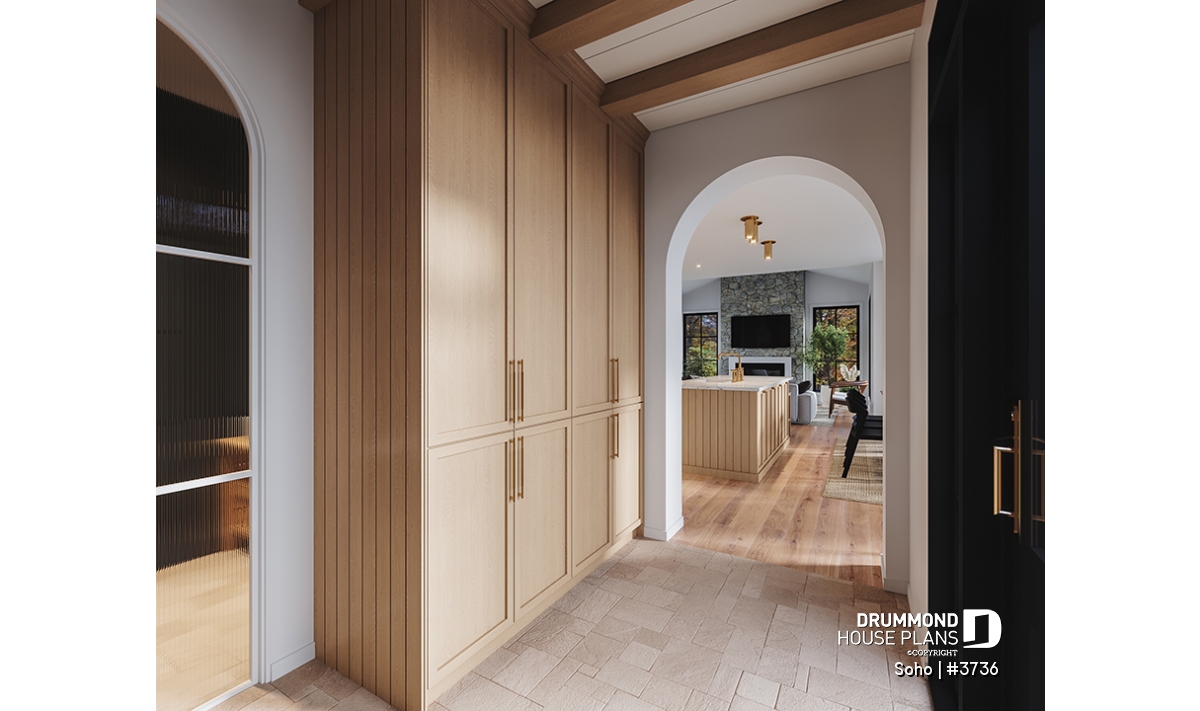

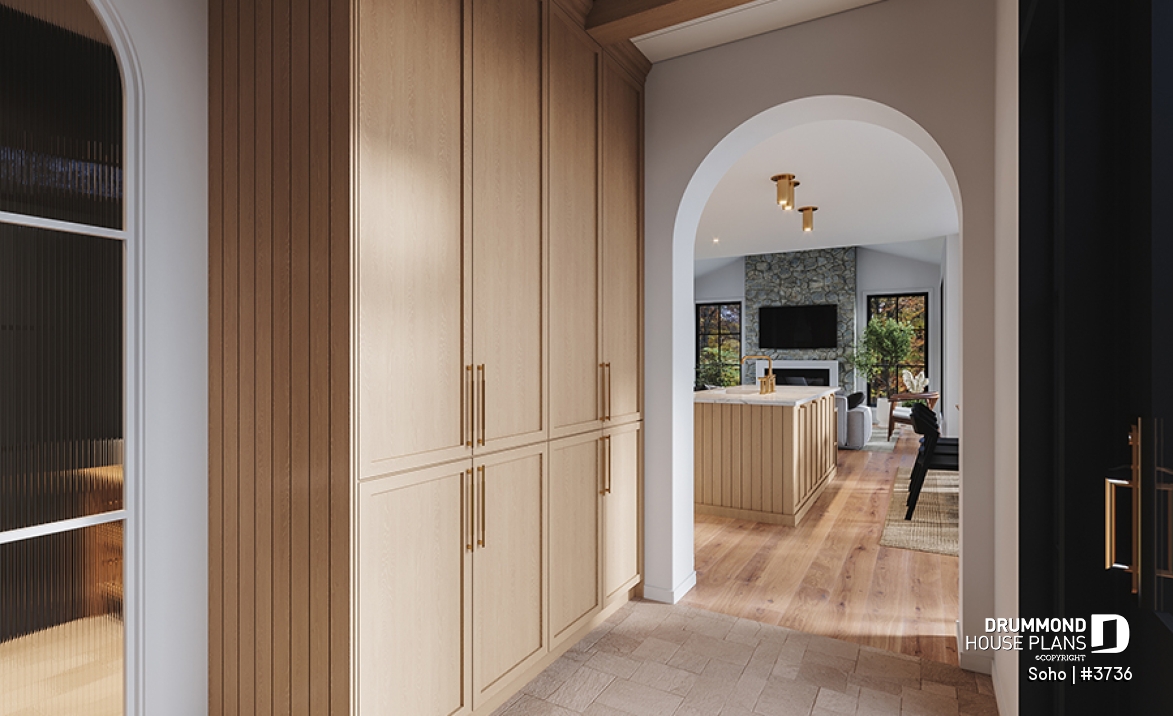

Beautiful arch between the main entrance and the kitchen / dining area.
Kitchen with lots of cabinets, a pantry and an island.
Practical laundry room, on the ground floor.
11'10'' cathedral ceiling and fireplace in the living room.
Parents' bedroom is on the ground floor and has its own private shower room, as well as a walk-in closet.
The 2 bedrooms upstairs share a full bathroom.
The large office upstairs could become bedroom #4.
Storage provided above the garage and accessible by a staircase (sloping ceiling in this sector).

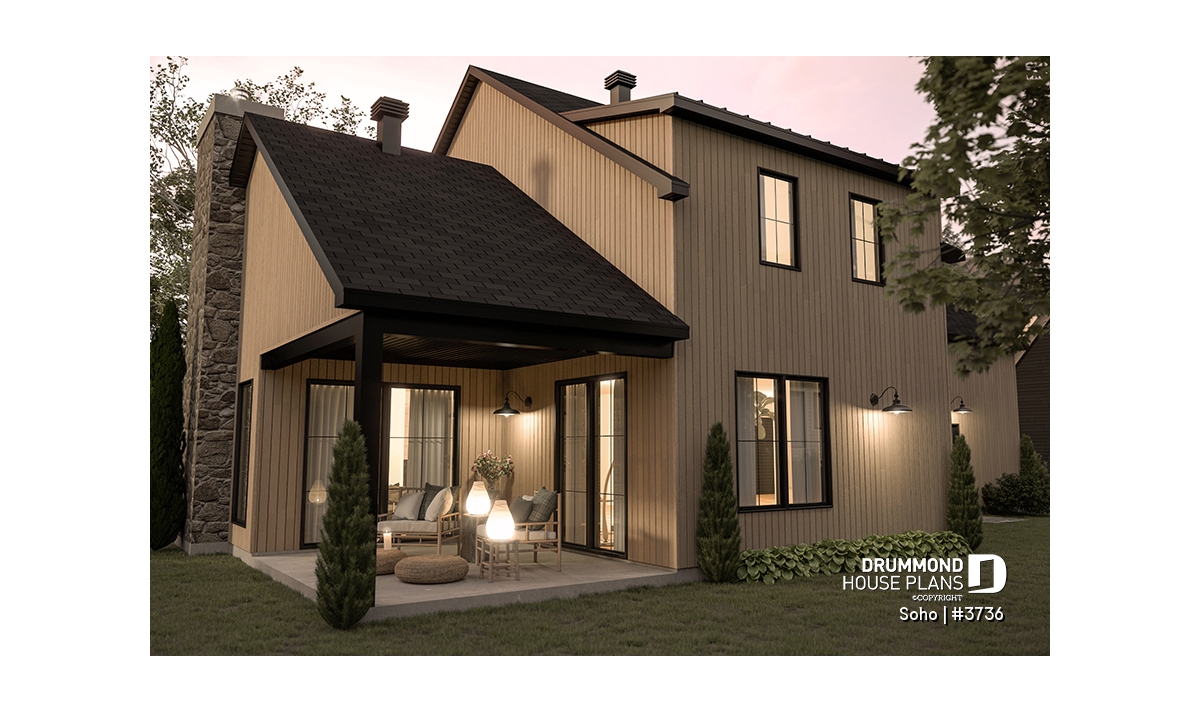

The sheltered terrace offers 188 sq.ft. of floor that could easily accommodate a dining room or a lounge area.
Plan feature(s)
Open floor layout, Living bonus space, Fireplace, Pantry, Island, Cathedral ceiling, Gound floor laundry room, Master suite on main, Deck, Office / Study / Den, Arch, Self-Build
Plan architectural style(s)
. Transitional, . European, Modern farmhouse, Modern Craftsman, . Modern / Design, . Contemporary, Trending
