House plan Essex (3883)
Modern Cube shaped house plan, master suite, 4 bedrooms, open floor plan, home office, 2-car garage, pantry
View the size of the rooms and height of the ceilings

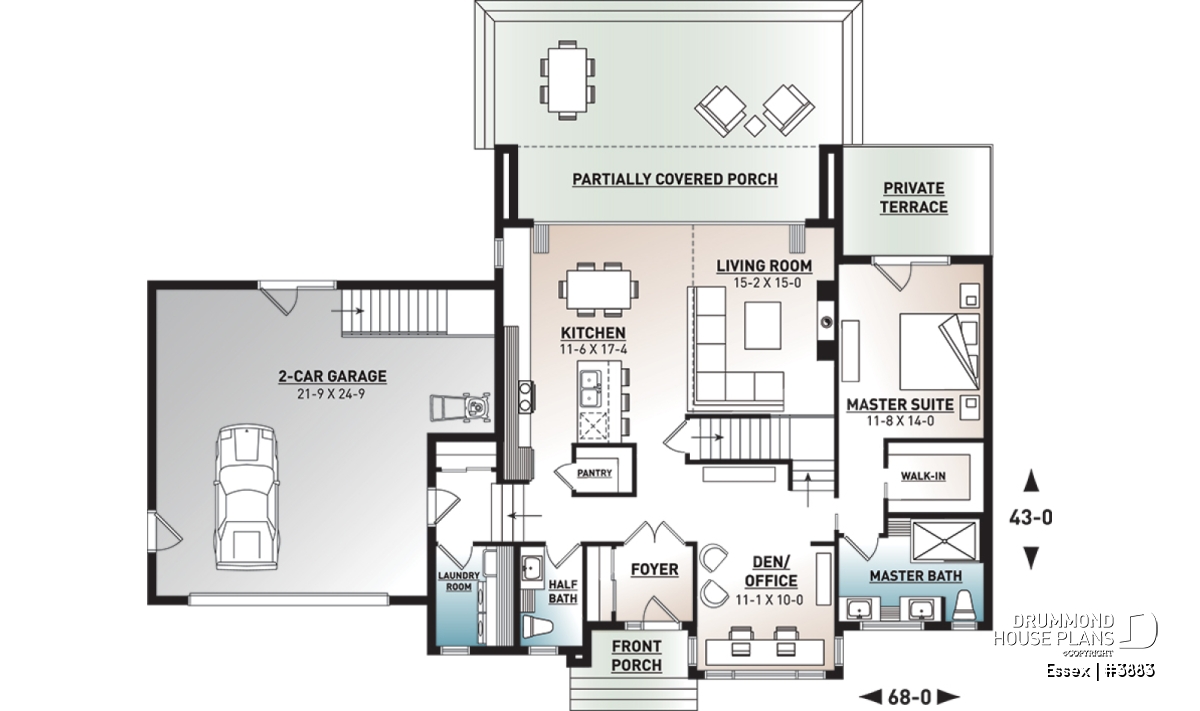

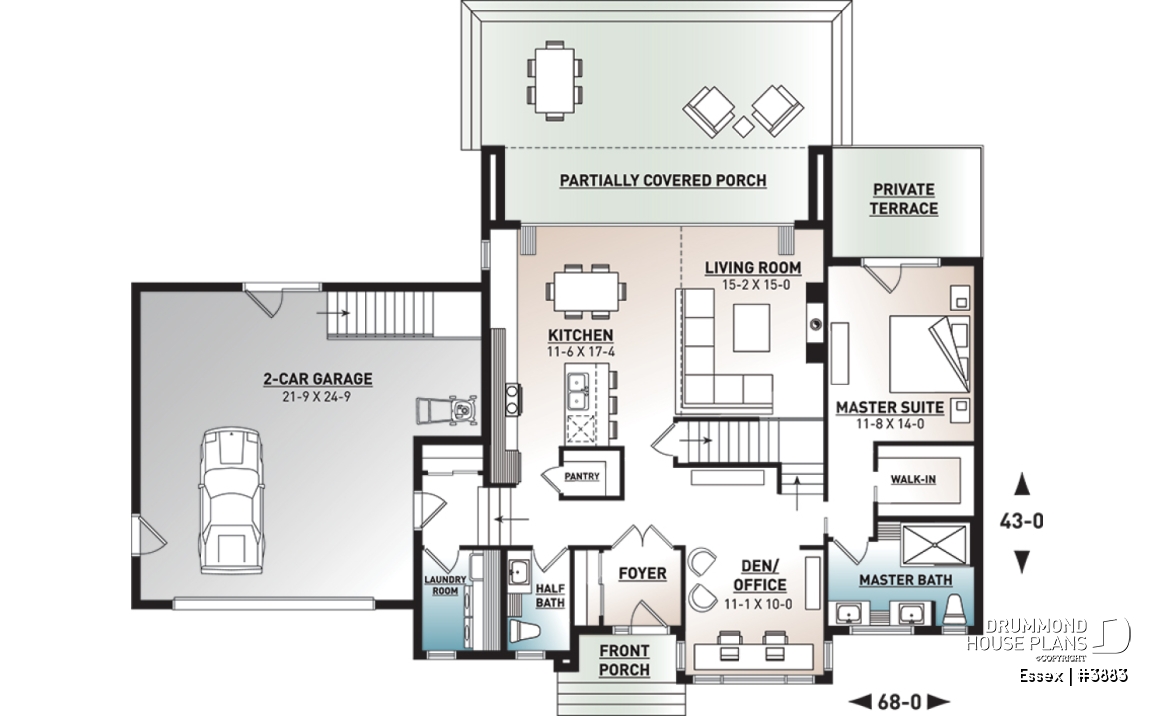

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 11'8" x 14'0" | ~ 9'0" |
| Shower room or three quarter bath | 11'8" x 8'3" | ~ 9'0" |
| Walk-in closet | 7'8" x 5'6" | ~ 9'0" |
| Living room | 15'2" x 15'0" | ~ 18'0" |
| Home office | 11'0" x 10'0" | ~ 9'0" |
| Foyer | 6'3" x 6'0" | ~ 9'0" |
| Closet | 2'0" x 6'0" | ~ 9'0" |
| Powder room | 5'0" x 8'0" | ~ 9'0" |
| Garage | 21'9" x 24'9" | ~ 10'0" |
| Kitchen/dining room | 11'6" x 17'4" | ~ 9'0" |
| Pantry | 4'6" x 3'8" | ~ 9'0" |
| Laundry room | 6'2" x 8'0" | ~ 11'0" |
| Covered porch | 24'8" x 6'0" | N/A |
| Covered porch | 8'0" x 4'0" | N/A |
| Closet | 5'0" x 2'0" | ~ 11'0" |
| Terrace | 12'0" x 9'0" | N/A |
| Carport | 0'0" x 0'0" | N/A |
| Mud room | 4'8" x 4'8" | N/A |

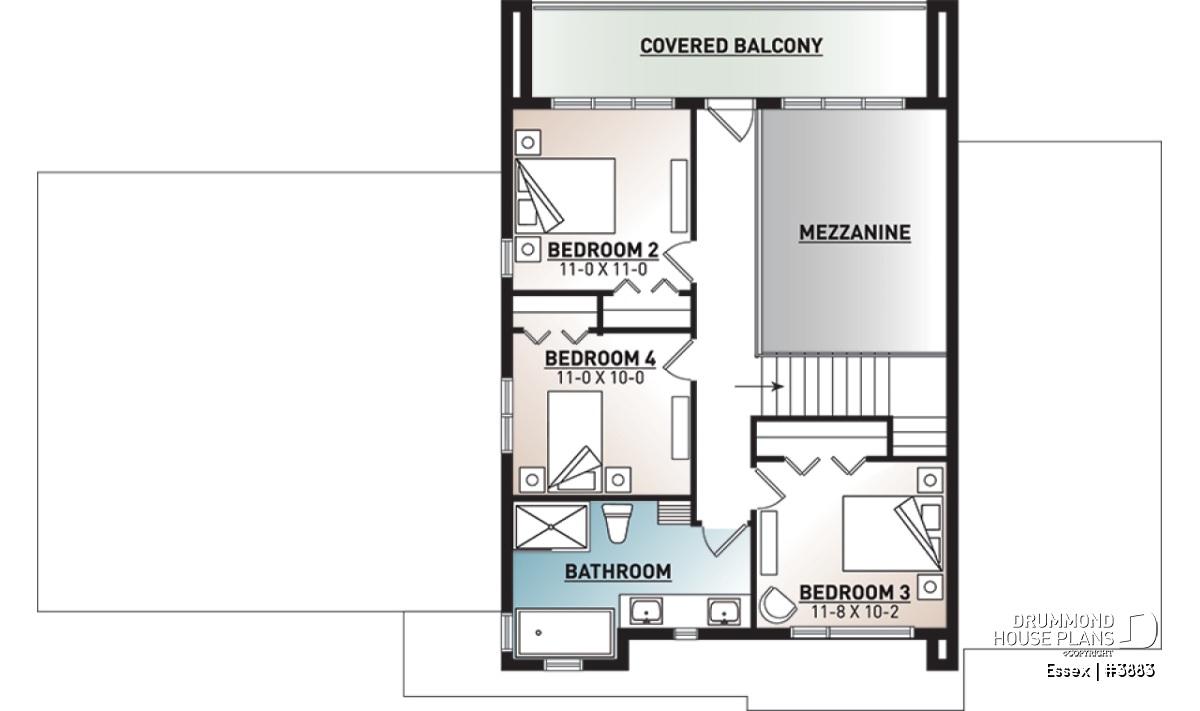

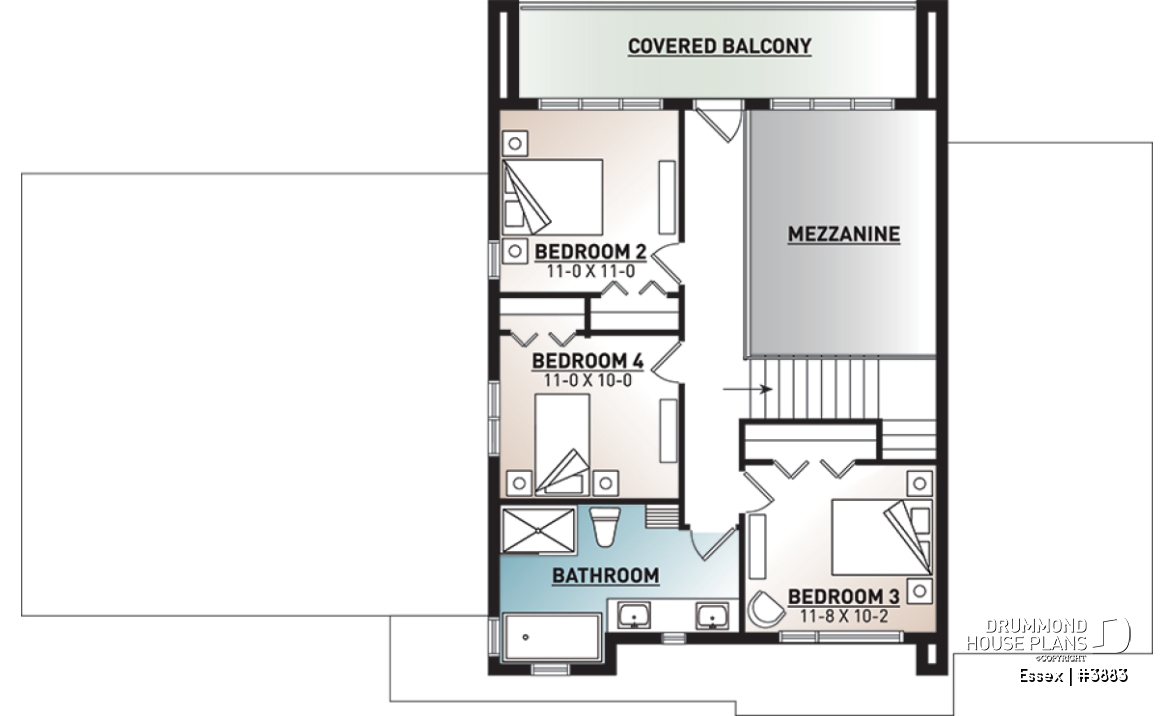

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Closet | 5'5" x 2'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 9'0" |
| Closet | 5'2" x 2'0" | ~ 8'0" |
| Bedroom | 11'8" x 10'2" | ~ 8'0" |
| Closet | 8'0" x 2'2" | ~ 8'0" |
| Covered porch | 24'8" x 6'0" | N/A |
| Full bathroom | 14'8" x 7'8" | ~ 8'0" |
| Basement |
|---|
General specifications
| Total living area | 2142 sq.ft. |
| 1st level | 1446 sq.ft. |
| 2nd level | 696 sq.ft. |
| Basement | 1326 sq.ft. |
| Width | 68'0" |
| Depth | 43'0" |
| Ridge height from top of foundation | 22'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

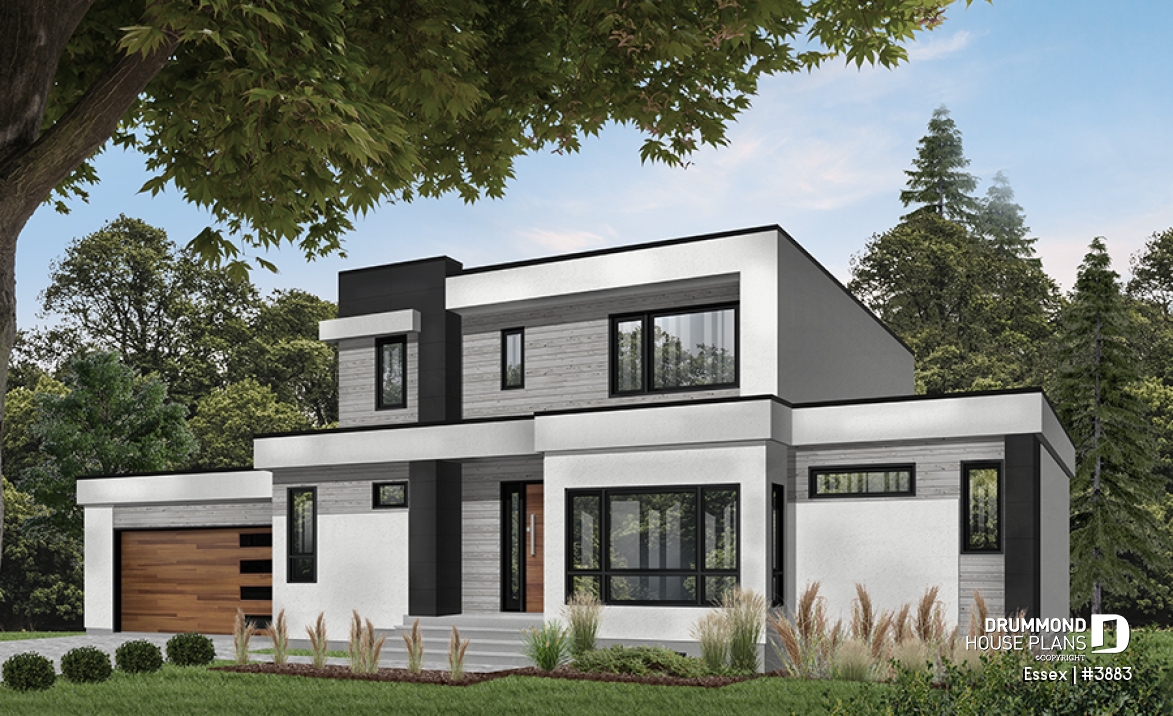

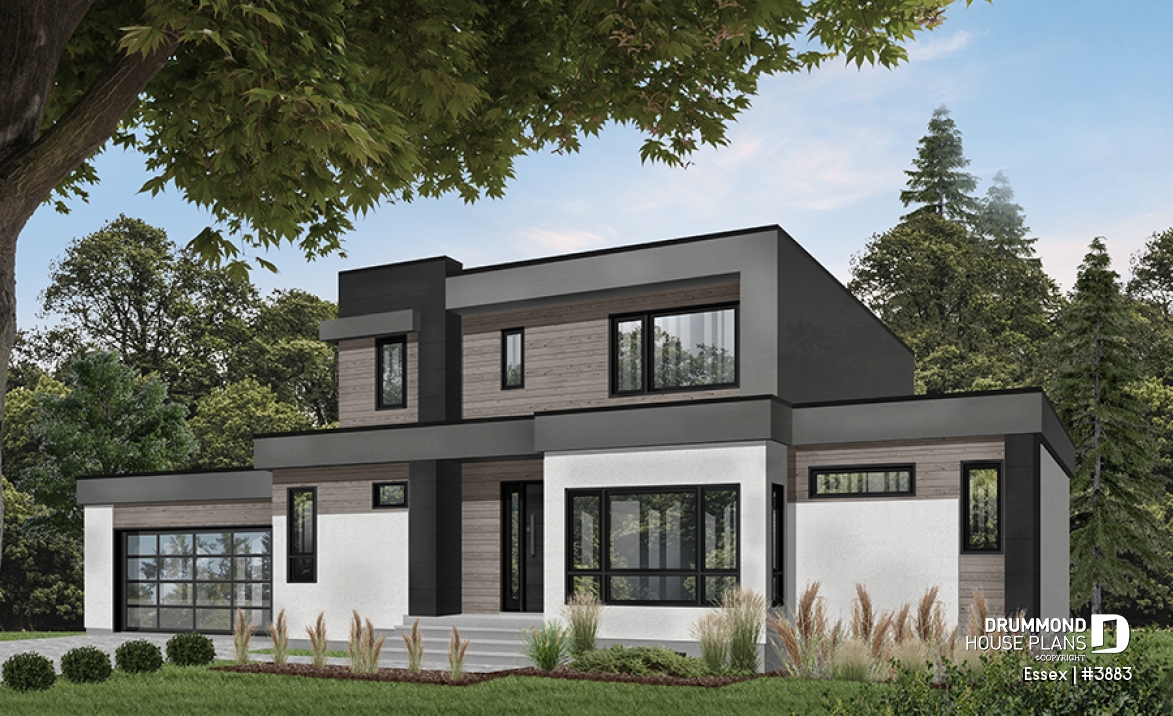

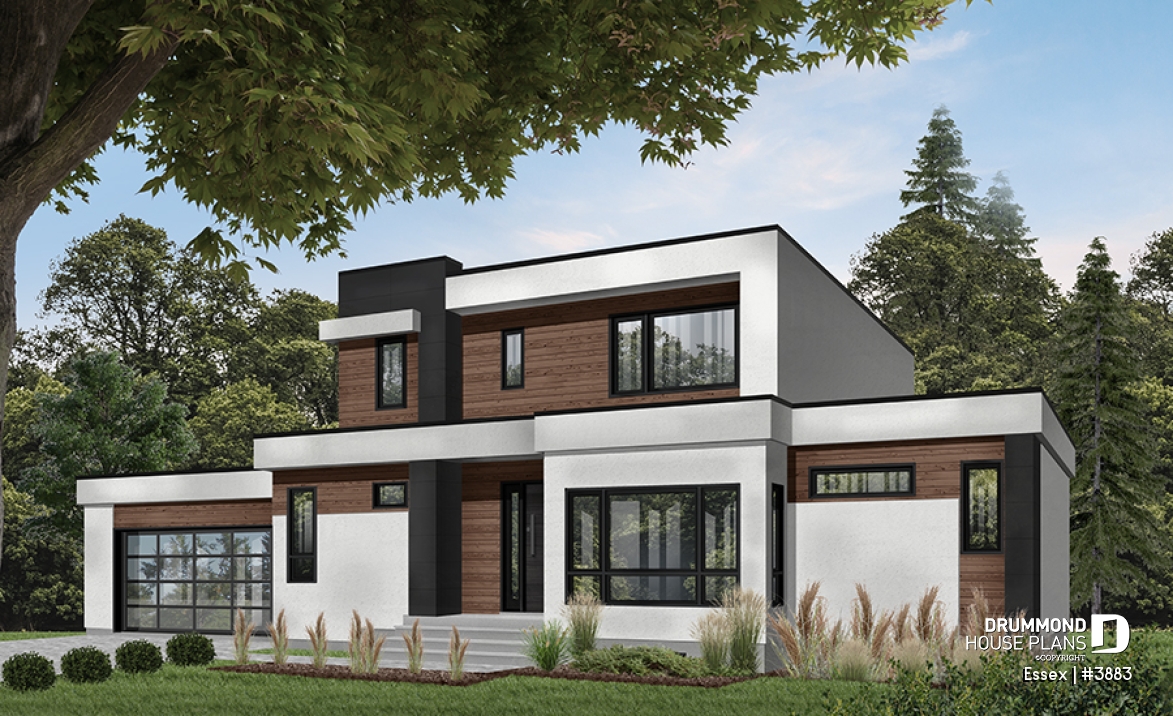

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

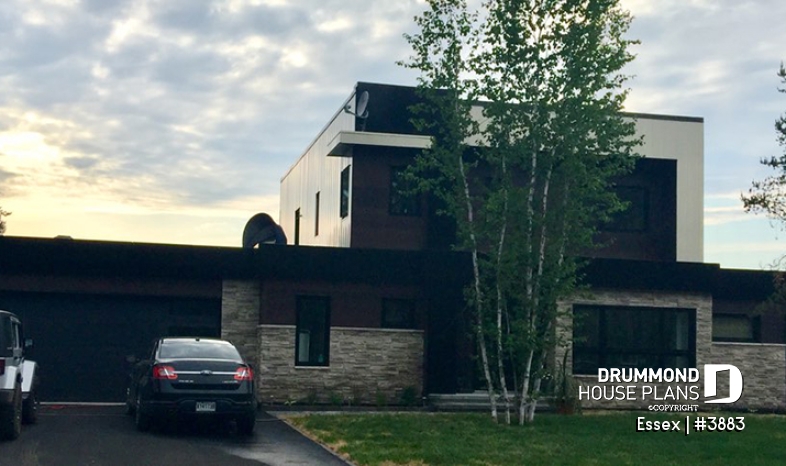

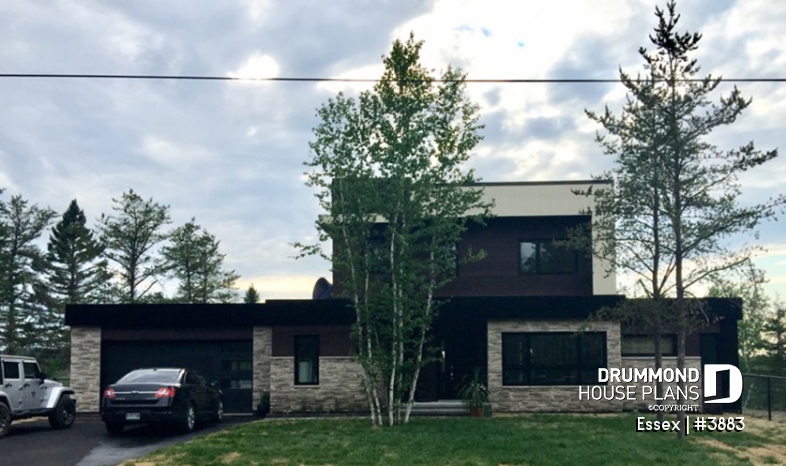

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

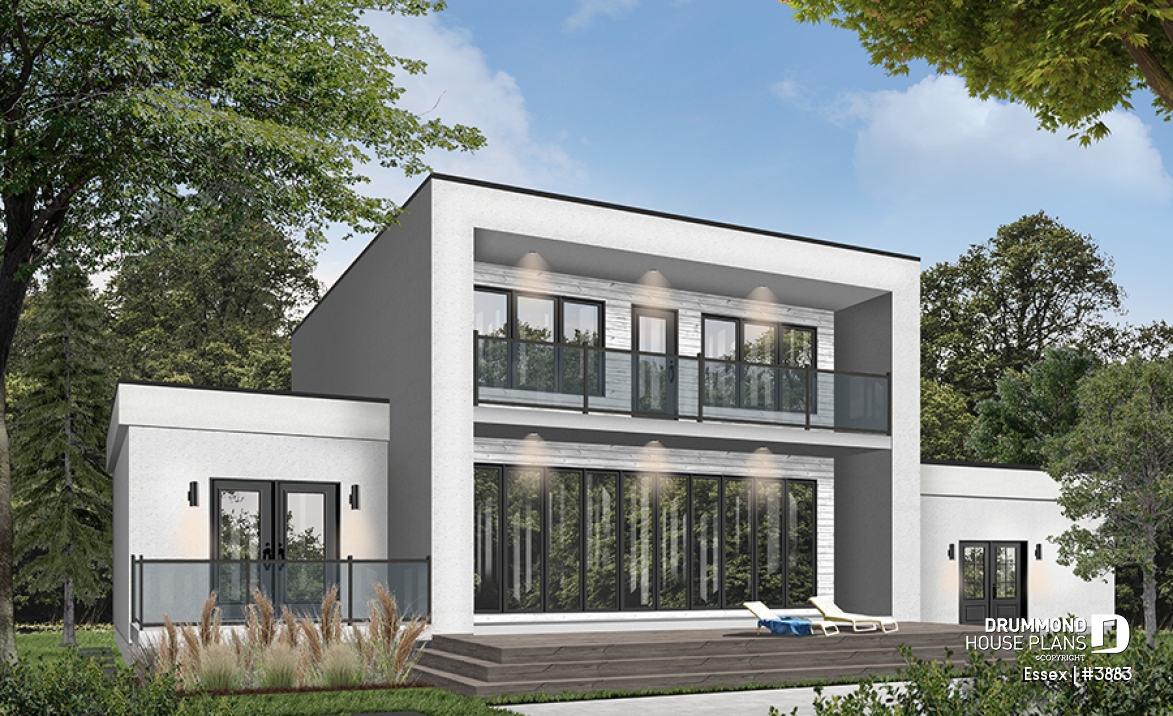

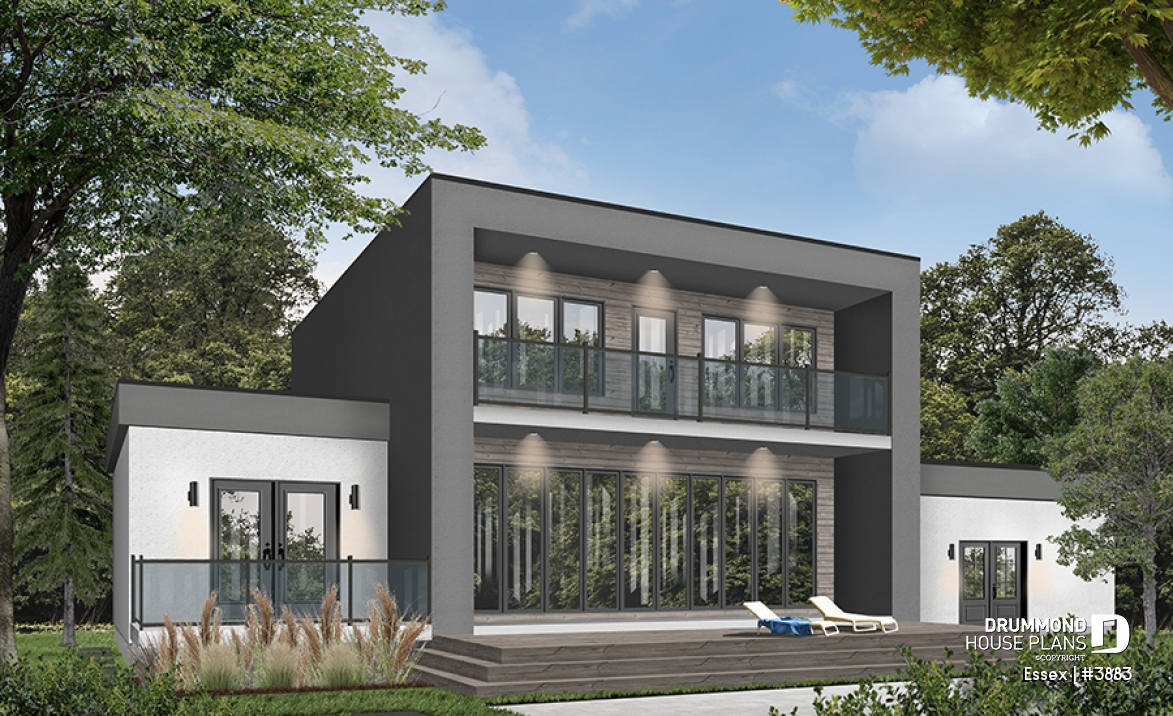

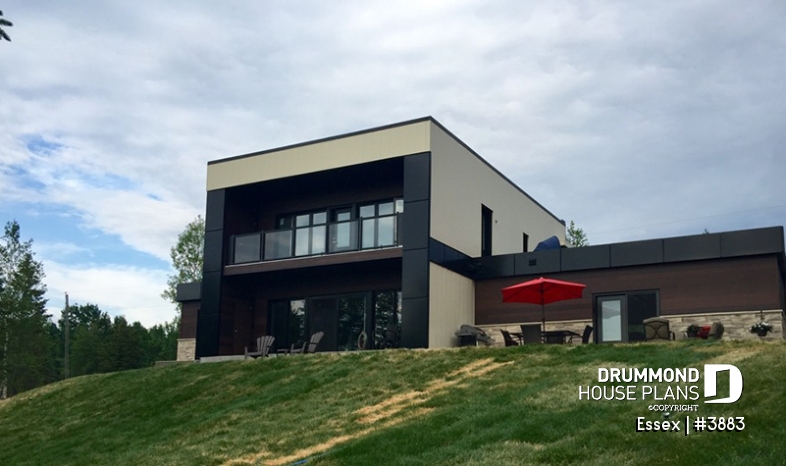

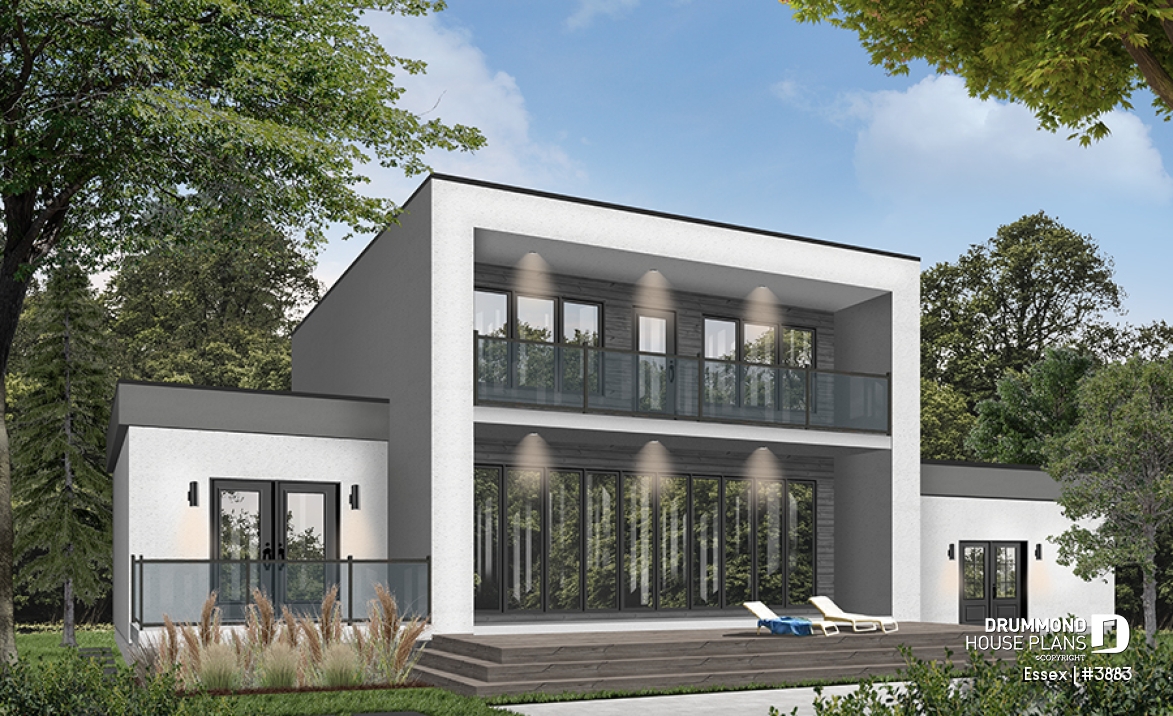

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

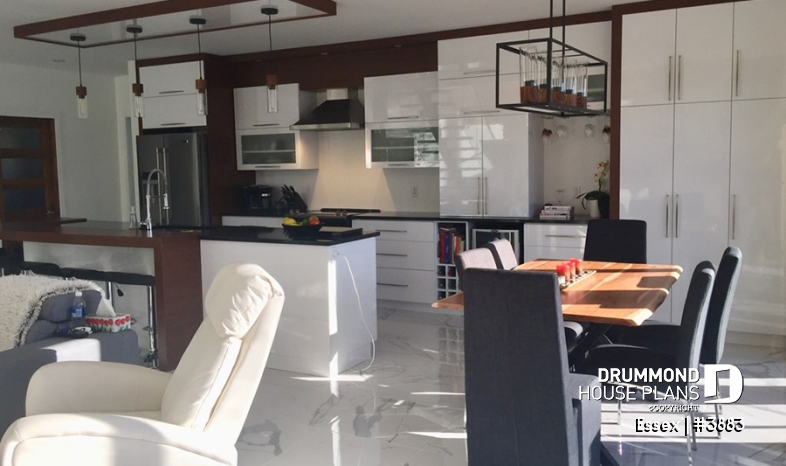

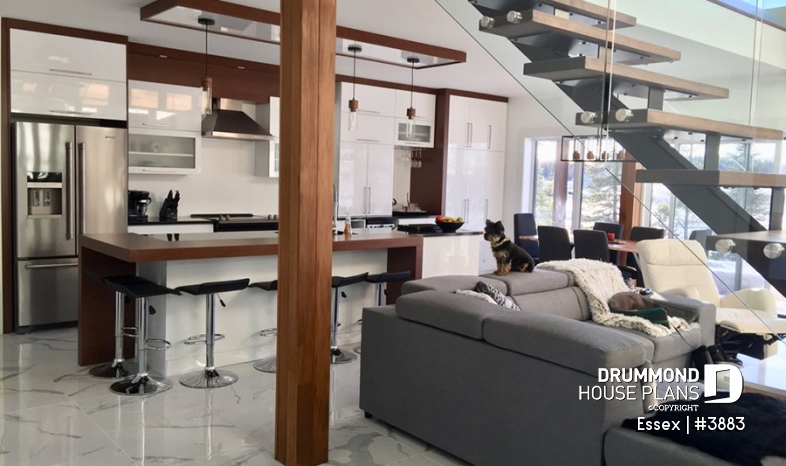

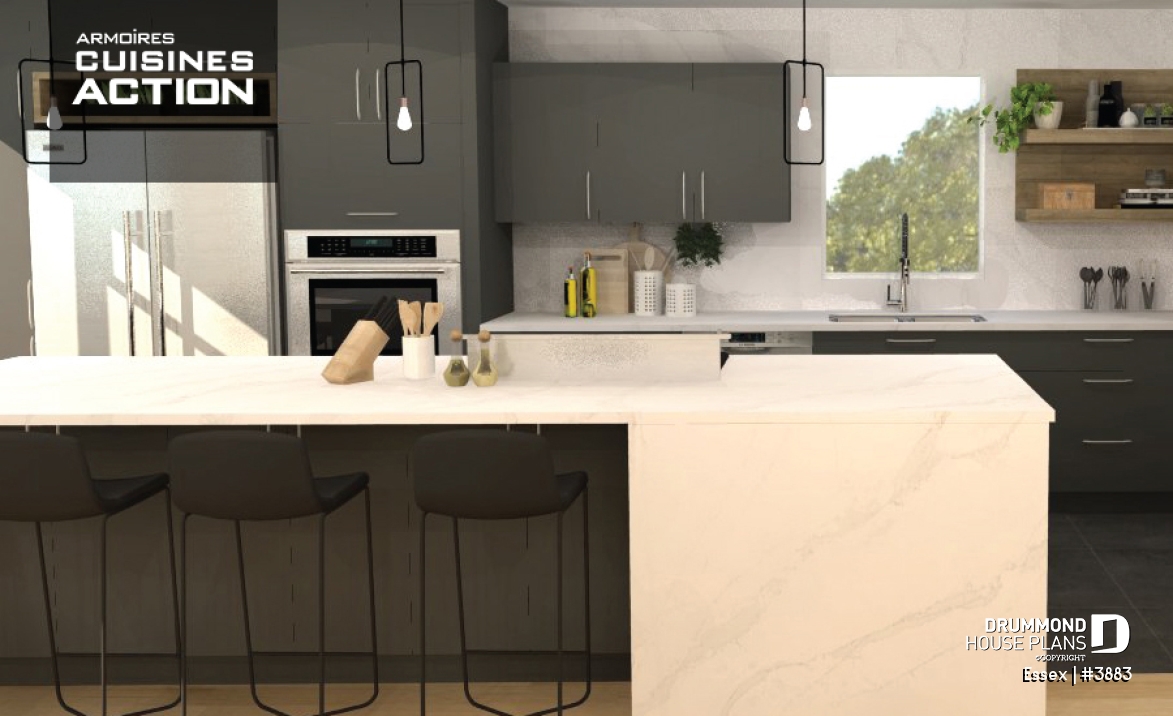

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

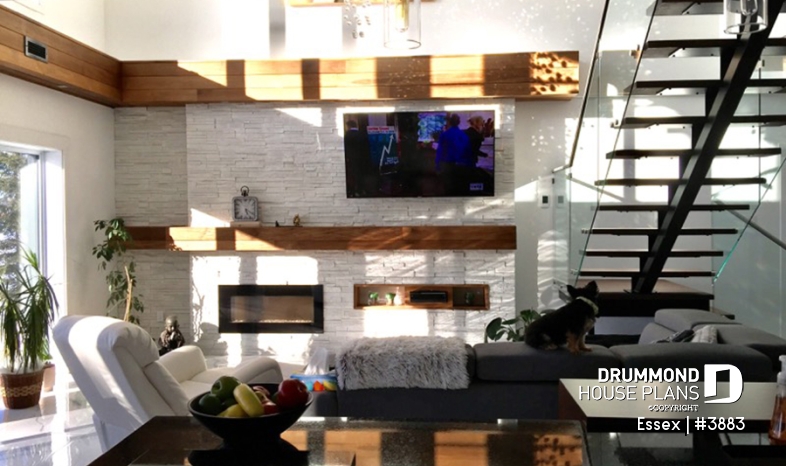

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

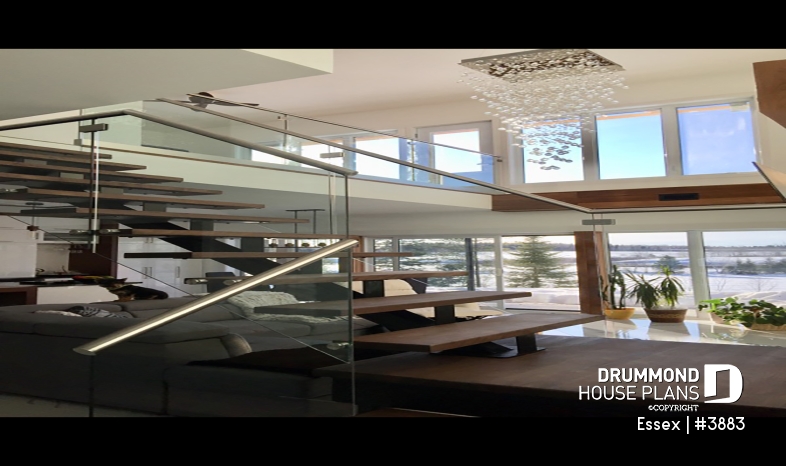

Stairs
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Modern Cube Shaped House Plan with 3 terraces, 4 to 5 bedrooms and a 2-car garage!
The sleek style of this Minimalist home design will appeal to our forward-thinking customers that seeks to distinguish themselves. Offering 4 to 5 bedrooms, including a master suite on the main floor, this house floor plans will appeal to families with several children as well as blended families.
There is a 9’ ceiling throughout the main floor and a 18' ceiling in the living room area. The entrance hall features a practical coat closet, perfect for rainy days! A home office is located near the main entrance of the house and could also be easily converted into a nursery, bedroom #5 or a playroom, depending on your needs. The master suite is conveniently situated on the ground floor and will appeal to families with older children or teenagers. The master suite includes a private balcony and also a good size walk-in closet. The master bathroom features a double vanity, a large shower stall and a semi-private toilet area.
The kitchen offers plenty of counter space, a kitchen island and a practical pantry. The kitchen is also located near the half bath and the laundry room.
The family / living room has a fireplace and a 18' ceiling. In addition, a large covered terrace is accessible through retractable patio doors located in the dining room and family room area. The folding patio doors offer plenty of natural lights in the common areas.
On the second floor, three good size bedrooms share a full bathroom with bathtub, shower, double vanity, toilet and storage. On that same floor, a mezzanine overlooks the family room and brings lots of natural light to the second floor. In addition, a covered balcony in located on the second floor.
The double car garage offers practical access to the outside, the unfinished basement and the main floor of the house. The unfinished basement will allow for extra bedrooms, storage, etc. in the future.
Alternate floor plan layouts are available for this home, see plan # 3883-V1 et 3883-V2 for more details.
Distinctive elements
Modern Cube shaped house plan with double car garage.
9 'ceiling in most of the main floor and 18' ceiling in the family room area.
Closed foyer with coat closet.
Home office or bedroom #5 or nursery room.
Master suite with private balcony and good size walk-in. Master bathroom with large shower, double vanity and semi-private toilet.
Kitchen with lots of counter space, an island and a pantry. Living room with fireplace.
Folding patio doors in the dining and family room area, leading to a covered terrace at the rear of the house.
Half bathroom and laundry room located off the kitchen.
3 secondary good size bedrooms share a very large bathroom with shower, bathtub, double vanity and toilet.
Mezzanine overlooking the family room.
Covered balcony upstairs.
Large double garage with access to the basement, to the rear and side of the house and the main floor of the house.
Unfinished basement can be easily finished for additional bedrooms, storage, home theater, etc.
Plan feature(s)
Office / Study / Den, Gound floor laundry room, Island, Fireplace, Pantry, Mezzanine, Ceiling over 8', Master suite upstairs, Deck, Basement access from garage, Open floor layout, Walk-in master bed., Entrance hall, Separate bath and shower, Double sinks
