House plan Elia (1701)
Contemporary 3 floor house design for narrow lot, affordable urban design, open concept, large covered deck
View the size of the rooms and height of the ceilings

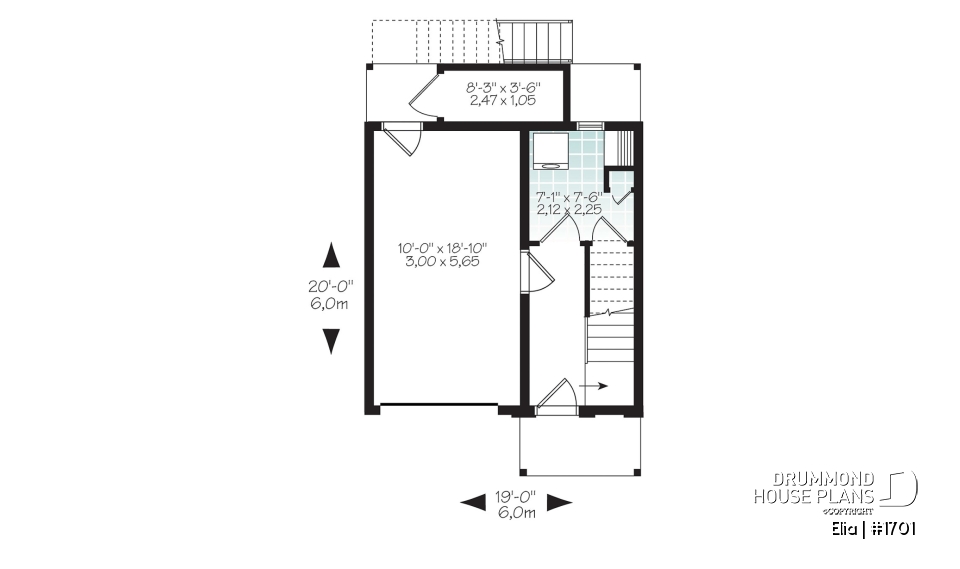

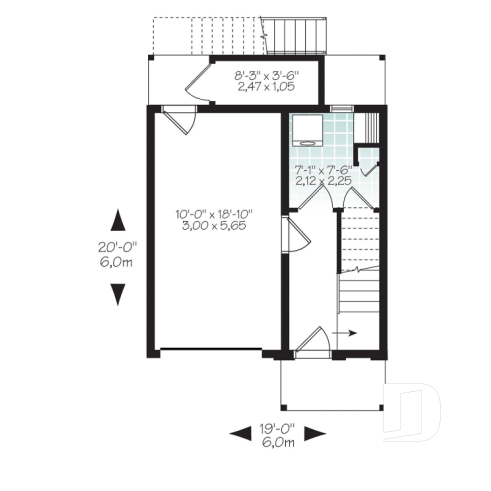

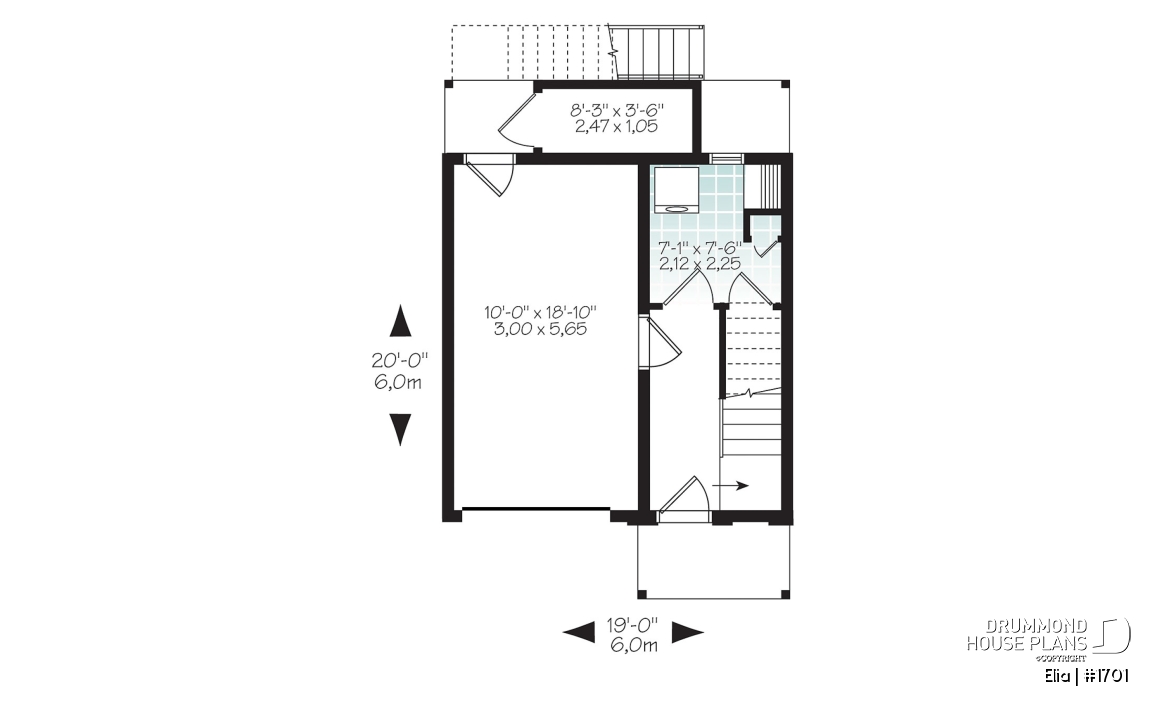

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 3'9" x 10'10" | ~ 8'0" |
| Laundry room | 7'0" x 7'6" | ~ 8'0" |
| Garage | 10'0" x 18'10" | ~ 8'4" |
| Storage | 8'3" x 3'6" | ~ 8'0" |
| Covered porch | 8'4" x 4'0" | N/A |

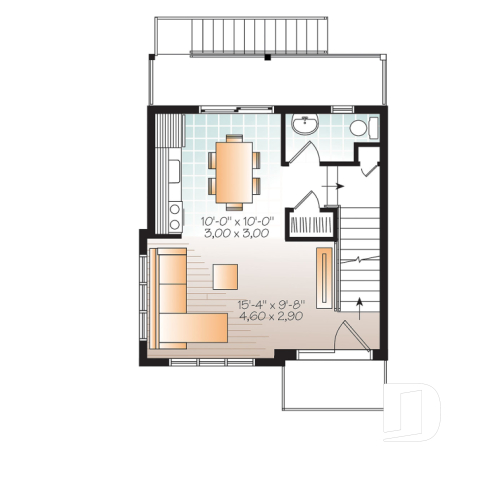

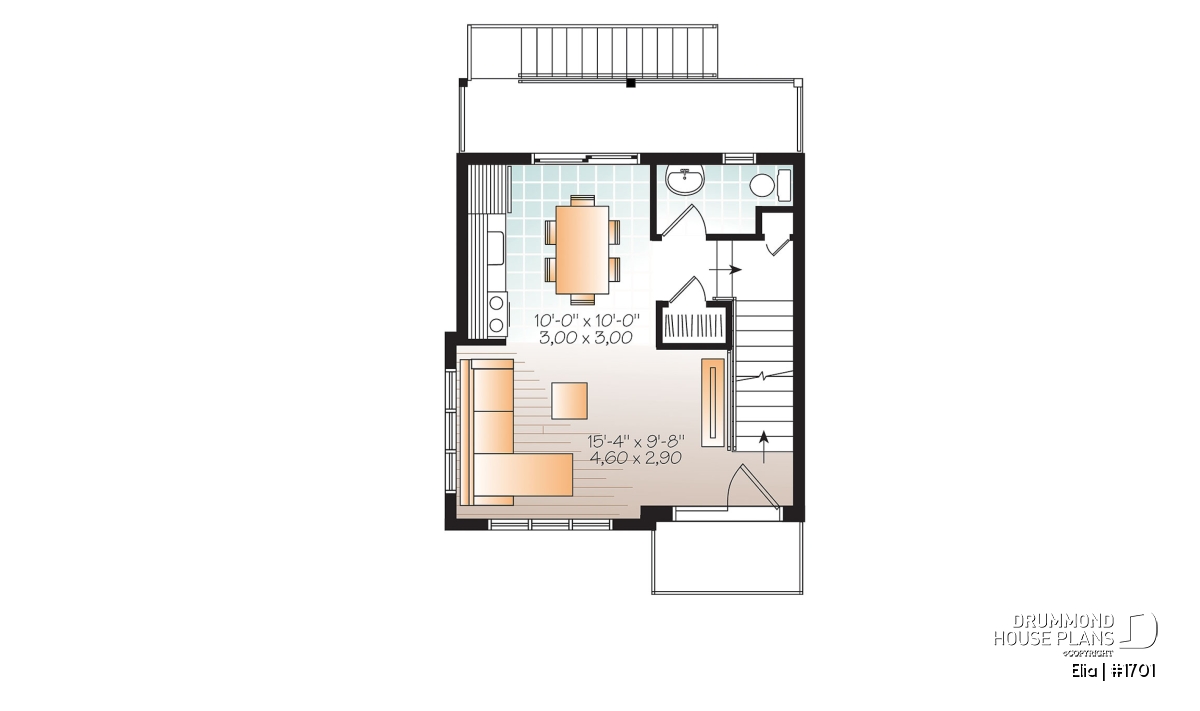

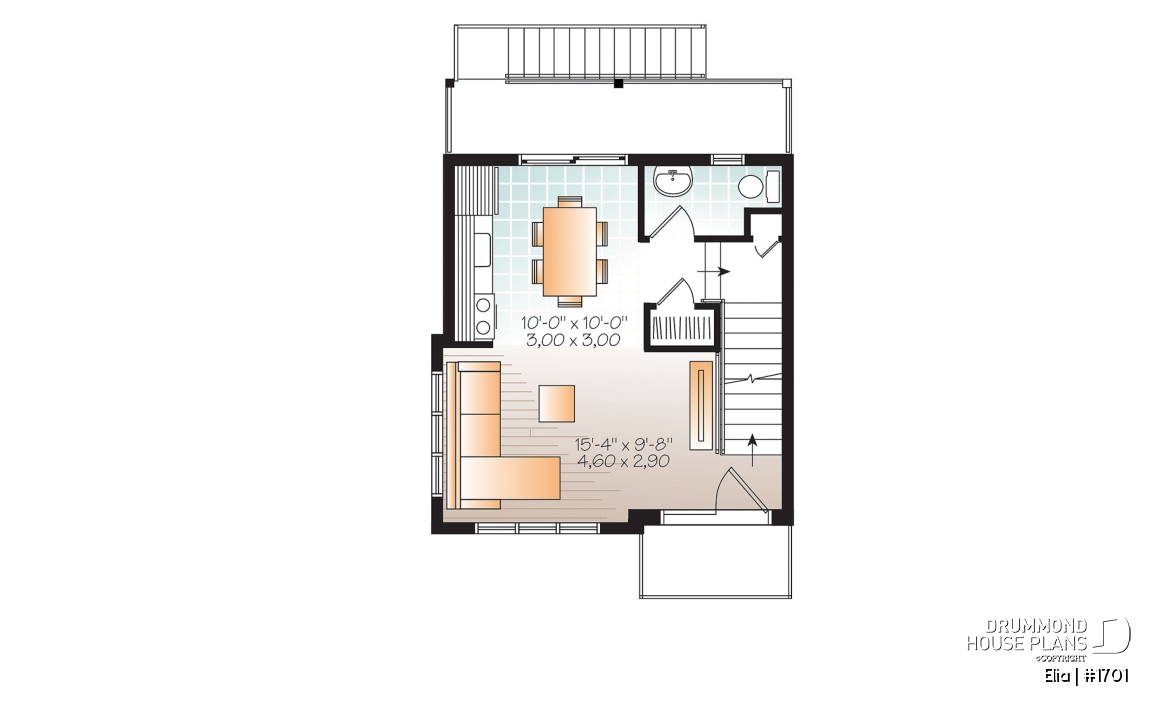

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 10'0" x 10'0" | ~ 8'0" |
| Living room | 15'4" x 9'8" | ~ 8'0" |
| Bathroom | 7'6" x 3'10" | ~ 8'0" |
| Closet | 3'6" x 2'0" | ~ 8'0" |
| Balcony | 8'4" x 4'0" | N/A |
| Covered porch | 19'0" x 4'0" | N/A |

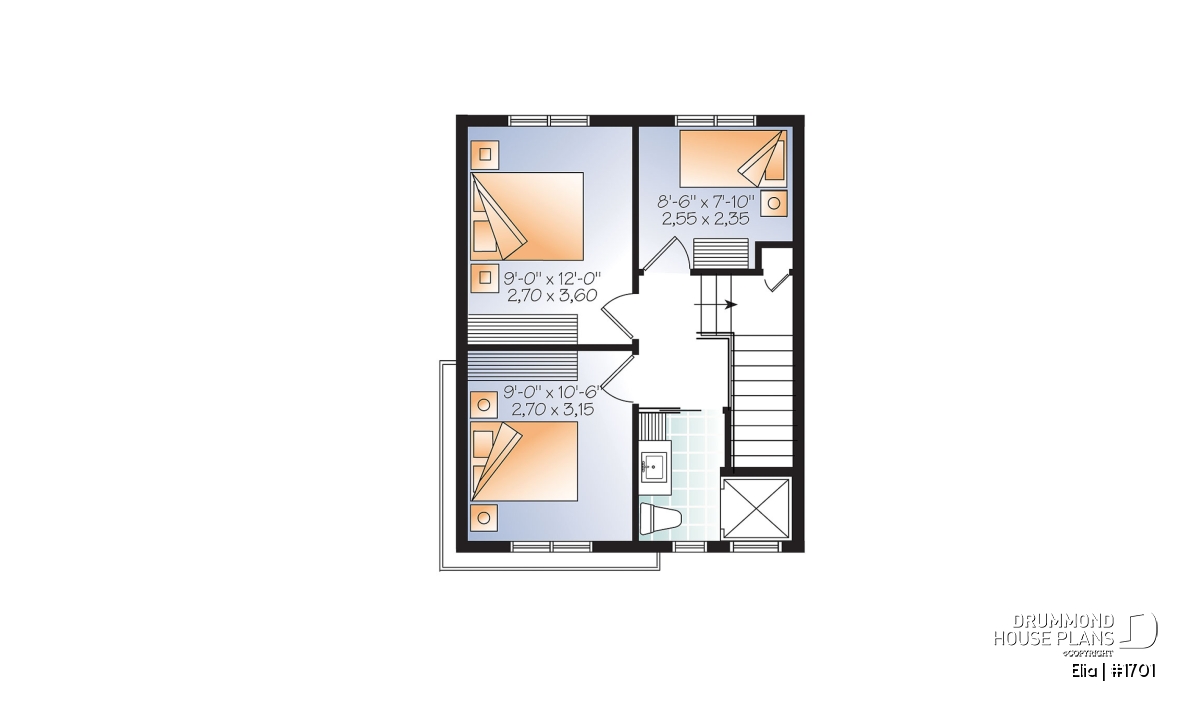

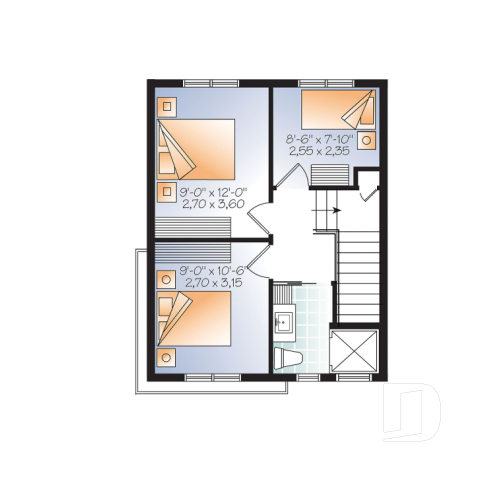

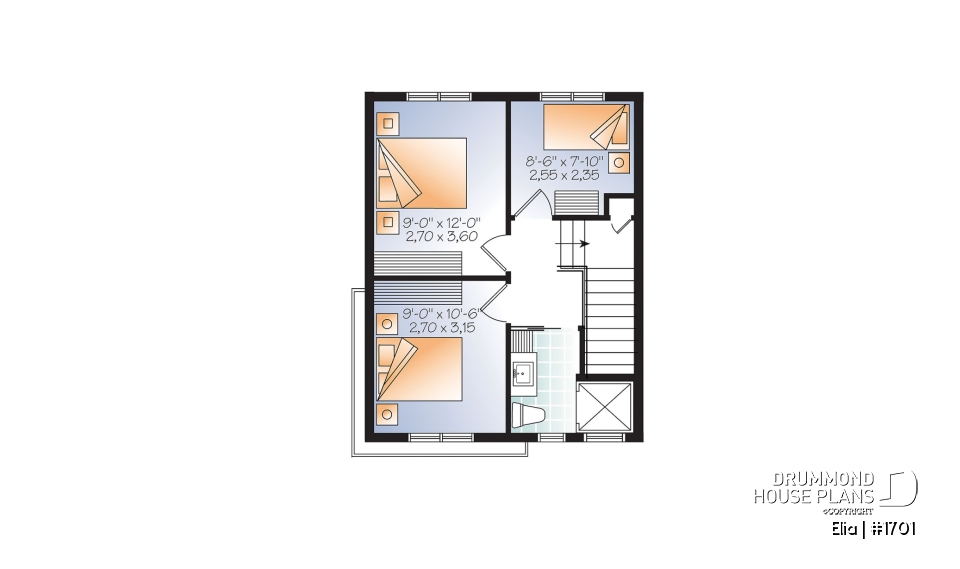

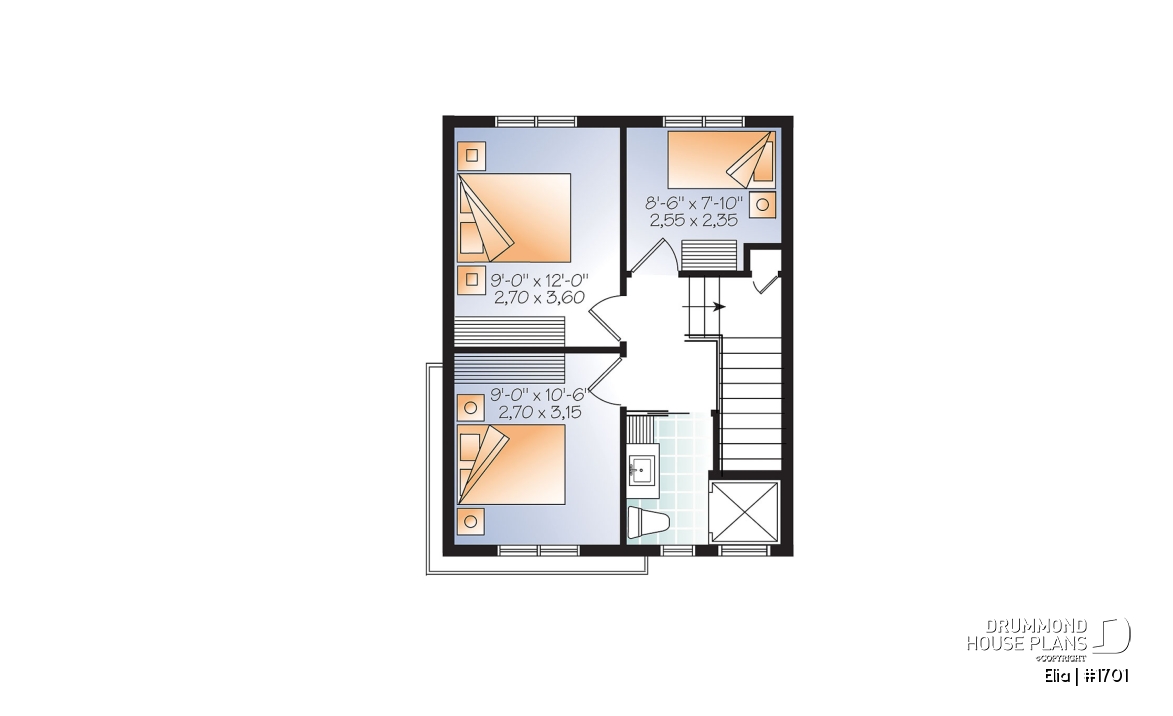

| 3rd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'0" x 12'0" | ~ 8'0" |
| Bedroom | 9'0" x 10'6" | ~ 8'0" |
| Bedroom | 8'6" x 7'10" | ~ 8'0" |
| Shower room or three quarter bath | 4'10" x 7'0" | ~ 8'0" |
General specifications
| Total living area | 1015 sq.ft. |
| 1st level | 165 sq.ft. |
| 2nd level | 394 sq.ft. |
| 3rd level | 456 sq.ft. |
| Width | 19'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 28'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Modern urban house plan, ideal for narrow lot and small budget!
The blend of colors and materials used in this small, modern style home and its long, contemporary lines are sure to catch the eye of those who enjoy living in the city.
Elia is a home that respects the size and budget concerns enabling transition of first time ownership from dream to reality while offering the comfort of a 3 bedroom home with an attached garage whose style is especially suited to urban surroundings.
Practical features include direct access into the house from the garage. A laundry room on this level has a convenient laundry chute from the bedroom level to help eliminate the clutter upstairs.

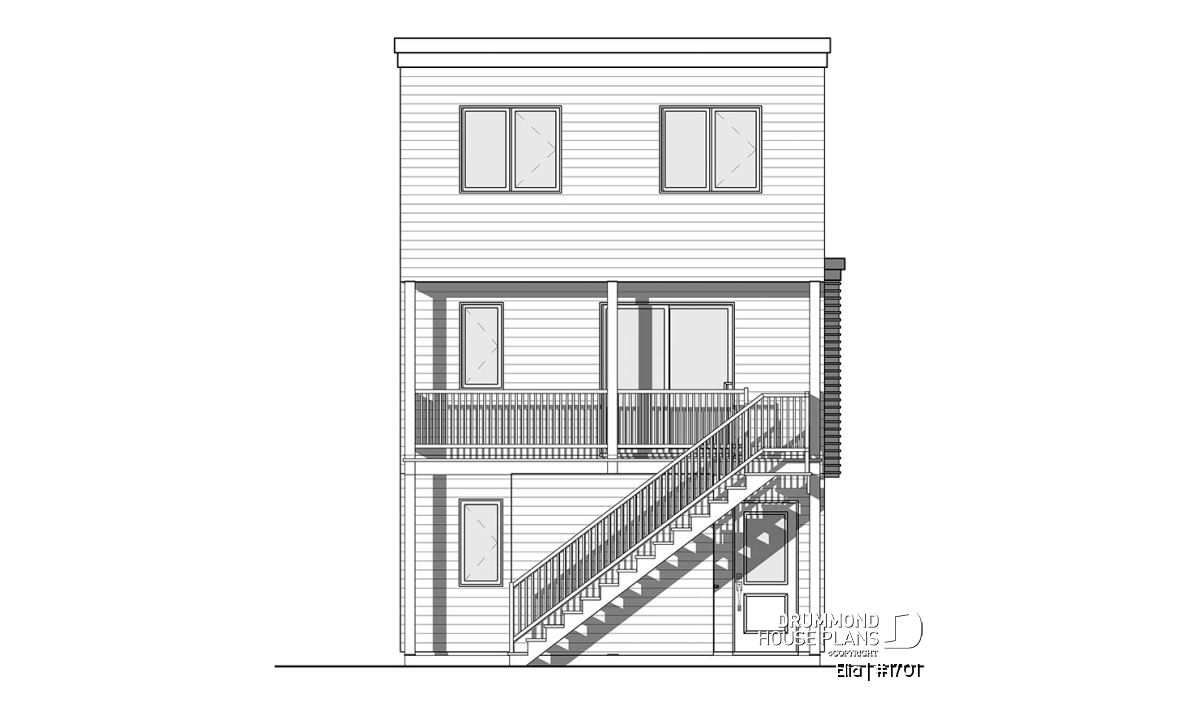

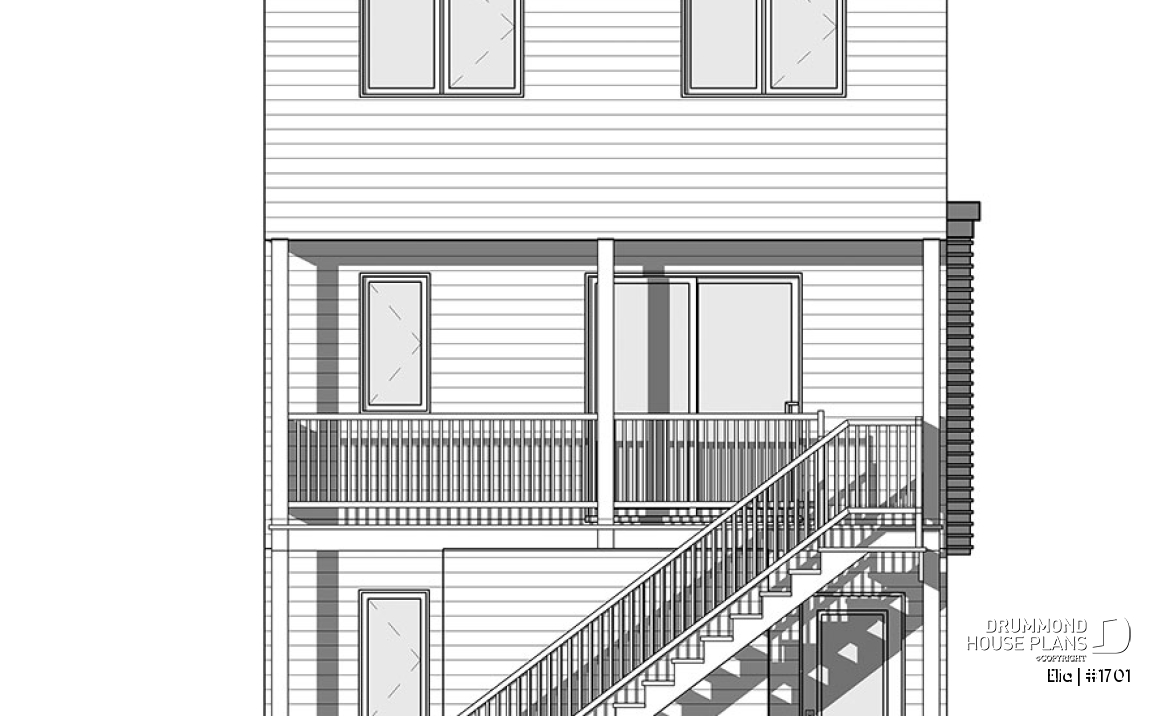

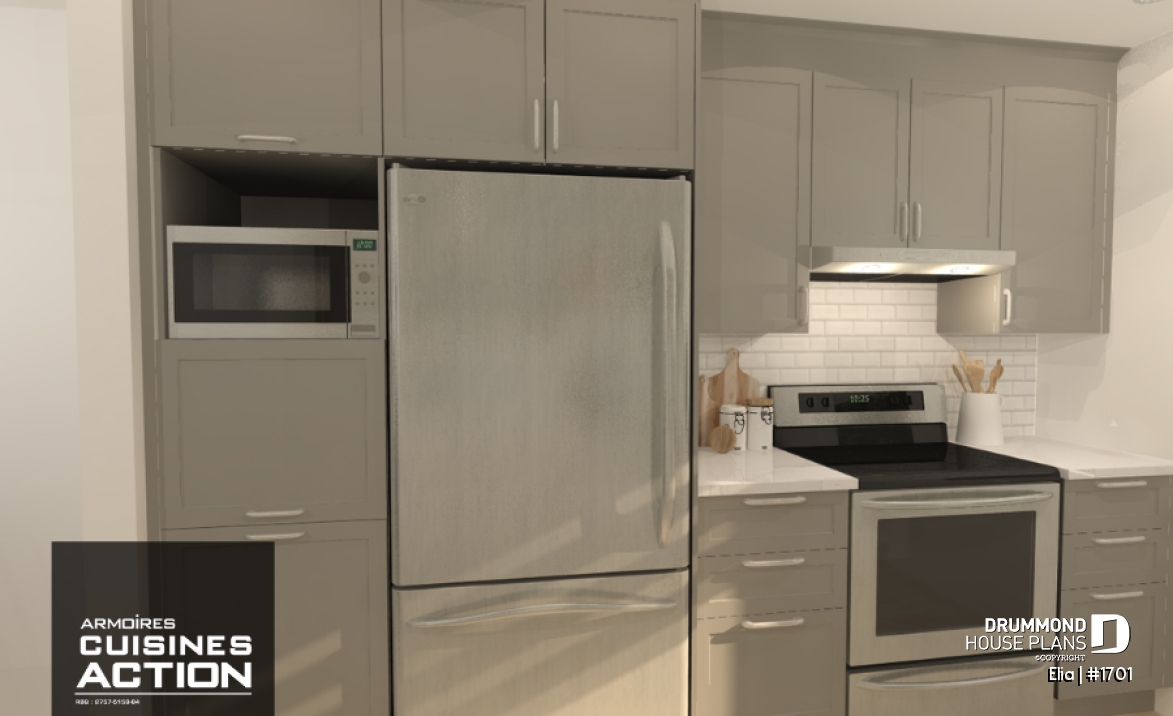

The main level has an open floor plan that enhances the feeling of size despite the unconventional shape of this home. The living room has space for standard furnishings, including a 3+ seat sofa and the kitchen table seats 6 or it could be replaced by an island with seating. The covered porch in back is accessible through patio doors in the kitchen and serves to enlarge the living space during warmer months. A powder room and a storage closet near the stairs to the garage add to the practical features.
Upstairs there are 3 bedrooms, of which the master has room for a Queen (or maybe even a King) sized bed. The two other bedrooms have ample closet space. A bathroom with shower and the laundry chute complete the upper level.
Distinctive elements
3 floor Modern home, perfect for narrow lot (19'-0''). Garage direct access to the ground floor. Kitchen can contain a table for 6 people or a large kitchen island. Large covered back porch with direct access to kitchen. Laundry chute from bedroom floor.
Plan feature(s)
Laundry chute, Gound floor laundry room, Built-ins, Narrow lot, Balcony 2nd floor, Deck, Open floor layout
Plan architectural style(s)
. Contemporary, . Modern / Design, . Modern rustic, . Scandinavian
