House plan Frangelica 2 (3208-V1)
Single storey with 3 large bedrooms and a spacious living room, office corner, pantry, house plan with garage

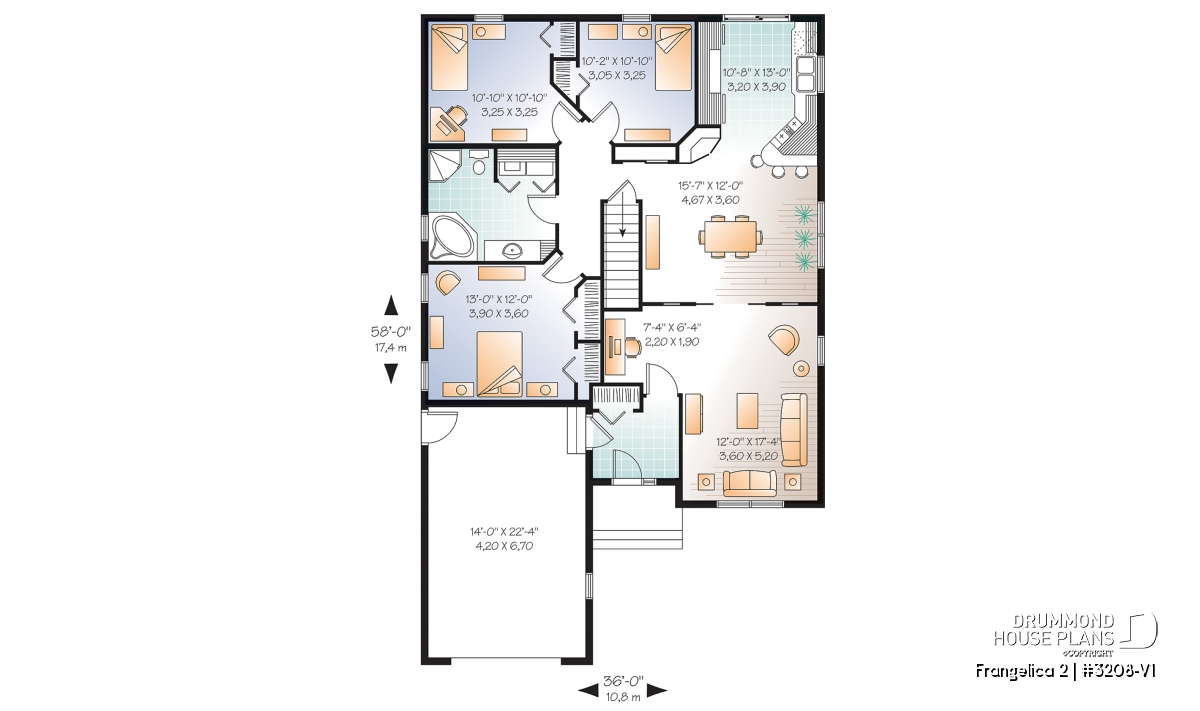

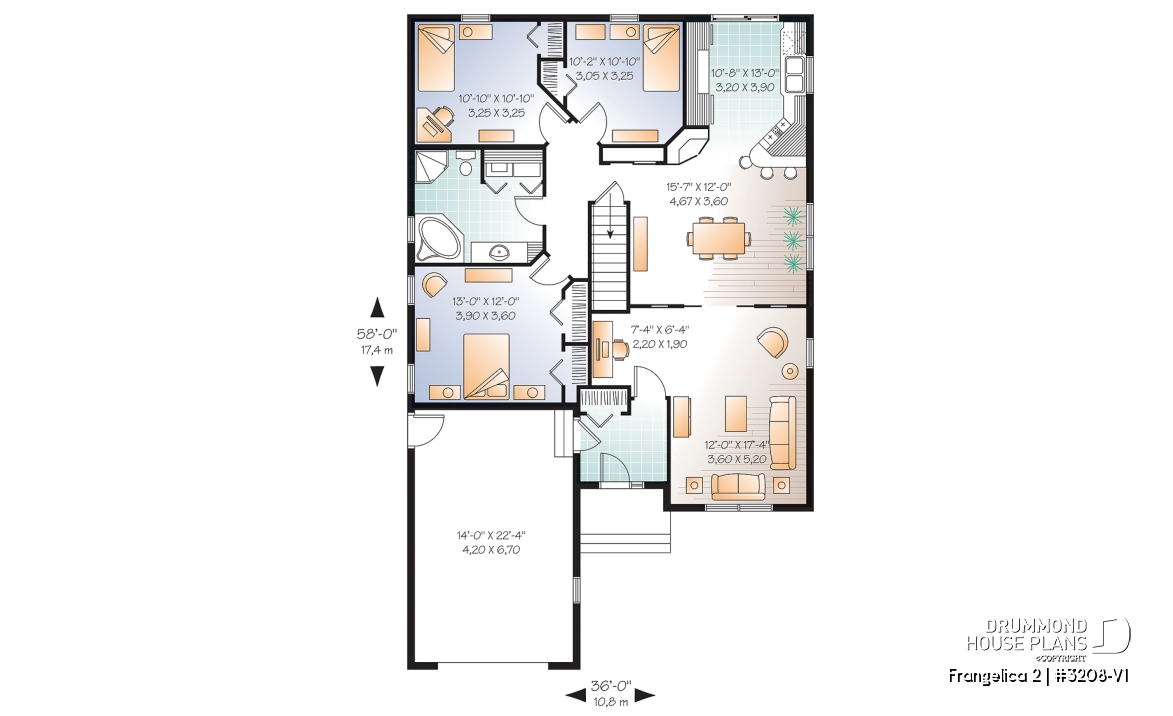

View the size of the rooms and height of the ceilings

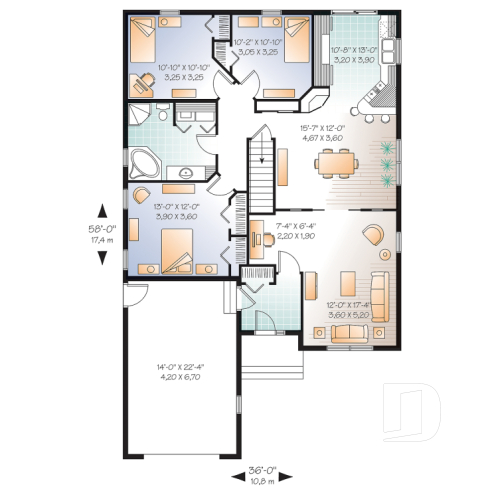

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'8" x 13'0" | ~ 8'0" |
| Pantry | 3'8" x 3'2" | ~ 8'0" |
| Dining room | 15'7" x 12'0" | ~ 8'0" |
| Living room | 12'0" x 17'4" | ~ 8'0" |
| Foyer | 7'8" x 7'2" | ~ 8'0" |
| Closet | 4'2" x 2'0" | ~ 8'0" |
| Bathroom/laundry room | 11'4" x 10'0" | ~ 8'0" |
| Bedroom | 13'0" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 5'0" | ~ 8'0" |
| Closet | 2'0" x 5'4" | ~ 8'0" |
| Bedroom | 10'10" x 10'10" | ~ 8'0" |
| Closet | 2'0" x 3'2" | ~ 8'0" |
| Bedroom | 10'2" x 10'10" | ~ 8'0" |
| Closet | 2'0" x 3'6" | ~ 8'0" |
| Garage | 14'0" x 22'4" | ~ 9'0" |
| Reading/computer area | 3'6" x 6'4" | ~ 8'0" |
| Linen | 5'4" x 1'2" | ~ 8'0" |
| Covered porch | 7'4" x 4'0" | N/A |
| Deck | 8'0" x 5'0" | N/A |
General specifications
| Total living area | 1436 sq.ft. |
| 1st level | 1436 sq.ft. |
| Width | 36'0" |
| Depth | 58'0" |
| Ridge height from top of foundation | 23'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

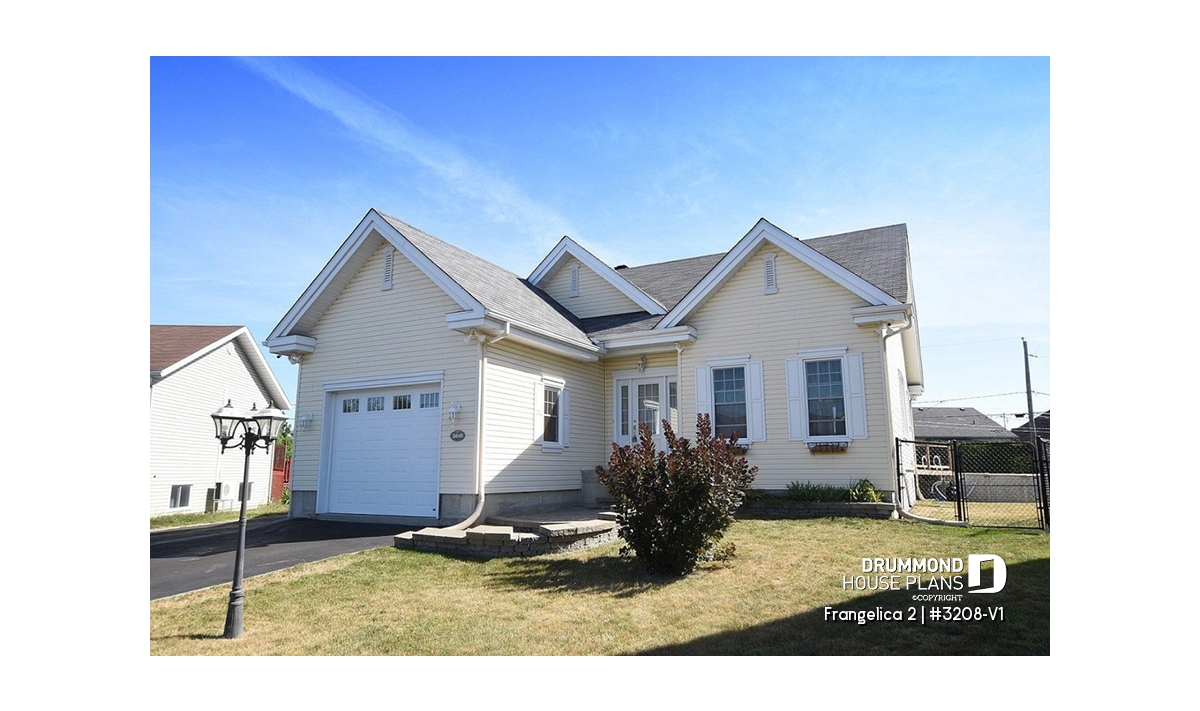

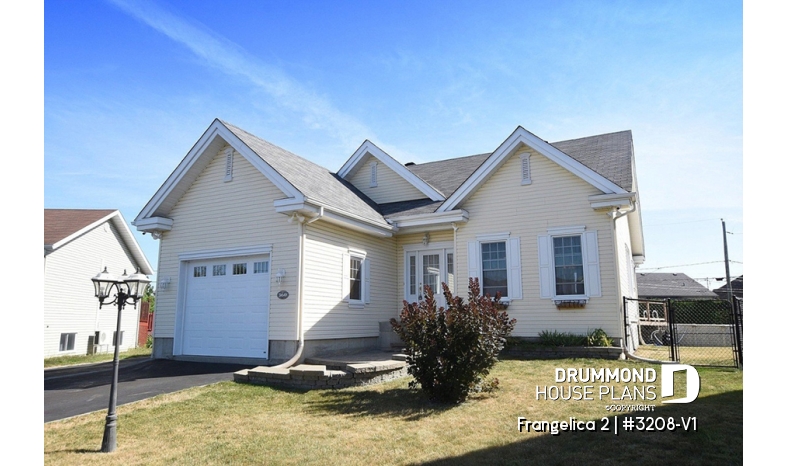

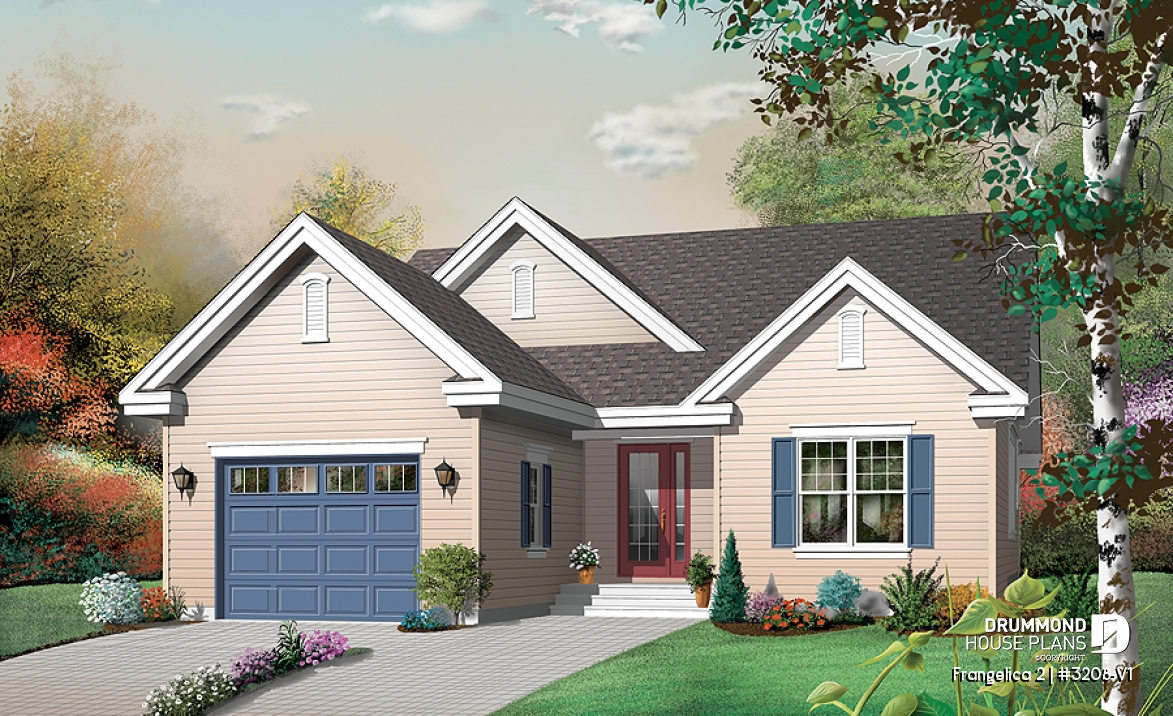

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

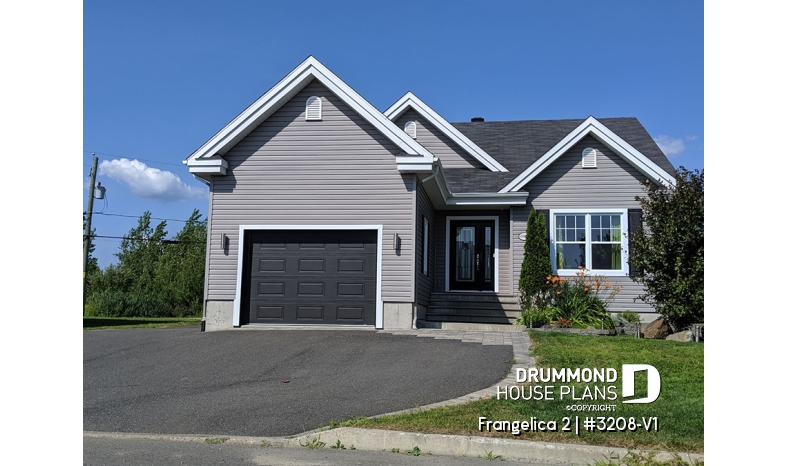

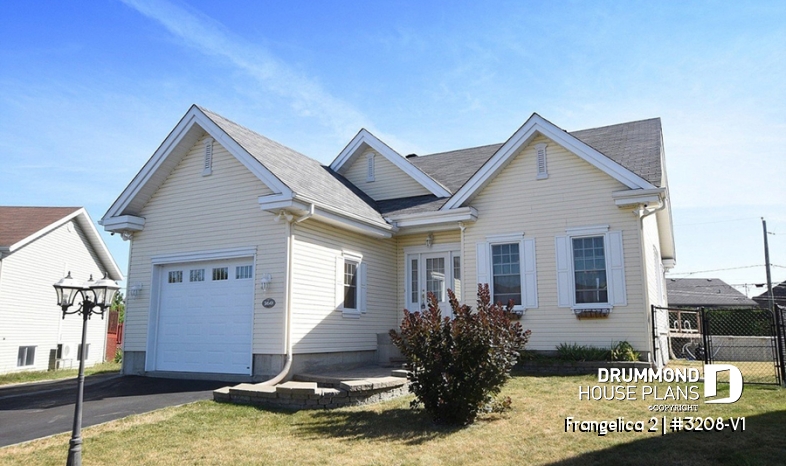

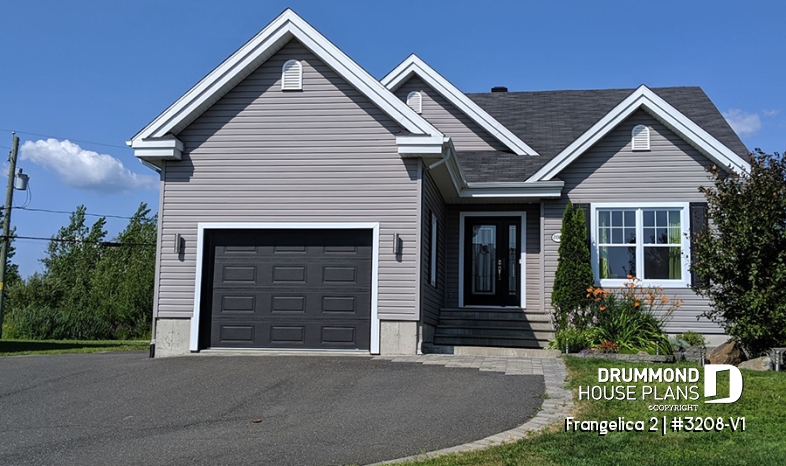

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Narrow gem of a Cape Cod bungalow house plan with 3 bedrooms on same floor
A trio of forward-facing gables adds volume to the front of this narrow bungalow. At just 36 feet wide, a clever use of space achieves a 3-bedroom floorplan in under 1436 sq. ft. without sacrificing comfort. A covered entry transitions to an enclosed foyer for the comfort of arrivals and residents alike. The living room is divided from the dining room by pocket doors, allowing a semi-open option. To the back of the house, an ever-popular galley kitchen enjoys backyard access by patio doors, plus an small peninsula for light meals.
The master bedroom boasts his and hers closets and is separated from two additional bedrooms by a bathroom with both spa tub and independent shower and the bonus of a laundry closet.
If more living space is required, a full basement offers the opportunity for expanded development.
Distinctive elements
One story with three bedrooms and all in depth, therefore ideal for narrow lot. Three bedrooms and laundry area on 1st floor. Computer area next to entry and living room.
Plan feature(s)
Pantry, Fireplace, Gound floor laundry room, Lunch counter, Narrow lot, Open floor layout, Separate bath and shower, Entrance hall
Plan architectural style(s)
. Country, . Traditional, . American, . Cape Cod, . Ranch
