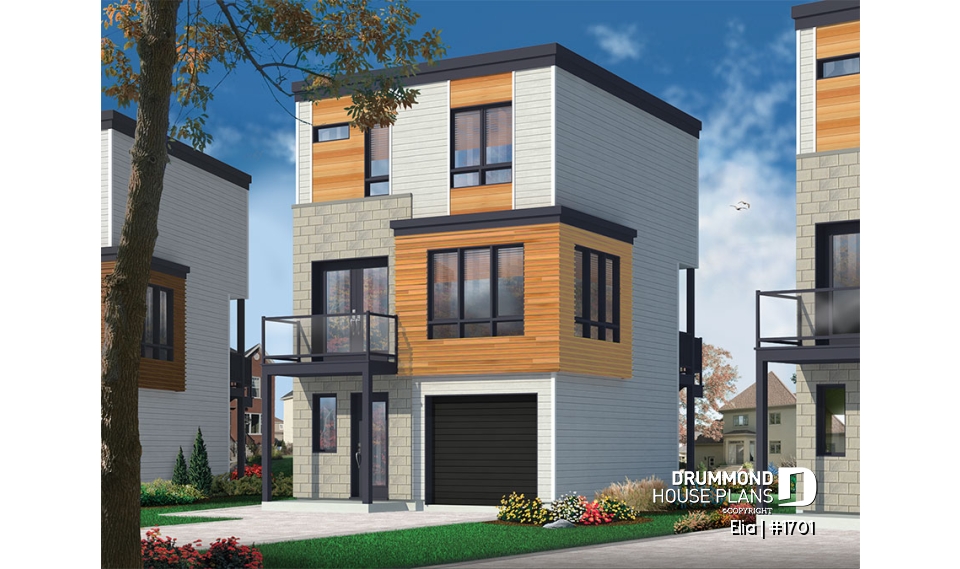

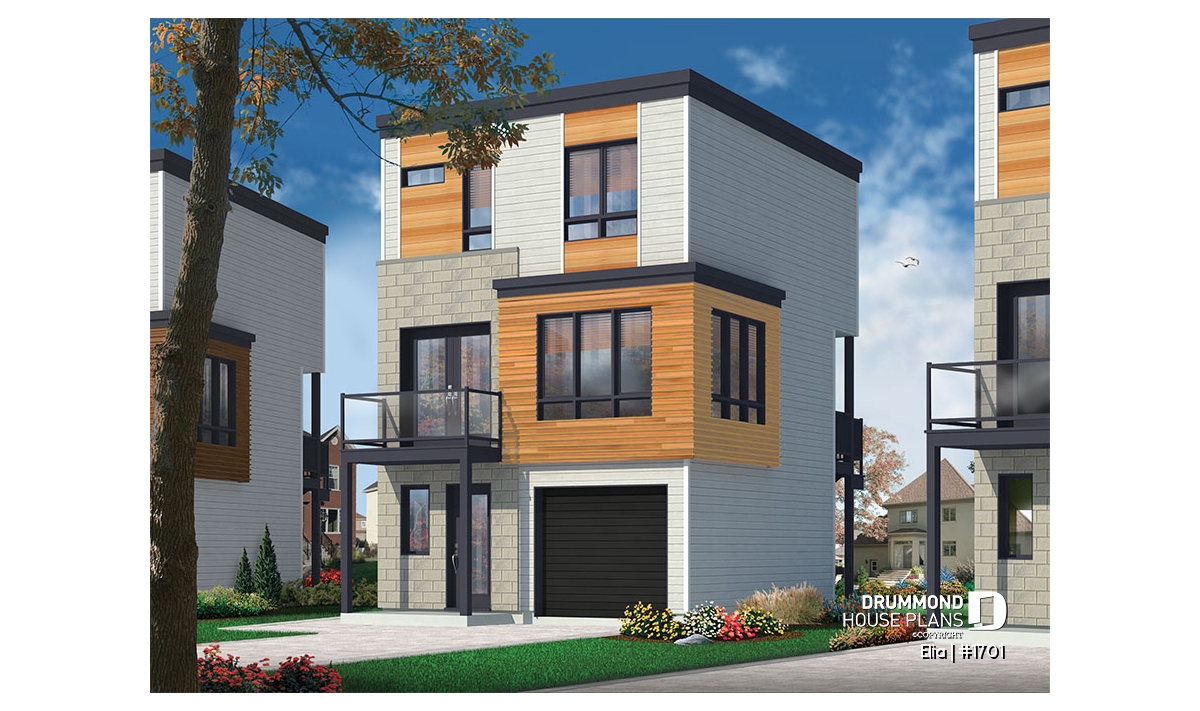

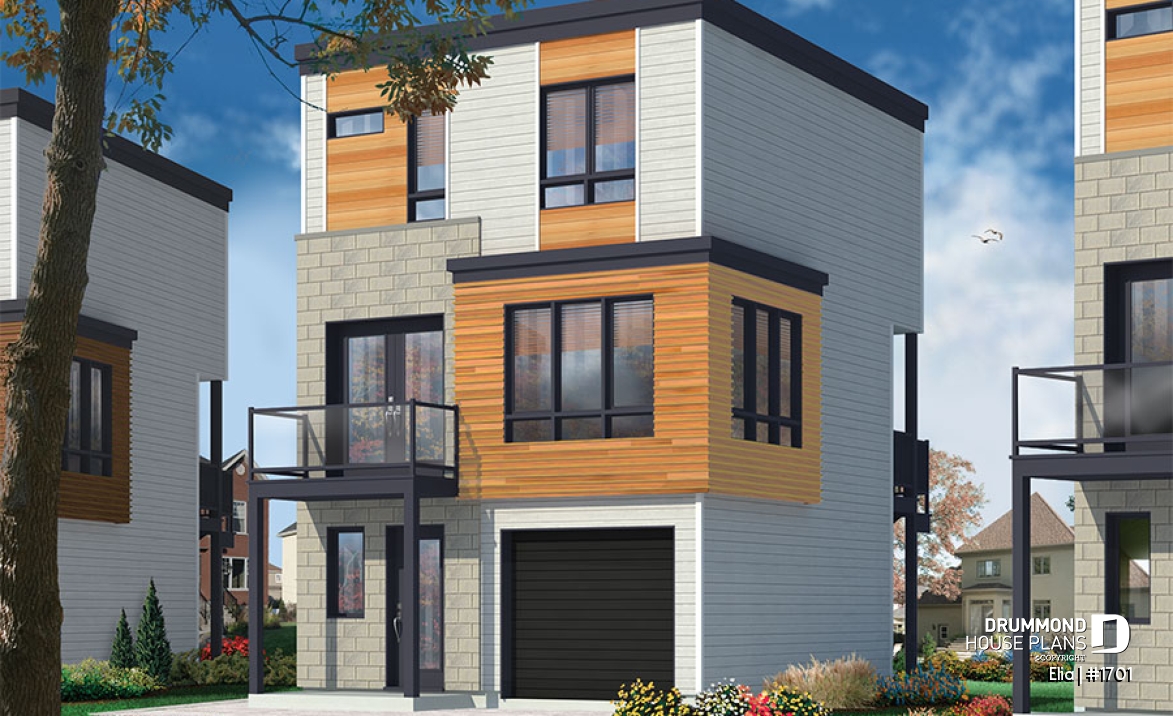

front - BASE MODEL
1st level
2nd level
3rd level

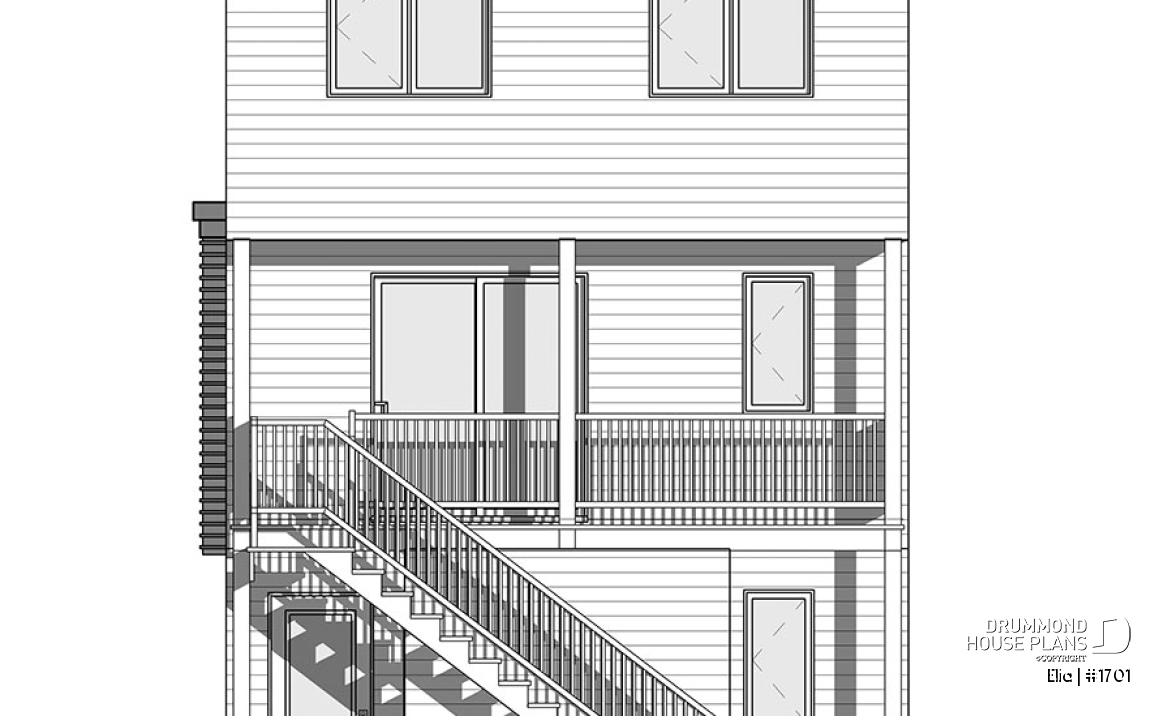

rear elevation

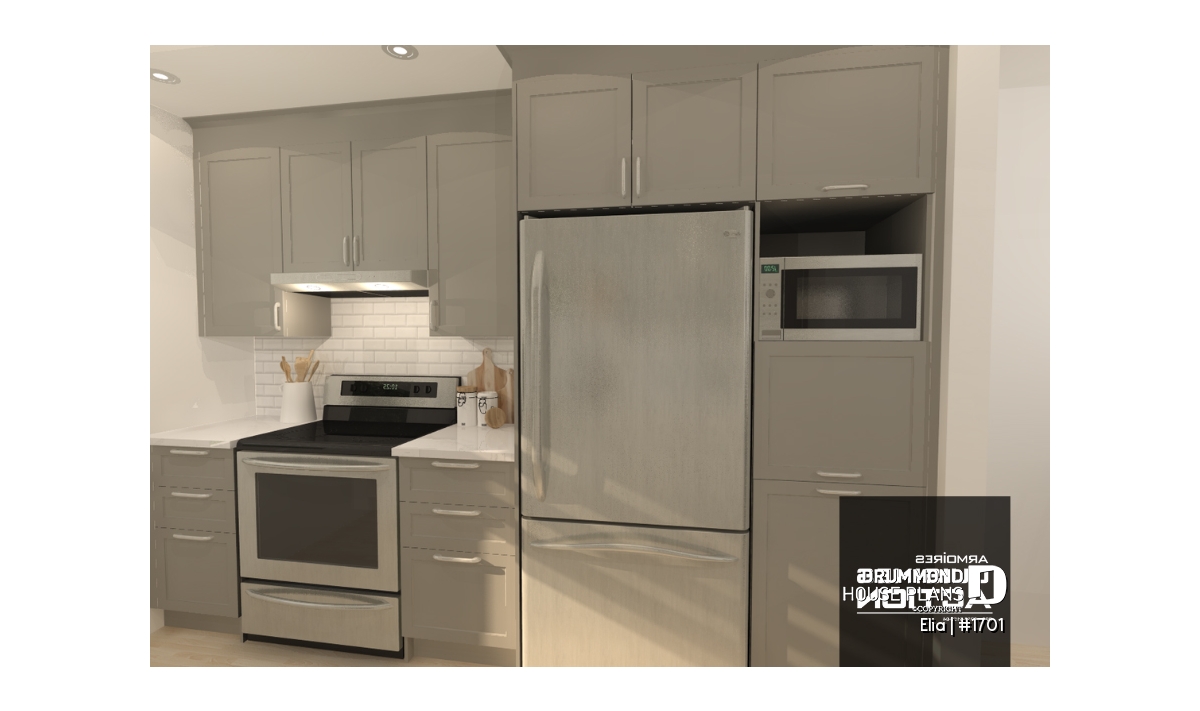

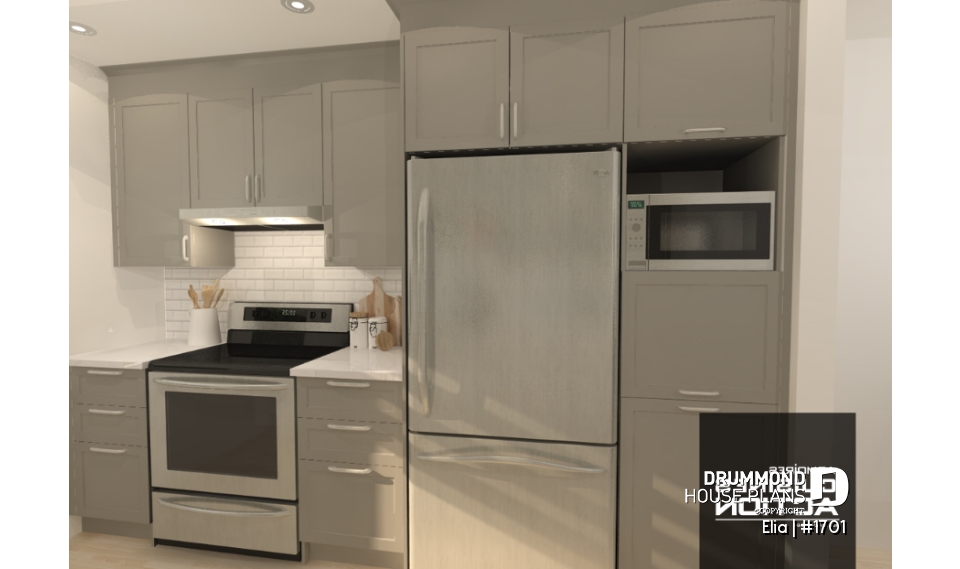

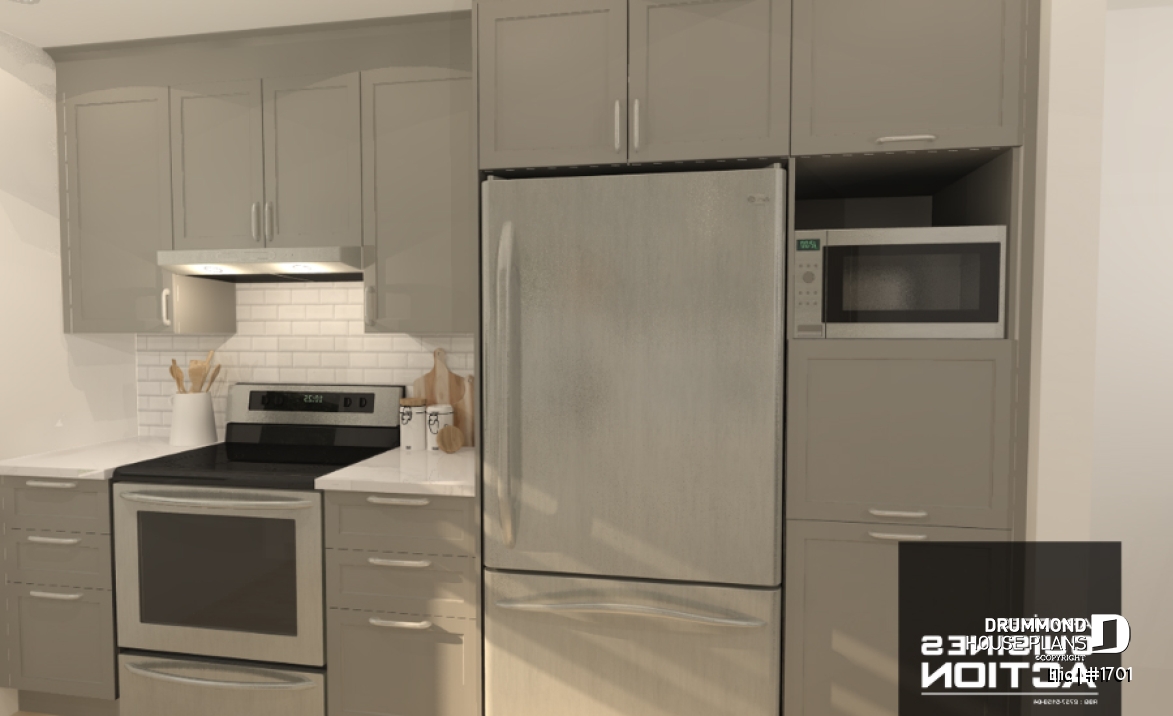

interior view
Elia House plan 1701
Contemporary 3 floor house design for narrow lot, affordable urban design, open concept, large covered deck
Starting from
1450$
| Technical details summary | Plan #1701 | ||
|---|---|---|---|
| Total living area | 1015 sq.ft. | Bedroom | 3 |
| Full baths | 1 | Half baths | 1 |
| Foundation included | Floating Slab | Garage | One-car garage |
| Width | 19'0" | Depth | 24'0" |
Photos of the plan Elia
Additional details
General specifications
Total living area
1015 sq.ft.
1st level
165 sq.ft.
2nd level
394 sq.ft.
3rd level
456 sq.ft.
Width
19'0"
Depth
24'0"
Ridge height from top of foundation
28'7"
Exterior wall
2 X 6
Floating Slab
Other available foundations (a fee may apply)
Crawl space, Monolithic Slab
Builder price code
B
Rooms specifications
Bedroom(s)
3
Full baths
1
Half baths
1
Garage type
One-car garage (215 sq.ft.)
Covered porch area
109 sq.ft.
1st level
Rooms
Sizes
Ceiling
Foyer
3'9" x 10'10"
~ 8'0"
Laundry room
7'0" x 7'6"
~ 8'0"
Garage
10'0" x 18'10"
~ 8'4"
Storage
8'3" x 3'6"
~ 8'0"
Covered porch
8'4" x 4'0"
N/D
2nd level
Rooms
Sizes
Ceiling
Kitchen/dinette
10'0" x 10'0"
~ 8'0"
Living room
15'4" x 9'8"
~ 8'0"
Bathroom
7'6" x 3'10"
~ 8'0"
Closet
3'6" x 2'0"
~ 8'0"
Balcony
8'4" x 4'0"
N/D
Covered porch
19'0" x 4'0"
N/D
3rd level
Rooms
Sizes
Ceiling
Bedroom
9'0" x 12'0"
~ 8'0"
Bedroom
9'0" x 10'6"
~ 8'0"
Bedroom
8'6" x 7'10"
~ 8'0"
Shower room or three quarter bath
4'10" x 7'0"
~ 8'0"
Modern urban house plan, ideal for narrow lot and small budget!
The blend of colors and materials used in this small, modern style home and its long, contemporary lines are sure to catch the eye of those who enjoy living in the city.
Elia is a home that respects the size and budget concerns enabling transition of first time ownership from dream to reality while offering the comfort of a 3 bedroom home with an attached garage whose style is especially suited to urban surroundings.
Practical features include direct access into the house from the garage. A laundry room on this level has a convenient laundry chute from the bedroom level to help eliminate the clutter upstairs.
The main level has an open floor plan that enhances the feeling of size despite the unconventional shape of this home. The living room has space for standard furnishings, including a 3+ seat sofa and the kitchen table seats 6 or it could be replaced by an island with seating. The covered porch in back is accessible through patio doors in the kitchen and serves to enlarge the living space during warmer months. A powder room and a storage closet near the stairs to the garage add to the practical features.
Upstairs there are 3 bedrooms, of which the master has room for a Queen (or maybe even a King) sized bed. The two other bedrooms have ample closet space. A bathroom with shower and the laundry chute complete the upper level.
Distinctive elements
3 floor Modern home, perfect for narrow lot (19'-0''). Garage direct access to the ground floor. Kitchen can contain a table for 6 people or a large kitchen island. Large covered back porch with direct access to kitchen. Laundry chute from bedroom floor.
Plan feature(s)
Laundry chute, Gound floor laundry room, Built-ins, Narrow lot, Balcony 2nd floor, Covered patios, Open floor layout
Plan architectural style(s)
The plan Elia is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
