House plan Chilton (2793)
Charming 3 bedroom, 2 storey home plan, laundry room on main floor, unfinished daylight basement
View the size of the rooms and height of the ceilings

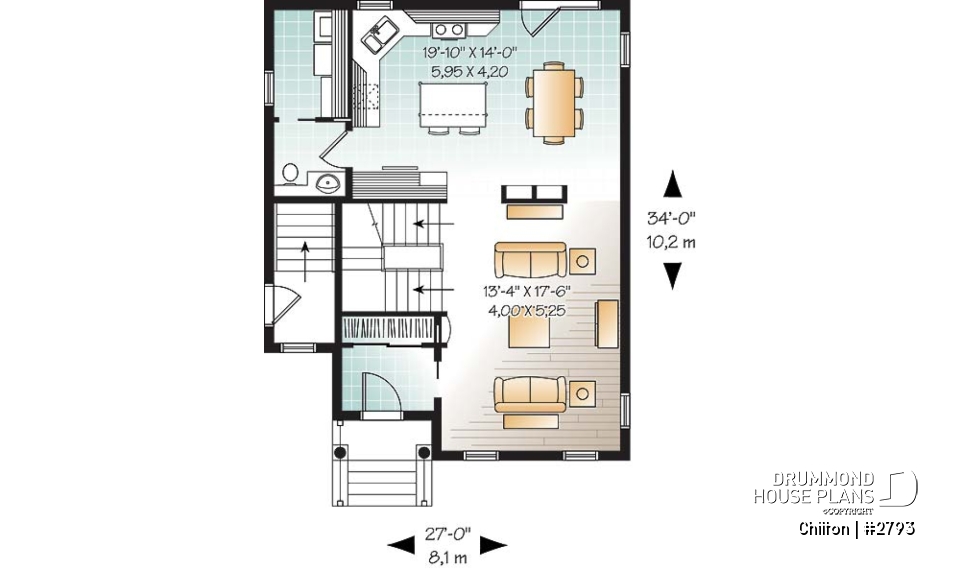

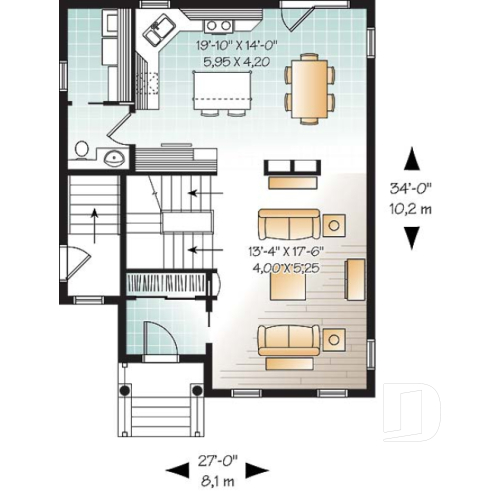

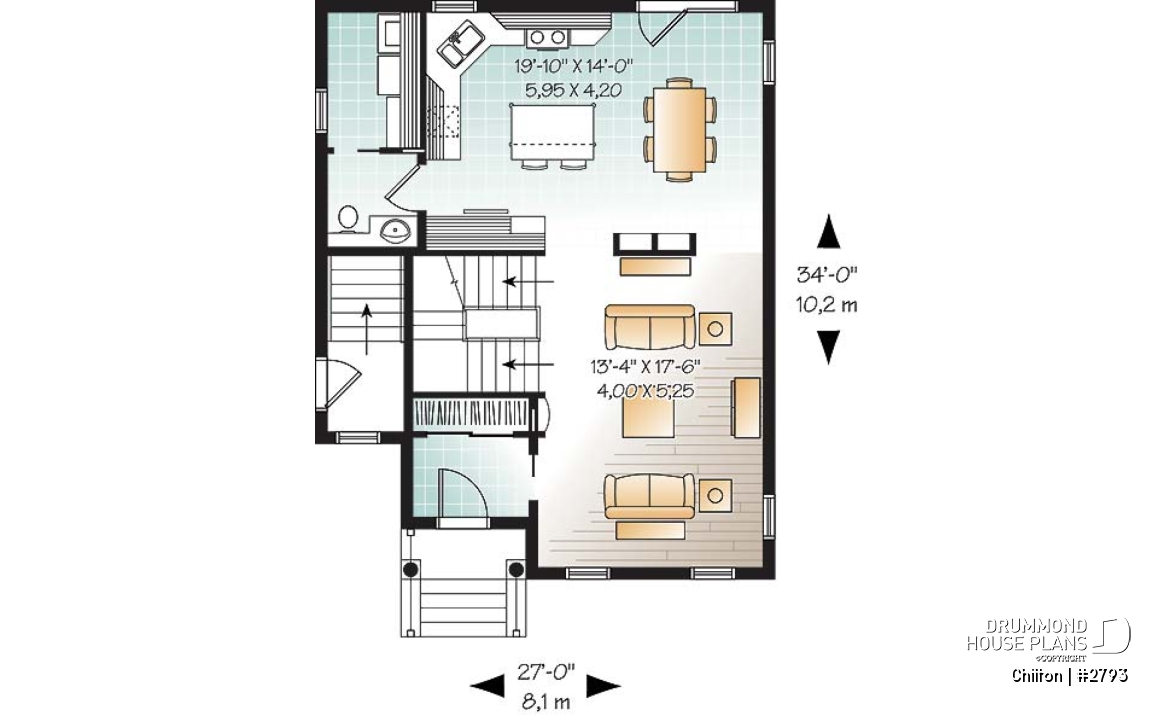

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 19'10" x 14'0" | ~ 8'0" |
| Living room | 13'4" x 17'6" | ~ 8'0" |
| Foyer | 6'10" x 4'8" | ~ 8'0" |
| Half bath or powder room | 5'4" x 5'6" | ~ 8'0" |
| Laundry room | 5'6" x 8'0" | ~ 8'0" |
| Porch | 7'4" x 3'0" | N/A |
| Porch | 10'0" x 5'0" | N/A |

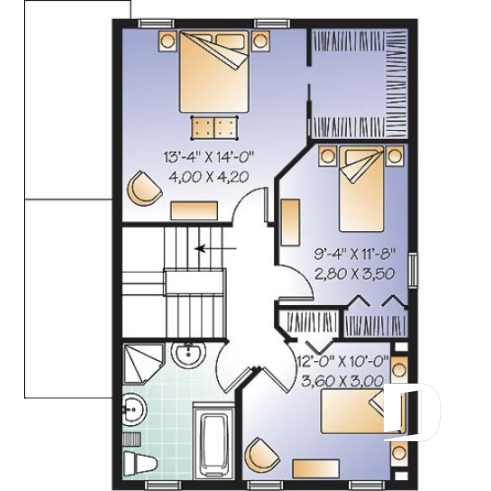

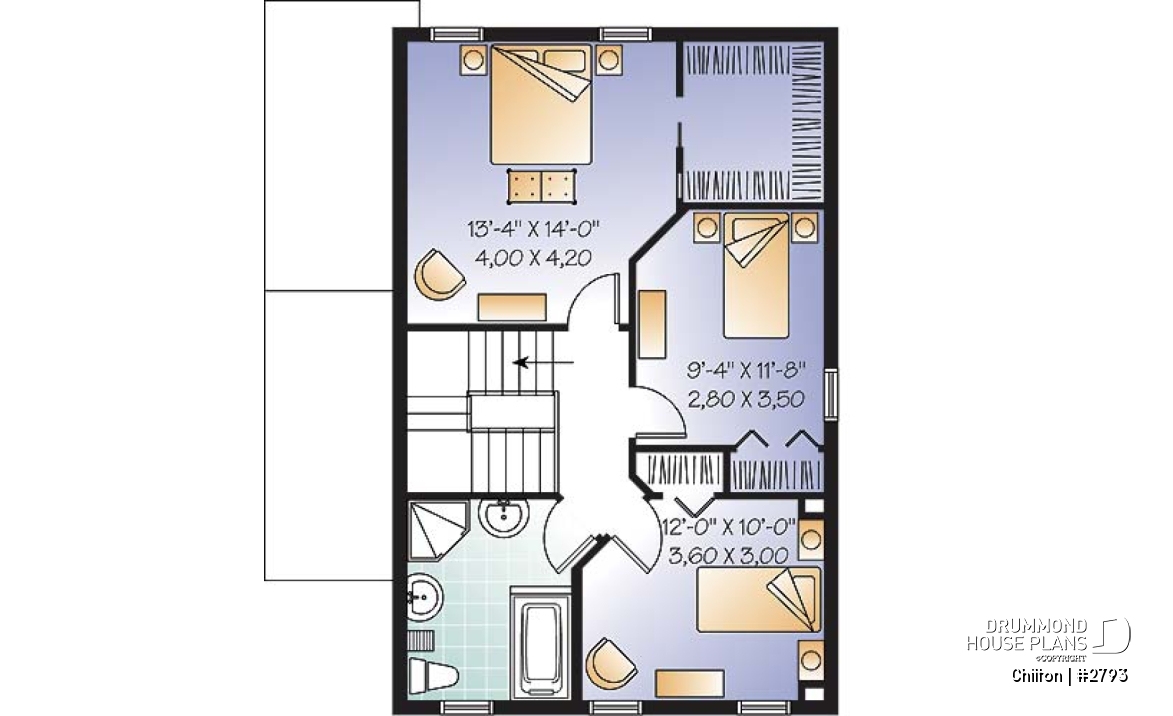

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'2" x 10'0" | ~ 8'0" |
| Bedroom | 13'4" x 14'0" | ~ 8'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Bedroom | 9'4" x 11'8" | ~ 8'0" |
General specifications
| Total living area | 1530 sq.ft. |
| 1st level | 789 sq.ft. |
| 2nd level | 741 sq.ft. |
| Width | 27'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 30'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan

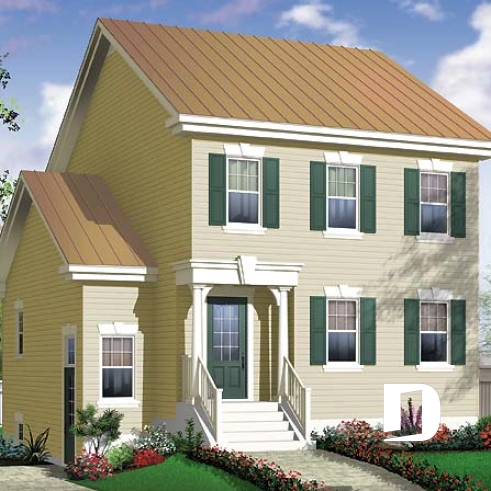

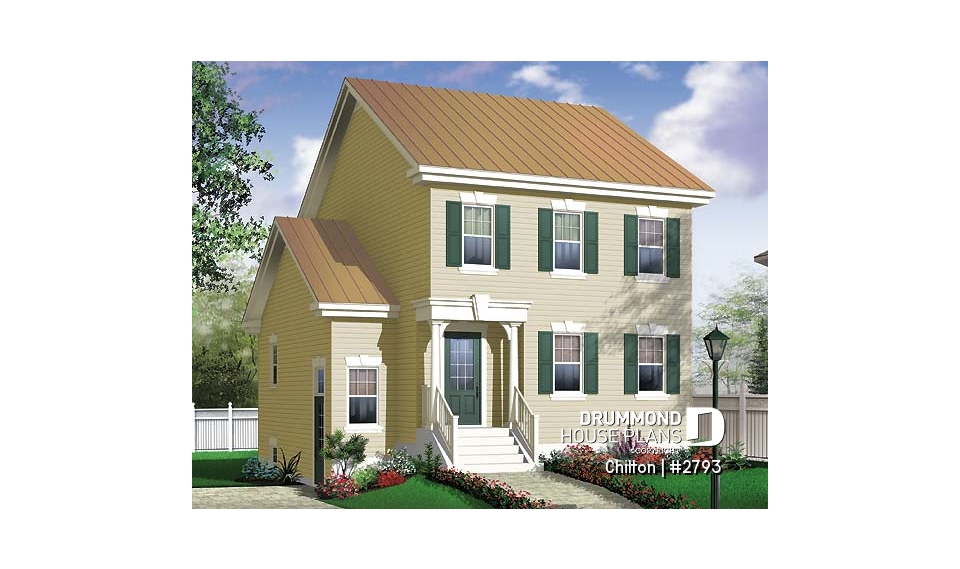

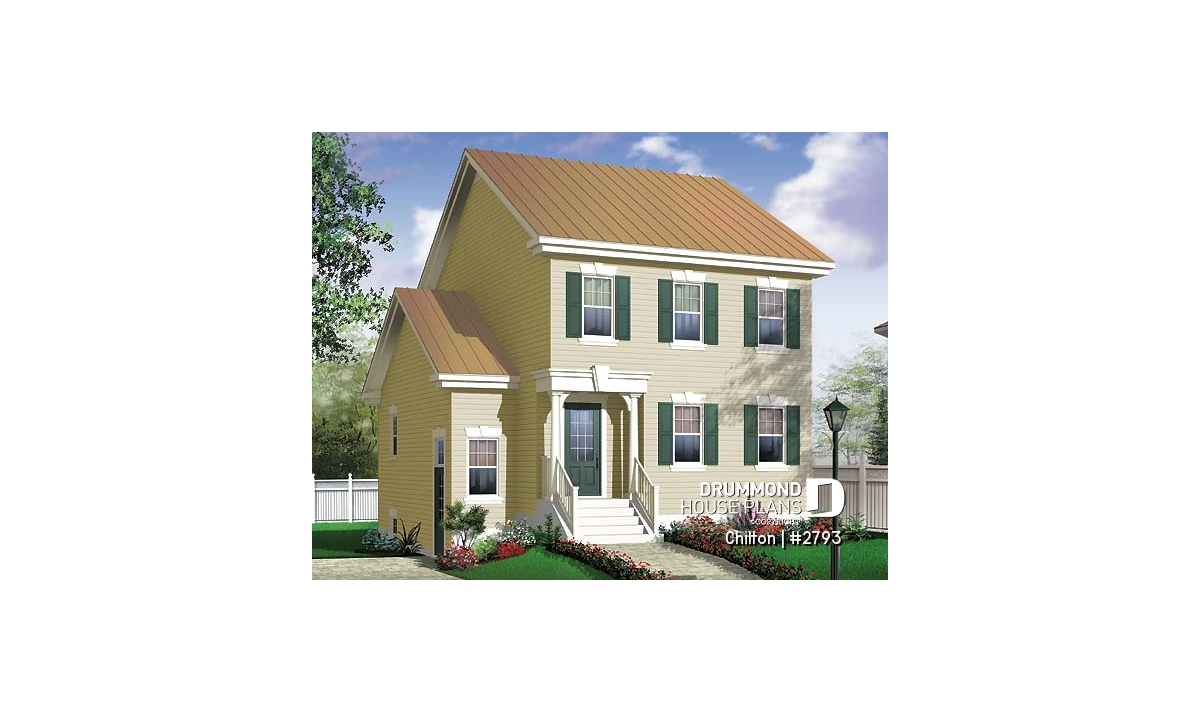

Cute cottage plan with 3 bedrooms and open floor plan in kitchen & dining area!
.
Distinctive elements
Lovely front porch partially covered. Open entry with large closet. Attractive living room. Dining room with built-ins. Kitchen with central island/lunch counter. Laundry area provided on the first level. Three nice bedrooms on the second level including a large walk-in closet in bedroom #1.
Plan feature(s)
Entrance hall, Island, Gound floor laundry room, Walk-in master bed., Separate bath and shower, Double sinks
Plan architectural style(s)
. Colonial, . Traditional, . English, . Country, . American
