Chilton 2 (2793B)
3 bedroom country cottage house plan with large kitchen & basement appartment, lots of storage
View the size of the rooms and height of the ceilings

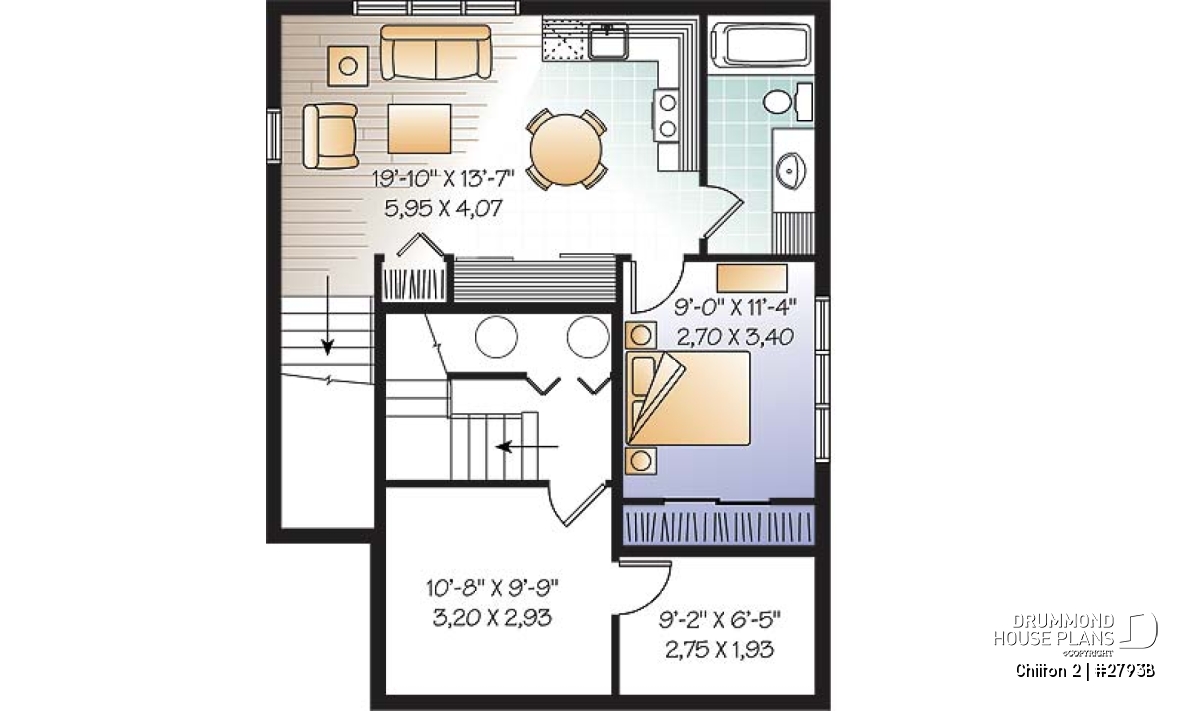

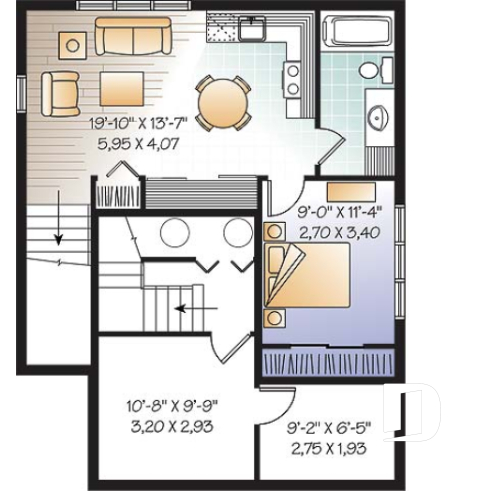

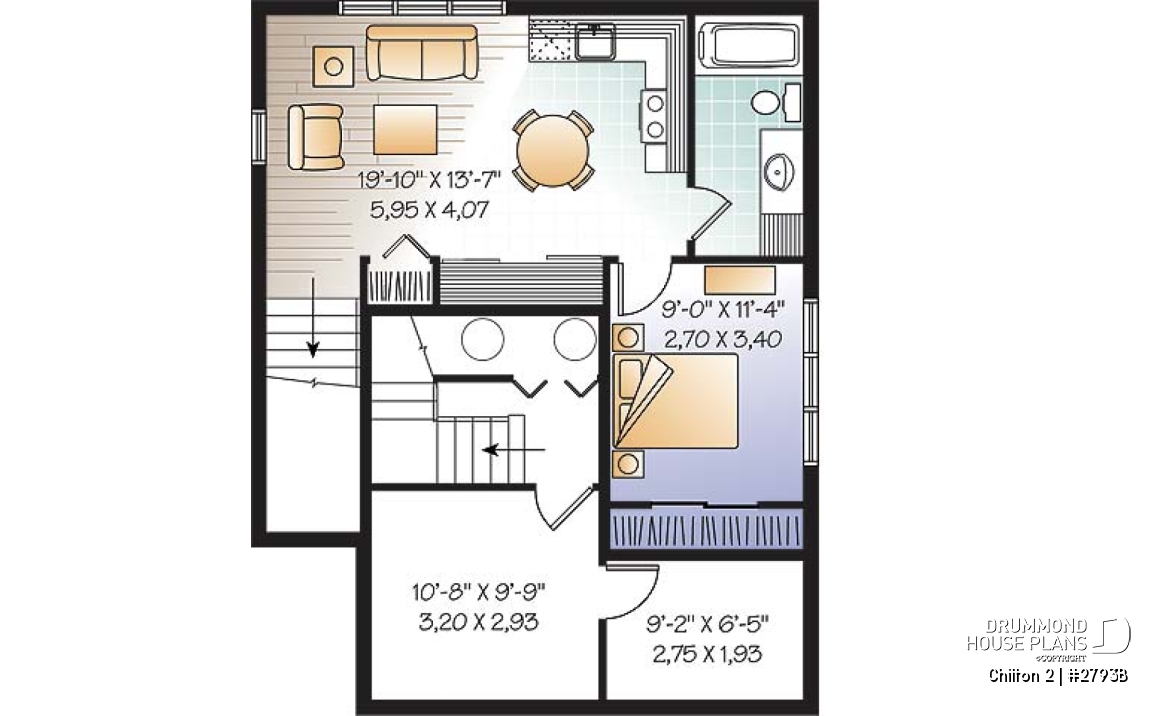

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'0" x 11'4" | ~ 8'0" |
| Full bathroom | 5'3" x 11'6" | ~ 8'0" |
| Activity room | 19'10" x 13'7" | ~ 8'0" |
| Pantry | 2'2" x 2'0" | N/A |
| Playroom | 10'8" x 9'5" | ~ 8'0" |
| Storage | 9'2" x 6'5" | ~ 8'0" |
| Mud room | 3'2" x 2'0" | ~ 8'0" |

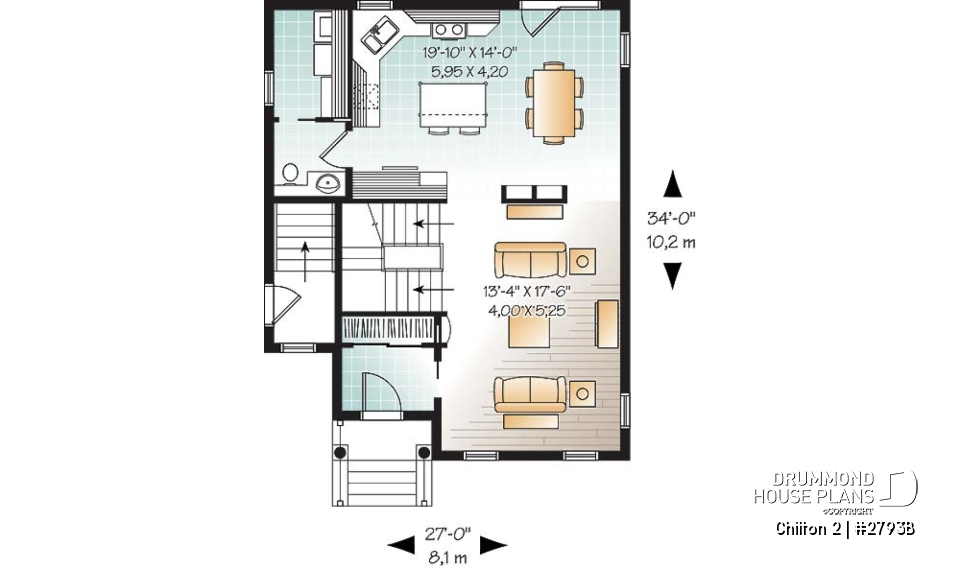

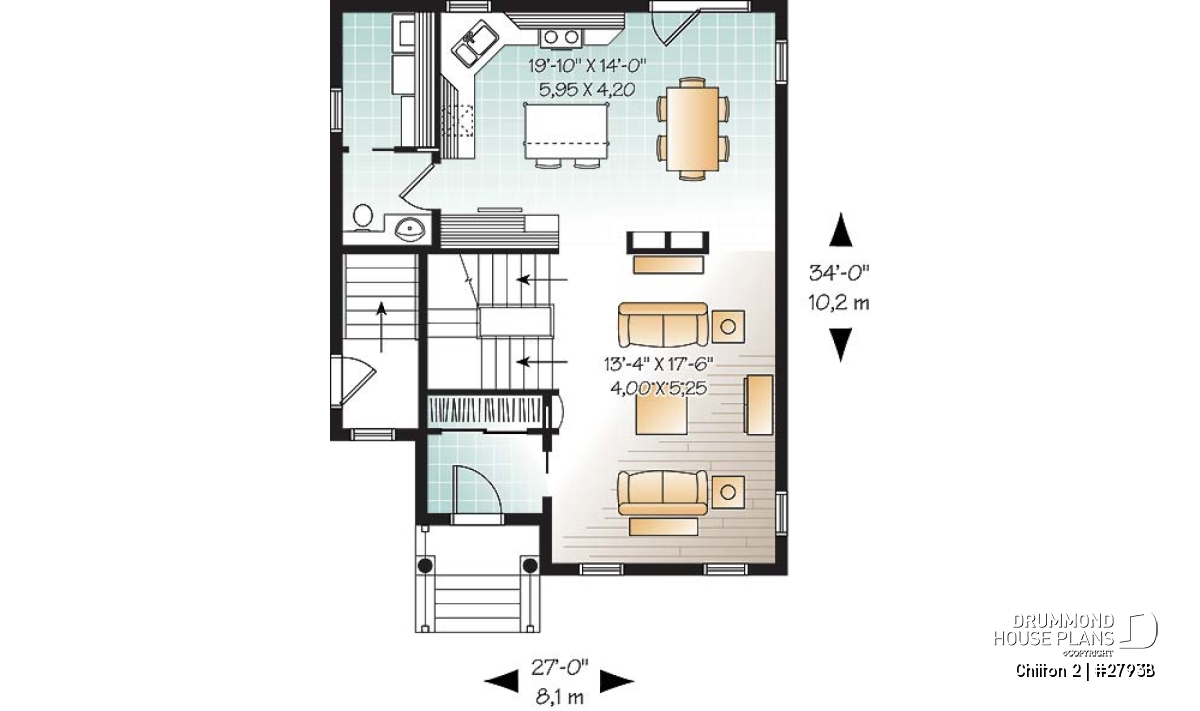

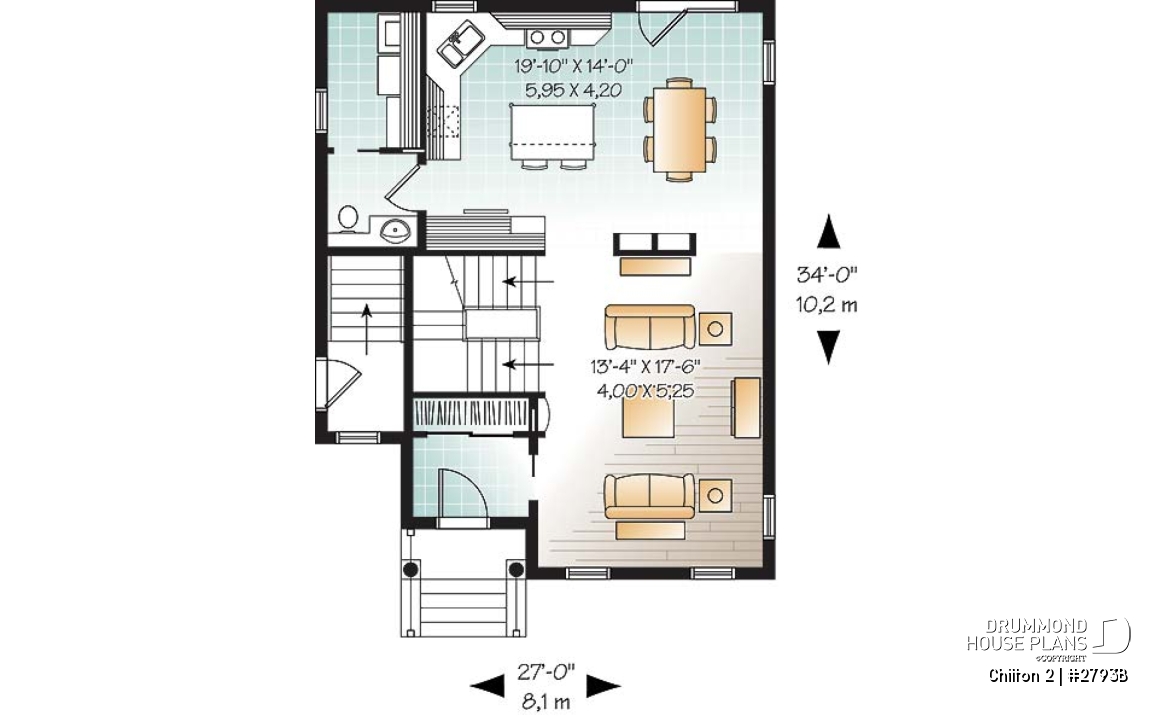

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dining room | 19'10" x 14'0" | ~ 8'0" |
| Pantry | 2'2" x 2'0" | N/A |
| Living room | 13'4" x 17'6" | ~ 8'0" |
| Foyer | 6'10" x 4'8" | ~ 8'0" |
| Powder/laundry room | 5'6" x 13'10" | ~ 8'0" |
| Deck | 10'0" x 5'0" | N/A |
| Covered porch | 7'4" x 3'0" | N/A |
| Foyer | 4'6" x 5'0" | ~ 12'8" |

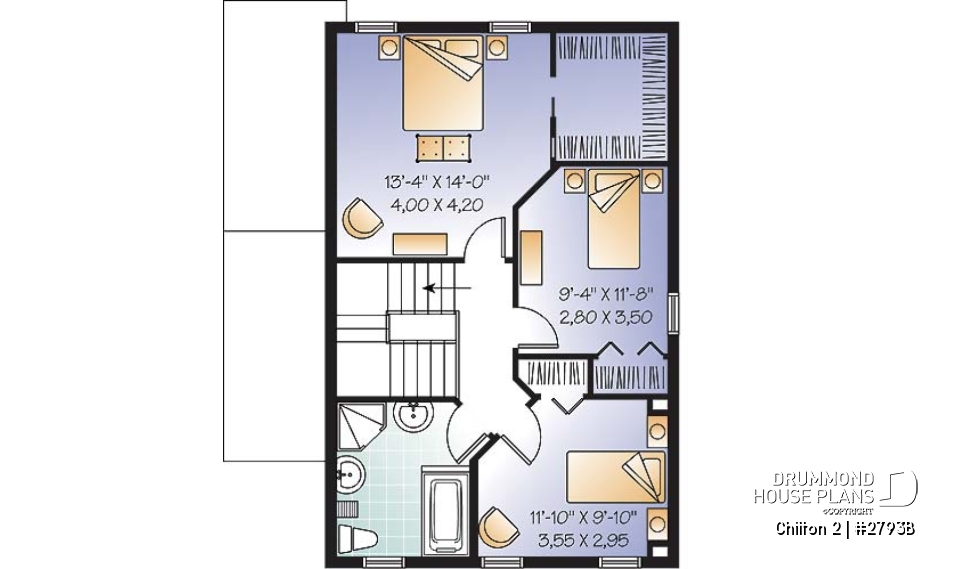

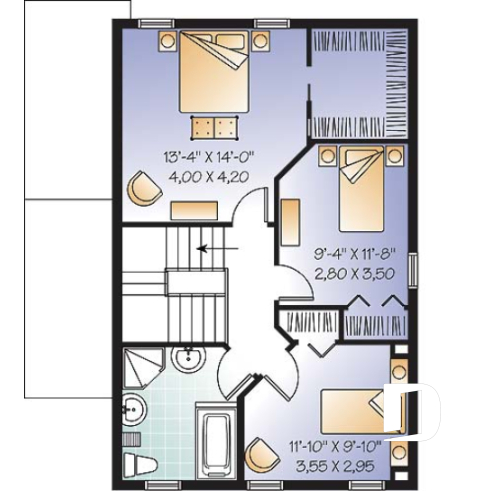

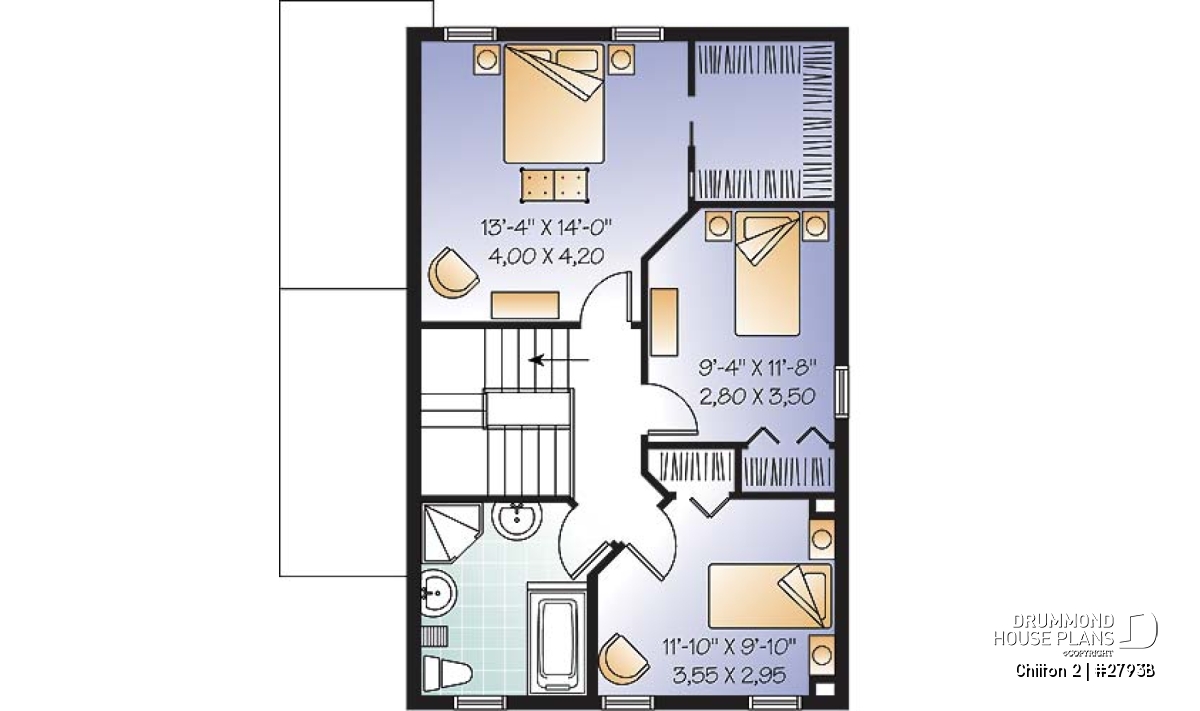

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'4" x 14'0" | ~ 8'0" |
| Bedroom | 11'10" x 9'10" | ~ 8'0" |
| Bedroom | 9'4" x 11'8" | ~ 8'0" |
| Full bathroom | 8'0" x 9'8" | ~ 8'0" |
General specifications
| Total living area | 2108 sq.ft. |
| Basement | 578 sq.ft. |
| 1st level | 789 sq.ft. |
| 2nd level | 741 sq.ft. |
| Width | 27'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 30'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 1, 3 |
| Full baths | 2 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 22 sq.ft. |
Units specifications
Other useful information on this plan
Affordable 3 bedroom country cottage house plan with basement apartment
.
Distinctive elements
Lovely front porch partially covered.
Open entry with large closet.
Attractive living room.
Dining room with built-ins.
Kitchen with central lunch counter.
Laundry area provided on the first level.
Three nice bedrooms on the second floor including a walk-in closet in bedroom #1.
Finished basement apartment.
Plan feature(s)
Open floor layout, Island, Gound floor laundry room, Entrance hall, Walk-in master bed., Separate bath and shower, Double sinks, Built-ins
Plan architectural style(s)
. Traditional, . American, . English, . Colonial
