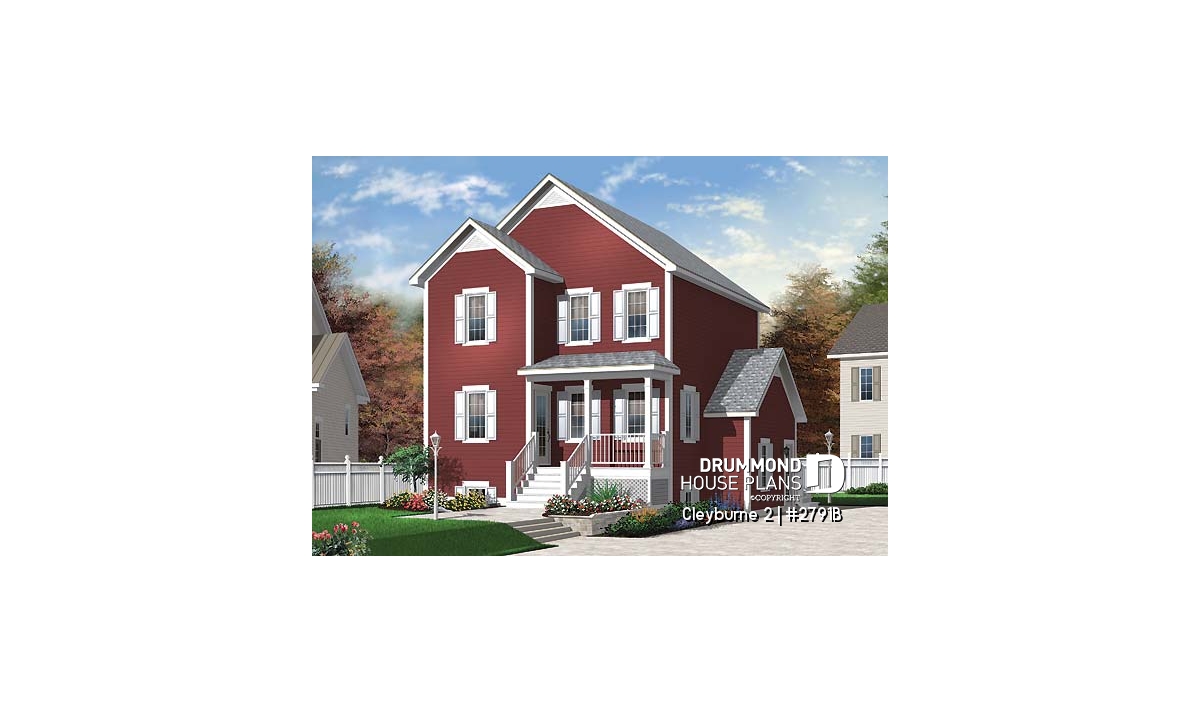

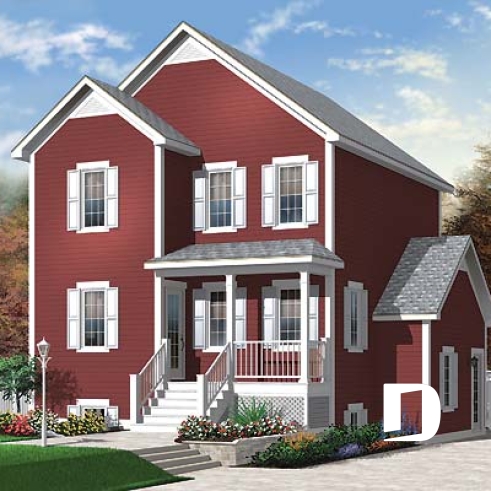

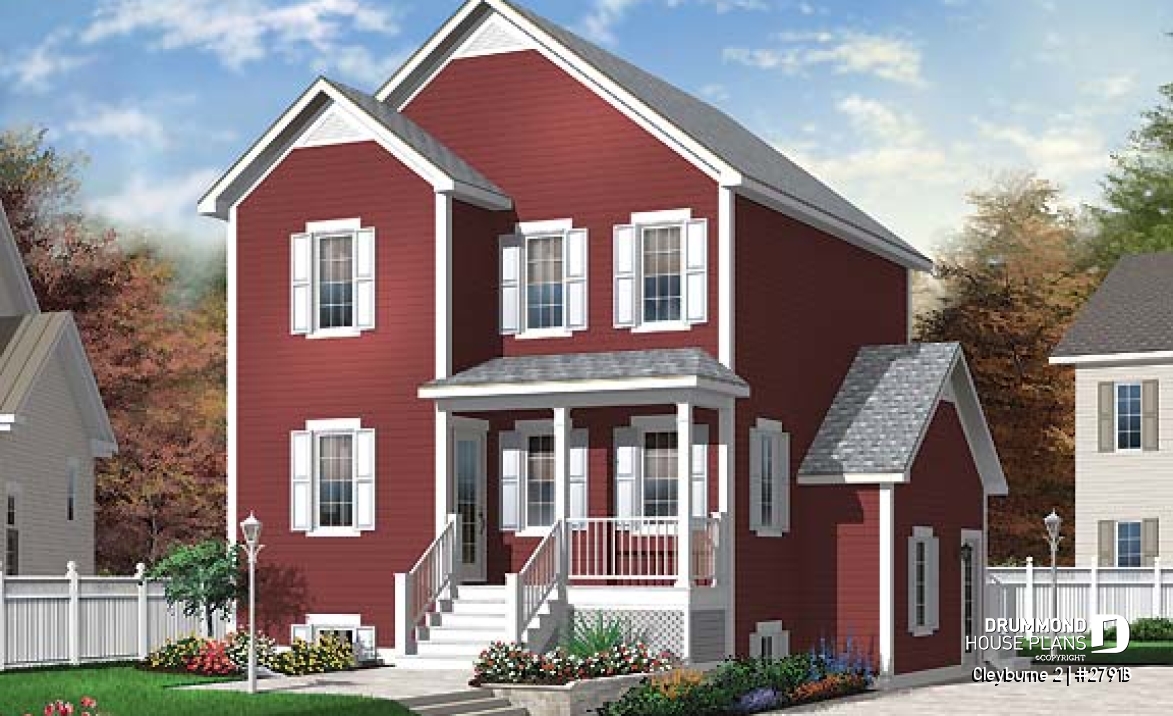

Cleyburne 2 (2791B)
3 bedrom traditional house plan with ample storage & single bedroom basement appartment
View the size of the rooms and height of the ceilings

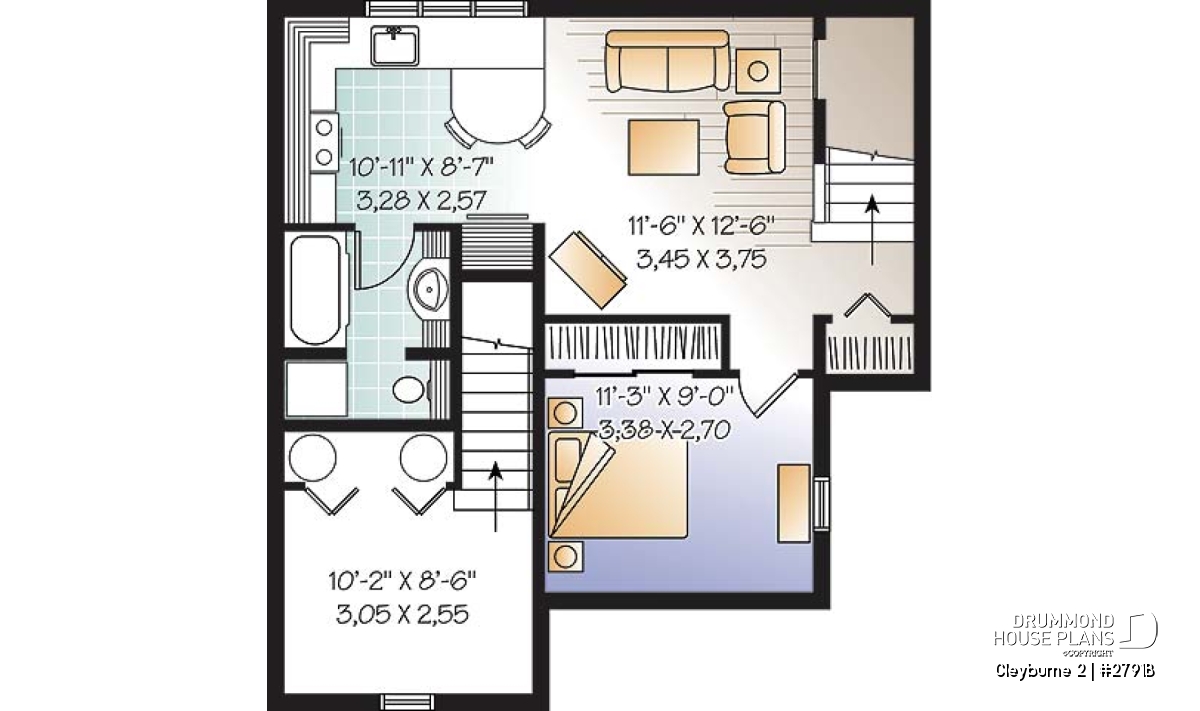

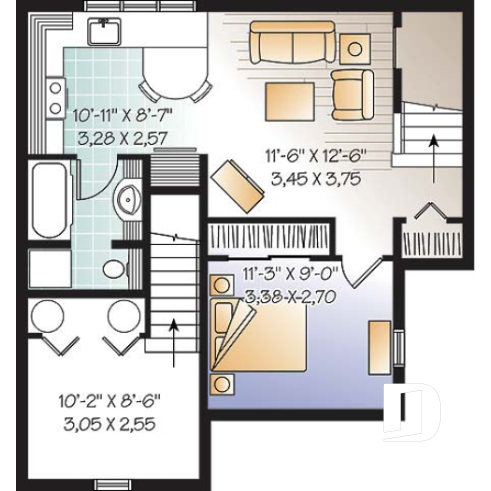

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'3" x 9'0" | ~ 8'0" |
| Closet | 3'7" x 2'0" | ~ 8'0" |
| Living room | 11'6" x 12'6" | ~ 8'0" |
| Full bathroom | 6'11" x 8'1" | ~ 8'0" |
| Storage | 10'2" x 8'6" | ~ 8'0" |
| Kitchen | 10'4" x 8'7" | ~ 8'0" |
| Storage | 3'7" x 3'5" | ~ 3'5" |

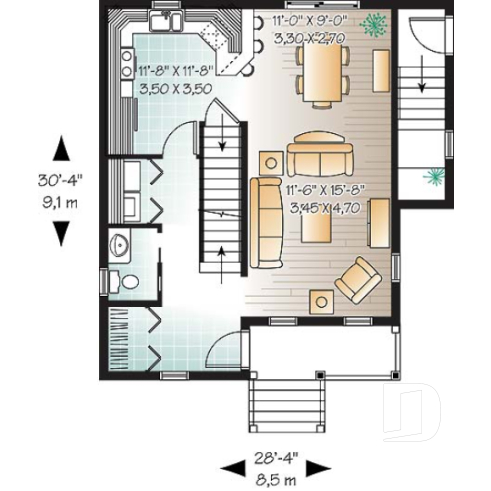

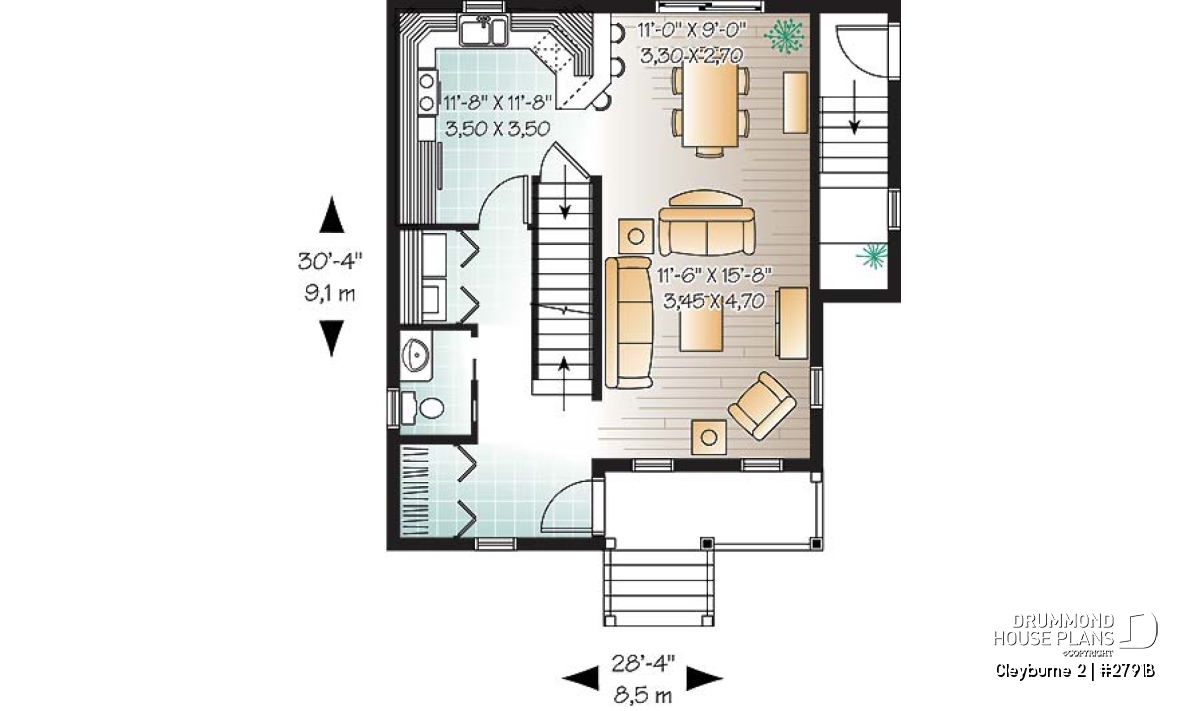

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 11'0" x 10'0" | ~ 8'0" |
| Living room | 11'6" x 14'8" | ~ 8'0" |
| Kitchen | 11'8" x 11'8" | ~ 8'0" |
| Pantry | 2'0" x 1'10" | N/A |
| Half bath or powder room | 4'0" x 5'10" | ~ 8'0" |
| Porch | 12'0" x 4'4" | N/A |
| Deck | 9'0" x 6'0" | N/A |
| Laundry room | 3'2" x 5'2" | ~ 8'0" |
| Foyer | 7'11" x 6'4" | ~ 8'0" |
| Closet | 3'0" x 5'2" | ~ 8'0" |

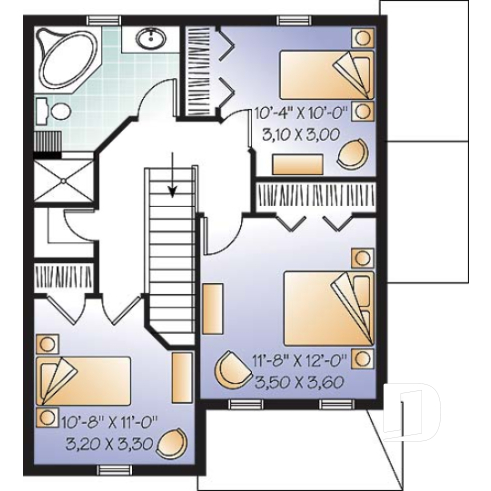

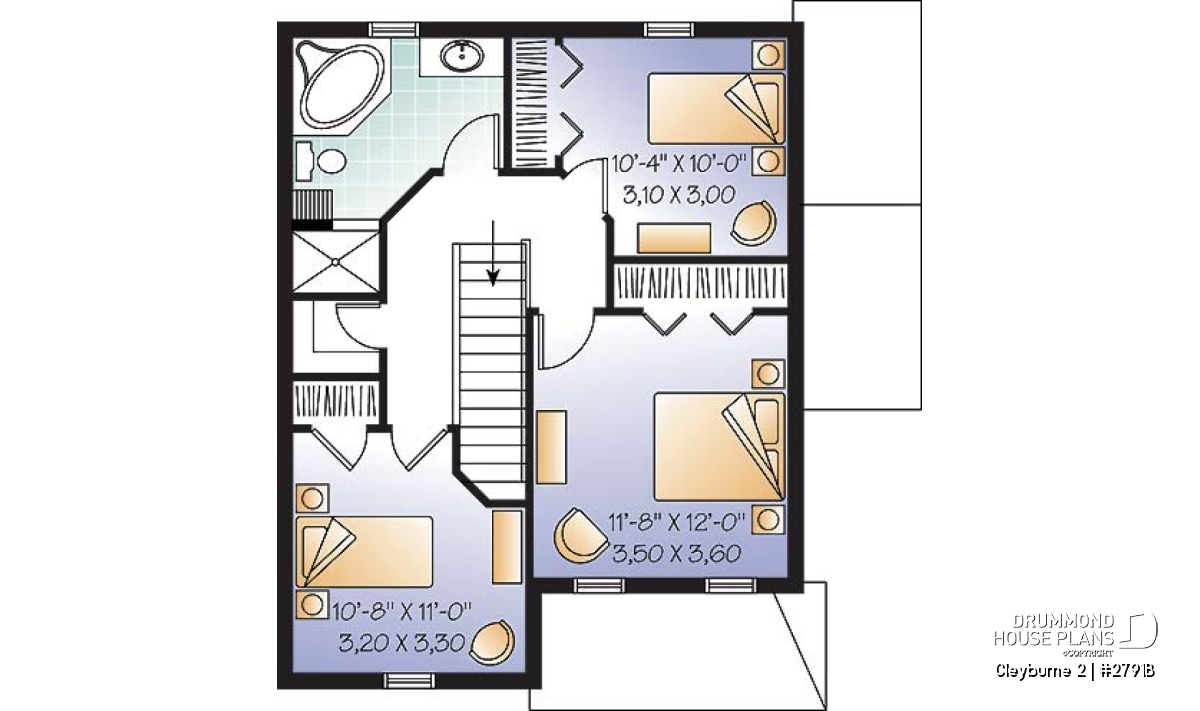

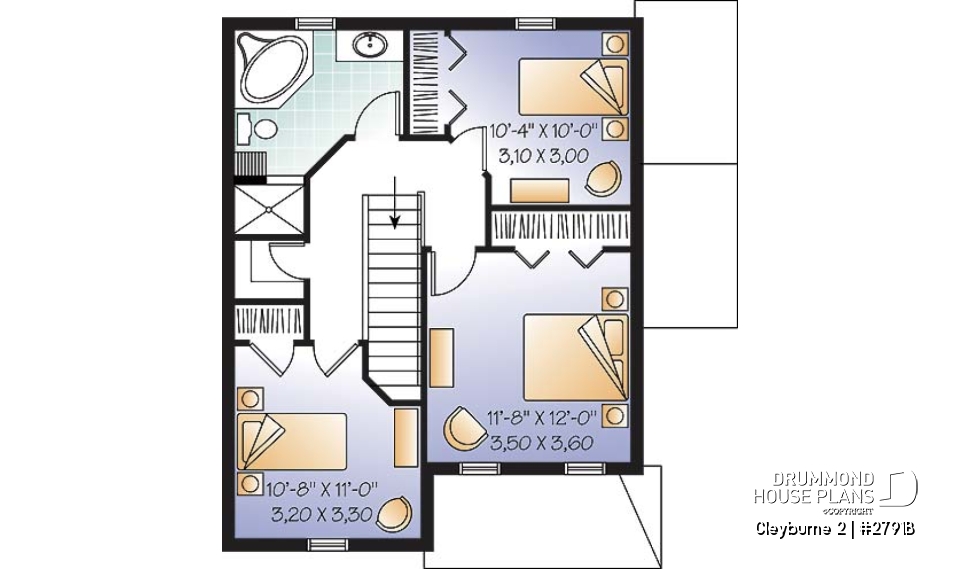

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'4" x 9'8" | ~ 8'0" |
| Bedroom | 11'8" x 12'0" | ~ 8'0" |
| Bedroom | 10'8" x 10'0" | ~ 8'0" |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Storage | 2'8" x 5'2" | ~ 8'0" |
General specifications
| Total living area | 1929 sq.ft. |
| Basement | 583 sq.ft. |
| 1st level | 670 sq.ft. |
| 2nd level | 676 sq.ft. |
| Width | 28'4" |
| Depth | 30'4" |
| Ridge height from top of foundation | 32'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MA |
Rooms specifications
| Bedroom(s) | 1, 3 |
| Full baths | 2 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 48 sq.ft. |
Units specifications
Other useful information on this plan
Traditional 3 bedroom house plan with one-bedroom apartment in daylight basement
Do you want to access your property without having to cut your leisure activities? This way of building may very well allow you to achieve this; the income generated by the basement apartment will be giving you some flexibility. So let's go in to see what it's all about.
It is through the side service entrance that you can access the accommodation or "bachelor" arranged in a semi-basement. There is a lowered entrance and a staircase composed of only six steps, thus facilitating access for older people. The accommodation has a bedroom, a living area, a kitchen paired with a dinette and a full bathroom. The remaining basement square footage is assigned to the owners as storage (10'2 x 8'6).
The main building offers, on the ground floor, a dining room and an open living room, a kitchen with a dinette area, a laundry closet, a half-bath and a beautiful entrance closet while upstairs, three beautiful bedrooms, a full bathroom with a nice size shower, and large storage in the hallway complete the package.
Distinctive elements
Two-storey house plan, country style offering a basement converted into a 3 1/2 apartment.
Beautiful (and practical) sheltered gallery at the front for the main accommodation. Separate entrance for housing in the basement.
Open entrance with good size wardrobe.
Shower room and laundry area provided on the ground floor.
Kitchen with excellent storage and lunch counter.
Dining room and open concept living room.
Three comfortable bedrooms upstairs and more than adequate storage with this walk-in closet.
The upstairs bathroom has a separate bath and shower.
The basement is finished and offers an apartment with a bedroom, a bathroom and a living room.
Plan feature(s)
Lunch counter, Open floor layout, Gound floor laundry room, Separate bath and shower, Access to basement from exterior
Plan architectural style(s)
. Country, . Traditional, . American
