3717-V1 (Adele 2)

Contemporary House plan with basement apartment, 3 bedrooms for owner, great open floor plan with 9' ceiling

Bedrooms

3, 4

Bathroom(s)

3

Living area

2421 sq.ft.

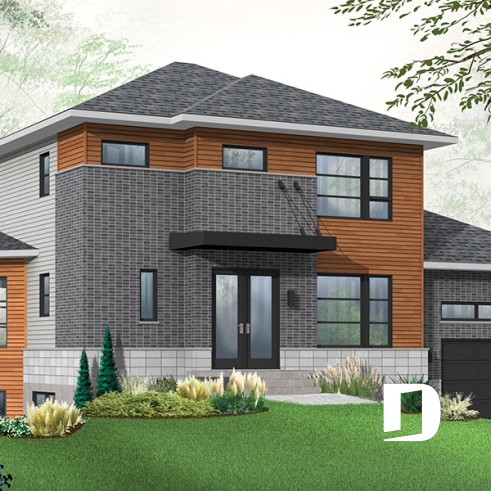

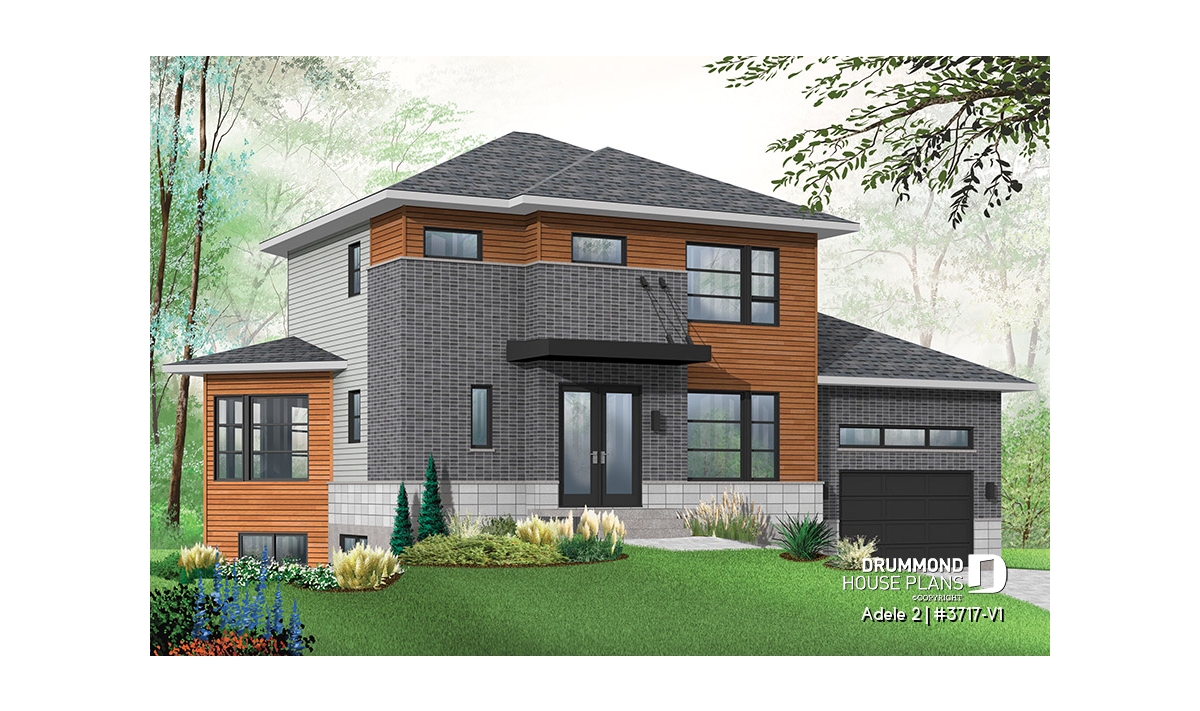

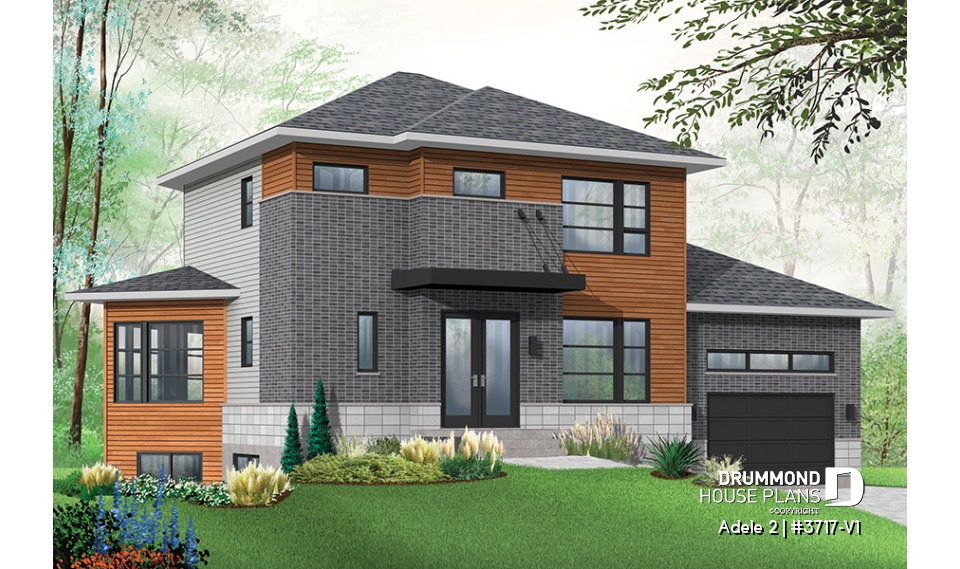

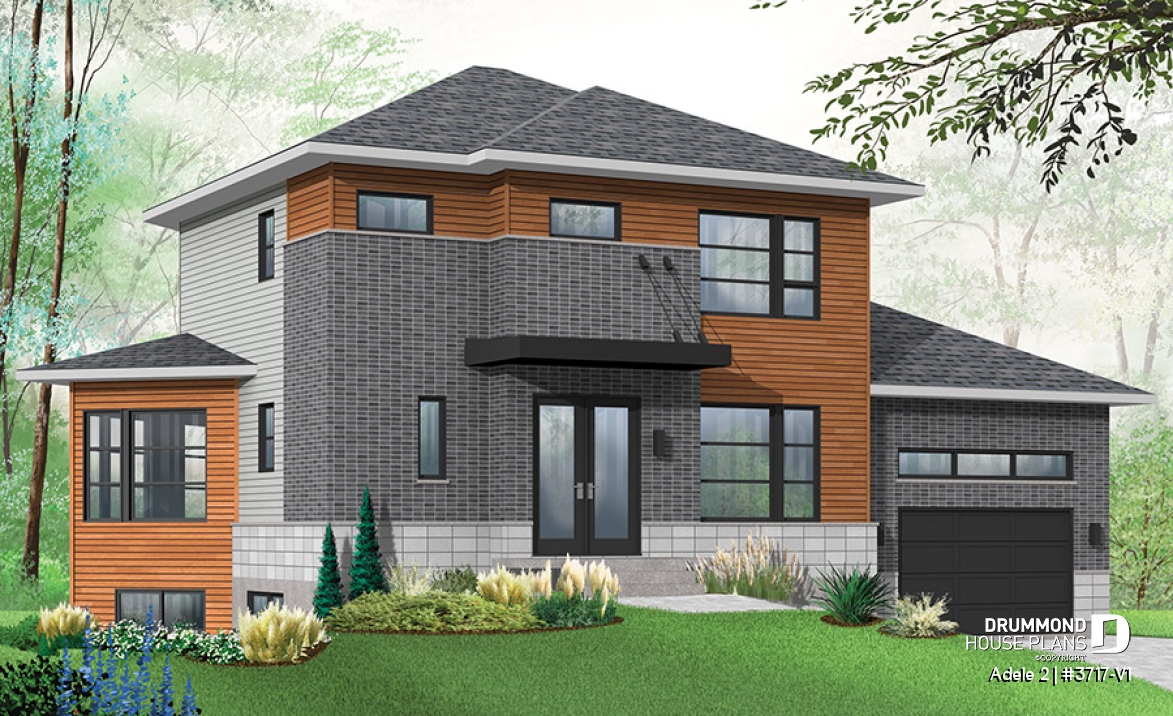

  • front - BASE MODEL - Contemporary House plan with basement apartment, 3 bedrooms for owner, great open floor plan with 9' ceiling   - Adele 2

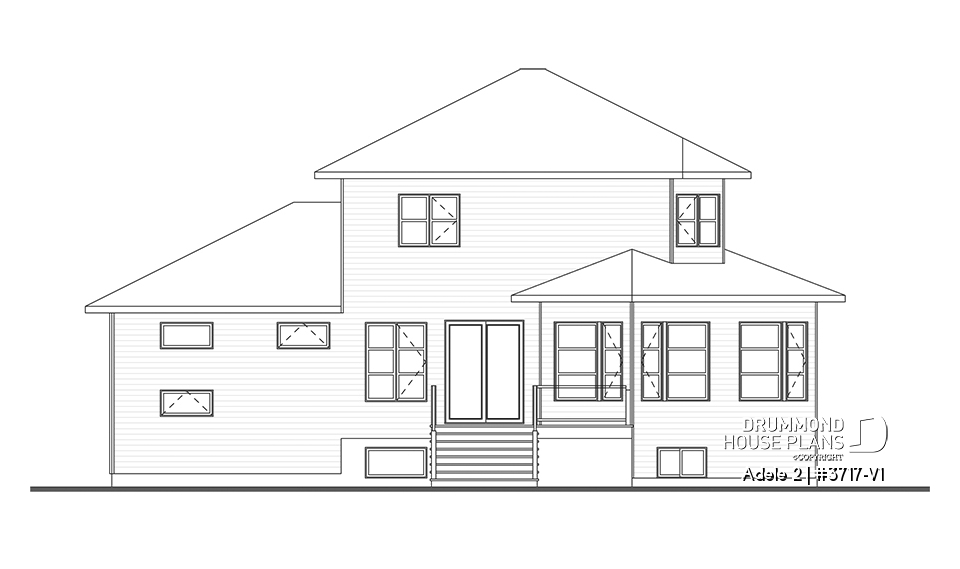

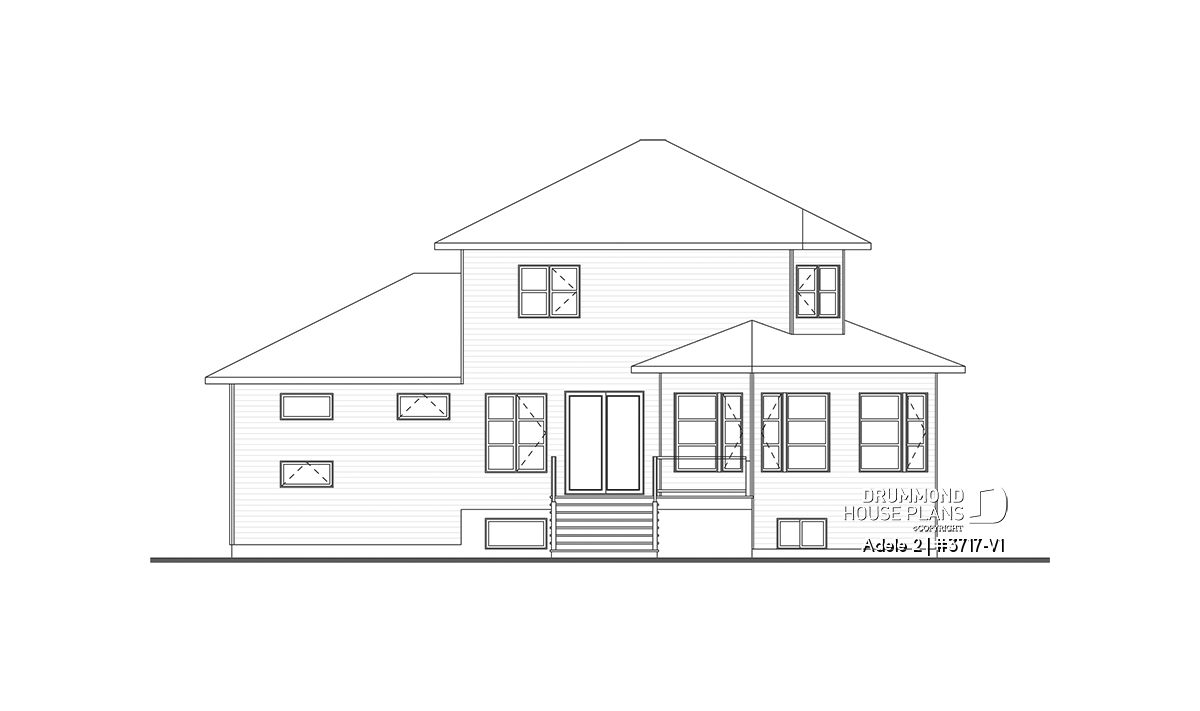

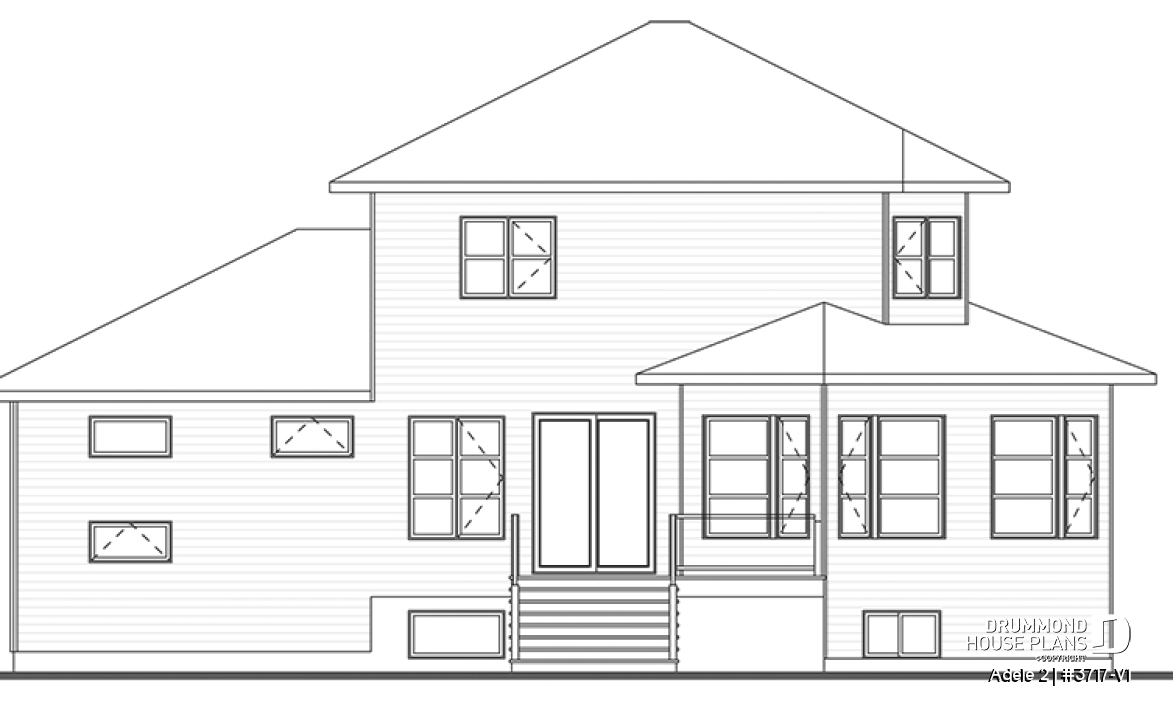

  • rear elevation - Adele 2

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3717-V1
Vignette rear elevation - 3717-V1

View by floor

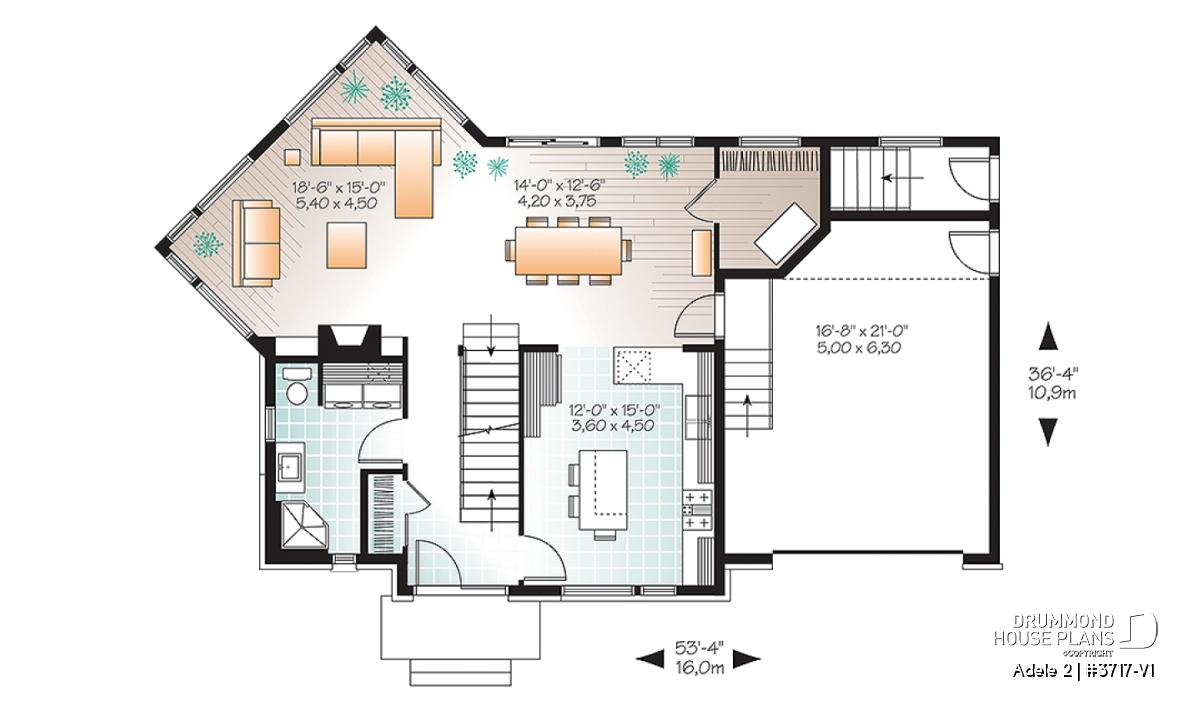

  • 1st level

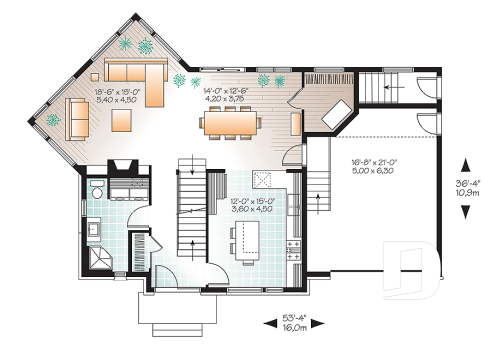

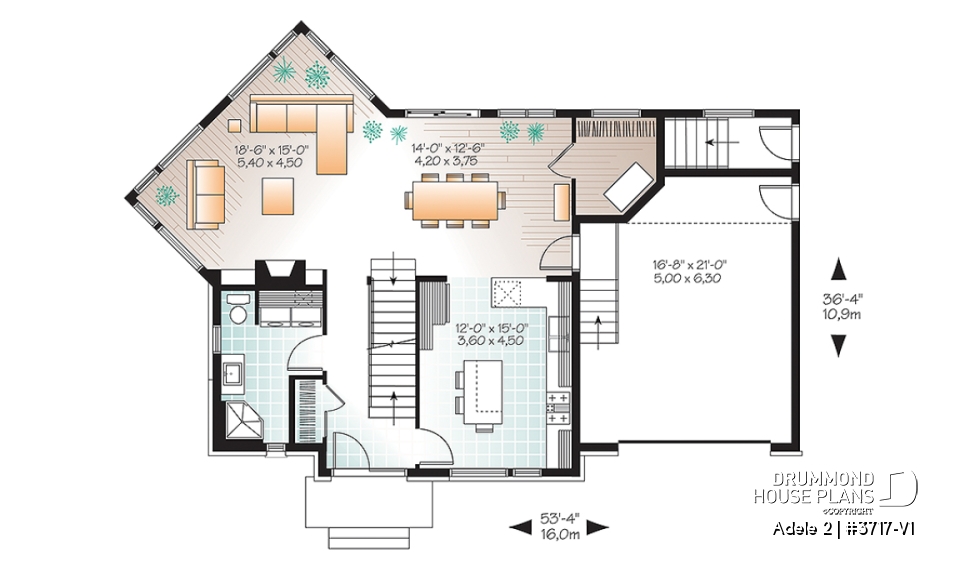

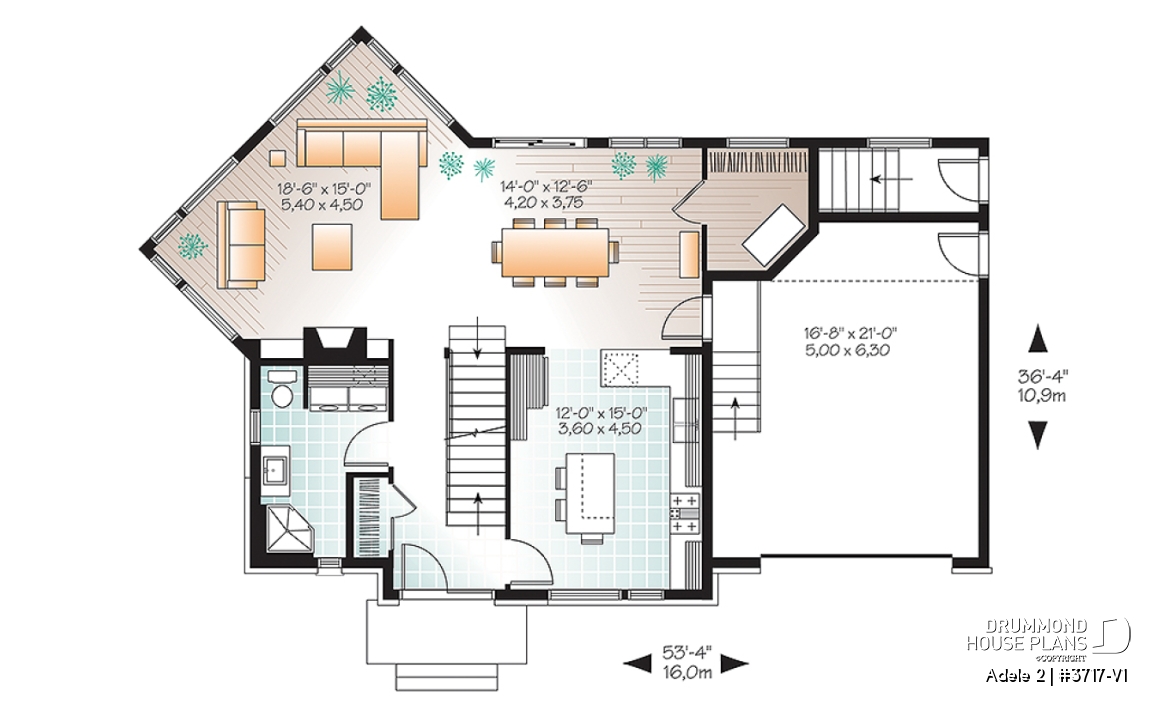

    1st level - Contemporary House plan with basement apartment, 3 bedrooms for owner, great open floor plan with 9' ceiling   - Adele 2

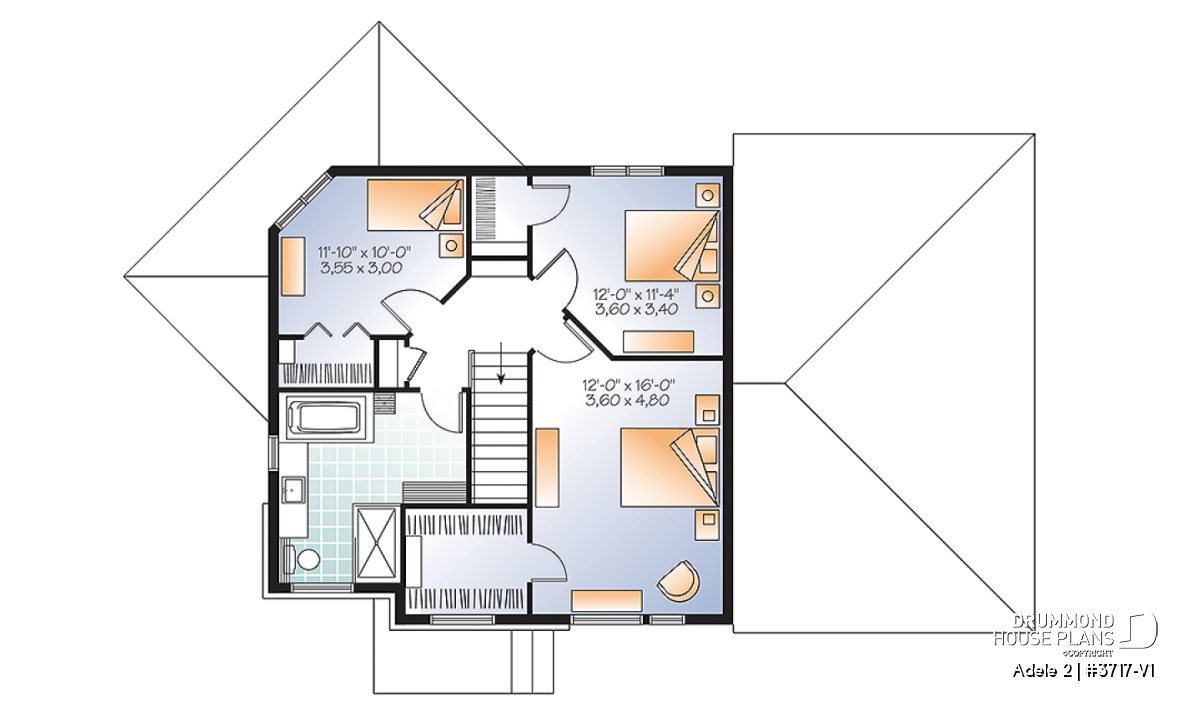

  • 2nd level

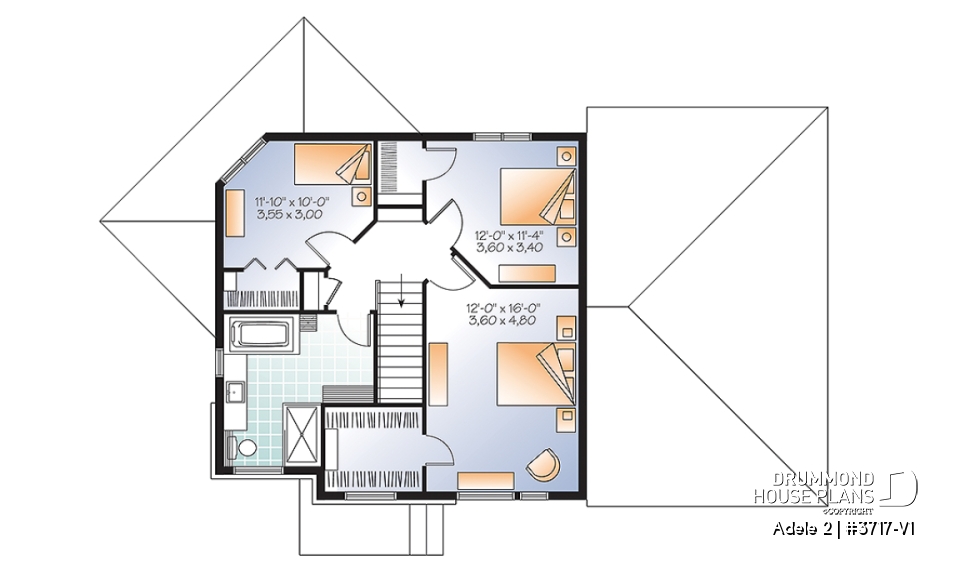

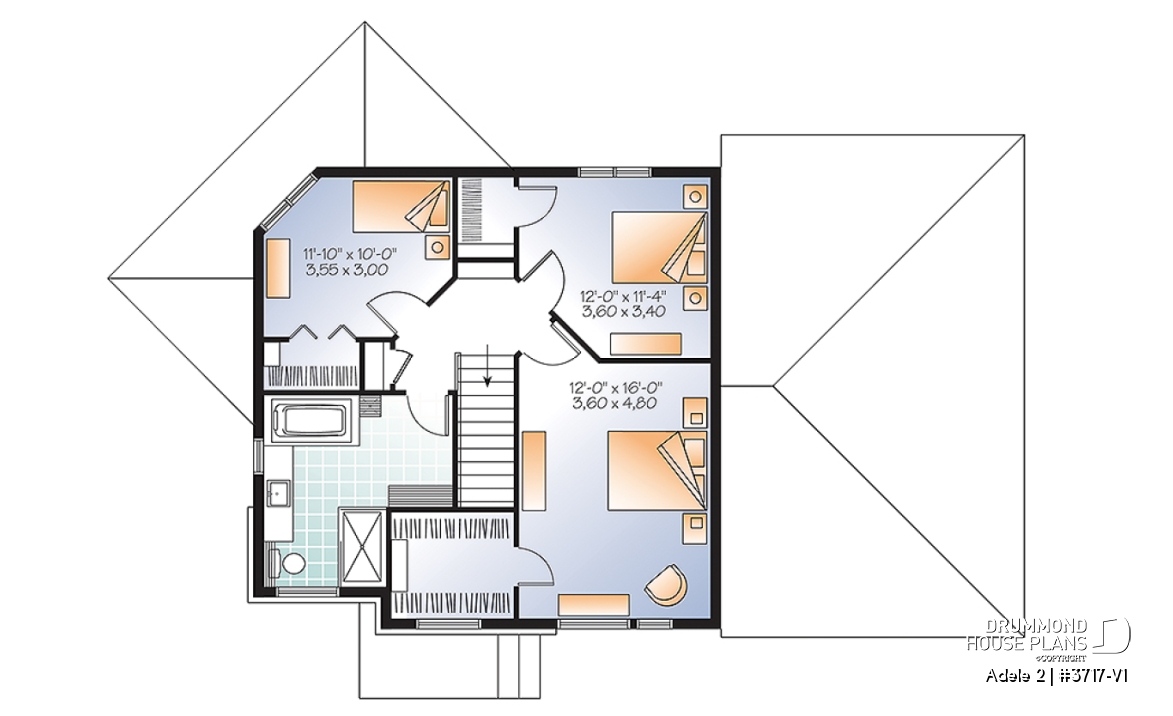

    2nd level - Contemporary House plan with basement apartment, 3 bedrooms for owner, great open floor plan with 9' ceiling   - Adele 2

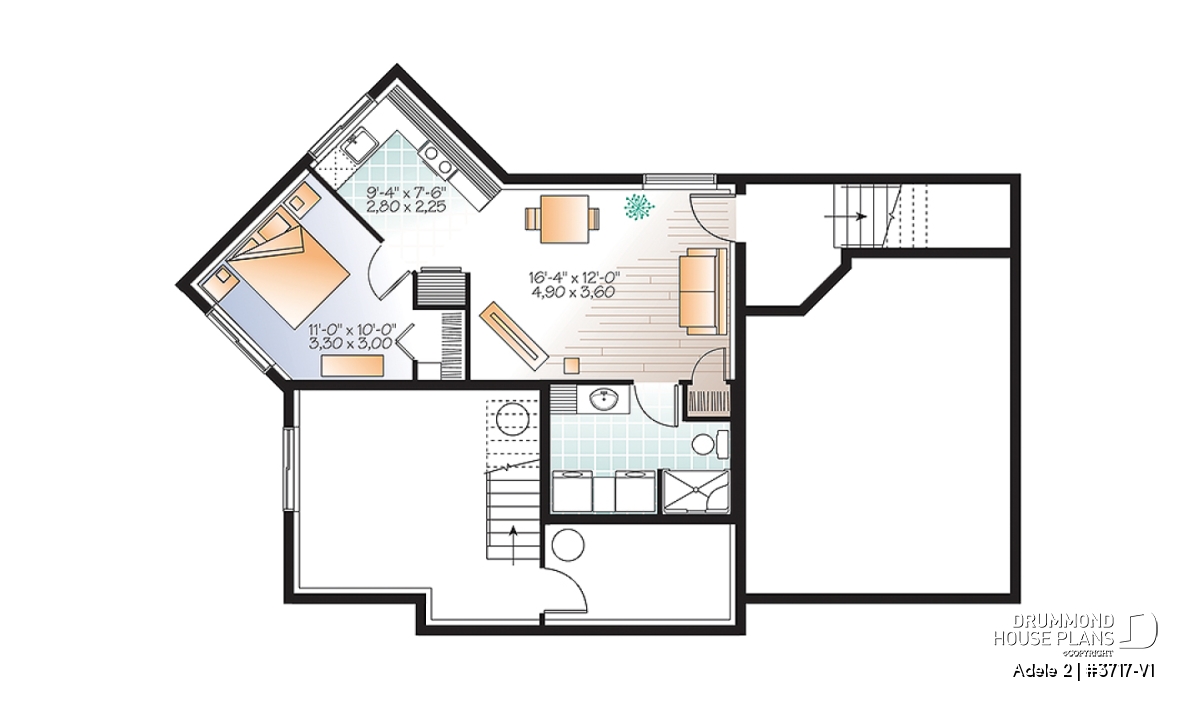

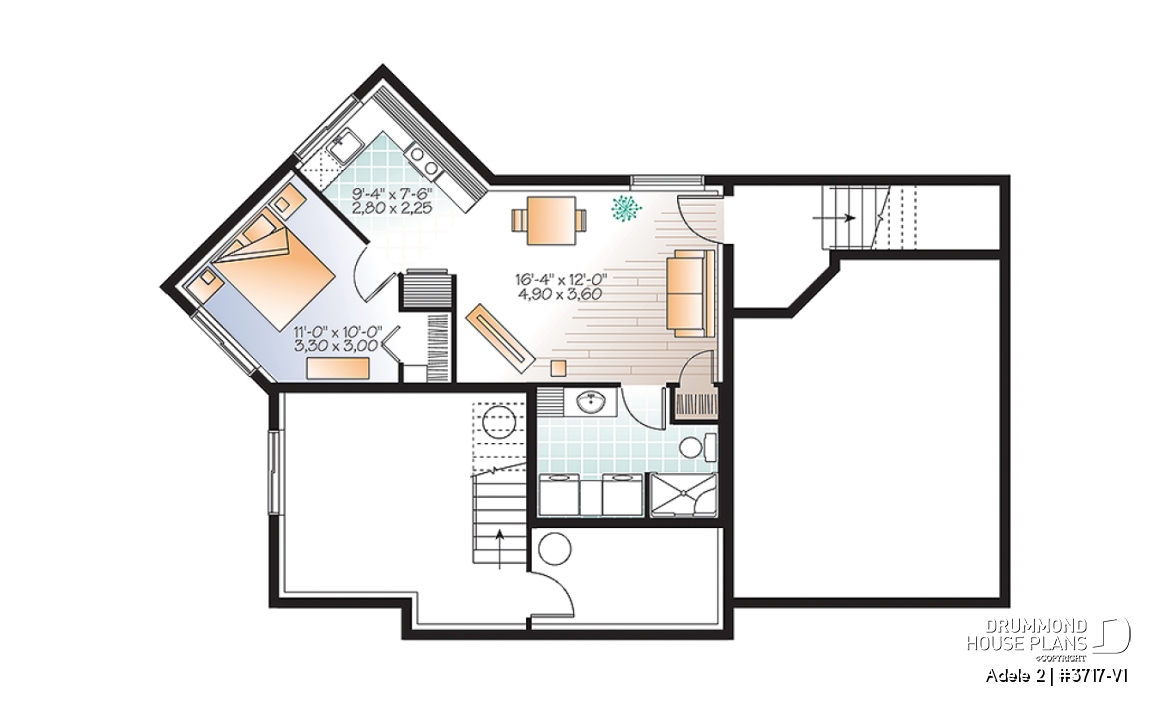

  • Basement

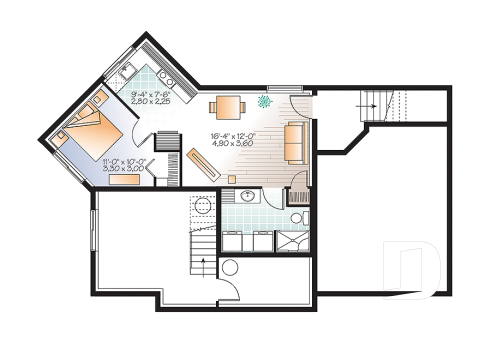

    Basement - Contemporary House plan with basement apartment, 3 bedrooms for owner, great open floor plan with 9' ceiling   - Adele 2
Vignette 1st level - 3717-V1
Vignette 2nd level - 3717-V1
Vignette Basement - 3717-V1

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

Basement
Rooms Sizes Ceiling
Living room 16'4" x 12'0" ~ 8'0"
Closet 2'8" x 2'0" ~ 8'0"
Shower/laundry room 11'4" x 8'2" ~ 8'0"
Shower 4'3" x 2'10" ~ 0'0"
Linen 1'8" x 1'10" ~ 0'0"
Kitchen 9'4" x 7'6" ~ 8'0"
Bedroom 11'0" x 10'0" ~ 8'0"
Walk-in closet 3'0" x 4'5" ~ 8'0"
1st level
Rooms Sizes Ceiling
Foyer 7'0" x 7'0" ~ 9'0"
Closet 2'2" x 5'0" ~ 9'0"
Kitchen/dinette 12'0" x 14'8" ~ 9'0"
Dining room 14'0" x 12'6" ~ 9'0"
Living room 18'6" x 15'0" ~ 9'0"
Shower/laundry room 8'0" x 12'0" ~ 9'0"
Walk-in closet 6'4" x 7'8" ~ 9'0"
2nd level
Rooms Sizes Ceiling
Bedroom 12'0" x 16'0" ~ 8'0"
Walk-in closet 7'8" x 6'8" ~ 8'0"
Bedroom 12'0" x 11'4" ~ 8'0"
Walk-in closet 3'6" x 5'0" ~ 8'0"
Bedroom 11'10" x 10'0" ~ 8'0"
Walk-in closet 6'0" x 3'0" ~ 8'0"
Full bathroom 11'10" x 12'0" ~ 8'0"
Shower 3'0" x 5'0" ~ 0'0"
Linen 4'0" x 1'4" ~ 0'0"
Linen 1'7" x 3'0" ~ 8'0"

General specifications

Total living area 2421 sq.ft.
1st level 993 sq.ft.
2nd level 836 sq.ft.
Basement 592 sq.ft.
Width 53'4"
Depth 36'4"
Ridge height from top of foundation 30'8"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement
Builder price code MB

Rooms specifications

Bedroom(s) 3, 4
Full baths 3
Half baths -
Garage type One-car garage (369 sq.ft.)
Living bonus space -
Bonus storage 100 pi2

Units specifications

Owner unit Bachelor
Total living area 0 sq.ft. 592 sq.ft.
Basement - 592 sq.ft.
Width 53' 4" 29' 4"
Depth 36' 4" 21' 9"
Ridge height from top of foundation 30' 8" 30' 8"
Exterior wall 2 X 6 2 X 6
Foundation type Finished basement Finished basement
Bedroom(s) 3 1
Full baths 2 1
Half baths - -
Garage type One-car garage (369 sq.ft.) -
Living bonus space - -
Bonus storage - -
Find a builder

General specifications

Total living area 2421 sq.ft.
Basement 592 sq.ft.
1st level 993 sq.ft.
2nd level 836 sq.ft.
Width 53'4"
Depth 36'4"
Ridge height from top of foundation 30'8"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement i
Builder price code MB

Rooms specifications

Bedroom(s) 3, 4
Full baths 3
Half baths -
Garage type One-car garage (369 sq.ft.)
Living bonus space - i
Bonus storage 100 sq.ft. i

Units specifications

Owner unit Bachelor
Total living area 0 sq.ft. 592 sq.ft.
Basement - 592 sq.ft.
Width 53' 4" 29' 4"
Depth 36' 4" 21' 9"
Ridge height from top of foundation 30' 8" 30' 8"
Exterior wall 2 X 6 2 X 6
Foundation type Finished basement Finished basement
Bedroom(s) 3 1
Full baths 2 1
Half baths - -
Garage type One-car garage (369 sq.ft.) -
Living bonus space - -
Bonus storage - -

Buy this plan

From : 1149$

Modify this plan

Get a quote

Description

Finished basement: Basement apartment with private entry, one bedroom with walk-in closet, shower room with laundry, kitchen, dining and family room First floor: Entrance with coat closed, kitchen, dining / family room, storage Second floor: Three bedrooms with large full bathroom.

Other useful information on this plan

Beautiful Contemporary house plan, complete with a basement apartment and a garage

The ever increasing demand for new homes that come complete with a revenue generating “bachelor” apartment, Drummond House Plans has created plan 3717-V1, an enlarged version of the original design, plan 3717, with new features that make it even more appealing.

Enhancements include an added one bedroom apartment and a garage complete with a mezzanine towards the back for storage.

Once inside the home, the ample windows throughout the living area offer exceptional natural light and in the kitchen which has been moved towards the front.

The 12’ x 16’ master bedrooms, with a walk in closet, as well as the generous sizes of the other bedrooms are elements that are sure to please. Other spectacular features of this home include a full bathroom with separate 3’ x 5’ shower and a laundry chute to the main floor.

The fire place in the living room with its built ins, the storage area at the service entrance from the garage and 40% of the basement space that the owners can use as best suits them are other practical features of this home.

Distinctive elements

Basement apartment with one bedroom and private access.
9' ceiling on main floor.
Open dining and family room with fireplace.
Large storage area near garage access.
Laundry area on main floor.
Kitchen with large kitchen island.
Access from garage near kitchen.
Master bedroom with large walk-in closet.
Two secondary bedrooms with walk-in closets.
Large family bathrooom with separate large shower.


Plan architectural style(s)

Contemporary, Modern / Design

Other useful information on this plan

Full description

Beautiful Contemporary house plan, complete with a basement apartment and a garage

The ever increasing demand for new homes that come complete with a revenue generating “bachelor” apartment, Drummond House Plans has created plan 3717-V1, an enlarged version of the original design, plan 3717, with new features that make it even more appealing.

Enhancements include an added one bedroom apartment and a garage complete with a mezzanine towards the back for storage.

Once inside the home, the ample windows throughout the living area offer exceptional natural light and in the kitchen which has been moved towards the front.

The 12’ x 16’ master bedrooms, with a walk in closet, as well as the generous sizes of the other bedrooms are elements that are sure to please. Other spectacular features of this home include a full bathroom with separate 3’ x 5’ shower and a laundry chute to the main floor.

The fire place in the living room with its built ins, the storage area at the service entrance from the garage and 40% of the basement space that the owners can use as best suits them are other practical features of this home.

Distinctive elements

Basement apartment with one bedroom and private access.
9' ceiling on main floor.
Open dining and family room with fireplace.
Large storage area near garage access.
Laundry area on main floor.
Kitchen with large kitchen island.
Access from garage near kitchen.
Master bedroom with large walk-in closet.
Two secondary bedrooms with walk-in closets.
Large family bathrooom with separate large shower.


Plan architectural style(s)
