House plan The Caldera (3717)

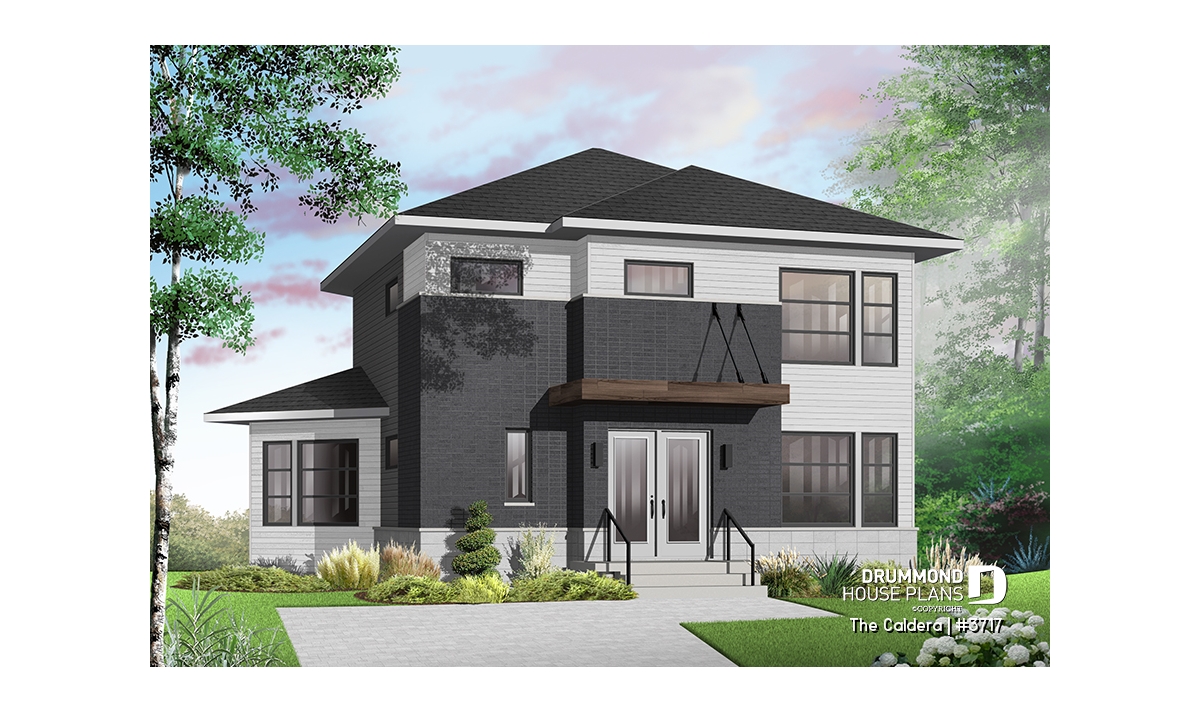

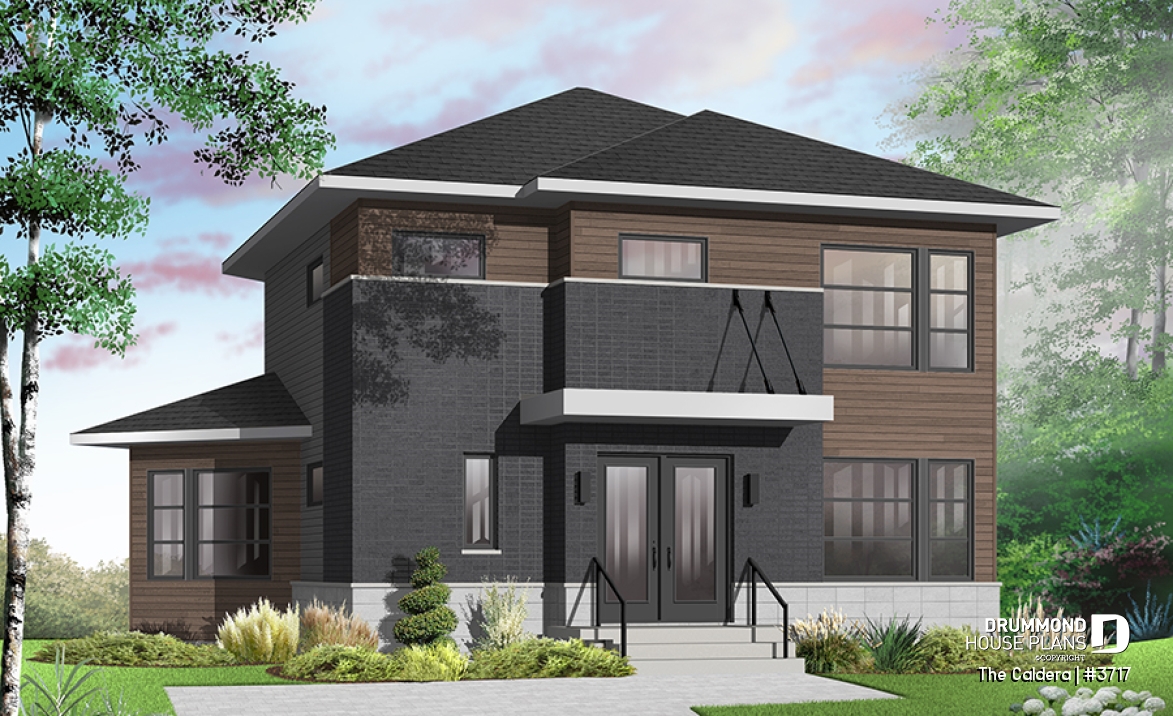

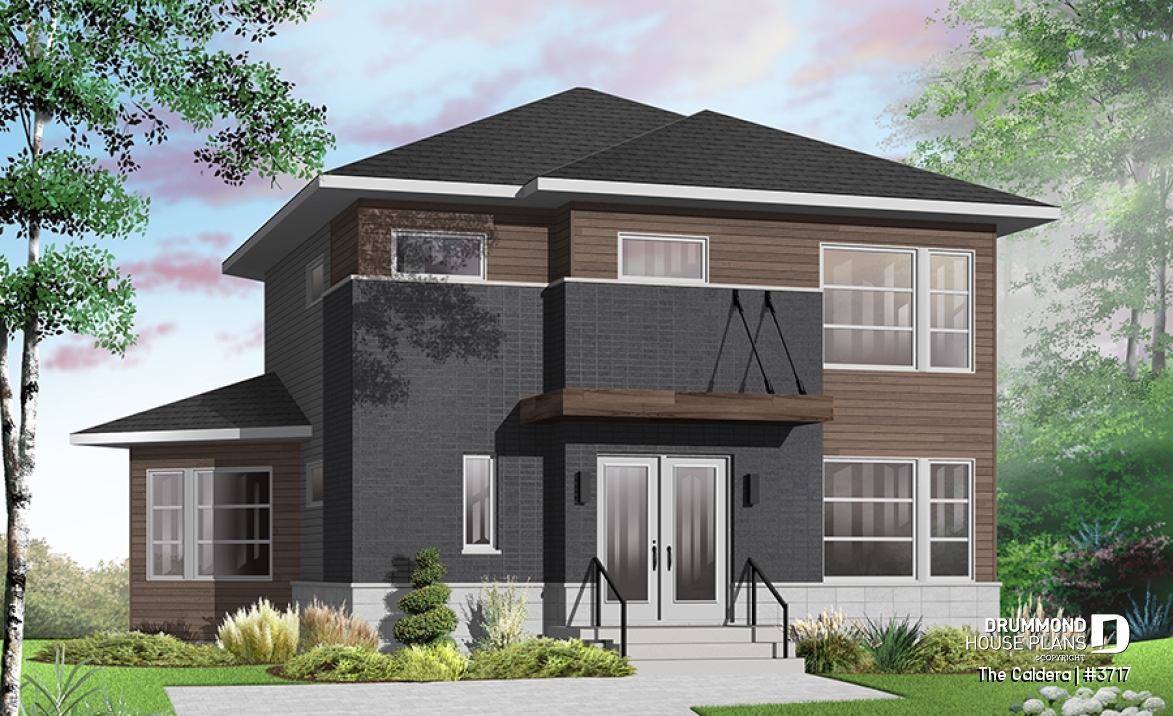

Uniquely styled, well fenestrated 3 bedroom Modern house plan, spacious and bright family room, formal dining
View the size of the rooms and height of the ceilings

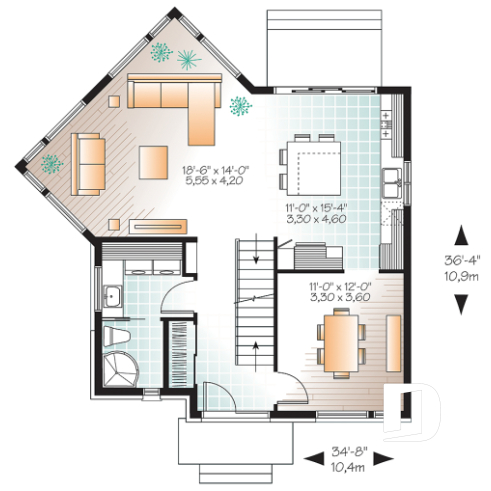

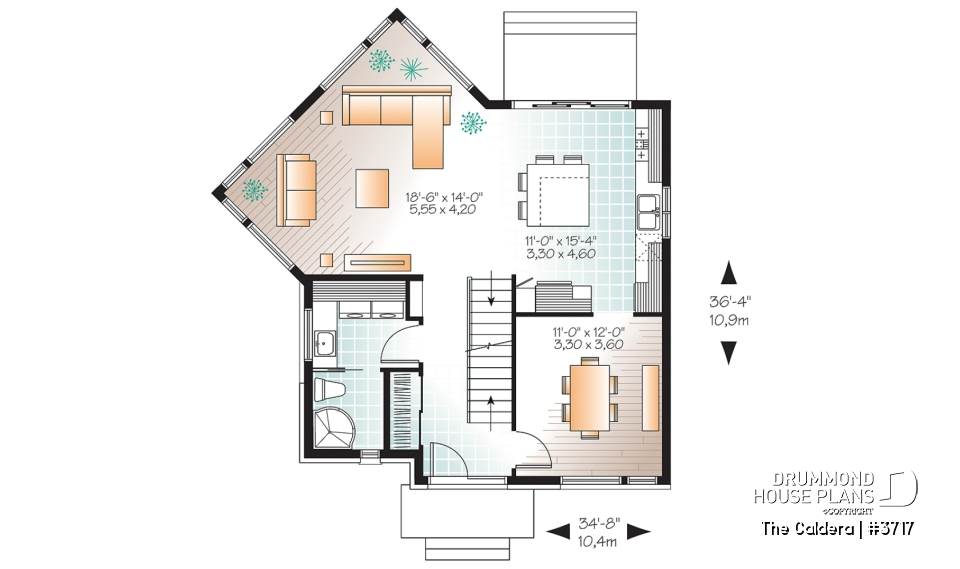

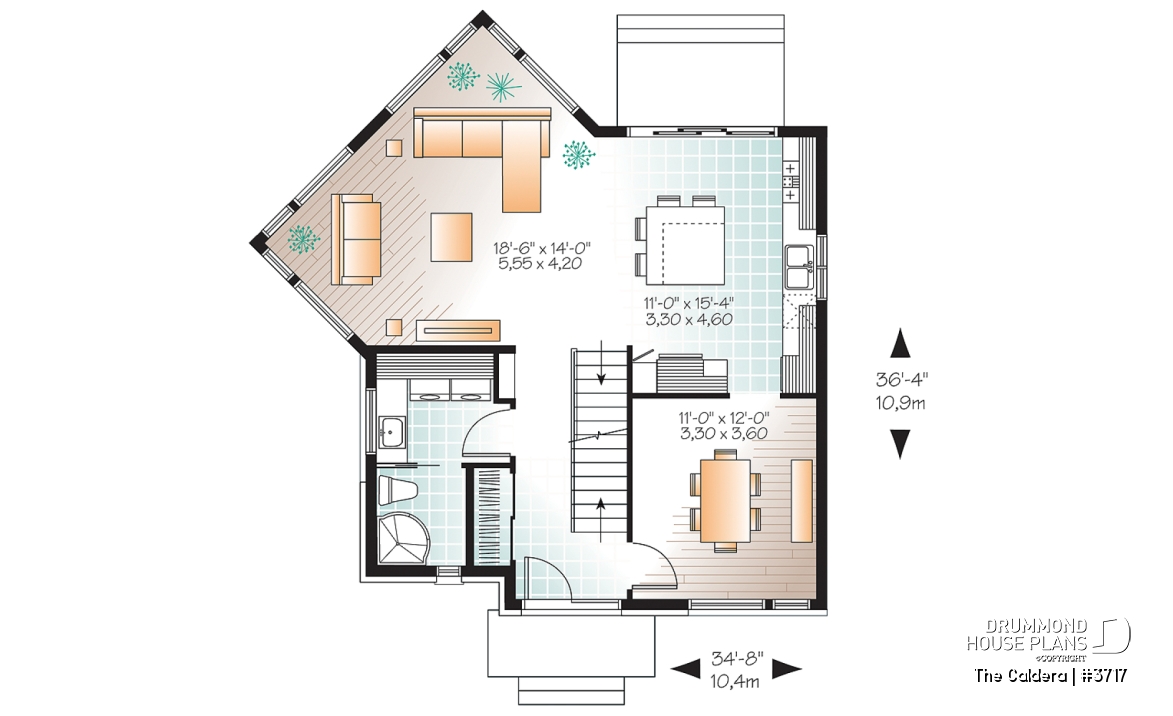

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'8" x 4'0" | ~ 8'0" |
| Closet | 2'2" x 5'10" | ~ 8'0" |
| Dining room | 11'0" x 12'0" | ~ 8'0" |
| Kitchen/dinette | 11'0" x 15'4" | ~ 8'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Living room | 18'6" x 14'0" | ~ 8'0" |
| Shower/laundry room | 7'0" x 12'8" | ~ 8'0" |

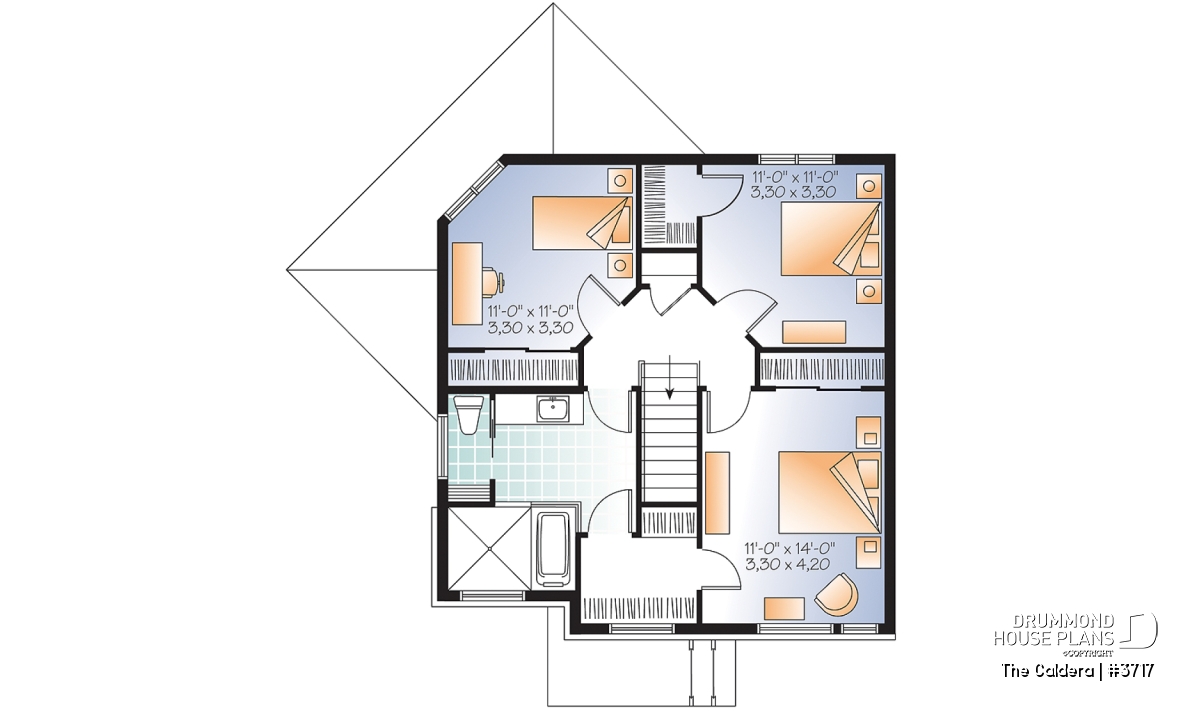

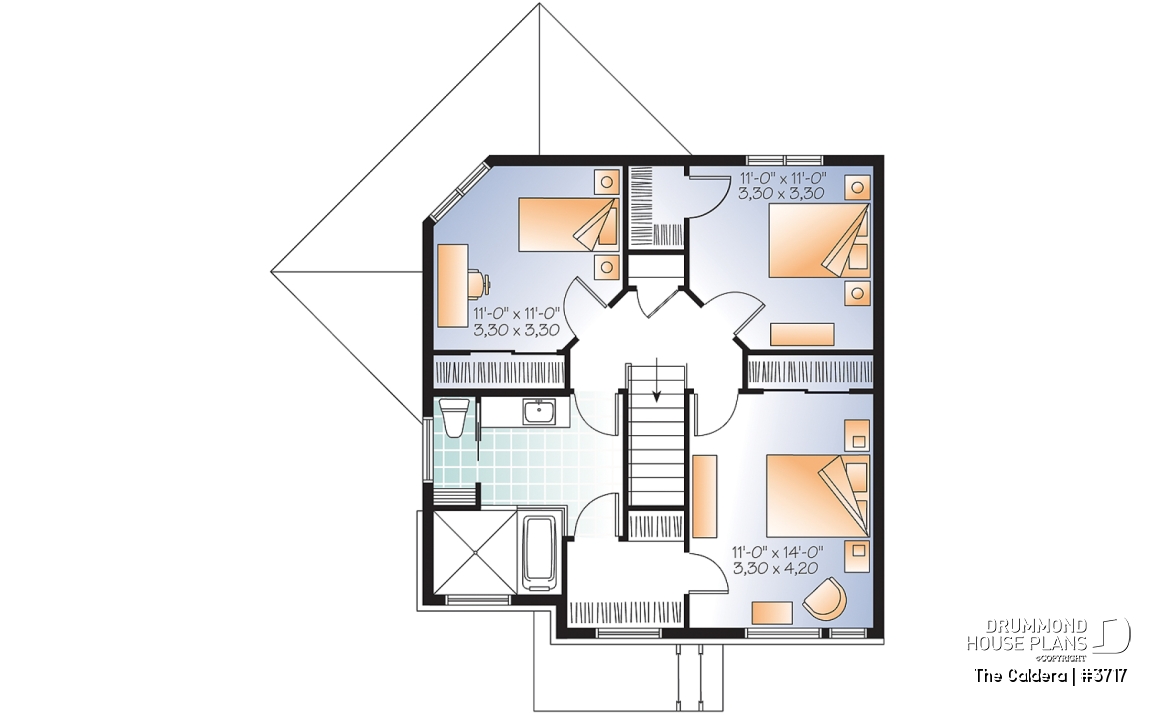

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'0" x 14'0" | ~ 8'0" |
| Walk-in closet | 7'0" x 7'0" | ~ 8'0" |
| Closet | 7'6" x 2'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Walk-in closet | 3'4" x 5'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Closet | 7'10" x 2'0" | ~ 8'0" |
| Full bathroom | 11'4" x 12'0" | ~ 8'0" |
| Linen | 2'6" x 1'0" | N/A |
| Linen | 3'4" x 1'10" | ~ 8'0" |
General specifications
| Total living area | 1688 sq.ft. |
| 1st level | 898 sq.ft. |
| 2nd level | 790 sq.ft. |
| Width | 34'8" |
| Depth | 36'4" |
| Ridge height from top of foundation | 26'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Modern and bright 3 bedroom house plan with large family room and formal dining room

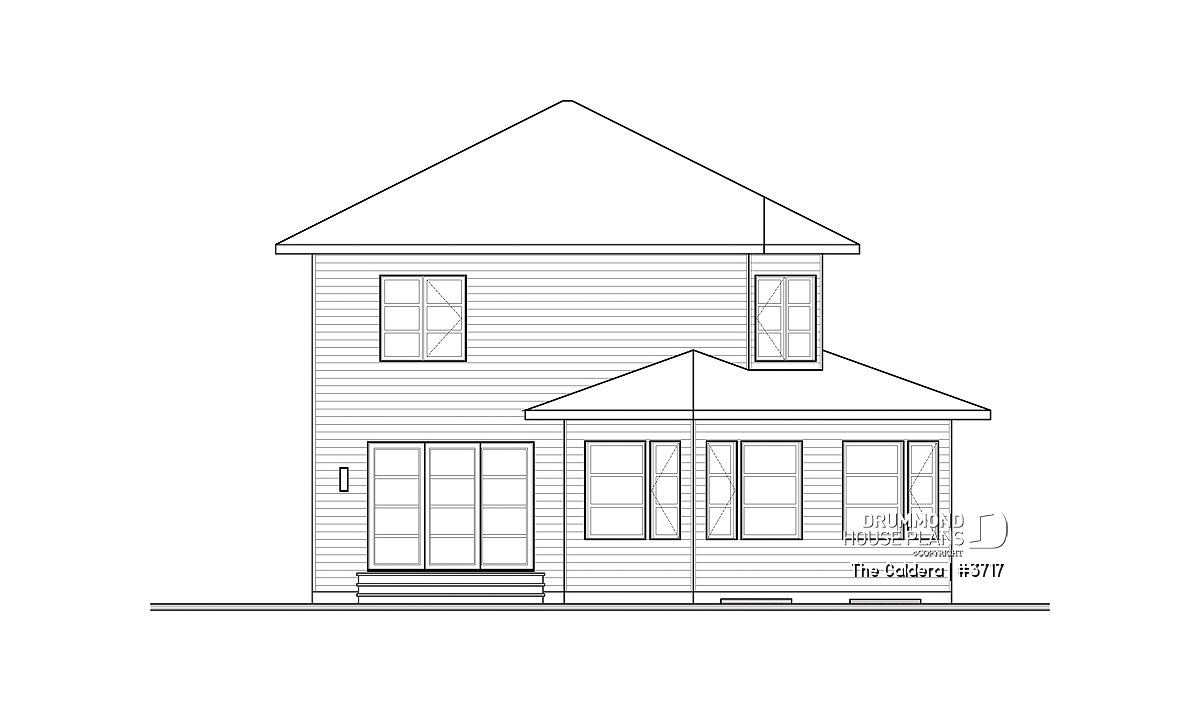

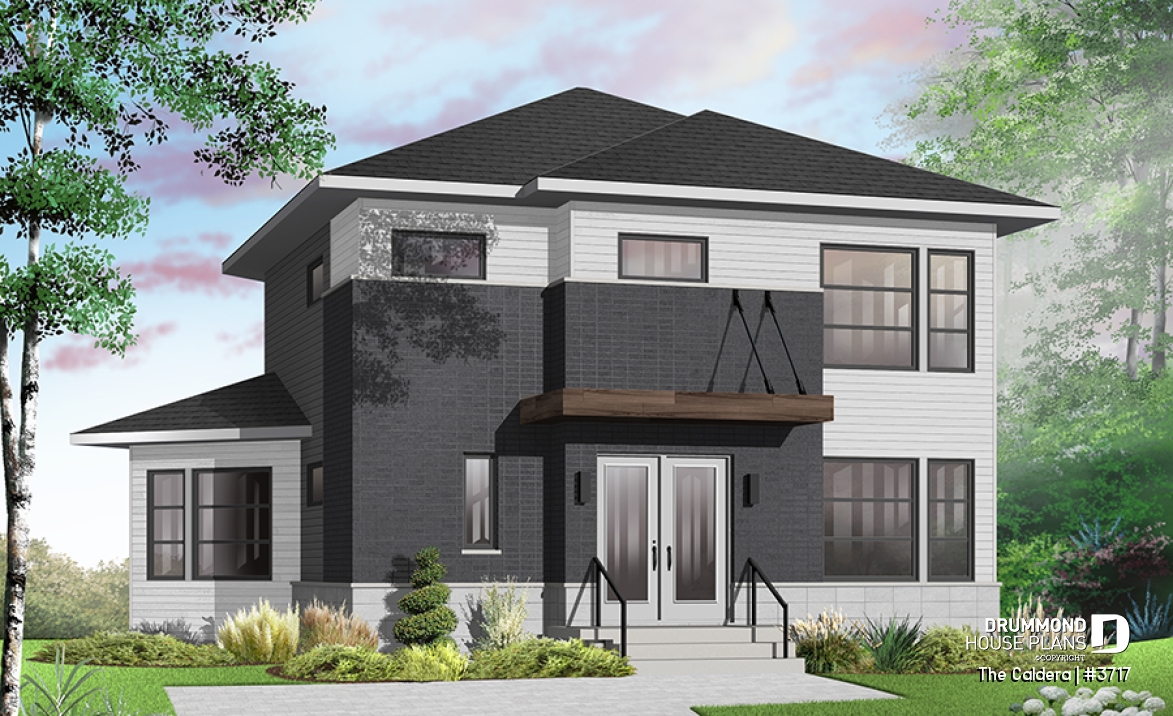

Derived from the popular plan 2747, the unique angled rear volume has proved to be most popular. This model proposes a contemporary exterior and quite a different interior.
Off the entry is an enclosed dining room which would be equally comfortable as a home office. Also near the entrance, we appreciate a utility room comprised of a laundry area, a sink and counter with a duo shower / toilet area behind a sliding door. The spacious angled living room forms it’s own wing bathed in light. Finally, a spacious kitchen is generous enough to fit a 56” x 56” island.
Upstairs, we find the master suite complete with bank of closets, and a walk-through closet provides private access to the generous bathroom which includes a shower/bath room to keep warmth and humidity contained, a privacy toilet room and large vanity. Two additional bedrooms complete the sleeping chambers.
Distinctive elements
Superb living room with ample windows. Kitchen with central lunch island. Three large bedrooms upstairs with large closets including two walk-in. Shower room / laundry room on the ground floor and full bathroom upstairs with combo shower / bath to obtain a 5 ft x 5 ft shower
Plan feature(s)
Island, Panoramic view, Gound floor laundry room, Walk-in master bed.
