Darmin (3857)
2 storey 3 bedroom house plan with garage, spacious family room with lots of windows, formal dining room
View the size of the rooms and height of the ceilings

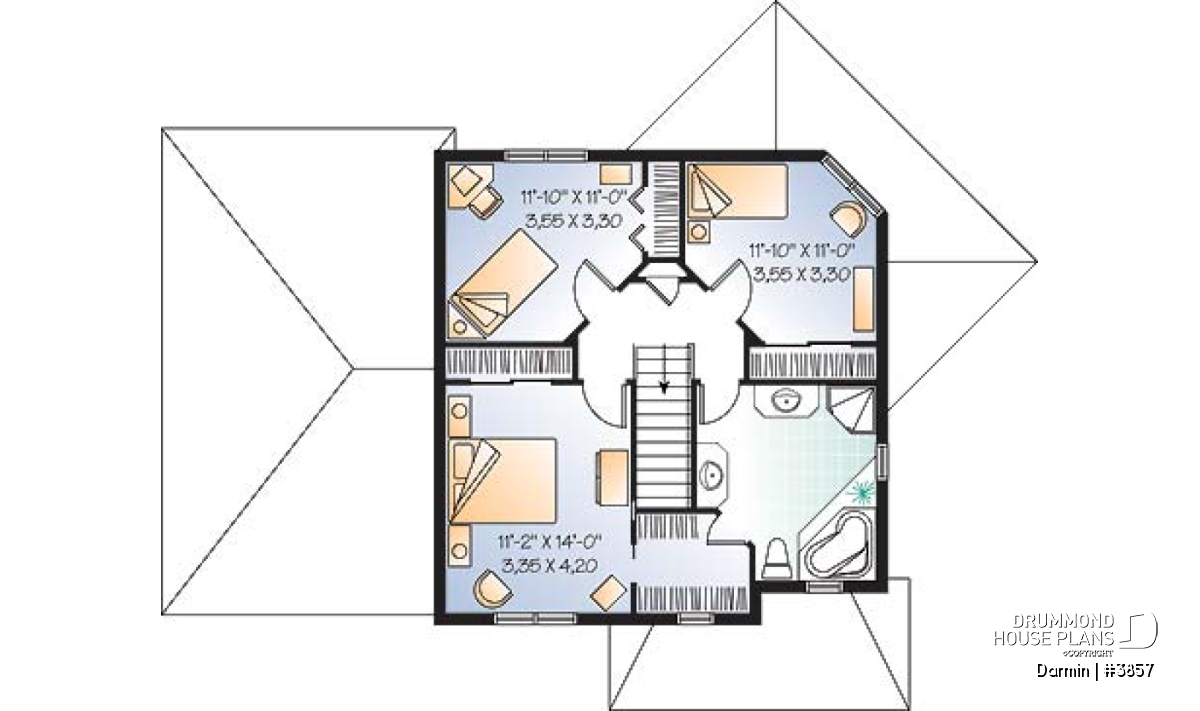

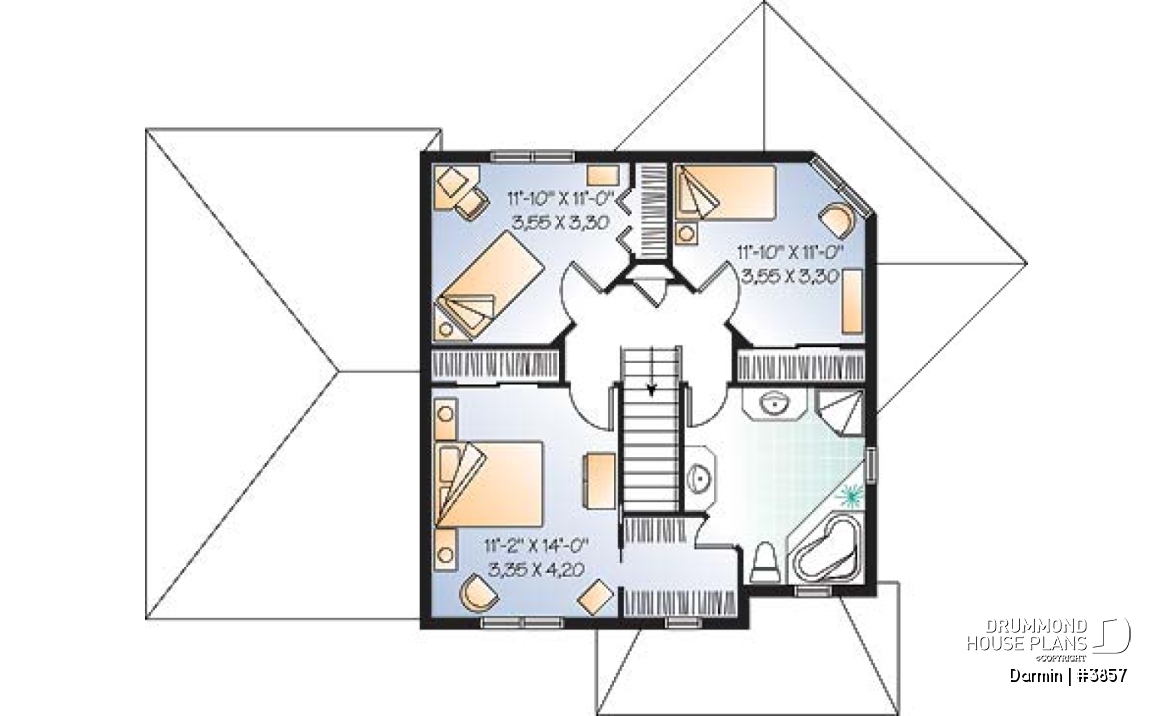

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'2" x 12'0" | ~ 8'0" |
| Bedroom | 11'10" x 11'0" | ~ 8'0" |
| Bedroom | 11'10" x 11'0" | ~ 8'0" |
| Linen | 3'0" x 1'2" | ~ 8'0" |
| Bedroom | 11'2" x 14'0" | ~ 8'0" |

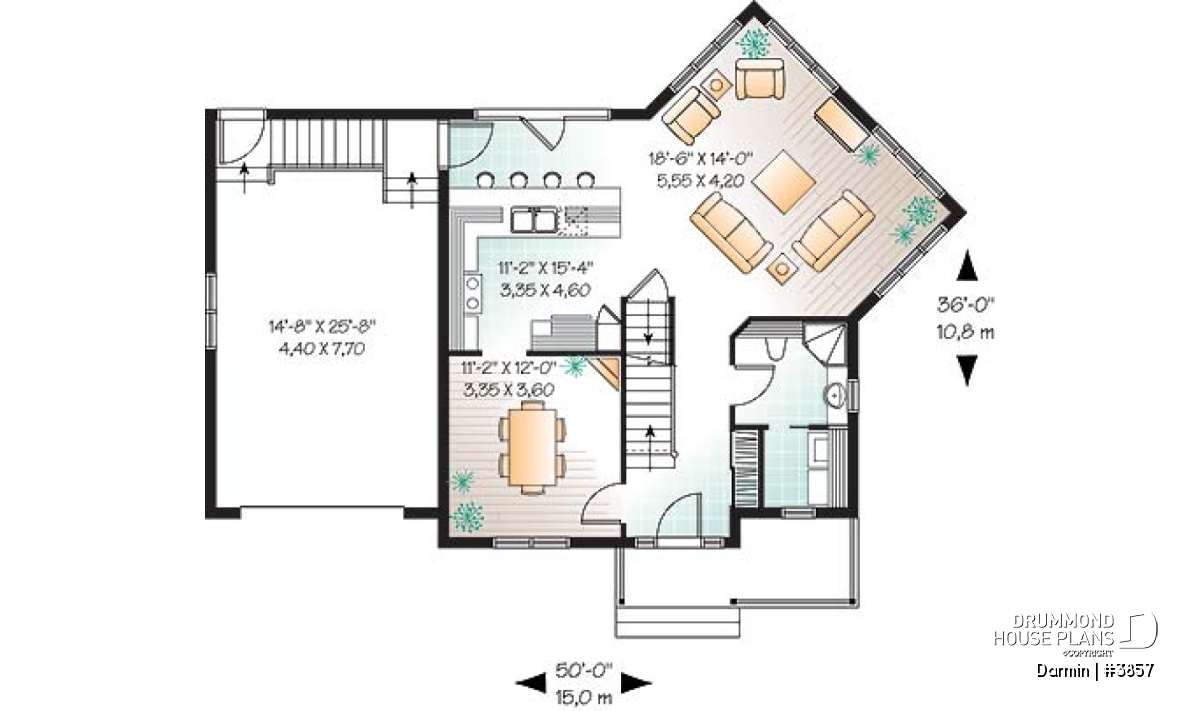

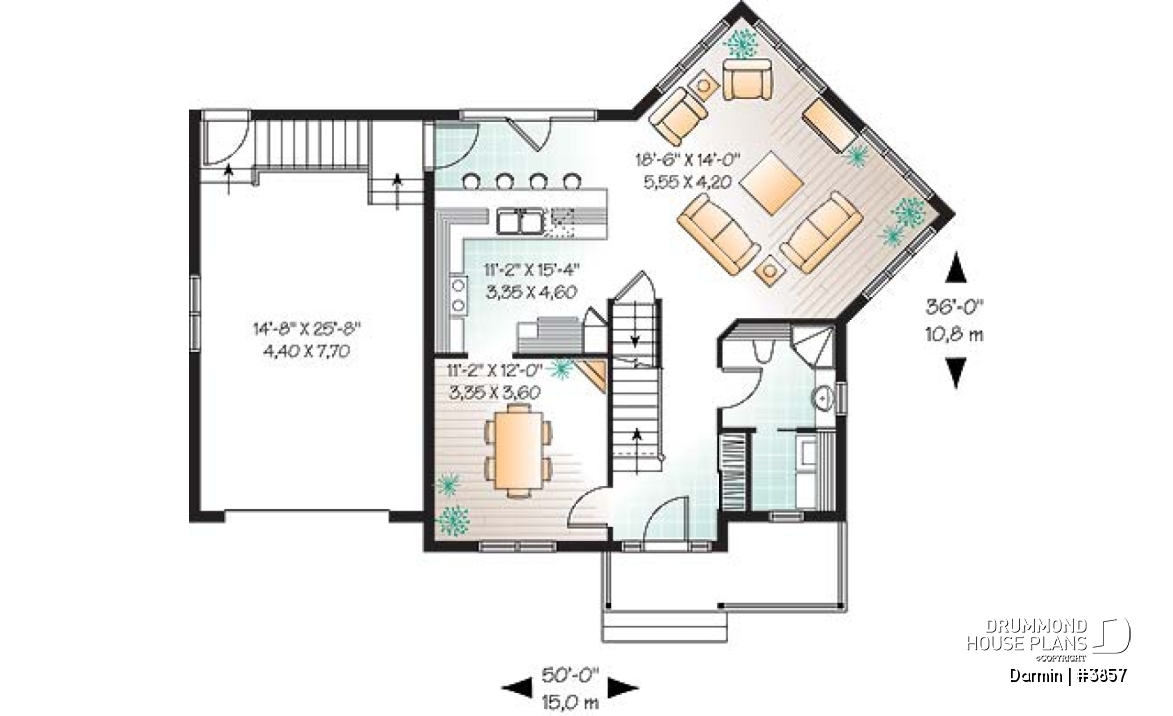

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 6'10" | ~ 8'0" |
| Kitchen | 11'2" x 15'4" | ~ 8'0" |
| Dining room | 11'2" x 12'0" | ~ 8'0" |
| Great room or Family room | 18'6" x 14'0" | ~ 8'0" |
| Foyer | 6'10" x 7'2" | ~ 8'0" |
| Utility room | 5'2" x 5'2" | ~ 8'0" |
| Garage | 14'8" x 25'8" | ~ 9'8" |
| Porch | 16'0" x 6'0" | N/A |
| Porch | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 1662 sq.ft. |
| 2nd level | 778 sq.ft. |
| 1st level | 884 sq.ft. |
| Width | 50'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 28'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Beautiful 3 bedrooms, 2 bathrooms house plan with a one-car garage and lots of natural light
.
Distinctive elements
Nice exterior balcony. Original angled design and rear corner allowing for a well lit family room. Three lovely bedrooms, with good storage, and large bathroom accessible from bedroom #1. Access to basement from garage.
Plan feature(s)
Lunch counter, Panoramic view, Gound floor laundry room, Basement access from garage, Walk-in master bed., Double sink vanity, Separate bath and shower
Plan architectural style(s)
. Country, . Traditional, . English
