House plan Angeline (3043)
Buy this planFrom 1965$ See prices and options
House plan Angeline (3043)
Spacious one-storey multi-generational home plan with 1 + 3 bedrooms, fireplace and laundry on main unit
Buy this plan
Special: Free shipping!
Need help?
Come see us
View the size of the rooms and height of the ceilings

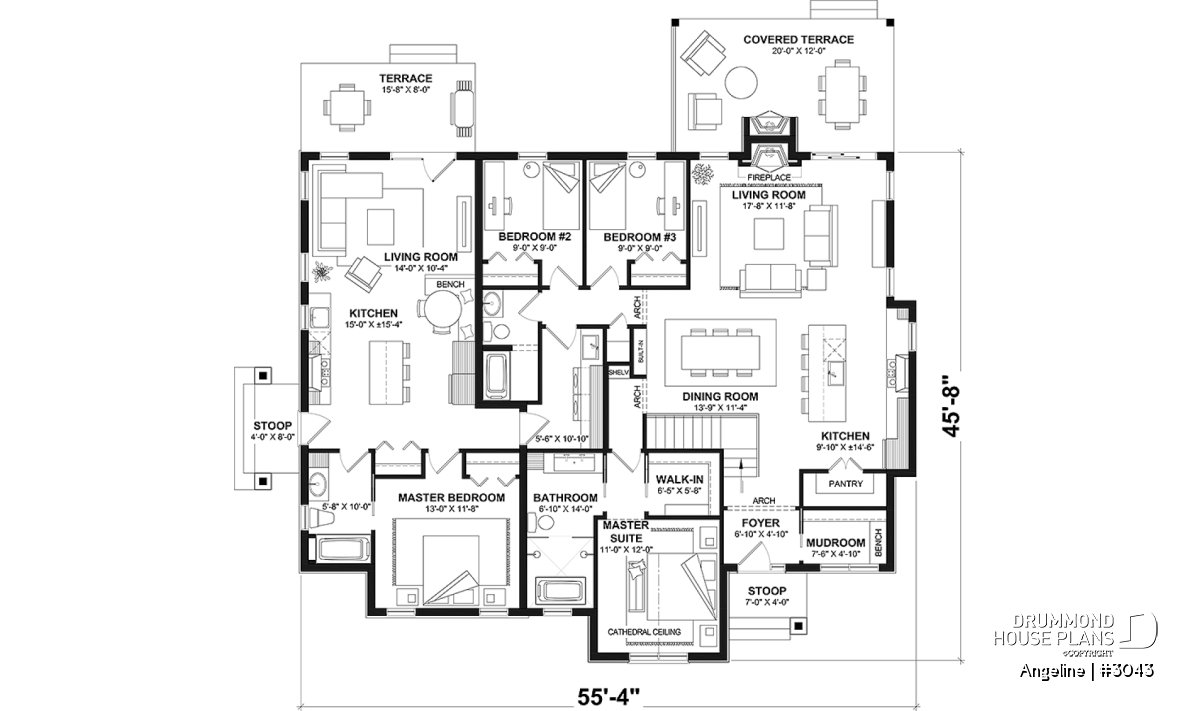

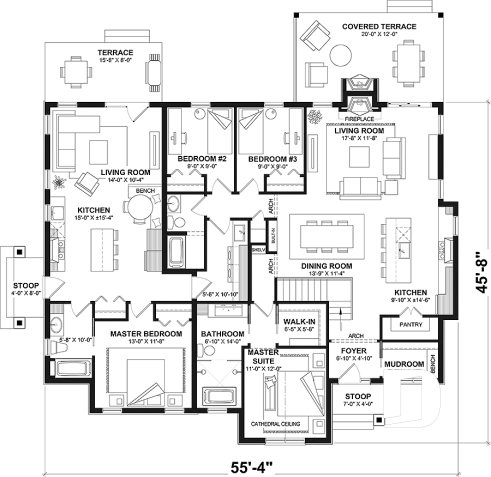

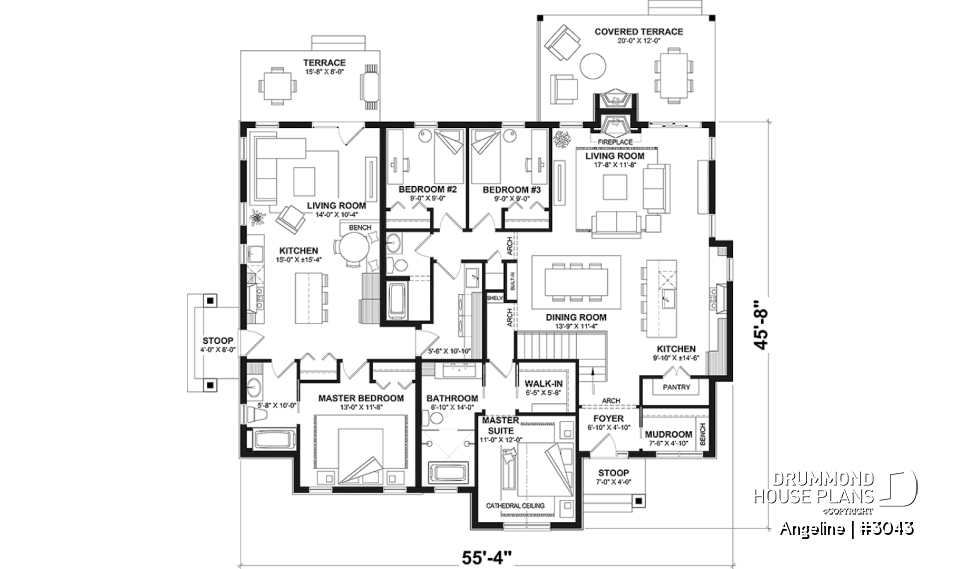

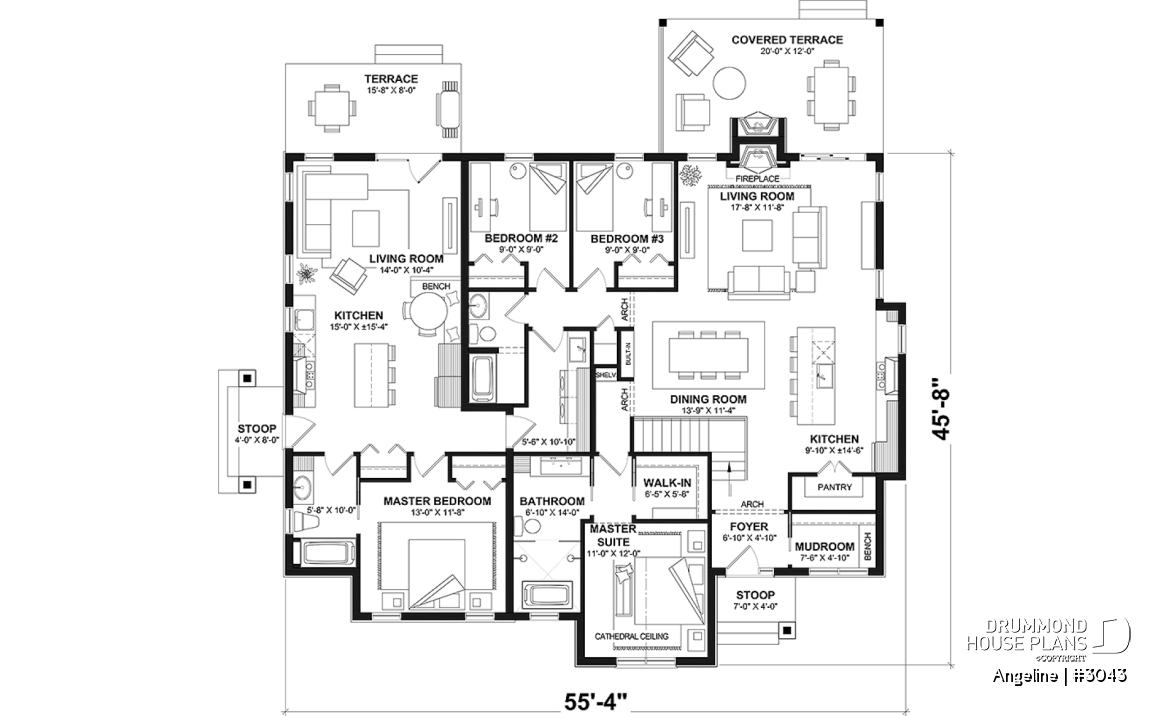

1st level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Kitchen | 9'10" x 14'6" | ~ 9'0" |
Pantry | 7'6" x 3'0" | ~ 9'0" |
Kitchen island | 8'8" x 3'4" | N/A |
Dining room | 13'9" x 11'4" | ~ 9'0" |
Living room | 14'0" x 10'4" | ~ 9'0" |
Living room | 17'8" x 11'8" | ~ 9'0" |
Foyer | 6'10" x 4'10" | ~ 9'0" |
Bedroom | 13'0" x 11'8" | ~ 9'0" |
Closet | 4'10" x 2'0" | ~ 9'0" |
Bedroom | 9'0" x 9'0" | ~ 9'0" |
Bedroom | 9'0" x 9'0" | ~ 9'0" |
Laundry room | 5'6" x 10'10" | ~ 9'0" |
Covered porch | 7'0" x 4'0" | ~ 9'4" |
Covered porch | 4'0" x 8'0" | ~ 9'4" |
Mud room | 7'6" x 4'10" | ~ 9'0" |
Master suite | 11'0" x 12'0" | ~ 14'0" |
Walk-in closet | 6'5" x 5'8" | ~ 9'0" |
Full bathroom | 6'10" x 14'0" | ~ 9'0" |
Shower | 6'0" x 6'6" | ~ 9'0" |
Linen | 1'6" x 1'6" | N/A |
Linen | 2'1" x 3'0" | ~ 9'0" |
Covered deck | 20'0" x 12'0" | ~ 9'4" |
Deck | 15'8" x 8'0" | N/A |
Kitchen/dinette | 15'0" x 15'4" | ~ 9'0" |
Kitchen island | 5'8" x 3'0" | N/A |
Closet | 4'2" x 2'0" | ~ 9'0" |
Bathroom | 5'8" x 10'0" | ~ 9'0" |
Linen | 1'4" x 1'10" | N/A |
Bathroom | 5'0" x 10'0" | ~ 9'0" |

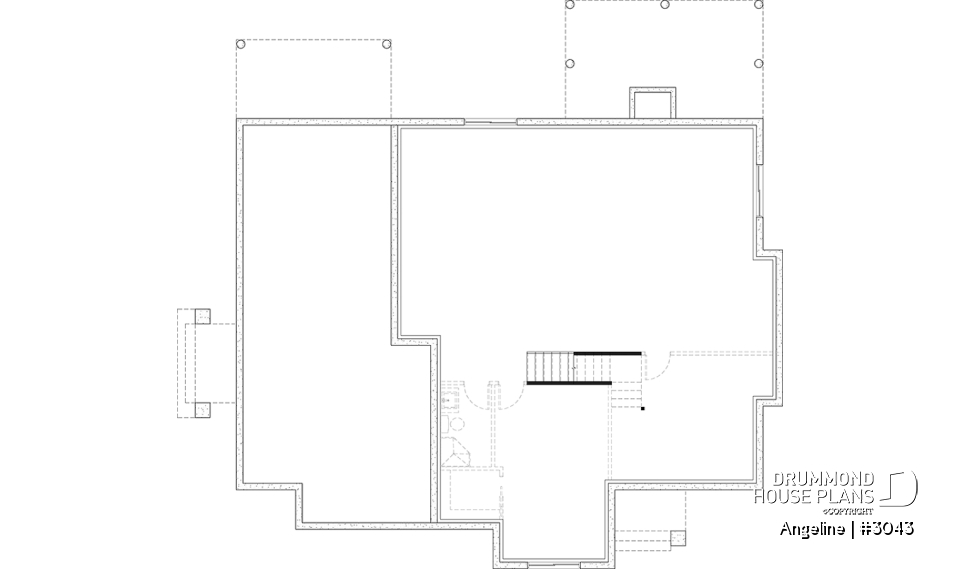

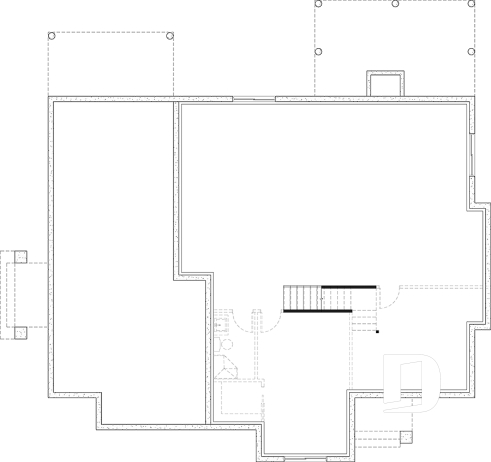

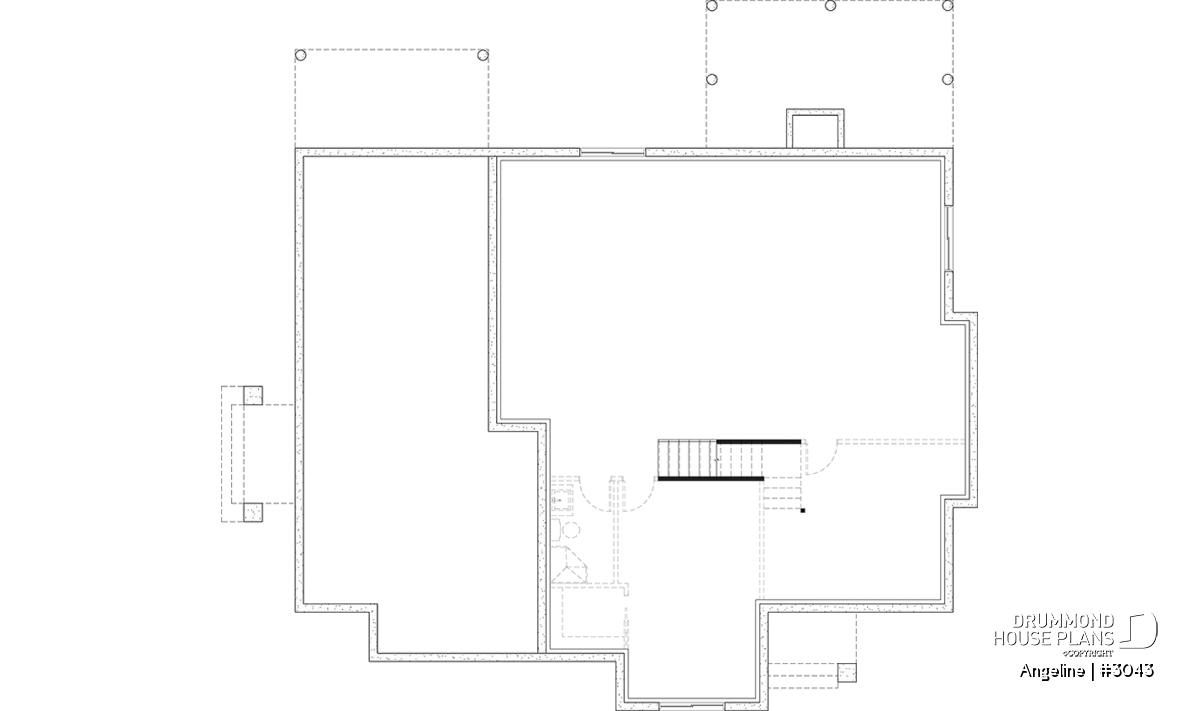

Basement |
---|
General specifications
Total living area | 2226 sq.ft. |
1st level | 2226 sq.ft. |
Basement | 1515 sq.ft. |
Width | 55'4" |
Depth | 45'8" |
Ridge height from top of foundation | 24'3" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | 1/2 Basement - 1/2 Crawl |
Builder price code | MB |
Rooms specifications
Bedroom(s) | 3, 4 |
Full baths | 2 |
Half baths | - |
Garage type | - |
Living bonus space | - |
Bonus storage | - |
Covered porch area | 60 sq.ft. |
UNIT 1 (MAIN UNIT) | UNIT 2 (IN-LAW SUITE) | |
Total living area | 1515 sq.ft. | 734 sq.ft. |
1st level | 1515 sq.ft. | 734 sq.ft. |
Width | 39' 8" | 20' 4" |
Depth | 45' 8" | 41' 8" |
Ridge height from top of foundation | 24' 3" | 24' 3" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | 1/2 Basement - 1/2 Crawl | 1/2 Basement - 1/2 Crawl |
Bedroom(s) | 3 | 1 |
Full baths | 2 | 1 |
Half baths | - | - |
Garage type | - | - |
Living bonus space | - | - |
Bonus storage | - | - |
General specifications
Total living area | 2226 sq.ft. |
1st level | 2226 sq.ft. |
Basement | 1515 sq.ft. |
Width | 55'4" |
Depth | 45'8" |
Ridge height from top of foundation | 24'3" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | 1/2 Basement - 1/2 Crawl i |
Builder price code | MB |
Rooms specifications
Bedroom(s) | 3, 4 |
Full baths | 2 |
Half baths | - |
Garage type | - |
Living bonus space | - i |
Bonus storage | - i |
Covered porch area | 60 sq.ft. |
Units specifications
UNIT 1 (MAIN UNIT) | UNIT 2 (IN-LAW SUITE) | |
Total living area | 1515 sq.ft. | 734 sq.ft. |
1st level | 1515 sq.ft. | 734 sq.ft. |
Width | 39' 8" | 20' 4" |
Depth | 45' 8" | 41' 8" |
Ridge height from top of foundation | 24' 3" | 24' 3" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | 1/2 Basement - 1/2 Crawl | 1/2 Basement - 1/2 Crawl |
Bedroom(s) | 3 | 1 |
Full baths | 2 | 1 |
Half baths | - | - |
Garage type | - | - |
Living bonus space | - | - |
Bonus storage | - | - |
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Breakfast room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Intergenerational single-story house plan offering 3 bedrooms and a full unfinished basement !
Faced with the growing demand for bi-generational homes, we are in the process of developing several models, including this one on a single level. For a version with 2 bedrooms on the family side, take a look at our plan #3042.
The ANGELINE house plan (#3043) with its attractive exterior look offers remarkable living spaces, including a master suite, a covered terrace with fireplace, a magnificent living room with a fireplace on the family side, as well as a kitchen with island and pantry. Each model includes spacious bedrooms, a connecting laundry room on the main floor and functional bathrooms, including a private one in the master bedroom in the main accommodation.
The entrances, including the main one with adjoining mudrooms are separate, which may be subject to restrictions in some municipalities. We recommend checking local regulations to avoid surprises.
If you have an intergenerational home project, consult our collection of bi-generational house plans or meet with one of our offices to obtain a fully custom plan, entirely according to the needs of your family.
Distinctive elements
Intergenerational house offering 3 bedrooms on the family side and 1 bedroom on the grandparents' side.
Covered main porch provided for each units.
A mudroom is provided for the main unit as well.
The laundry room is central and shared by both units.
The basement is unfinished and can be eventually finished on the family side allowing the addition of bedroom(s), office, family room or other.
Superb family kitchen with central kitchen island and pantry. Fireplace in the living room and on the covered terrace in the main accommodation.
Parents' bedroom with walk-in closet and private bathroom.
On the grandparents' side, a dinette with bench seat is fitted out as a dining room.
The master bedroom is of good size and can easily accommodate a king size bed.
There is no basement for this specific unit. It is however possible to add one via our plan modification service if desired.
Plan feature(s)
Gound floor laundry room, Split bedrooms, Fireplace, Walk-in master bed., Mud room, Pantry, Open floor layout, Open floor layout, Island, Island, Deck, Arch, Gound floor laundry room, Bench seat(s), Breakfast nook
Plan architectural style(s)
. Ranch, . Country, . Transitional, . American, Modern farmhouse, Classic, . Farmhouse, Trending
