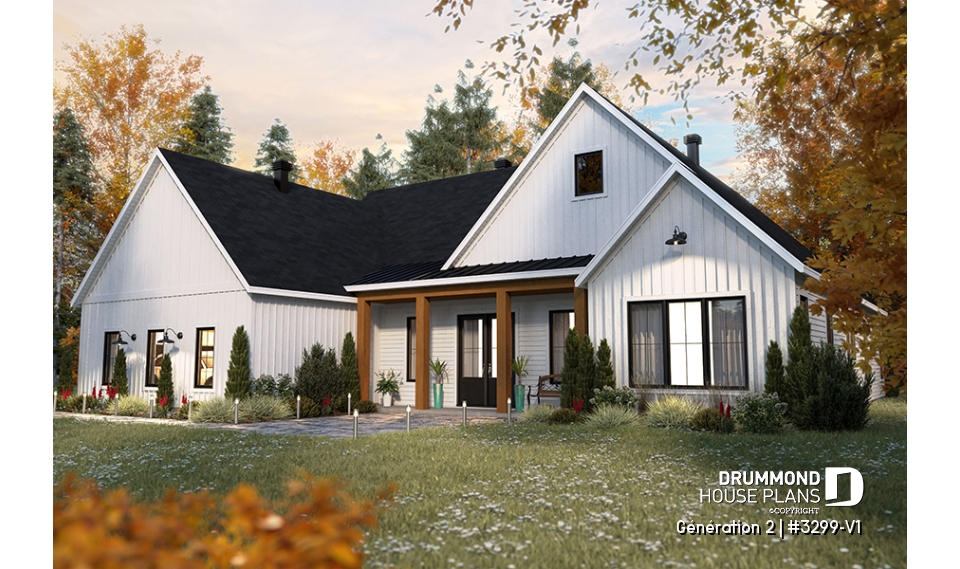

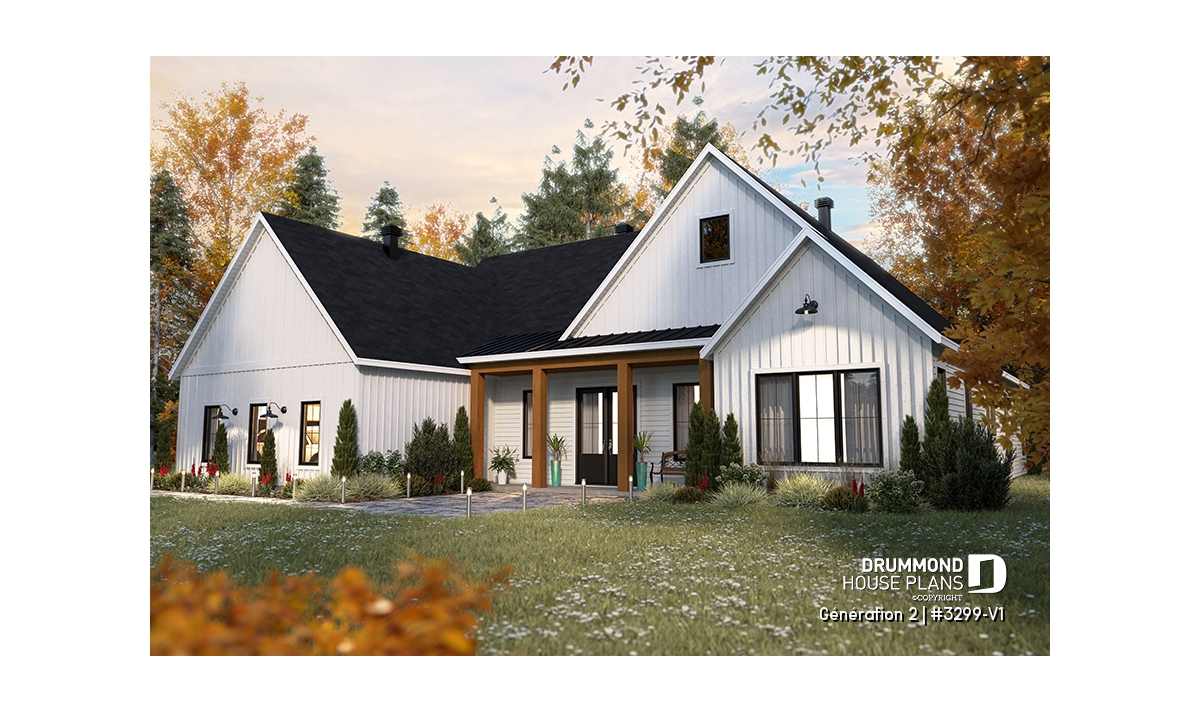

House plan Génération 2 (3299-V1)
Generational house plan with 3 bedrooms and 2 baths in main apartment
View the size of the rooms and height of the ceilings

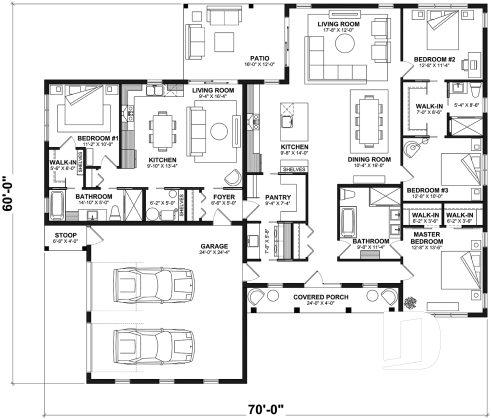

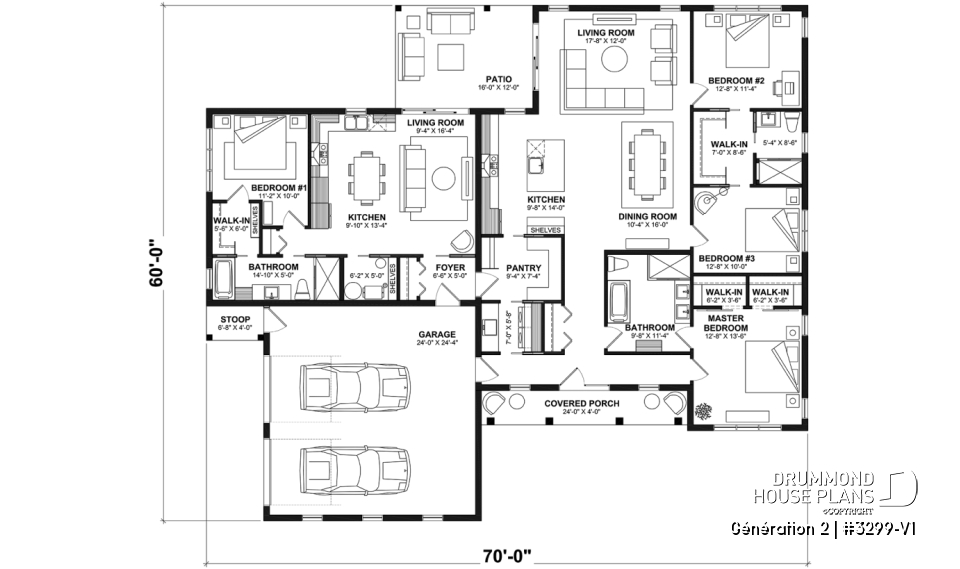

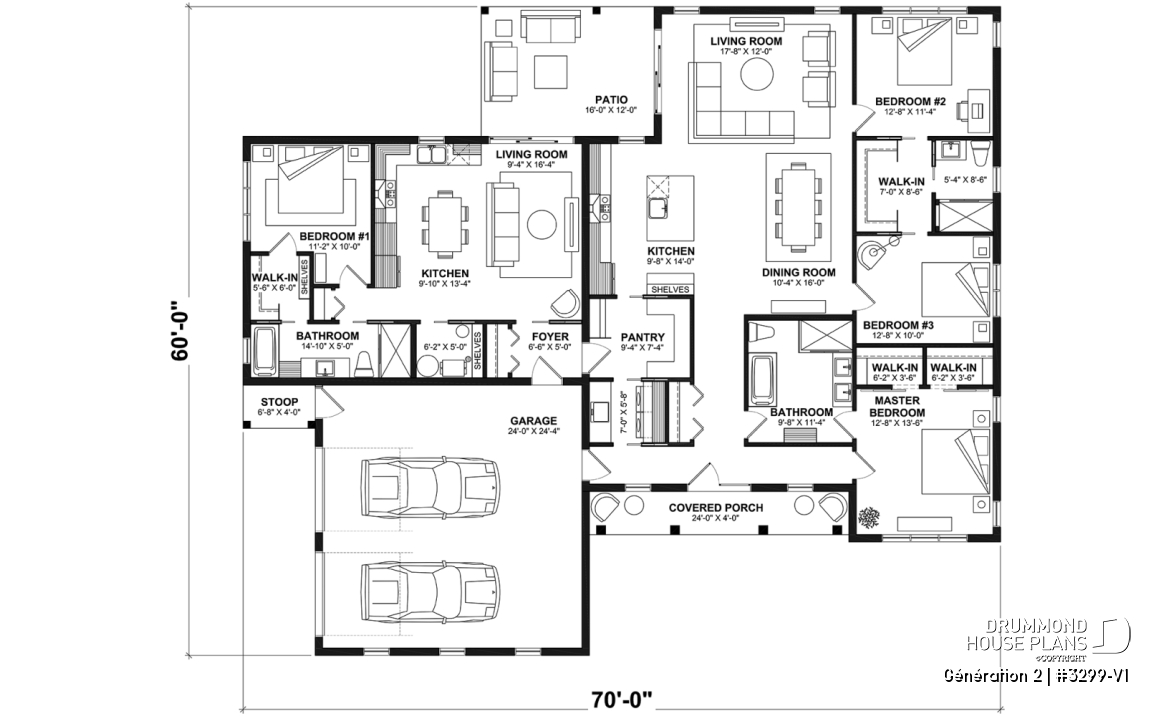

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 24'0" x 24'4" | ~ 9'0" |
| Covered porch | 6'8" x 4'0" | ~ 9'4" |
| Covered porch | 24'0" x 4'0" | ~ 9'4" |
| Covered deck | 16'0" x 12'0" | ~ 9'4" |
| Master suite | 12'8" x 13'6" | ~ 9'0" |
| Walk-in closet | 6'2" x 3'6" | ~ 9'0" |
| Walk-in closet | 6'2" x 3'6" | ~ 9'0" |
| Full bathroom | 9'8" x 11'4" | ~ 9'0" |
| Shower | 5'0" x 3'0" | N/A |
| Linen | 3'0" x 1'4" | N/A |
| Storage room | 2'0" x 5'8" | ~ 9'0" |
| Laundry room | 7'0" x 5'8" | ~ 9'0" |
| Kitchen | 9'8" x 14'0" | ~ 9'0" |
| Pantry | 9'4" x 7'4" | ~ 9'0" |
| Kitchen island | 4'4" x 6'0" | N/A |
| Dining room | 10'4" x 16'0" | ~ 9'0" |
| Bedroom | 12'8" x 10'0" | ~ 9'0" |
| Bedroom | 12'8" x 11'4" | ~ 9'0" |
| Living room | 17'8" x 12'0" | ~ 9'0" |
| Kitchen/dining room | 9'10" x 13'4" | ~ 9'0" |
| Living room | 9'4" x 16'4" | ~ 9'0" |
| Foyer | 6'6" x 5'0" | ~ 9'0" |
| Closet | 2'0" x 5'0" | ~ 9'0" |
| Full bathroom | 14'10" x 5'0" | ~ 9'0" |
| Shower | 3'0" x 5'0" | N/A |
| Linen | 2'0" x 1'6" | N/A |
| Storage | 1'8" x 3'0" | ~ 9'0" |
| Master suite | 11'2" x 10'0" | ~ 9'0" |
| Walk-in closet | 5'6" x 6'0" | ~ 9'0" |
| Mechanical room | 6'2" x 5'0" | ~ 9'0" |
| Jack and Jills | 5'4" x 8'6" | ~ 9'0" |
| Shower | 5'0" x 3'0" | N/A |
| Walk-in closet | 7'0" x 8'6" | ~ 9'0" |
General specifications
| Total living area | 2440 sq.ft. |
| 1st level | 2440 sq.ft. |
| Width | 70'0" |
| Depth | 60'0" |
| Ridge height from top of foundation | 26'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 3, 4 |
| Full baths | 3 |
| Half baths | - |
| Garage type | Two-car garage (650 sq.ft.) |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 123 sq.ft. |
Units specifications

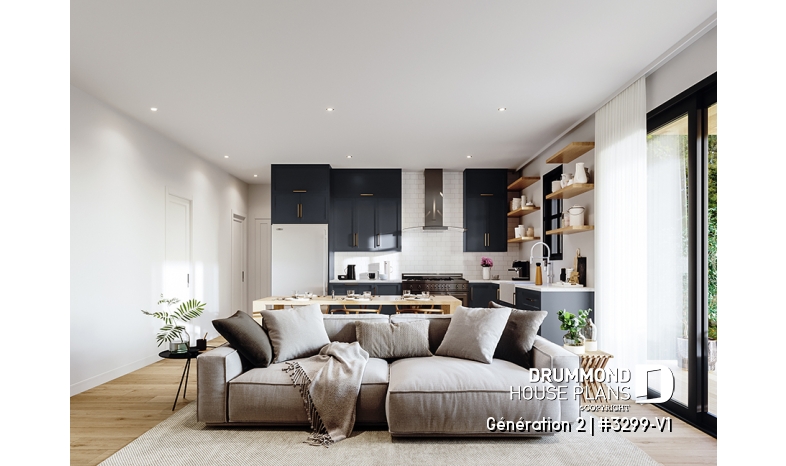

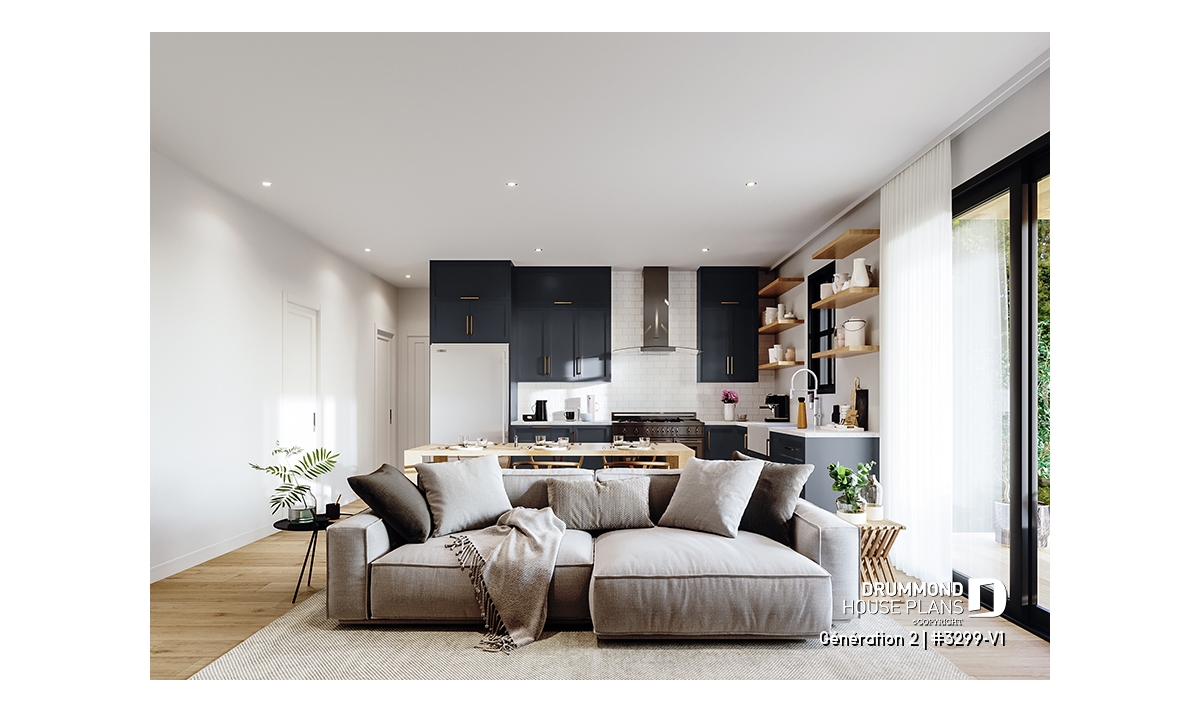

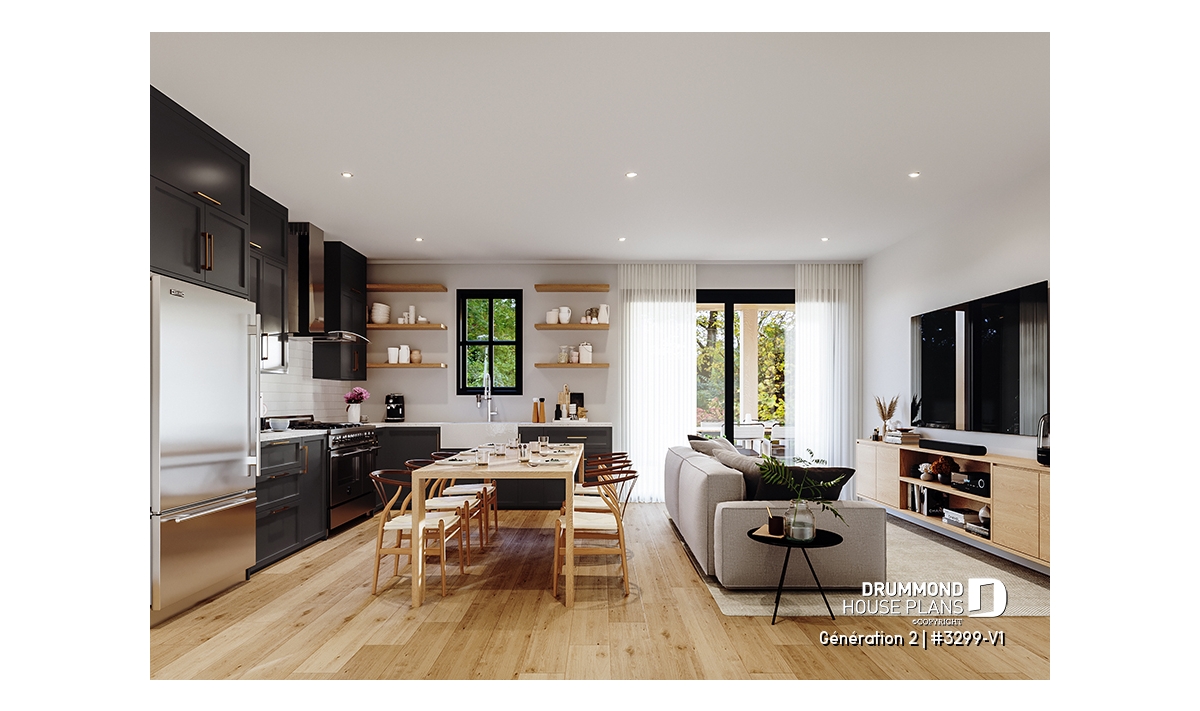

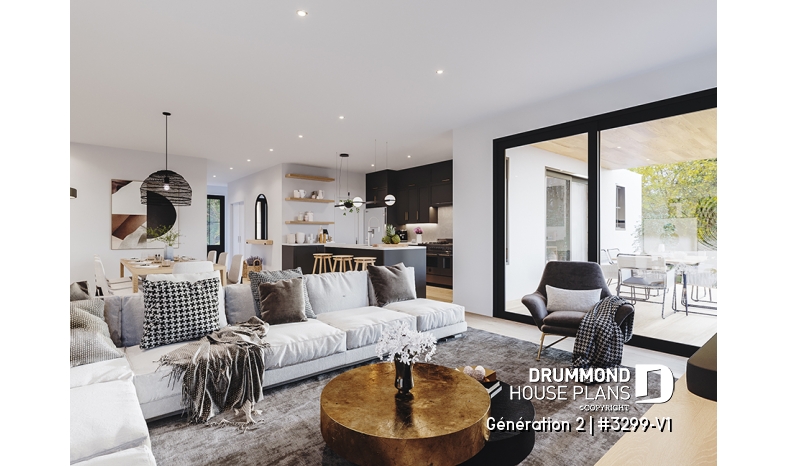

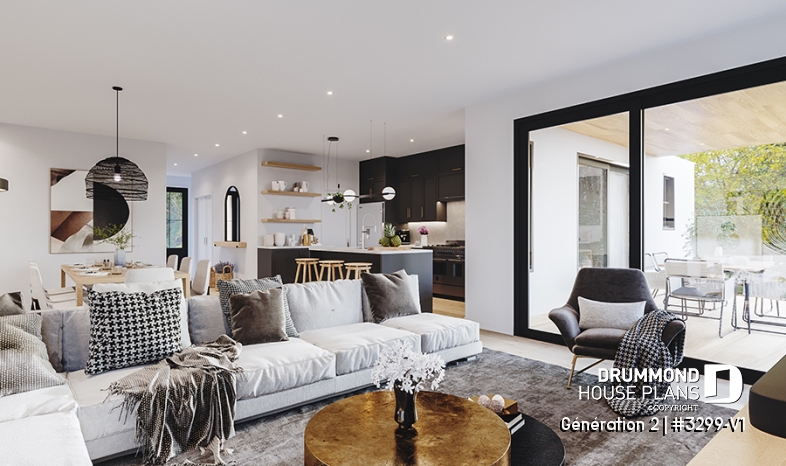

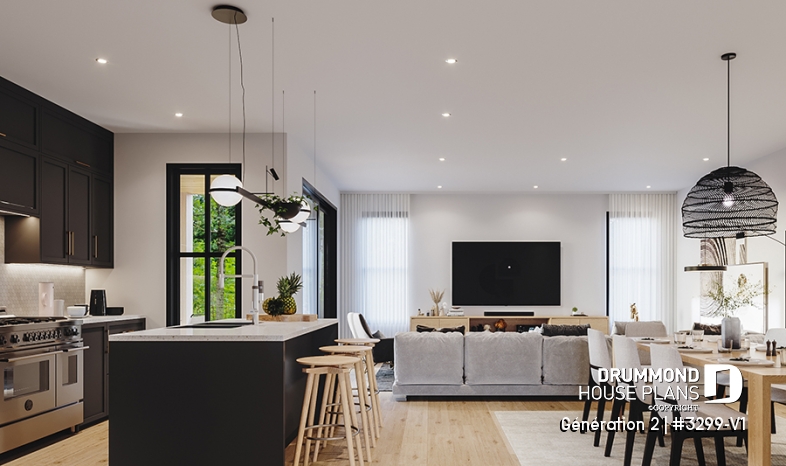

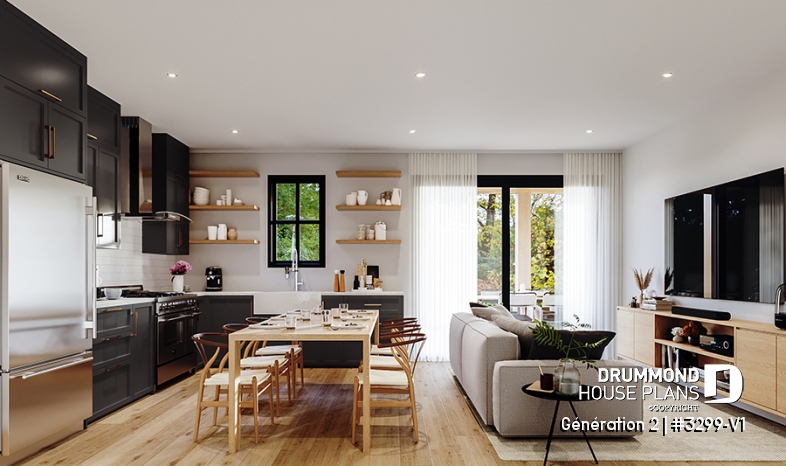

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

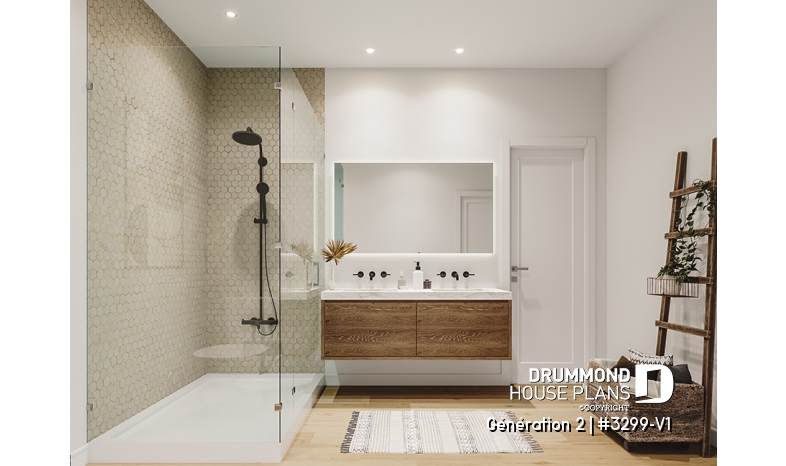

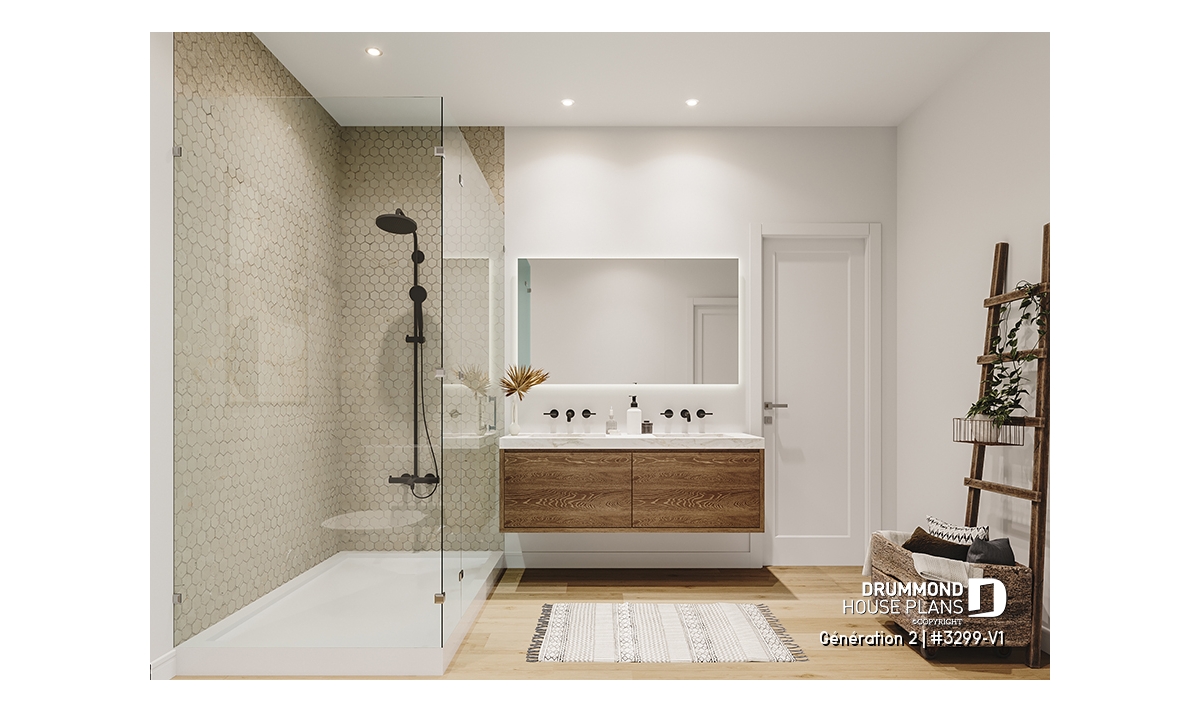

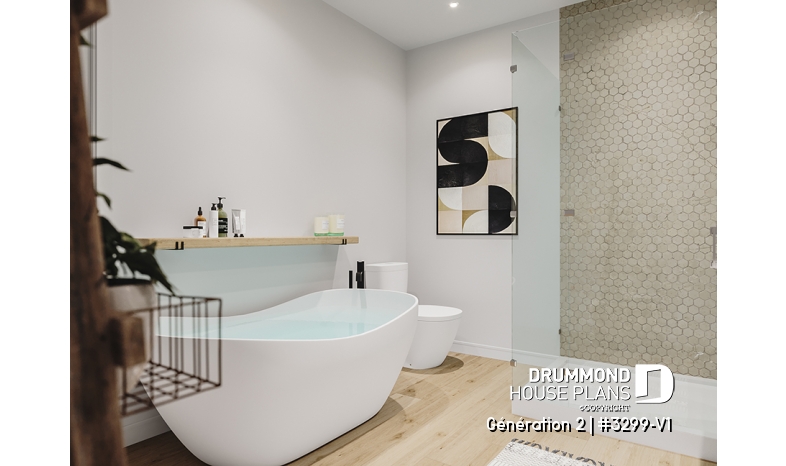

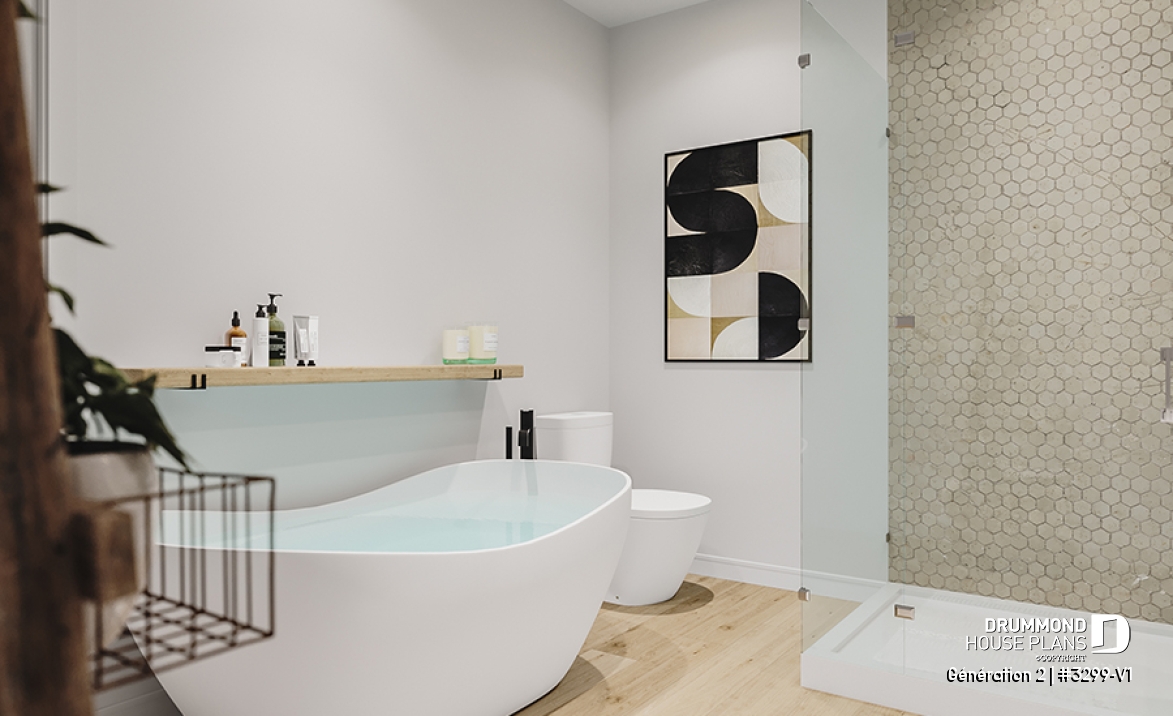

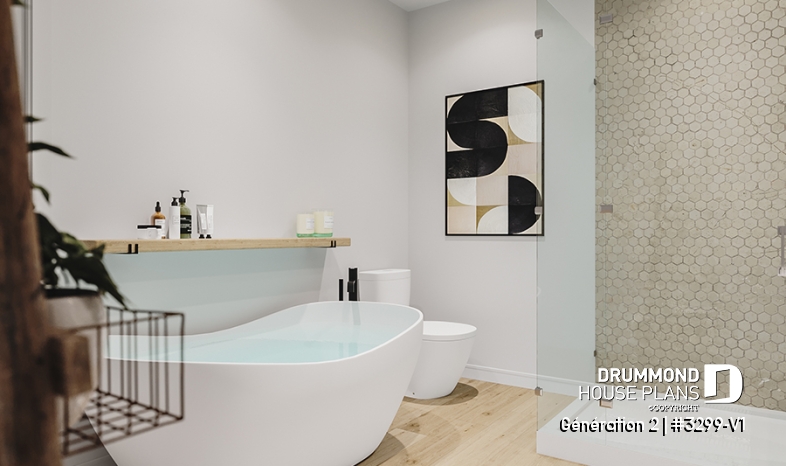

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

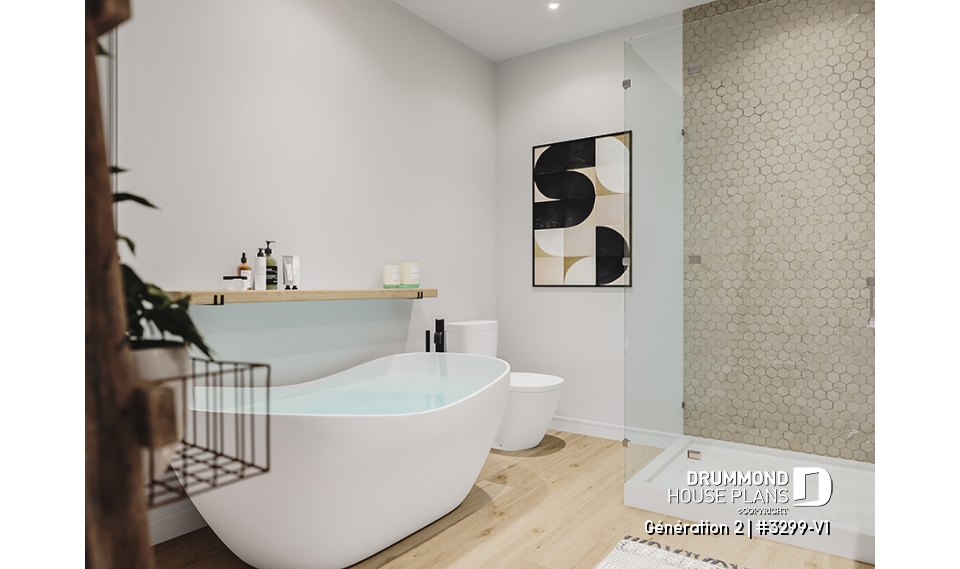

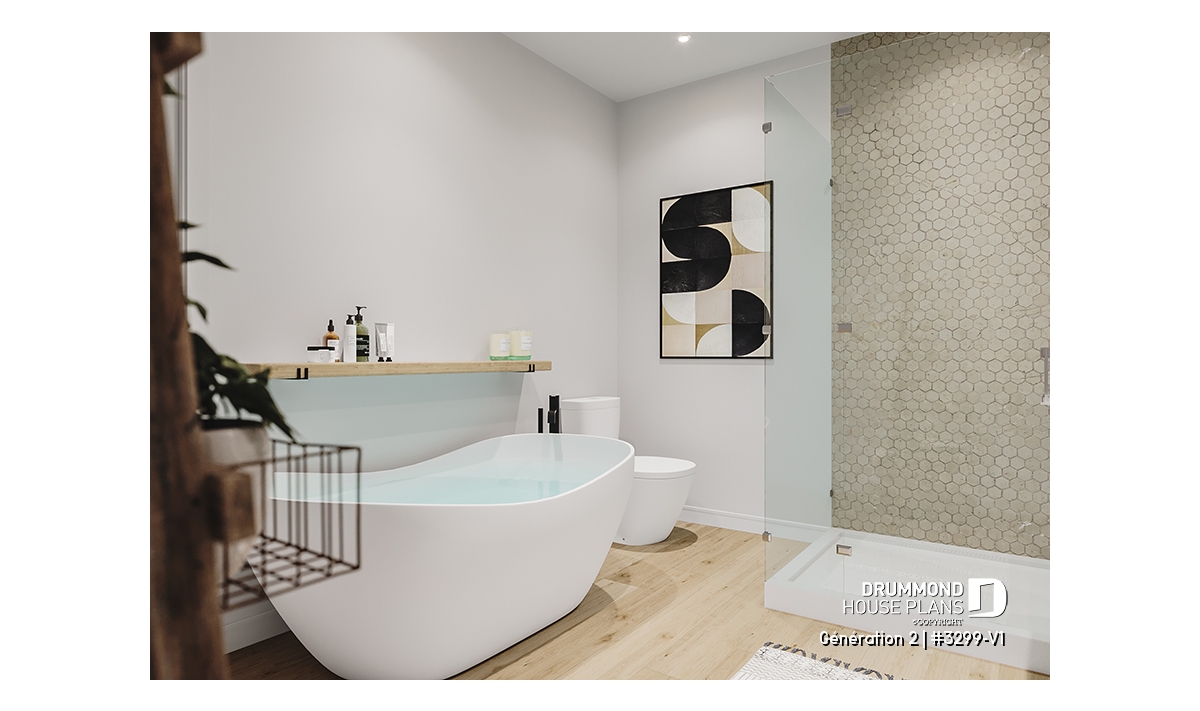

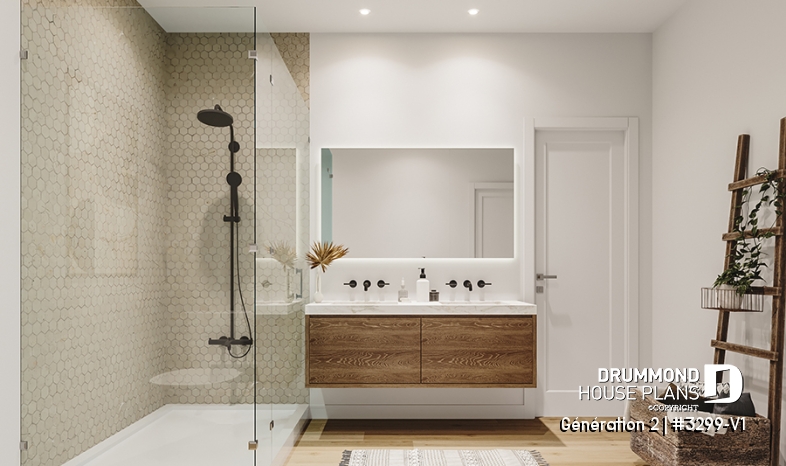

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

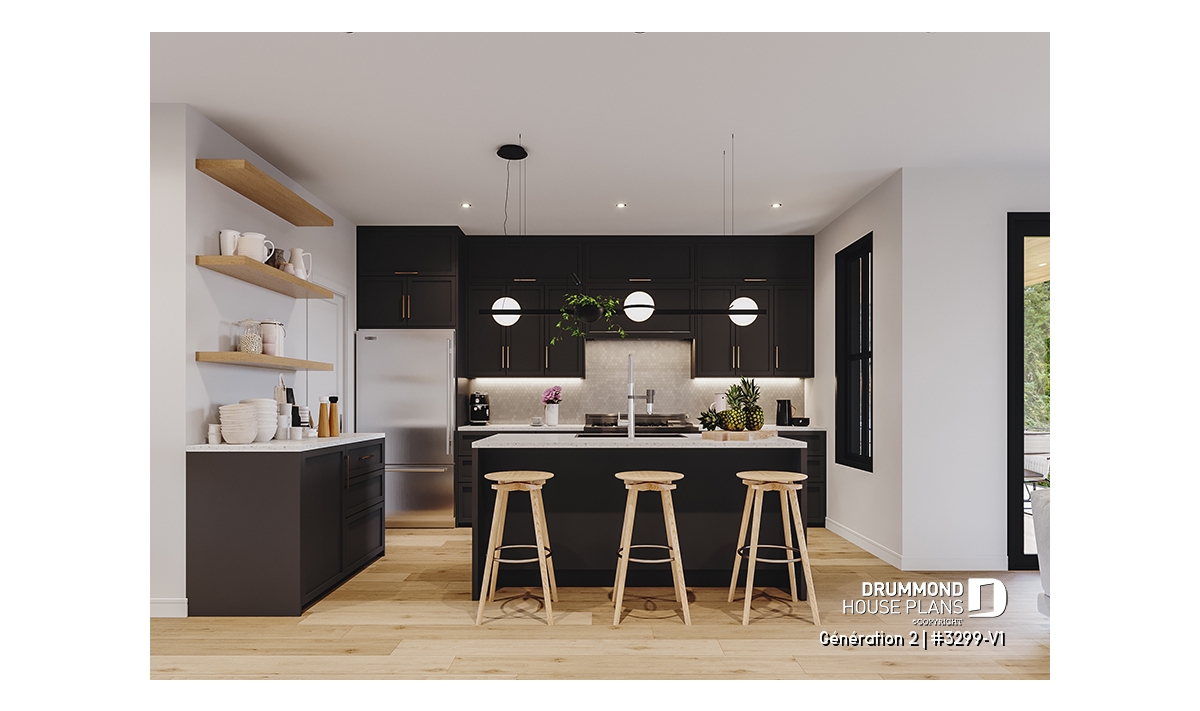

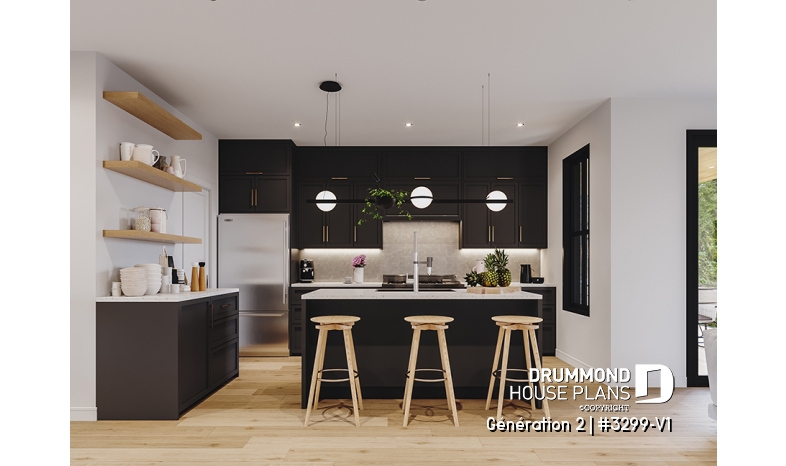

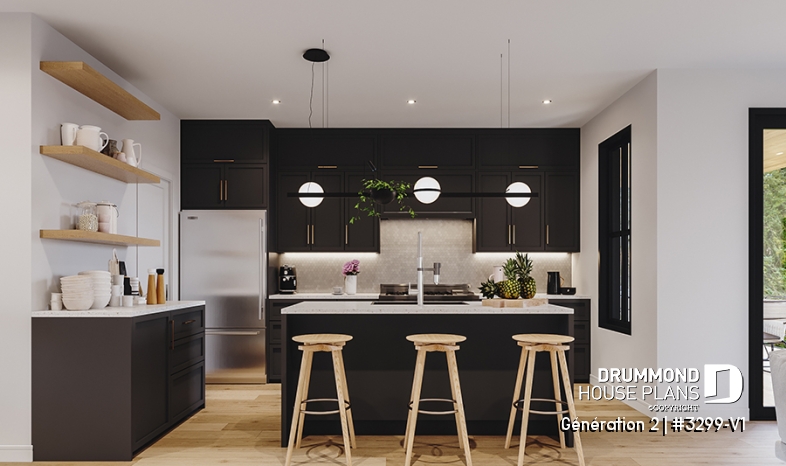

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

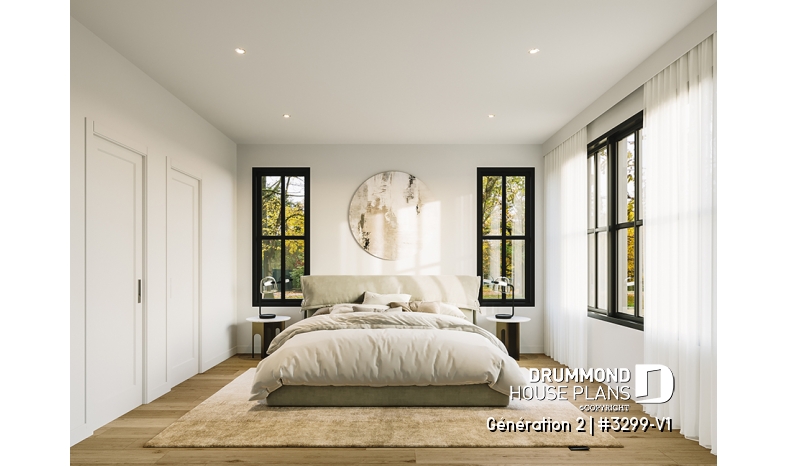

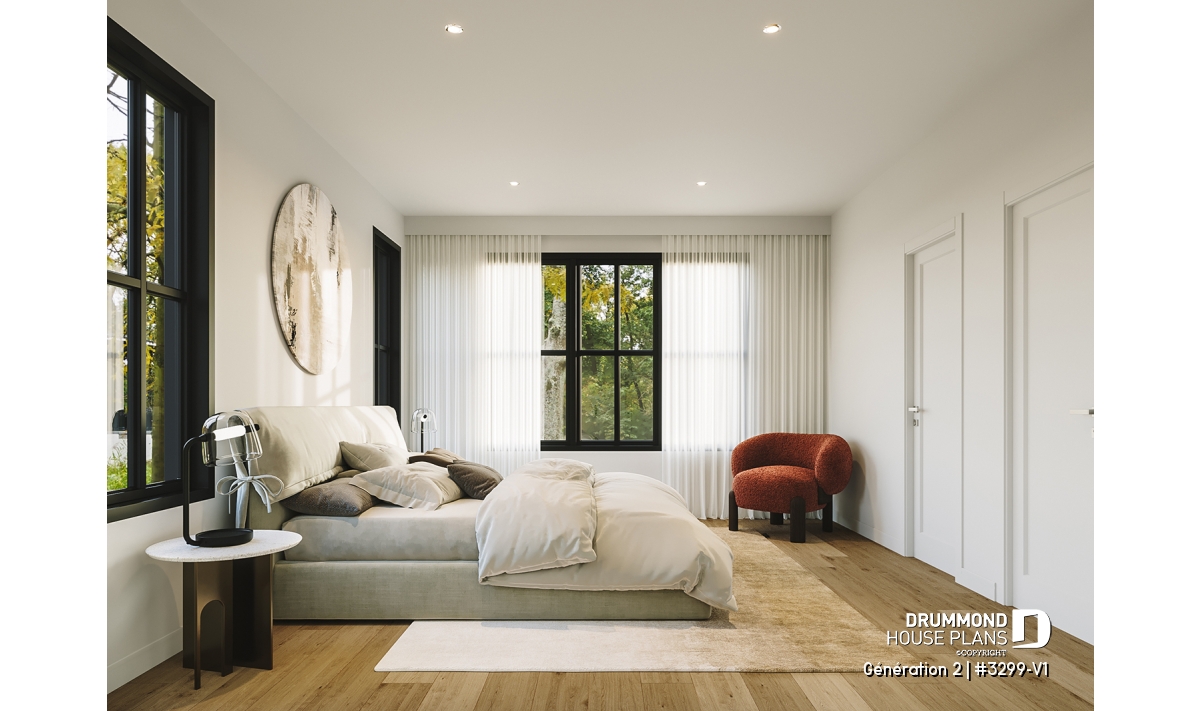

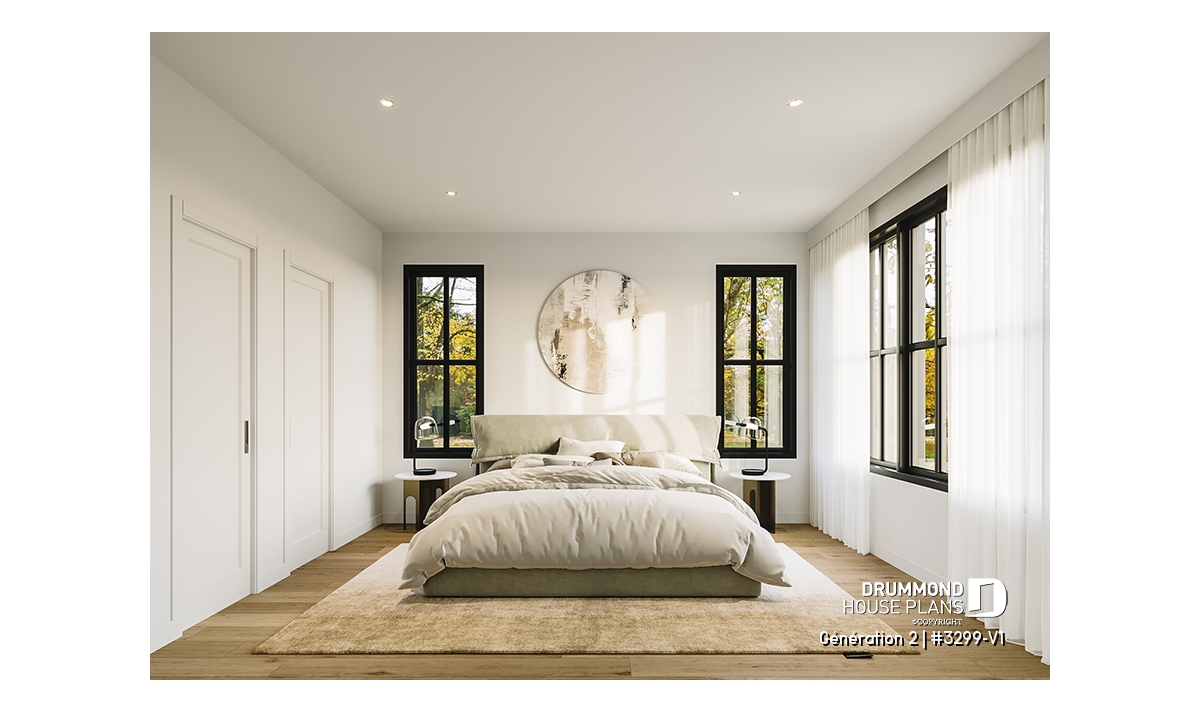

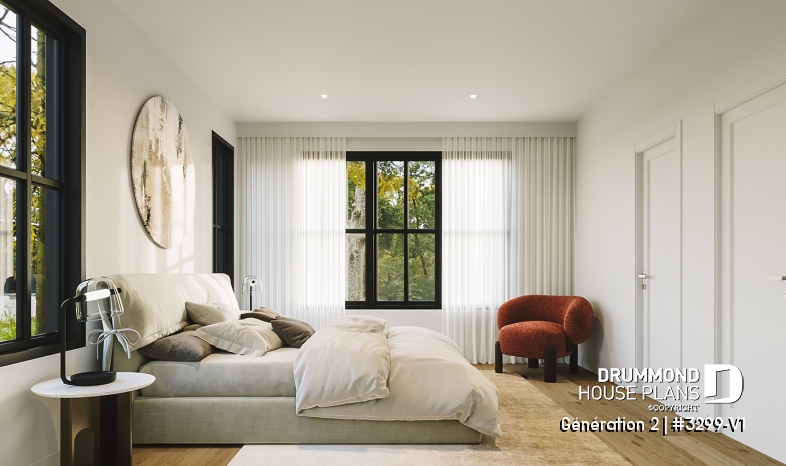

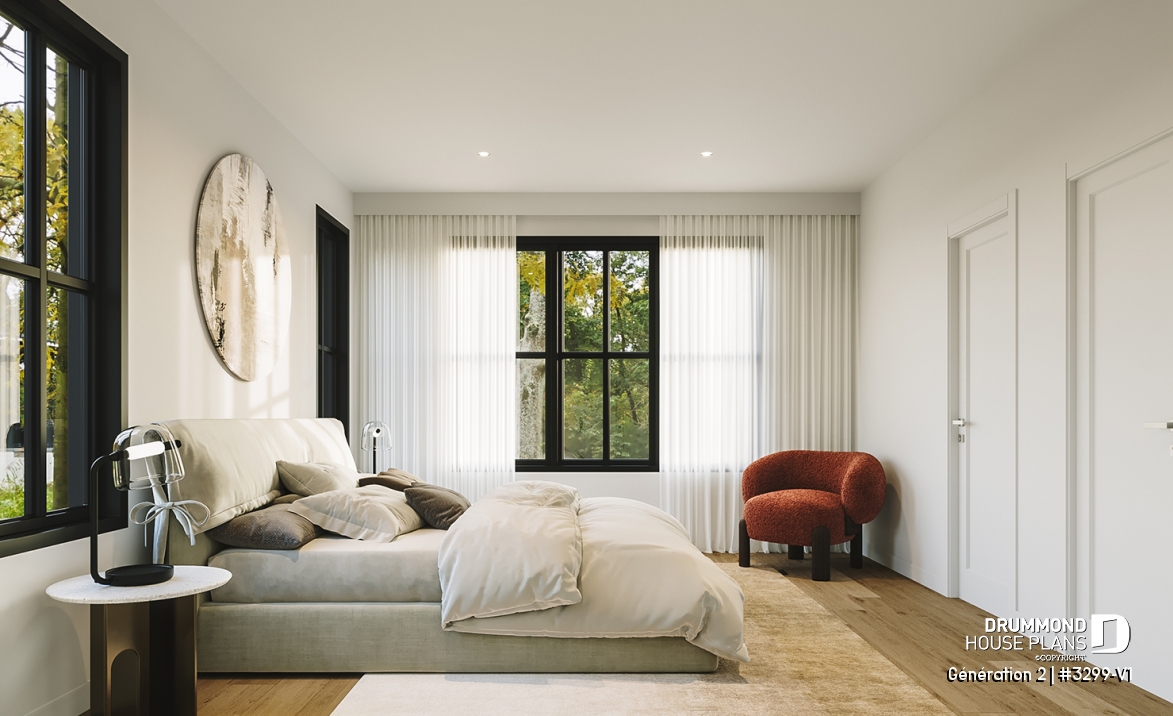

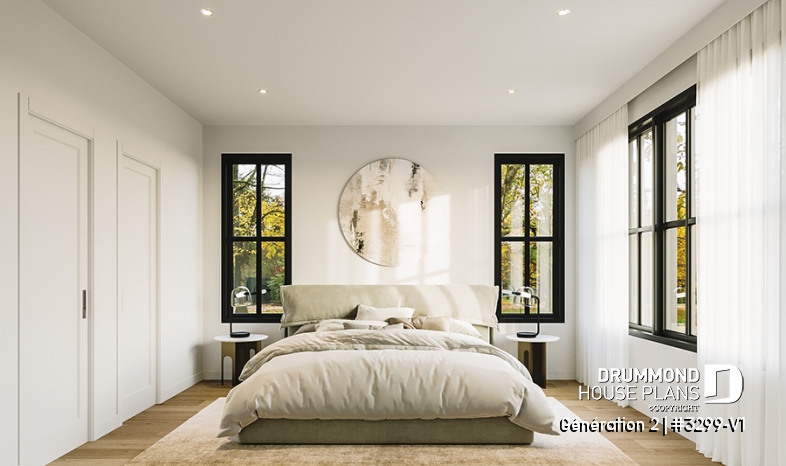

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

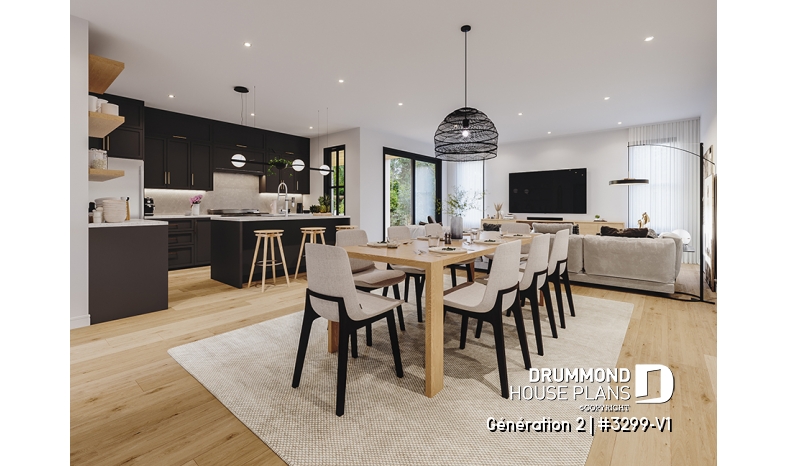

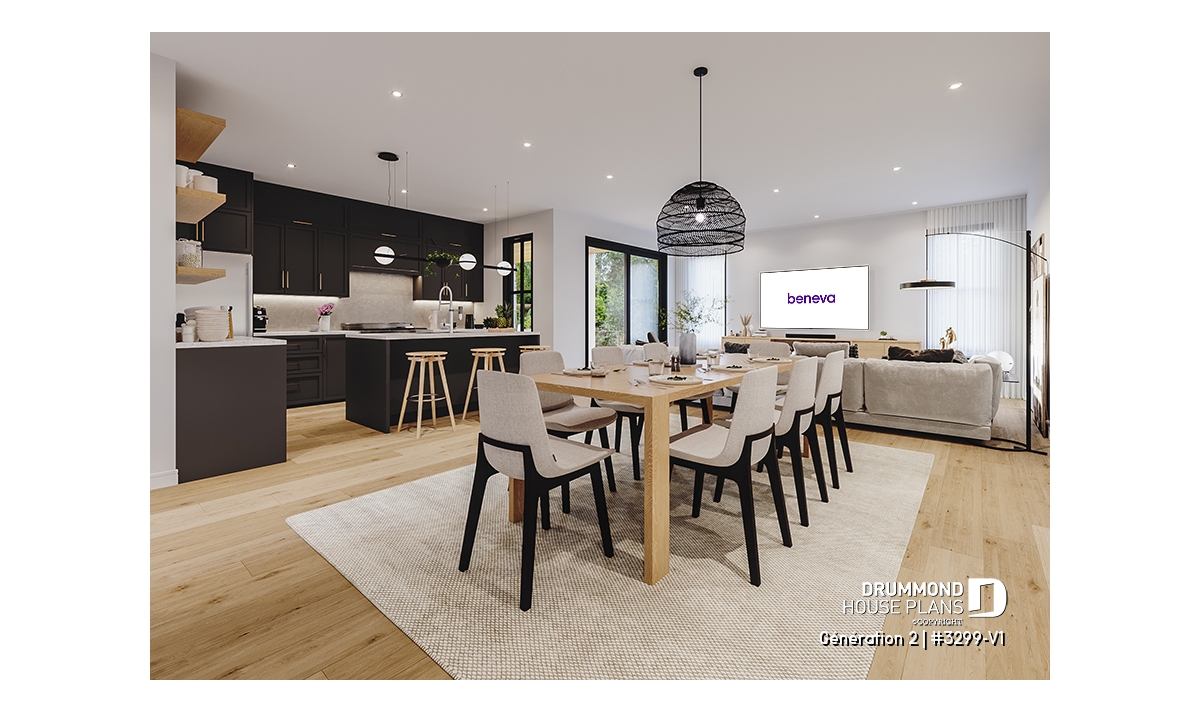

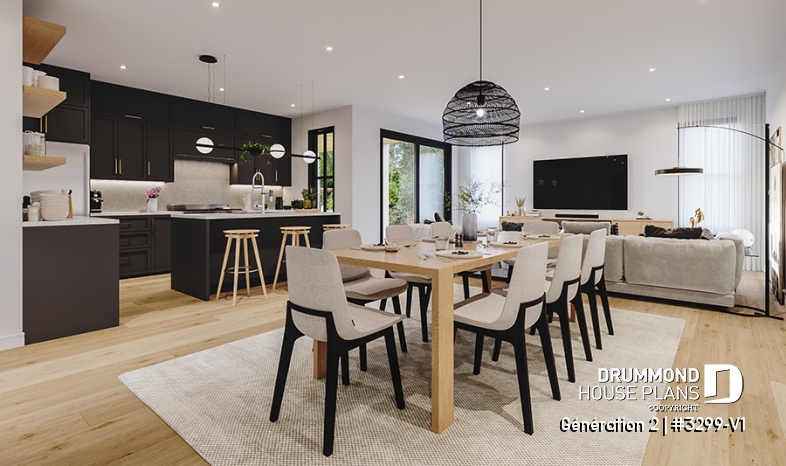

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

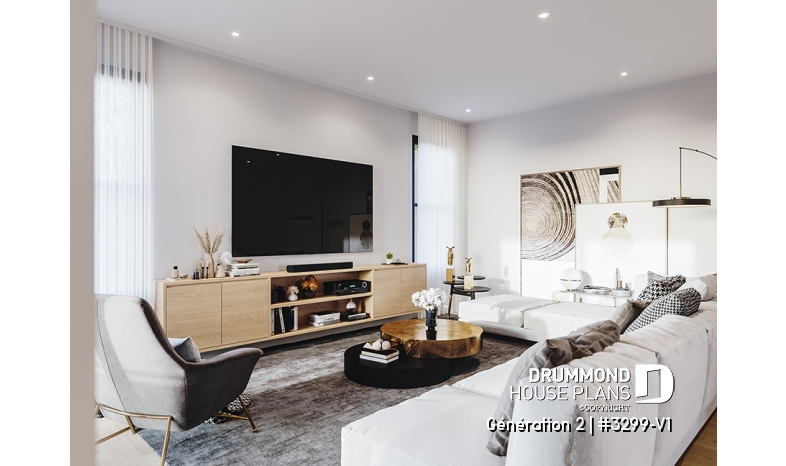

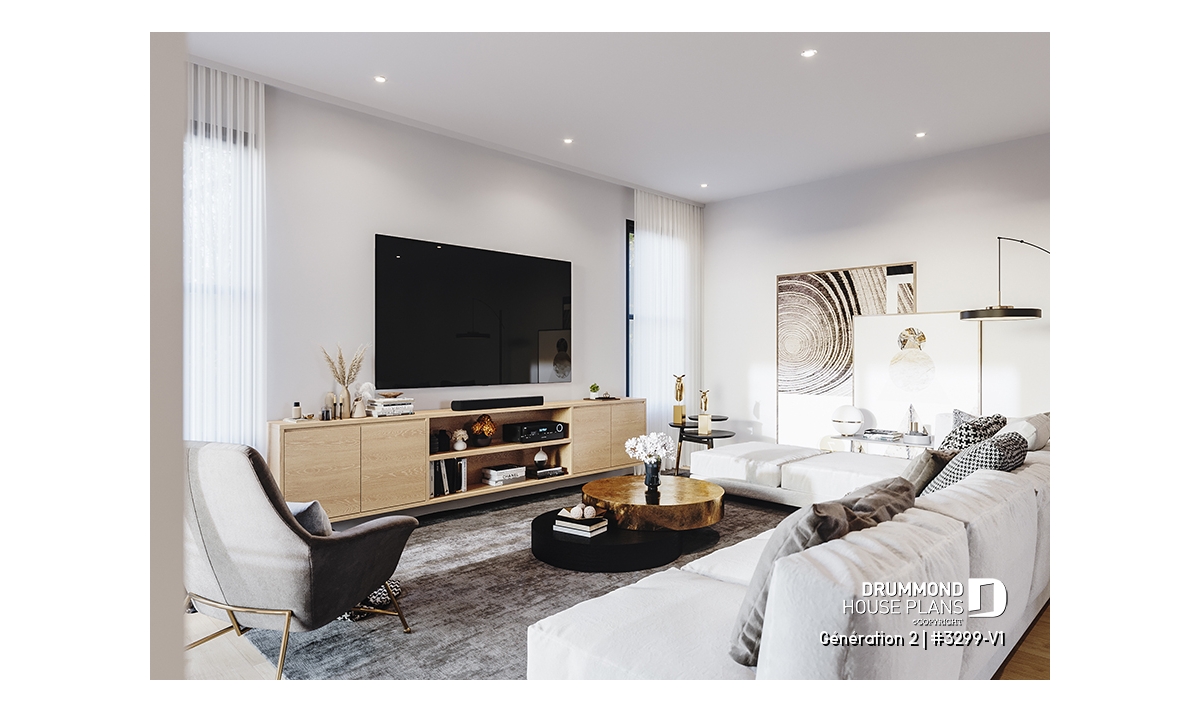

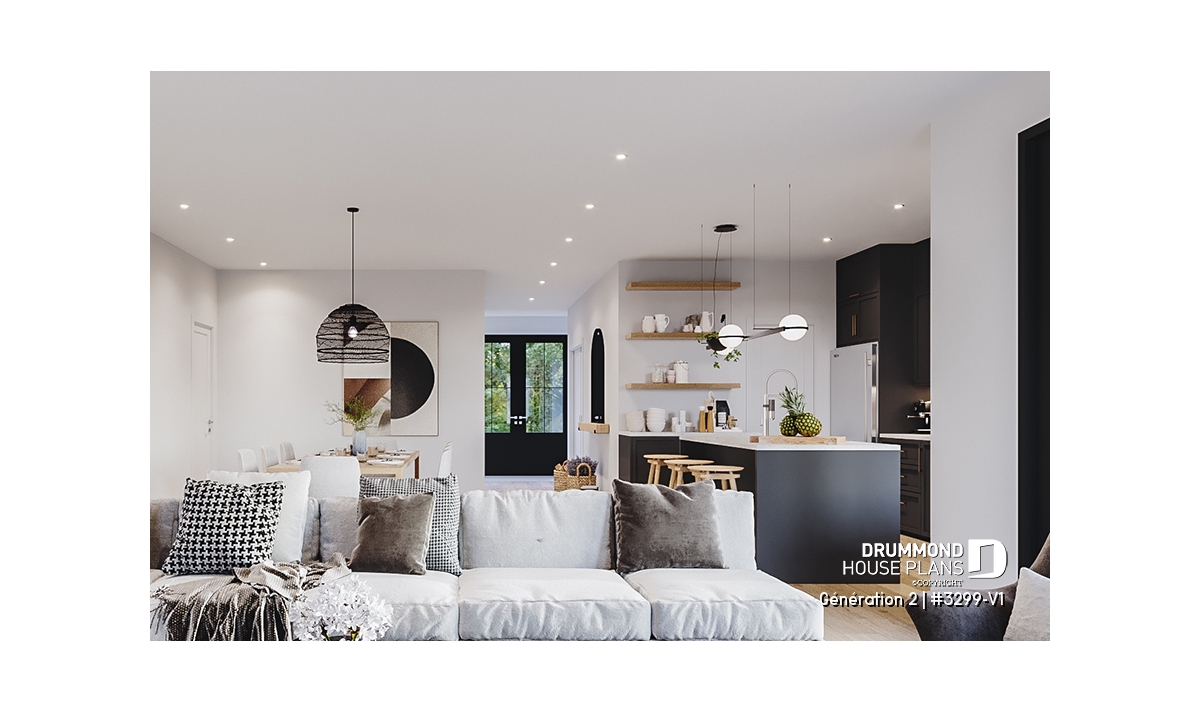

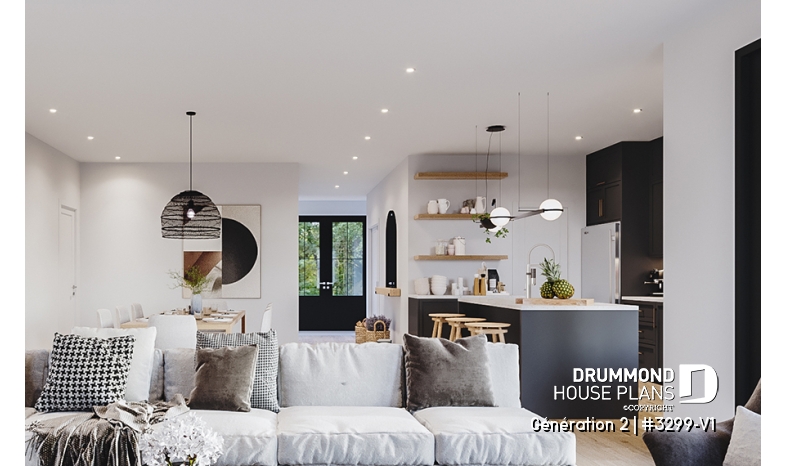

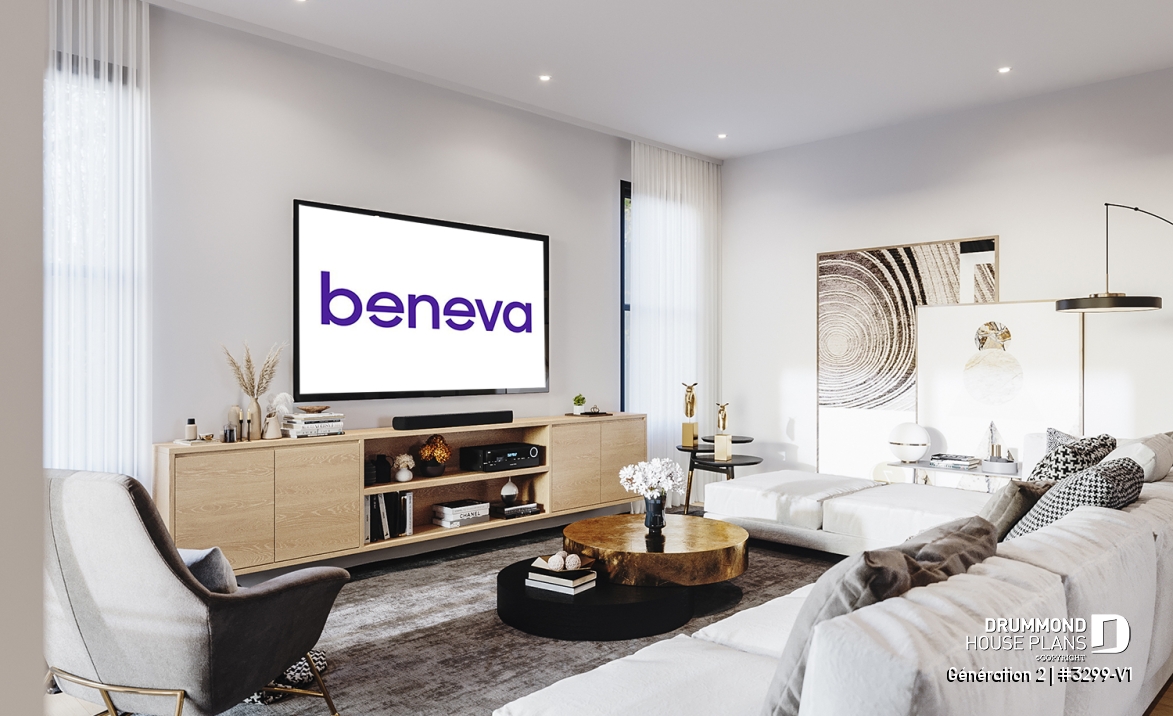

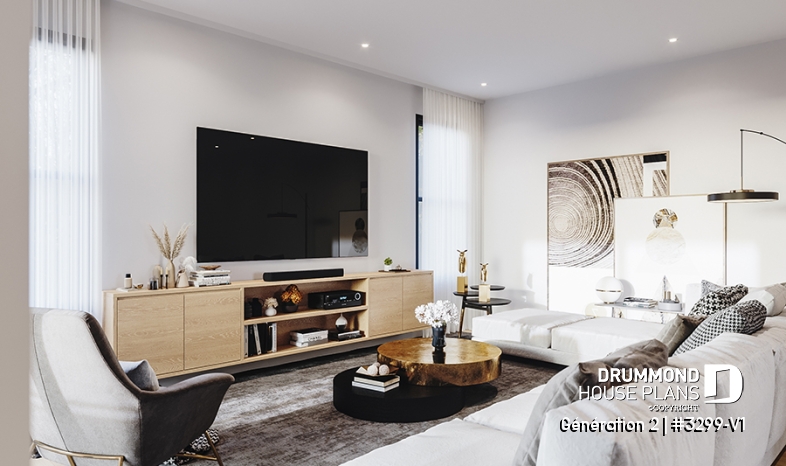

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

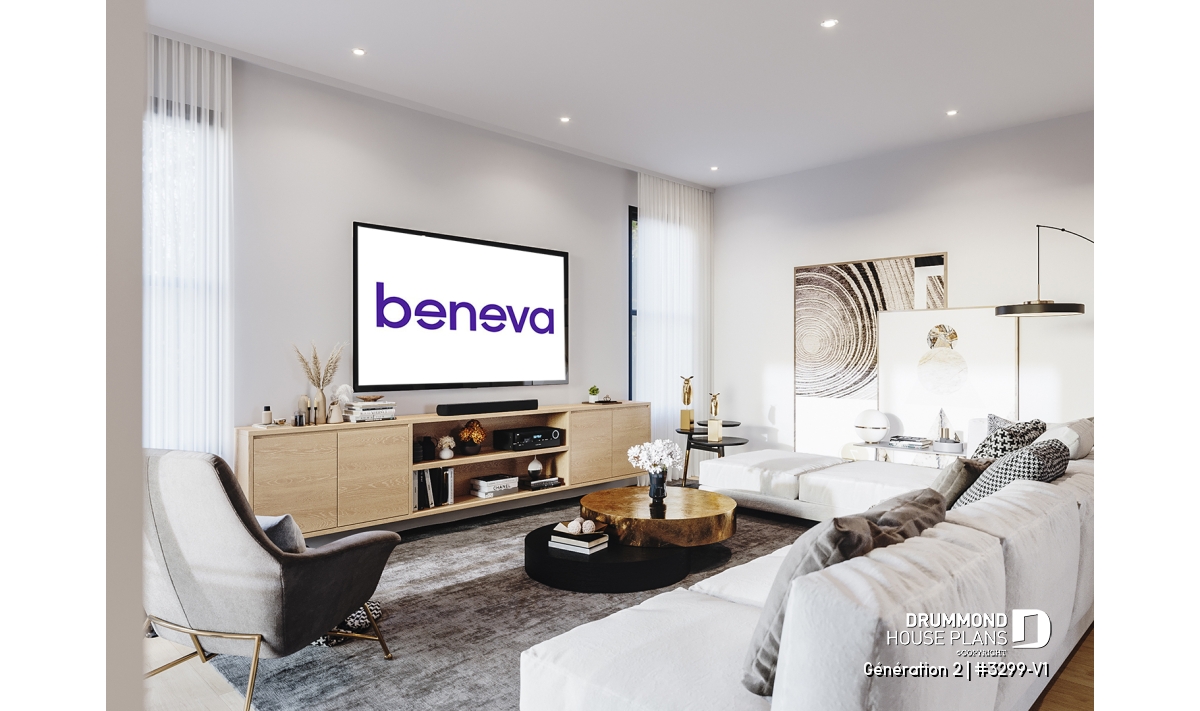

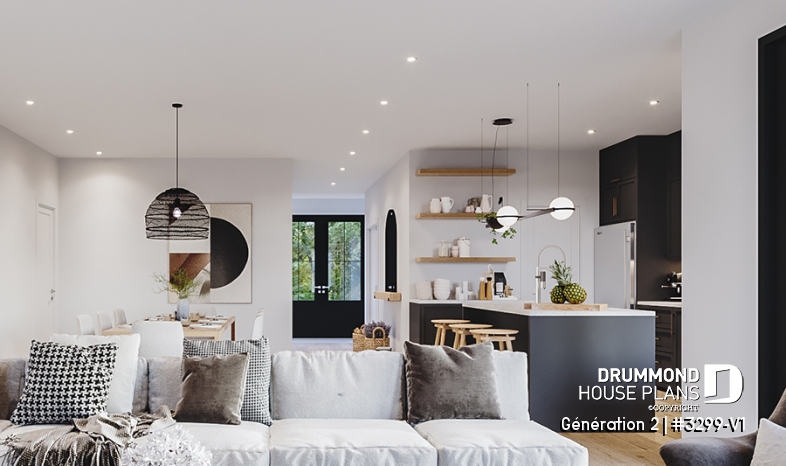

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

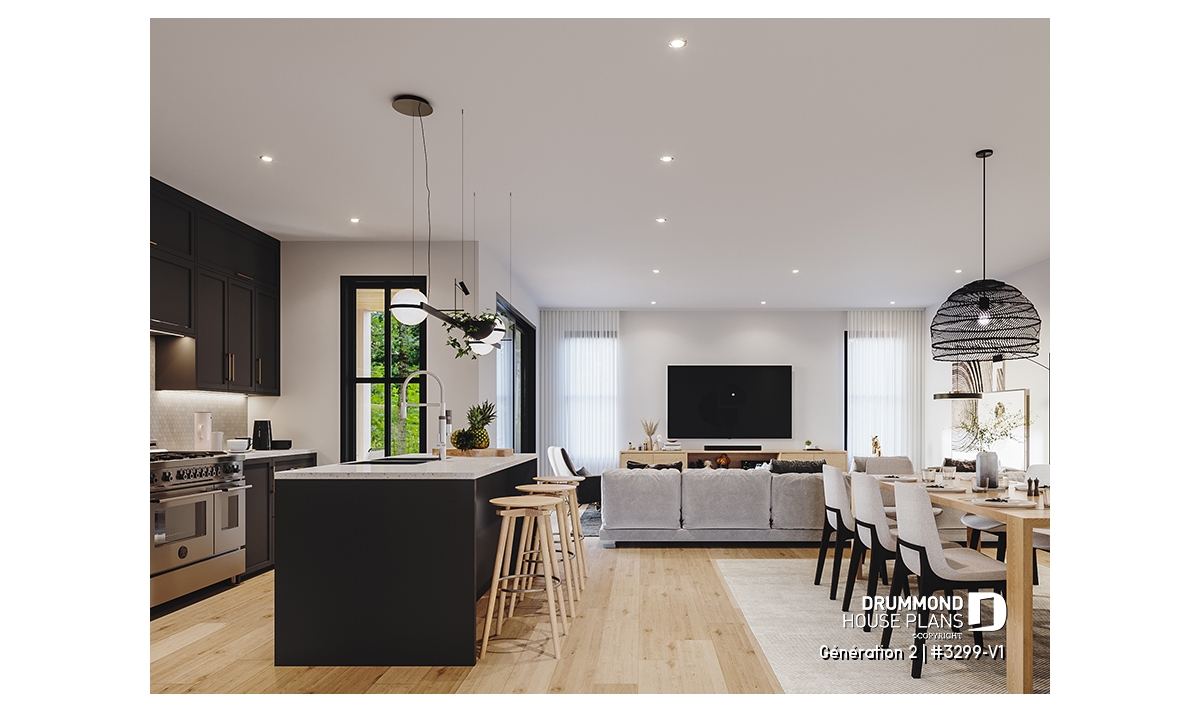

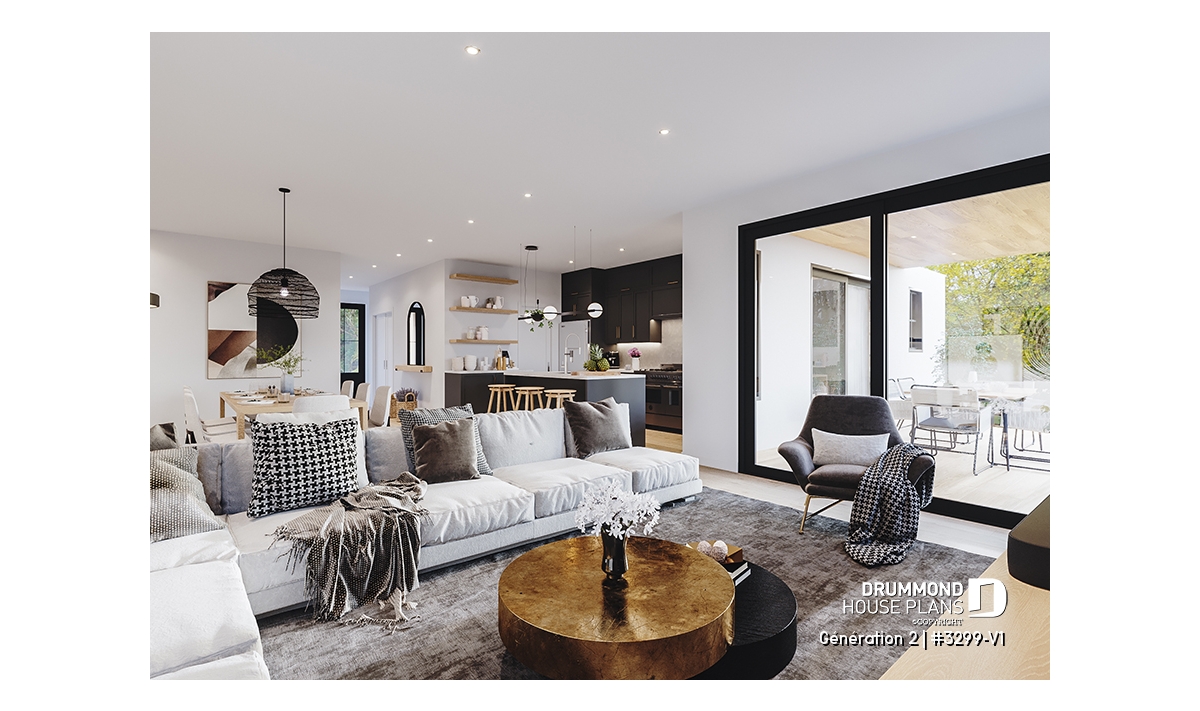

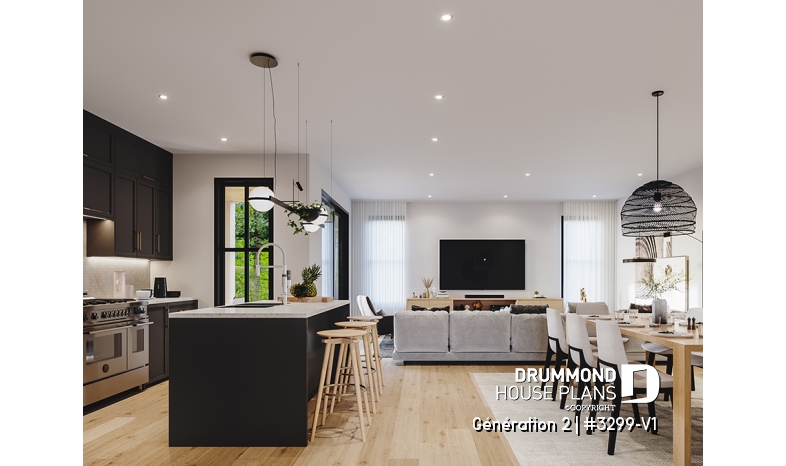

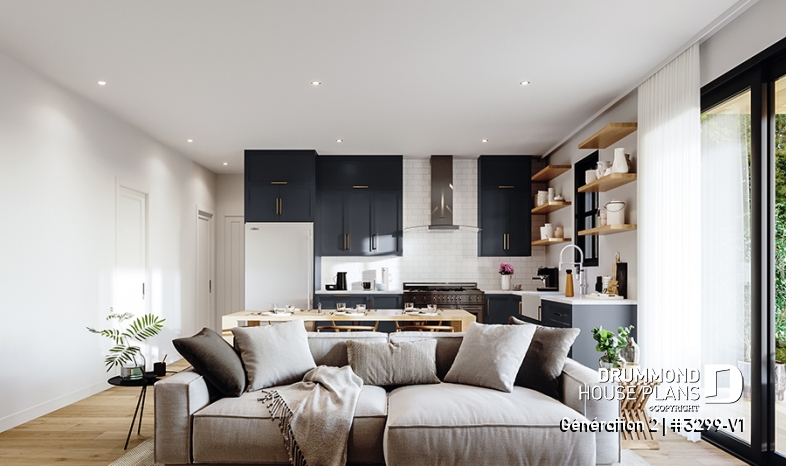

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Comfortable multigenerational house gives lots of privacy to family members
.
Distinctive elements

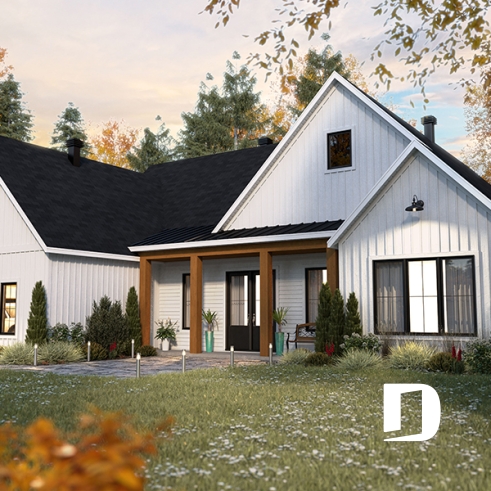

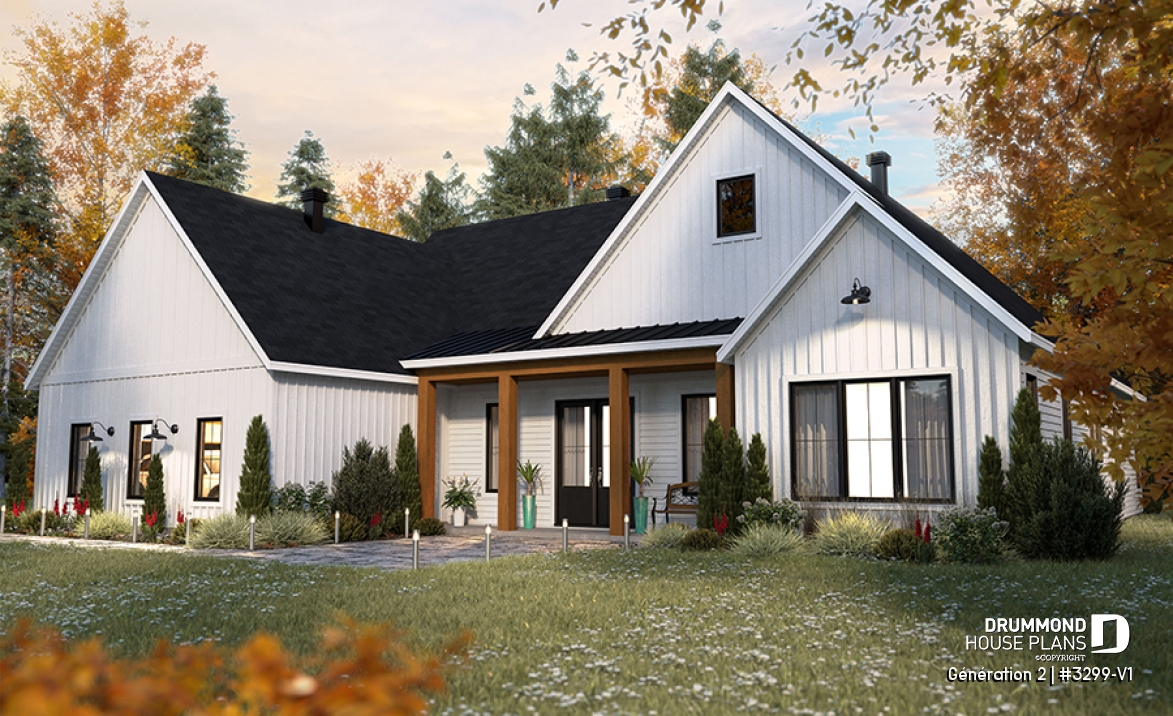

Bi-generation Farmhouse style house plan with double garage.
9 'ceiling throughout.
Floating slab foundation, other types of foundation available.
Parents' lodging with 3 bedrooms and 2 bathrooms.
The 2 apartments share the laundry room & pantry.
Parents bedroom with double walk-in closet and access to the semi-private bathroom.
Bedrooms 2 and 3 share a walk-in closet and shower room (Jack & Jill).
All family spaces are open plan.
A 16 'x 12' sheltered patio is accessible from both units.
Access to grandparents' accommodation through the garage.
Plan feature(s)
Side load garage, Pantry, Jack & Jill bath, His/Hers walk-in, Separate bath and shower, Separate bath and shower, Open floor layout, Open floor layout, Deck, Deck, Double sinks, Island, Gound floor laundry room, Gound floor laundry room, Shelves, Walk-in master bed., Oversized garage
Plan architectural style(s)
Modern farmhouse, . American, . Ranch, . Farmhouse, . Country, . Modern rustic
