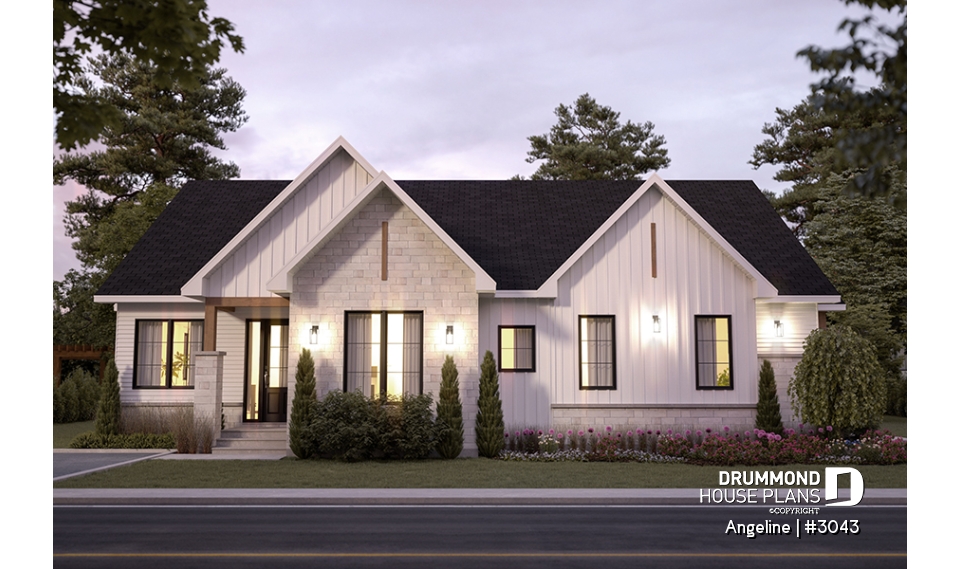

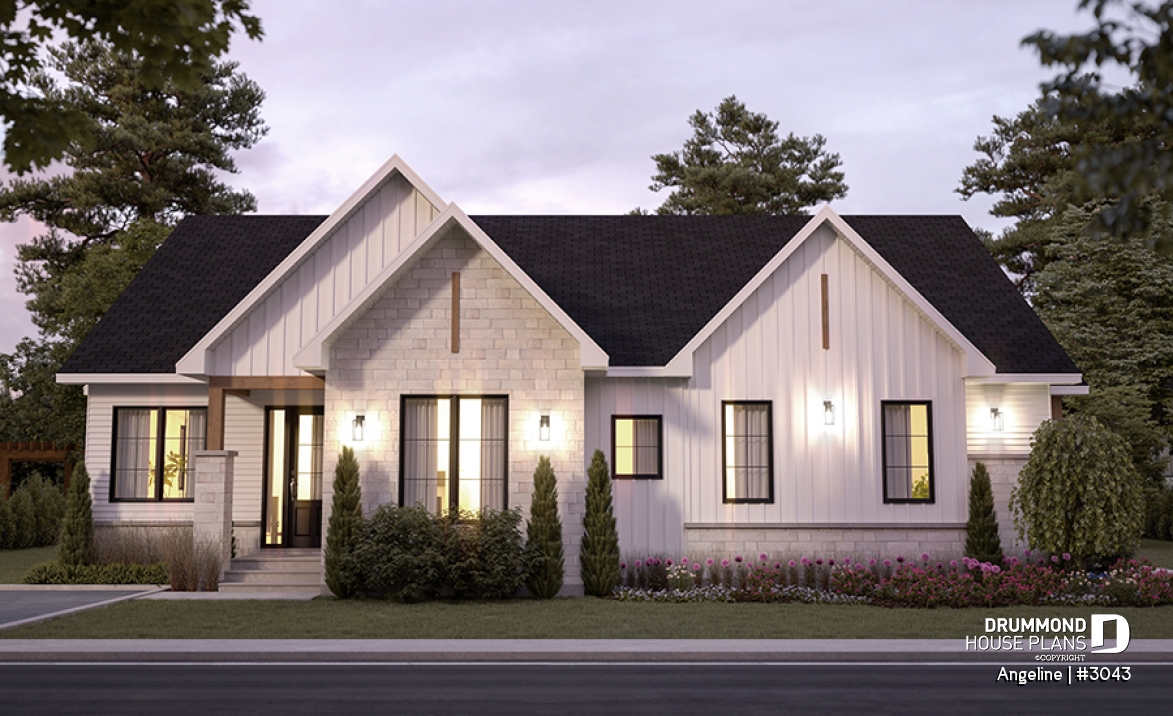

front - BASE MODEL
1st level

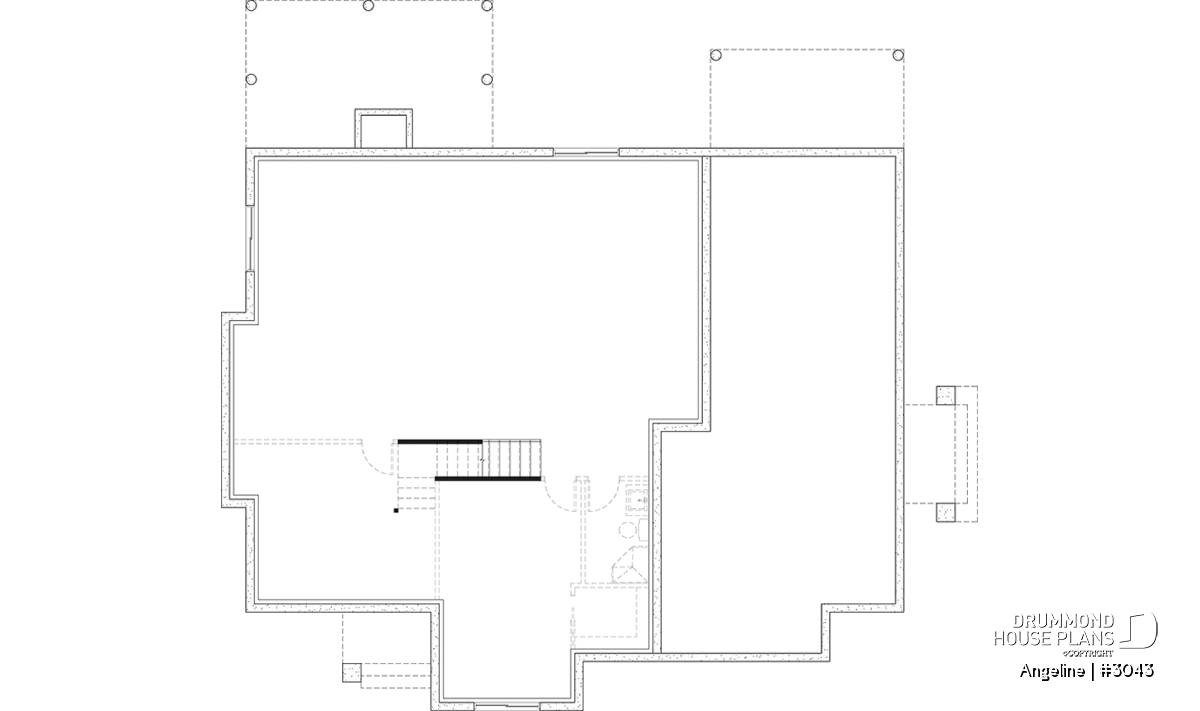

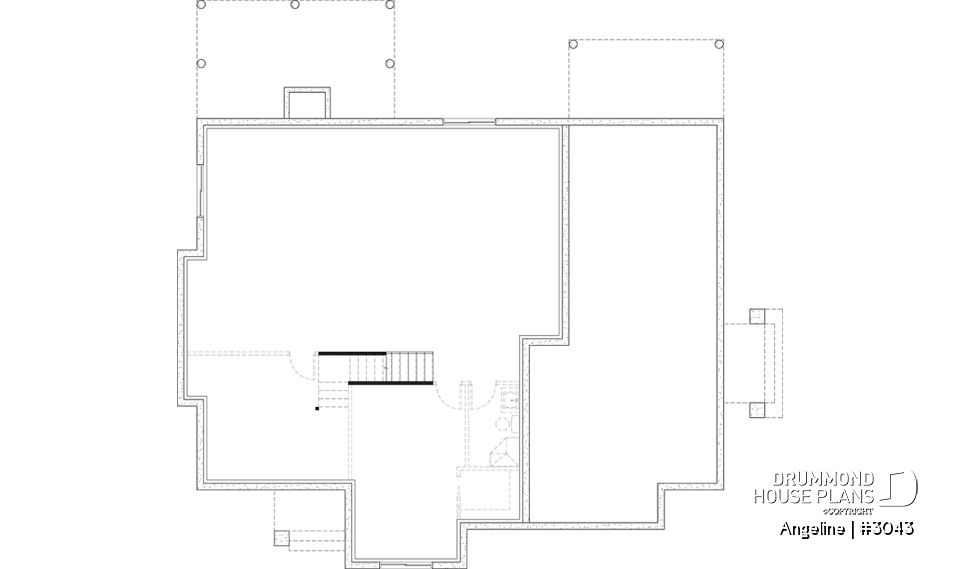

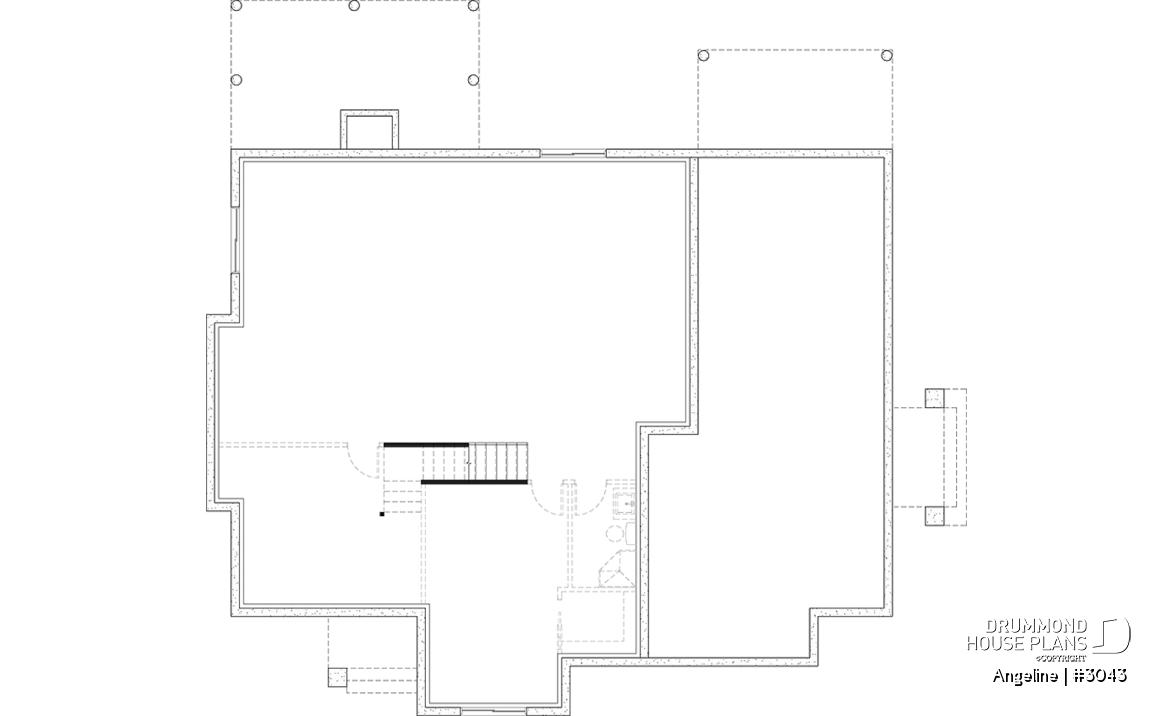

Basement

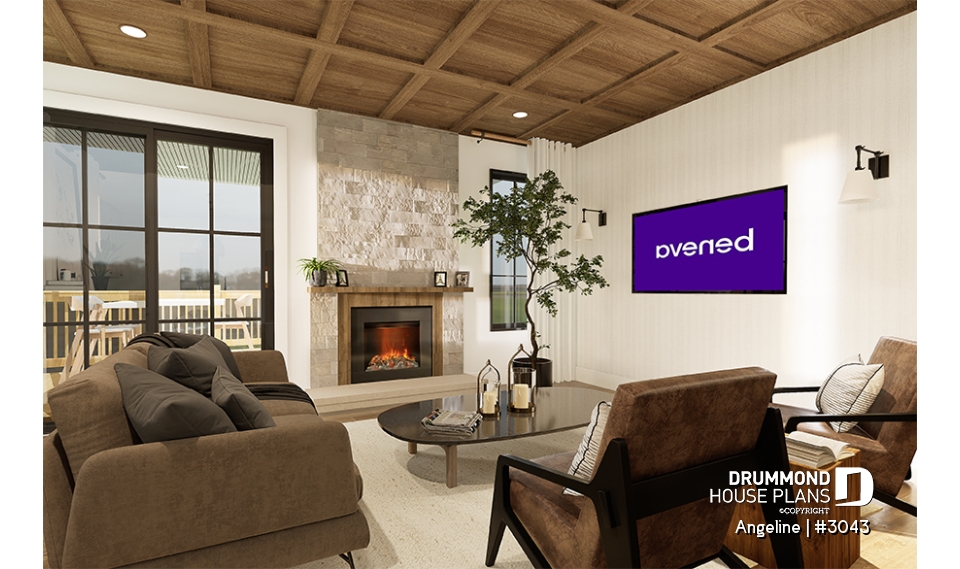

front - BASE MODEL

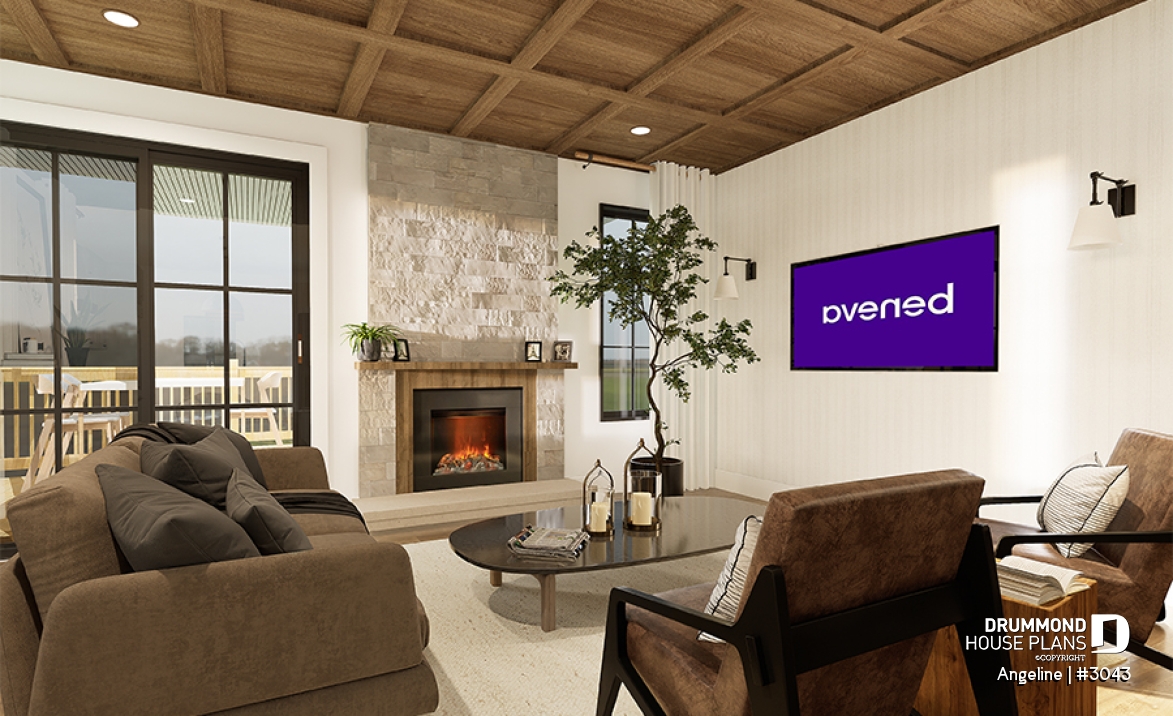

front - BASE MODEL

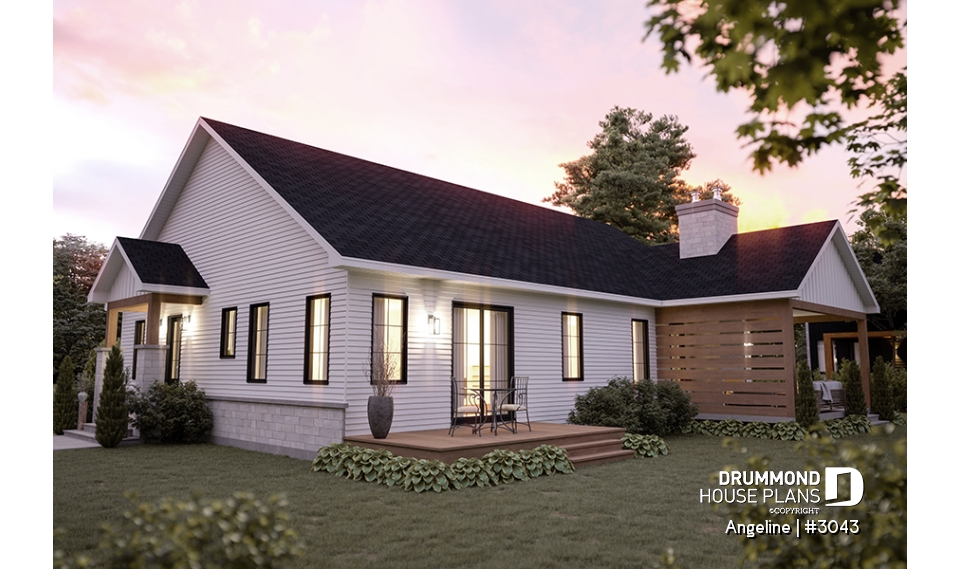

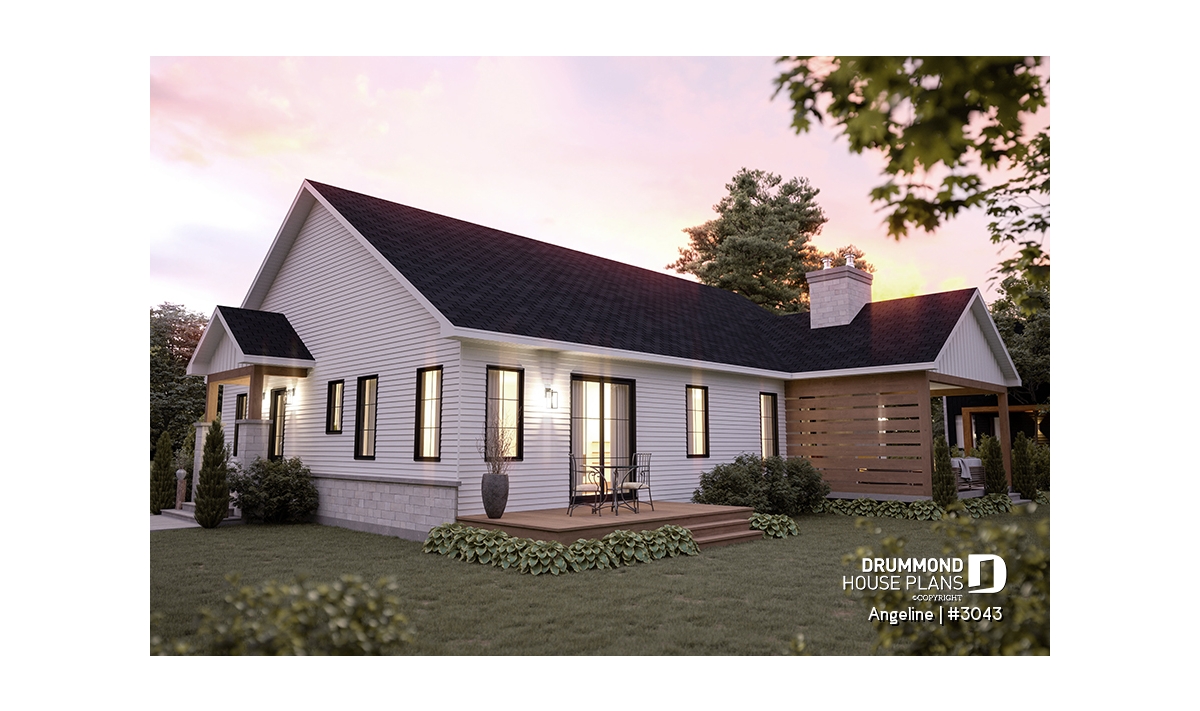

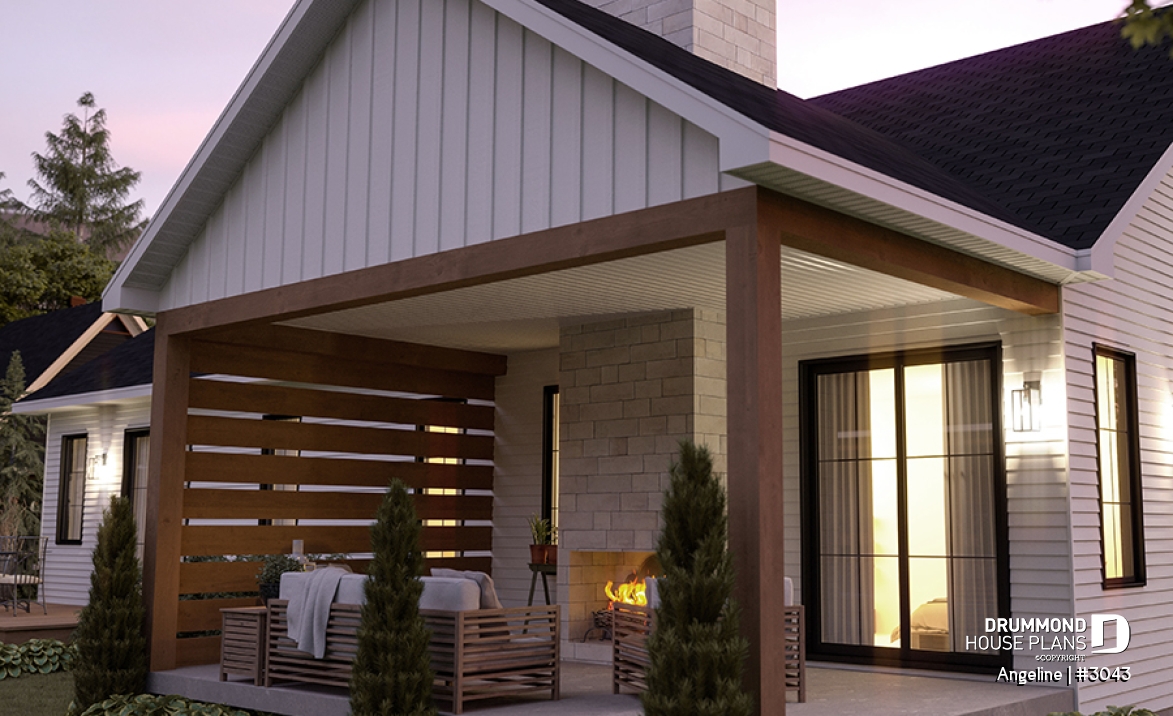

Rear view - BASE MODEL

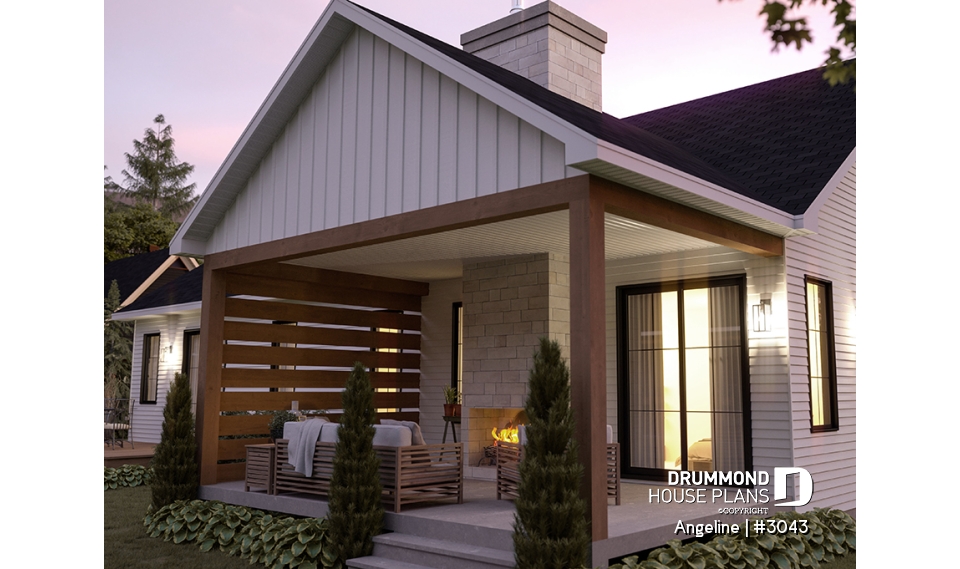

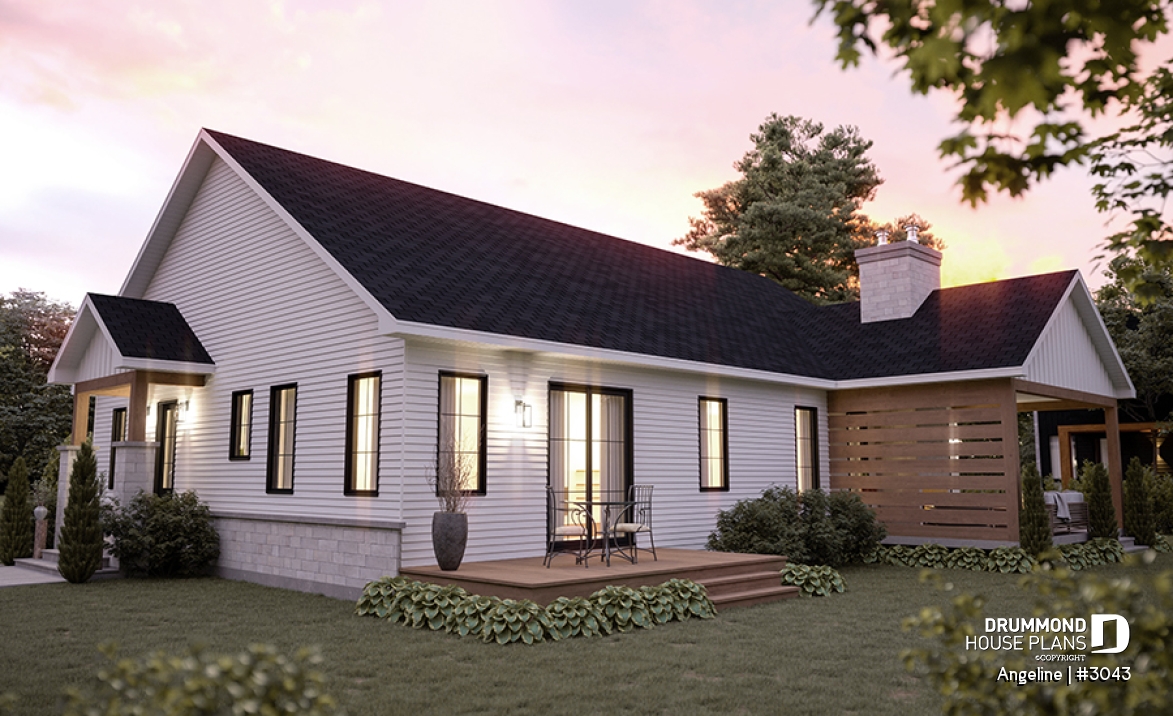

Rear view - BASE MODEL

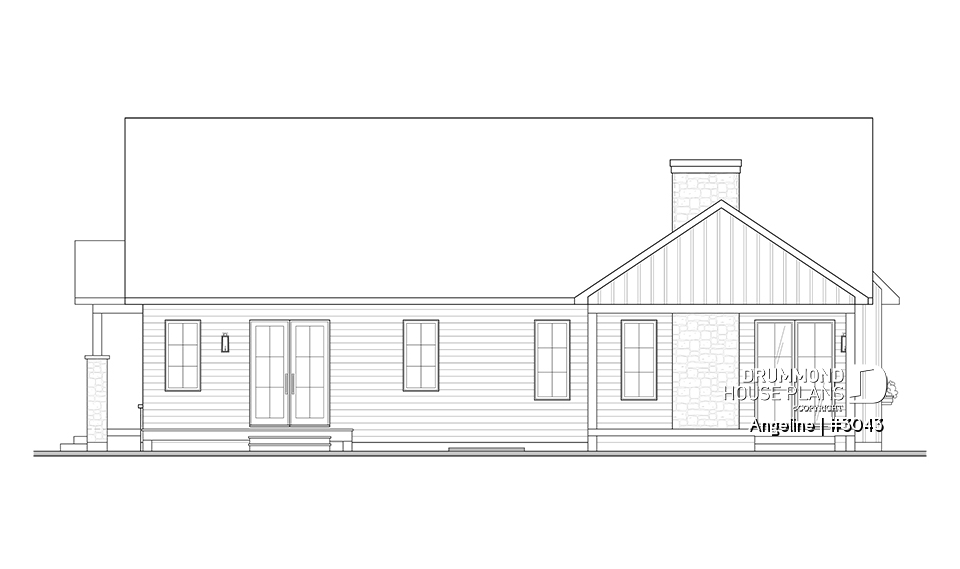

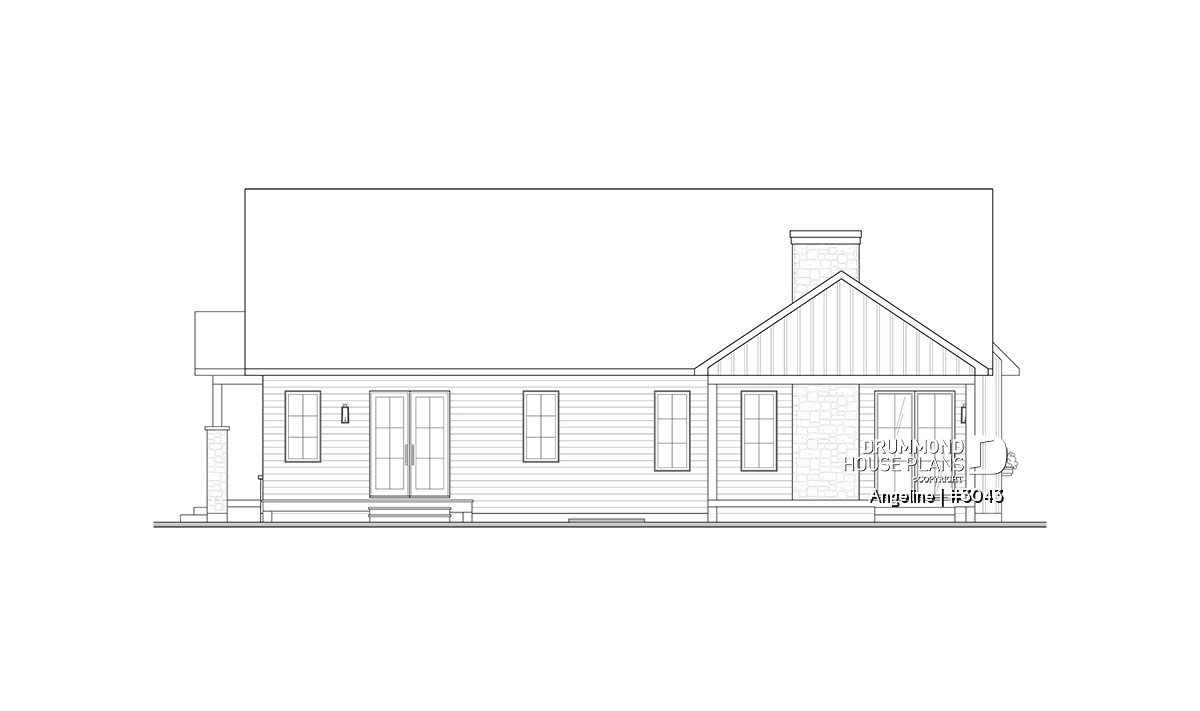

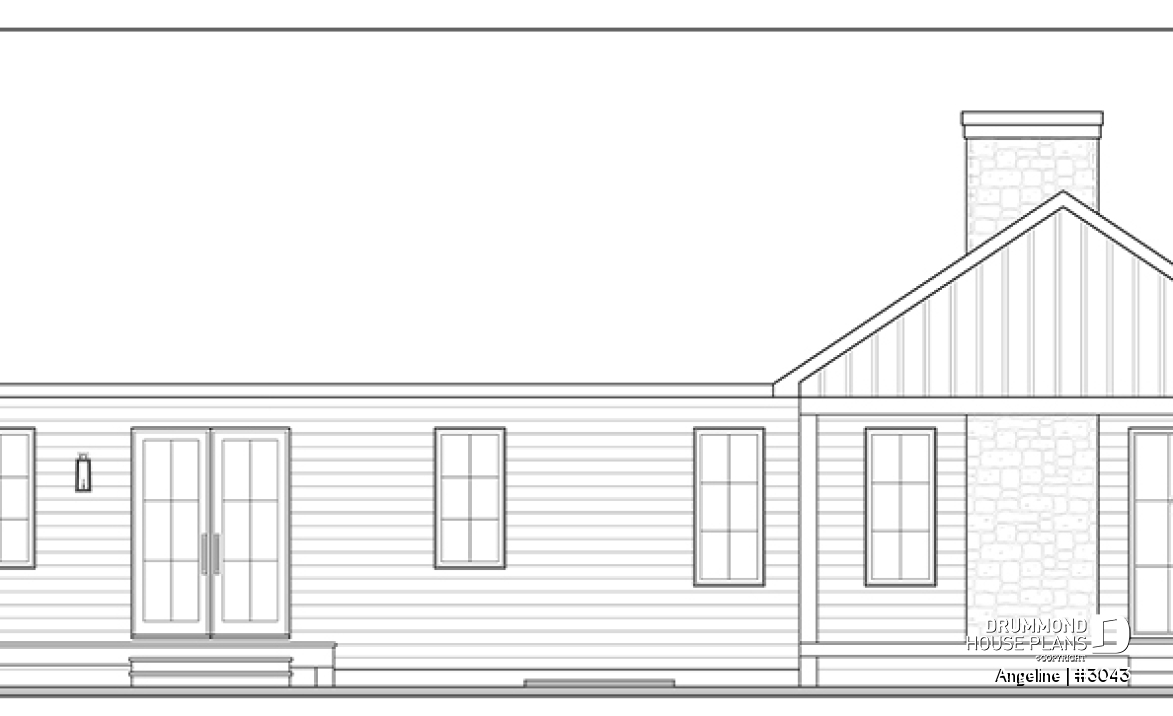

rear elevation

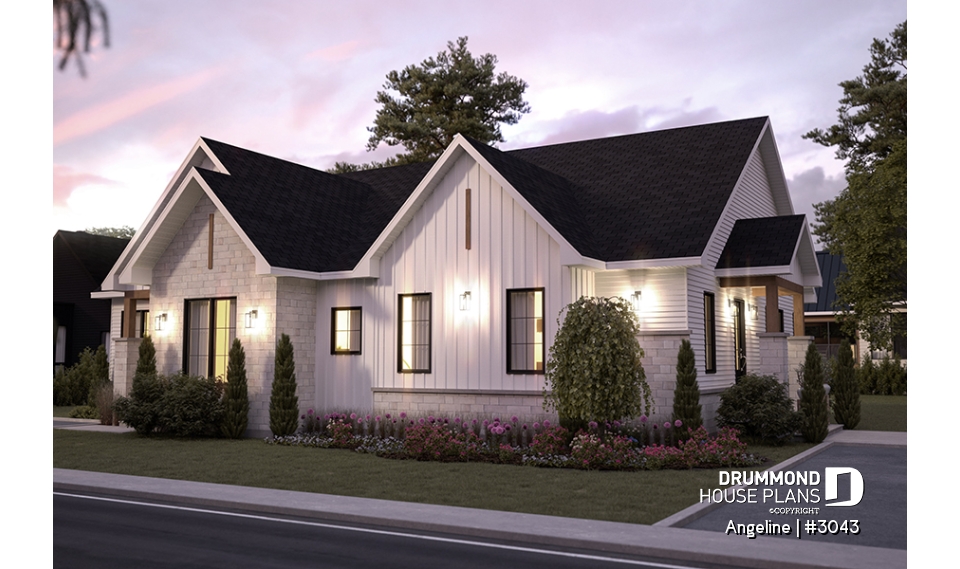

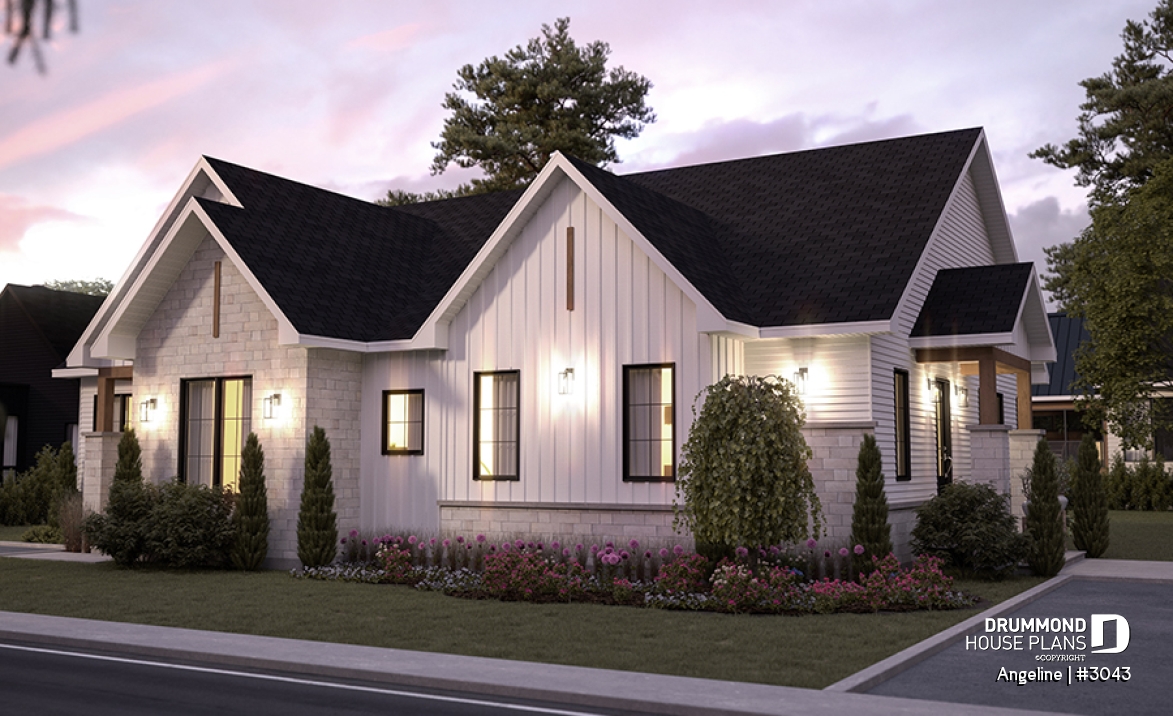

alternate

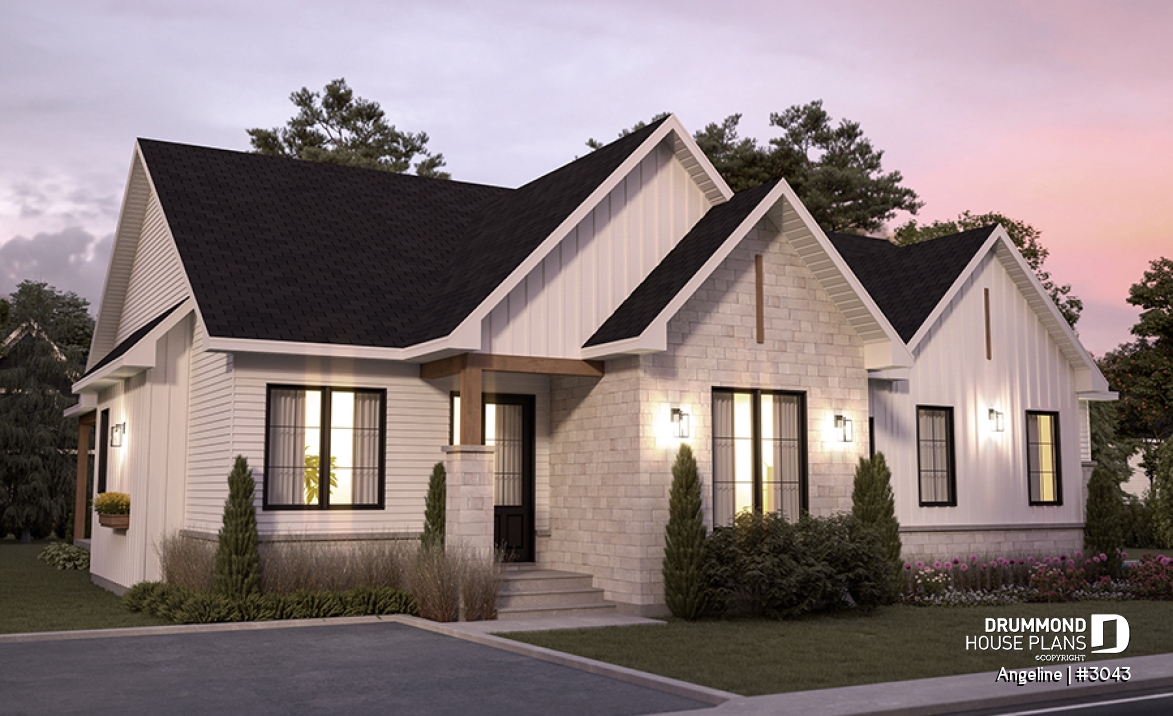

alternate

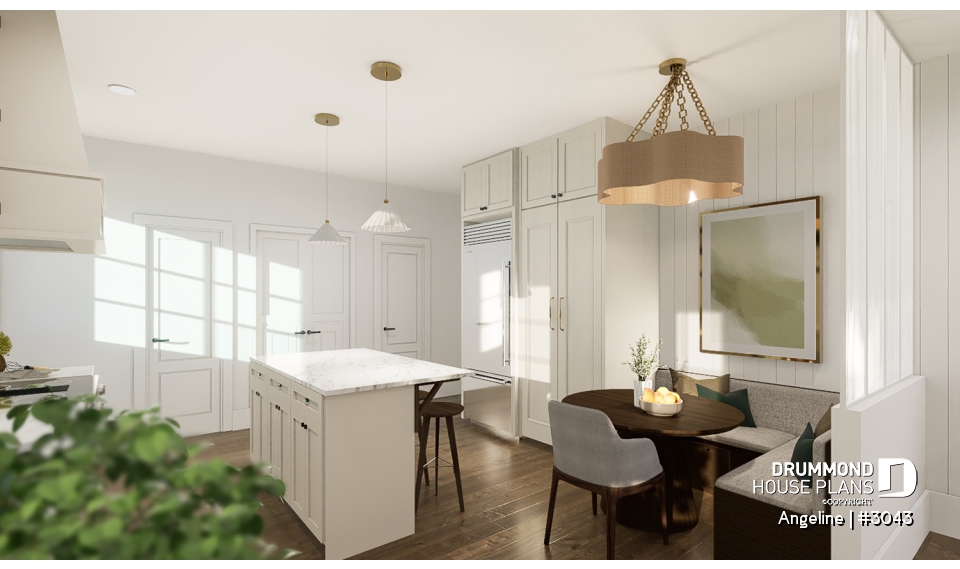

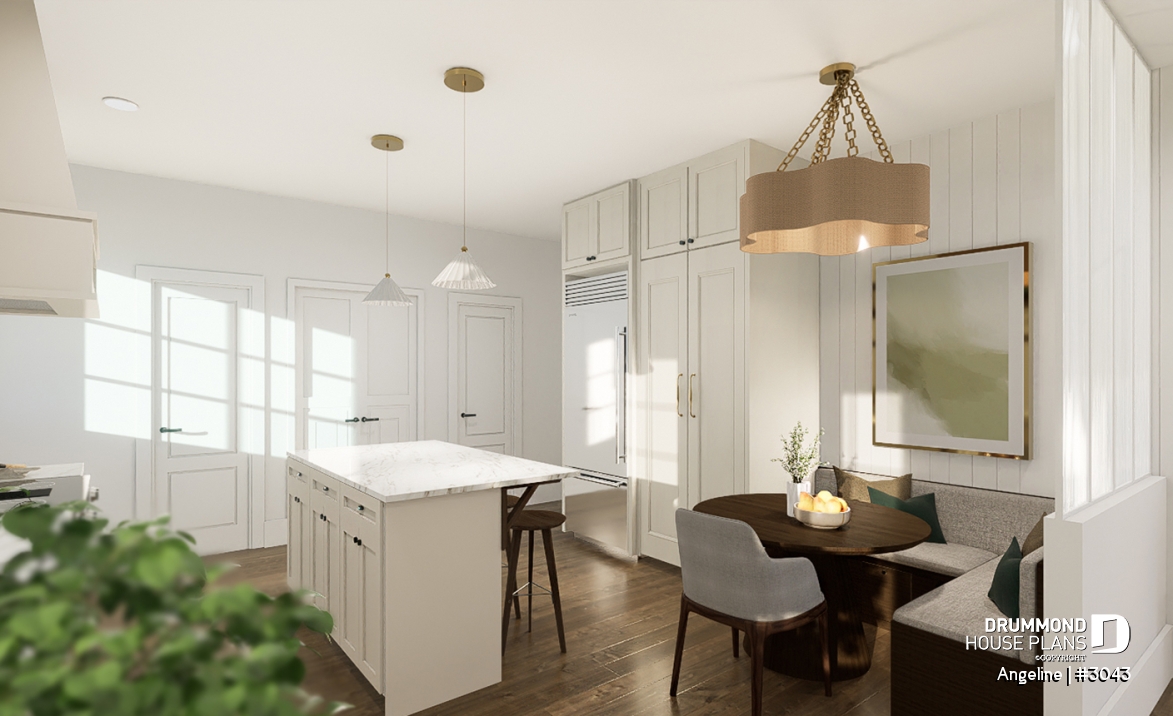

interior view
Angeline House plan 3043
Spacious one-storey multi-generational home plan with 1 + 3 bedrooms, fireplace and laundry on main unit
Starting from
2130$
| Technical details summary | Plan #3043 | ||
|---|---|---|---|
| Total living area | 2226 sq.ft. | Bedroom | 3, 4 |
| Full baths | 2 | Half baths | - |
| Foundation included | 1/2 Basement - 1/2 Crawl | Garage | - |
| Width | 55'4" | Depth | 45'8" |
Photos of the plan Angeline
Additional details
General specifications
Total living area
2226 sq.ft.
1st level
2226 sq.ft.
Basement
1515 sq.ft.
Width
55'4"
Depth
45'8"
Ridge height from top of foundation
24'3"
Exterior wall
2 X 6
1/2 Basement - 1/2 Crawl
Builder price code
MB
Rooms specifications
Bedroom(s)
3, 4
Full baths
2
Half baths
-
Garage type
-
Covered porch area
60 sq.ft.
Units specifications
UNIT 1 (MAIN UNIT)
UNIT 2 (IN-LAW SUITE)
Total living area
1515 sq.ft.
734 sq.ft.
1st level
1515 sq.ft.
734 sq.ft.
Width
39' 8"
20' 4"
Depth
45' 8"
41' 8"
Ridge height from top of foundation
24' 3"
24' 3"
Exterior wall
2 X 6
2 X 6
Foundation type
1/2 Basement - 1/2 Crawl
1/2 Basement - 1/2 Crawl
Bedroom(s)
3
1
Full baths
2
1
Half baths
-
-
Garage type
-
-
Living bonus space
-
-
Bonus storage
-
-
1st level
Rooms
Sizes
Ceiling
Kitchen
9'10" x 14'6"
~ 9'0"
Pantry
7'6" x 3'0"
~ 9'0"
Kitchen island
8'8" x 3'4"
N/A
Dining room
13'9" x 11'4"
~ 9'0"
Living room
15'0" x 10'4"
~ 9'0"
Living room
17'8" x 11'8"
~ 9'0"
Foyer
6'10" x 4'10"
~ 9'0"
Bedroom
13'0" x 11'8"
~ 9'0"
Closet
4'10" x 2'0"
~ 9'0"
Bedroom
9'0" x 9'0"
~ 9'0"
Bedroom
9'0" x 9'0"
~ 9'0"
Laundry room
5'6" x 10'10"
~ 9'0"
Covered porch
7'0" x 4'0"
~ 9'4"
Covered porch
4'0" x 8'0"
~ 9'4"
Mud room
7'6" x 4'10"
~ 9'0"
Master suite
11'0" x 12'0"
~ 14'0"
Walk-in closet
6'5" x 5'8"
~ 9'0"
Full bathroom
6'10" x 14'0"
~ 9'0"
Shower
6'0" x 6'6"
~ 9'0"
Linen
1'6" x 1'6"
N/A
Linen
2'1" x 3'0"
~ 9'0"
Covered deck
20'0" x 12'0"
~ 9'4"
Deck
15'8" x 8'0"
N/D
Kitchen/dinette
15'0" x 11'8"
~ 9'0"
Kitchen island
5'8" x 3'0"
N/A
Closet
4'2" x 2'0"
~ 9'0"
Bathroom
5'8" x 10'0"
~ 9'0"
Linen
1'4" x 1'10"
N/A
Bathroom
5'0" x 10'0"
~ 9'0"
Basement
Intergenerational single-story house plan offering 3 bedrooms and a full unfinished basement !
Faced with the growing demand for bi-generational homes, we are in the process of developing several models, including this one on a single level. For a version with 2 bedrooms on the family side, take a look at our plan #3042.
The ANGELINE house plan (#3043) with its attractive exterior look offers remarkable living spaces, including a master suite, a covered terrace with fireplace, a magnificent living room with a fireplace on the family side, as well as a kitchen with island and pantry. Each model includes spacious bedrooms, a connecting laundry room on the main floor and functional bathrooms, including a private one in the master bedroom in the main accommodation.
The entrances, including the main one with adjoining mudrooms are separate, which may be subject to restrictions in some municipalities. We recommend checking local regulations to avoid surprises.
If you have an intergenerational home project, consult our collection of bi-generational house plans or meet with one of our offices to obtain a fully custom plan, entirely according to the needs of your family.
Distinctive elements
Intergenerational house offering 3 bedrooms on the family side and 1 bedroom on the grandparents' side.
Covered main porch provided for each units.
A mudroom is provided for the main unit as well.
The laundry room is central and shared by both units.
The basement is unfinished and can be eventually finished on the family side allowing the addition of bedroom(s), office, family room or other.
Superb family kitchen with central kitchen island and pantry. Fireplace in the living room and on the covered terrace in the main accommodation.
Parents' bedroom with walk-in closet and private bathroom.
On the grandparents' side, a dinette with bench seat is fitted out as a dining room.
The master bedroom is of good size and can easily accommodate a king size bed.
There is no basement for this specific unit. It is however possible to add one via our plan modification service if desired.
Plan feature(s)
Gound floor laundry room, Split bedrooms, Fireplace, Walk-in master bed., Mud room, Pantry, Open floor layout, Open floor layout, Island, Island, Covered patios, Arch, Gound floor laundry room, Bench seat(s), Breakfast nook
Plan architectural style(s)
Ranch, Country, Transitional, American, Modern farmhouse, Classic, Farmhouse, Trending
The plan Angeline is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
