House plan Dempsey (3452)
3 bedrooms, 2 storey house plan with garage, master suite and laundry room on 2nd floor, den
View the size of the rooms and height of the ceilings

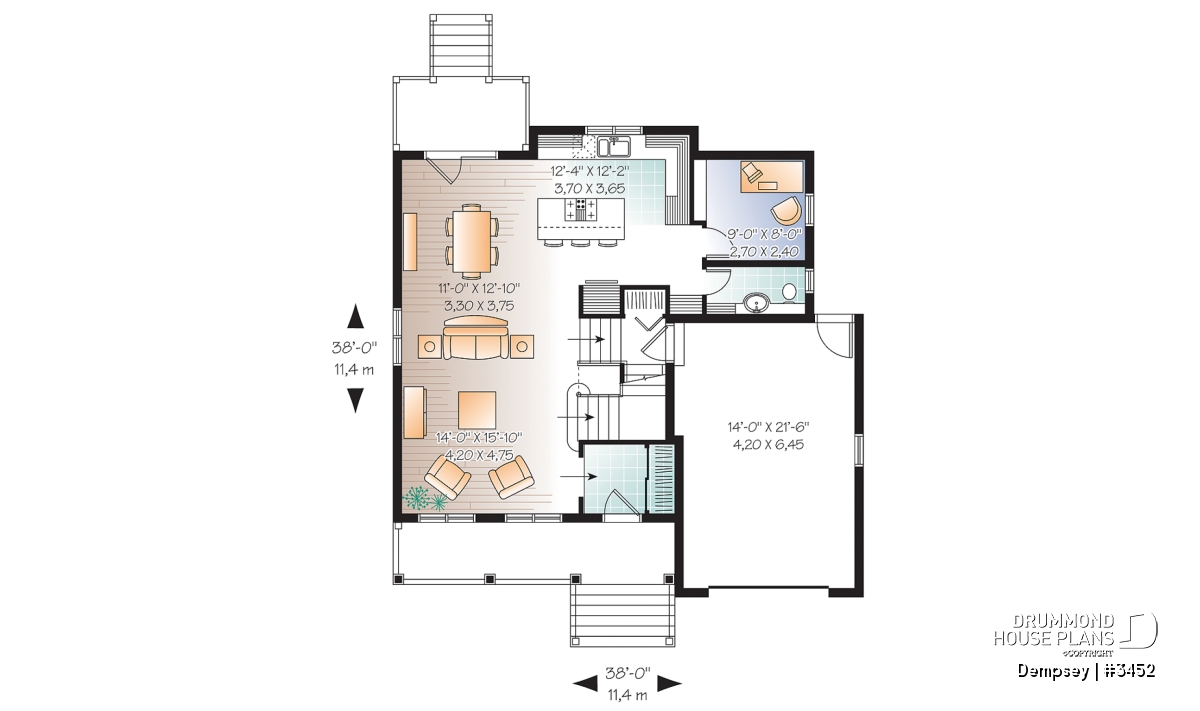

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'4" x 12'2" | ~ 8'0" |
| Dining room | 11'0" x 12'10" | ~ 8'0" |
| Living room | 14'0" x 15'10" | ~ 8'0" |
| Foyer | 5'0" x 5'8" | ~ 8'9" |
| Closet | 2'0" x 5'8" | ~ 8'9" |
| Garage | 14'0" x 21'6" | ~ 8'9" |
| Covered porch | 22'8" x 5'0" | N/A |
| Deck | 11'0" x 6'0" | N/A |
| Home office | 9'0" x 8'0" | ~ 8'0" |
| Closet | 3'4" x 2'0" | ~ 8'0" |
| Half bath or powder room | 8'0" x 4'0" | ~ 8'0" |

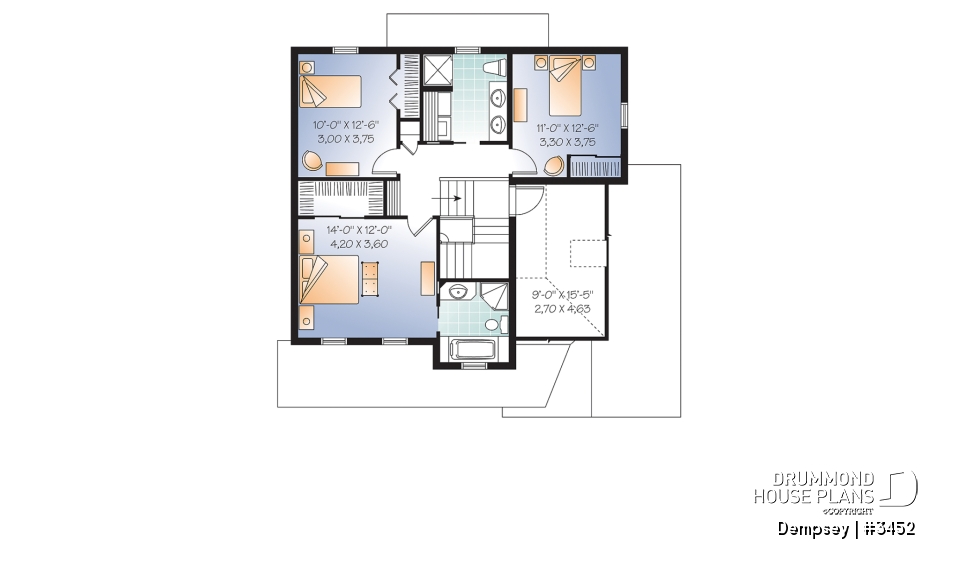

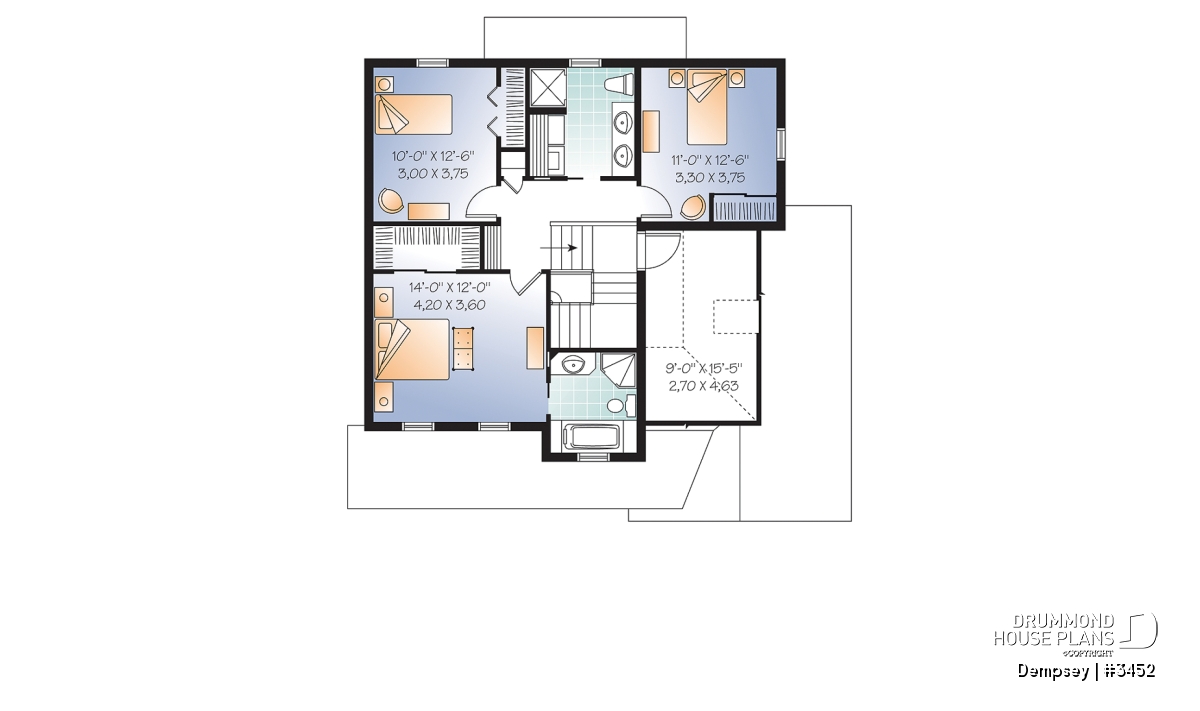

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower/laundry room | 8'6" x 8'10" | ~ 8'0" |
| Master suite | 14'0" x 12'0" | ~ 8'0" |
| Full bathroom | 7'0" x 8'2" | ~ 8'0" |
| Walk-in closet | 8'8" x 3'6" | ~ 8'0" |
| Bedroom | 11'0" x 12'6" | ~ 8'0" |
| Closet | 5'2" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 12'6" | ~ 8'0" |
| Closet | 2'0" x 6'6" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Living bonus room | 9'0" x 15'5" | ~ 8'0" |
General specifications
| Total living area | 1719 sq.ft. |
| 1st level | 869 sq.ft. |
| 2nd level | 850 sq.ft. |
| Width | 38'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 31'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | D |
Rooms specifications

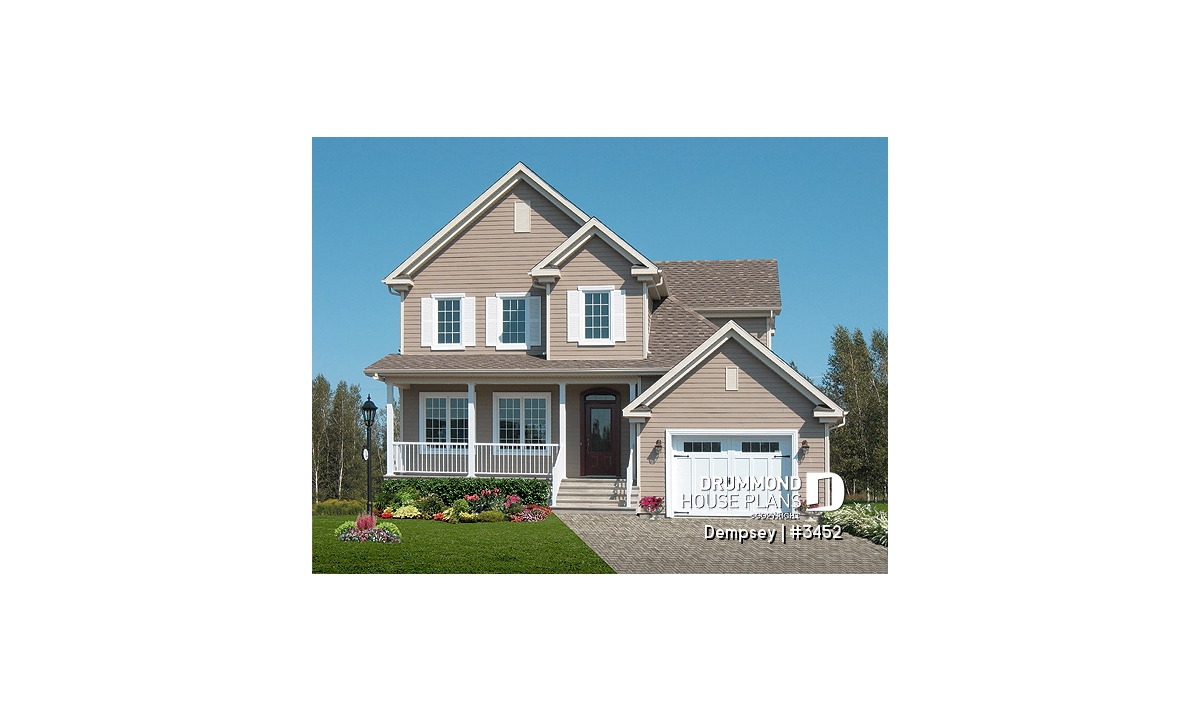

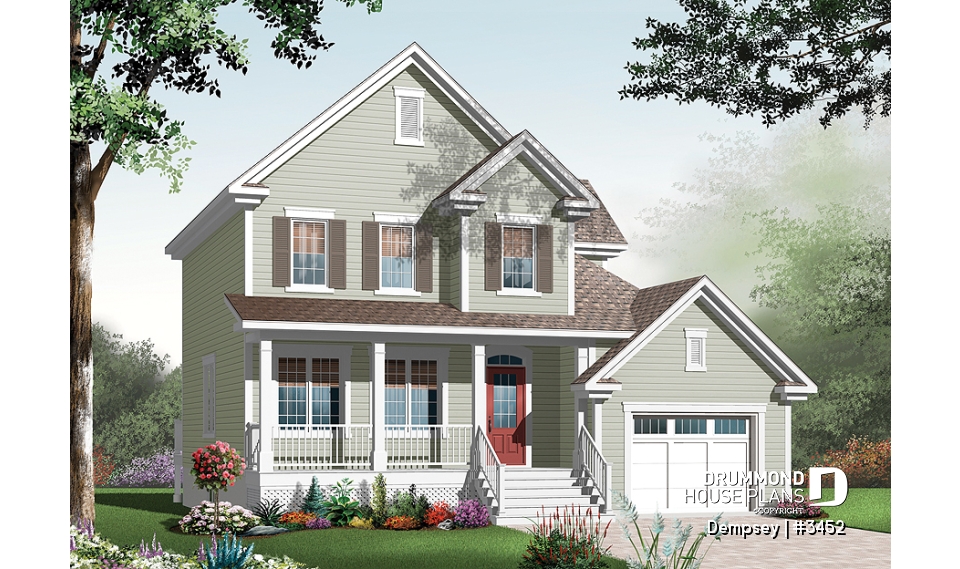

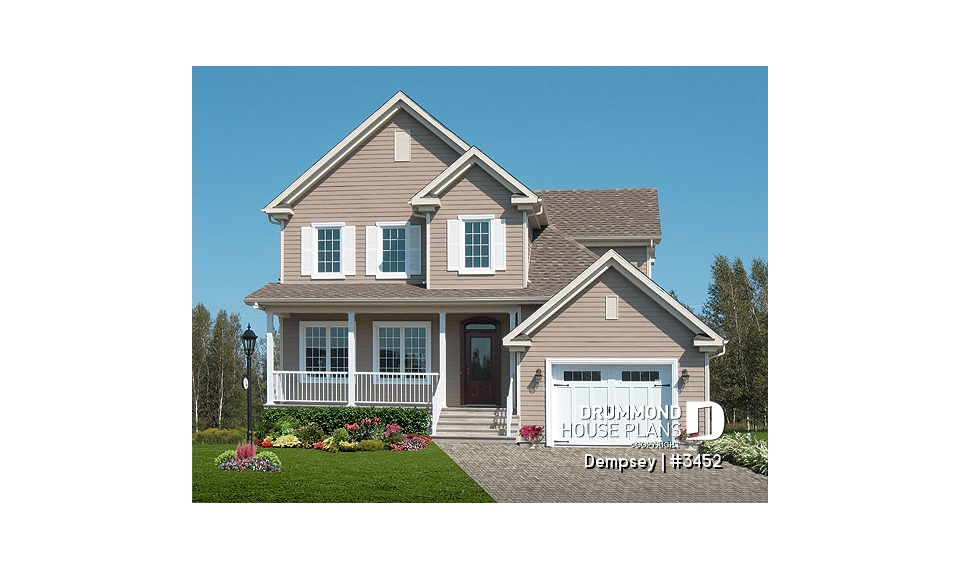

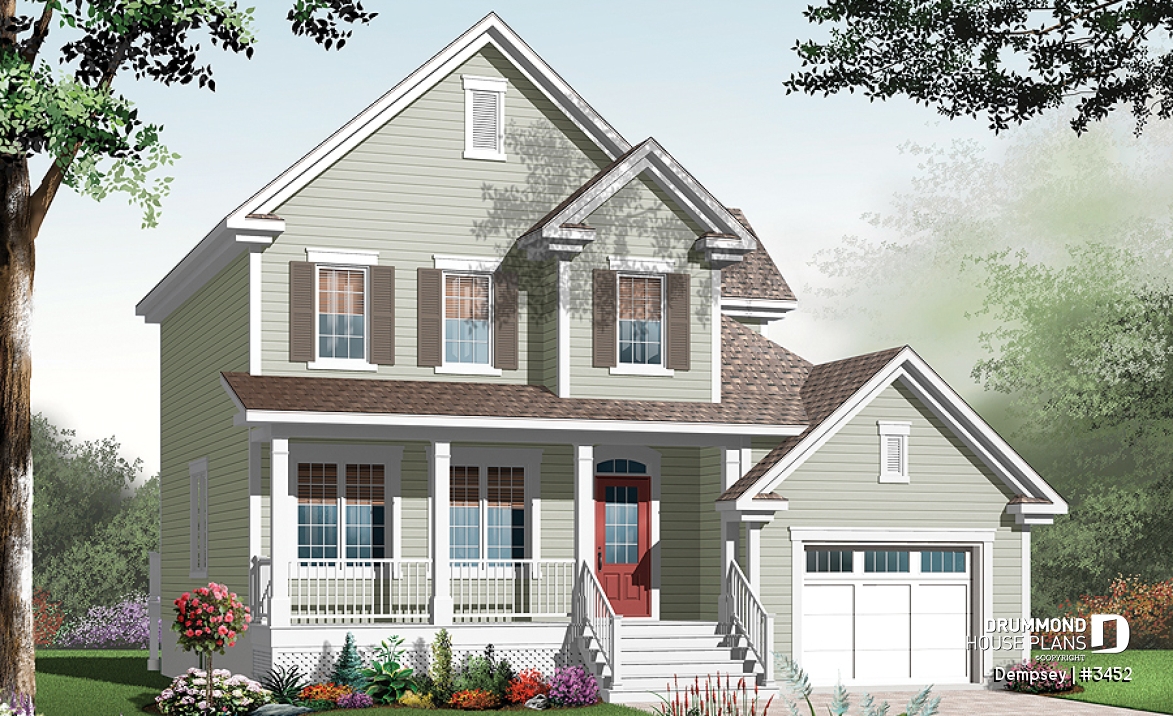

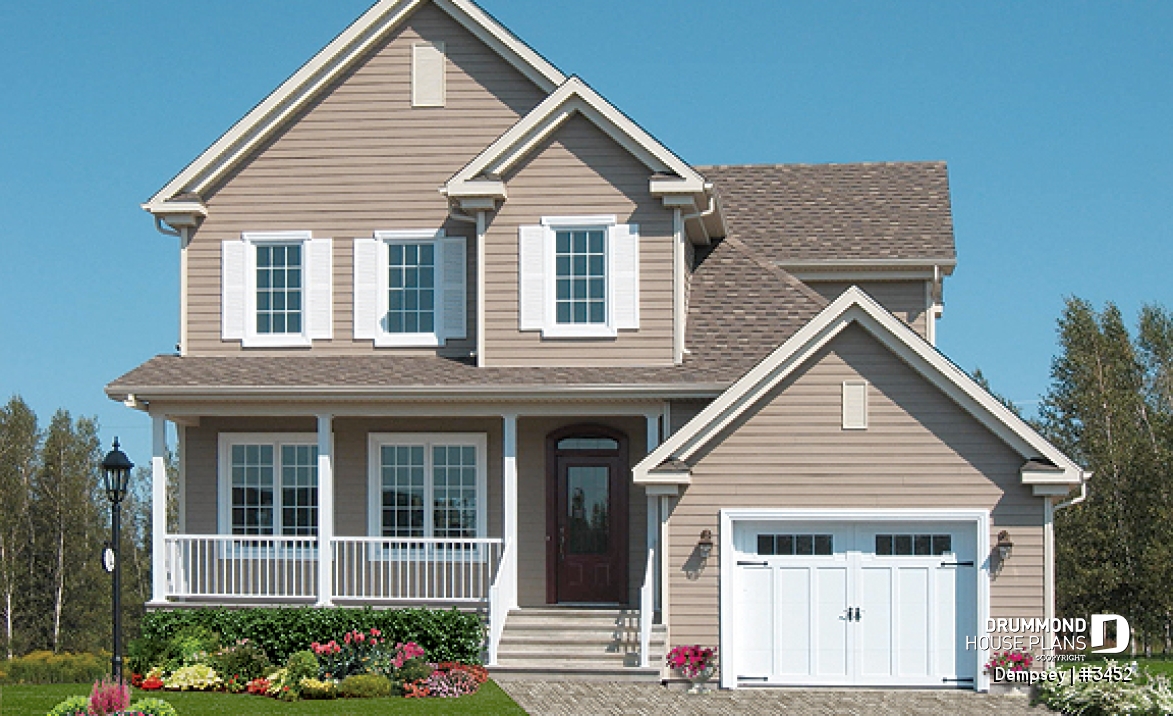

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

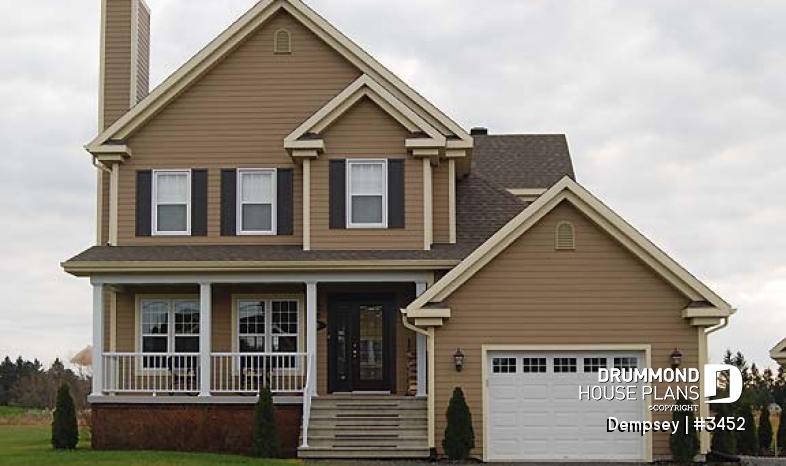

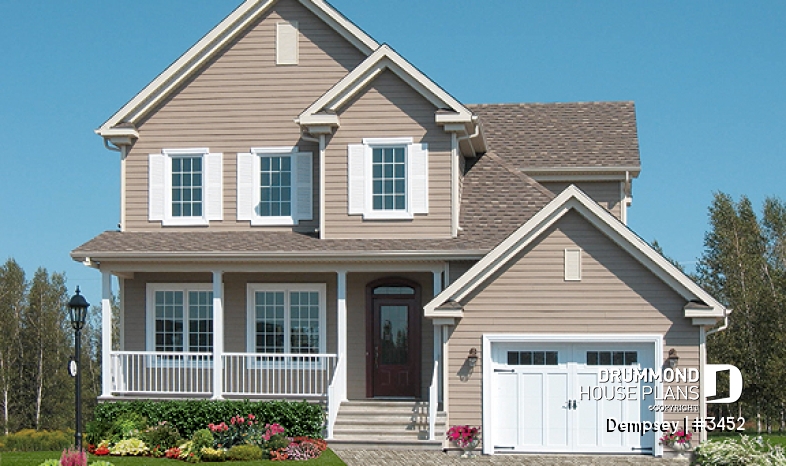

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Construction Ma-Pel Inc.
Other useful information on this plan
House plan with 3 bedrooms, a home office and the laundry room is on second floor!
This attractive home features an inviting front porch and desirable, open-concept floor plan.
An enclosed vestibule keeps the weather out and the clutter contained.
The kitchen with generous eating island is sure to be the hub of activities. An open activities area allows flexibility as occasions require, proportioning spaces to living and dining as required. A discreet office and half bath complete the main-floor amenities.
Three bedrooms upstairs include a master suite with walk-in closet and comfortable private bathroom. Two additional bedrooms share a bathroom complete with laundry.
A bonus space above the garage is suitable for storage or could be developed as a charming playroom by the addition of a skylight. A garage and unfinished basement provide additional storage.
Incredible for only 1719 sq. ft.!
Distinctive elements
Large front porch and main entry. Attractive kitchen with nice island lunch counter. Home office provided on the first level that can easily be modified into a laundry room. Bonus space above the garage with a roof window. Master bedroom with walk-in closet and private bathroom. Shower room including laundry space for the two secondary bedrooms.
Plan feature(s)
Living bonus space, Master suite upstairs, Office / Study / Den, Walk-in master bed., Second floor laundry room, Separate bath and shower, Double sinks, Island, Sloped ceiling, Open floor layout, Entrance hall
Plan architectural style(s)
. Country, . American, . A-Frame, . Traditional
