Chatham (3454)

Stately European 3 bedroom with mezzanine and double garage, cathedral ceiling, sunken living

Bedrooms

3

Bath(s)

1

Half B.

1

Living area

1830 sq.ft.

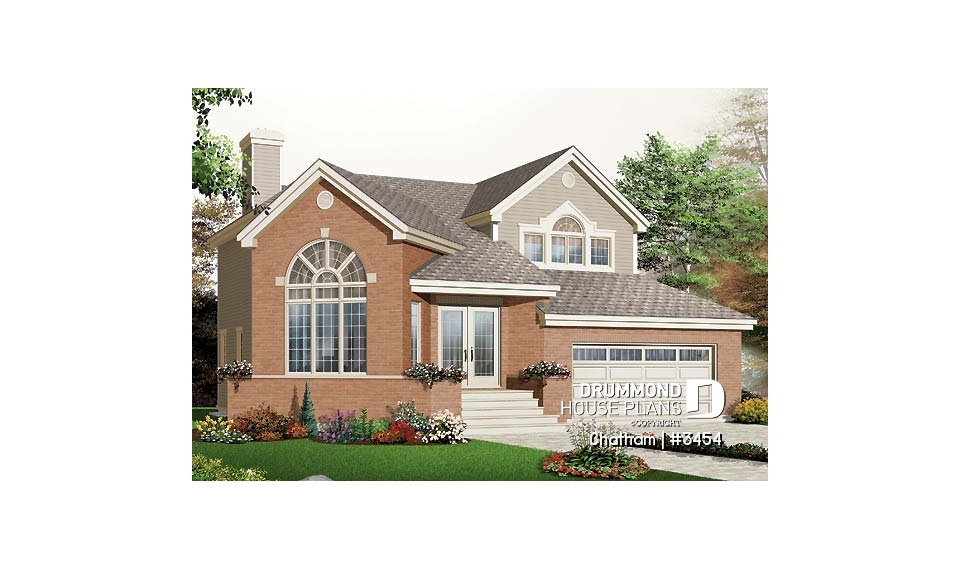

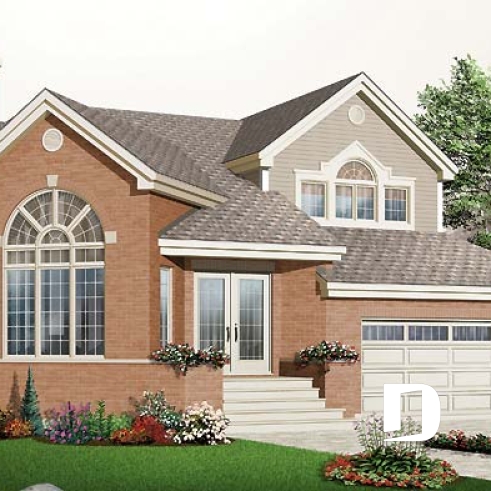

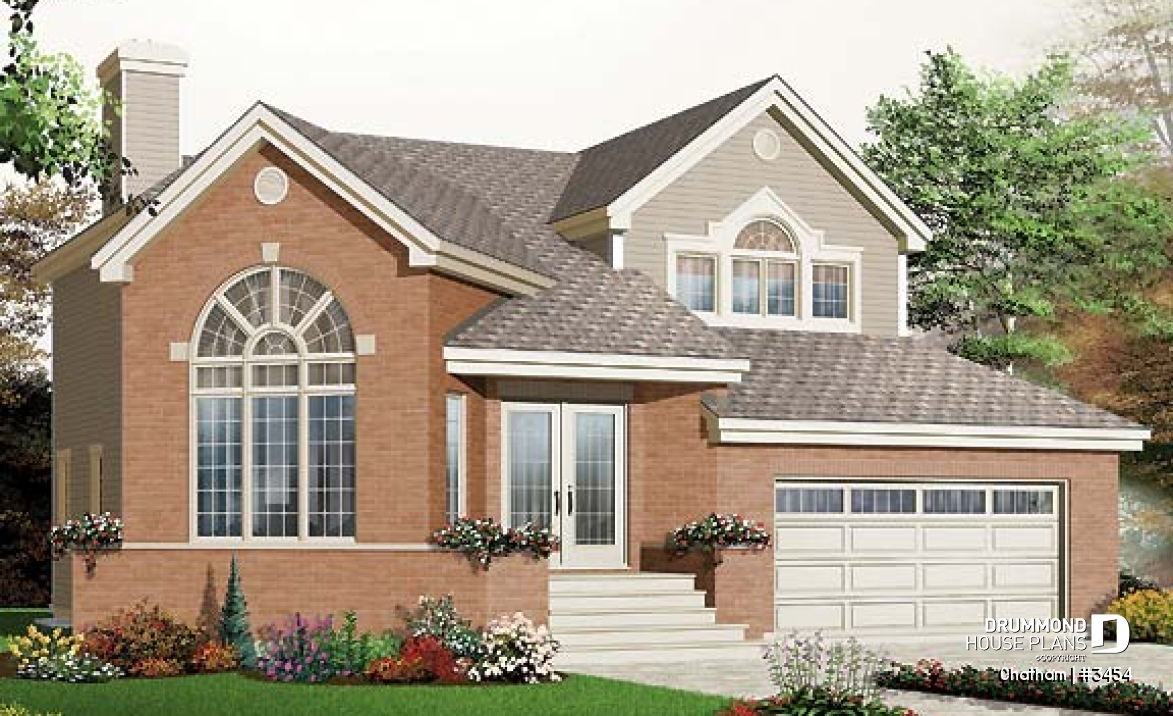

  • front - BASE MODEL - Stately European 3 bedroom with mezzanine and double garage, cathedral ceiling, sunken living - Chatham

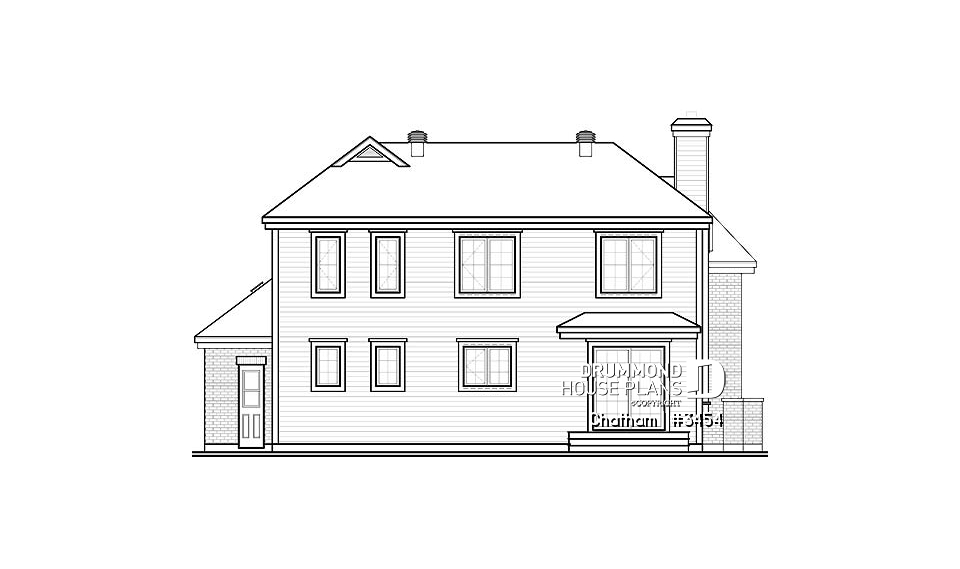

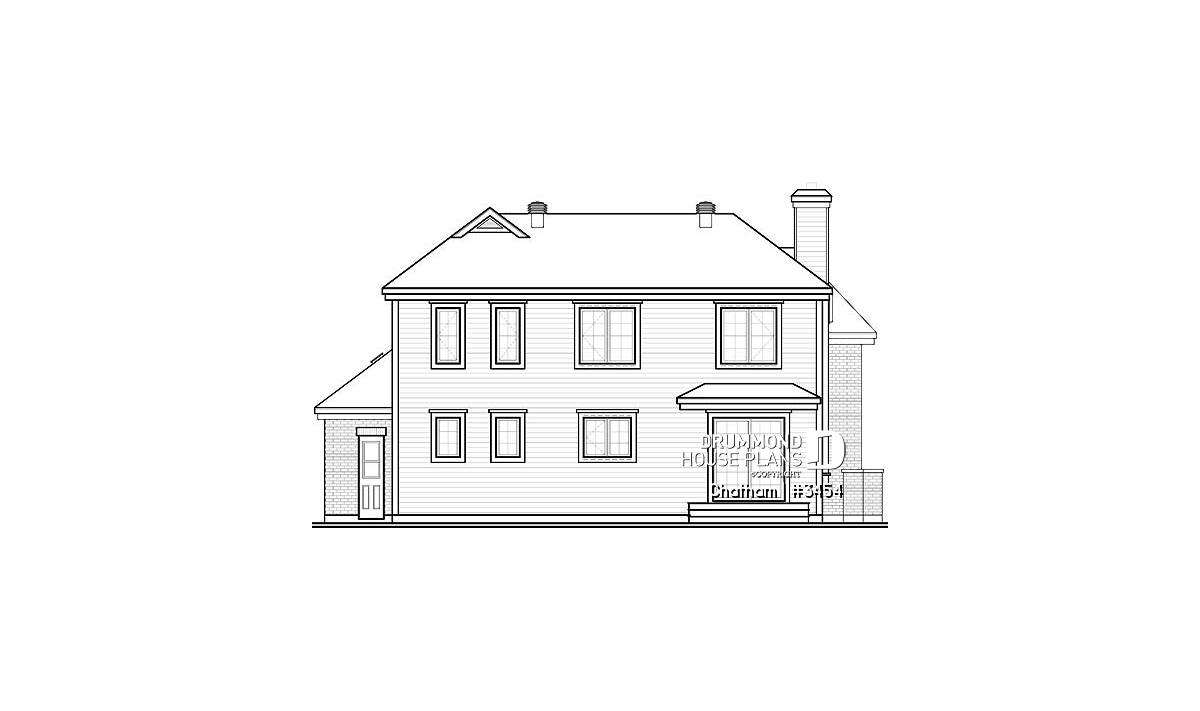

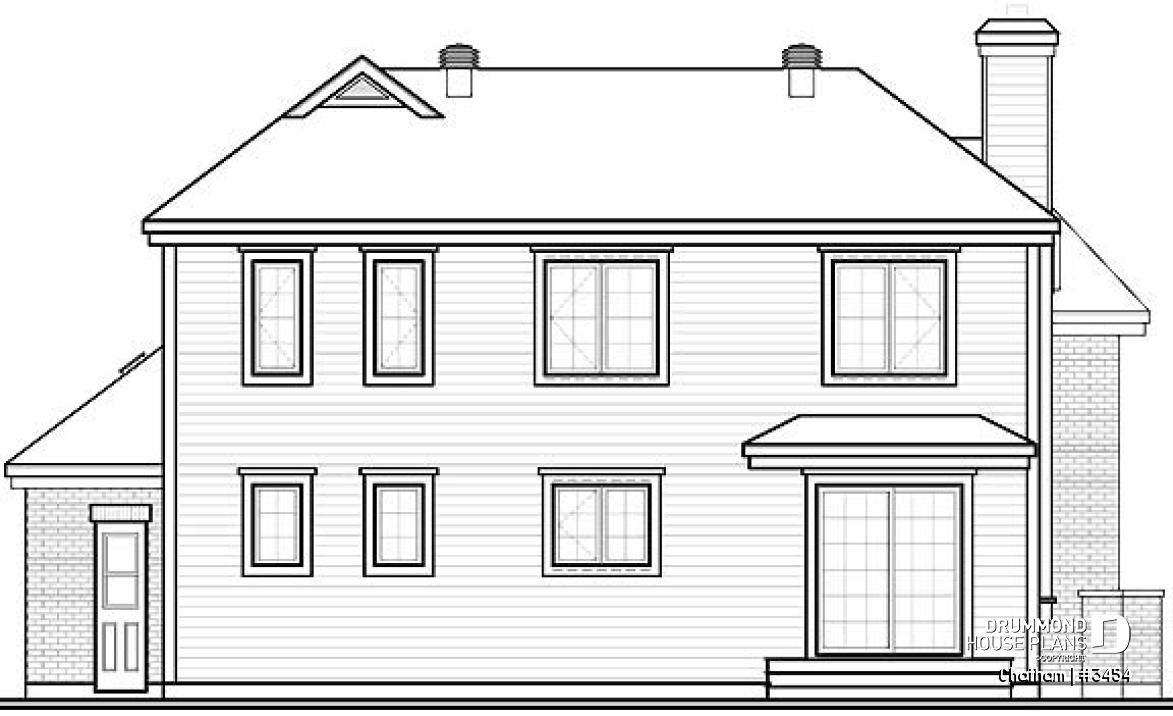

  • rear elevation - Chatham

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3454
Vignette rear elevation - 3454

View by floor

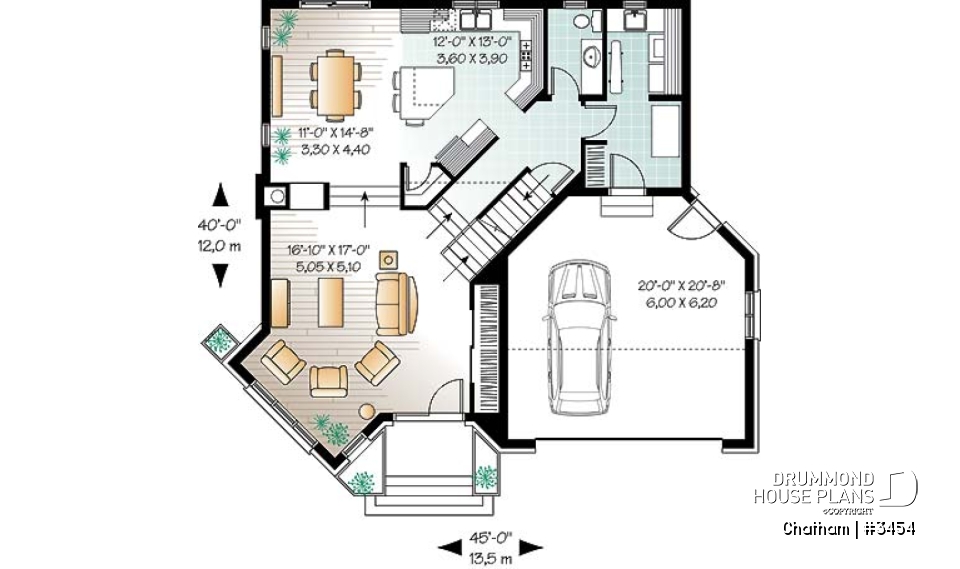

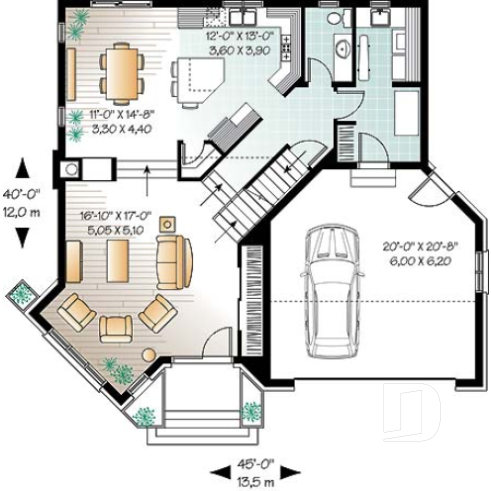

  • 1st level

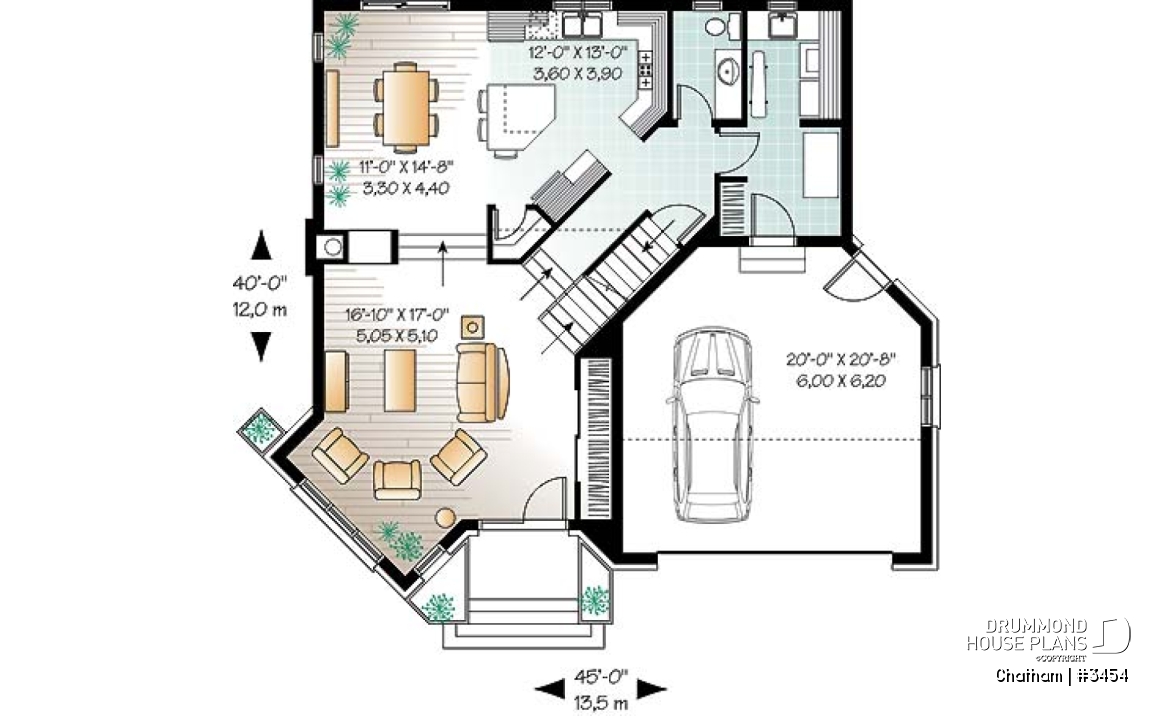

    1st level - Stately European 3 bedroom with mezzanine and double garage, cathedral ceiling, sunken living - Chatham

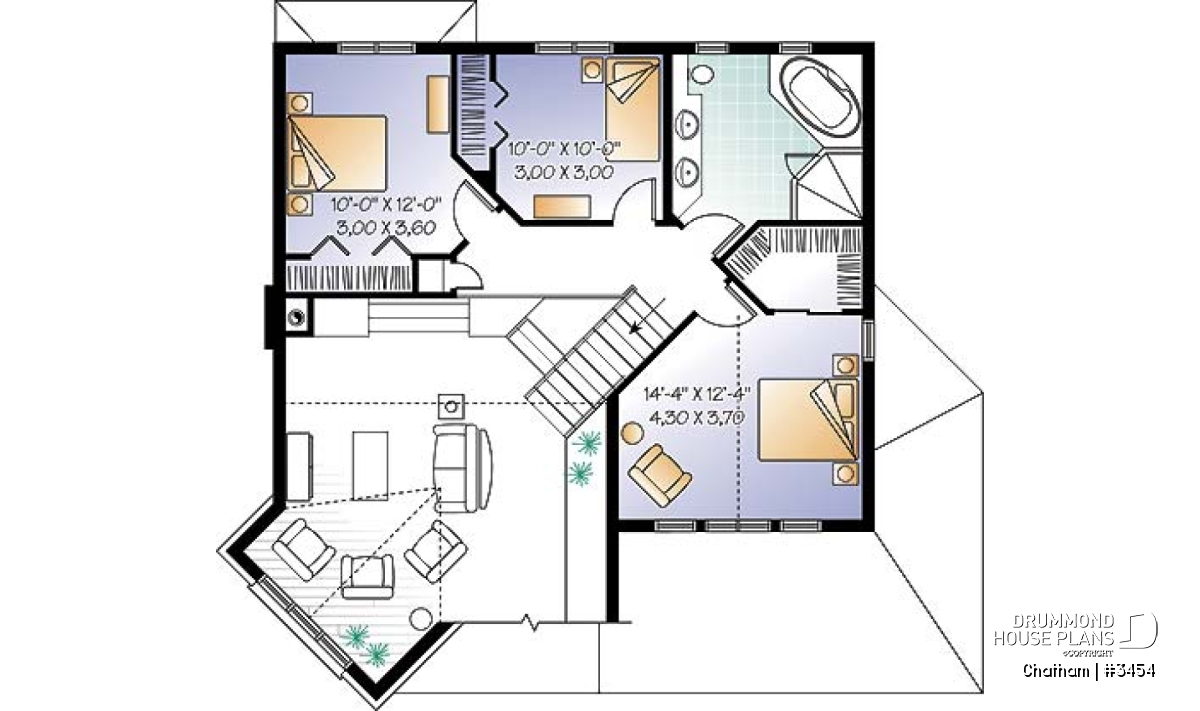

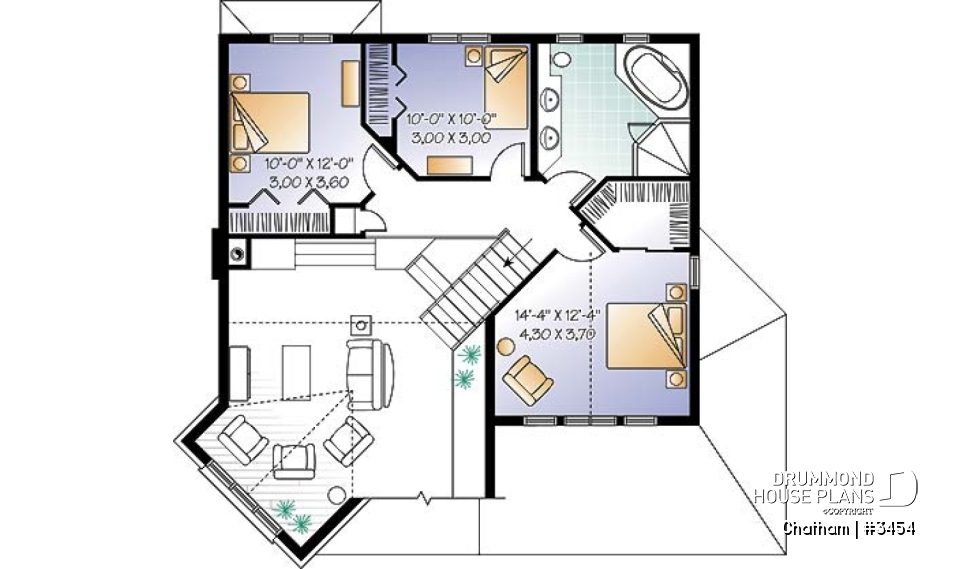

  • 2nd level

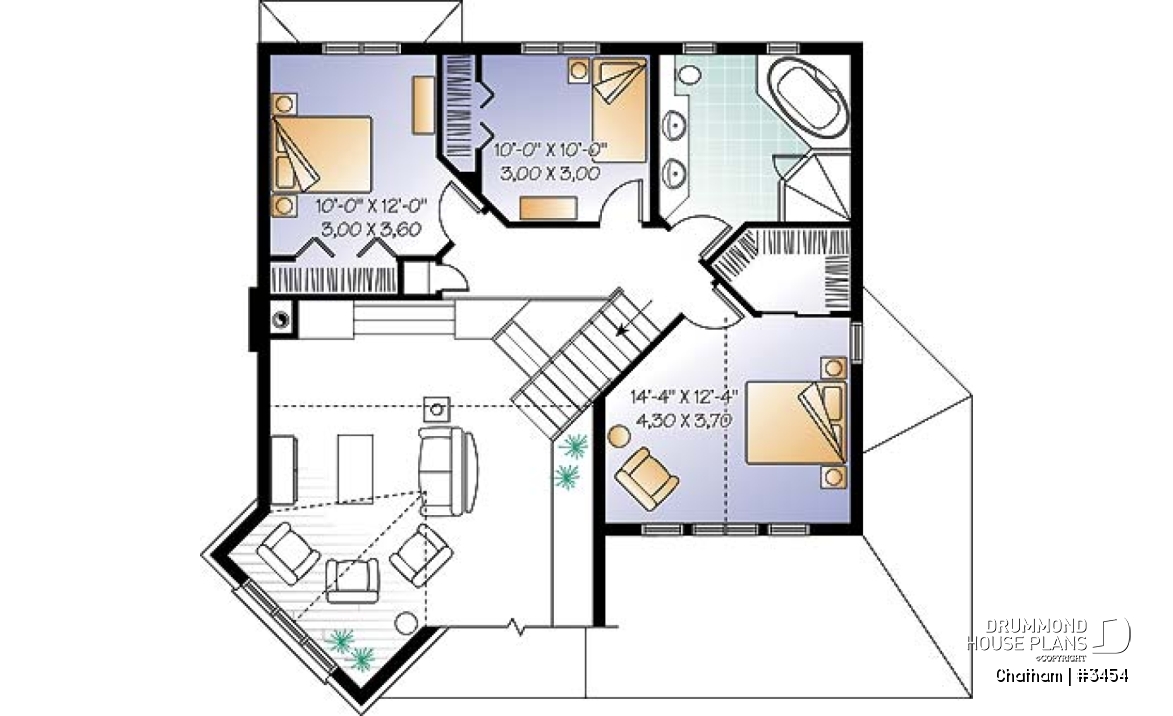

    2nd level - Stately European 3 bedroom with mezzanine and double garage, cathedral ceiling, sunken living - Chatham
Vignette 1st level - 3454
Vignette 2nd level - 3454

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Kitchen 12'0" x 13'0" ~ 8'0"
Dining room 11'0" x 15'0" ~ 8'0"
Living room 17'0" x 17'0" ~ 13'11"
Closet 2'2" x 10'4" ~ 8'0"
Half bath or powder room 4'8" x 7'4" ~ 8'0"
Utility room 6'4" x 15'0" ~ 8'0"
Garage 20'0" x 20'8" ~ 8'10"
Porch 7'4" x 4'4" ~ 0'0"
Porch 10'0" x 5'0" ~ 0'0"
2nd level
Rooms Sizes Ceiling
Full bathroom 11'6" x 10'0" ~ 8'0"
Bedroom 14'4" x 12'4" ~ 10'6"
Bedroom 10'0" x 12'0" ~ 8'0"
Bedroom 10'0" x 10'0" ~ 8'0"

General specifications

Total living area 1830 sq.ft.
1st level 1036 sq.ft.
2nd level 794 sq.ft.
Width 45'0"
Depth 40'0"
Ridge height from top of foundation 25'9"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Crawl space
Builder price code E

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths 1
Garage type Two-car garage (429 sq.ft.)
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1830 sq.ft.
1st level 1036 sq.ft.
2nd level 794 sq.ft.
Width 45'0"
Depth 40'0"
Ridge height from top of foundation 25'9"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Crawl space
Builder price code E

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths 1
Garage type Two-car garage (429 sq.ft.)
Living bonus space - i
Bonus storage - i

Buy this plan

From 1195$

Modify this plan

Get a quote

A problem?

Contact us

Or come see us

Our 26 Regional offices

Description

1st Floor: Entry open to living room, dining room, kitchen/dinette, half bath, utility room and double garage. 2nd Floor: Three bedrooms and bathroom. 2-car garage. Unfinished basement.

Other useful information on this plan

Stunning and bright 3 bedroom house plan with a 2-car garage and cathedral ceiling

.

Distinctive elements

Cathedral ceiling of more than 12' in living room.
Two-face fireplace in living room and dining room.
Kitchen with island/lunch counter and walk-in pantry.
Utility room, including a laundry area on 1st floor.
Three bedrooms on 2nd floor, bathroom with corner bath and spacious separate shower. Walk-in closet to bedroom #1 and cathdral ceiling.

Plan feature(s)

Cathedral ceiling, Sunken living room, Island, Gound floor laundry room, Fireplace, Panoramic view, Mezzanine, Coffee bar, Pantry, Walk-in master bed., Separate bath and shower, Double sink vanity

Plan architectural style(s)

. Traditional, . European, . Vacation and waterfront

Other useful information on this plan

Full description

Stunning and bright 3 bedroom house plan with a 2-car garage and cathedral ceiling

.

Distinctive elements

Cathedral ceiling of more than 12' in living room.
Two-face fireplace in living room and dining room.
Kitchen with island/lunch counter and walk-in pantry.
Utility room, including a laundry area on 1st floor.
Three bedrooms on 2nd floor, bathroom with corner bath and spacious separate shower. Walk-in closet to bedroom #1 and cathdral ceiling.

Plan feature(s)

Cathedral ceiling, Sunken living room, Island, Gound floor laundry room, Fireplace, Panoramic view, Mezzanine, Coffee bar, Pantry, Walk-in master bed., Separate bath and shower, Double sink vanity

Plan architectural style(s)
