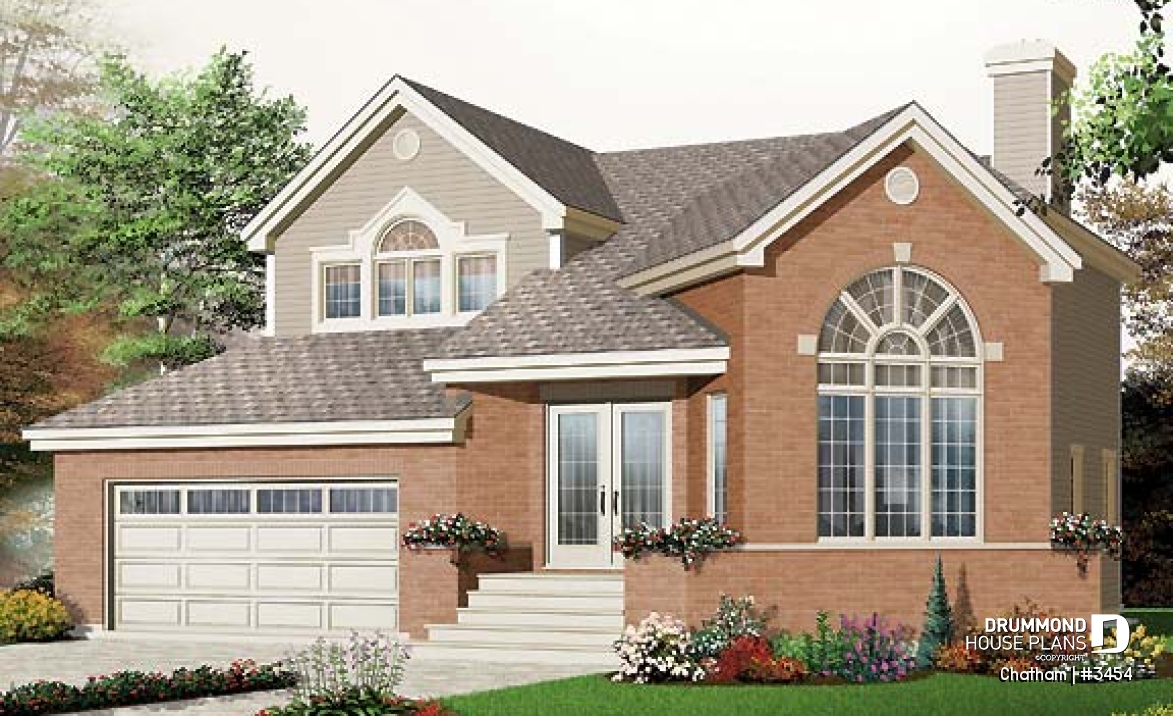

House plan Chatham (3454)
Stately European 3 bedroom with mezzanine and double garage, cathedral ceiling, sunken living
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 13'0" | ~ 8'0" |
| Dining room | 11'0" x 15'0" | ~ 8'0" |
| Living room | 17'0" x 17'0" | ~ 13'11" |
| Closet | 2'2" x 10'4" | ~ 8'0" |
| Half bath or powder room | 4'8" x 7'4" | ~ 8'0" |
| Utility room | 6'4" x 15'0" | ~ 8'0" |
| Garage | 20'0" x 20'8" | ~ 8'10" |
| Porch | 7'4" x 4'4" | N/A |
| Porch | 10'0" x 5'0" | N/A |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'6" x 10'0" | ~ 8'0" |
| Bedroom | 14'4" x 12'4" | ~ 10'6" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
Other useful information on this plan
Stunning and bright 3 bedroom house plan with a 2-car garage and cathedral ceiling
.
Distinctive elements
Cathedral ceiling of more than 12' in living room.
Two-face fireplace in living room and dining room.
Kitchen with island/lunch counter and walk-in pantry.
Utility room, including a laundry area on 1st floor.
Three bedrooms on 2nd floor, bathroom with corner bath and spacious separate shower. Walk-in closet to bedroom #1 and cathdral ceiling.
Plan feature(s)
Cathedral ceiling, Sunken living room, Island, Gound floor laundry room, Fireplace, Panoramic view, Mezzanine, Coffee bar, Pantry, Walk-in master bed., Separate bath and shower, Double sinks
