House plan Captiva (3722-CI)
Modern open floor plan house plan, affordable 3 bedroom home, open floor plan, large island counter
View the size of the rooms and height of the ceilings

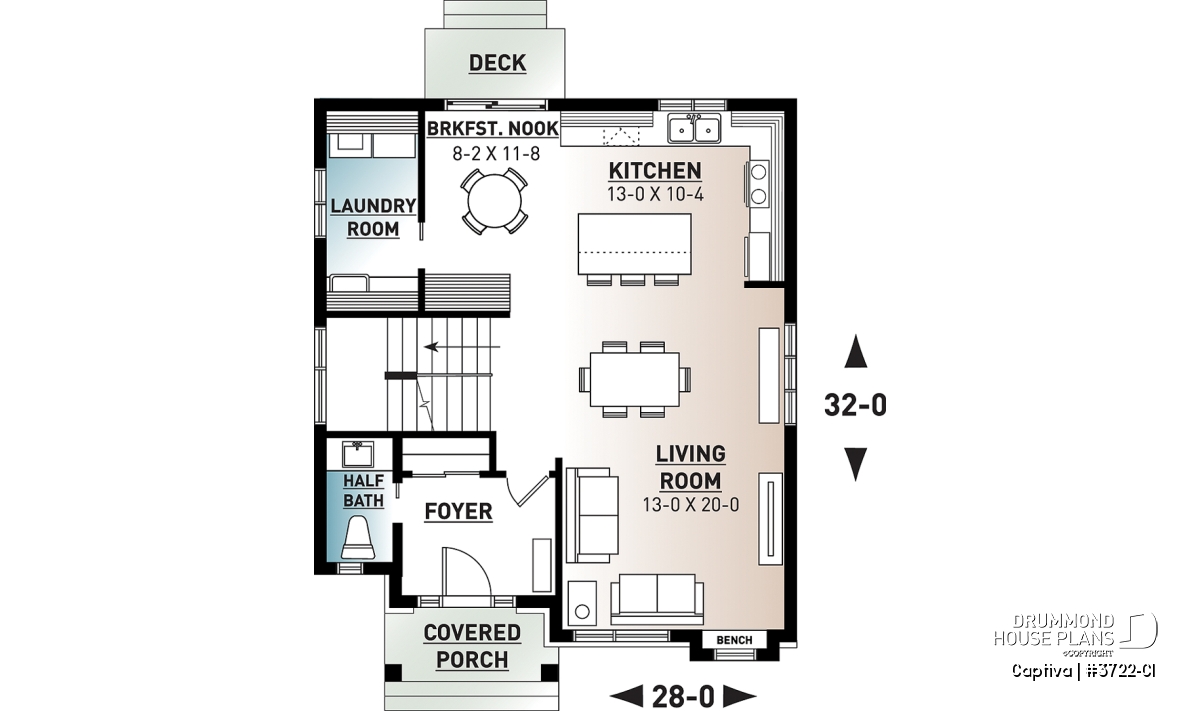

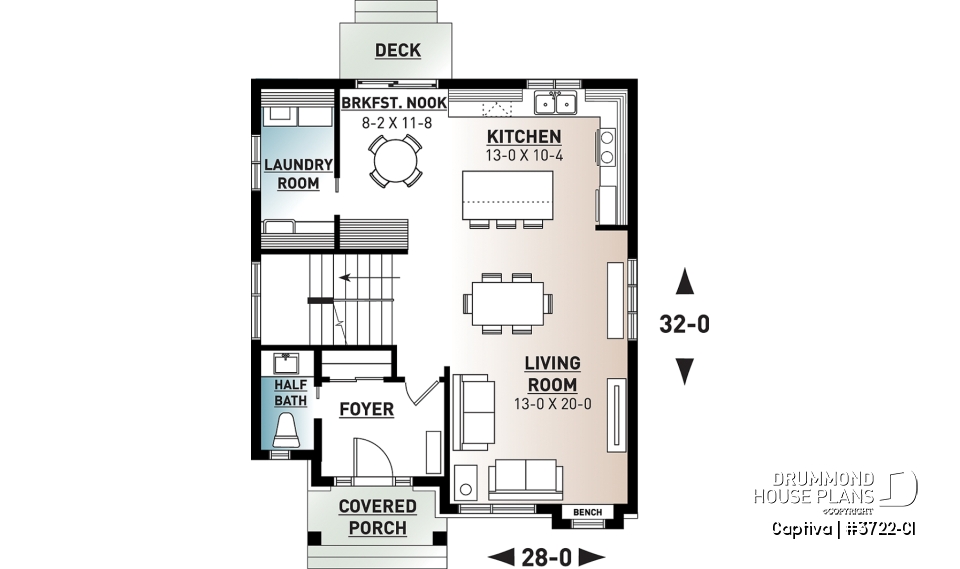

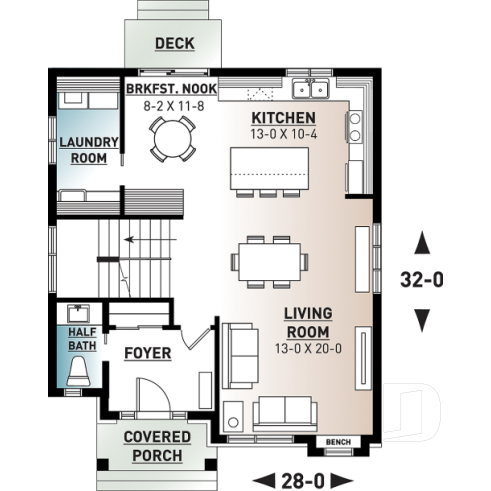

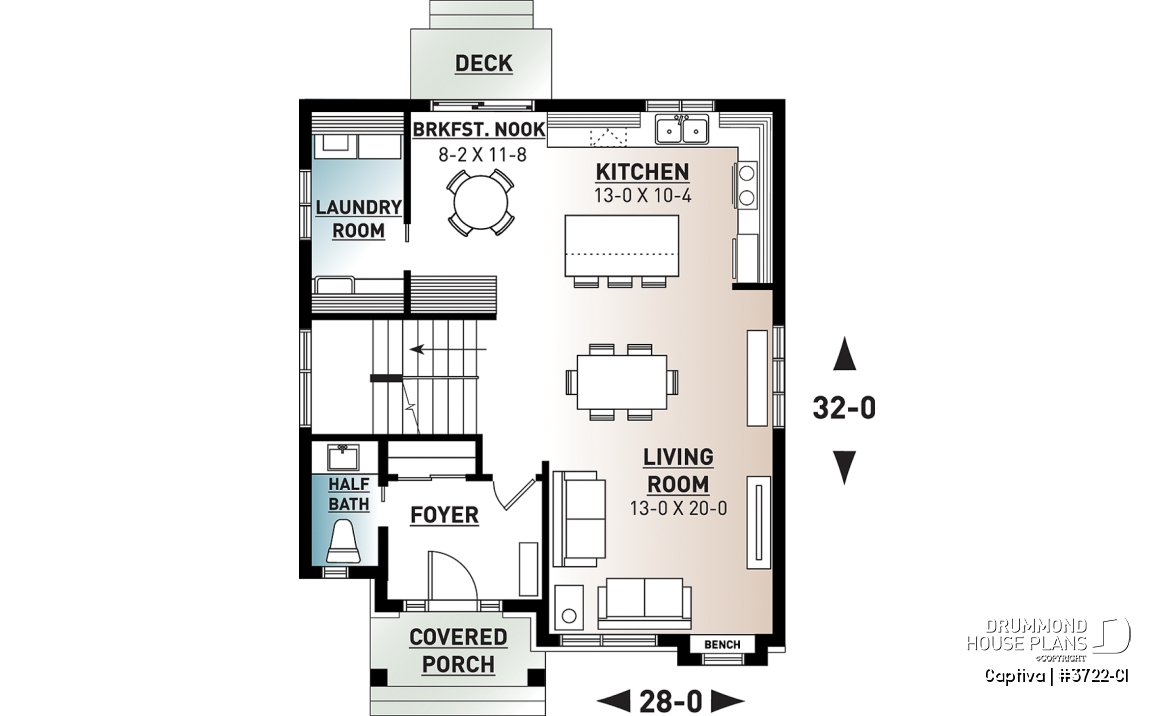

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room/dining room | 13'0" x 20'0" | ~ 9'0" |
| Kitchen | 13'0" x 10'4" | ~ 9'0" |
| Dinette | 8'0" x 9'10" | ~ 9'0" |
| Foyer | 9'0" x 7'0" | ~ 9'0" |
| Closet | 5'2" x 2'0" | ~ 9'0" |
| Laundry room | 5'4" x 11'8" | ~ 9'0" |
| Powder room | 3'10" x 7'3" | ~ 9'0" |
| Covered porch | 9'4" x 4'0" | N/A |
| Deck | 8'0" x 4'0" | N/A |

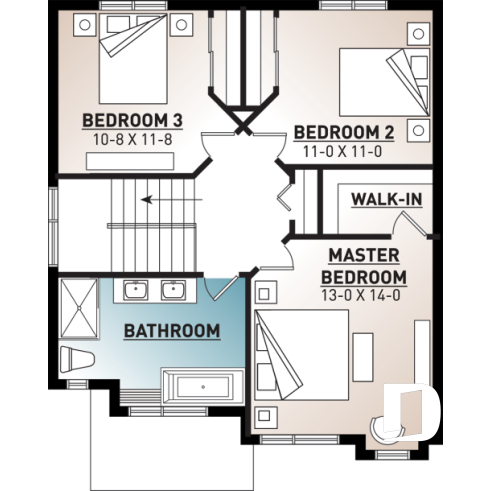

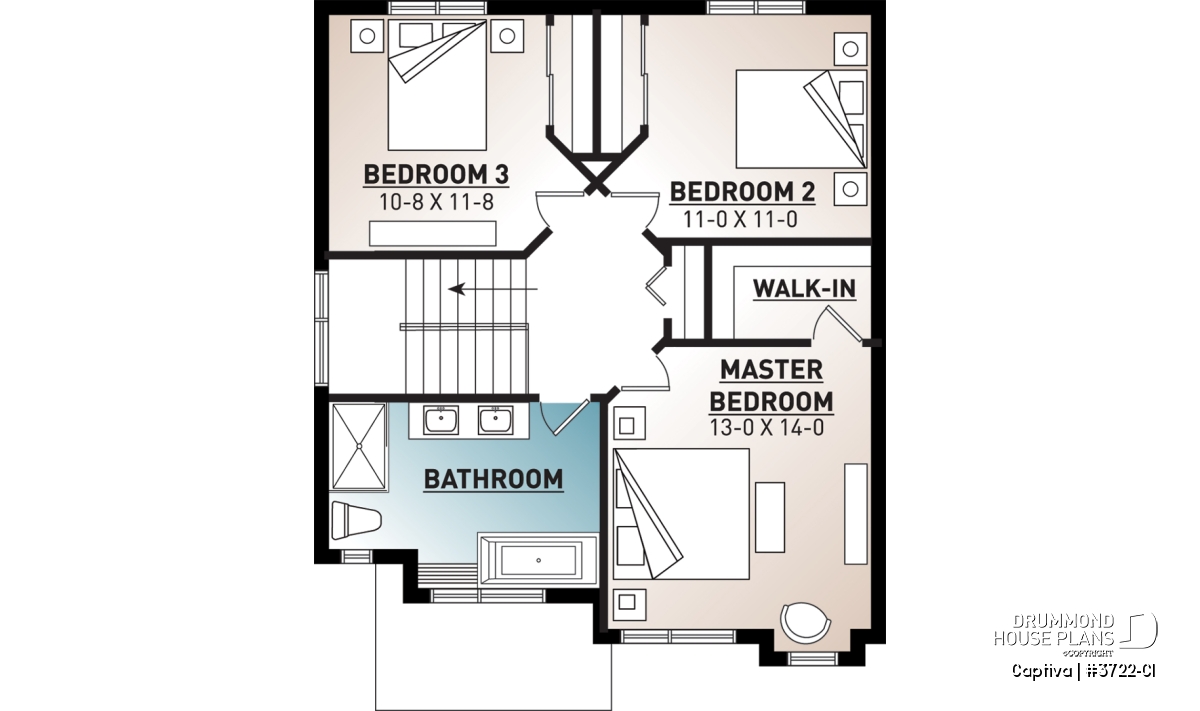

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bathroom | 13'4" x 9'3" | ~ 8'0" |
| Linen | 1'8" x 4'8" | ~ 8'0" |
| Bedroom | 13'0" x 14'0" | ~ 8'0" |
| Walk-in closet | 7'10" x 4'8" | ~ 8'0" |
| Bedroom | 10'8" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 6'10" | N/A |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Closet | 2'0" x 6'10" | ~ 8'0" |
General specifications
| Total living area | 1730 sq.ft. |
| 1st level | 865 sq.ft. |
| 2nd level | 865 sq.ft. |
| Width | 28'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 27'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Modern open floor plan house plan with 3 bedrooms

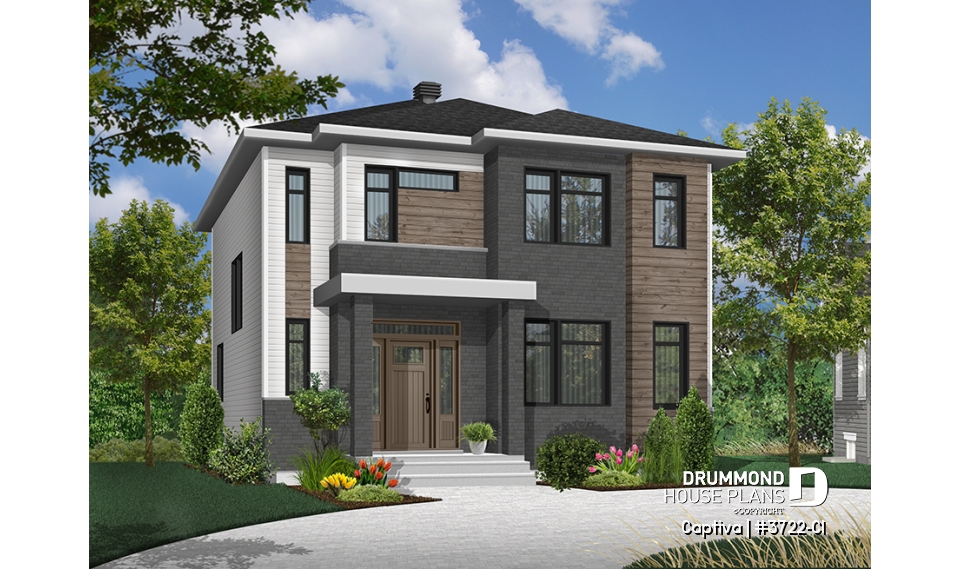

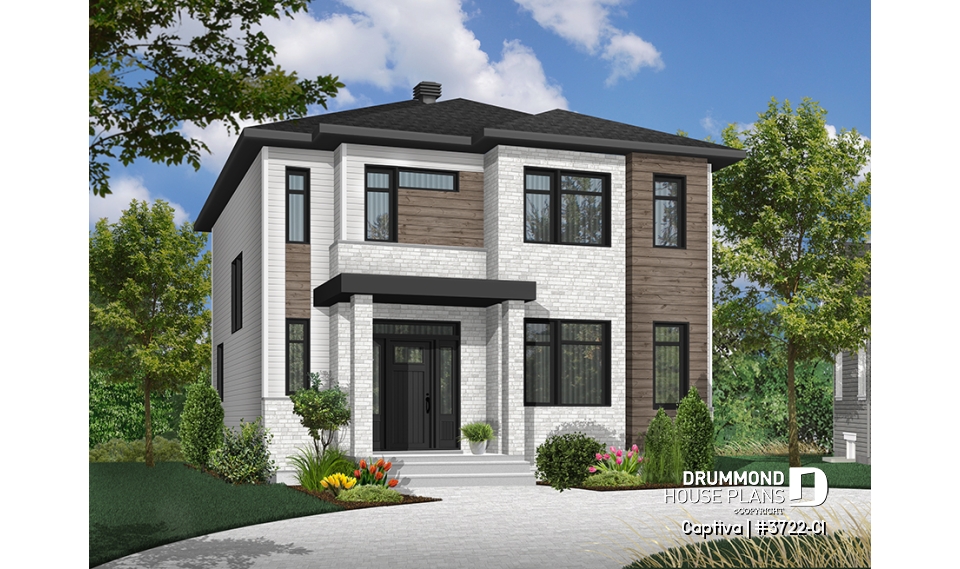

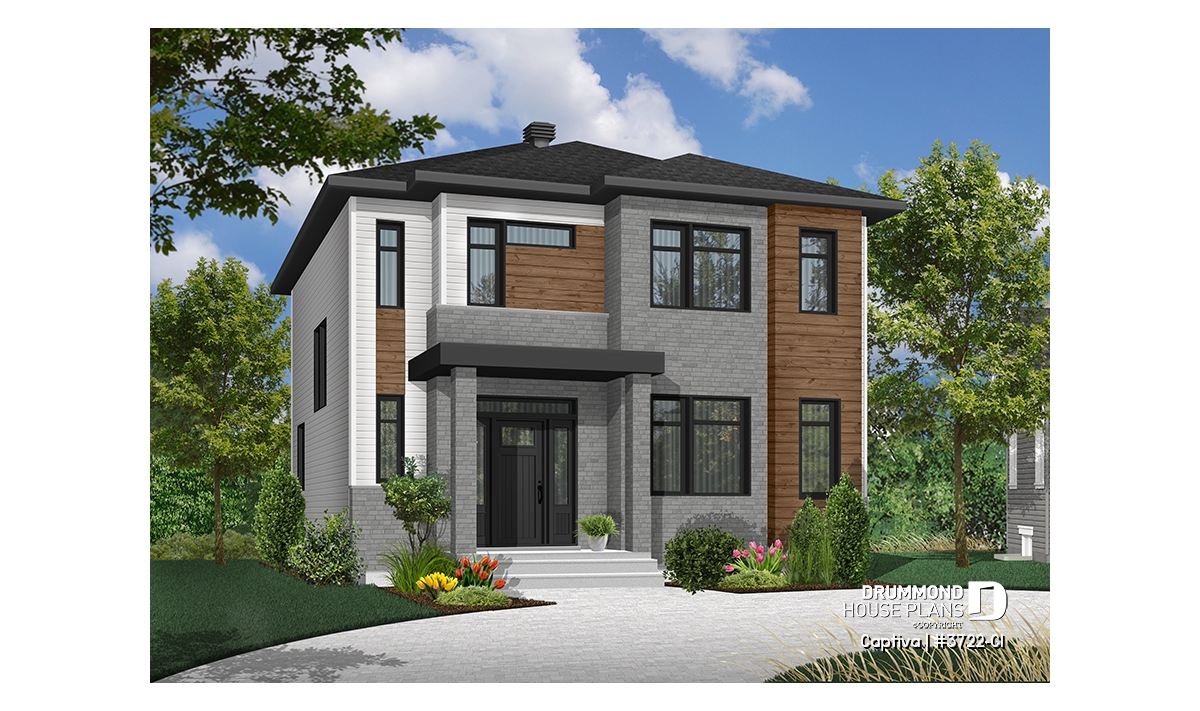

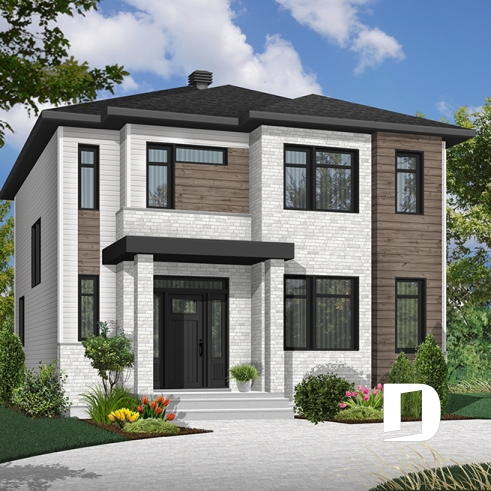

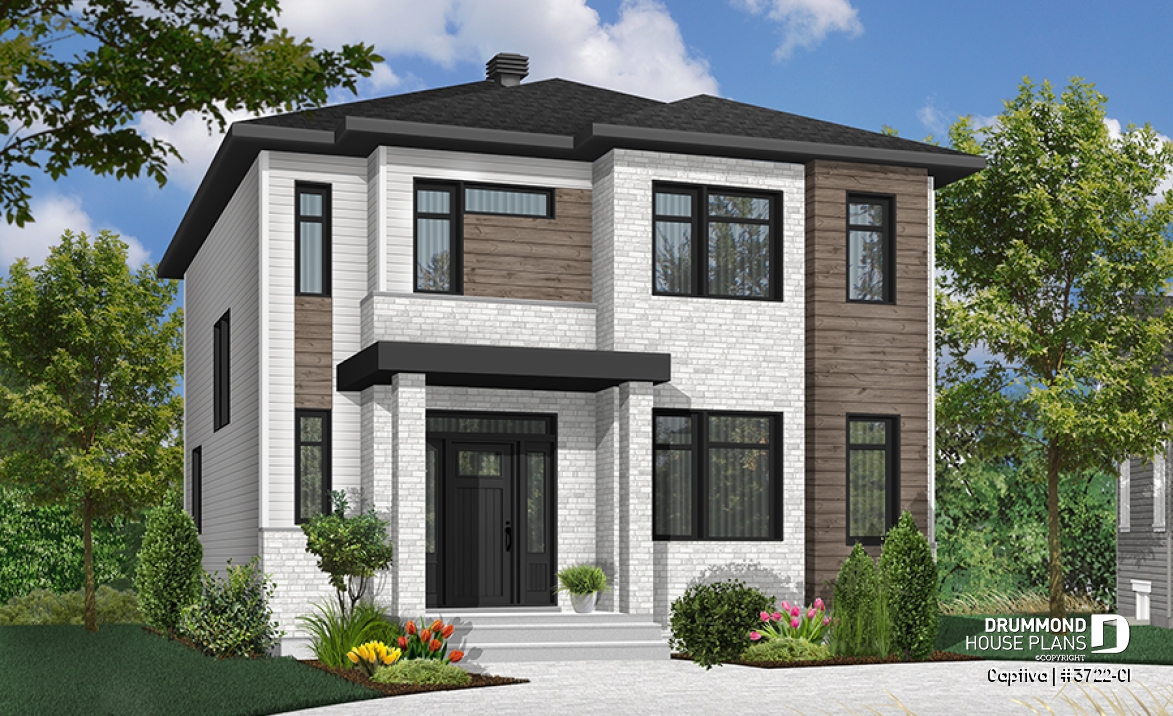

This contemporary style home presents clean and pleasing lines. The interior is consistent with the modern style and boasts an open concept with ample light. With flexible dining space, it is easy to accommodate 6 to 8 guests or more. The centre island provides further space for socialization and prep and plenty of storage. A laundry area independent of the kitchen means convenient access for daily living and chores.
A well-lit staircase leads to the upstairs bedroom level including a family bathroom with freestanding bath, and separate shower. The master bedroom is appointed with the indispensable walk-in closet and two secondary bedrooms complete the level.
Distinctive elements
Large vestibule at the main entrance with coat closet nearly 8 feet wide. Open kitchen / dining area with ample rear-facing windows and patio doors and 6' x 3' isiand. 2 Nice size secondary bedrooms on the second floor with wardrobe 6 foot. each. Master bedroom with double closets including one walk-ins and corner-up computer. Bathroom vanity with remarkable double vanity, laundry chute and separate shower 60 ". x 40 ".
Plan feature(s)
Gound floor laundry room, Island, Open floor layout, Ceiling over 8', Walk-in master bed., Entrance hall, Breakfast nook, Separate bath and shower, Double sinks, Builder
Plan architectural style(s)
. Contemporary, . Modern / Design, . Transitional, . Modern rustic, . Mid-century
Similar plans
Previously Viewed Plans
Questions and comments
December 21
Maxime Baillargeon
Hi,
The first floor and second floor don't match. Is it possible to have the second floor plan that matches the first floor?
Best,
Maxime
January 06
Marie
Hello Mr. Baillargeon,
You are right and I will verify and adjust asap. In the meantime, I have sent you by email the correct floor plans.
Regards and sorry for the inconvenience!
Marie
