Arachis (2809)
2-storey house plan with 3 bedrooms and a garage, french door in living room
View the size of the rooms and height of the ceilings

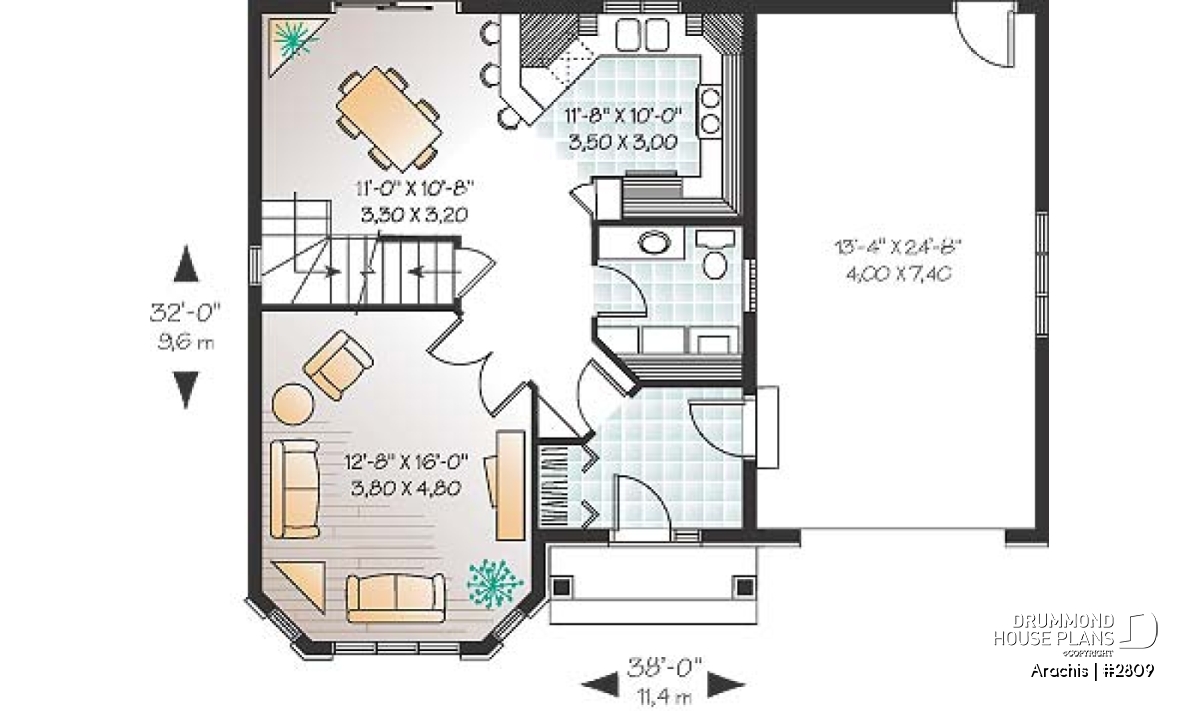

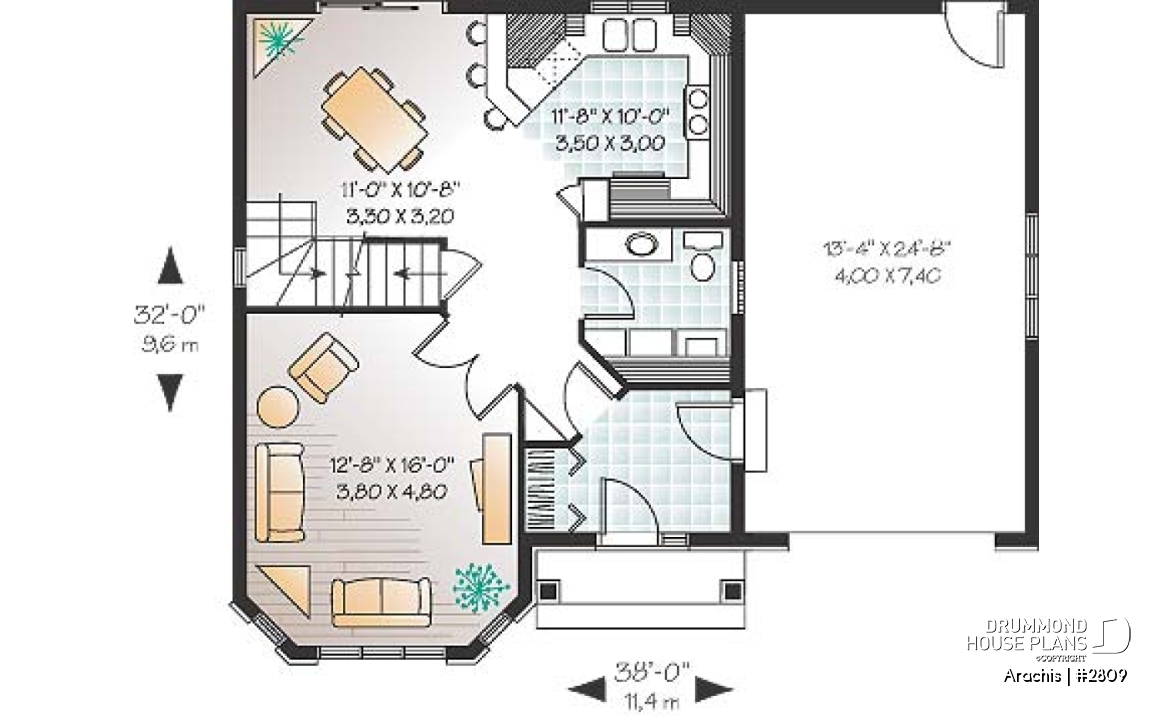

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 11'0" x 10'8" | ~ 8'0" |
| Living room | 12'8" x 16'0" | ~ 8'0" |
| Foyer | 7'0" x 6'8" | ~ 8'0" |
| Garage | 13'4" x 24'8" | ~ 8'0" |
| Porch | 9'8" x 2'4" | N/A |
| Terrace | 8'0" x 6'0" | N/A |
| Half bath or powder room | 6'10" x 7'4" | ~ 8'0" |
| Kitchen | 10'8" x 10'0" | ~ 8'0" |

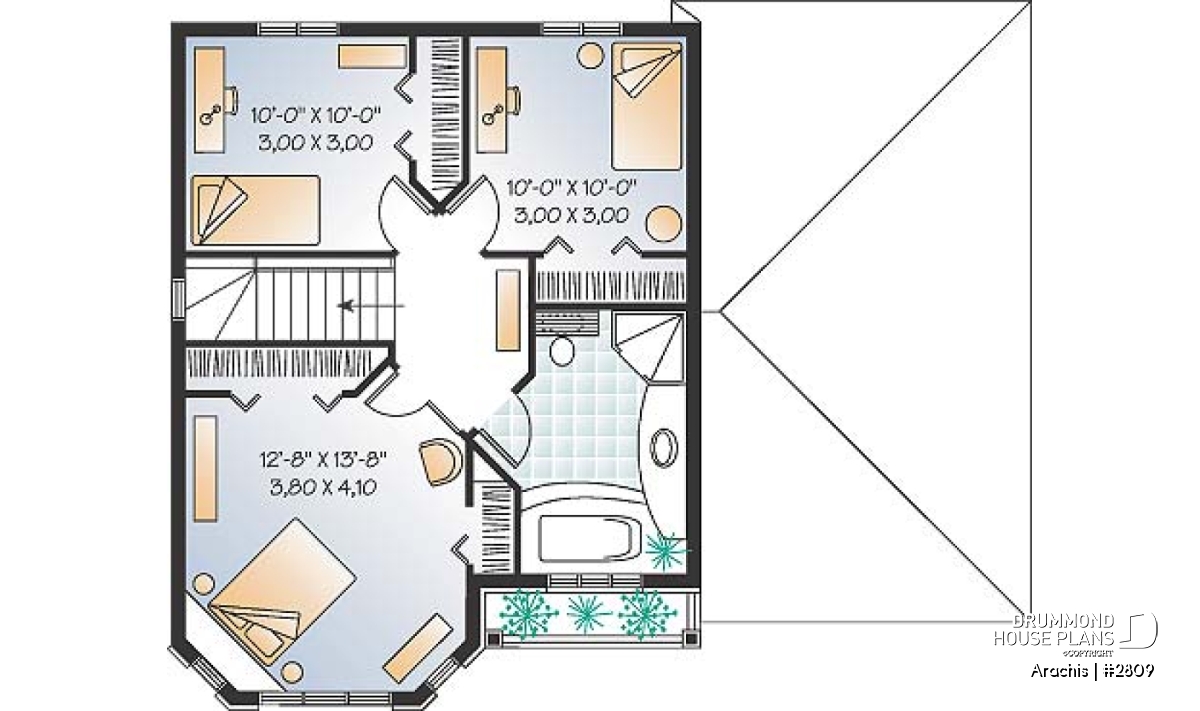

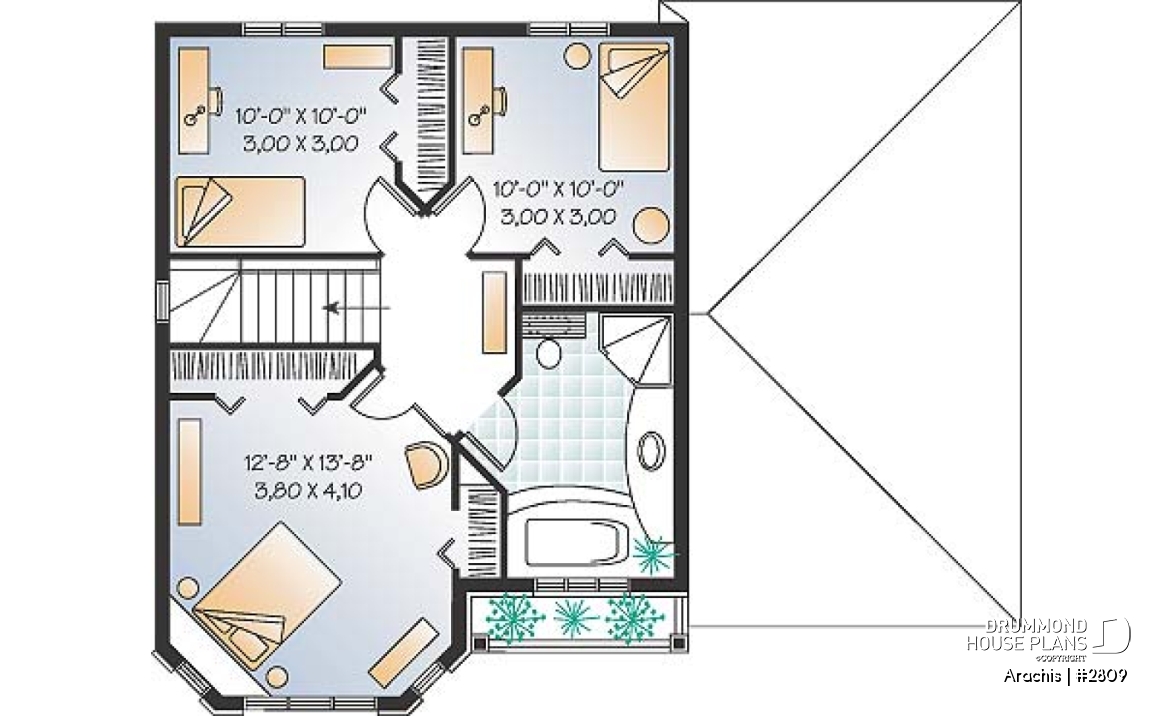

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'8" x 13'8" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Full bathroom | 9'6" x 12'0" | ~ 8'0" |
General specifications
| Total living area | 1408 sq.ft. |
| 1st level | 704 sq.ft. |
| 2nd level | 704 sq.ft. |
| Width | 38'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 31'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Two-storey house with garage, with practical closed vestibule at the entrance
.
Distinctive elements
French doors in family room, false balcony at 2nd level, abundant fenestration.
Plan feature(s)
Entrance hall, Gound floor laundry room, Separate bath and shower, Lunch counter
Plan architectural style(s)
. Traditional, . European, . English
