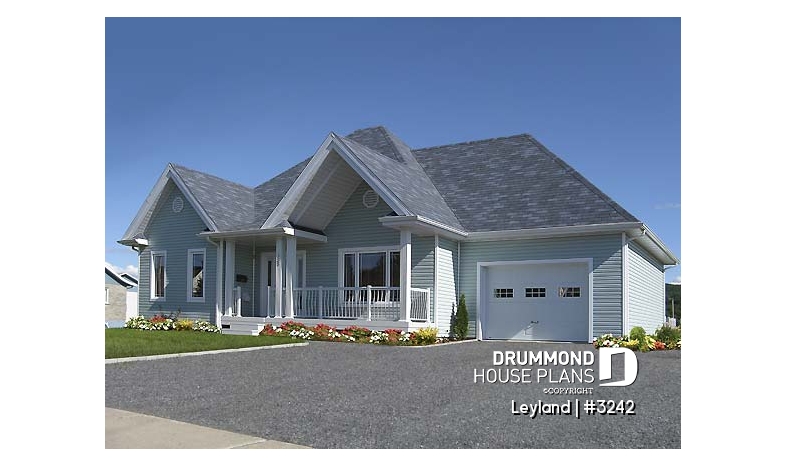

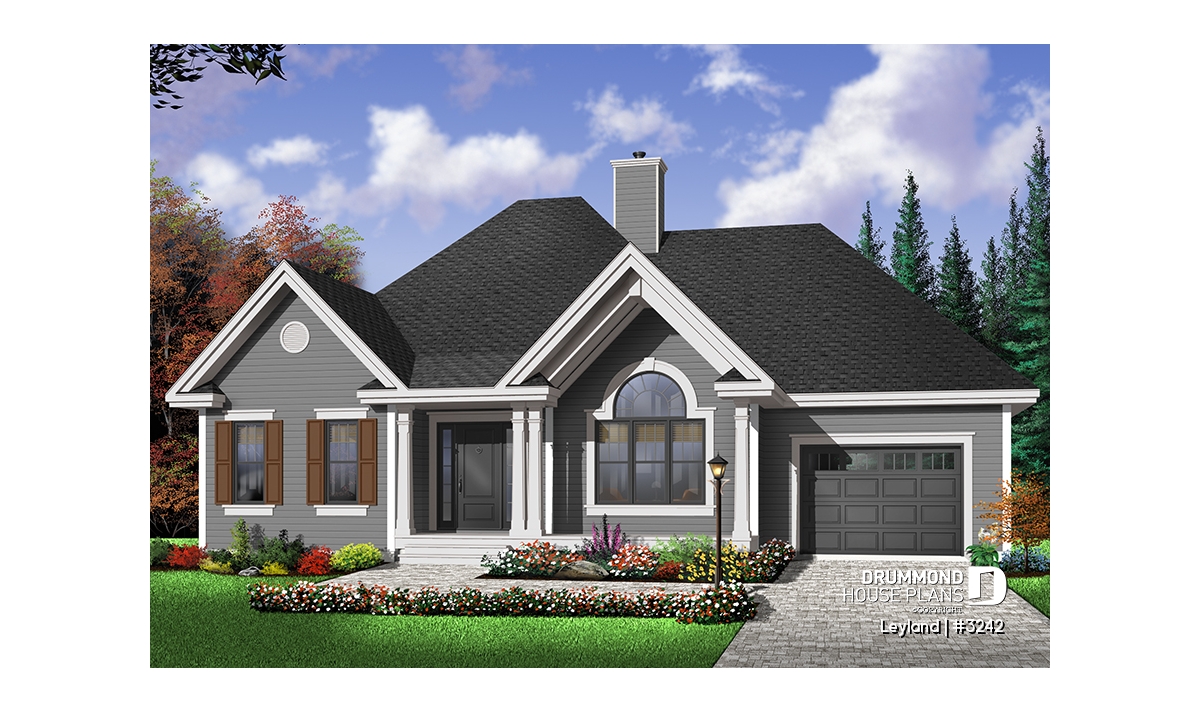

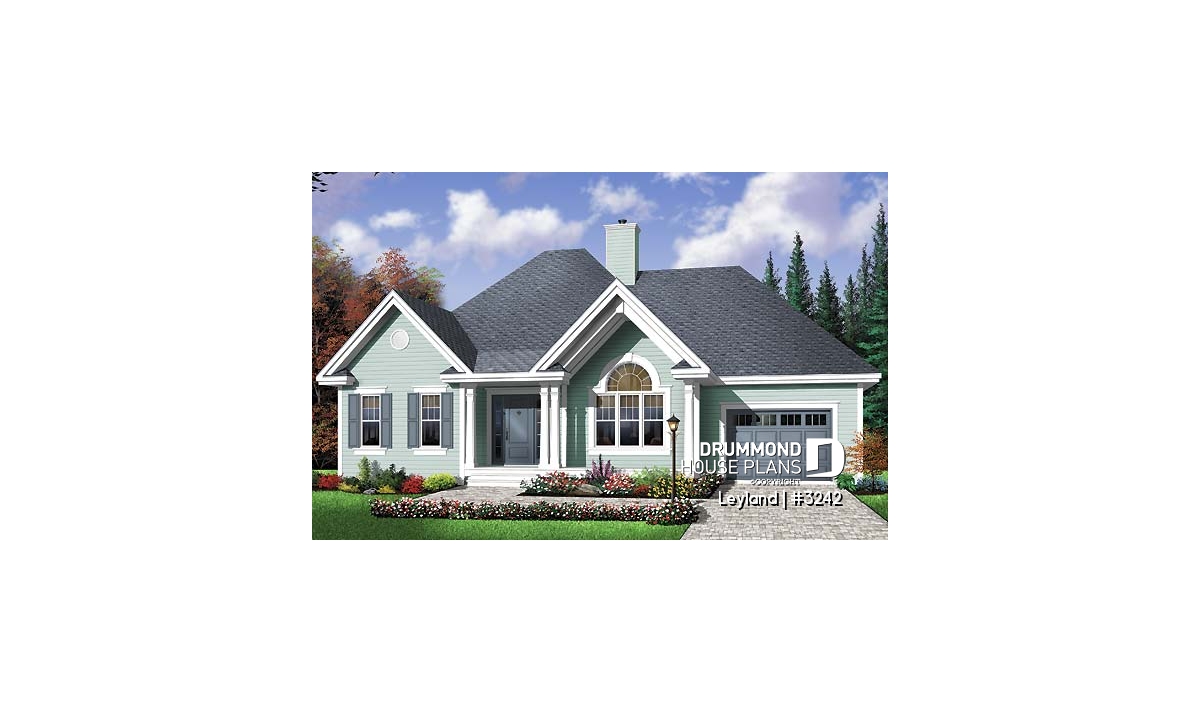

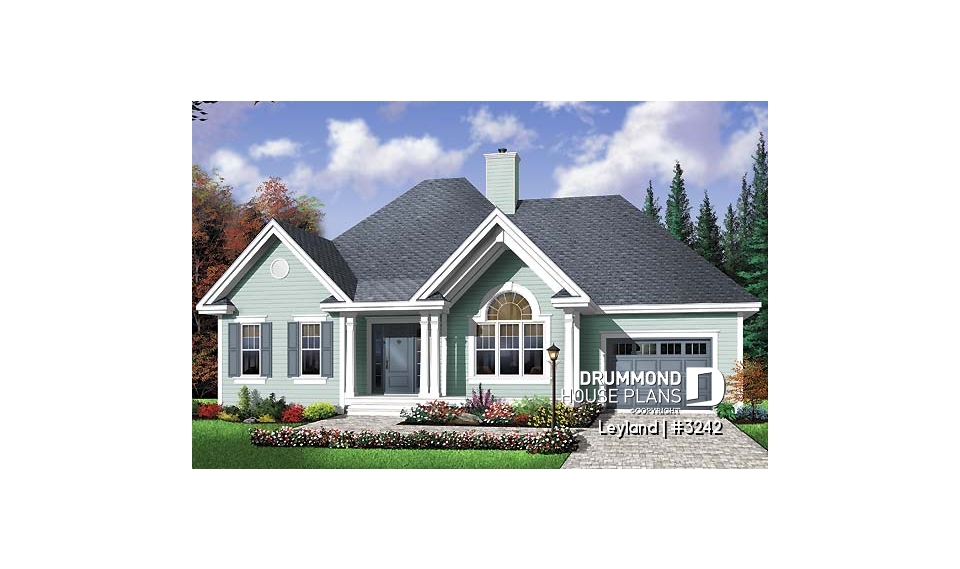

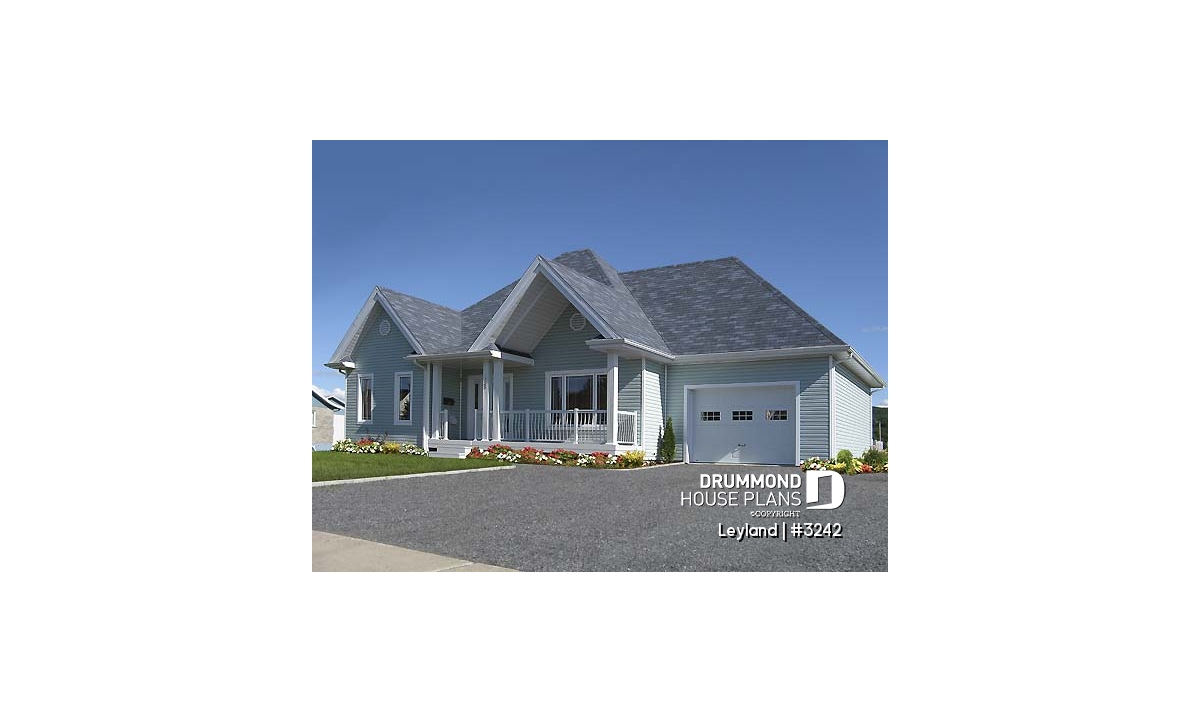

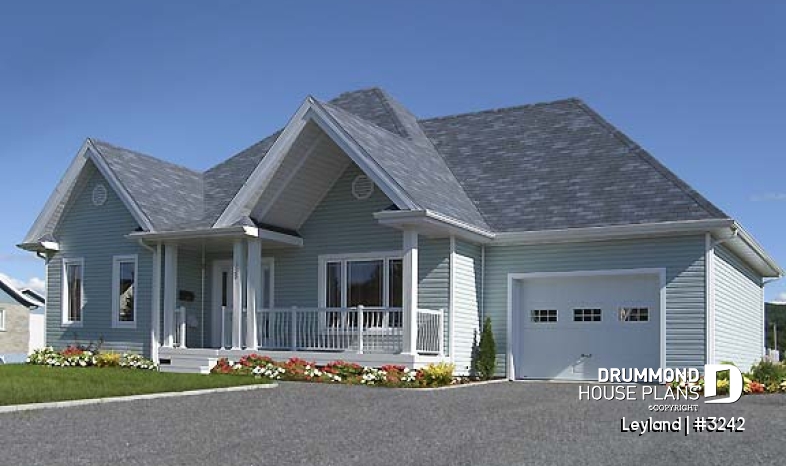

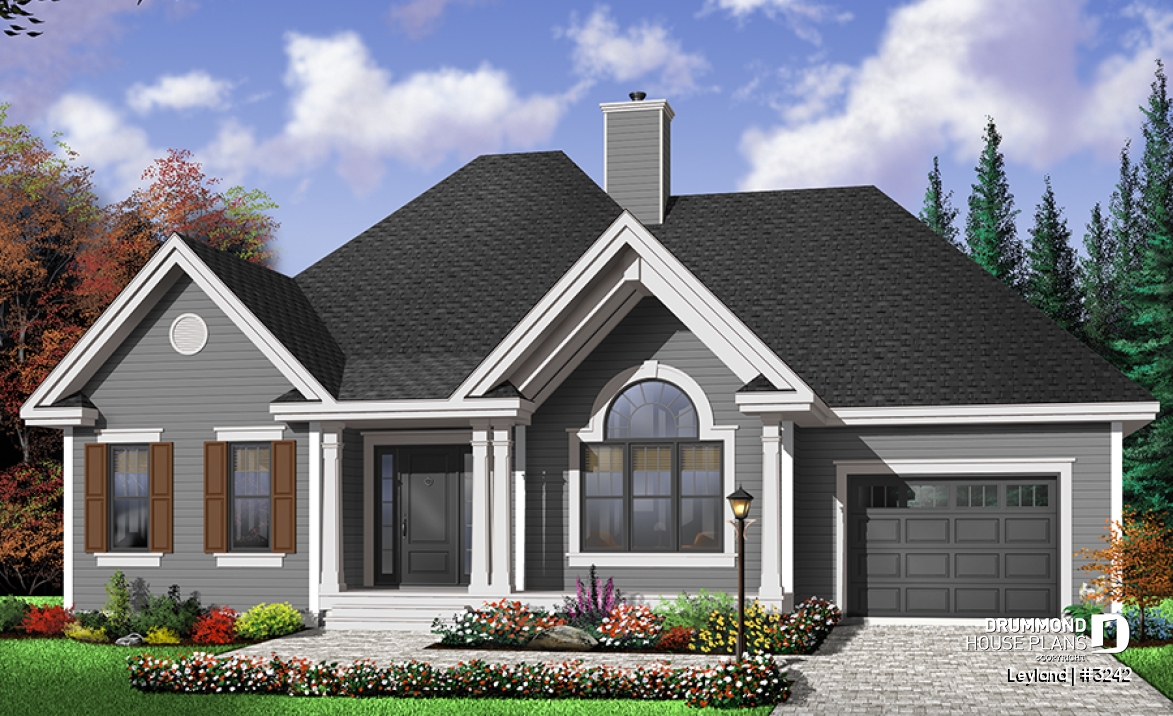

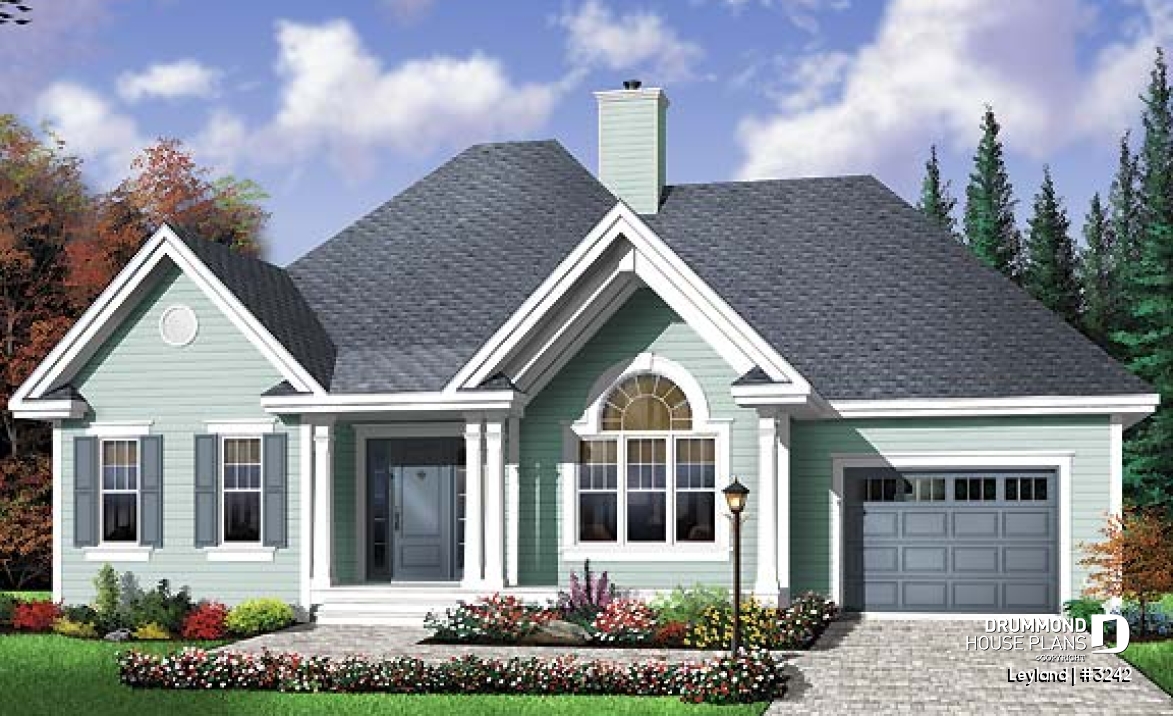

Traditional style 2 bedroom ranch bungalow with cathedral ceiling, central fireplace and a one-car garage

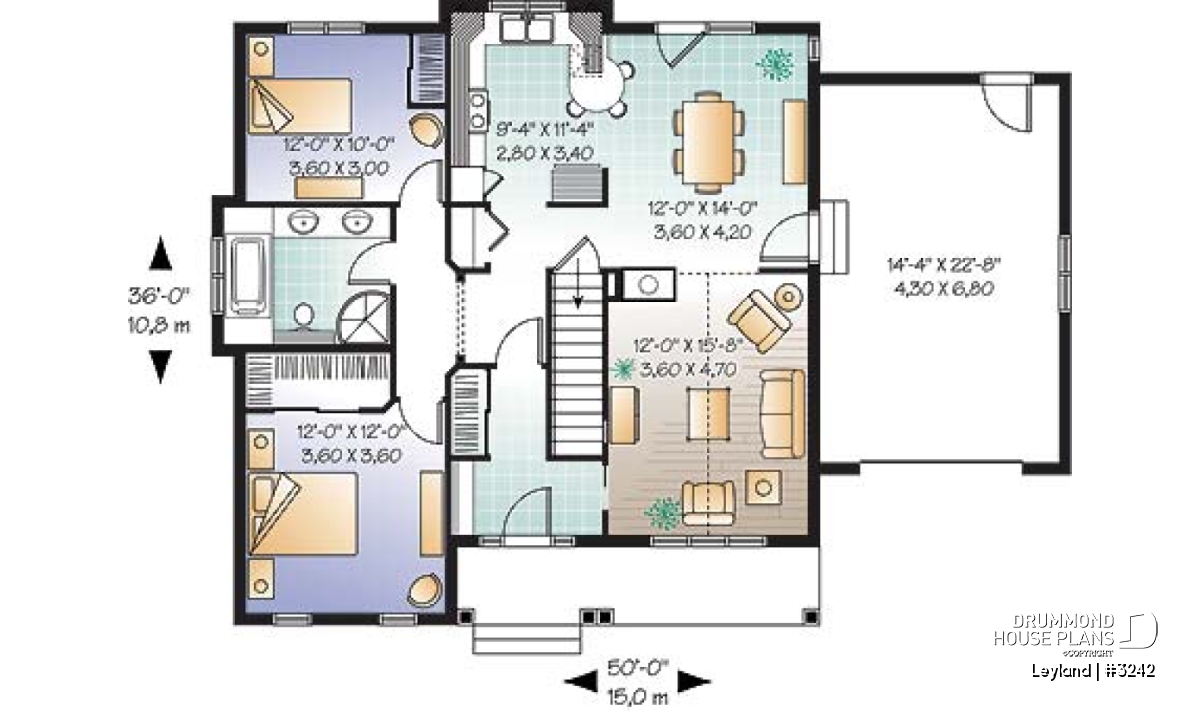

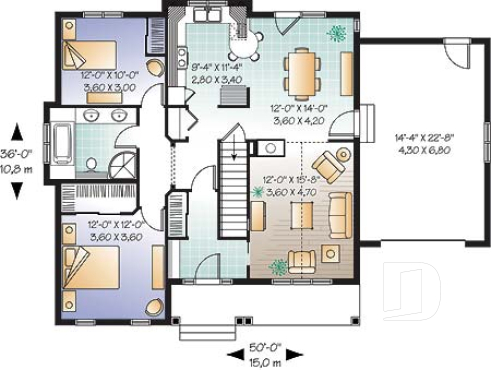

View the size of the rooms and height of the ceilings
|Kitchen||9'4" x 11'4"||~ 8'0"|
|Dining room||12'0" x 14'0"||~ 8'0"|
|Living room||12'0" x 15'8"||~ 12'2"|
|Foyer||9'0" x 4'6"||~ 8'0"|
|Full bathroom||10'0" x 8'3"||~ 8'0"|
|Bedroom||12'0" x 12'0"||~ 8'0"|
|Bedroom||12'0" x 10'0"||~ 8'0"|
|Garage||14'4" x 22'8"||~ 9'8"|
|Porch||21'8" x 4'8"||N/A|
|Porch||8'0" x 5'0"||N/A|
|Total living area||1186 sq.ft.|
|1st level||1186 sq.ft.|
|Ridge height from top of foundation||26'4"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||B|
|Garage type||One-car garage (360 sq.ft.)|
|Living bonus space||-|
Other useful information on this plan
