House plan Newburg 2 (3236-V1)
Craftsman bungalow, open living concept, two car garage, fireplace in family room, unfinished basement

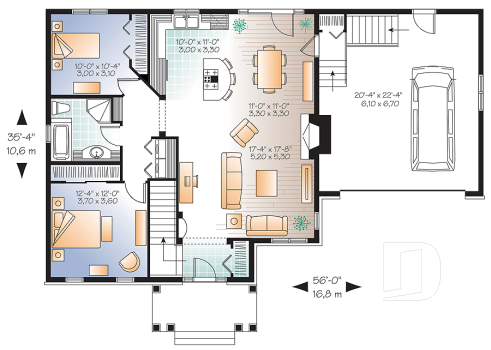

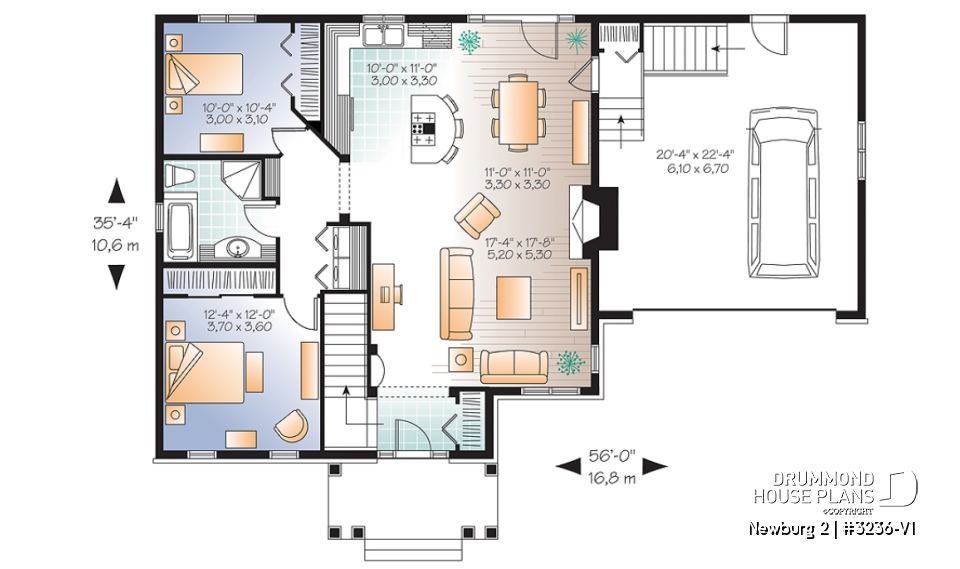

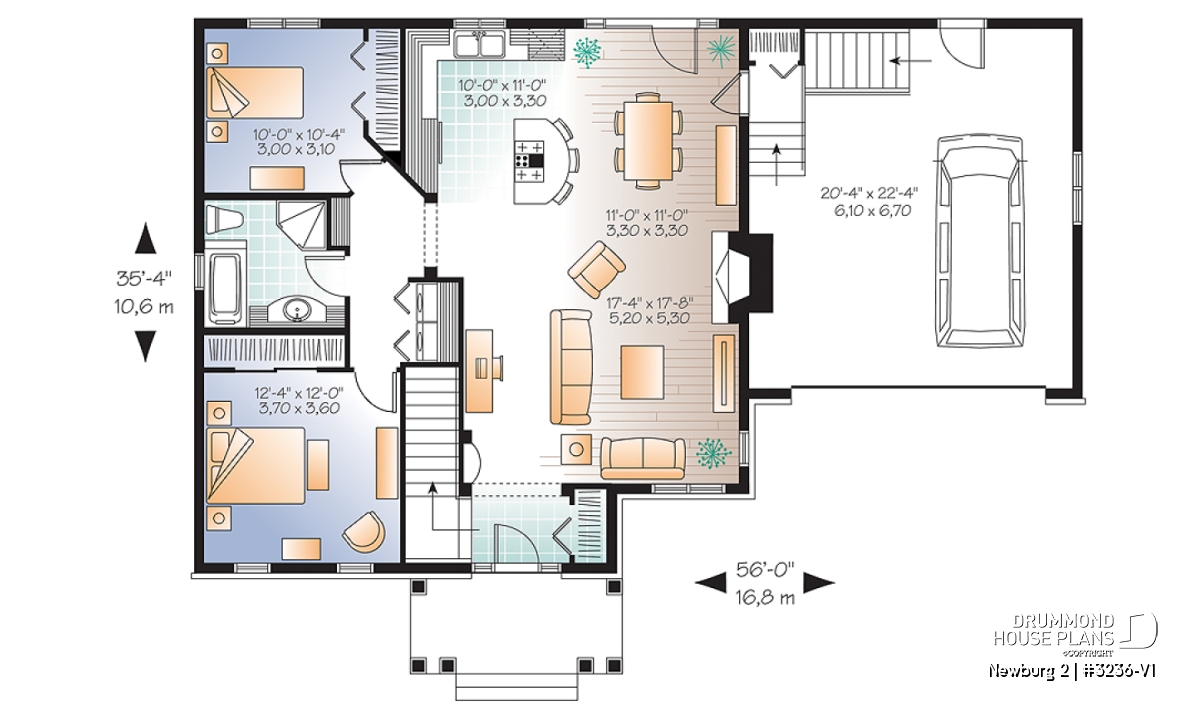

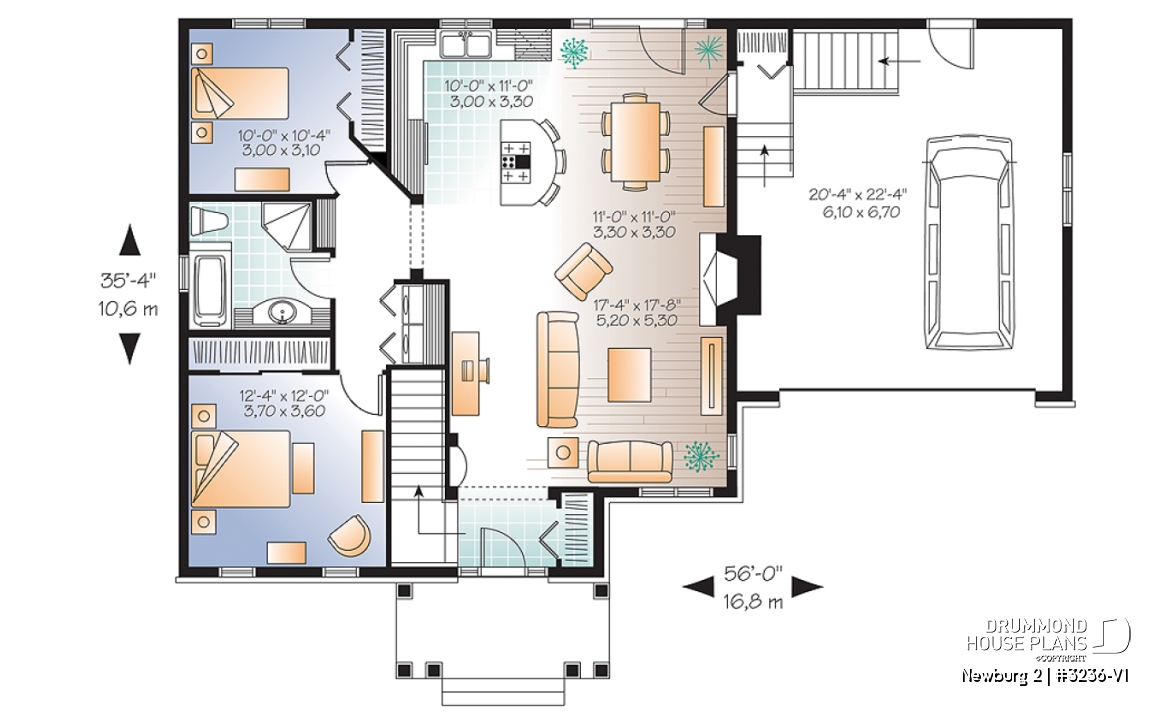

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 20'4" x 22'4" | ~ 9'0" |
| Covered porch | 13'4" x 6'0" | N/A |
| Deck | 10'8" x 5'0" | N/A |
| Kitchen/dinette | 10'0" x 11'0" | ~ 8'0" |
| Living room | 17'4" x 17'8" | ~ 8'0" |
| Dining room | 11'0" x 11'0" | ~ 8'0" |
| Foyer | 6'2" x 5'0" | ~ 8'0" |
| Full bathroom | 8'10" x 8'0" | ~ 8'0" |
| Bedroom | 12'4" x 12'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'4" | ~ 8'0" |
| Laundry room | 2'10" x 5'0" | ~ 8'0" |
General specifications
| Total living area | 1199 sq.ft. |
| 1st level | 1199 sq.ft. |
| Width | 56'0" |
| Depth | 35'4" |
| Ridge height from top of foundation | 22'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | B |
Rooms specifications

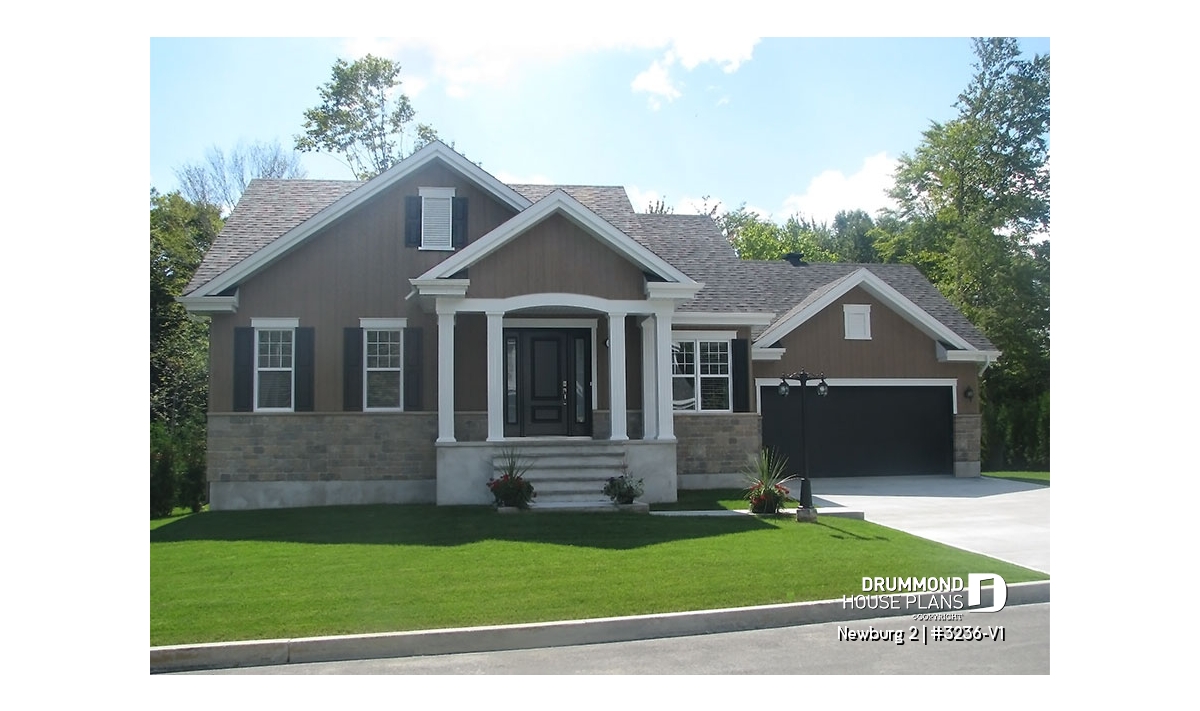

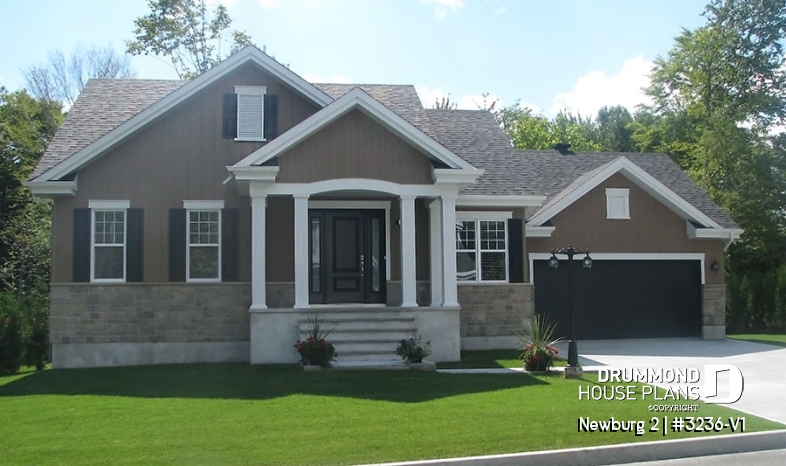

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

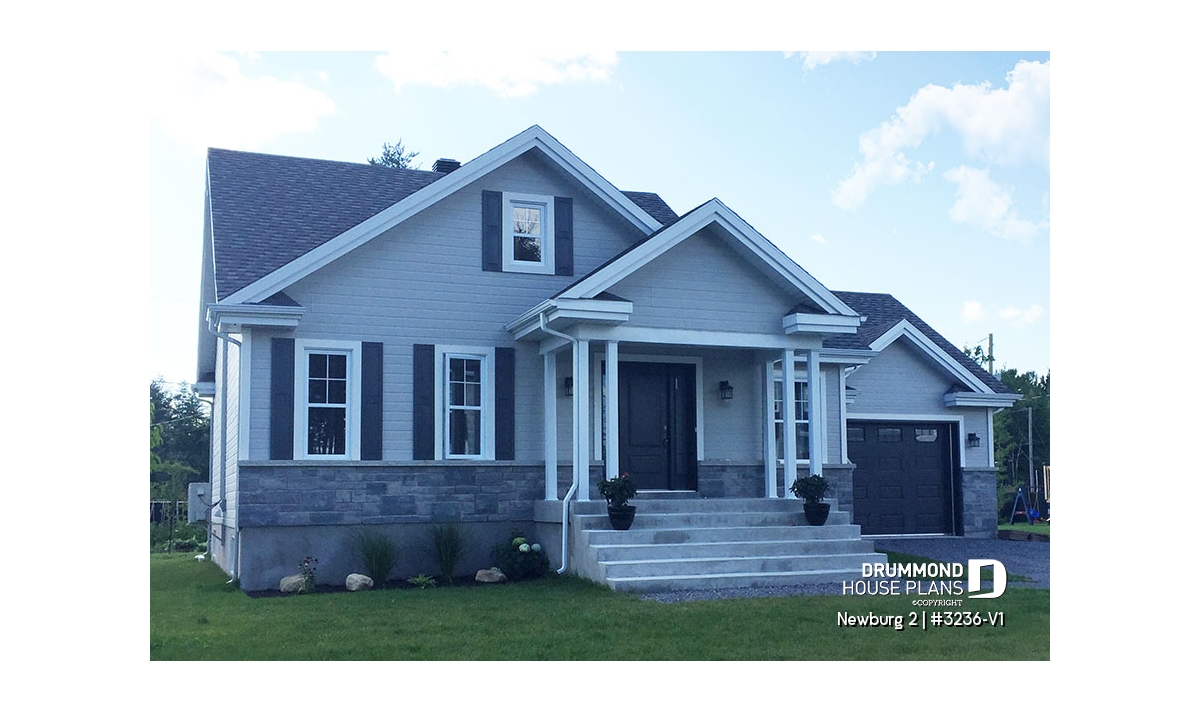

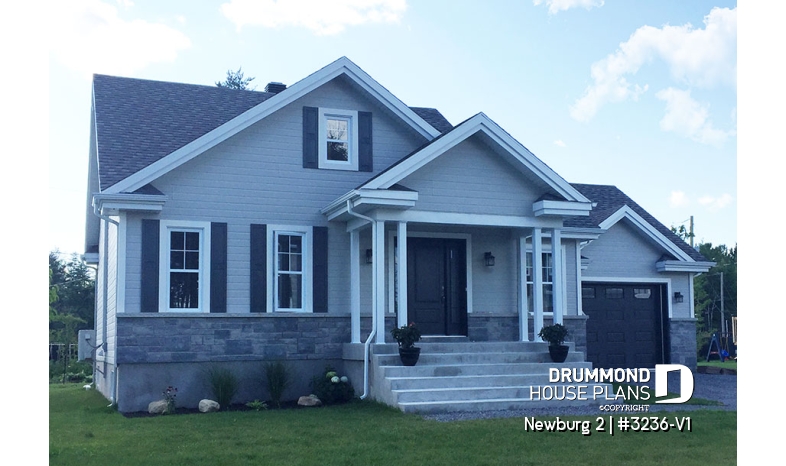

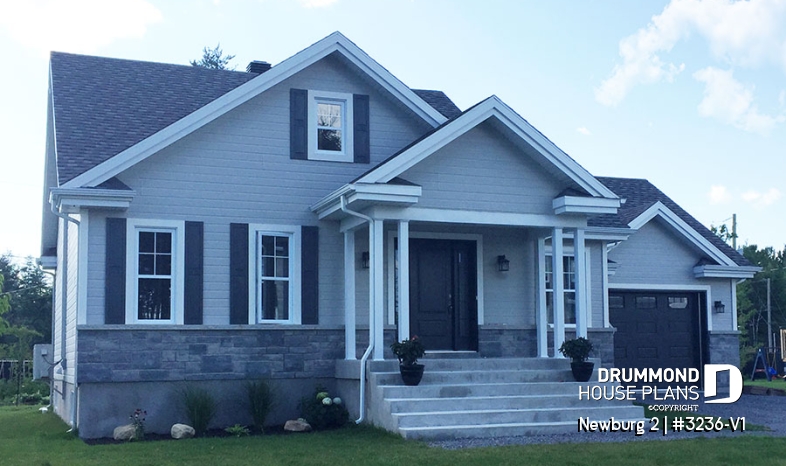

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Elegant simplicity in a Craftsman bungalow house design with 2-car garage and 2 bedrooms
The clean lines of Newburg 2 are enhanced by the stone brick finish and stately columns on either side of the entrance which combine to impart elegant simplicity in a two bedroom bungalow that has a double garage.
The entrance foyer leads through an arch into a large, open floor plan with computer area, dining room and kitchen from which the large, welcoming fireplace is visible. Access to the garage is possible from the main living area through a door off of the dining room and patio doors lead out to the porch in back. There is also a second exterior access to the double garage from the back of the house.
Two nicely sized bedrooms share a well appointed, full bathroom with corner shower and a laundry area on the main floor completes the delightful features of this wonderful plan that has a full basement, accessible from inside the home as well as the garage, that can be finished to meet the owner’s requirements.
Distinctive elements
Double garage with stairs to basement .
Open activities area with open fireplace between dining room and living room.
Computer nook adjacent to this.
Laundry area on the ground floor.
Plan feature(s)
Basement access from garage, Fireplace, Island, Separate bath and shower, Open floor layout, Gound floor laundry room
Plan architectural style(s)
. Craftsman / Northwest, . Modern rustic, . Rustic, . Traditional, . Country, . Ranch, . Transitional
