House plan Newburg (3236)
2 bedroom open floorplan bungalow with double garage and fireplace

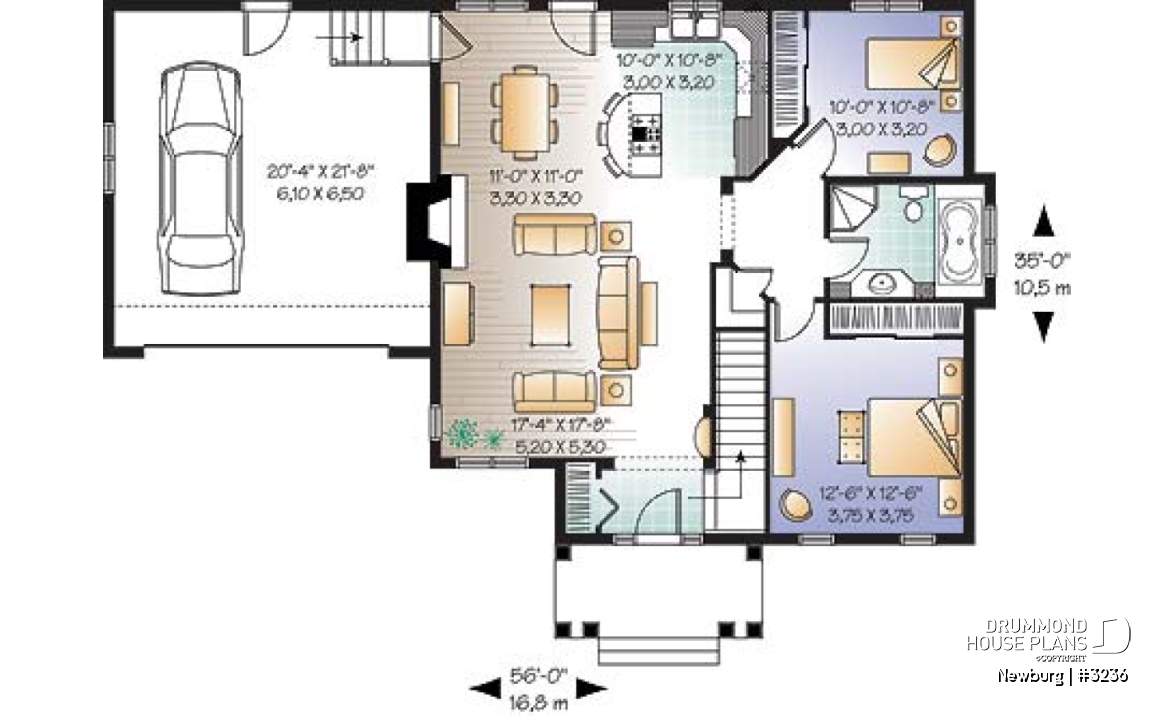

View the size of the rooms and height of the ceilings

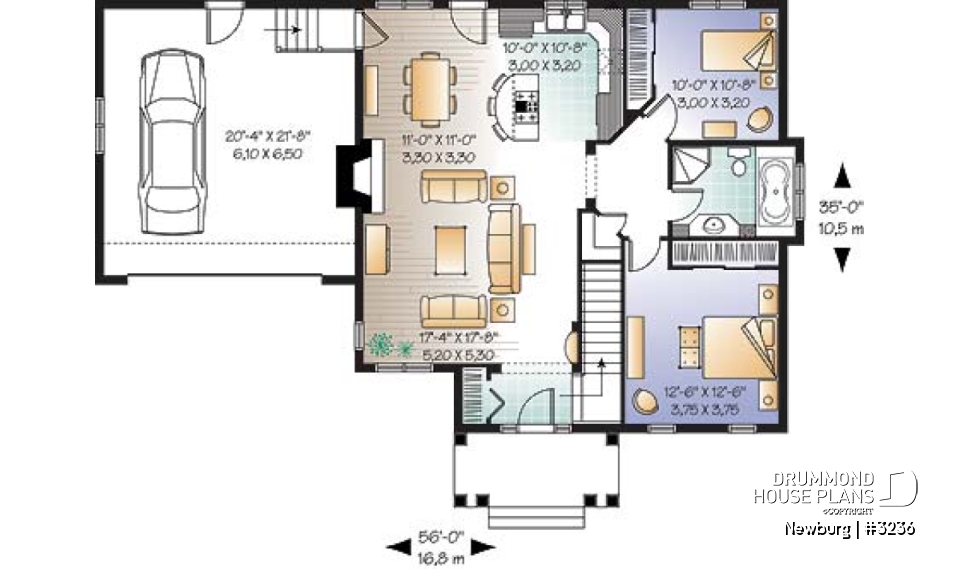

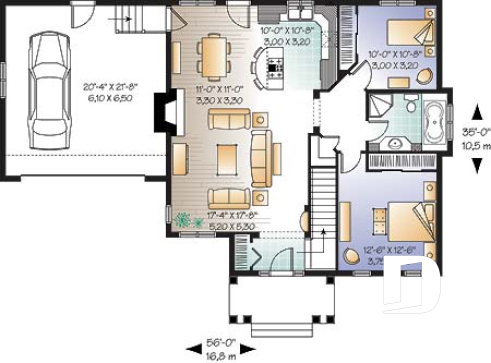

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'0" x 10'8" | ~ 8'0" |
| Dining room | 11'0" x 10'8" | ~ 8'0" |
| Living room | 17'4" x 18'0" | ~ 8'0" |
| Foyer | 6'6" x 4'2" | ~ 8'0" |
| Closet | 2'0" x 4'8" | ~ 8'0" |
| Full bathroom | 10'0" x 7'4" | ~ 8'0" |
| Bedroom | 12'6" x 12'6" | ~ 8'0" |
| Closet | 8'8" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'8" | ~ 8'0" |
| Closet | 2'0" x 8'2" | ~ 8'0" |
| Garage | 20'4" x 21'8" | ~ 11'2" |
| Linen | 3'2" x 3'10" | ~ 8'0" |
| Covered porch | 13'4" x 6'0" | N/A |
| Deck | 10'8" x 5'0" | N/A |
General specifications
| Total living area | 1197 sq.ft. |
| 1st level | 1197 sq.ft. |
| Width | 56'0" |
| Depth | 35'0" |
| Ridge height from top of foundation | 22'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Budget Bungalow with double garage and 2 bedrooms on main level
A wide, covered entry makes a welcoming statement from this charming budget bungalow.
An open floorplan enhances the feeling of space. All of the activity area will enjoy the warmth of the hearth and the open floor plan redefines areas by simply rearranging furniture. The sleeping wing includes two bedrooms separated by a four-fixture bathroom.
As a bonus, you have an equal amount of space available in the undeveloped basement, a blank slate for your inspiration!
Distinctive elements
Large, inviting front porch.
Spacious, well located family room.
Kitchen with central island.
Two car garage with access to the house.
Plan feature(s)
Fireplace, Open floor layout, Separate bath and shower
Plan architectural style(s)
. Transitional, . Country, . Ranch, . American, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
September 09
Gary Wright
What type siding is on this house and what is the color?
September 09
Customer service
Good day Mr. Wright and thank you for taking the time to write.
Although the exact type and color of the siding used for your project will depend on what is available, the siding material that is represented in this image is imitation cedar shingles.
Please let me know if I can further assist you.
Regards
Deb
March 28
bob yow
where are the 2nd level diagrams?
April 02
Customer service
Good day Mr. Yow and thank you for your interest in this plan.
There is no plan for the second level as the standard foundation for this plan is a full basement which has 8' ceilings but does not have separations for the rooms.
You can finish the basement in the way which most suits your needs, either at the time of the initial build or later if you choose to do so.
Please let me know if you have any other questions or comments.
Regards
Deborah
