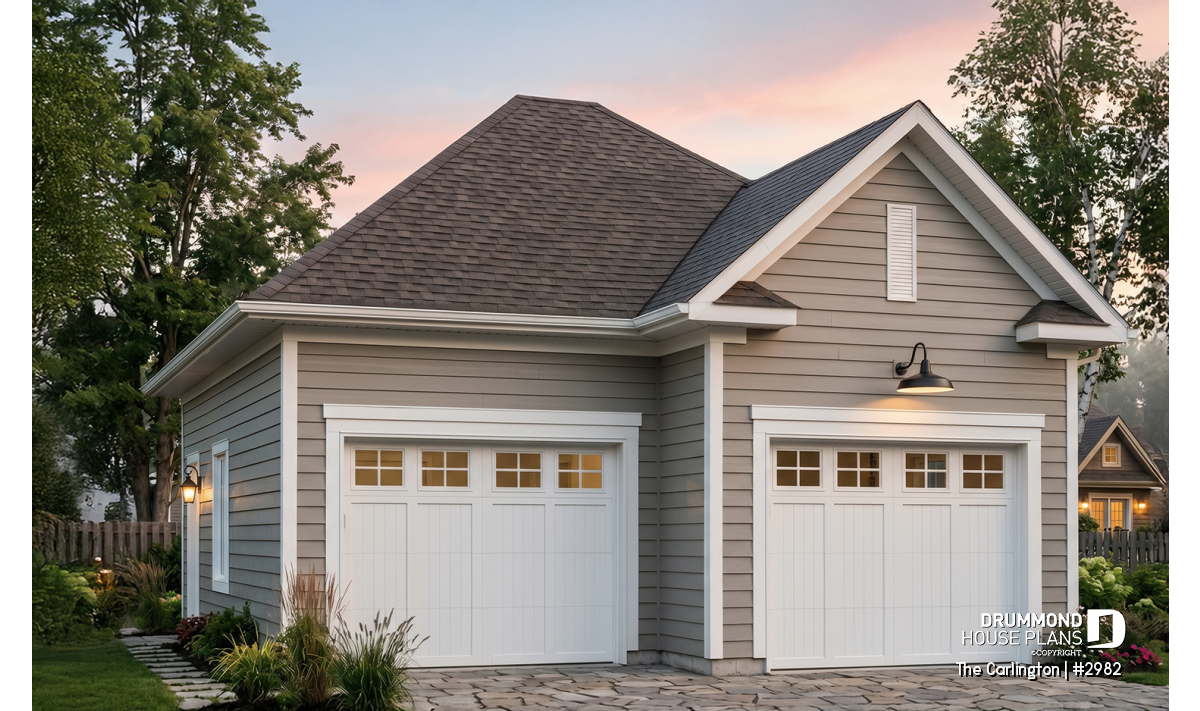

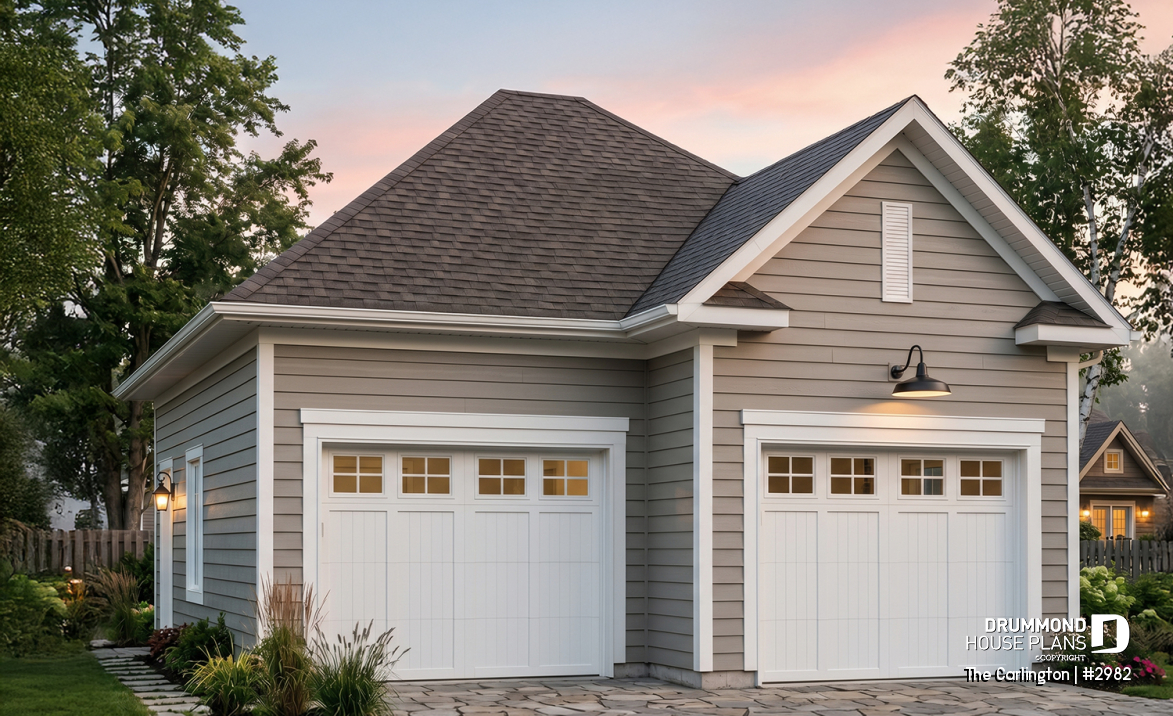

The Carlington (2982)
2-car garage plan design available in PDF and blueprints
View the size of the rooms and height of the ceilings

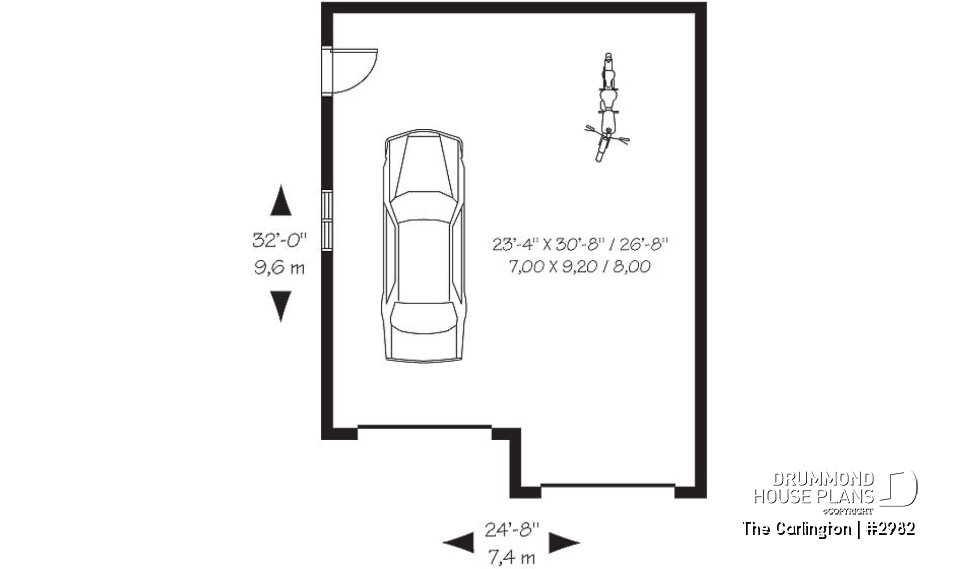

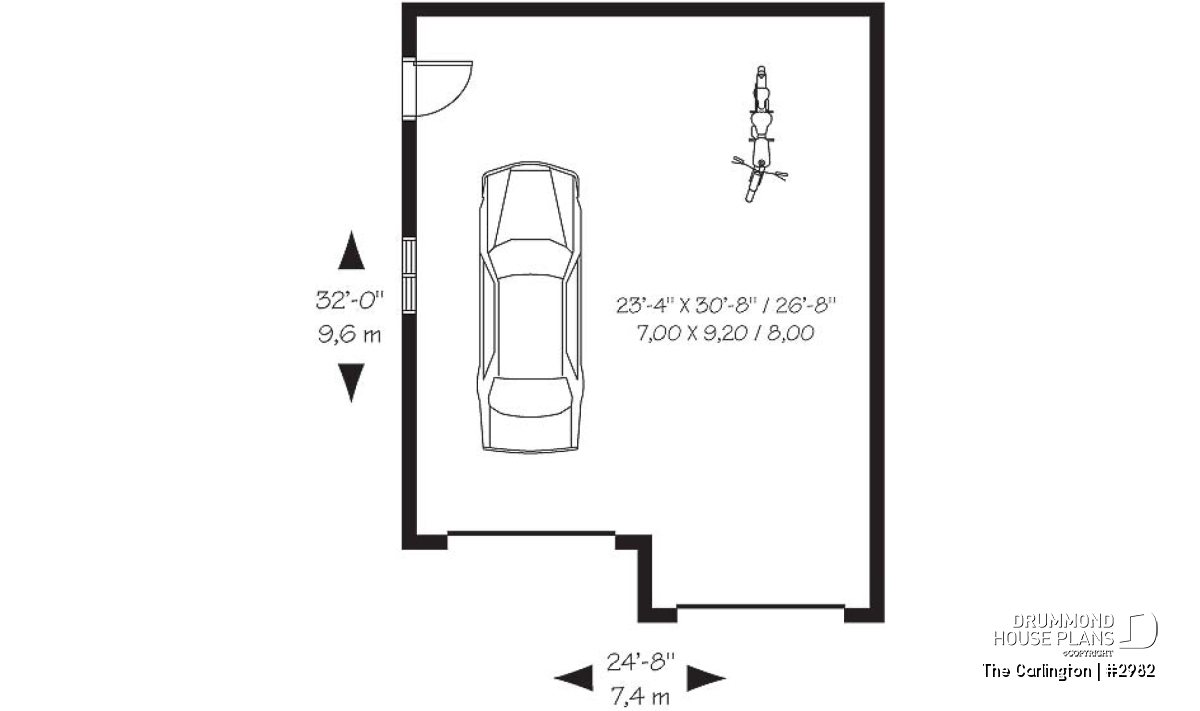

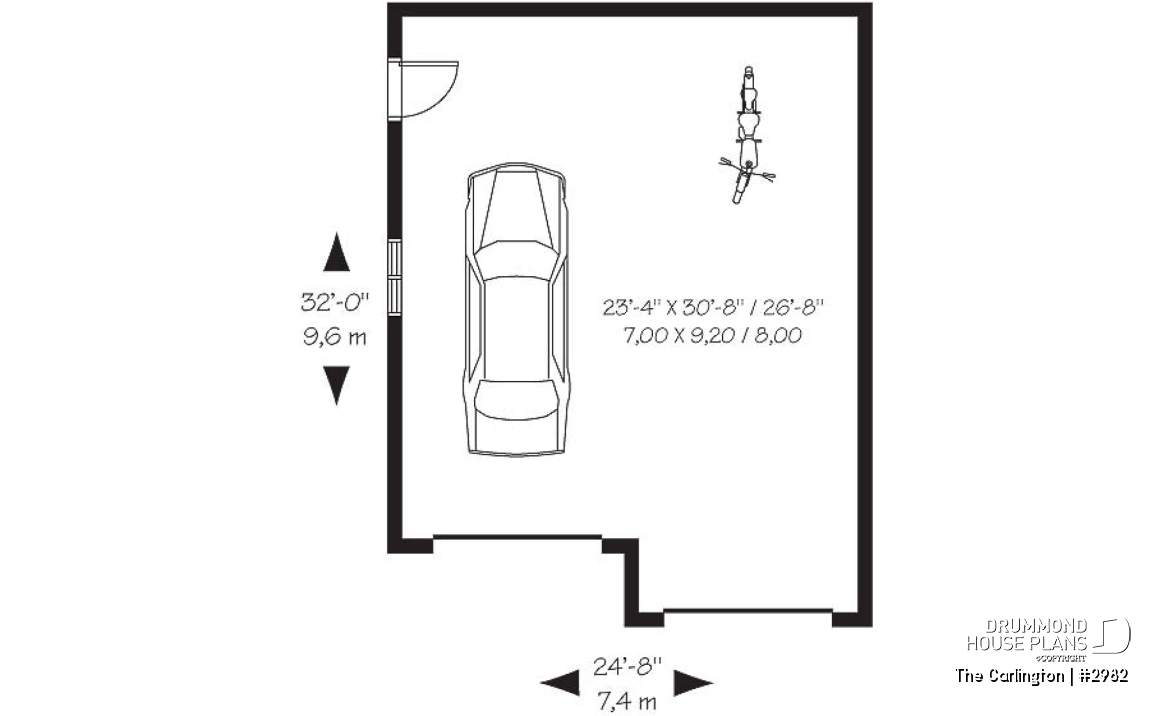

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 23'4" x 30'8" | ~ 10'2" |
General specifications
| Total living area | 741 sq.ft. |
| 1st level | 741 sq.ft. |
| Width | 24'8" |
| Depth | 32'0" |
| Ridge height from top of foundation | 20'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2A |
Rooms specifications
Other useful information on this plan

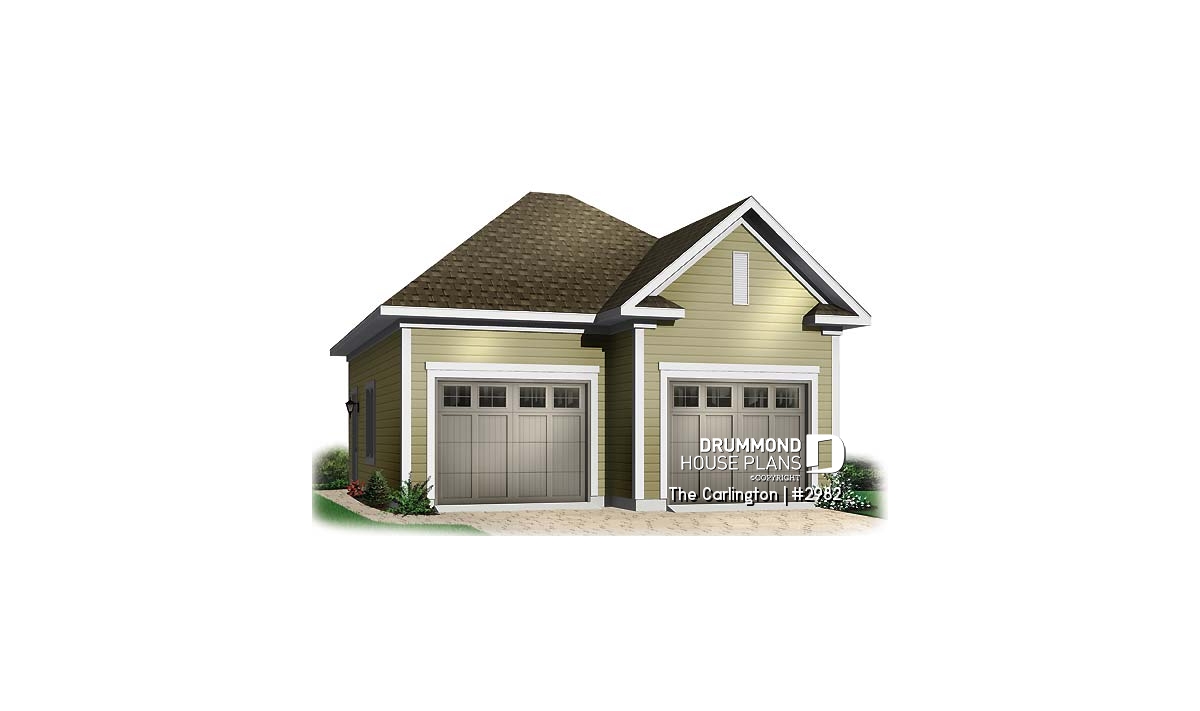

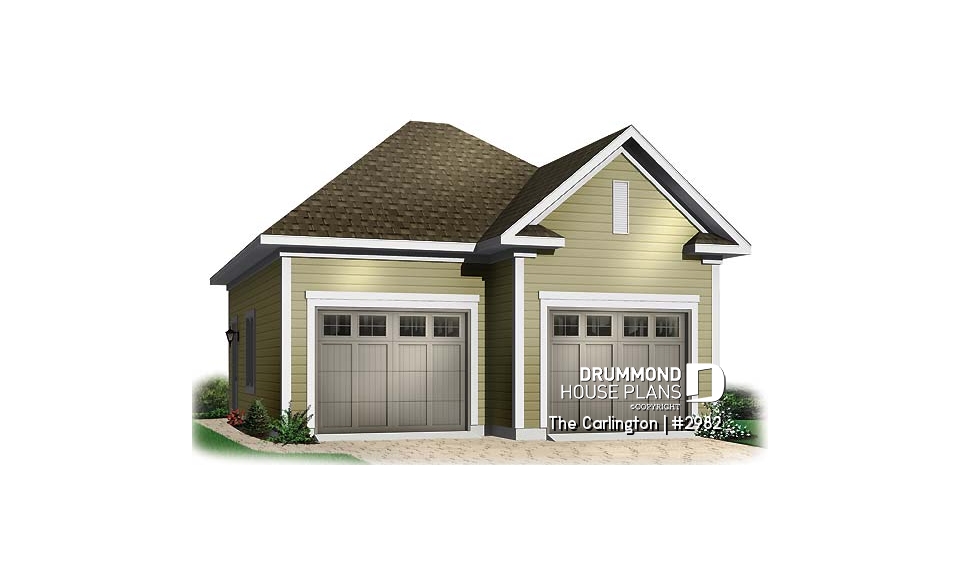

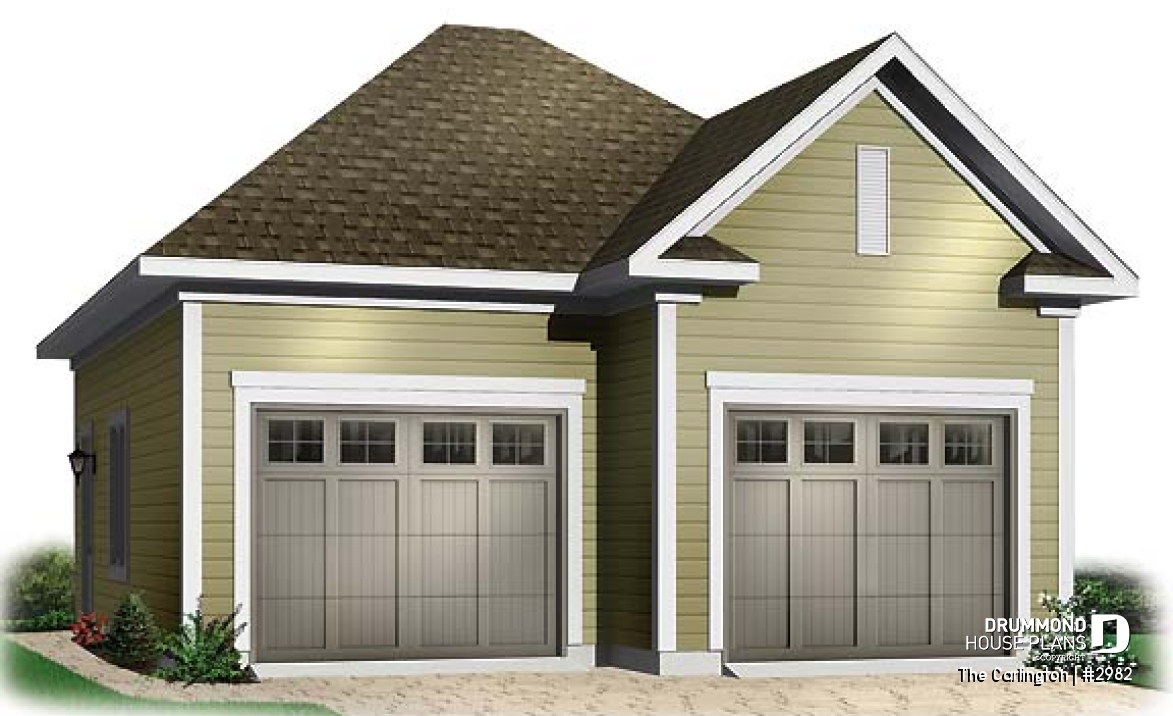

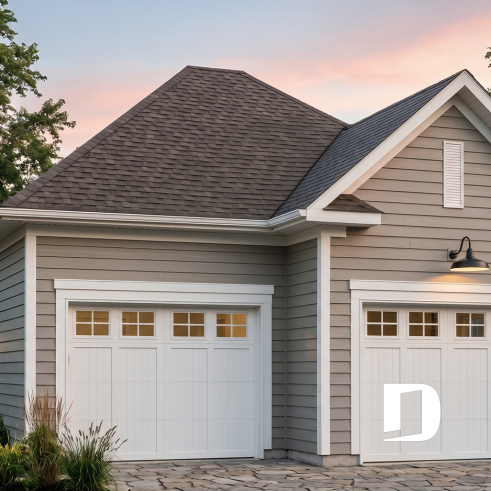

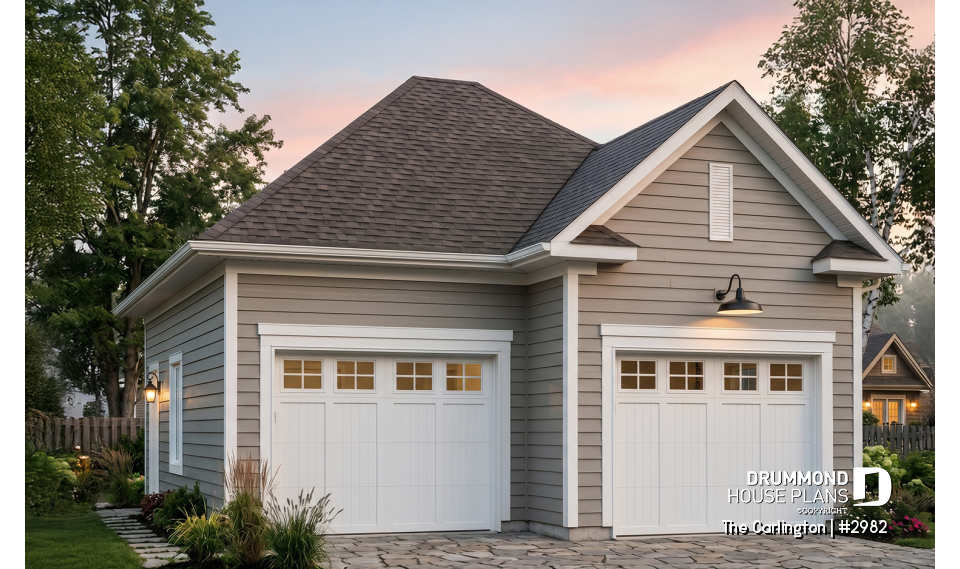

Traditional 2-car garage plan
.
Distinctive elements
24'8'' x 32' double garage plan
Total of 741 sq.ft.
10'2'' ceiling height
Insulated walls and on floating slab
Side door and window
Plan feature(s)
Ceiling over 8'
Plan architectural style(s)
. American, . Traditional, . Country
Previously Viewed Plans
Questions and comments
March 17 2014
john clark
I would like to build a double car garage where the property line is located at the centre of the structure. A rated wall would be required between the two doors.
March 04 2013
B. Lees
Our township planner has asked me for the measurement from the floor to 1/2 way up the roof. Can you have the plan for slab floor engineer stamped? Thank you.
March 05 2013
Service à la clientele
Good day and thank you for taking the time to write
The height from the top of the 4" foundation to half way up the roof is 15'6".
Our plans are certified by a professional technologist and if your municipality requires an engineer's stamp you will have to hire someone locally.
Please let me know if you have any other questions or comments.
Regards
Deborah
July 13 2010
Don Chevalier
Three questions, about garage plan W2982.
What is the height of the interior ceiling?
What is the pitch of the roof?
Is it a difficult design it wider. 28'or30' feet?
July 14 2010
Customer service
Dear Mr Chevalier,
Thank you for your interest in Drummond House Plans.
The ceiling height is 10'-2". The primary roof pitch is 8/12 and secondary is 10/12.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267.
Do not hesitate to contact us again if you need further information.
Best Regards,
Customer Service Department
