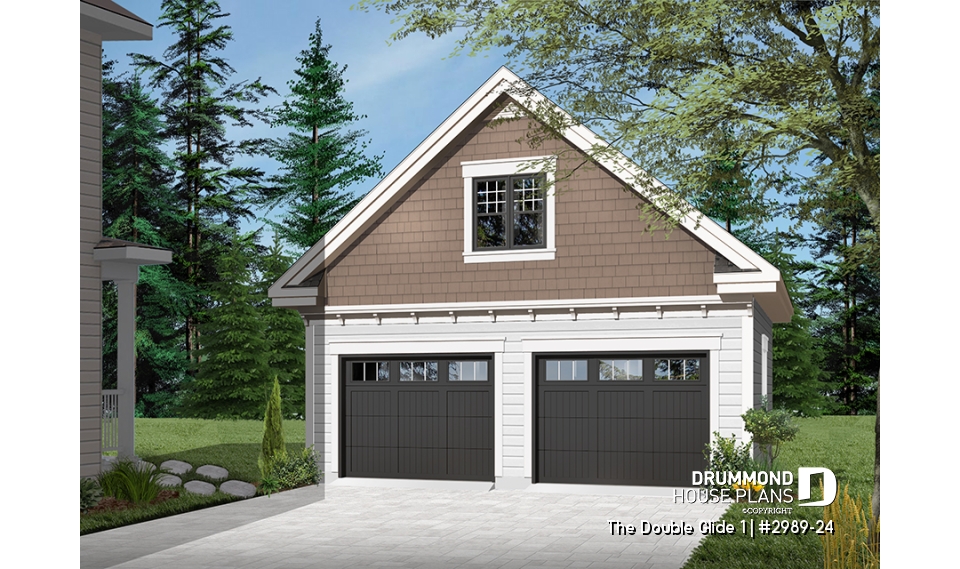

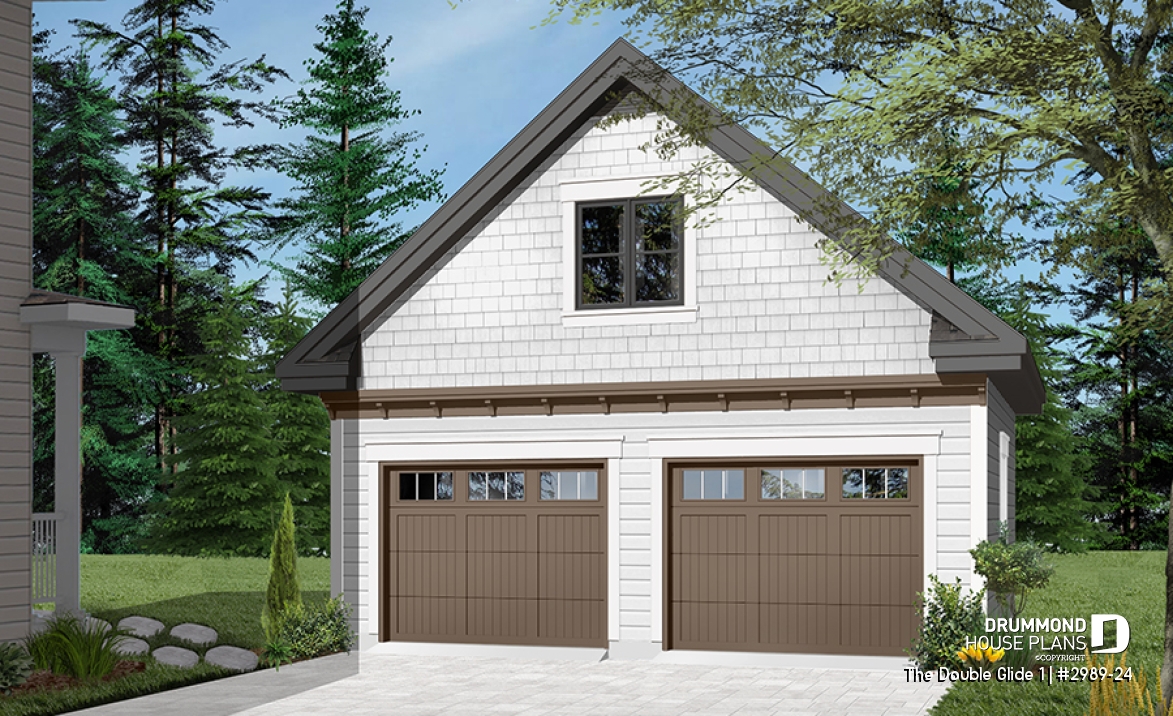

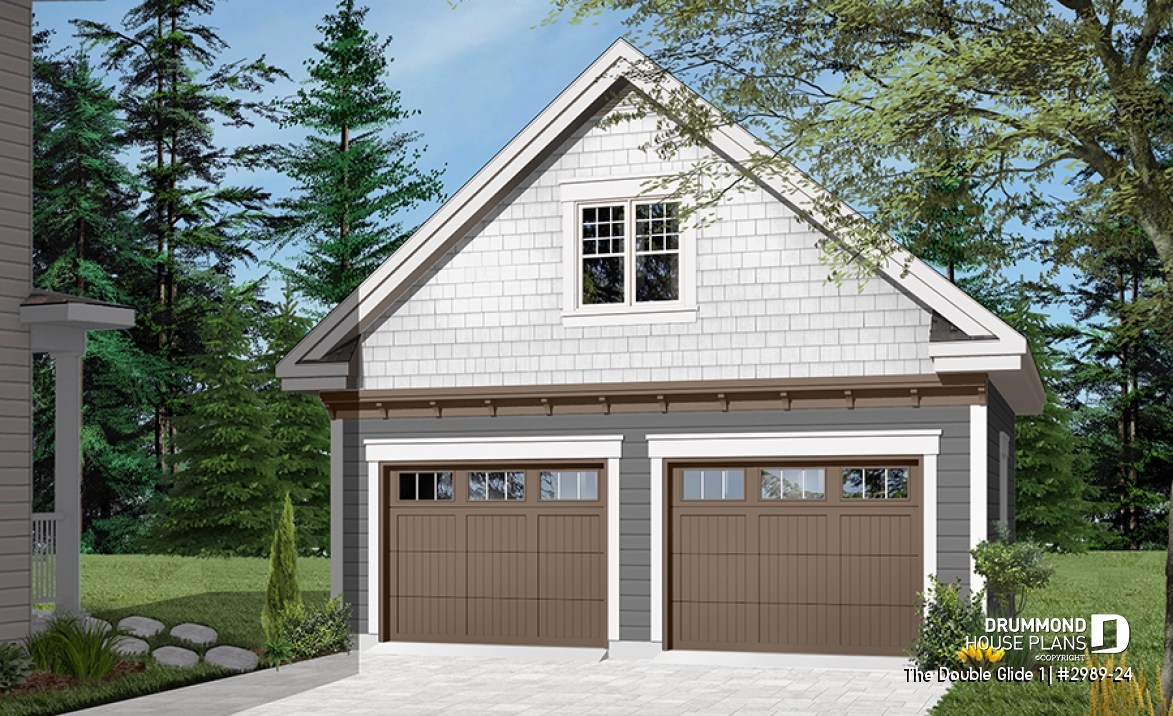

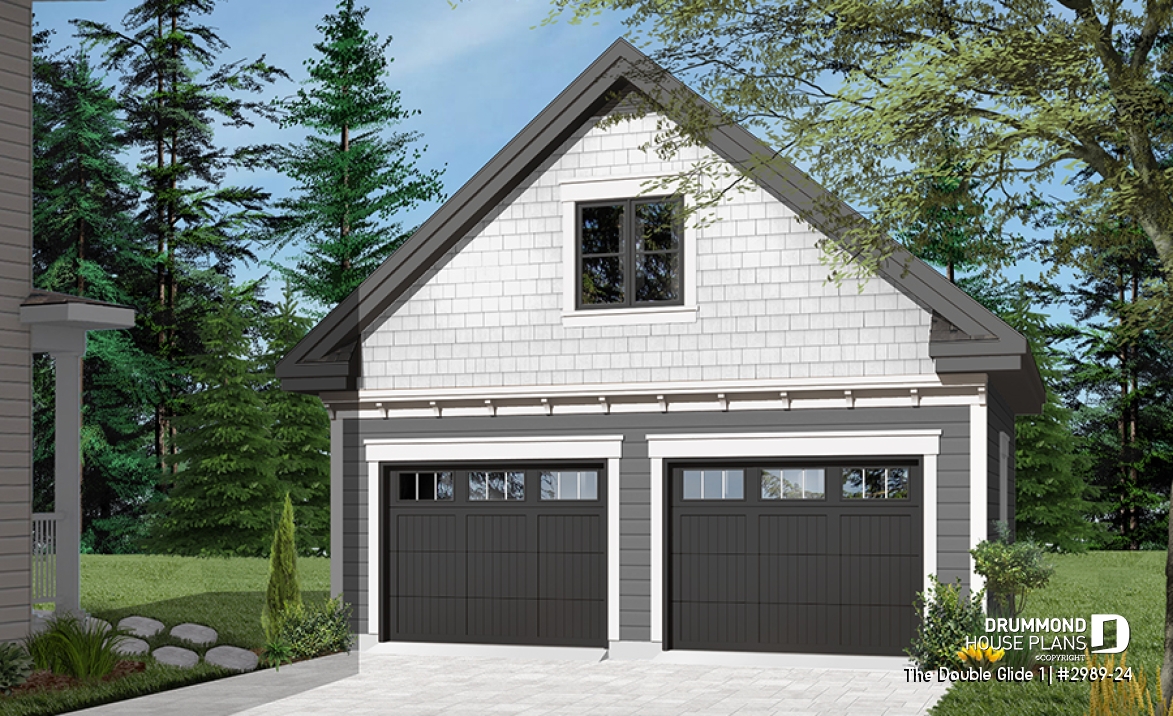

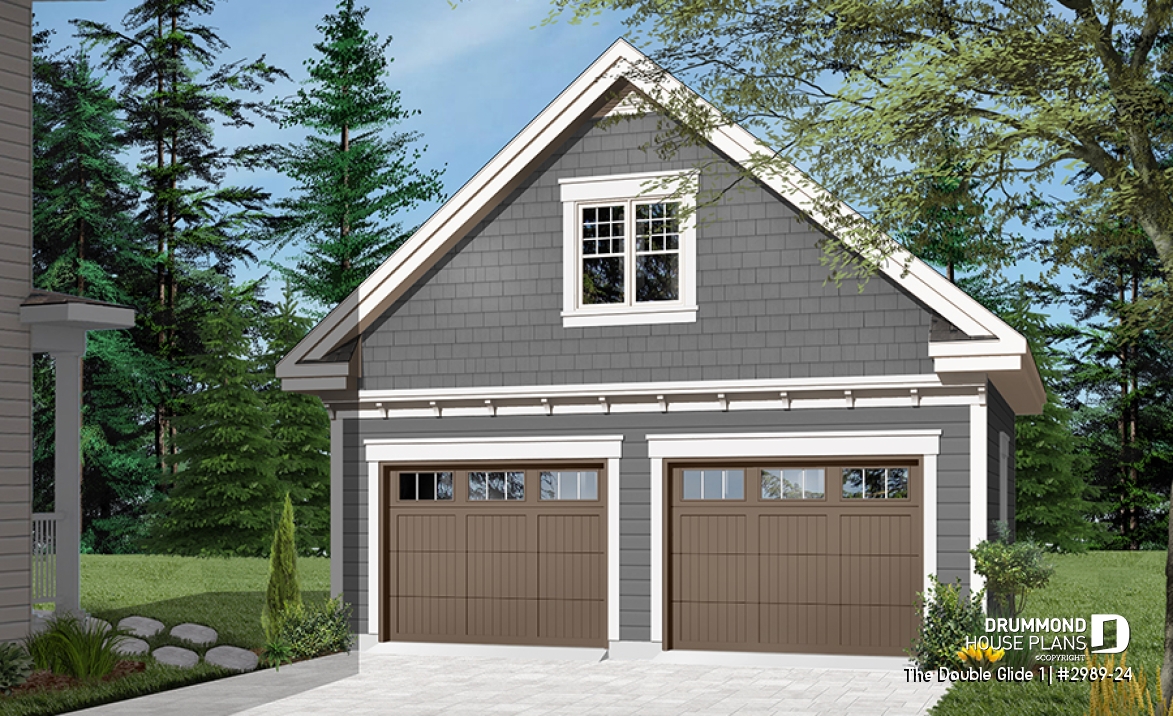

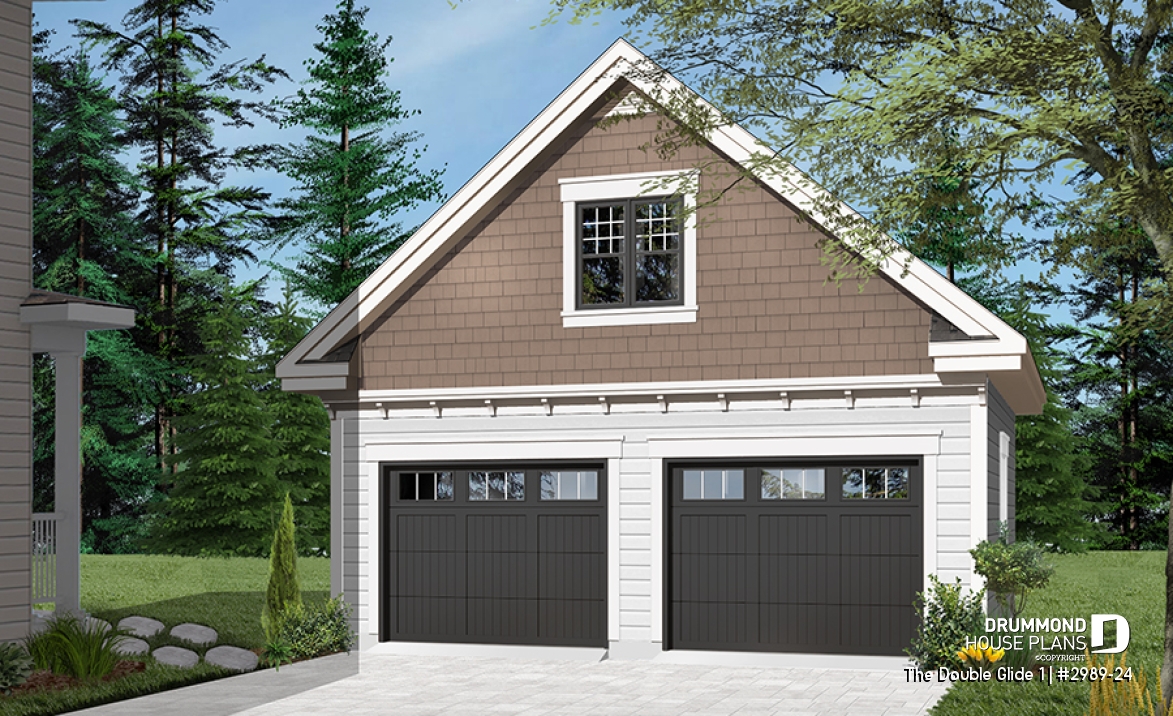

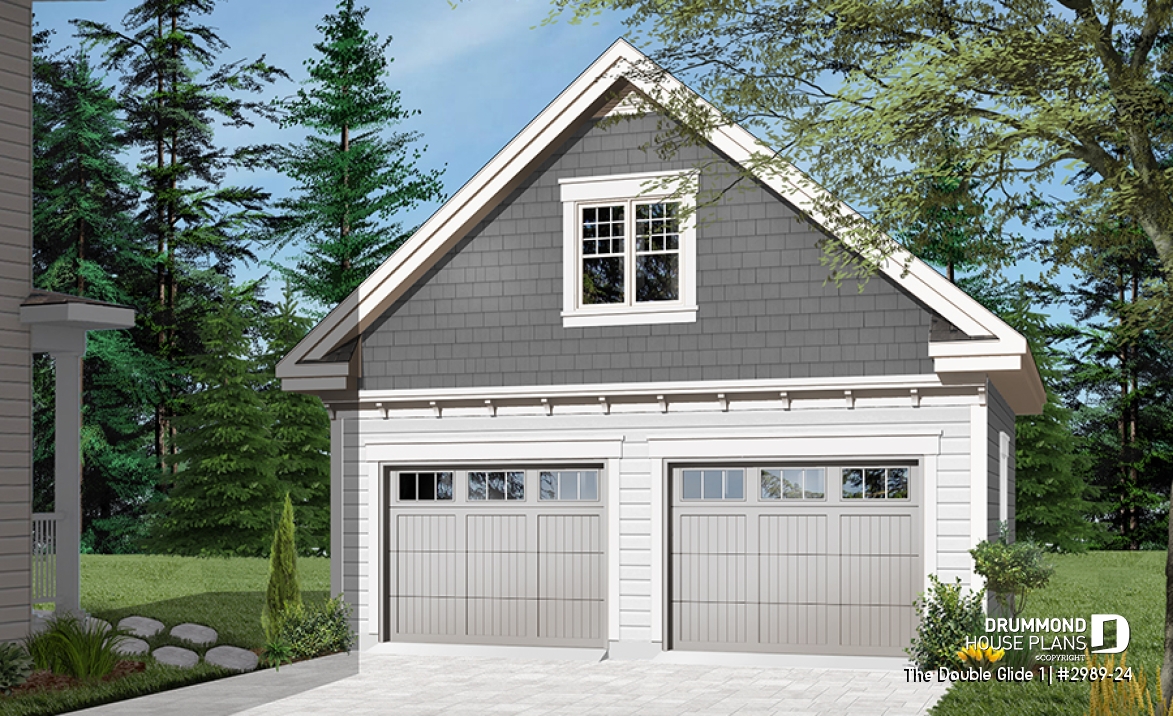

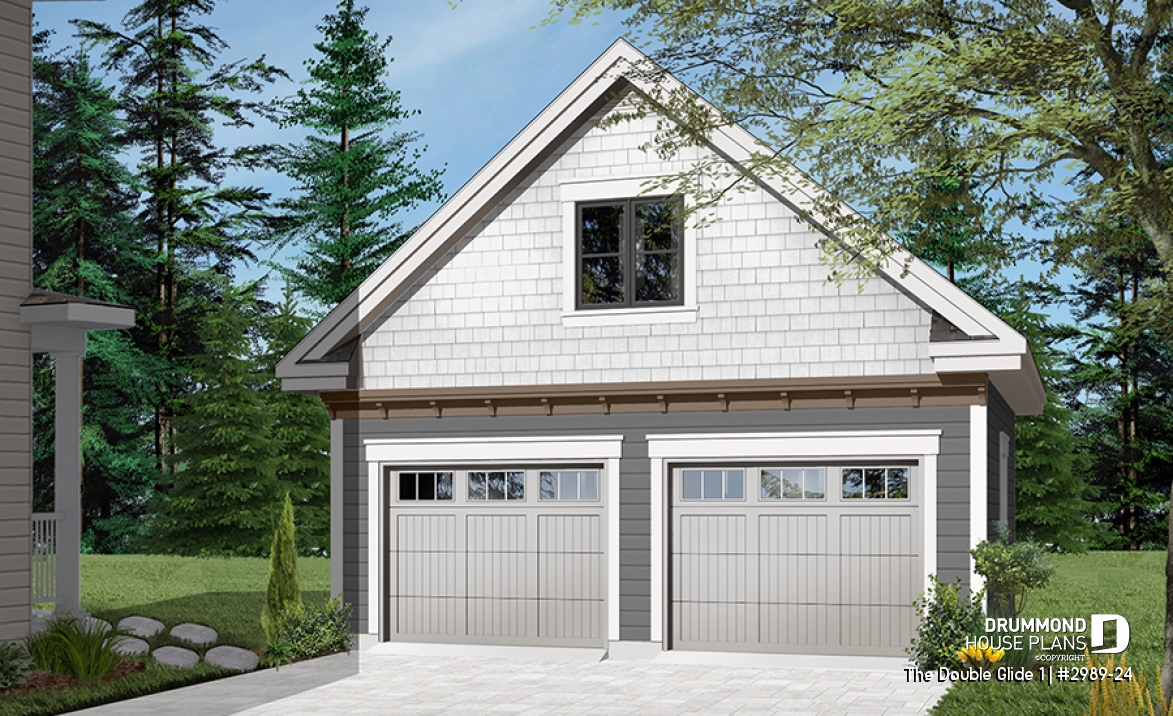

The Double Glide 1 (2989-24)
2 story garage plan with bonus space in second floor
View the size of the rooms and height of the ceilings

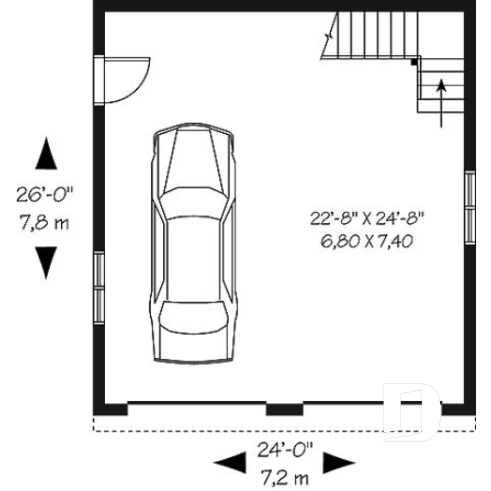

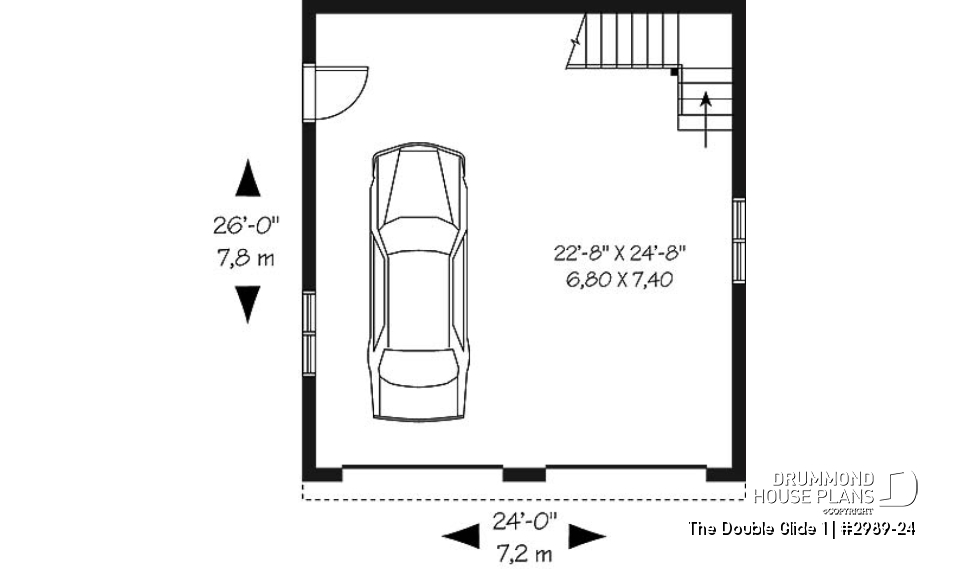

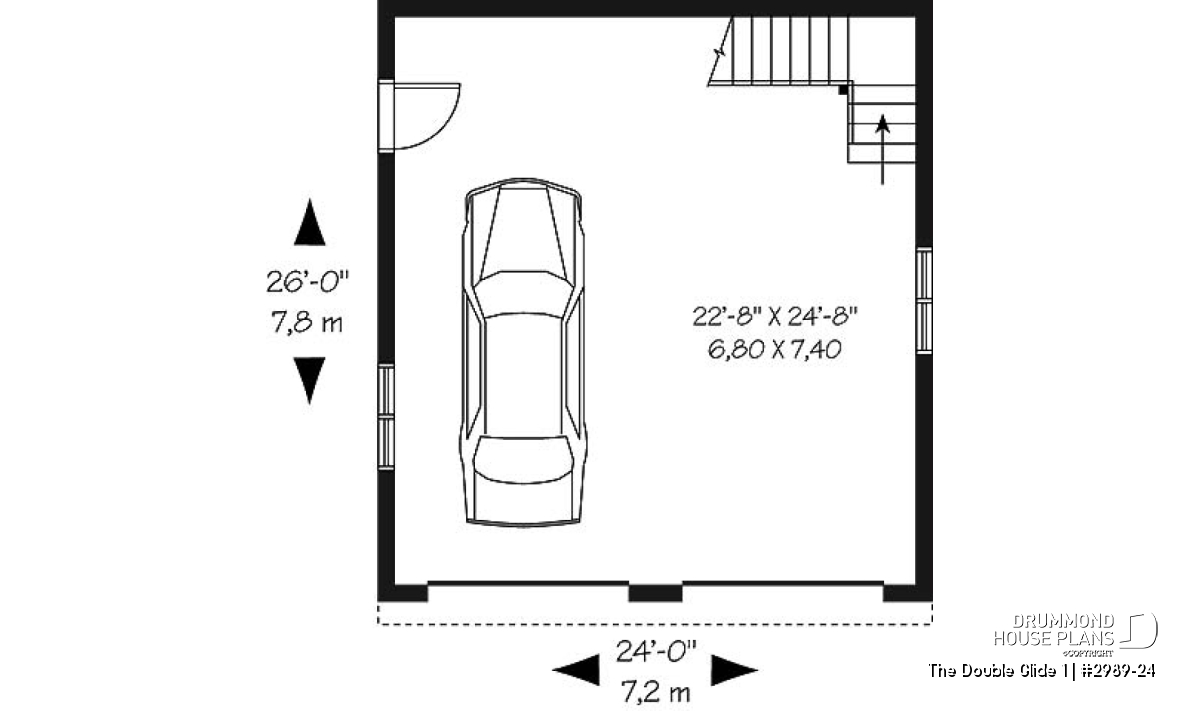

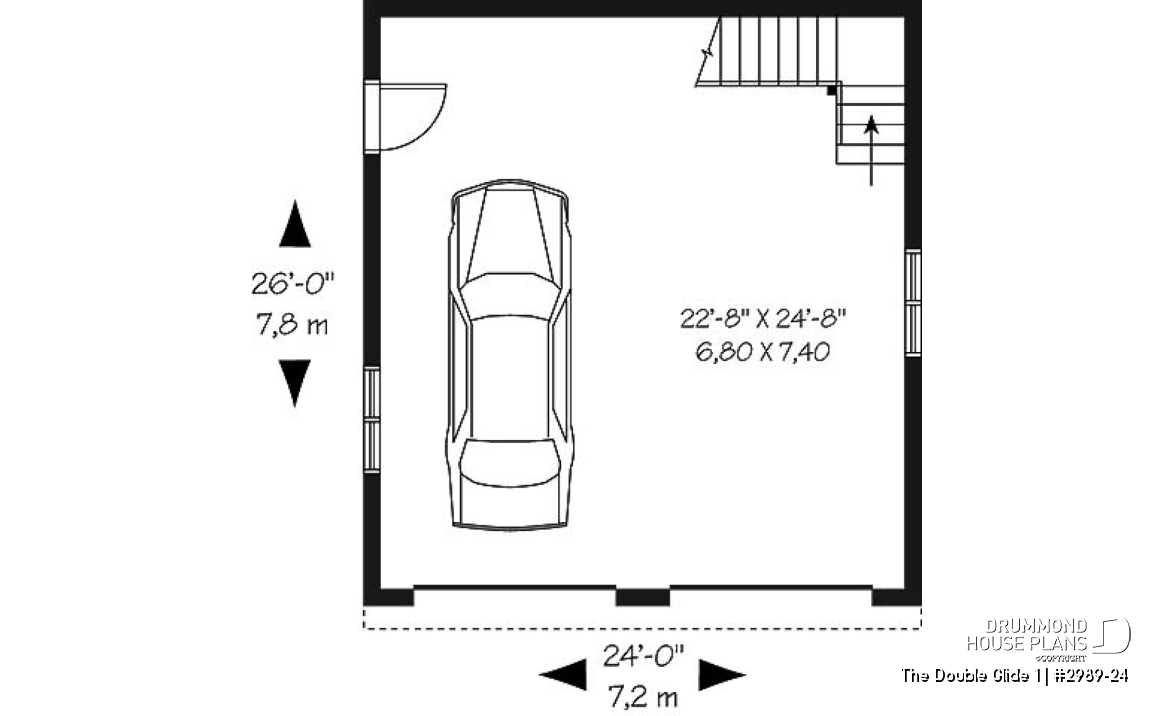

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 22'8" x 24'8" | ~ 9'4" |

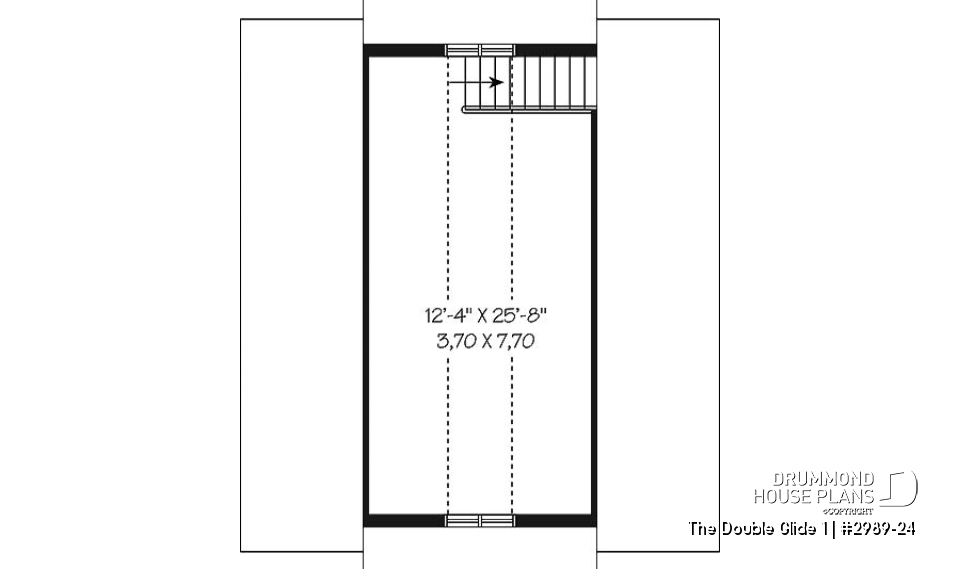

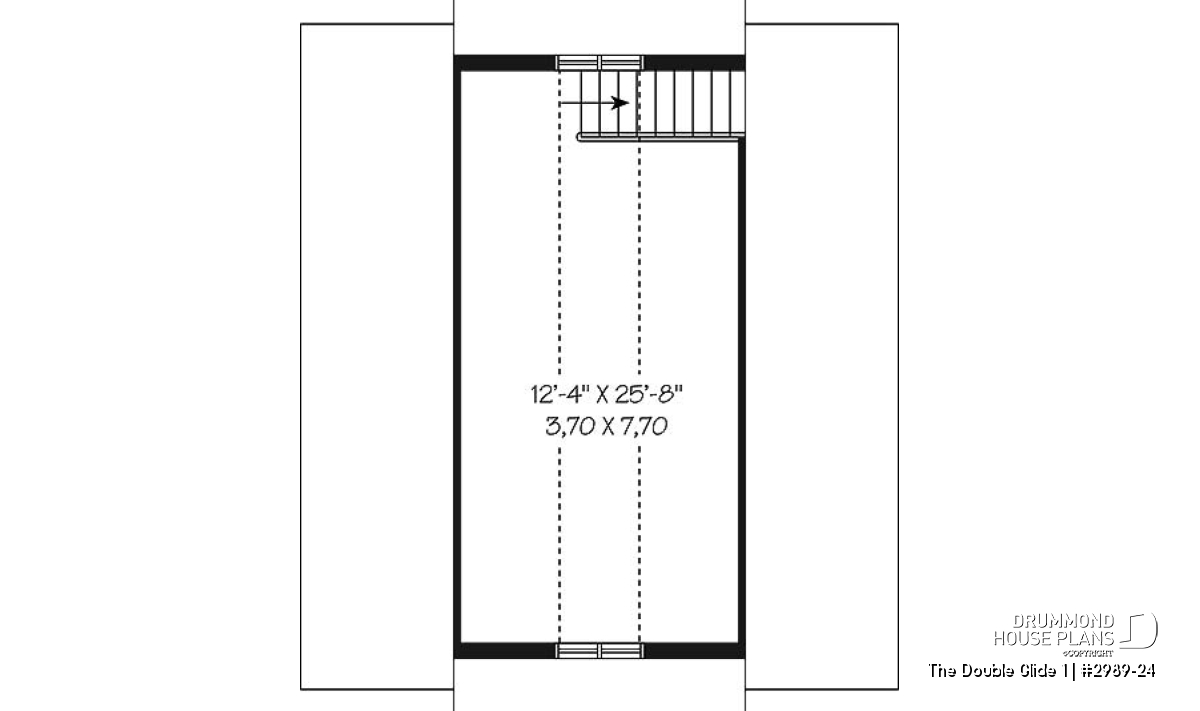

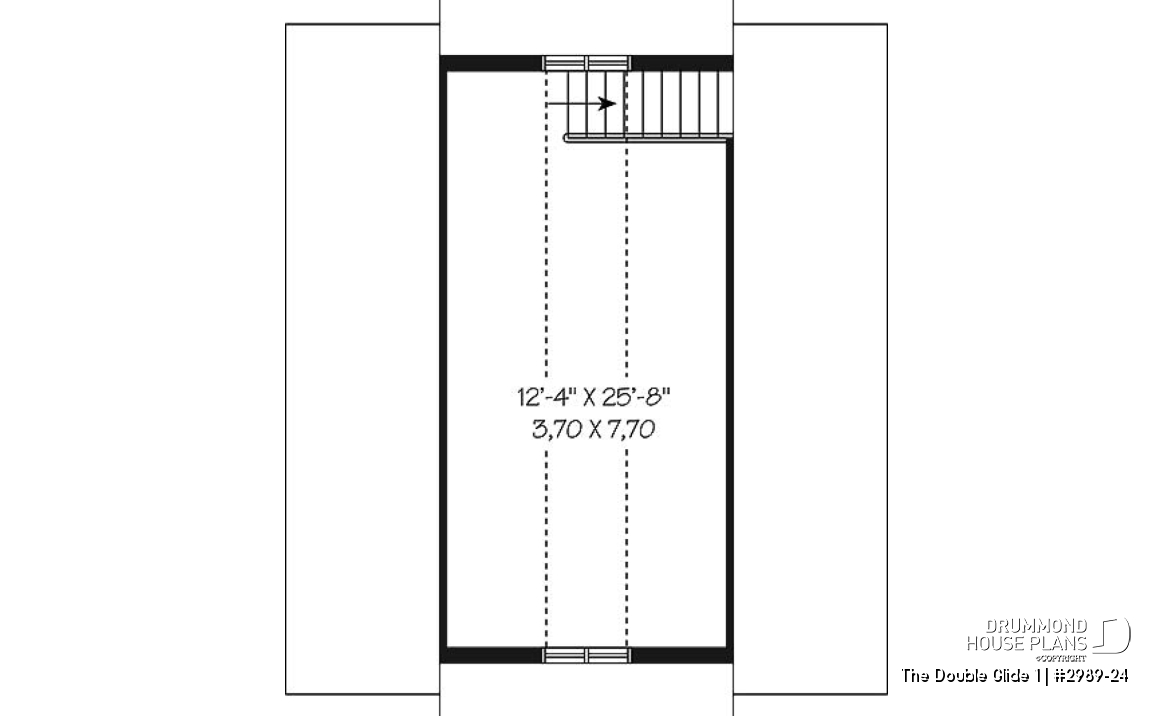

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 12'4" x 25'8" | ~ 8'0" |
General specifications
| Total living area | 948 sq.ft. |
| 1st level | 624 sq.ft. |
| 2nd level | 324 sq.ft. |
| Width | 24'0" |
| Depth | 26'0" |
| Ridge height from top of foundation | 21'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2B |
Rooms specifications
Other useful information on this plan

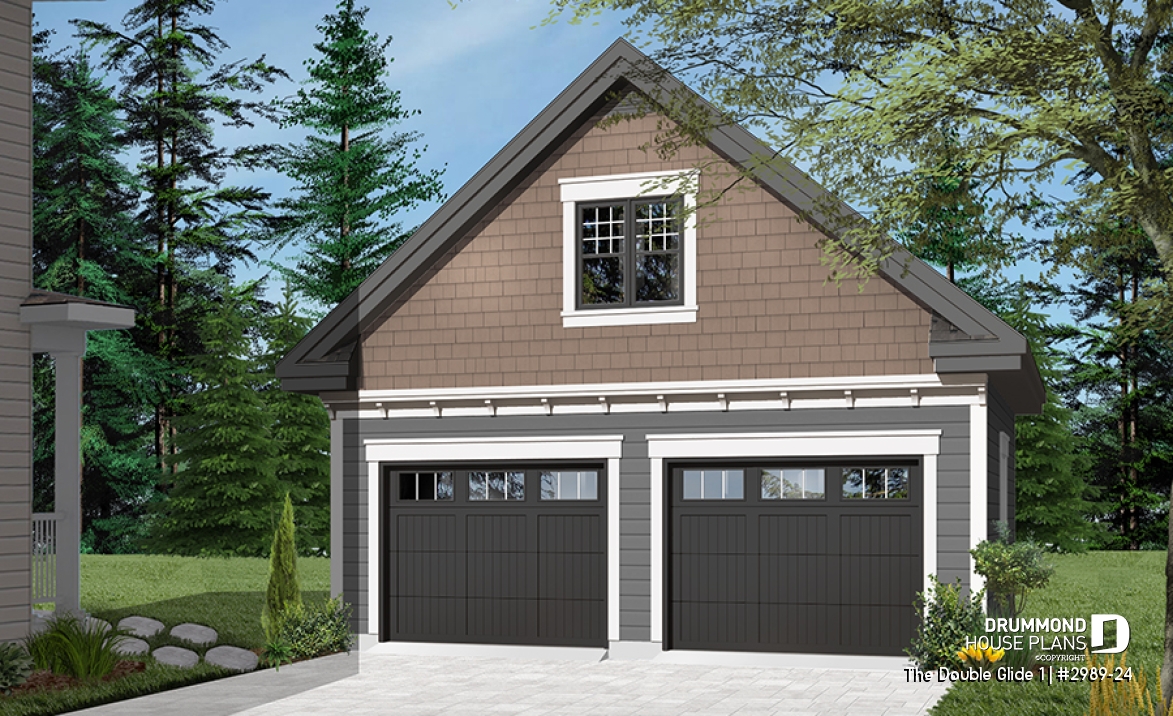

Country style 2-story garage plan with bonus room on second floor
.
Distinctive elements
Upper level storage of 324 sq.ft. (30,10 sq.m.)
Plan architectural style(s)
. Country, . Craftsman / Northwest, . American, . Farmhouse
Questions and comments
June 21 2015
Nancy Kiffer
Can this two car garage be built with a slope roof, no upstairs and a deck on top? Can it be butted to a block house on the end and block on the right side (in ground)?
June 21 2015
Customer service
Good afternoon Ms. Kiffer,
yes those changes are possible. Email us your contact info (day phone), along with all the details about your modfications, and we'll provide you with a free estimate to make those changes to this plan.
email: modifications[email protected]
Thanks and I'll wait to hear from you!
Marie
September 16 2013
paul
What is the roof pitch?
September 16 2013
Customer service
Good day and thank you for taking the time to write.
The roof pitch of this plan is 10/12
Please let me know if you have any other questions or comments.
Deborah
