Garage plan Hazel Way 3 (2996-24)

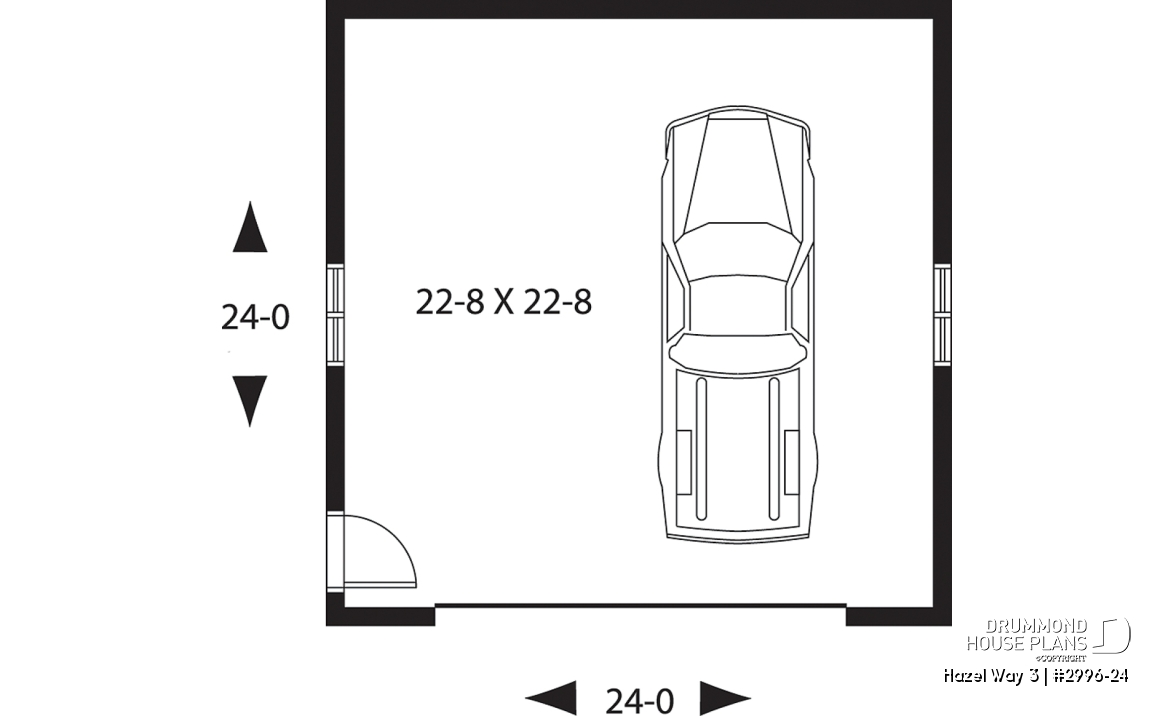

View the size of the rooms and height of the ceilings

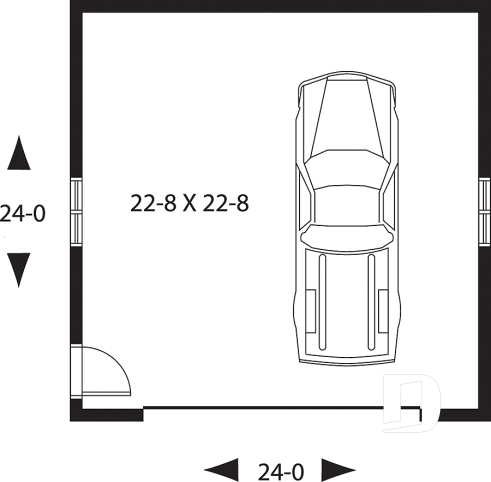

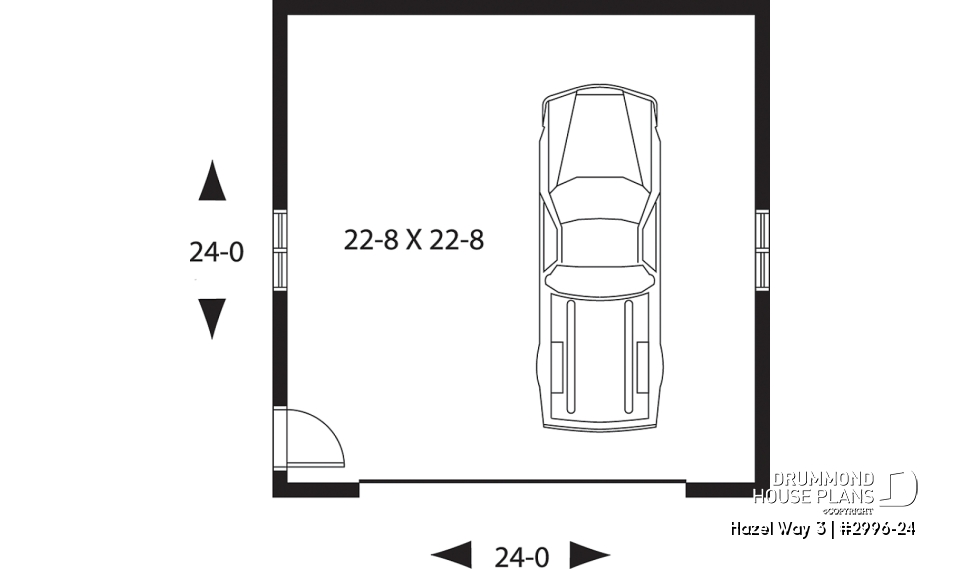

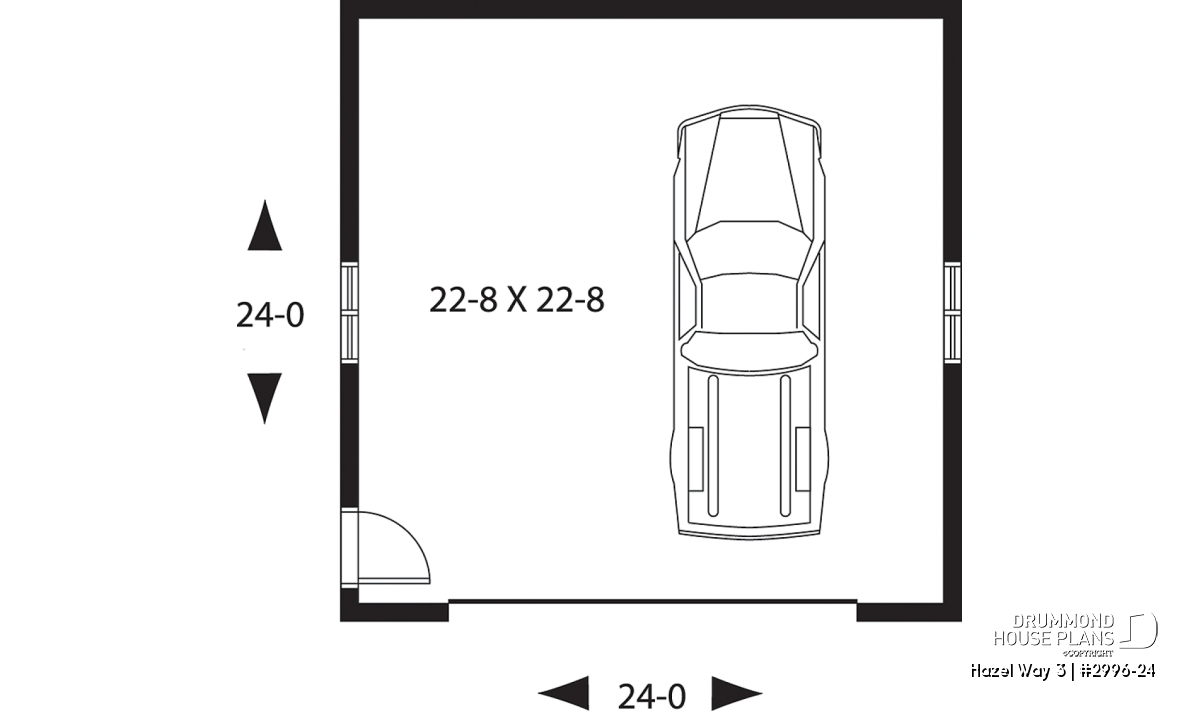

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 23'4" x 23'4" | ~ 8'6" |
General specifications
| Total living area | 576 sq.ft. |
| 1st level | 576 sq.ft. |
| Width | 24'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 13'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2A |
Rooms specifications
Other useful information on this plan
2-car garage plan, with lateral access door
.
Distinctive elements

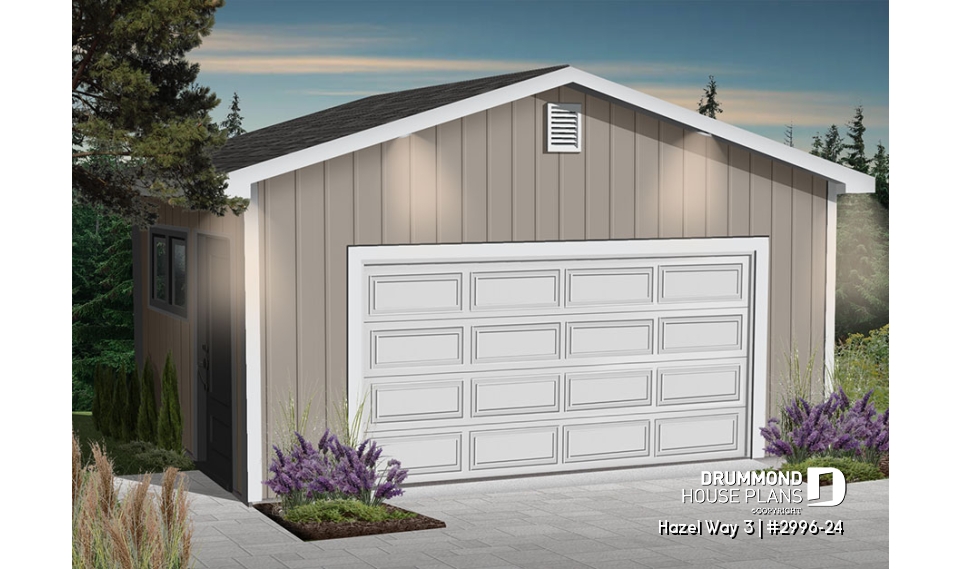

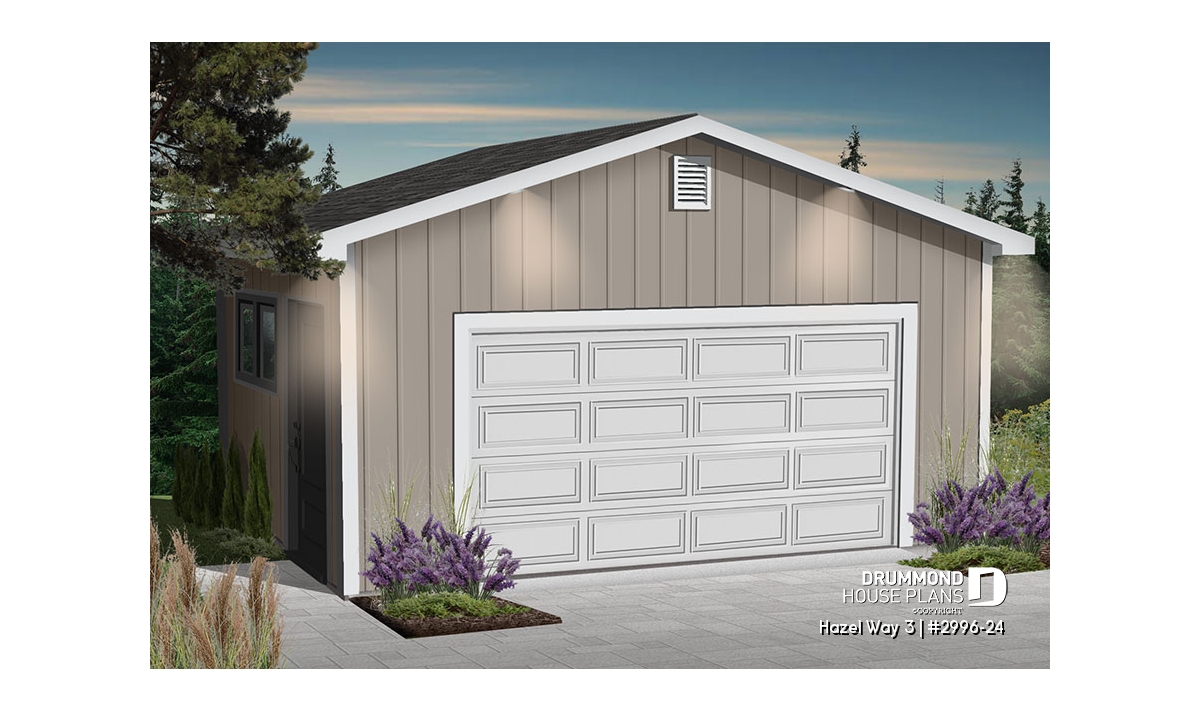

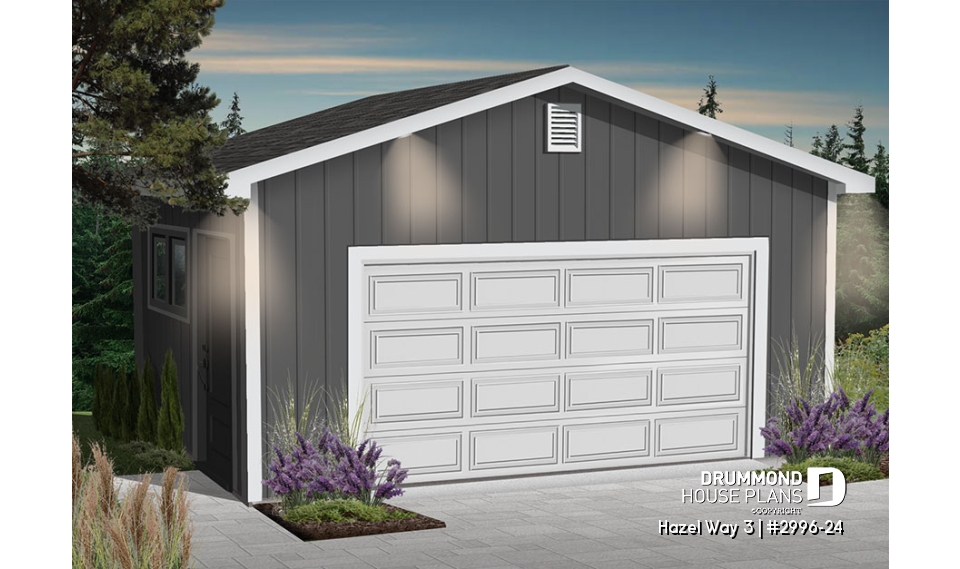

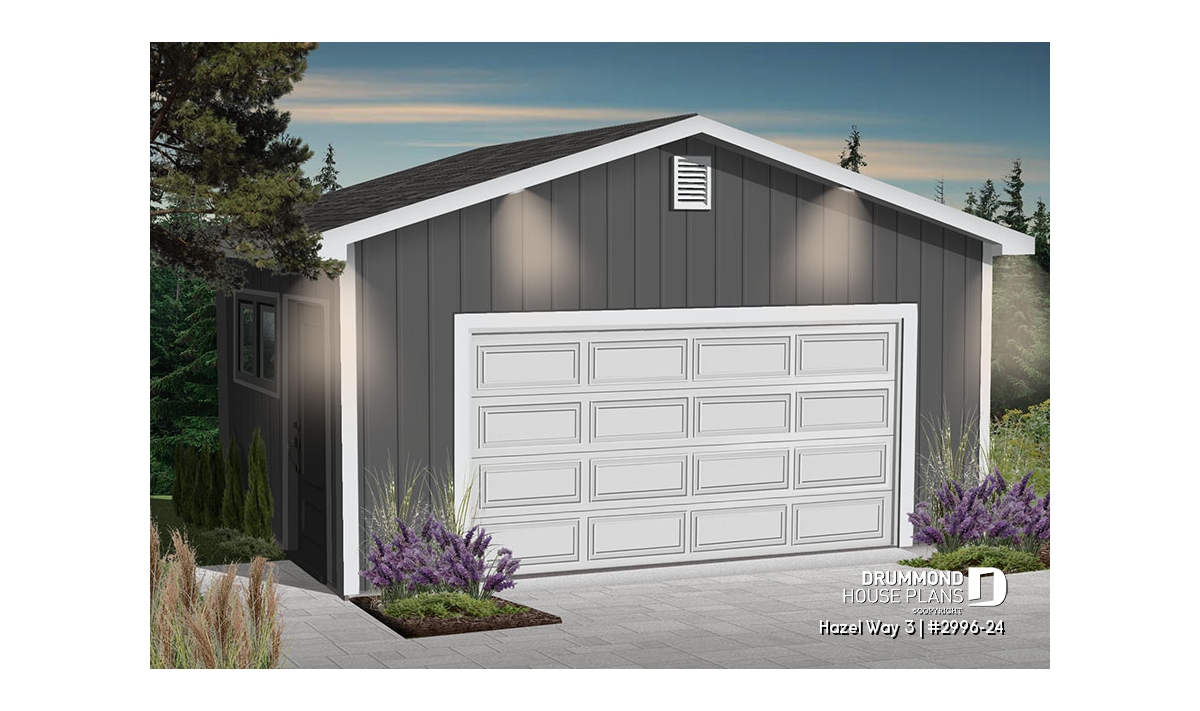

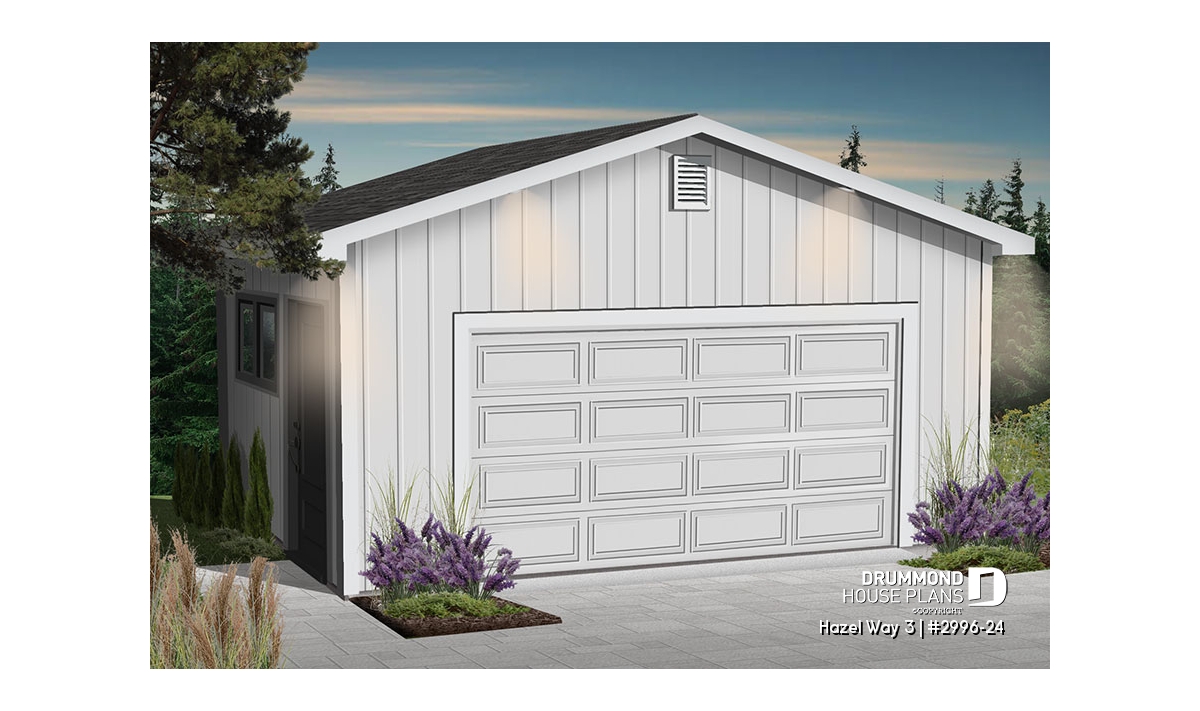

Double garage plan with one garage door.
Total of 576 sq.ft.
Size: 24' x 24'
Foundation: floating slab.
Insulated walls.
One door and two side windows.
Plan architectural style(s)
. American, . Country, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
May 06
Gerrod Johnson
If I buy a garage package does it come with the blue prints?
Thanks
May 06
Customer service
Dear Mr Johnson,
Thank you for your interest in Drummond House Plans.
We provide the blueprints only, we do not building nor provide building materials.
Please contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
