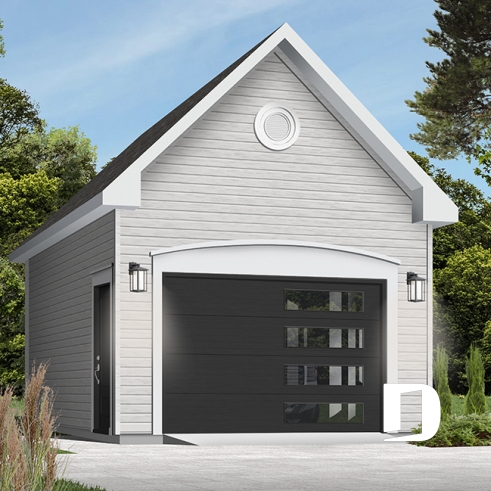

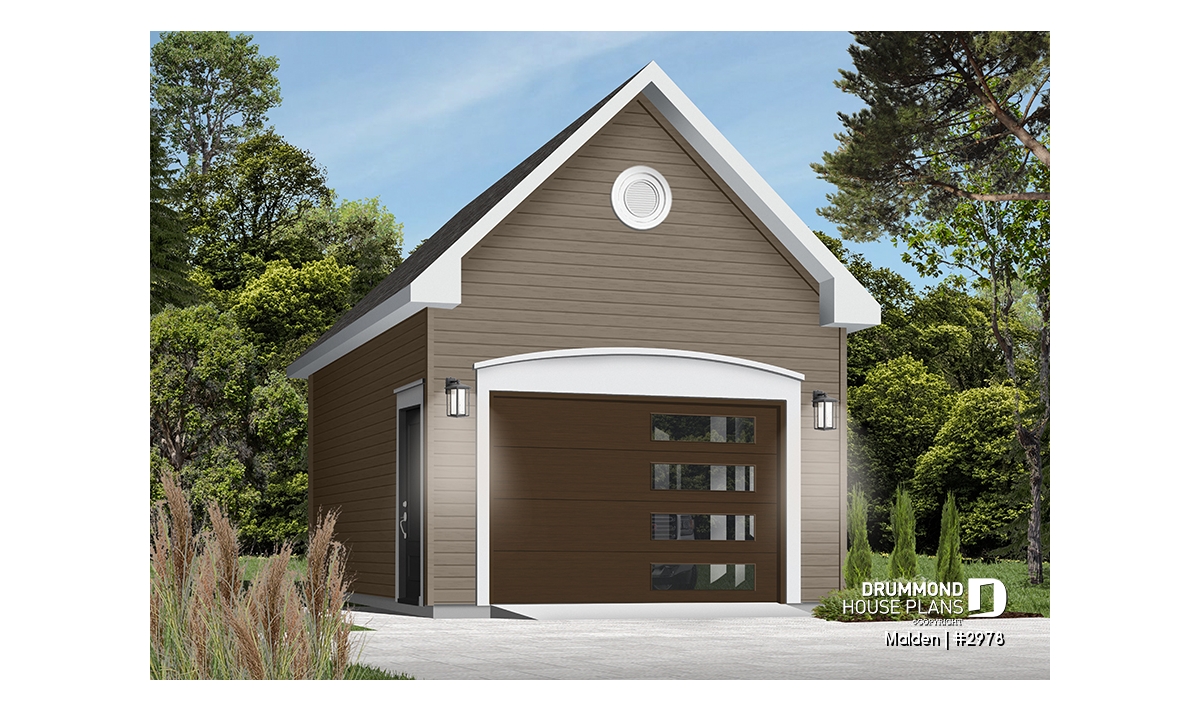

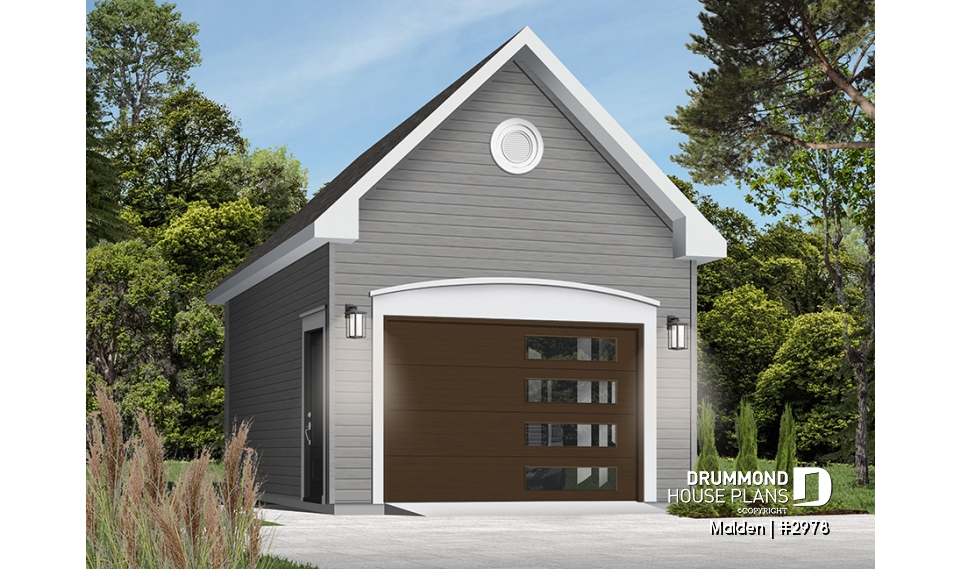

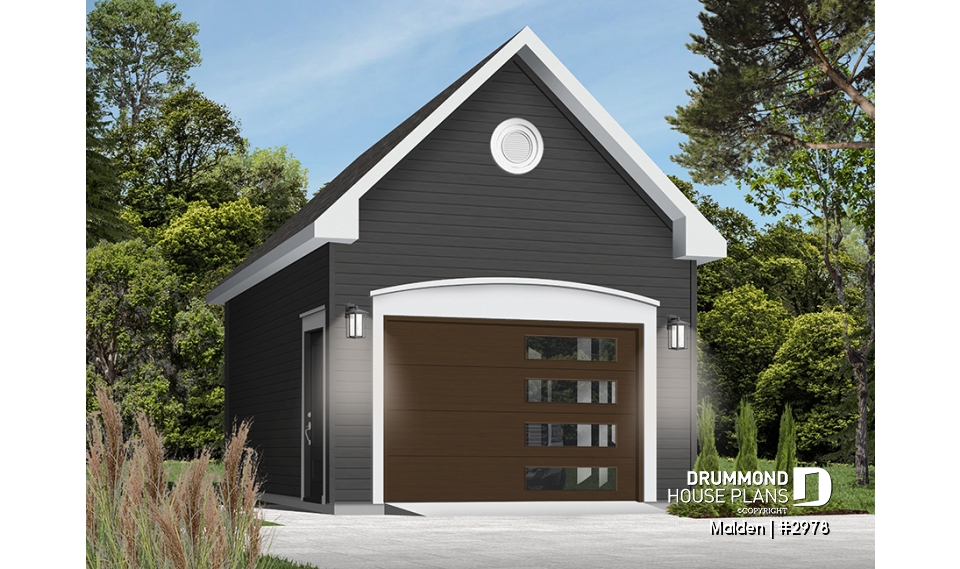

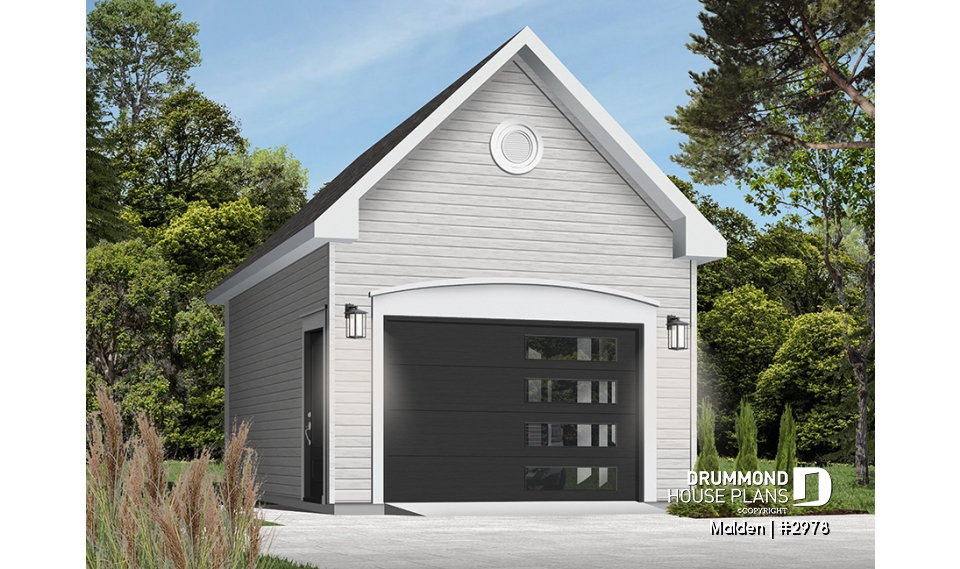

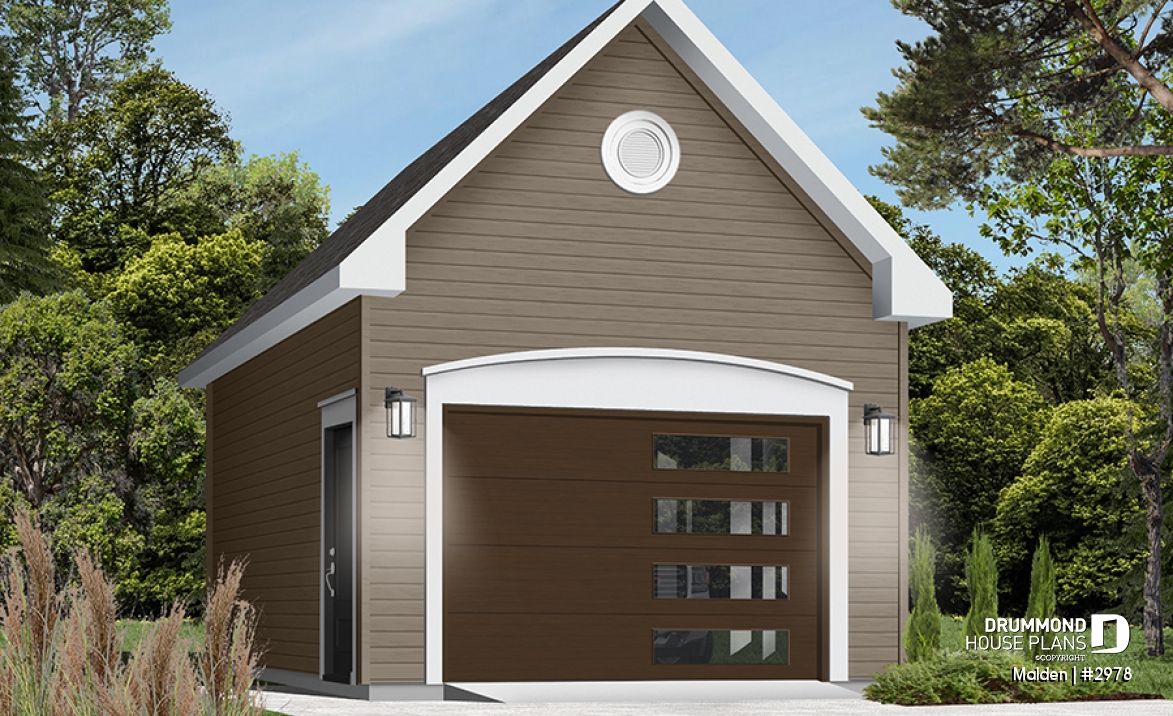

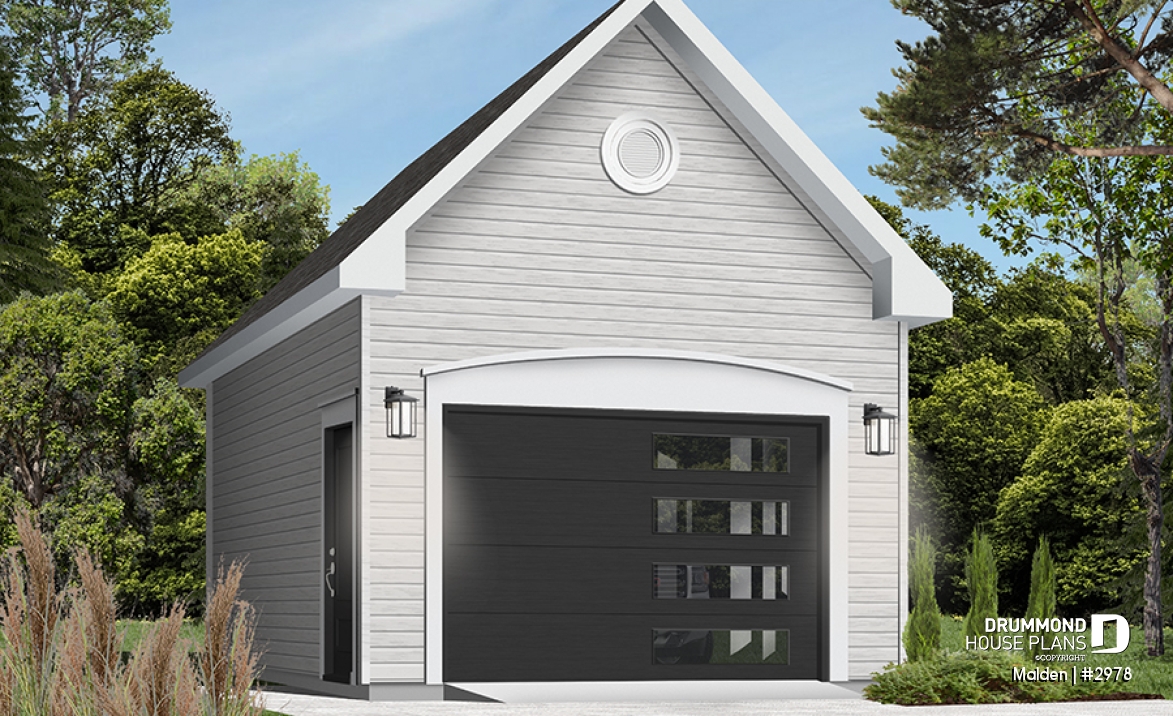

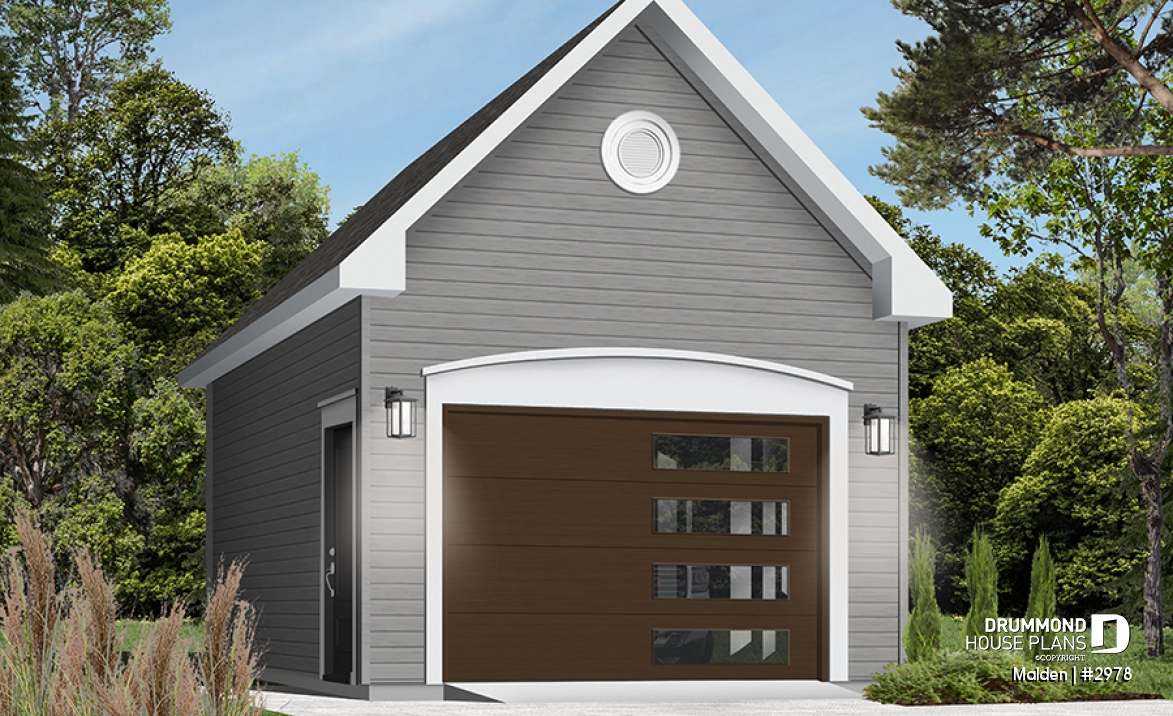

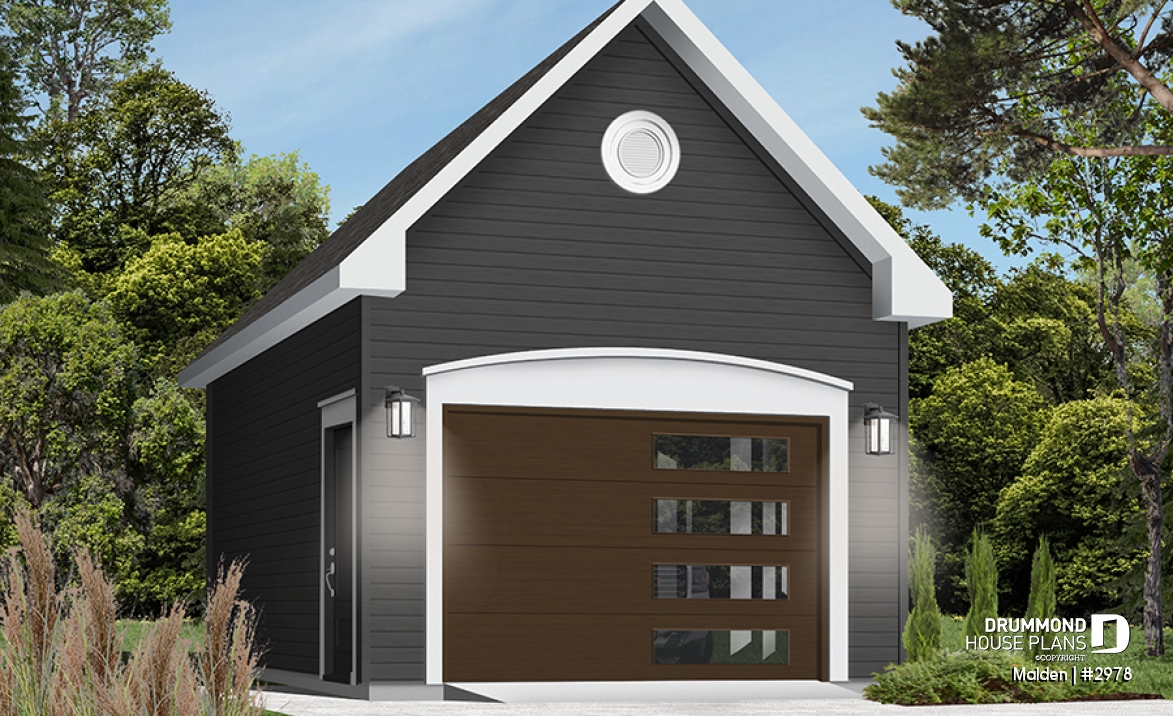

One-car garage plan, colonial style. DIY garage plan. PDF and blueprints available.
View the size of the rooms and height of the ceilings
|Garage||12'8" x 22'8"||~ 9'0"|
|Total living area||336 sq.ft.|

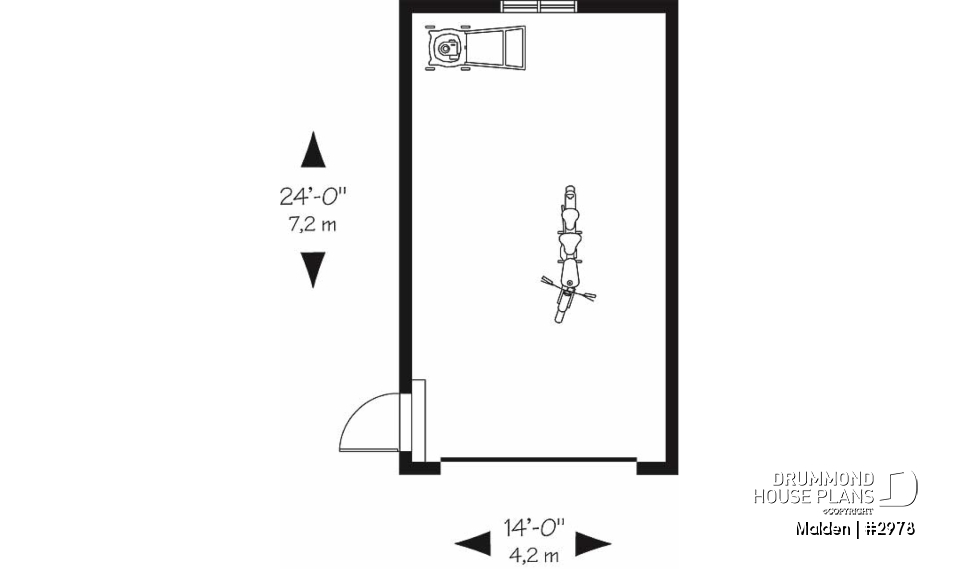

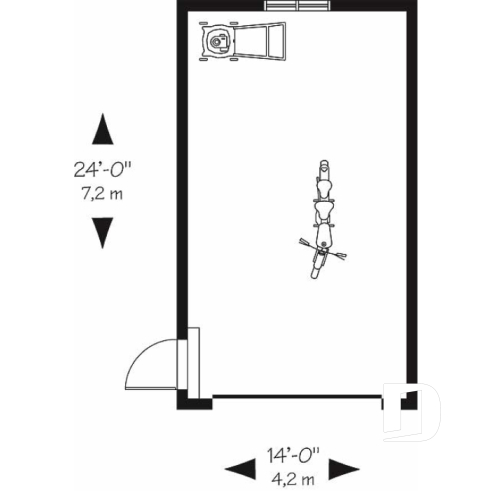

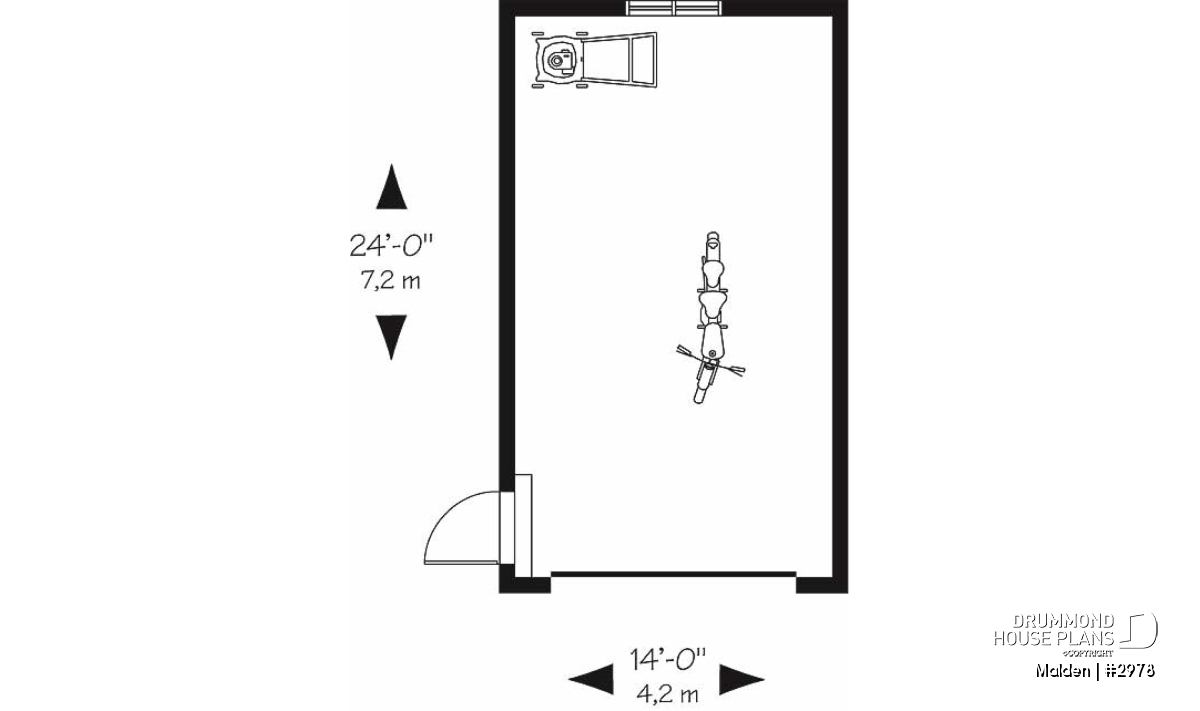

|1st level||336 sq.ft.|
|Ridge height from top of foundation||17'10"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Floating Slab|
|Other available foundations (a fee may apply)||Monolithic Slab|
|Builder price code||G1A|
|Garage type||One-car garage (336 sq.ft.)|
|Living bonus space||-|
Other useful information on this plan
