Colonial Bay 3 (2977-22)

2-Car garage plan with large storage area in the attic.

Bedrooms

-

Bath(s)

-

Half B.

-

Living area

1083 sq.ft.

  • front - BASE MODEL - 2-Car garage plan with large storage area in the attic. - Colonial Bay 3

front - BASE MODEL

Vignette front - BASE MODEL - 2977-22

View by floor

  • 1st level

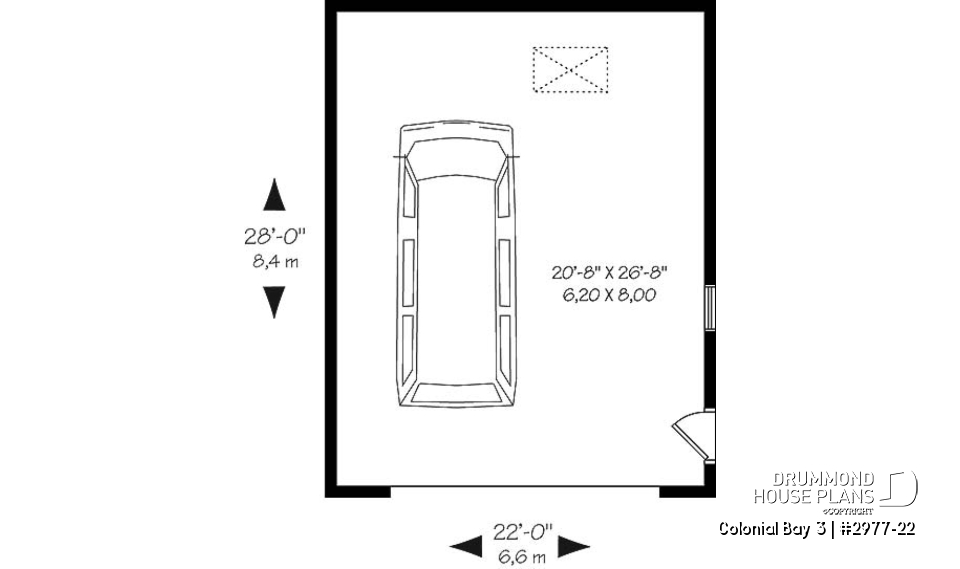

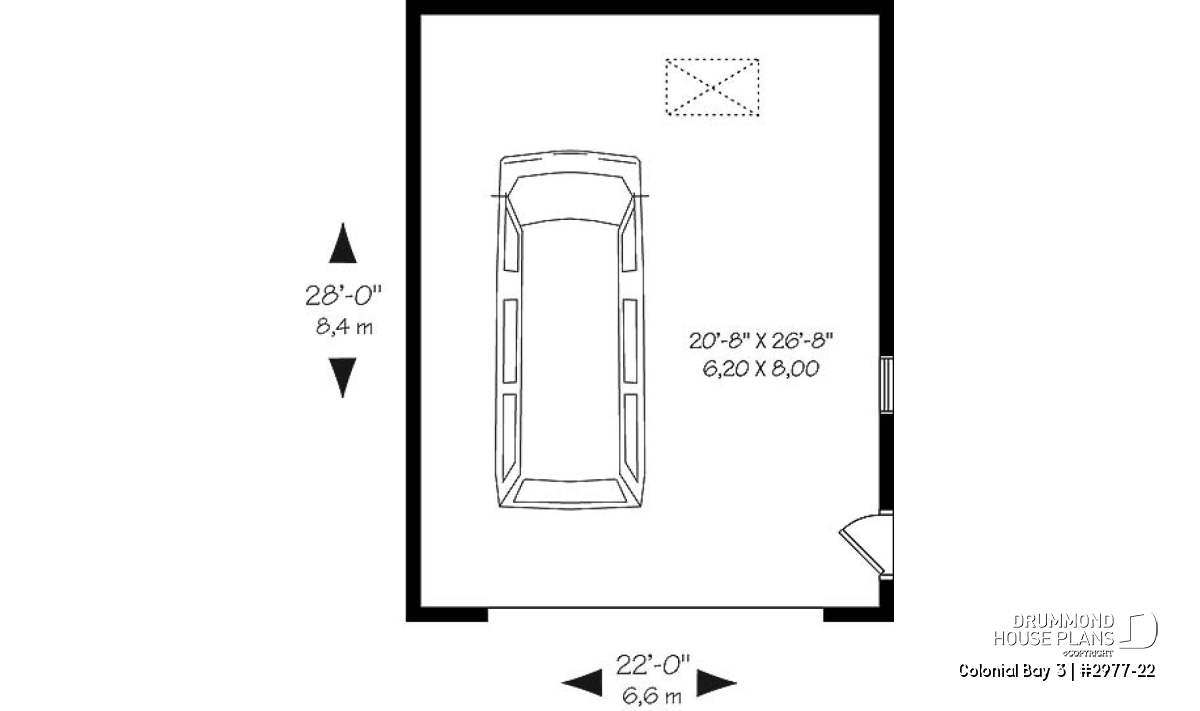

    1st level - 2-Car garage plan with large storage area in the attic. - Colonial Bay 3
  • 2nd level

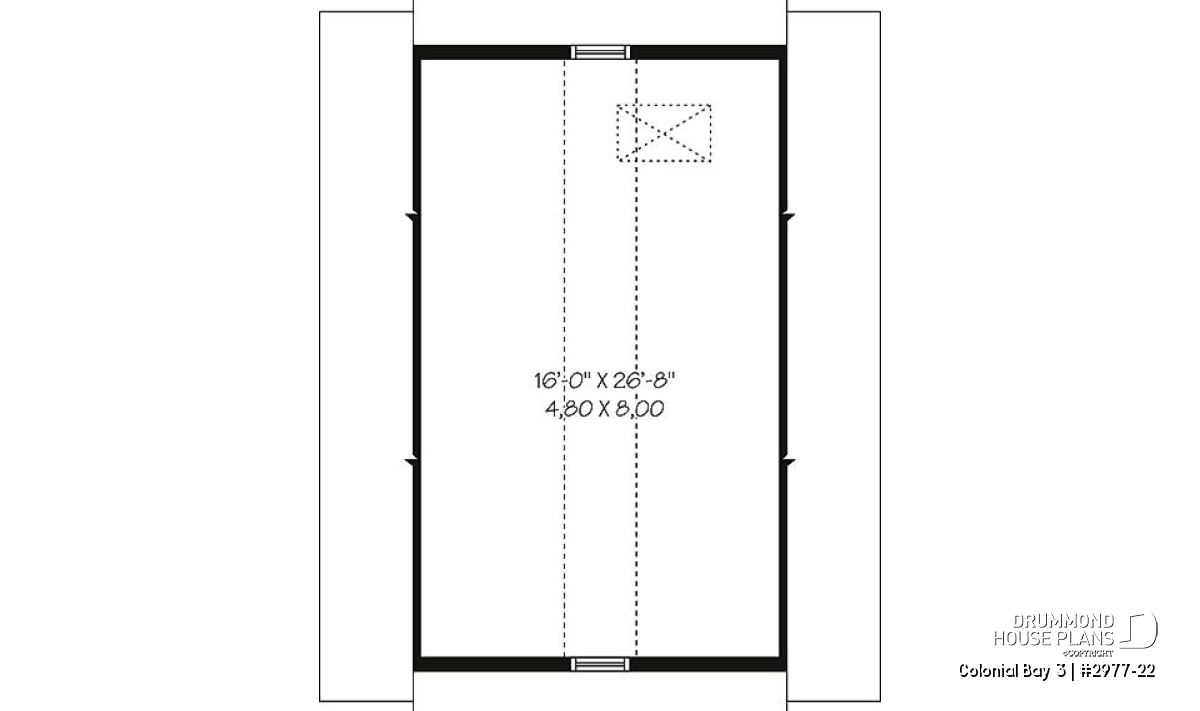

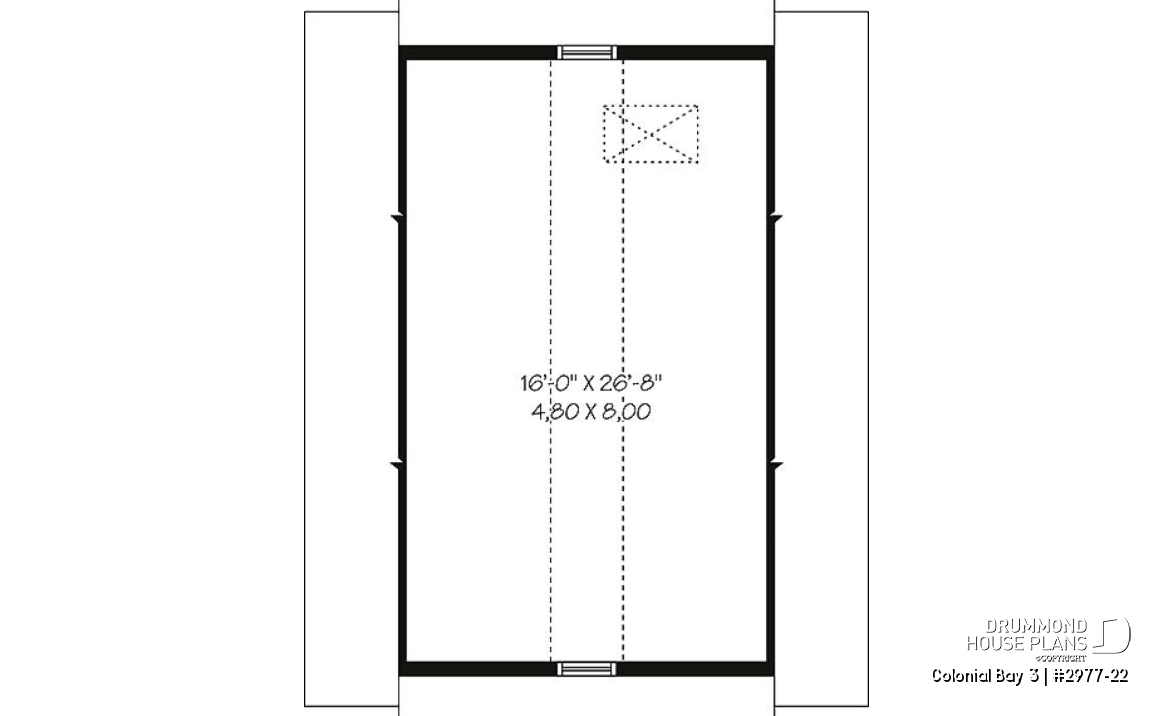

    2nd level - 2-Car garage plan with large storage area in the attic. - Colonial Bay 3
Vignette 1st level - 2977-22
Vignette 2nd level - 2977-22

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Garage 20'8" x 26'8" ~ 8'6"
2nd level
Rooms Sizes Ceiling
Storage 16'0" x 26'8" ~ 7'0"

General specifications

Total living area 1083 sq.ft.
1st level 616 sq.ft.
2nd level 467 sq.ft.
Width 22'0"
Depth 28'0"
Ridge height from top of foundation 19'1"
Exterior wall 2 X 6
Foundation type included in the plan Floating Slab
Other available foundations (a fee may apply) Monolithic Slab
Builder price code G2B

Rooms specifications

Bedroom(s) -
Full baths -
Half baths -
Garage type Two-car garage (616 sq.ft.)
Living bonus space 467 pi2
Bonus storage -
Find a builder

General specifications

Total living area 1083 sq.ft.
1st level 616 sq.ft.
2nd level 467 sq.ft.
Width 22'0"
Depth 28'0"
Ridge height from top of foundation 19'1"
Exterior wall 2 X 6
Foundation type included in the plan Floating Slab i
Other available foundations (a fee may apply) Monolithic Slab
Builder price code G2B

Rooms specifications

Bedroom(s) -
Full baths -
Half baths -
Garage type Two-car garage (616 sq.ft.)
Living bonus space 467 sq.ft. i
Bonus storage - i

Buy this plan

From : $395

Modify this plan

Get a quote

Description

2-car garage with storage room in the attic.

Other useful information on this plan

Space for Truck with this 2 car garage plan + storage space in the attic

Many garages cut it a little short when it comes to truck parking. With 26’8” of interior depth and a 16' door, you’ll get almost any domestic truck in this garage with room to spare! To provide as few obstructions as possible, the storage above is accessed by hatch and ladder.

Distinctive elements

Double garage plan, for 2 cars.
616 square feet on the ground floor.
467 square feet in the attic.
Nice style that can be fit with any kind of house or chalet.
The floating slab foundation is included in the plan. The monolithic slab option is also available for this model.
Other sizes are available for this garage model. Look for the model 2977 on our site and you will see all the sizes in the search result.

Plan feature(s)

Sloped ceiling

Plan architectural style(s)

American, Colonial, Traditional, Country

Other useful information on this plan

Full description

Space for Truck with this 2 car garage plan + storage space in the attic

Many garages cut it a little short when it comes to truck parking. With 26’8” of interior depth and a 16' door, you’ll get almost any domestic truck in this garage with room to spare! To provide as few obstructions as possible, the storage above is accessed by hatch and ladder.

Distinctive elements

Double garage plan, for 2 cars.
616 square feet on the ground floor.
467 square feet in the attic.
Nice style that can be fit with any kind of house or chalet.
The floating slab foundation is included in the plan. The monolithic slab option is also available for this model.
Other sizes are available for this garage model. Look for the model 2977 on our site and you will see all the sizes in the search result.

Plan feature(s)

Sloped ceiling

Plan architectural style(s)
