Colonial Bay 2 (2977-19)
Spacious one-car garage plan, with storage area in attic. PDF and blueprints available.
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

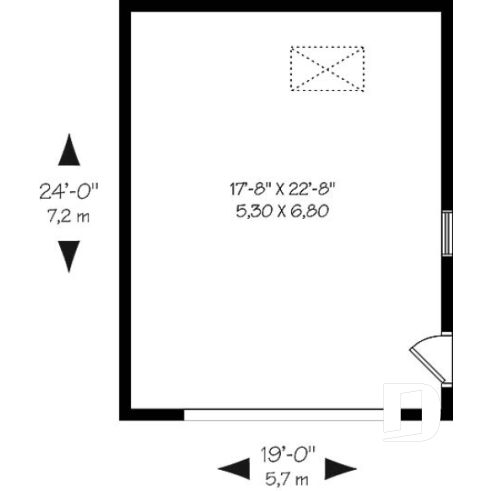

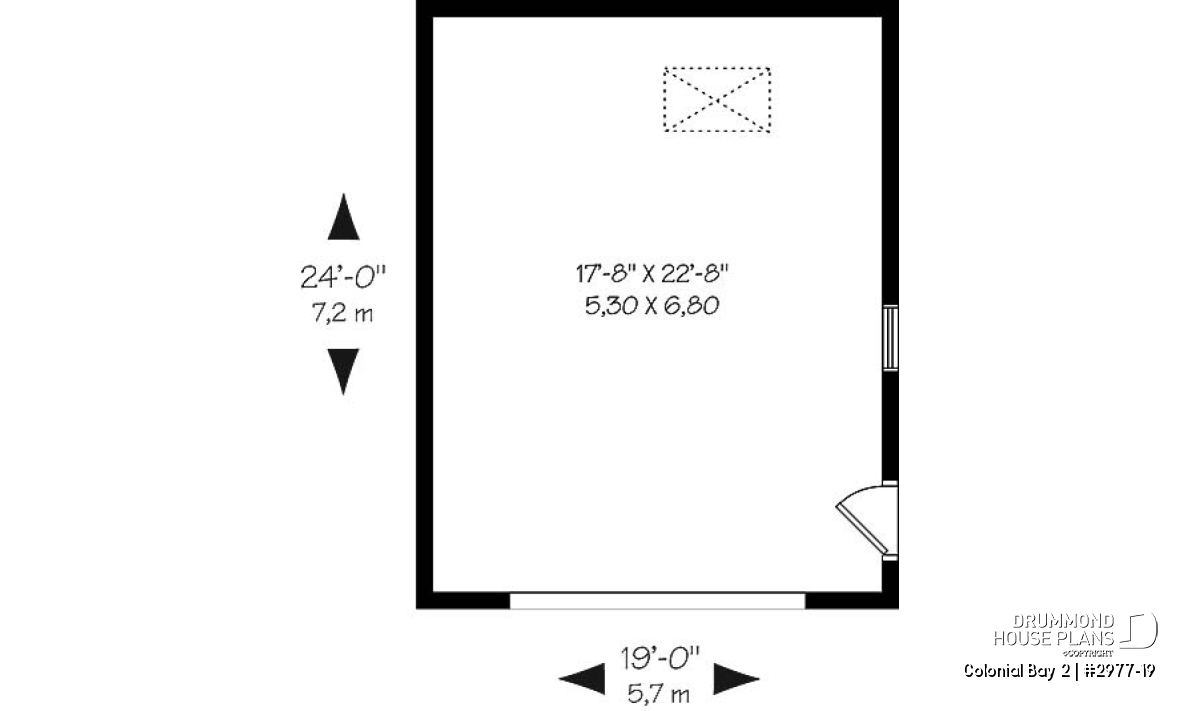

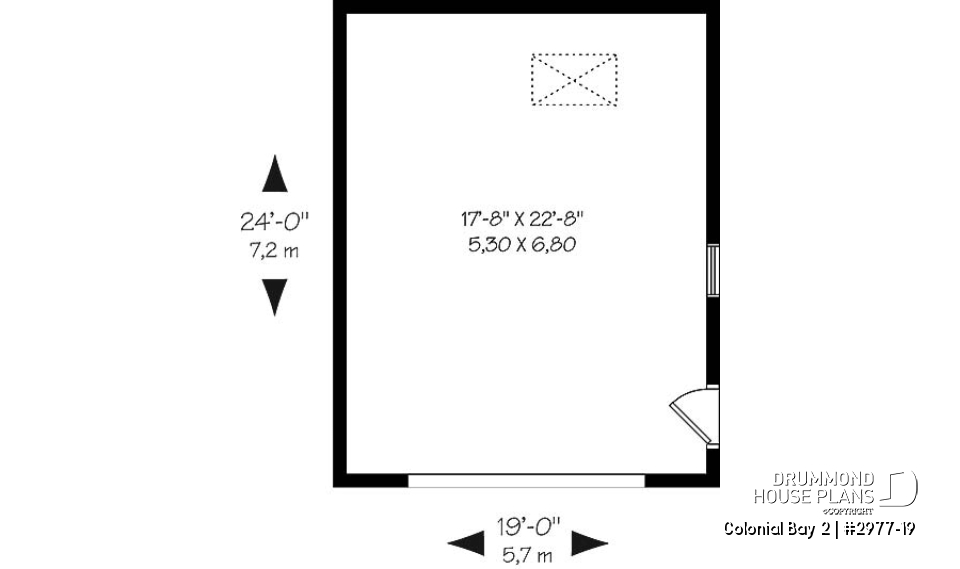

| Garage | 17'8" x 22'8" | ~ 8'6" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

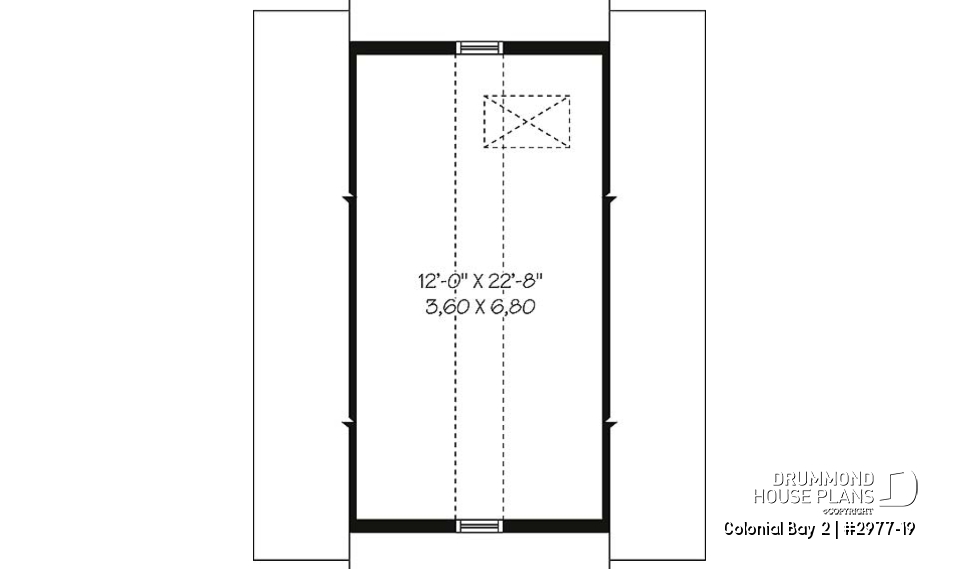

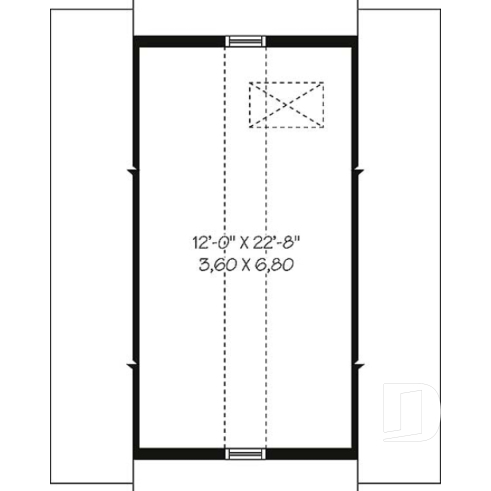

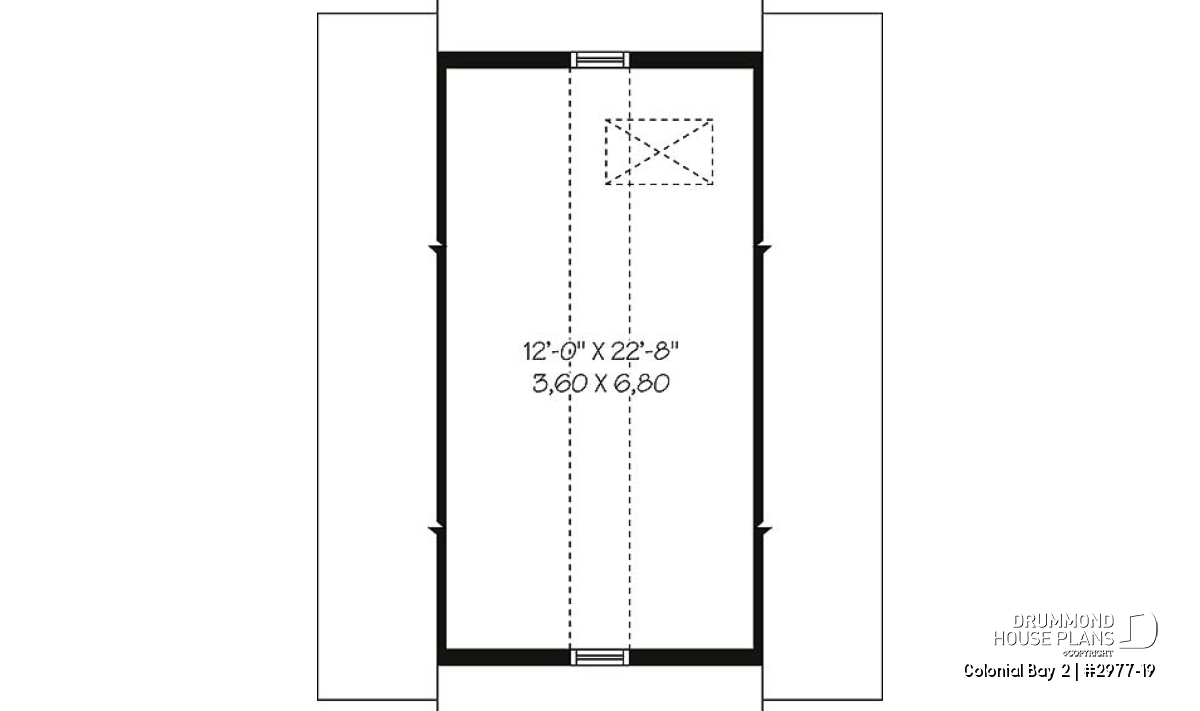

| Storage | 12'0" x 22'8" | ~ 6'0" |
General specifications
| Total living area | 760 sq.ft. |
| 1st level | 456 sq.ft. |
| 2nd level | 304 sq.ft. |
| Width | 19'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 17'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan
Large single-car garage plan with bonus storage
This single car garage is simple, yet functional with the added bonus of storage space above. Decorative moldings add charm and windows on both ends allow daylight into the storage area.
Distinctive elements
Large single garage plan for a large size car or SUV.
456 sq.ft. on the ground floor.
304 sq.ft. upstairs accessible via a ceiling hatch or retractable staircase.
Nice style that can be combined with any kind of house or chalet.
The floating slab foundation is included in the plan. The monolithic slab option is also available for this model.
Other sizes are available for this garage model. Look for the model 2977 on our website and you will see all the sizes in search results.
Plan feature(s)
Sloped ceiling
Plan architectural style(s)
. American, . Colonial, . Traditional, . Country
