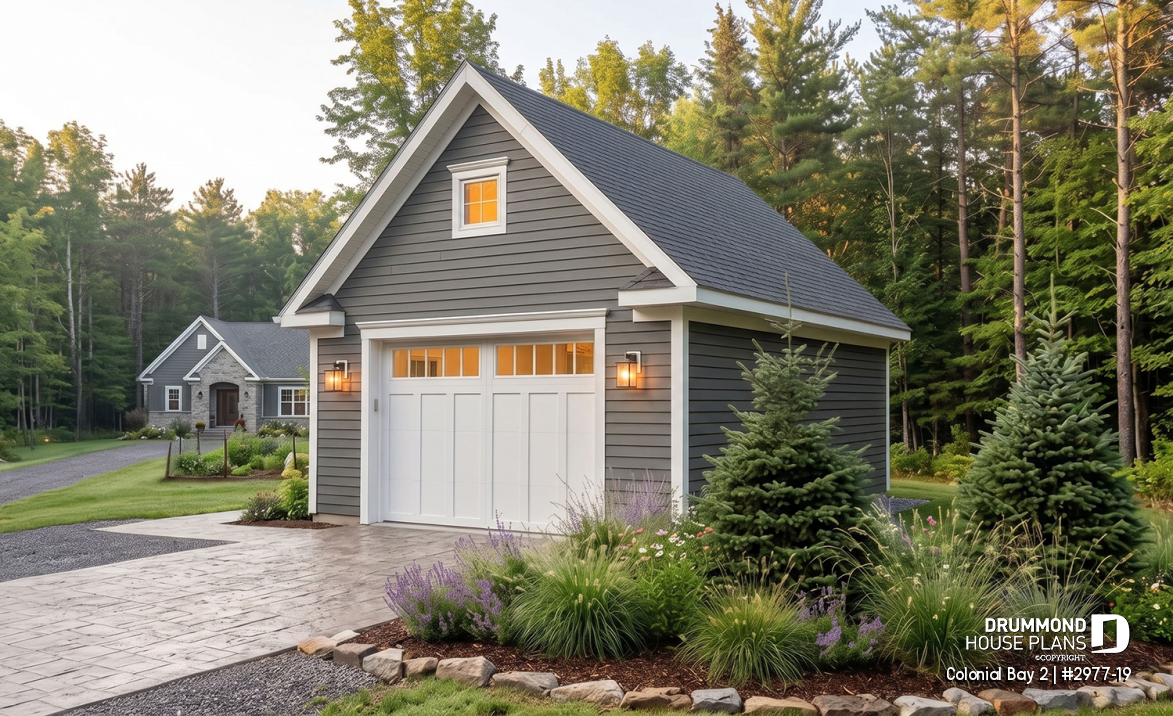

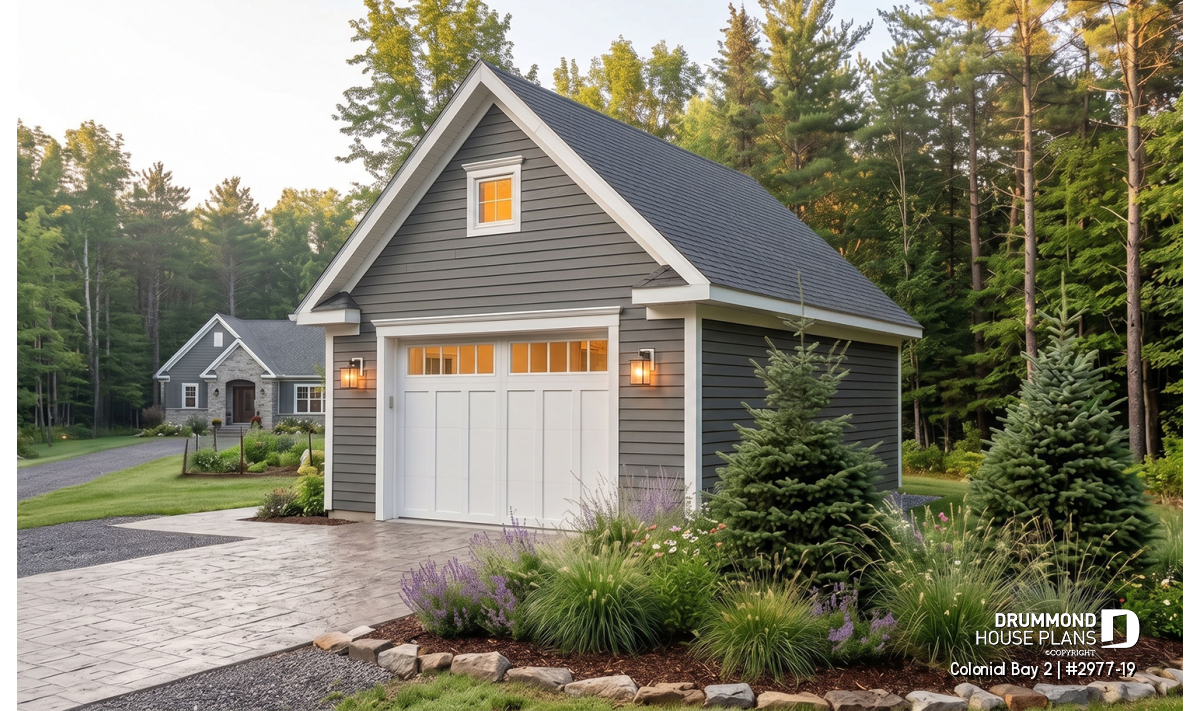

front - BASE MODEL
1st level
2nd level

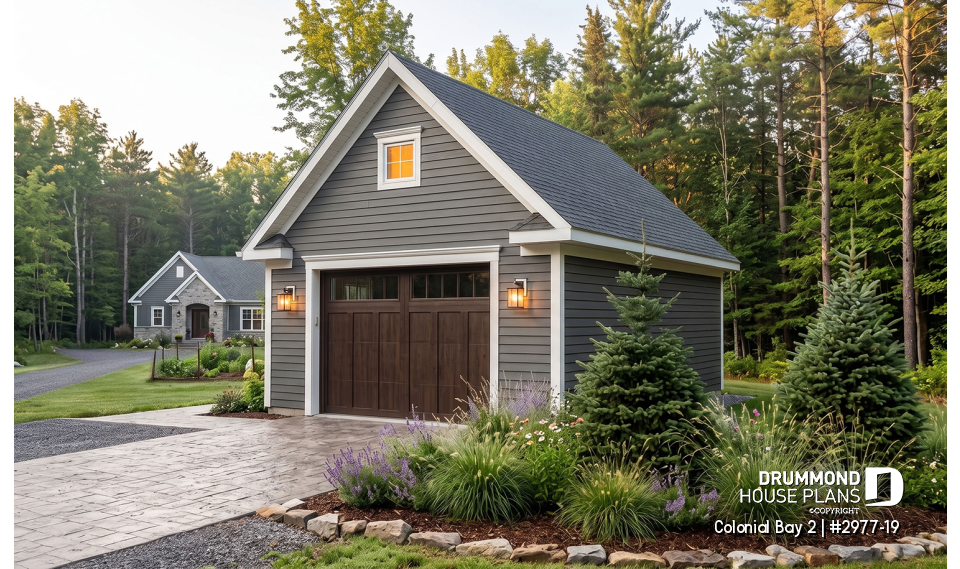

Colonial Bay 2 Garage plan 2977-19
Spacious one-car garage plan, with storage area in attic. PDF and blueprints available.
Starting from
555$
| Technical details summary | Plan #2977-19 | ||
|---|---|---|---|
| Total living area | 760 sq.ft. | Bedroom | - |
| Full baths | - | Half baths | - |
| Foundation included | Floating Slab | Garage | One-car garage |
| Width | 19'0" | Depth | 24'0" |
Additional details
General specifications
Total living area
760 sq.ft.
1st level
456 sq.ft.
2nd level
304 sq.ft.
Width
19'0"
Depth
24'0"
Ridge height from top of foundation
17'10"
Exterior wall
2 X 6
Floating Slab
Other available foundations (a fee may apply)
Monolithic Slab
Builder price code
G1B
Rooms specifications
Bedroom(s)
-
Full baths
-
Half baths
-
Garage type
One-car garage (456 sq.ft.)
304 sq.ft.
Covered porch area
-
1st level
Rooms
Sizes
Ceiling
Garage
17'8" x 22'8"
~ 8'6"
2nd level
Rooms
Sizes
Ceiling
Storage
12'0" x 22'8"
~ 6'0"
Large single-car garage plan with bonus storage
This single car garage is simple, yet functional with the added bonus of storage space above. Decorative moldings add charm and windows on both ends allow daylight into the storage area.
Distinctive elements
Large single garage plan for a large size car or SUV.
456 sq.ft. on the ground floor.
304 sq.ft. upstairs accessible via a ceiling hatch or retractable staircase.
Nice style that can be combined with any kind of house or chalet.
The floating slab foundation is included in the plan. The monolithic slab option is also available for this model.
Other sizes are available for this garage model. Look for the model 2977 on our website and you will see all the sizes in search results.
Plan feature(s)
Sloped ceiling
Plan architectural style(s)
The plan Colonial Bay 2 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
